{'key': 'Custom Fit', 'value': 'Specifically designed for each individual towed vehicle, ensuring a precise fit.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

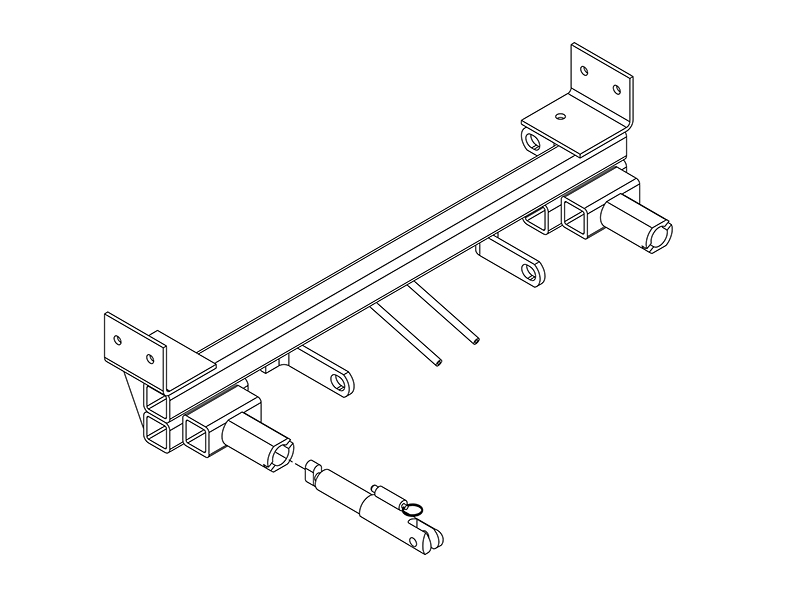

Introducing the Blue Ox BX1977 Tow Bar Bracket - a robust, reliable, and easy-to-install solution for your towing needs. Custom designed for each specific towed vehicle, this base plate guarantees an exact fit. It's constructed from high-quality steel, ensuring maximum durability and strength. The black powder coat finish not only gives it a sleek look but also offers superior resistance to corrosion and wear. The bracket features a convenient bolt-on mounting type, making the installation process a breeze. Plus, it comes with all the necessary hardware, eliminating the need for any additional purchases. With the Blue Ox BX1977 Tow Bar Bracket, you can tow with confidence, knowing your vehicle is equipped with top-notch hardware.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2009 | Chrysler Aspen | Comes with Removable Attachment Tabs Install Rating 2 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight |
| 2007 - 2009 | Dodge Durango | Comes with Removable Attachment Tabs Install Rating 2 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight |
Yes, the BX1977 is designed for 2007-09 Chrysler Aspen and 2007-09 Dodge Durango vehicles. However, you must confirm the weight of your individual vehicle before towing. The vehicle weight is near the Class III 5,000 lb. rating limitation, and some models depending on options may exceed this rating. If your vehicle exceeds 5,000 lbs., you cannot use Tow Bar Adapters. Confirm towability and pre-towing procedures with your vehicle's owner's manual or manufacturer.
The BX1977 is rated for Class III, 5,000 lb. towing capacity. However, the manual notes that the vehicle weight is near this limitation, and some 2007-09 Chrysler Aspen and Dodge Durango models depending on options may exceed 5,000 lbs. You must confirm the weight of your individual vehicle before towing. Tow Bar Adapters are not to be used with vehicles weighing over 5,000 lbs.
The attachment tab height is 14 1/2" and the attachment tab width is 29".
The following tools are required: Loctite RED, 10MM socket, 18MM socket, 17/32" drill bit, hack saw knife, and vise grips. A 3/4" socket is also needed for tightening the 1/2" hex bolts. The manual recommends that installation be performed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge to do fit work.
The kit includes: 1 baseplate weldment (61-6382), 6 nut plates with 10" wire (61-4604), 6 Grade 5 hex bolts 1/2-13 x 1 1/2" (201-0051), 6 lock washers 1/2" (203-0012), 2 self-drilling screws #12-14 x 1" (201-0979), 2 round head screws #10-32 x 1/2" (201-0192), 2 lock washers #10 (203-0054), 2 hex nuts #10-32 (202-0047), 2 four-way connector adapters (101-5822), 2 attachment assemblies (62-3469), 2 cap plugs (290-0437), 2 quicklinks 1/2" (229-0512), and 2 baseplate safety cables 36" Class IV (226-0049).
No, the BX8869 Bulb and Socket Wiring Kit is not included but is recommended for the 2007-09 Chrysler Aspen and Dodge Durango. It must be ordered separately.
Yes. The fascia and metal bumper are removed and reinstalled during installation of the baseplate. This is a required part of the installation process.
Yes, drilling is required. You must drill two holes into the side of the frame and one hole in the bottom of the frame using a 17/32" drill bit. The manual recommends placing a piece of tubing over the drill bit for protection while drilling. The baseplate is used as a template to mark the hole locations.
Yes, trimming of the fascia is required. You must use a hack saw knife to mark and trim out an opening in the fascia for the attachment tabs on both sides of the vehicle. However, models that have tow hooks will not need to cut out an opening in the fascia.
The first step is to remove three metric bolts just forward of the front tire on the wheel well using a 10MM socket. Once these bolts are removed, pull the plastic back and remove two additional metric bolts with the 10MM socket. Set all bolts aside to be reinstalled later. Repeat this process on both sides of the vehicle.
Lift the baseplate straight up and slide it forward up to the dimple in the frame. The baseplate should be straight and clamped into place with vise grips while you drill the mounting holes.
A 17/32" drill bit is used to drill two holes into the side of the frame and one hole in the bottom of the frame. The manual recommends placing a piece of tubing over the drill bit for protection while drilling.
The baseplate is secured using 1/2-13 x 1 1/2" Grade 5 hex bolts (part 201-0051) with 1/2" lock washers (part 203-0012). These are inserted into 1/2" nut plates (part 61-4604) that are placed in the drilled holes. A total of 6 bolts and washers are used (3 per side).
The manual states that all bolts must be tightened according to the torque chart on the front page of the instructions or on page 3 of the Baseplate Towing General Instructions. However, the specific torque values for the 1/2" Grade 5 hex bolts are not provided in this installation document. You must refer to the General Instructions or contact Blue Ox Customer Care at (888) 425-5382 for the correct torque specification.
Yes, Loctite RED must be used on all bolts before tightening. This is a required step before final tightening of all bolts according to the torque chart.
Reinstall the metal bumper by just barely starting the two outside nuts (leaving them really loose) and then tip the bumper out towards the front to start the back nut. You will then be able to tighten down all three nuts.
The attachment tabs should be removed when not in use.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. They must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. However, these cables are to be used in conjunction with, and NOT a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle. Do not mount the permanent baseplate safety cables against wires, hoses or brake lines.
All electrical connections must be plugged in properly and functioning before installing the fascia.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications.
Yes, it is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
No. You must use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor.
Blue Ox towing products and accessories are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge to do fit work. Blue Ox Dealers can be found at www.blueox.us or by contacting the Customer Care Department at (888) 425-5382.
Contact Blue Ox Customer Care at 1-800-228-9289 to speak with their customer care team. You can also find Blue Ox Dealers at www.blueox.us or contact the Customer Care Department at (888) 425-5382. For additional towing information, you can contact REMCO at 1(800)228-2481.
Yes, the BX1977 is designed for these vehicles. However, confirm your vehicle's weight before towing—some models may exceed the 5,000 lb. Class III rating.
Yes. You must drill two holes into the side of the frame and one hole in the bottom using a 17/32" drill bit. Trimming of the fascia with a hack saw is also required.
You need: Loctite RED, 10MM socket, 18MM socket, 17/32" drill bit, hack saw knife, vise grips, and 3/4" socket. Professional installation by a Blue Ox Dealer is recommended.
Yes, Loctite RED must be applied to all bolts before tightening to the specified torque values.
Inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to specification with Loctite RED applied.
