Blue Ox
Verify Fitment
Select your vehicle to confirm this part fits.
2001 - 2003 Chrysler Sebring
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
{'feature': 'Custom Design', 'description': 'Each Blue Ox BX1946 Tow Bar Bracket is individually tailored for each specific towed vehicle, ensuring an optimal fit and performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

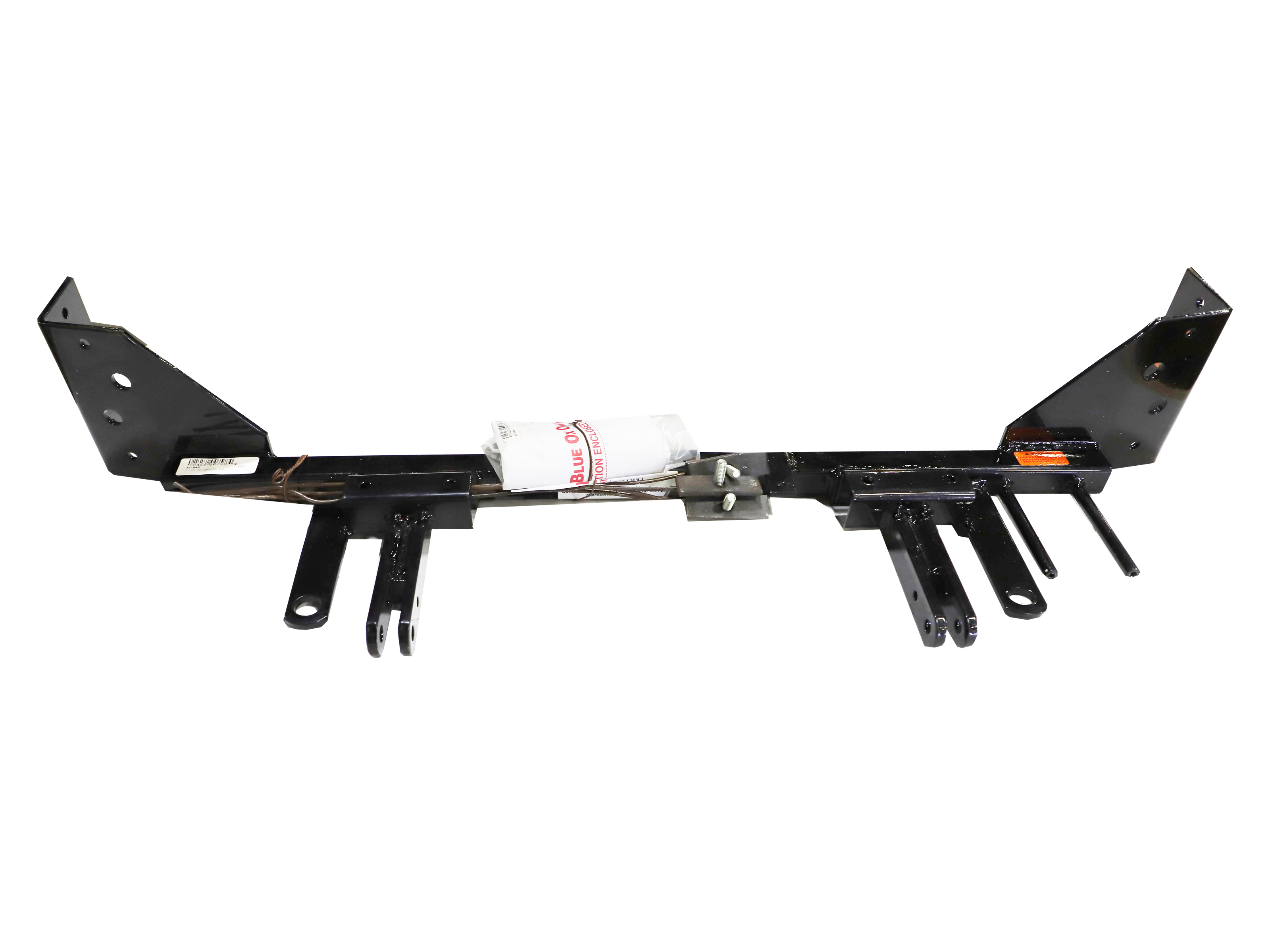

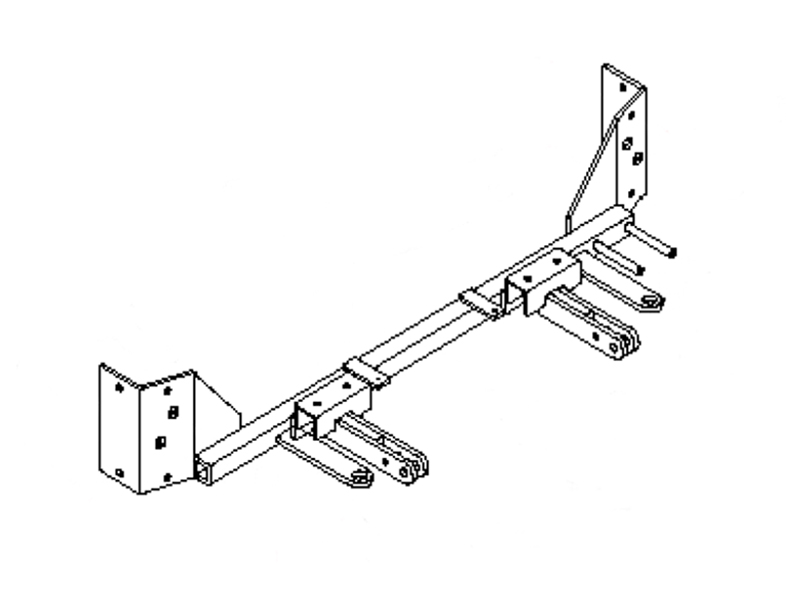

The Blue Ox BX1946 Tow Bar Bracket is meticulously designed for each specific towed vehicle, providing an unrivaled level of customization. Crafted from robust steel and coated with a durable black powder finish, this bracket is built to withstand the rigors of any journey. Its bolt-on mounting type ensures a secure, sturdy fit and it comes with all necessary hardware included for a hassle-free, do-it-yourself installation.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2001 - 2003 | Chrysler Sebring | 2-Door | 2 Door Only No Fog Lights Comes with Standard Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
The BX1946 baseplate is designed for 2001–2003 Chrysler Sebring 2-door coupe models. The manual specifies model notes 1, 24, 38, and 59. If your vehicle does not match this description or model year, contact your Blue Ox dealer to confirm fitment.
The BX1946 is designed specifically for the 2001–2003 Chrysler Sebring 2-door coupe. The manual does not confirm fitment on 4-door models or other body styles. Contact your Blue Ox dealer or distributor to verify compatibility with other Sebring variants.
Required tools are: 7MM, 8MM, 10MM, 13MM, and 17MM wrenches; Phillips screwdriver; 1/4", 9/32", and 13/32" drill bits; vise grips; and Loctite Blue. A power drill is necessary for drilling multiple holes in the frame and bumper.
The baseplate includes: 1 weldment base plate (61-5657), 4 bolt plates with wire (61-5590), 8 Grade 5 hex bolts 3/8-16 x 1¼ (201-0368), 12 lock washers 3/8 (203-0010), 12 hex nuts 3/8-16 (202-0003), 4 Grade 8.8 hex bolts 8MM-1.25 x 30MM (201-0446), 4 lock washers 8MM (203-0102), 4 flat washers 8MM (203-0107), 1 horn bracket (102-6080), and fasteners for horn and coolant line routing. See the parts list for complete details.
Yes. Loctite Blue is required but not included. The manual specifies that Loctite must be applied to all bolts before tightening. Loctite Blue is listed in the Tools Required section.
You must remove: 6 push pins from the top of the grille, 2 metric bolts from the top of the grille, the front fascia, 3 metric screws from each side near the wheel well, 8 push pins from the bottom of the fascia, the metal bumper (which requires removing a temperature sensor, 2 push pins from the coolant line, and 4 metric bolts from inside the bumper ends), 2 push pins from the air dam on both sides, the horn bracket and electrical connection, and the vacuum tank from the driver's side.
No. The manual states that the factory horn bracket will not be reused. A new horn bracket (item 9, part number 102-6080) is provided in the baseplate kit and must be installed during reassembly.
Yes. Extensive drilling is required. You must drill four 13/32" holes on the front side of the baseplate, four 13/32" holes on the back side of the metal bumper, four 13/32" holes on the underside of the metal bumper, additional 13/32" holes on the end plates, and one 1/4" hole in the bottom of the metal bumper for the temperature sensor. All drilling uses the baseplate as a template.
The primary mounting holes are 13/32" diameter. This size is used for the four holes on the front side of the baseplate, four holes on the back side of the metal bumper, four holes on the underside of the metal bumper, and additional holes on the end plates.
The temperature sensor hole in the bottom of the metal bumper is 1/4" diameter.
Yes. Some trimming is required to the air dam below the metal bumper before reinstalling it (step 15). Additionally, some trimming may be required to the fascia when reinstalling it (step 16). The manual notes that dimensional variations between otherwise identical cars can be considerable, and it may be necessary to file a hole slightly to accommodate these variations.
1. Remove front fascia, metal bumper, horn bracket, vacuum tank, and air dam. 2. Position baseplate so the top edge of end plates is flush with the top frame webbing. 3. Drill four 13/32" holes on the front side of the baseplate using it as a template; insert fasteners but do not tighten. 4. Drill four 13/32" holes on the back side of the metal bumper; install fasteners and tighten with Loctite. 5. Drill four 13/32" holes on the underside of the metal bumper; insert bolt plate and tighten fasteners with Loctite. 6. Drill remaining 13/32" holes on end plates; install fasteners with Loctite. 7. Drill 1/4" hole for temperature sensor; reinstall end caps. 8. Reinstall horn bracket with Loctite. 9. Trim air dam and fascia as needed; reinstall both. 10. Install tow bar and safety cables per their instructions.
Hold the baseplate in place so that the top edge of the end plates is flush with the top frame webbing. The baseplate is then used as a template for drilling the mounting holes.
The attachment tabs are center to center at 18 inches horizontally and at 14 inches height.
No. In step 9, fasteners are inserted but not tightened. Fasteners are tightened in subsequent steps (10, 11, 12, and 14) after all drilling is complete and Loctite Blue has been applied.
The manual does not provide torque specifications. However, it specifies that Grade 5 bolts (3/8-16 x 1¼) and Grade 8.8 bolts (8MM-1.25 x 30MM) are used. The manual recommends using Loctite Blue on all bolts before tightening and states that owners should tighten to 'recommended specifications' but does not list those specifications. Contact your Blue Ox dealer for the correct torque values.
Use a replacement bolt of the same grade as the original. The baseplate uses Grade 5 bolts (3/8-16 x 1¼, part 201-0368) and Grade 8.8 bolts (8MM-1.25 x 30MM, part 201-0446). Replacement parts may be ordered through your nearest Blue Ox dealer or distributor. Do not use homemade or nontypical parts.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. They must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Each cable must have an adequate weight rating for the towing system; the combined rating of two cables together does not qualify. Permanent baseplate safety cables must be used in conjunction with, and are not a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Permanent baseplate safety cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Do not mount the cables against wires, hoses, or brake lines, as improper installation could cause fluid leaks or electrical shorts some time after installation. The manual provides illustrations of recommended cable arrangements.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to the recommended specifications using Loctite Red. It is the owner's responsibility to perform these inspections.
Do not substitute other devices if the tow bar pin or clip is lost. Use only the correct replacement part. Contact your Blue Ox dealer for the appropriate replacement.
After installation, verify that the baseplate is securely fastened with all bolts tightened and Loctite applied. Ensure the front fascia and metal bumper are properly reinstalled and trimmed. Confirm that the horn bracket is reinstalled and functional, the coolant line is properly routed and secured, and the temperature sensor hole is drilled and clear. Install the tow bar and safety cables according to their instructions. The manual recommends that dealers or installers ensure the user receives the instruction sheet.
Yes. The manual states that attachment tabs should be removed when not in use (if applicable).
Yes. Blue Ox strongly recommends registering your baseplate online at www.blueox.com. Registration is crucial so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
The BX1946 is designed for 2001–2003 Chrysler Sebring 2-door coupe only. Confirm your model year and body style match before purchasing.
You need 7MM, 8MM, 10MM, 13MM, and 17MM wrenches; Phillips screwdriver; 1/4", 9/32", and 13/32" drill bits; vise grips; and Loctite Blue. A power drill is essential.
Yes. You must drill multiple 13/32" holes in the frame and bumper, one 1/4" hole for the temperature sensor, and perform some trimming of the air dam and fascia.
Yes. The front fascia and metal bumper must be removed before baseplate installation. The horn bracket and vacuum tank must also be removed.
The baseplate uses Grade 5 bolts (3/8-16 x 1¼) and Grade 8.8 bolts (8MM-1.25 x 30MM). All bolts must be treated with Loctite Blue before tightening.
Yes. Permanent baseplate safety cables are strongly recommended and must be used in conjunction with legally required safety cables. They must connect the baseplate to the vehicle's frame rail or cross member and must not contact wires, hoses, or brake lines.
Some trimming may be required to the fascia when reinstalling it (step 16). If the fascia still does not fit, check that the baseplate is positioned correctly with the top edge of the end plates flush with the top frame webbing. Verify that all drilling has been completed accurately and that no fasteners are protruding excessively. If dimensional variations are significant, filing holes slightly may be necessary (step 17).
Some trimming is required to the air dam below the metal bumper before reinstalling it (step 15). If the air dam still does not fit after trimming, verify that the metal bumper is properly aligned and all fasteners are tightened. Check that the baseplate is positioned correctly with the top edge of the end plates flush with the top frame webbing.
If the baseplate or safety cables are improperly installed and contact wires or hoses, it could cause fluid leaks or electrical shorts some time after the actual baseplate installation. This is a serious safety concern. Ensure cables are routed away from all wires, hoses, and brake lines, and verify the installation before towing.
