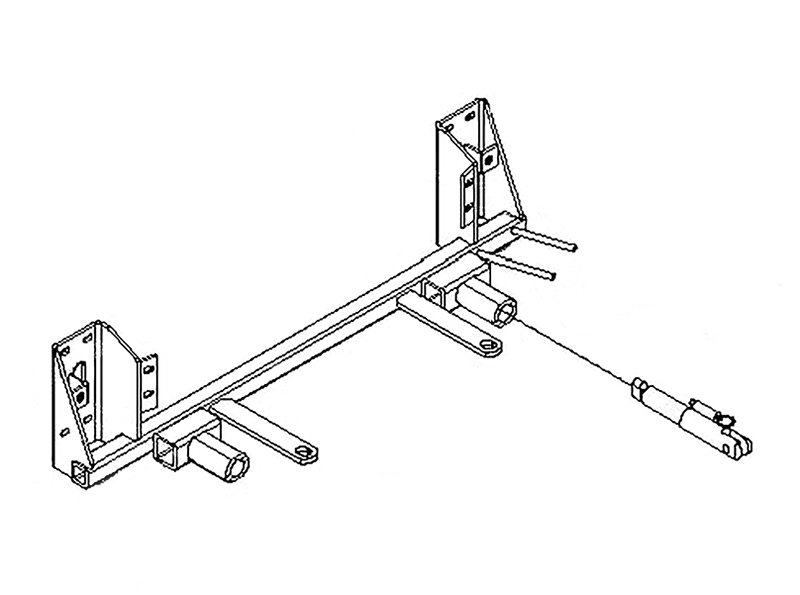

Custom Design: Each Blue Ox BX1839 Tow Bar Bracket is custom designed for each specific towed vehicle, ensuring an optimal fit and superior performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Experience the unparalleled strength and durability of the Blue Ox BX1839 Tow Bar Bracket. This high-quality automotive part is custom designed for each specific towed vehicle, ensuring a perfect fit and seamless integration. Crafted from robust steel and coated with a protective black powder finish, it promises enhanced longevity and resistance against rust and corrosion. The bolt-on mounting type simplifies the installation process, making it an ideal choice for do-it-yourself enthusiasts. Plus, it comes with all the necessary hardware and easy-to-follow instructions, eliminating the need for additional purchases or professional help.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2006 | Infiniti G35 | Comes with Removable Attachment Tabs Install Rating 4 Install Rating 2 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters Due to the Design of the Baseplate, the Adventurer Tow Bar Cannot be Used With the Baseplate. |
Yes, the BX1839 is specifically designed for the 2006 Infinity G35. However, you must confirm that your vehicle's weight does not exceed the Class III 5,000 lb rating limitation. Some 2006 G35 models with certain options may exceed this weight. Contact the vehicle manufacturer or REMCO at 1-800-228-2481 to confirm your specific vehicle's weight before towing.
No. Tow Bar Adapters are not to be used with vehicles weighing over 5,000 lbs. Since some 2006 G35 models may exceed the 5,000 lb Class III rating, you must first confirm your vehicle's weight. If your vehicle exceeds 5,000 lbs, you cannot use a Tow Bar Adapter with this baseplate.
The attachment tab height is 12 1/2" and the width is 24".
Required tools include: 9/16" socket, 3/4" socket, 10MM socket, 12MM socket, 14MM socket, flat screwdriver, Phillips screwdriver, diagonal cutters, reciprocating saw, and 10MM wrench. You will also need Loctite RED for all bolts.
The kit includes: 1 welded baseplate (61-6367), 2 lower brackets (61-6404), 2 upper brackets (61-6405), 8 x 8MM Grade 8.8 hex bolts, 12 x 5/16" lock washers, 12 x 5/16" flat washers, 8 x 1/2"-13 x 1 1/2" Grade 5 hex bolts, 8 x 1/2" lock washers, 6 x 1/2" flat washers, 4 x 5/16"-18 x 1 1/4" tap bolts, 4 x 5/16"-18 hex flange whiz lock nuts, 4 x 1/2"-13 hex nuts, 1 self-drilling screw, 1 slot round-head screw, 1 #10 lock washer, 1 #10-32 hex nut, 1 4-way connector adapter, 2 attachment tab assemblies, 2 x 36" Class III baseplate safety cables, 2 x 3/8" quick links, and 2 receiver cap plugs.
The BX8948 Diode Wiring Kit is recommended for this vehicle, but the manual does not state whether it is required. Contact your Blue Ox Dealer or Blue Ox Customer Care at (888) 425-5382 for clarification on whether this kit is necessary for your specific installation.
Yes. The fascia must be removed for installation. The removal process involves removing 6 pushpins from the top plastic piece, 10 bolts from underneath using a 10MM socket, 2 bolts forward of the front tire on each side, and then pulling the fascia corners out and forward. The fascia is reinstalled at the end of the installation after trimming as necessary.
In addition to the fascia, you must remove: styrofoam from the metal bumper and styrofoam shroud from the lower air dam, the lower air dam itself (3 push pins on each side), the middle belly pan (8 bolts and 1 push pin on each side), the plastic push pin from the washer reservoir spout, the windshield washer reservoir (2 hex nuts on passenger side only), the air baffle on the driver's side (2 bolts), the aluminum bumper (4 bolts on each side), and the bumper bracket (2 push pins and 4 bolts on each side). Most components are reinstalled later; the lower air dam and shroud are not reinstalled.
No drilling is required. However, cutting with a reciprocating saw is required. You must make two slits on each side of the frame: a front slit 1 3/4" down from the center of the hole, 4 1/4" by 1" wide, and a bottom slit 1" wide by 3 3/8" long around the corner down to the bottom of the third hole. Additionally, the fascia must be trimmed with diagonal cutters as necessary to fit properly after installation.
According to the bolt torque specifications chart on page 1, the torque for 1/2" Grade 5 bolts is 78 foot-pounds. All bolts must be treated with Loctite RED before tightening.
According to the bolt torque specifications chart on page 1, the torque for 5/16" Grade 5 bolts is 19 foot-pounds. All bolts must be treated with Loctite RED before tightening.
The installation sequence is: 1) Align the baseplate with the bumper bracket holes and start one 8MM bolt on each side with 5/16" flat and lock washers. 2) Insert additional 8MM bolts with Loctite RED and tighten to specifications on both sides. 3) Slide the upper bracket into the hole in the baseplate and start the 1/2"-13 x 1 1/2" bolt with lock and flat washer on the front side. 4) Align the upper bracket with the existing hole in the frame and tighten the front bolt first, then the back bolt with Loctite RED on both sides. 5) Install the lower bracket on the sway bar (passenger side) or frame bolt (driver's side) using 1/2"-13 x 1 1/2" bolts with flat and lock washers and hex nuts, tightened with Loctite RED.
Use the inside holes to bolt the aluminum bumper back on. On the front, use 5/16"-18 x 1 1/4" hex bolts with flat and lock washers. On the back, use 5/16"-18 whiz nuts. Do this on both sides. All bolts must be treated with Loctite RED before tightening to 19 foot-pounds.
Attach the baseplate safety cables (226-0046, 36" Class III) as close as possible to the position shown in the manual photo. If you are unable to place the cables in that position, position them around a solid piece of the frame. The cables must be connected from the baseplate to the frame rail or cross member. Do not mount the cables against wires, hoses, or brake lines. Quick links (229-0359, 3/8") are recommended for attachment. These permanent safety cables must remain installed as long as the baseplate is installed and are to be used in conjunction with, not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
After baseplate installation, reinstall: the washer reservoir on the passenger's side, the air baffle on the driver's side, the styrofoam and shroud (removed earlier), the fascia (trimmed as necessary with diagonal cutters), and the attachment tabs if applicable. The lower air dam and its shroud are not reinstalled. All electrical connections must be plugged in properly and functioning before installing the fascia.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are treated with Loctite RED and tightened to the recommended specifications. Verify that all electrical connections are plugged in properly and functioning. Remove the attachment tabs when not in use if applicable.
If the baseplate is improperly installed and comes into contact with a wire or hose, it could cause fluid leaks or electrical shorts some time after the actual baseplate installation. The installer must watch for oil cooler and air conditioner lines, electrical wires and hoses, and missing parts or attaching points on the frame. Do not mount the permanent baseplate safety cables against wires, hoses, or brake lines.
Yes. It is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
If a bolt is lost or needs replacement, use a replacement bolt of the same grade. In most cases, the bolts are Grade 5. Do not substitute homemade or non-typical parts. Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Always use Loctite RED on replacement bolts and tighten to the correct torque specification.
Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting Blue Ox Customer Care at (888) 425-5382.
Confirm the towability and pre-towing procedures for your vehicle with the owner's manual or contact the vehicle's manufacturer. You can also contact REMCO for additional information at 1-800-228-2481. This is especially important to confirm your vehicle's weight, as some 2006 G35 models may exceed the Class III 5,000 lb rating.
Yes, the BX1839 is designed for the 2006 G35. However, confirm your vehicle's weight does not exceed 5,000 lbs (Class III rating), as some models with options may exceed this. Contact REMCO at 1-800-228-2481 to verify.
You will need: 10MM, 12MM, 14MM sockets, 9/16" and 3/4" sockets, flat and Phillips screwdrivers, diagonal cutters, reciprocating saw, 10MM wrench, and Loctite RED.
Yes, the fascia must be removed. This involves removing 6 pushpins, 10 bolts from underneath, 2 bolts forward of each front tire, and then pulling the fascia out and forward. It is reinstalled at the end after trimming.
No drilling is required, but cutting with a reciprocating saw is necessary. You must make two slits on each side of the frame: a front slit 4 1/4" by 1" wide and a bottom slit 1" by 3 3/8" long. The fascia must also be trimmed with diagonal cutters.
The 1/2"-13 Grade 5 bolts should be tightened to 78 foot-pounds. Use Loctite RED on all bolts before tightening.
The 5/16" Grade 5 bolts should be tightened to 19 foot-pounds. Use Loctite RED on all bolts before tightening.
Before each towing trip, inspect all equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are treated with Loctite RED and tightened to specification. Verify all electrical connections are plugged in and functioning.
The manual notes that dimensional variations between otherwise identical vehicles can be considerable. While the baseplate was designed for easy installation, it may be necessary to tailor the baseplate slightly to compensate for auto manufacturer's tolerances. Minor adjustments may include filing a hole slightly, bending electrical rods, and/or bending end plates. If alignment issues persist, contact your Blue Ox Dealer for assistance.
Hold the fascia as close to its original position as possible and trim as necessary on both sides with diagonal cutters. The manual indicates that trimming may be required due to manufacturing tolerances and the baseplate installation. If significant trimming is needed or the fascia still does not fit, contact your Blue Ox Dealer.
