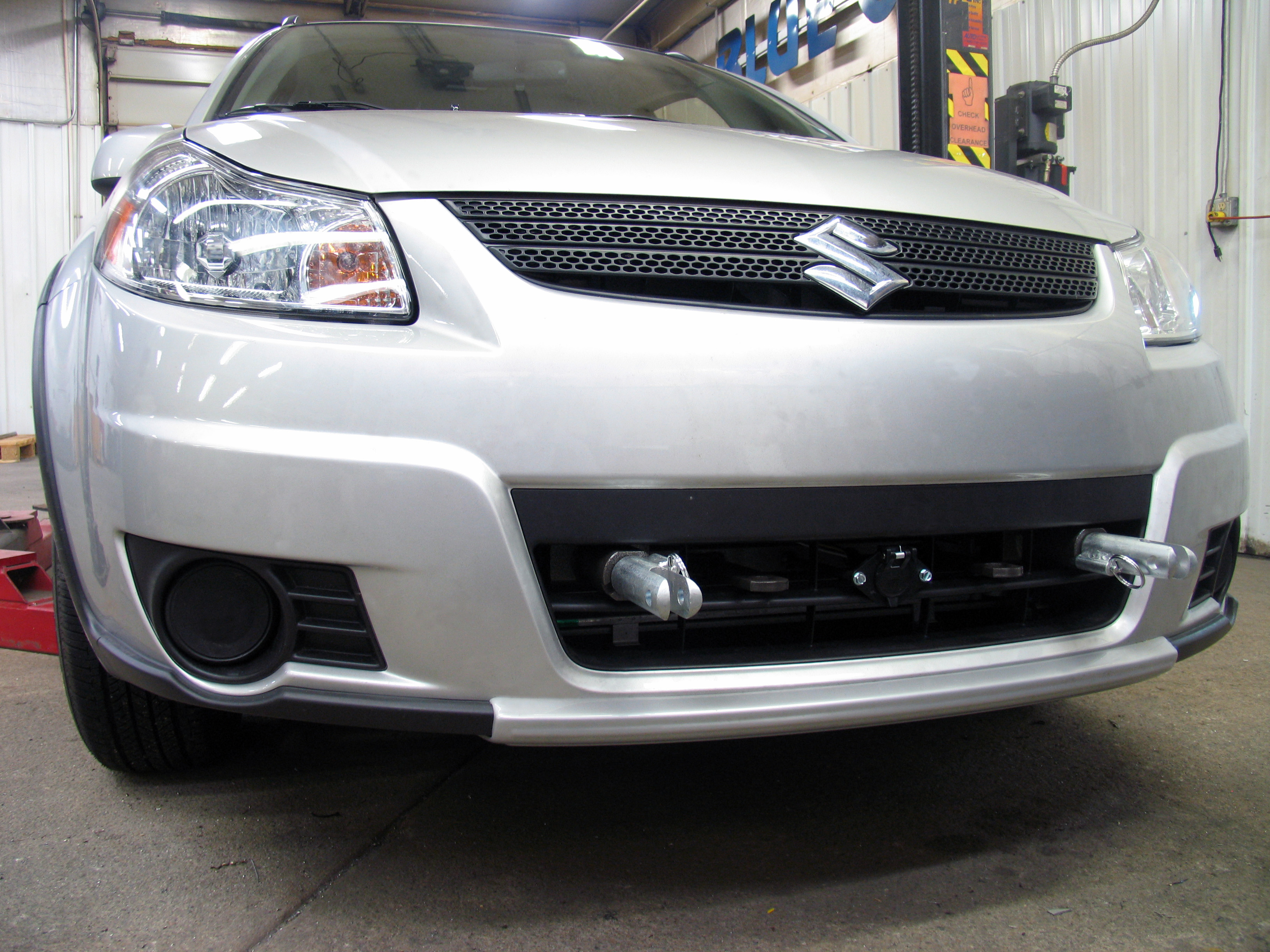

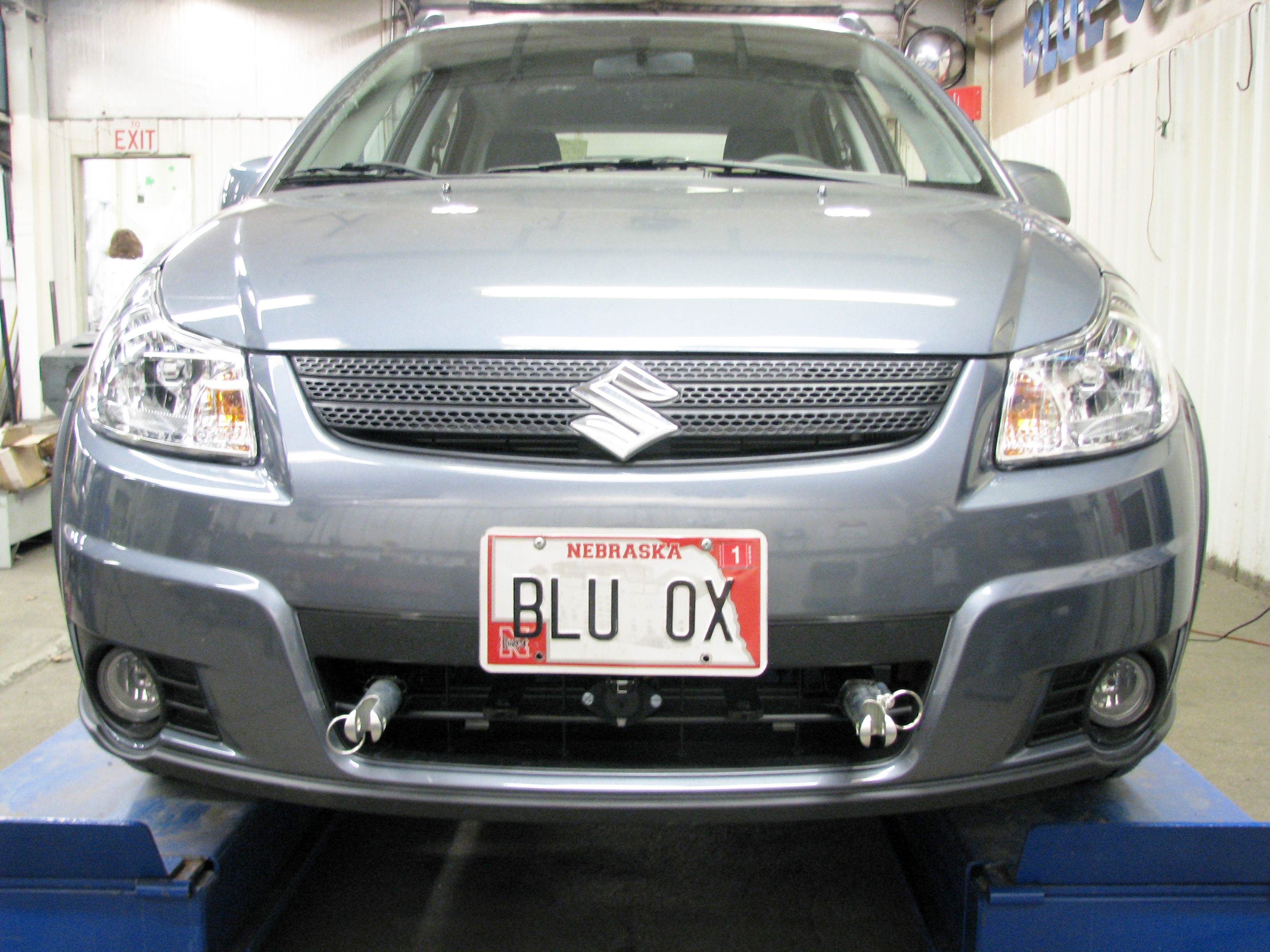

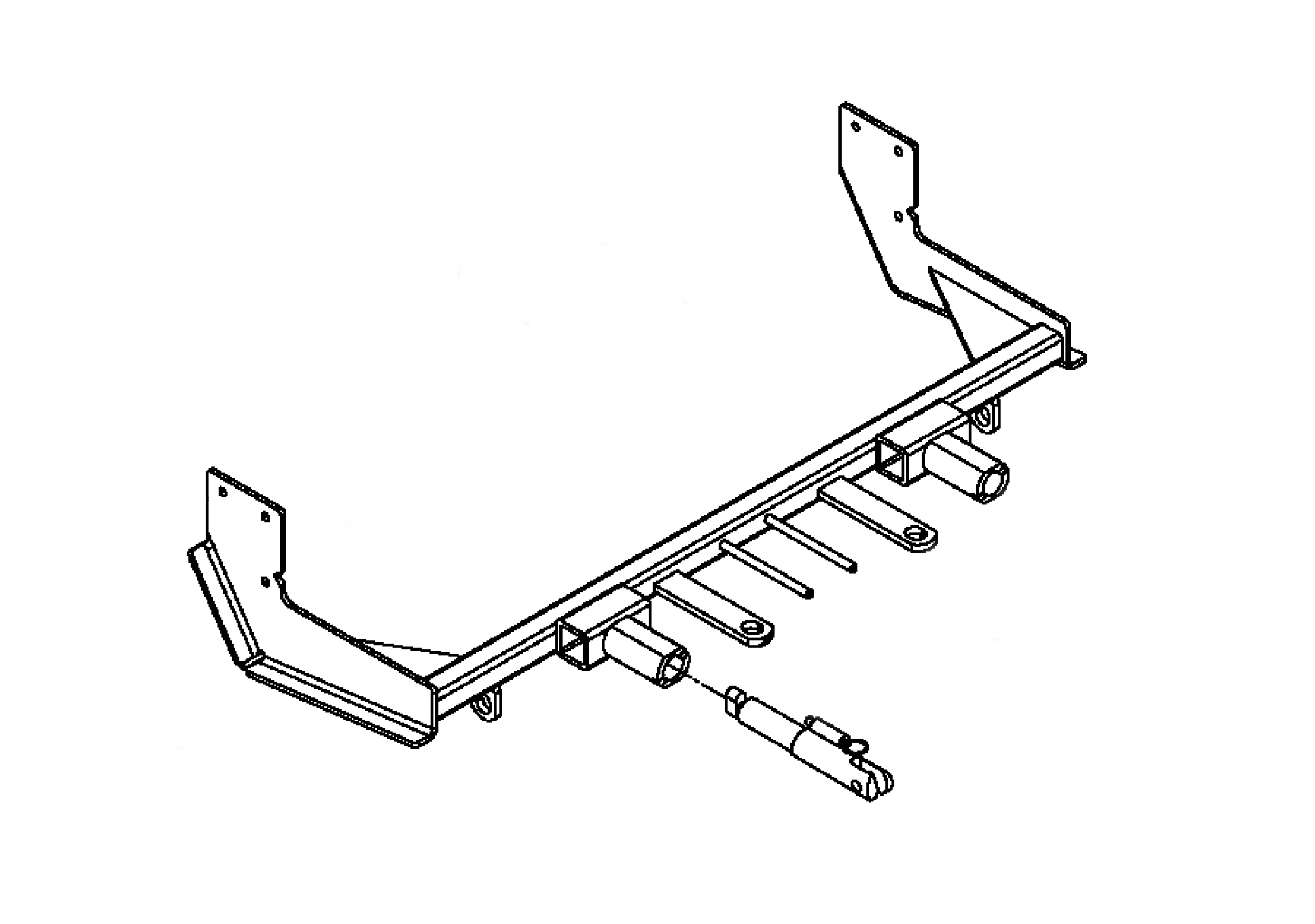

Custom Design: The Blue Ox BX3522 Tow Bar Bracket is specifically designed for each individual towed vehicle, ensuring a perfect fit.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Crafted with precision and dependability in mind, the Blue Ox BX3522 Tow Bar Bracket provides secure and reliable towing solutions for your vehicle. This custom-designed base plate, made from robust steel, ensures perfect fit and easy installation for your specific vehicle model. With a sleek black finish, the bracket not only offers durability but also adds a touch of sophistication to your vehicle. The powder coat finish provides additional protection against rust and corrosion, ensuring longevity. The BX3522 Tow Bar Bracket comes with all necessary mounting hardware, making installation a breeze, even for beginners.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2012 | Suzuki SX4 | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required Requires Some Trimming of the Air Dam Headlights Must be Removed and Replaced During Installation Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
Yes, the BX3522 is designed specifically for 2007-12 Suzuki SX4 vehicles. However, if the front of your vehicle looks different than shown in the manual, contact Blue Ox Customer Care at (402) 385-3051 before proceeding with installation.
No. Due to the design of the removable attachment tabs, the RangeFinder II, Acclaim and Ambassador tow bars cannot be used with the BX3522 baseplate.
Most adapters cannot be used with the BX3522 baseplate. Only the BX8833 and BX88151 adapters are compatible. All other adapters are not compatible.
The BX3522 attachment tab height is 16 inches and the width is 20 1/2 inches.
Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting Customer Care at (402) 385-3051.
The fascia, metal bumper, air bag sensor, and headlight assemblies must be removed and reinstalled during installation. Additionally, the washer reservoir must be removed and reinstalled.
Yes, drilling is required. You must drill three holes using a 13/32" drill bit on each side of the vehicle to mount the baseplate to the frame. Additionally, a 1 1/4" hole saw is used to drill holes for accessing the lower portion of the frame to position nut plates on each side.
Yes, trimming of the fascia is required. Some vehicle fascias may need trimming of the opening in the grille for the attachment tabs using a hack saw knife. The dimensional variations between otherwise identical vehicles can be considerable, so minor adjustments may include filing holes, bending electrical rods or bending end plates to compensate for manufacturer tolerances.
Yes. Using a reciprocating saw, you must cut into the edge of the frame well and follow it down to the bottom and out. It is very important to follow the frame well because it offsets down at the top. This must be done on both sides of the vehicle to remove the frame well webbing.
Required tools are: 10MM socket, 12MM socket, 9/16" socket, vise grips, reciprocating saw, Phillips screw driver, utility knife, 1 1/4" hole saw, 13/32" drill bit, and Loctite Red. A hack saw knife is also needed for trimming the fascia.
The kit includes: one baseplate weldment (61-6338), six 3/8-16 nutplates with 14" wire (61-5208), six 3/8-16 x 1 1/2" hex bolts Grade 5 (201-0440), six 3/8" lock washers (203-0010), two 6MM-1.0 x 30MM hex bolts Grade 8.8 (201-0798), one 6MM-1MM x 80MM hex bolt Grade 8.8 (201-0709), three 1/4" flat washers (203-0001), two 3/8" schedule 40 pipes x 1 1/2" (106-0369), one 3/4" OD tube x 0.120" wall x 2.500" (107-3087), two #12-14 x 1" self-drilling screws (201-0979), two #10-32 x 1/2" slot round head screws (201-0192), two #10 lock washers (203-0054), two #10-32 hex nuts (202-0047), two 4-way connectors (101-5822), two removable attachment tab assemblies (62-3469), two cap plugs (290-0437), two permanent baseplate safety cables (226-0046), and two 3/8" quick links (229-0359).
The BX8869 Bulb and Socket Wiring Kit is recommended for this vehicle, but the manual does not state whether it is required. Contact Blue Ox Customer Care at (402) 385-3051 for clarification on whether it is necessary for your specific installation.
The 3/8-16 x 1 1/2" hex bolts are Grade 5 and should be tightened to 33 foot-pounds according to the bolt torque specifications chart on page 1 of the manual. Loctite Red must be applied to all bolts before tightening.
The 6MM-1.0 x 30MM hex bolts are Grade 8.8 and should be tightened to 16 foot-pounds. The 6MM-1MM x 80MM hex bolt is also Grade 8.8 and should be tightened to 16 foot-pounds. Loctite Red must be applied to all bolts before tightening.
You must disconnect wire connections from the right and left side of the bumper, as well as the sensors located underneath the bumper during removal. These connections must be plugged back in before reinstalling the fascia. The manual states: "Be sure that ALL electrical connections are plugged in properly and functioning BEFORE installing the fascia."
The permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. Their principal function is to prevent the towed vehicle from breaking loose in the event the connection between the frame of the towed vehicle and the baseplate fails or becomes disconnected. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. However, they are to be used in conjunction with, and NOT a replacement for legally required safety cables attaching the towed vehicle to the towing vehicle.
The permanent baseplate safety cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. The manual provides illustrations showing possible recommended arrangements. Importantly, do not mount the permanent baseplate safety cables against wires, hoses or brake lines.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Before installing the fascia, ensure that all electrical connections are plugged in properly and functioning. The owner is responsible for inspecting all towing equipment for cracked welds, missing or worn parts and loose bolts before each towing trip. Ensure all bolts are tightened to the recommended torque specifications using Loctite Red.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. Permanent baseplate safety cables should remain installed as long as the baseplate is installed on the vehicle. Remove the attachment tabs when not in use if applicable.
No. Even though bolts may already be present on the vehicle, do not assume they are adequate for baseplate mounting. Always use hardware supplied in the hardware kit and existing hardware specified in the Baseplate Installation Instructions. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Do not substitute homemade or non-typical parts.
Confirm the towability and pre-towing procedures for your vehicle with the owner's manual or contact the vehicle's manufacturer for specific towing procedures. It is the owner's responsibility to hook up all towing equipment per manufacturer's instructions and recommendations. Install the tow bar and safety cables according to the instructions provided in their packages.
Yes, the BX3522 is designed for 2007-12 Suzuki SX4 vehicles. If your vehicle's front looks different than shown in the manual, call (402) 385-3051.
RangeFinder II, Acclaim and Ambassador tow bars cannot be used. Only BX8833 and BX88151 adapters are compatible; all other adapters are not compatible.
Yes. You must drill three holes using a 13/32" drill bit on each side for baseplate mounting, and use a 1 1/4" hole saw to access the frame for nut plates. Trimming of the fascia is also required.
Required tools: 10MM socket, 12MM socket, 9/16" socket, vise grips, reciprocating saw, Phillips screw driver, utility knife, 1 1/4" hole saw, 13/32" drill bit, hack saw knife, and Loctite Red.
Tighten 3/8-16 x 1 1/2" Grade 5 hex bolts to 33 foot-pounds. Apply Loctite Red to all bolts before tightening.
If the baseplate is in an accident, it must be replaced. Do not use it again, as unseen damage could cause serious injury or loss of the towed vehicle.
Ensure all electrical connections are plugged in and functioning. Inspect for cracked welds, missing or worn parts, and loose bolts. Verify all bolts are tightened to specification with Loctite Red.
