Made from top-notch steel material, ensuring durability and long-term use.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

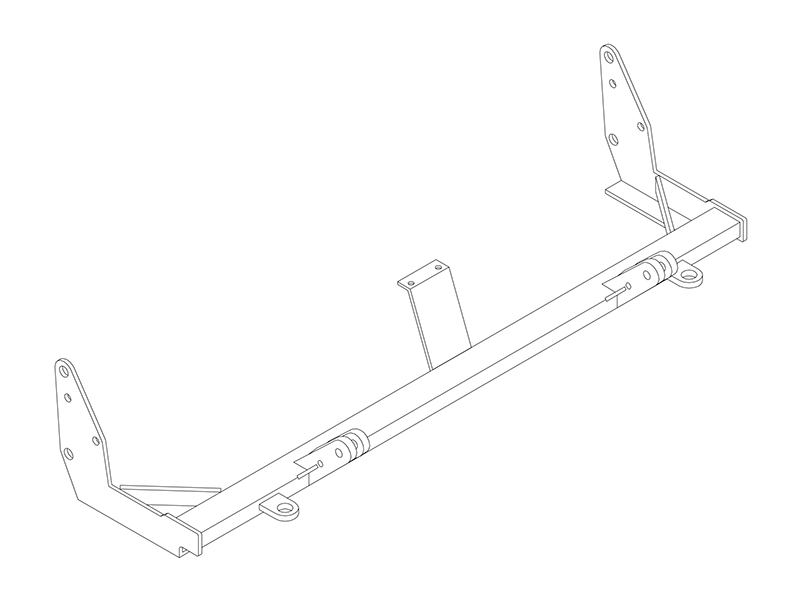

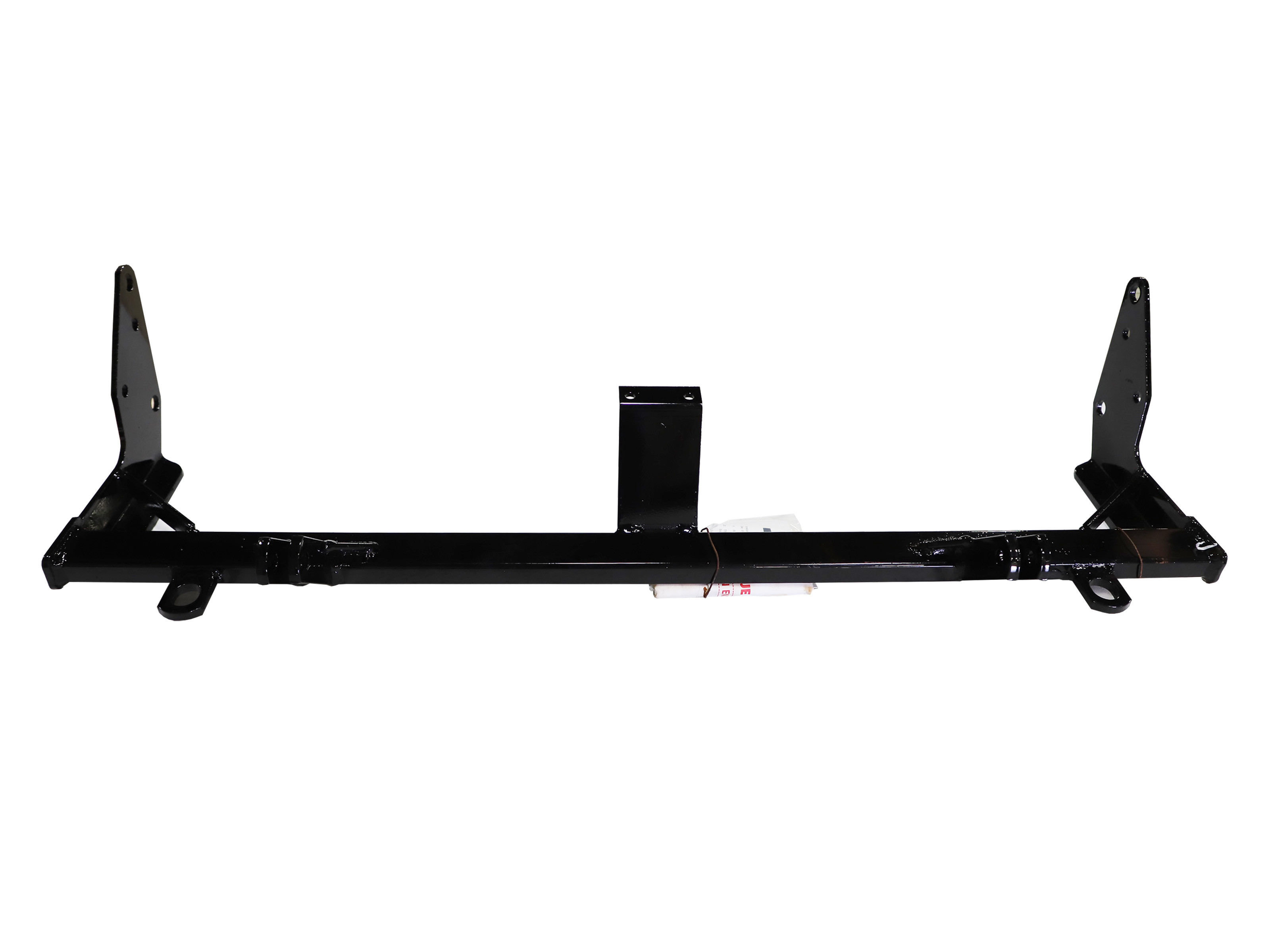

The Blue Ox BX3724 Tow Bar Bracket is an essential piece of equipment for those who need to tow with confidence and ease. This robust tow bar bracket, constructed from high-quality steel, is designed to withstand rigorous use and tough conditions. Its black powder coat finish not only enhances its aesthetic appeal but also provides an extra layer of protection against corrosion and damage. Each Blue Ox base plate is custom designed for each specific towed vehicle, ensuring a perfect fit and optimal performance. The product comes with all the necessary hardware and detailed instructions, making installation a breeze. Enhance your towing experience with the Blue Ox BX3724 Tow Bar Bracket.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1992 - 1996 | Toyota Camry | Comes with Standard Attachment Tabs Install Rating 2 |
The BX3724 baseplate is designed for 1992–1996 Toyota Camry models. If your vehicle is outside this year range, this baseplate will not fit. Consult the fitment database or contact the manufacturer to confirm compatibility for your specific model year.
You must remove the plastic belly pan and the vehicle's tie down brackets from both sides. The belly pan is held by four bolts (removed with screwdrivers, pliers, and 10mm socket). The tie down brackets are secured by eight bolts total (four per side, removed with 17mm and 10mm sockets). Save all removed bolts—they will be reused during installation. Note that only the lower bumper bracket bolt needs to be fully removed; the upper bolt may only need to be loosened to allow the bracket to slide out.
Yes. You must drill two holes in the bumper flange to accommodate the center mount bracket. Use an 11/32" transfer punch to center punch the bumper flange, then pilot and finish drill using an 11/32" drill bit. You must also cut slits in the plastic belly pan on each side, from the tie down bracket opening to the front edge, to clear the baseplate.
Required tools are: 17mm socket, 10mm socket, Phillips head screwdriver, small flat screwdriver, pliers, 11/32" transfer punch, 11/32" drill bit and drill, and Locktite Blue. A 1/2" socket and 1/2" wrench are also listed but their specific use is not detailed in the instructions.
The baseplate kit includes: one weldment base plate (61-3788), one flat backing washer (102-3304), two 5/16-18 x 1" hex bolts Grade 5 (201-0469), two 5/16-18 hex nuts (202-0002), and two 5/16 lock washers (203-0009). Two additional bolts are included with the baseplate for the ten total mounting bolts, but the specifications of the remaining eight bolts are not detailed in this manual.
Position the baseplate under the front of the car with the tow bar attachment tabs pointing forward and up. Raise it so that the side plates slide inside the bumper bracket and the holes align with the tie down bracket holes. The center mount bracket should be positioned just below the lower flange of the bumper.
1. Remove the belly pan and tie down brackets, saving all bolts. 2. Position the baseplate under the front with tow bar tabs pointing forward and up. 3. Raise the baseplate so side plates slide into the bumper bracket and holes align with tie down bracket holes. 4. Hand-tighten the eight bolts (four per side) removed in step 1. 5. File any holes if necessary for bolt clearance. 6. Center punch and drill two holes in the bumper flange using an 11/32" transfer punch and drill bit. 7. Hand-install the two 5/16 x 1" bolts with nuts, flat washers, lock washers, and backing washer. 8. Apply Locktite and finish-tighten all bolts, starting with the 17mm socket on the side mounts. 9. Replace the belly pan, cutting slits as needed. 10. Install the tow bar and safety cables per their instructions.
No. Install the eight tie down bracket bolts hand-tight first (step 6), then drill the bumper flange holes (step 9). Only after all hardware is installed hand-tight should you apply Locktite and finish-tighten the bolts, starting with the 17mm socket on the side mounts.
The manual does not provide torque specifications for any of the baseplate bolts. Consult the General Instruction Sheet included with the baseplate, or contact the manufacturer for torque values for the 17mm side mount bolts and the 5/16 center mount bolts.
Locktite Blue is a threadlocker compound that must be applied to the bolts before final tightening. The manual specifies applying Locktite before finish-tightening all bolts. This prevents bolts from loosening due to vibration during towing. Do not skip this step.
Yes. The eight bolts removed from the tie down brackets (four per side) are saved and reused to secure the baseplate. These bolts are hand-tightened in step 6 and finish-tightened in step 11 after Locktite is applied.
The manual notes that dimensional variations between otherwise identical Camrys can be considerable. If a bolt does not clear, you may need to file the hole slightly to allow alignment. This is a normal part of the installation process.
After the baseplate is installed, replace the plastic belly pan pieces. To clear the baseplate, cut a slit on each side of the belly pan from the tie down bracket opening to the front edge of the plastic. The manual does not specify the exact width or depth of these slits; use the baseplate position as a guide.
No. The baseplate is a mounting platform only. The tow bar and safety cables are separate items that must be installed according to their own instructions after the baseplate is secured.
Do not substitute other devices if the tow bar pin and clip are lost. Obtain replacement pins and clips from the tow bar manufacturer or supplier. Using substitutes may compromise safety.
Yes. Step 1 requires you to read the General Instruction Sheet included with the baseplate before beginning installation. The dealer or installer must ensure the user receives this sheet. It contains additional information not covered in these specific installation instructions.
The BX3724 baseplate fits 1992–1996 Toyota Camry models only. Confirm your vehicle year before purchasing.
Yes. You must drill two holes in the bumper flange using an 11/32" drill bit, and cut slits in the plastic belly pan on each side to clear the baseplate.
You need: 17mm and 10mm sockets, Phillips and flat screwdrivers, pliers, 11/32" transfer punch and drill bit, drill, and Locktite Blue. A 1/2" socket and wrench are also listed.
Remove the plastic belly pan (four bolts) and the tie down brackets from both sides (eight bolts total). Save all bolts—they are reused during installation.
Yes. Apply Locktite Blue to all bolts before final tightening to prevent loosening from vibration during towing.
