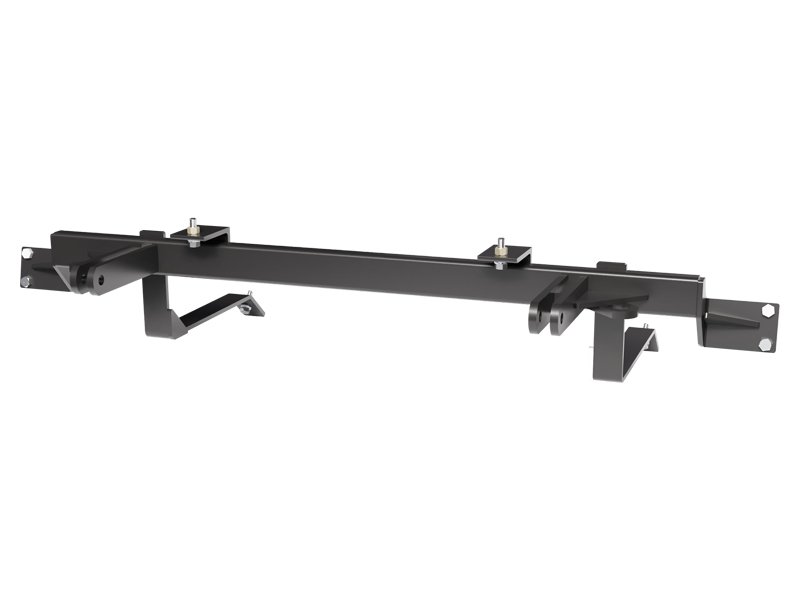

Custom-Designed Fit: The BX3733 Tow Bar Bracket is specifically engineered for each individual towed vehicle, ensuring a perfect fit and optimal performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Ensure a secure connection between your towing vehicle and towed vehicle with the Blue Ox BX3733 Tow Bar Bracket. This custom-designed base plate is made with robust steel and finished with a durable black powder coat, making it resistant to corrosion and harsh weather conditions. The bracket is easy to install, thanks to its bolt-on mounting type and the inclusion of all necessary hardware. With the Blue Ox BX3733 Tow Bar Bracket, you can trust in the safety and reliability of your towing setup.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1998 - 2003 | Toyota Sienna | Comes with Standard Attachment Tabs Install Rating 4 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required Requires Some Trimming of Air Dam |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, TOYOTA SIENNA E13 (Part #FDRWBX3733) fits 1998-2003 Toyota Sienna models. The 2003 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, TOYOTA SIENNA E13 (Part #FDRWBX3733) fits the following vehicles: 1998-2003 Toyota Sienna. Always verify your specific year, make, and model before ordering.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, TOYOTA SIENNA E13 (Part #FDRWBX3733) is designed to fit the 1998-2003 Toyota Sienna.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, TOYOTA SIENNA E13 (Part #FDRWBX3733) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The BX3733 baseplate is designed for 1998–2000 Toyota Sienna models only. If your vehicle is outside this model year range, this baseplate will not fit.
No. The BX3733 baseplate must be used only with tow bars approved by Automatic Equipment Mfg. Co. Using it with any other tow bar will invalidate the limited warranty. Consult the manufacturer to confirm your tow bar is approved.
Required tools are: 9/16" wrench, 10MM wrench, utility knife, hack saw, 13/32" drill bit, drill, two C-clamps, and Loctite. You will also need a helper to hold the outside brace during installation.
The kit includes: one baseplate (61-5157), eight 3/8 x 1 1/4" Grade 5 hex bolts (201-0368), eight 3/8" lock washers (203-0010), four 3/8" hex nuts (202-0003), and four 3/8" nuts with wire (61-5217).
You must remove the bumper molding, turn signal assemblies, and the center plastic grille with the Toyota symbol. The turn signals are held by screws at the top. The center grille is held by four push pins on top and four molded snaps on the bottom. The bumper molding is held by multiple push pins and two 10MM bolts (one on each side) that attach to the quarter panels.
Remove each screw from the top of the turn signal assemblies. Once the screws are out, the turn signals can be pulled out from the vehicle.
Use a narrow screwdriver to push in the center of the four molded snaps on the bottom of the grille. There are also four push pins on the top. Once the snaps are released, pull out the grille.
Remove the three push pins from the top of the molding, the two push pins in the opening, and the remaining push pins from the bottom. Loosen the front of the fender well plastic. Reach in and remove the 10MM bolt that holds each quarter panel and the molding. The molding can then be removed.
You need to drill eight 13/32" holes to mount the baseplate to the bottom of the metal bumper, the front edges of the tie-down brackets, and the cross frame. You will also drill additional 3/8" holes for the upper braces to the cross frame. The exact number of 3/8" holes depends on the brace configuration.
Use a 13/32" drill bit for the eight main mounting holes that attach the baseplate to the bumper, tie-down brackets, and cross frame.
Use a 3/8" drill bit for the holes that attach the upper braces to the cross frame.
Hold the upper braces to the bottom of the metal bumper. With a helper, hold the outside brace to the lip of the tie-down brackets. Clamp the baseplate to the frame using two C-clamps. Use the baseplate as a template to mark and drill the holes.
Yes. A helper is required to hold the outside brace to the lip of the tie-down brackets while you clamp and drill the baseplate.
After drilling each hole, immediately insert a bolt, washer, and nut to prevent the baseplate from moving while you continue drilling the remaining holes.
1. Clamp the baseplate to the frame. 2. Drill the eight 13/32" holes using the baseplate as a template. 3. Insert a bolt, washer, and nut in each hole immediately after drilling. 4. Drill the 3/8" holes for the upper braces. 5. Install 3/8" bolts and washers in the upper braces. 6. Drill the 3/8" holes in the cross frame using the braces as templates. 7. Install 3/8" hardware to bolt the braces to the cross frame. 8. Tighten all bolts completely.
Yes. The installer must watch for electrical wires and hoses during installation. Do not mount the permanent baseplate safety cables against wires, hoses, or brake lines. If the baseplate is improperly installed against a wire or hose, it could cause electrical shorts or fluid leaks some time after installation.
Torque specifications are provided in the separate General Instruction Sheet that accompanies this manual. Consult that document for the correct torque values. Use Loctite Blue on all bolts to ensure they do not loosen during towing.
Yes. Use Loctite Blue on each bolt to ensure they do not loosen while the vehicle is being towed. Be sure to read the instructions on the Loctite bottle before applying.
Trim the lower grille opening on the outside lower edges where the attachment tabs protrude out. Remove the outside vertical plastic pieces completely. Notch the very bottom of the molding where the braces extend back to the cross frame. Hold the molding up to its original position and mark where it needs to be trimmed before cutting.
Dimensional variations between otherwise identical Siennas can be considerable. While the baseplate holes were designed to allow for easy installation, it may be necessary to file a hole slightly to achieve proper alignment.
Install the tow bar and safety cables according to the instructions included in their packages. Do not substitute other devices if the tow bar pin and clip are lost.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. They prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails or becomes disconnected. The cables must be connected from the baseplate to the frame rail or cross member. Each cable must have an adequate weight rating; the combined rating of two cables is what matters, not the individual ratings.
No. Permanent baseplate safety cables are to be used in conjunction with, and NOT as a replacement for, legally required safety cables that attach the towed vehicle to the towing vehicle. Both types of cables are necessary.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Ensure all bolts are tightened to the recommended specifications.
The installation instructions specify using Loctite Blue during installation. However, the General Information section states to use Loctite Red on all bolts and tighten to recommended specifications. Consult the separate General Instruction Sheet for complete torque and Loctite specifications for maintenance and retightening.
Yes. It is crucial to register your baseplate online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
The BX3733 is designed for 1998–2000 Toyota Sienna only.
You need a 9/16" wrench, 10MM wrench, utility knife, hack saw, 13/32" drill bit, drill, two C-clamps, and Loctite. A helper is also required.
Yes. You must drill eight 13/32" holes for the baseplate and additional 3/8" holes for the upper braces to the cross frame. Trimming of the bumper molding is also required.
Remove the bumper molding, turn signal assemblies, and center grille with the Toyota symbol.
Use Loctite Blue on all bolts during installation to prevent loosening during towing. Read the Loctite bottle instructions before applying.
Permanent baseplate safety cables are strongly recommended. They must be connected from the baseplate to the frame rail or cross member and are supplementary to, not a replacement for, legally required safety cables.
