Material: Crafted from premium quality steel, the BX3787 Tow Bar Bracket ensures strength and long-lasting durability.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX3787 Tow Bar Bracket is a reliable and robust solution for your towing needs. It is custom designed for each specific towed vehicle, ensuring a perfect fit and optimal performance. This tow bar bracket is made from high-quality steel and finished with a black powder coat for superior durability and resistance to rust and corrosion. The bracket is a bolt-on type, making installation straightforward and hassle-free. The package includes all the necessary hardware and comprehensive instructions for a successful do-it-yourself installation.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2012 - 2013 | Toyota Highlander | Comes with Standard Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |

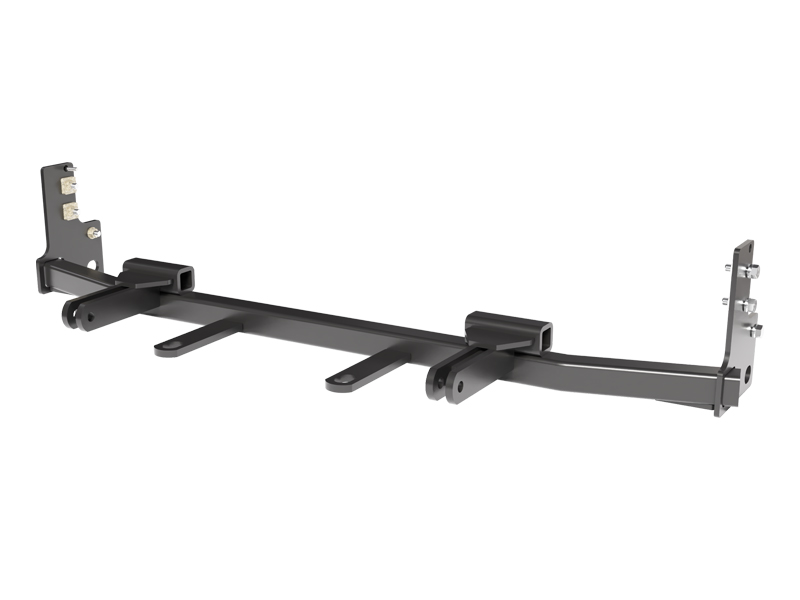

The BX3787 is a Blue Ox baseplate designed for 2011–2013 Toyota Highlander vehicles. It is a frame-mounted component that serves as the attachment point for a tow bar system. The baseplate is computer tested to your vehicle's GVWR; exceeding this weight will void the manufacturer's warranty.
Yes, the BX3787 is designed for 2011–2013 Toyota Highlander vehicles. However, dimensional variations between otherwise identical vehicles can be considerable, and it may be necessary to tailor the baseplate slightly to compensate for vehicle manufacturer's tolerances. If the front of your vehicle looks different than shown in the manual, contact Blue Ox Customer Care at (402) 385-3051.
The kit includes: 2 × 3/8"-16 Whiz Nut Weldments with 14" wire; 4 × 3/8"-16 Nut Plate Weldments with 14" wire; 1 × BX3787 Baseplate; 4 × 3/8"-16 × 1-1/4" Hex Head Bolts, Grade 5; 2 × 3/8"-16 × 1" Hex Head Bolts, Grade 5; 1 × 6MM-1.0 × 30MM Hex Head Bolt, Grade 8.8; 6 × 3/8" Lock Washers; 2 × Class III Safety Cables; 2 × 3/8" Quicklinks.
Required tools: 10MM socket, 9/16" socket, large vise grip, flat screwdriver, utility knife, torque wrench, Phillips screwdriver, tape measure, drill, 13/32" drill bit, and 1-1/4" drill bit. You will also need Loctite Red (supplied separately).
Blue Ox towing products and accessories are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do "fit work". Blue Ox Dealers can be found at www.blueox.com or by contacting Blue Ox Customer Care at (402) 385-3051. The installation involves removal and reinstallation of the fascia, windshield washer fluid reservoir, and front grill, as well as drilling and trimming.
The following components must be removed and reinstalled: front fascia, front grill, windshield washer fluid reservoir top tube, and black bumper foam (which will not be reinstalled). The running lights must be unplugged. Bottom sensors must be unplugged and marked for proper reconnection. All removed items should be placed on a flat, sturdy surface.
Yes, drilling is required. You must drill two 1-1/4" holes (one on each side of the vehicle) and multiple 13/32" holes to mount the baseplate to the frame. The manual states that some drilling and trimming is required as part of the installation process.
You must notch the plastic tabs on the windshield washer fluid reservoir using a utility knife, removing enough material to remove the bottom portion. The black bumper foam is removed by pulling it forward and will not be reinstalled. These are the only trimming operations specified in the manual.
The baseplate uses 3/8"-16 Grade 5 bolts, which should be torqued to 33 foot-pounds according to the bolt torque specifications table. The 6MM-1.0 Grade 8.8 bolt should be torqued to 31 foot-pounds. All bolts must be treated with Loctite Red before tightening and tightened according to the torque chart provided. Always use a torque wrench.
1. Drill the 1-1/4" holes on both sides and the 13/32" holes. 2. Insert the 3/8"-16 × 1-1/4" hex head bolts with 3/8" lock washers into the top two holes on each side and secure with 3/8"-16 nut plate weldments. 3. In the bottom rearward hole on each side, insert one 3/8"-16 × 1" hex head bolt with 3/8" lock washer and fasten with a 3/8"-16 whiz nut weldment. 4. Verify the baseplate is level before final tightening. 5. Apply Loctite Red to all bolts and tighten to 33 foot-pounds.
After drilling the holes and before final tightening, verify that the baseplate is level. The manual specifies this check in Step 14. Use a level tool to ensure the baseplate sits evenly on the vehicle frame before applying final torque to all bolts.
Remove the top large tube from the windshield washer fluid reservoir and notch the plastic tabs using a utility knife to remove the bottom portion. After the baseplate is installed and the holes are drilled, reinstall the windshield washer fluid reservoir using the 6MM hex head bolts supplied in the kit and reconnect the lines.
Use a flat screwdriver to remove the push pins. For the wheel well push pins (Step 4), rotate them clockwise until the slot is in the horizontal position, then lift out. For other push pins, simply pry them out with the flat screwdriver. There are 11 push pins on the top of the fascia (5 per side, 1 center), 6 on the fascia brackets, 3 on the front rim, and 2 in the wheel wells.
Remove the eight screws located on the underside of the vehicle using a Phillips screwdriver and unplug the running lights. After the baseplate is installed and the fascia is reinstalled, ensure all electrical connections are plugged in and accessories are functioning properly before fully reinstalling the fascia.
It is recommended to mark the sensor lines before unplugging them to ensure they are reconnected properly. After the baseplate installation is complete, reconnect the sensors to their original locations using the marks you made. Verify all electrical connections are plugged in and functioning properly before reinstalling the fascia.
The attachment tab height is 18 inches and the attachment tab width is 22 inches.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The principle function is to prevent the towed vehicle from breaking loose in the event the connection between the frame and baseplate fails or becomes disconnected. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Do not mount the cables against wires, hoses, or brake lines. These cables are to be used in conjunction with, and NOT a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. If additional options interfere with suggested mounting, secure the cables to a solid piece of the frame as described in the instructions included with the permanent baseplate safety cables. Ensure the safety cables do not rub against any hoses or moving parts. Do this on both sides of the vehicle.
Watch for oil cooler and air conditioner lines, electrical wires and hoses, and missing parts or attaching points on the frame. If the baseplate is improperly installed and is against a wire or hose, it could cause fluid leaks or electrical shorts some time after the actual baseplate installation. Do not mount the permanent baseplate safety cables against wires, hoses, or brake lines.
If the baseplate is in an accident, it must be replaced. Do NOT use it again. An accident can cause unseen damage and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Before reinstalling the fascia, ensure that ALL electrical connections are plugged in and accessories are functioning properly. Verify the baseplate is level. Check that all bolts are tightened to the correct torque specifications using Loctite Red. Ensure the permanent baseplate safety cables do not rub against any hoses or moving parts.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. Use a good quality paint to spray cut edges of frame to prevent rusting. Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
Yes, you must use Loctite Red on all bolts before tightening. This is required during initial installation and should be reapplied during maintenance inspections. Tighten all bolts according to the torque chart provided.
The BX8848 4 Diode Wire Kit is recommended for this vehicle. Consult with your Blue Ox Dealer or contact Blue Ox Customer Care at (402) 385-3051 to determine if it is required for your specific towing setup.
The baseplate is computer tested to your vehicle's GVWR; exceeding this weight will void the manufacturer's warranty. Failing to follow and/or altering these installation instructions in either installation or required equipment will void the manufacturer's warranty. Towing behind a non-motorized vehicle will void the warranty.
If a bolt is lost or in need of replacement, use a replacement bolt of the same grade. In most cases it will be Grade 5. Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Do NOT substitute homemade or non-typical parts. Failing to use the correct replacement bolt will void the manufacturer's warranty.
Contact Blue Ox Customer Care at (402) 385-3051 or visit www.blueox.com. Blue Ox is committed to providing exceptional customer care throughout your lifetime with their products. You can also visit the factory campground at no charge and enjoy a factory tour. Blue Ox service technicians are available at rallies for a nominal fee to service your towing system.
You need: 10MM and 9/16" sockets, large vise grip, flat and Phillips screwdrivers, utility knife, torque wrench, tape measure, drill with 13/32" and 1-1/4" bits, and Loctite Red.
3/8"-16 Grade 5 bolts should be torqued to 33 foot-pounds. The 6MM-1.0 Grade 8.8 bolt should be torqued to 31 foot-pounds. All bolts must be treated with Loctite Red before tightening.
