Custom Design: Specifically tailored for each towed vehicle, ensuring a perfect fit and superior performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

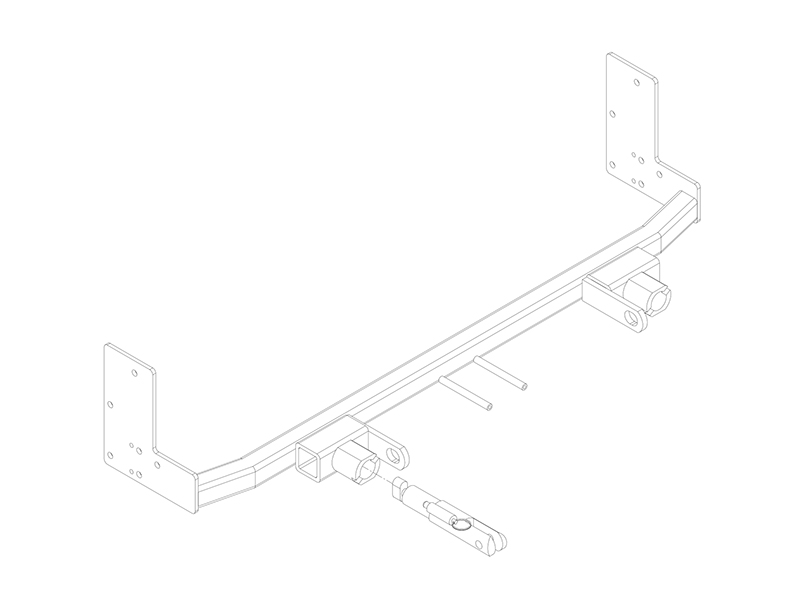

The Blue Ox BX3760 Tow Bar Bracket is a specially engineered solution for your towing needs. Designed with a custom fit in mind, this sturdy bracket is crafted from high-quality steel, ensuring durable and long-lasting performance. It flaunts an elegant black powder-coat finish that not only enhances its aesthetic appeal but also provides excellent resistance to corrosion and wear. The bracket is a bolt-on type, promoting an easier and more secure installation process. With all the necessary hardware included, the Blue Ox BX3760 Tow Bar Bracket offers a seamless DIY installation experience.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2005 - 2006 | Scion tC | No Fog Lights Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select,TOYOTA SCION TC E13 (Part #FDRWBX3760) fits 2005-2006 Scion tC models. The 2006 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select,TOYOTA SCION TC E13 (Part #FDRWBX3760) is designed to fit the 2005-2006 Scion tC.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select,TOYOTA SCION TC E13 (Part #FDRWBX3760) fits the following vehicles: 2005-2006 Scion tC. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select,TOYOTA SCION TC E13 (Part #FDRWBX3760) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX3760 is designed for the 2005 Toyota Scion. The attachment tabs are 24 inches center to center with a height of 13½ inches. The manual notes that dimensional variations between otherwise identical cars can be considerable, so it may be necessary to file a hole slightly to allow a bolt to clear during installation.
The following tools are required: 10MM socket, 9/16" socket, utility knife or hack saw blade, vise grips, Loctite Red, 13/32" drill bit, and Phillips screwdriver.
The BX3760 kit includes: 1 baseplate weldment (61-6052), 2 nut plates with wire (61-5208), 2 spacer plates 3/16 x 1 x 5 inch (102-6560), 2 spacer plates 3/16 x 1 x 1½ inch (102-6559), 8 3/8-16 x 1¼ bolts Grade 5 (201-0368), 8 3/8 lock washers (203-0010), 6 3/8-16 hex nuts (202-0003), 4 6MM-1.0 x 30MM hex bolts Grade 8.8 (201-0655), 4 5/16" lock washers (203-0009), 2 #12-14 x 1" self-drilling screws (201-0979), 2 #10-32 x ½" slot round head screws (201-0192), 2 #10 lock washers (203-0054), 2 #10-32 hex nuts (202-0047), 2 4-way connectors (101-5822), and 2 attachment assemblies SF/SB (62-3468).
Yes, the front fascia must be removed. The removal process involves: removing push pins from the top edge of the fascia just inside the headlight assembly (both sides), lifting the top portion of the hood bumper pad, pulling the lower body up out of the fascia, removing a push pin just forward of the hood latch, removing metric bolts just forward of the front tire (both sides), removing metric bolts inside the wheel well on the fascia's upper corner (both sides), removing metric bolts from the bottom side of the fascia just forward of the front tire (both sides), and removing three metric bolts from the lower edge of the fascia tabs. The fascia is reinstalled at the end of the installation.
Yes, the air bag sensors must be removed during installation. Using a 10MM socket, remove two metric bolts from each air bag sensor (both sides) and carefully tie them up out of the way. After drilling the baseplate holes, the air bag sensors are reinstalled using 6MM hex bolts and lock washers with a 10MM socket (both sides). The existing metric bolts are not reused for the sensors; they are used to attach the baseplate to the frame.
Yes, drilling is required. Using a 13/32" drill bit, drill holes into the frame and webbing on both sides. Do not drill the two back holes for the sensors; those existing holes are reused. The baseplate is used as a template to mark the hole locations. Dimensional variations between cars may require filing a hole slightly to allow a bolt to clear.
Two trimming operations are required. First, using a reciprocating saw, cut and remove the front webbing of the tie down bracket on both sides to open the area and allow the baseplate to slide onto the outside of the tie down bracket and frame. Second, after reinstalling the fascia, mark and trim the lower grill around the receivers (for removable tabs) and convenience links (for safety cables) using a utility knife or hack saw blade. The electrical rods should come through the grill openings.
Yes, the air dam requires trimming. Remove the push pin from the air dam and pull it forward to release on both sides. Measure 2¼" and 4⅜" down from the top of the air dam on both sides. Then measure and mark from the back edge of the air dam forward 1½" on both sides and cut out the area with a utility knife on both sides.
The installation sequence is: (1) remove fascia and air bag sensors; (2) remove styrofoam from metal bumper; (3) measure and mark the tie down bracket at 10½" down from the bottom side of upper frame webbing; (4) cut front webbing of tie down bracket with reciprocating saw; (5) trim air dam; (6) slide baseplate onto tie down bracket and align with existing air bag sensor holes; (7) tighten baseplate using existing sensor bolts with 10MM socket, ensuring baseplate is level; (8) insert spacer plates between tie down bracket and baseplate; (9) drill holes using baseplate as template with 13/32" drill bit; (10) insert nut plate into frame opening and tighten with 3/8" hex bolt and lock washer; (11) insert 3/8" hex bolts into baseplate holes and tighten with lock washers and hex nuts; (12) remove and reinstall air bag sensors with 6MM hex bolts; (13) reinstall fascia; (14) trim lower grill around receivers and convenience links; (15) install tow bar and safety cables per their instructions.
Slide the baseplate onto the tie down bracket and up to align with the existing holes for the air bag sensors on both sides. Using the existing metric bolts for the sensors, tighten the metric bolts with the 10MM socket on both sides. Be sure the baseplate is level with the vehicle before proceeding with drilling and final fastening.
The spacer plates are inserted between the tie down bracket and baseplate to align with the two holes on the back edge of the baseplate end on both sides. Two sizes are provided: 3/16 x 1 x 5 inch (102-6560) and 3/16 x 1 x 1½ inch (102-6559). They ensure proper alignment before the 3/8" hex bolts are inserted and tightened.
The manual states that all bolts must be tightened according to the Torque Chart in the General Instruction Sheet, but that chart is not included in this installation manual. Contact Blue Ox at 402-385-3051 or consult your General Instruction Sheet for specific torque values for the 3/8" hex bolts, 6MM hex bolts, and nut plate bolts.
A 13/32" drill bit is required. Using the baseplate as a template, drill the holes into the frame and webbing with this bit on both sides. Do not drill the two back holes for the sensors, as those existing holes are reused.
The attachment tabs are 24 inches center to center with a height of 13½ inches.
Loctite Red is a threadlocker compound that must be applied to all bolts before tightening during BX3760 installation. It is listed as a required tool and is specifically mentioned for the 3/8" hex bolts, nut plate bolts, and 6MM hex bolts. Loctite Red prevents bolts from loosening due to vibration during towing.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. They prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails or becomes disconnected. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Each cable must have an adequate weight rating for the towing system; the combined rating of two cables together does not qualify. Do not mount the cables against wires, hoses, or brake lines. These cables must be used in conjunction with, and are not a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
It is the installer's responsibility to watch for: oil cooler and air conditioner lines, electrical wires and hoses, and missing parts or attaching points on the frame. If the baseplate is improperly installed and comes into contact with a wire or hose, it could cause fluid leaks or electrical shorts some time after installation. Do not mount permanent baseplate safety cables against wires, hoses, or brake lines.
After installation, ensure the baseplate is level with the vehicle. Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Verify that all bolts are tightened to the recommended specifications and that Loctite Red has been applied to all bolts. Check that the tow bar and safety cables are installed according to their manufacturer's instructions.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. Permanent baseplate safety cables should remain installed as long as the baseplate is installed on the vehicle. Remove the attachment tabs when not in use if applicable.
Yes, it is crucial to register your BX3760 baseplate online at www.blueox.com. Registration ensures you will be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
No. If a bolt is lost or in need of replacement, use a replacement bolt of the same grade as the original. The parts list specifies the grade for each bolt type (usually Grade 5 for 3/8" bolts and Grade 8.8 for 6MM bolts). Use only genuine factory replacement parts on your baseplate; do not substitute homemade or nontypical parts. Repair parts may be ordered through your nearest Blue Ox dealer or distributor.
Do not substitute other devices if the tow bar pin and clip are lost. Obtain replacement parts from Blue Ox or your dealer to ensure safe towing operation.

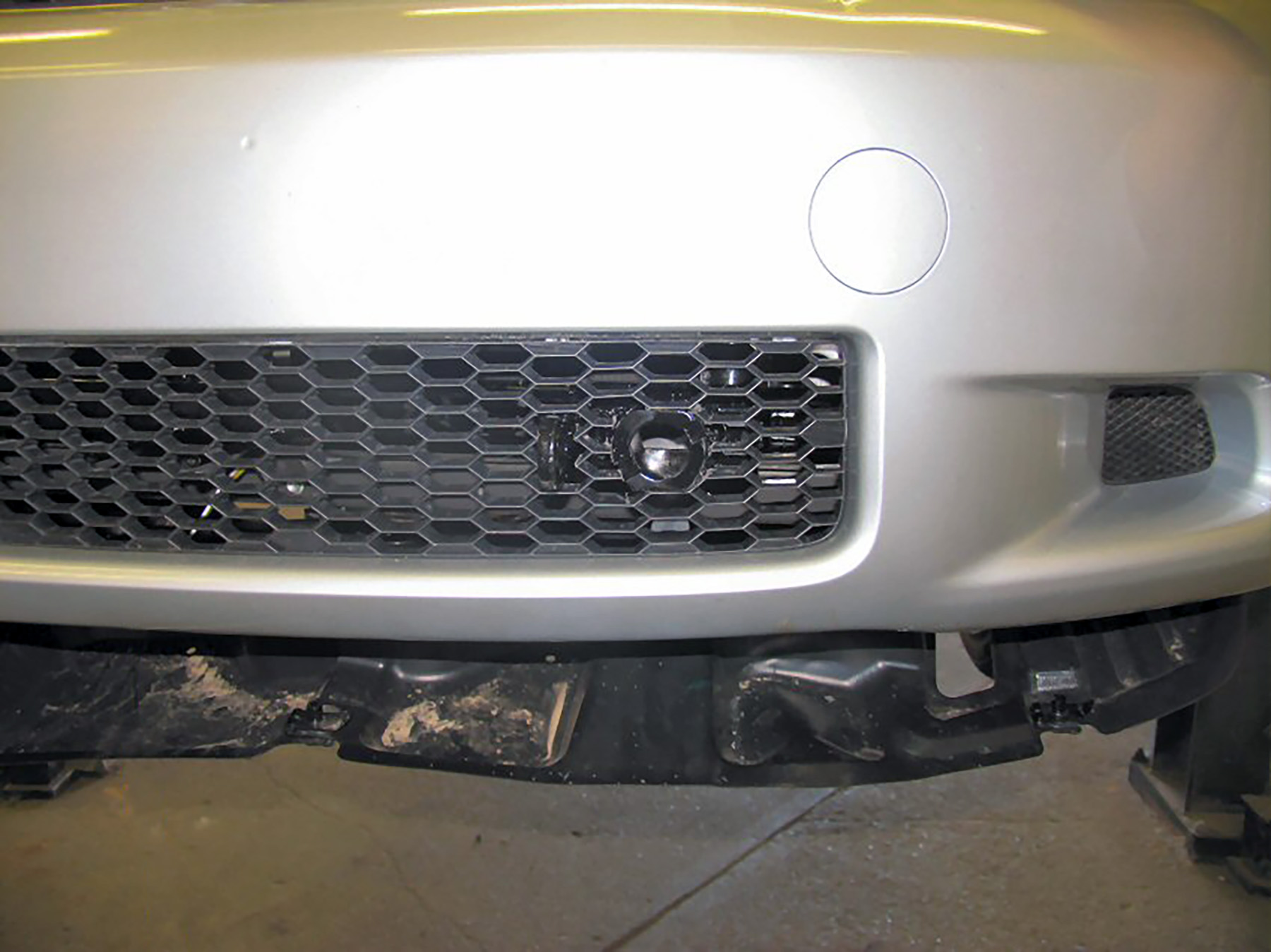

The electrical rods can be adjusted with a short piece of pipe if needed to ensure they come through the grill openings after the lower grill is trimmed around the receivers and convenience links.
Yes. The BX3760 is designed for the 2005 Toyota Scion with attachment tabs 24 inches center to center and 13½ inches high.
Yes. Drilling with a 13/32" drill bit is required. Trimming of the front webbing on the tie down bracket with a reciprocating saw and trimming of the lower grill with a utility knife or hack saw blade are also required.
Required tools: 10MM socket, 9/16" socket, utility knife or hack saw blade, vise grips, Loctite Red, 13/32" drill bit, and Phillips screwdriver.
Yes. The front fascia and air bag sensors must be removed for baseplate installation. The air bag sensors are reinstalled after drilling using 6MM hex bolts.
Yes. Loctite Red must be applied to all bolts before tightening. All bolts must be tightened according to the Torque Chart in the General Instruction Sheet.
Ensure the baseplate is level with the vehicle. Before each towing trip, inspect for cracked welds, missing or worn parts, and loose bolts. Verify all bolts are tightened to specification with Loctite Red applied.
