{'feature': 'Custom Design', 'description': 'Each Blue Ox BX3789 bracket is custom-designed for a specific towed vehicle, ensuring an optimal fit and improved towing performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX3789 Tow Bar Bracket offers an unparalleled blend of strength, versatility, and ease of installation. Expertly crafted from robust steel, it boasts a sleek black finish with a durable powder coat to provide extra resistance to corrosion and wear. Specifically designed for a range of towed vehicles, this bracket is equipped with a bolt-on mounting type, ensuring a secure connection that can be trusted for the long haul. When you choose the Blue Ox BX3789, you're investing in a quality product that comes with all the necessary hardware and comprehensive instructions for a seamless DIY installation. Experience the Blue Ox difference and elevate your towing capabilities.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
2 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2007 - 2014 | Toyota Tundra | Crew Cab Pickup | Comes with Removable Attachment Tabs Install Rating 2 Minor Drilling Required Tow Hooks Must be Removed and Remain off the Vehicle After Installation Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight Height Deviation up to 4” higher on the Towing Vehicle Allowed When Used for Utility Applications Only with an Allure Tow Bar |
| 2007 - 2014 | Toyota Tundra | Standard Cab Pickup | Comes with Removable Attachment Tabs Install Rating 2 Minor Drilling Required Tow Hooks Must be Removed and Remain off the Vehicle After Installation Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight Height Deviation up to 4” higher on the Towing Vehicle Allowed When Used for Utility Applications Only with an Allure Tow Bar |
Yes, the BX3789 is designed for 2007-14 Toyota Tundra. However, dimensional variations between otherwise identical vehicles can be considerable, and the baseplate may need slight tailoring to compensate for vehicle manufacturer's tolerances. If the front of your vehicle looks different than shown in the manual, contact Blue Ox at (402) 385-3051 before proceeding.
Yes. The baseplate installation uses the existing tow hook holes on the frame. The factory tow hooks are removed during installation and not reinstalled. The baseplate bolts into the same mounting points.
The attachment tab height is 15 inches and the attachment tab width is 27 inches.
The following tools are required: torque wrench, drill, 17/32" drill bit, 17MM socket, and 3/4" socket. Loctite Red is also required for all bolt threads.

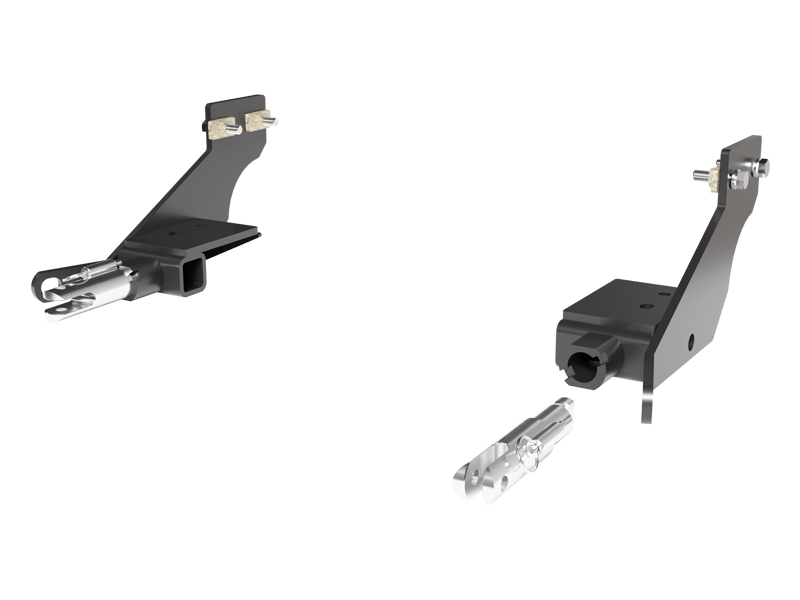

The kit includes: 4 nut plates with 10" wire (1/2"), 2 baseplates (driver and passenger side), 2 attachment tab assemblies, 1 electrical bracket, 4 Grade 5 1/4"-20 x 3/4" hex head bolts, 2 #10-32 1/2" round slotted head screws, 4 Grade 5 1/2"-13 x 2" hex head bolts, 4 Grade 8.8 12MM-1.25 x 35MM hex head bolts, 2 #10-16 x 1" self-drilling screws, 4 Grade 8.8 12MM-1.25 x 40MM hex head bolts, 2 #10-32 hex nuts, 4 1/4"-20 hex nylon nuts, 8 1/4" flat washers, 4 1/2" lock washers, 2 #10 lock washers, 4 12MM lock washers, 2 12MM flat washers, 2 Class IV safety cables, and 2 1/2" quicklinks.
Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do "fit work." If you need a dealer, you can find one at www.blueox.com or by contacting Blue Ox Technical Service at (402) 385-3051.
Yes. Drilling and trimming are required. Specifically, you must drill the rear hole through the frame using a 17/32" drill bit on both sides of the vehicle. After drilling, install a 1/2"-13 x 2" bolt with a lock washer and a 1/2" nut plate on the inside of the frame.
A 17/32" drill bit is required to drill the rear hole through the frame on both sides of the vehicle.
For Grade 5 bolts: 1/4" = 10 ft-lbs, 5/16" = 19 ft-lbs, 3/8" = 33 ft-lbs, 7/16" = 54 ft-lbs, 1/2" = 78 ft-lbs, 5/8" = 154 ft-lbs, 3/4" = 257 ft-lbs.
For Grade 8.8 metric bolts: 6MM = 6 ft-lbs, 8MM = 16 ft-lbs, 10MM = 31 ft-lbs, 12MM = 54 ft-lbs, 14MM = 89 ft-lbs, 16MM = 161 ft-lbs, 18MM = 222 ft-lbs.
For Grade 10.9 metric bolts: 6MM = 8 ft-lbs, 8MM = 22 ft-lbs, 10MM = 40 ft-lbs, 12MM = 70 ft-lbs, 14MM = 117 ft-lbs, 16MM = 230 ft-lbs, 18MM = 318 ft-lbs.
1. Remove the two tow hook bolts from both sides using a 17MM socket; do not reinstall the tow hooks. 2. Loosely install the baseplate onto the frame using appropriate hardware into the existing tow hook holes on both sides. 3. Install a 1/2"-13 x 2" bolt with lock washer into the existing hole and a 1/2" nut plate on the inside of the frame on both sides; fully tighten using Loctite Red. 4. Drill the rear hole through the frame using a 17/32" drill bit on both sides; install a 1/2"-13 x 2" bolt with lock washer and 1/2" nut plate on the inside of the frame on both sides; fully tighten using Loctite Red. 5. Attach permanent baseplate safety cables to the convenience link on the baseplate on both sides. 6. Attach the electrical bracket to the lower fascia with supplied screws and washers.
Yes. You must use a sufficient amount of Loctite Red on all bolt threads before tightening. This is required for all bolts in the installation.
A 17MM socket is required to remove the two tow hook bolts from both sides of the vehicle.
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. You must reference your vehicle owner's manual for manufacturer's towing specifications.
Permanent baseplate safety cables are strongly recommended for this vehicle. The BX8869 Tail Light Wiring Kit is also recommended. The safety cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must not rub against any hoses or moving parts.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Use Loctite Red on all bolts and tighten to the recommended torque specifications. Ensure all electrical connections are plugged in and accessories are functioning properly.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to the recommended specifications. Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls. Remove the attachment tabs when not in use if applicable.
Yes. It is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
Blue Ox offers a three-year limited warranty to the original retail purchaser. The product is warranted to be free from defect in material and workmanship under normal use and service for three years from the date of delivery. During this period, Blue Ox will repair or replace defective parts that have been returned to the factory, transportation prepaid. Warranty coverage is valid only if the customer warranty card is returned within 30 days of purchase and a copy of the original invoice accompanies any claim. The warranty does not cover incorrect or improper installation, improper use, modification, neglect, failure to properly service and maintain, misuse, accident, normal wear and tear, paint or rust. The warranty is non-transferable. Register your warranty at http://blueox.com/warranty/
No. You must use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to use genuine parts will void the manufacturer's warranty.
Handling of some cosmetic parts when installing this product may require the use of protective covers, rags, specialty tools, etc. to prevent damage. When using power drills, be aware of the dangers of torque and drill bit length. When using a reciprocating saw, be aware of objects behind the cutting surface.
Yes. Use a good quality paint to spray cut edges of frame to prevent rusting.
Be sure that all electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia.
The permanent baseplate safety cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Do not mount the cables against wires, hoses, or brake lines. Be sure the safety cables do not rub against any hoses or moving parts. If additional options may interfere with suggested mounting, secure the cables to a solid piece of the frame as described in the instructions included with the permanent baseplate safety cables.
No. Permanent baseplate safety cables are to be used in conjunction with, and NOT a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Attach the electrical bracket to the lower fascia with the supplied screws, using washers in between the bracket and fascia.
Yes, the BX3789 is designed for 2007-14 Toyota Tundra. Dimensional variations between vehicles may require slight tailoring. Contact Blue Ox at (402) 385-3051 if your vehicle's front looks different than shown in the manual.
Yes. You must drill the rear hole through the frame using a 17/32" drill bit on both sides of the vehicle. Trimming is also required.
You need a torque wrench, drill, 17/32" drill bit, 17MM socket, 3/4" socket, and Loctite Red. Professional installation by a Blue Ox Dealer is recommended.
Tighten 1/2" Grade 5 bolts to 78 ft-lbs. Use Loctite Red on all bolt threads before tightening.
Tighten 12MM Grade 8.8 bolts to 54 ft-lbs. Use Loctite Red on all bolt threads before tightening.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for manufacturer's towing specifications.
Yes, permanent baseplate safety cables are strongly recommended. They must be connected from the baseplate to the frame rail or cross member and must not rub against hoses or moving parts.
Inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Use Loctite Red and tighten all bolts to recommended torque specifications.
