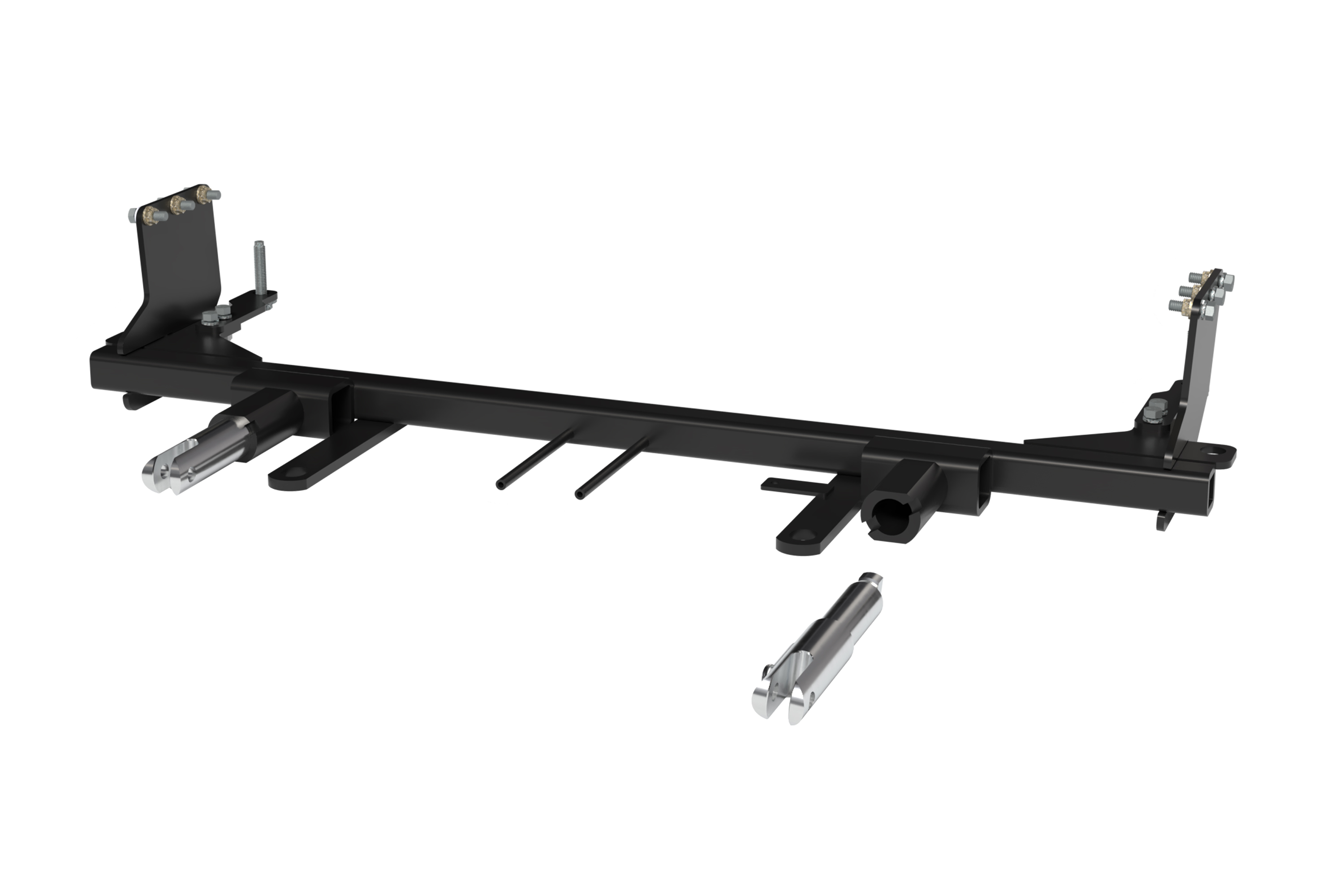

Custom Design: Each Blue Ox BX3797 tow bar bracket is specifically designed for particular towed vehicles, ensuring an exact fit and optimal performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX3797 is a robust tow bar bracket designed to seamlessly integrate with specific towed vehicles ensuring a perfect fit and superior performance. Crafted from high-grade steel, its black powder-coated finish enhances its durability while adding to its sleek look. The bracket is bolt-on type, ensuring a secure fit and easy installation. It comes with all the necessary hardware, eliminating the need for additional purchases and simplifying the installation process. The comprehensive instructions provided make it an ideal choice for DIY projects.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2018 | Toyota Yaris iA | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required |
No. The BX3797 is designed for 2017-18 Toyota Yaris iA with manual transmission only. Automatic transmission vehicles are not compatible with this baseplate.
The BX3797 is specifically designed for 2017-18 Toyota Yaris iA only. Fitment for other model years is not addressed in the installation instructions. Contact Blue Ox Technical Service at (402) 385-3051 to confirm compatibility with other years.
The BX3797 attachment tab height is 13 inches and the width is 24 inches.
Required tools include: flat screwdriver, Phillips screwdriver, torque wrench, drill, 3/8" drill bit, 8MM socket, 10MM socket, 17MM socket, 7/16" socket, 7/16" wrench, 9/16" socket, 9/16" wrench, and 5/16" nut driver. Loctite Red is also required for all bolt threads.
Blue Ox recommends that the BX3797 be installed by Blue Ox Dealers who are familiar with the product and have the equipment and knowledge necessary to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting Blue Ox Technical Service at (402) 385-3051.
Yes. Drilling is required. In step 8, existing holes are reamed out to 1-1/4" on both sides of the vehicle to create access holes. In step 13, three 3/8" holes are drilled on the top of the baseplate on both sides of the vehicle. A 3/8" drill bit and 1-1/4" drill bit are required tools.
Yes. In step 19, the fascia must be marked and trimmed around the convenience links and attachment tabs before reinstallation.
The following components must be removed and later reinstalled: the front fascia, windshield washer fluid reservoir, plastic piece at the bottom of the grill, and belly pan. The instructions note that the fascia and windshield washer fluid reservoir are removed and reinstalled for baseplate installation. All removed items should be placed on a flat, sturdy surface.
Torque specifications in foot-pounds for inch bolts are: 1/4" Grade 5: 10 ft-lbs, Grade 8: 14 ft-lbs; 5/16" Grade 5: 19 ft-lbs, Grade 8: 29 ft-lbs; 3/8" Grade 5: 33 ft-lbs, Grade 8: 47 ft-lbs; 7/16" Grade 5: 54 ft-lbs, Grade 8: 78 ft-lbs; 1/2" Grade 5: 78 ft-lbs, Grade 8: 119 ft-lbs; 5/8" Grade 5: 154 ft-lbs, Grade 8: 230 ft-lbs; 3/4" Grade 5: 257 ft-lbs, Grade 8: 380 ft-lbs.
Torque specifications in foot-pounds for metric bolts are: 6MM Grade 8.8: 6 ft-lbs, Grade 10.9: 8 ft-lbs; 8MM Grade 8.8: 16 ft-lbs, Grade 10.9: 22 ft-lbs; 10MM Grade 8.8: 31 ft-lbs, Grade 10.9: 40 ft-lbs; 12MM Grade 8.8: 54 ft-lbs, Grade 10.9: 70 ft-lbs; 14MM Grade 8.8: 89 ft-lbs, Grade 10.9: 117 ft-lbs; 16MM Grade 8.8: 161 ft-lbs, Grade 10.9: 230 ft-lbs; 18MM Grade 8.8: 222 ft-lbs, Grade 10.9: 318 ft-lbs.
The kit includes: 6 × 3/8" Whiz Nuts with 14" wire (part 61-4978); 1 × BX3797 Baseplate (61-7903); 2 × Attachment Tab Assemblies with hole (62-3469); 2 × 1/4" flats (102-7744); 1 × 1/4"-20 × 3/4" hex head bolt Grade 5 (201-0050); 2 × #10-32 1/2" round slotted head screws (201-0192); 10 × 3/8"-16 × 1-1/4" hex head bolts Grade 5 (201-0368); 2 × #12-14 × 1" self-drilling screws (201-0979); 2 × #10-32 hex nuts (202-0047); 4 × 3/8"-16 hex nylon insert lock nuts (202-0090); 1 × 1/4"-20 hex nylon nut (202-0102); 10 × 3/8" lock washers (203-0010); 2 × #10 lock washers (203-0054); 1 × 4-way bracket (299-0685); 2 × existing 12MM bolts (to be reused); 2 × Class III safety cables (226-0046); 2 × 3/8" quicklinks (229-0359); and 2 × black cap plug receivers (290-0437).
Yes. The installation uses two existing 12MM bolts from the vehicle to attach the bracket to the frame in step 11. These bolts are left loose initially and are part of the baseplate mounting system. The instructions note that many Blue Ox baseplates are designed to use existing holes and hardware, and that existing hardware should be used as specified in the installation instructions.
The fascia removal sequence is: (1) Remove three 10MM bolts from the driver side and two Phillips head screws (one on each side); (2) Remove one 10MM bolt and one push pin from the passenger side; (3) Lift the plastic piece on the driver side and remove one push pin; (4) Remove three push pins in front of the tire in the wheel well on both sides; (5) Pull back the wheel well cover and remove one 8MM bolt on both sides; (6) Remove eight 8MM bolts from the underside of the fascia and two push pins; (7) Pull down the belly pan and remove one 8MM bolt and one push pin on both sides.
In step 7, use a 10MM socket to remove three bolts from the windshield washer reservoir. Then pinch together the black piece holding the blue reservoir cap to remove it from the frame. Unplug all lines, remove the reservoir, and set it aside for reinstallation later.
In step 12, the baseplate is attached to the bracket using two 3/8" bolts with lock washer and nylon lock nut on both sides of the vehicle. All bolts are tightened fully at this time. In step 14, three 3/8" bolts with lock washer and whiz nuts are inserted into the side plate of the baseplate on both sides of the vehicle.
The permanent baseplate safety cables prevent the towed vehicle from breaking loose in the event the connection between the frame of the towed vehicle and the baseplate fails or becomes disconnected. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Each cable must have an adequate weight rating for the towing system. The weight rating of the two cables together will not qualify as a single cable. These cables should remain installed as long as the baseplate is installed and are to be used in conjunction with, not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
The permanent baseplate safety cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. The manual shows two recommended options: Option 1 uses a quicklink attached to the baseplate convenience link tabs, and Option 2 is for baseplates without convenience link tabs. The cables must not be mounted against wires, hoses or brake lines. If additional options interfere with the suggested mounting, secure the cables to a solid piece of the frame as described in the General Information sheet.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. Refer to your vehicle owner's manual for manufacturer's towing specifications.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. Paint cut frame edges to prevent rusting. The permanent baseplate safety cables should remain installed as long as the baseplate is installed on the vehicle.
The BX8848 Tail Light Wiring Kit is recommended for this vehicle, but the manual does not explicitly state whether it is required or optional.
Blue Ox offers a three-year limited warranty to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. The customer warranty card must be returned within 30 days of purchase, and a copy of the original invoice showing date and place of purchase must accompany any warranty claim. The warranty does not cover incorrect or improper installation, improper use, modification or neglect, failure to properly service and maintain, misuse, accident, normal wear and tear, paint or rust. The warranty is non-transferable.
Yes, if your vehicle has a manual transmission. The BX3797 is designed for 2017-18 Toyota Yaris iA with manual transmission only. Automatic transmission vehicles are not compatible.
You will need: flat and Phillips screwdrivers, torque wrench, drill with 3/8" and 1-1/4" bits, sockets (8MM, 10MM, 17MM, 7/16", 9/16"), wrenches (7/16", 9/16"), 5/16" nut driver, and Loctite Red.
Yes. You must ream existing holes to 1-1/4" on both sides and drill three 3/8" holes on the top of the baseplate on both sides. Trimming of the fascia around the convenience links and attachment tabs is also required.
The front fascia, windshield washer fluid reservoir, plastic piece at the bottom of the grill, and belly pan must be removed. All components are reinstalled after baseplate installation.
Yes. Blue Ox recommends installation by Blue Ox Dealers who are familiar with the product and have the equipment and knowledge necessary to do fit work. Find a dealer at www.blueox.com or call (402) 385-3051.
3/8" Grade 5 bolts should be torqued to 33 foot-pounds. Use Loctite Red on all bolt threads before tightening.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the warranty. Check your vehicle owner's manual for manufacturer's towing specifications.
Yes. Two Class III safety cables with 3/8" quicklinks are included. They must be connected from the baseplate to the vehicle's frame rail or cross member and must not rub against hoses or moving parts.
Before each towing trip, inspect the baseplate for cracked welds, missing or worn parts, and loose bolts. Ensure all electrical connections are plugged in and functioning. Verify that safety cables are properly attached and do not rub against hoses or moving parts.
