{'key': 'Material', 'value': 'Steel', 'description': 'Made from robust steel, promising long-lasting durability and reliability.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

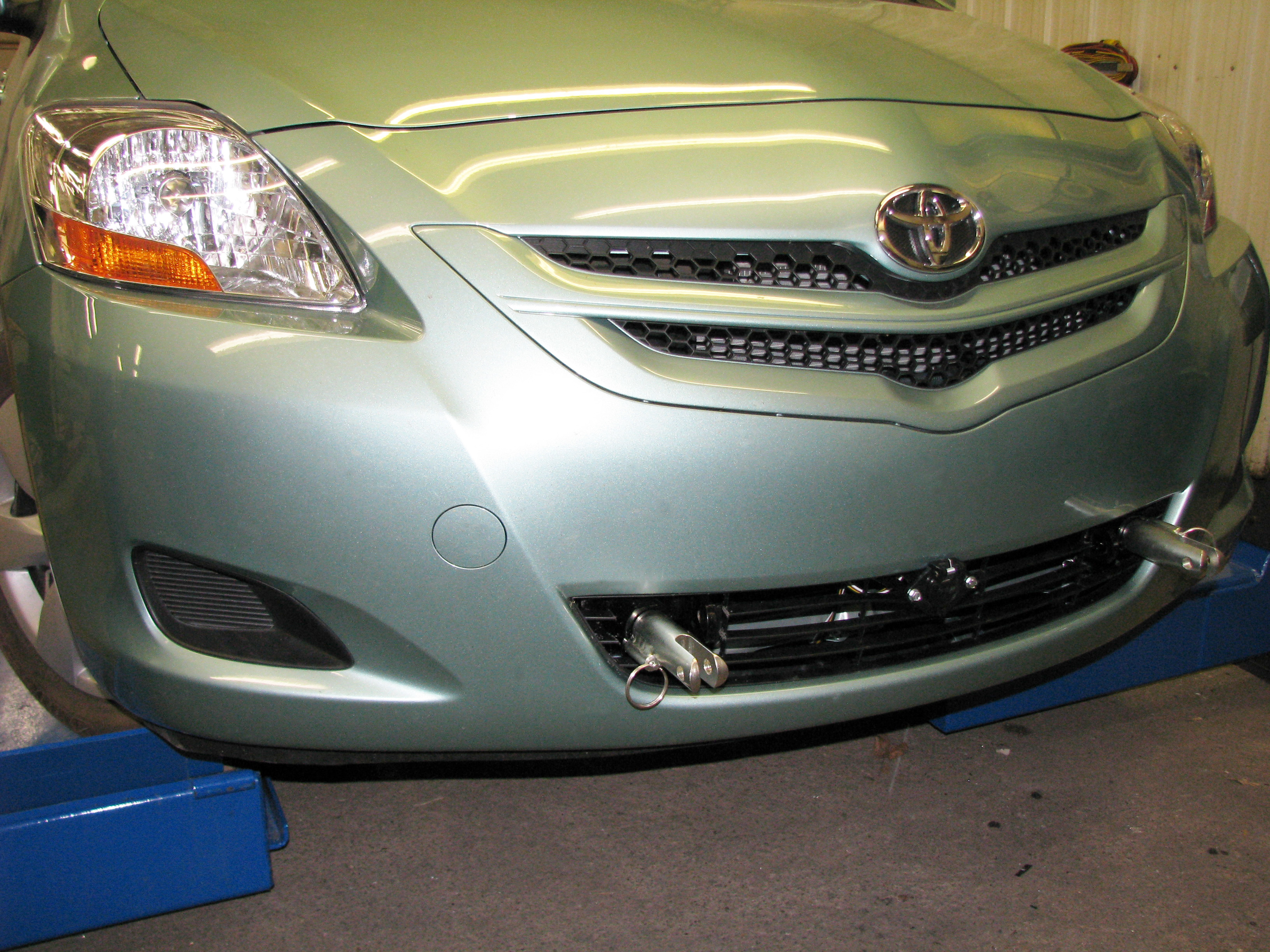

The Blue Ox BX3780 Tow Bar Bracket is tailor-made to enhance your towing experience. Crafted using durable steel, this bracket is designed to perfectly fit your specific towed vehicle, ensuring a seamless installation experience. It comes in a sleek black color with a powder coat finish, offering superior resistance against corrosion and wear. The bolt-on mounting type makes the installation process straightforward and hassle-free. What's more, it comes complete with all necessary hardware, meaning there's no need to make separate purchases. The Blue Ox BX3780 Tow Bar Bracket is not only built to last but also designed to provide the utmost convenience for every towing adventure.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2007 - 2011 | Toyota Yaris | Sedan | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
The BX3780 is designed for 2007-11 Toyota Yaris sedans only. It does not fit S Model or Hatchback versions. If your vehicle front looks different from the reference image in the manual, contact Blue Ox at (402) 385-3051 before proceeding.
No. Due to the design of the removable tabs on the BX3780, the RangeFinder II tow bar cannot be used with this baseplate.
Most adapters cannot be used with the BX3780 baseplate. Only the BX8833 and BX8851 adapters are compatible.
Required tools are: 10MM socket, 9/16" socket, 14MM socket, large vise grip, 13/32" drill bit, 1/4" drill bit, flat screwdriver, utility knife, reciprocating saw, Loctite RED, and protective covers or rags to prevent damage to cosmetic parts.
The BX8869 Bulb and Socket Wiring Kit is recommended for this vehicle. The manual indicates a possible location for it on the fascia but does not state it is mandatory.
Yes. The fascia, washer reservoir, and horn must be removed and reinstalled during baseplate installation. The fascia is held by six plastic push pins on the top edge and eight metric bolts on the lower edge.
Yes. On the driver's side, the air bag sensor must be removed during installation (Step 17) and reattached after the bumper is reinstalled (Step 19). The sensor is held by two bolts removed with a 10MM socket.
Yes. Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge to do 'fit work.' Blue Ox Dealers can be found at www.blueox.com or by calling (402) 385-3051.
Yes. Drilling is required. You must drill two bottom holes into the frame extension using the baseplate as a template (Step 15), and drill two back holes into the lower frame webbing using a 13/32" drill bit (Step 18). When drilling, be aware of brake lines behind the lower webbing.
Yes. Trimming is required. You must trim the frame extension, lower frame support webbing, lower bumper webbing, plastic belly pan, and air dam using a reciprocating saw. Specific measurements are provided in Steps 9-13 and Step 21. After cutting the plastic belly pan, spray cut edges with good quality paint to prevent rusting.
After removing the frame extension, measure 1" up from the bottom and cut across using a reciprocating saw, then bend in. Trim following the seam up until just under the notch, then connect straight across. Do this on both sides (Step 9).
Using a reciprocating saw, cut a notch starting 5/8" up from the bottom and across in the lower frame support webbing and cut it out on both sides (Step 10).
On the bottom side of the bumper, trim back 2" of lower webbing using a reciprocating saw on both sides (Step 11).
Behind the frame, cut the plastic belly pan 3" down and 1 3/4" in on both sides. After cutting, spray the cut edges with good quality paint to prevent rusting (Step 12).
Trim the air dam down to the first ridge, all the way across and back to the second to the last ridge on both sides (Step 21). Additionally, the temperature sensor on the front of the air dam must be repositioned: squeeze the tabs together on the back side to remove it, use a 1/4" drill bit to put a slot 3/4" back from the original hole, then snap the sensor into the new position (Step 22).
The manual provides general torque specifications for Grade 5 and Grade 8 bolts but does not specify the exact torque value for 3/8-16 bolts. Refer to the torque chart on the front page of the installation instructions or page 3 of the Baseplate Towing General Instructions. The manual states to tighten all bolts according to these charts.
The attachment tab height is 14" and the attachment tab width is 24".
For Grade 5 bolts in 3/8" size, the torque specification is 33 foot-pounds.
For Grade 8 bolts in 3/8" size, the torque specification is 47 foot-pounds.
For Grade 5 bolts in 1/2" size, the torque specification is 78 foot-pounds.
For Grade 8 bolts in 1/2" size, the torque specification is 119 foot-pounds.
For metric 8MM Grade 8.8 bolts, the torque specification is 16 foot-pounds.
For metric 8MM Grade 10.9 bolts, the torque specification is 22 foot-pounds.
For metric 10MM Grade 8.8 bolts, the torque specification is 31 foot-pounds.
For metric 10MM Grade 10.9 bolts, the torque specification is 40 foot-pounds.
If the baseplate is in an accident, it must be replaced and not reused. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
The BX3780 includes permanent baseplate safety cables (226-0046, 36" Class III). These must be attached to the provided convenience link on the baseplate and secured to a solid piece of the frame. Ensure the safety cables do not rub against any hoses or moving parts. The manual shows a recommended installation location on the frame.
Before installing the fascia, ensure that ALL electrical connections are plugged in properly and functioning. This is critical for safe operation.
When using power drills, be aware of the dangers of torque and drill bit length. When drilling the back two holes into the lower frame webbing (Step 18), be aware of brake lines behind the lower webbing.
Using non-genuine factory replacement parts, homemade parts, or non-typical parts will void the manufacturer's warranty. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (usually Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor.
Yes. Towing behind a non-motorized vehicle will void the warranty. The baseplate is designed for use with motorized vehicles only.
Failing to follow and/or altering these installation instructions in either installation or required equipment will void the manufacturer's warranty.
After installation, verify that all electrical connections are plugged in properly and functioning before installing the fascia. Ensure the safety cables are properly attached and do not rub against hoses or moving parts. Confirm that all bolts are tightened according to the torque specifications. Consult the vehicle owner's manual or contact the vehicle manufacturer for specific towing procedures and towability confirmation.

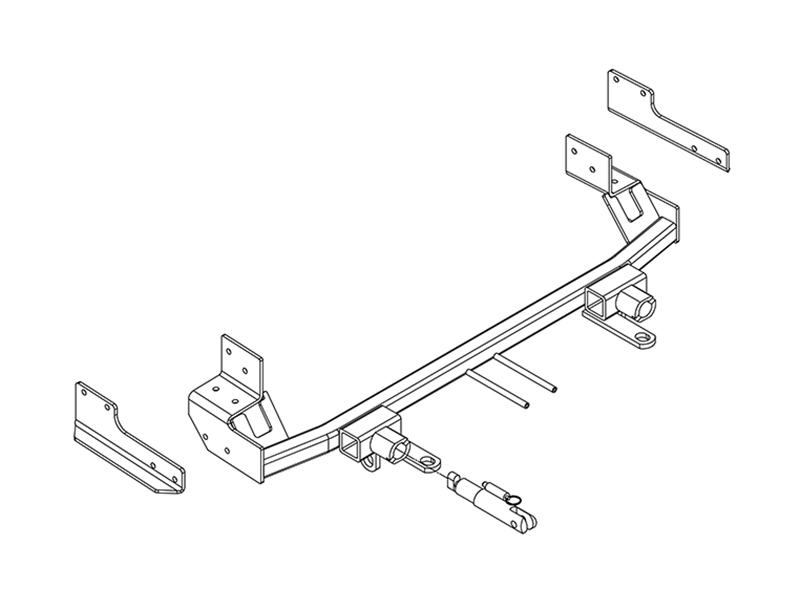

The hardware kit includes: 1 weld mount (61-6542), 1 driver-side support plate (101-7241), 1 passenger-side support plate (101-7242), 2 spacer plates (102-6861), 8 weld nut plates (61-5208), 4 3/8-16 x 1 1/2" hex bolts Grade 5 (201-0440), 8 3/8-16 x 1 1/4" hex bolts Grade 5 (201-0368), 4 3/8-16 x 1" hex bolts Grade 5 (201-0443), 16 3/8" lock washers (203-0010), 8 3/8-16 hex nuts (202-0003), 2 1/4-20 x 1/2" hex washer screws (201-0553), 2 10-32 x 1/2" slot round head screws (201-0192), 2 #10 lock washers (203-0054), 2 #10-32 hex nuts (202-0047), 2 4-way electrical connectors (101-5822), 2 removable attachment tab assemblies (62-3468), 2 36" Class III baseplate safety cables (226-0046), 4 3/8" quick links (229-0359), and 2 receiver cap plugs (290-0437).
The weld mount part number is 61-6542.
The driver-side support plate is 101-7241 and the passenger-side support plate is 101-7242.
The BX3780 fits 2007-11 Toyota Yaris sedans only—not S Model or Hatchback versions. If your vehicle front looks different from the manual reference image, call Blue Ox at (402) 385-3051.
No. The RangeFinder II tow bar cannot be used with BX3780 due to the removable tab design. Only BX8833 and BX8851 adapters are compatible.
Required tools: 10MM, 9/16", and 14MM sockets; 13/32" and 1/4" drill bits; large vise grip; flat screwdriver; utility knife; reciprocating saw; Loctite RED; and protective covers to prevent cosmetic damage.
Yes. The fascia, washer reservoir, horn, headlight, bumper core, frame extension, air bag sensor, and air dam must all be removed and reinstalled during installation.
Yes. Drilling is required for frame extension and lower frame webbing holes. Trimming is required on the frame extension, lower webbing, bumper, plastic belly pan, and air dam. After cutting the belly pan, spray cut edges with paint to prevent rust.
Use Loctite RED on all bolts before tightening. Torque Grade 5 3/8" bolts to 33 ft-lbs and Grade 8 to 47 ft-lbs. Refer to the torque chart on page 1 or the Baseplate Towing General Instructions for other sizes.
Verify all electrical connections are plugged in and functioning. Ensure safety cables are attached to the baseplate and frame without rubbing hoses or moving parts. Confirm all bolts are torqued correctly. Check the vehicle owner's manual for towing procedures and towability.
The baseplate must be replaced and not reused. Accident damage can be unseen and cause serious injury or additional damage if the baseplate is used again.
If the front of your vehicle looks different than the reference image shown in the manual, do not proceed with installation. Call Blue Ox at (402) 385-3051 before attempting to install the baseplate. This may indicate your vehicle is not compatible or requires special fitment considerations.
The manual acknowledges that dimensional variations between otherwise identical vehicles can be considerable. Minor adjustments may be necessary to compensate for auto manufacturer tolerances. These adjustments may include filing a hole slightly, bending electrical rods, or bending end plates. If significant modifications are needed beyond these minor adjustments, contact Blue Ox at (402) 385-3051.
Before installing the fascia, verify that ALL electrical connections are plugged in properly and functioning. If connections are not working, check that all connectors are fully seated and properly aligned. Do not install the fascia until all electrical connections are confirmed to be working. If problems persist, contact Blue Ox at (402) 385-3051.
Ensure the safety cables do not rub against any hoses or moving parts. If cables are rubbing, reposition them to a different solid piece of the frame as described in the instructions included with the permanent baseplate safety cables. The manual shows a recommended installation location on the frame, but additional options may be necessary depending on your vehicle's configuration.
