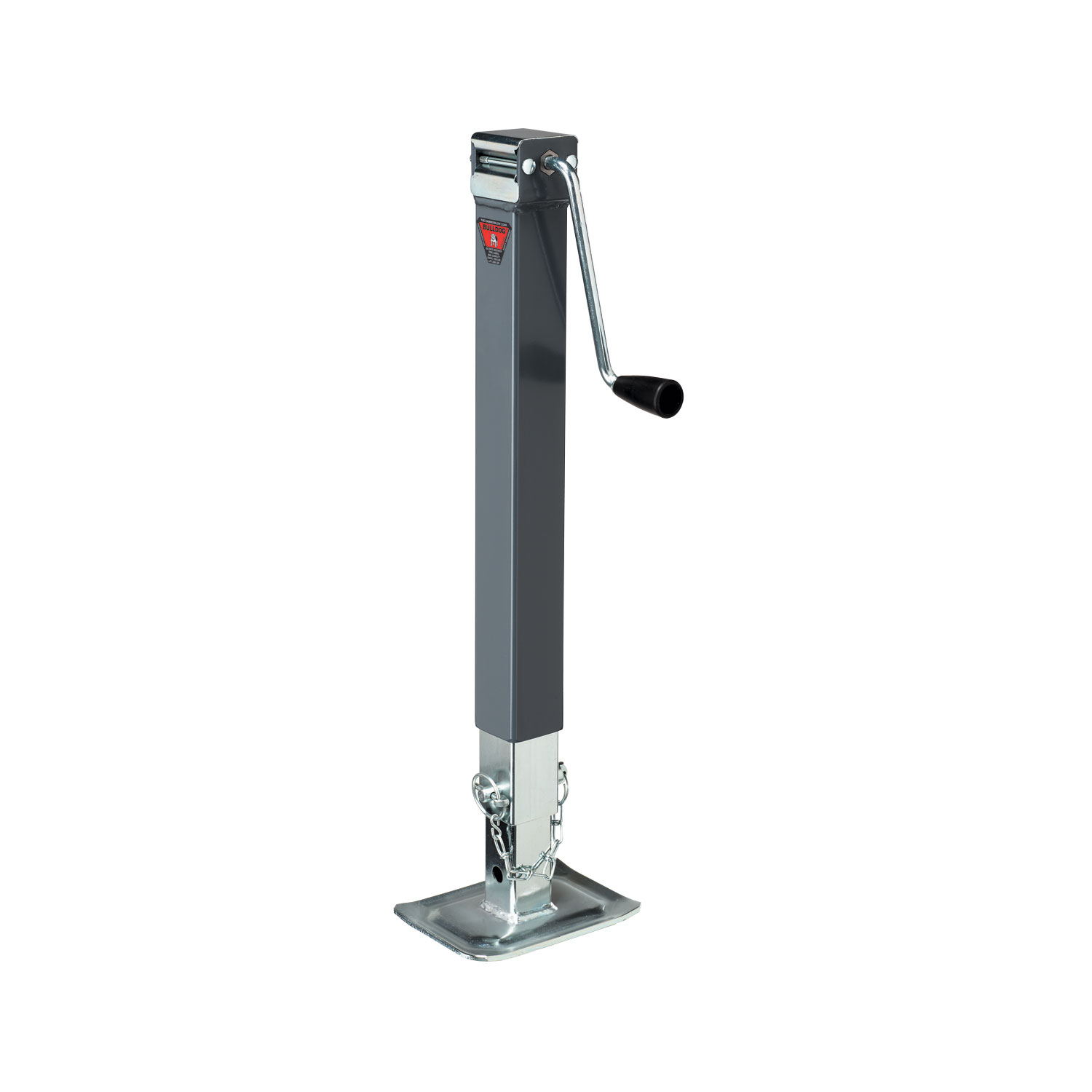

BULLDOG 8,000 lbs. support capacity square jack serves the agricultural, industrial, construction, horse/livestock trailer, and utility/cargo trailer markets. The compact design of these jacks makes them ideal for tight-fitting applications where 3" and 4" square tube jacks are too big!
| BRAND: | BULLDOG |
| PART NUMBER: | 190754 |
| WARRANTY: | LIMITED 5 YEAR WARRANTY |
| WEIGHT: | 26 LBS |
| CAPACITY: | 8,000 LBS. |
| TRAVEL: | 15 IN. |
| RETRACTED: | 25.06 IN. |
| EXTENDED: | 53.56 IN. |
| MODEL NUMBER: | SWL 190 DL-BQ |
| HANDLE STYLE: | SIDEWIND |
| SPEEDY LIFT: | NO |
| MATERIAL: | STEEL |
| HANDLE BUSHING INCLUDED: | YES |
| ATTACHED WHEELS: | NO |
| COLOR: | GRAY |
| FOOT WIDTH: | 6 IN. |
| FINISH: | GRAY PAINT AND CLEAR ZINC PLATE |
| FOOT PLATE SIZE: | 8 IN. X 6 IN. |
| GEARS INCLUDED: | YES |
| FOOT LENGTH: | 8 IN. |
| ROLL PINS INCLUDED: | YES |
| WASHERS INCLUDED: | YES |
Founded in 1920, Bulldog has become the standard for heavy-duty trailer connection hardware in agricultural, military and utility service. The line covers gooseneck hitches and couplers, A-frame and channel-mount trailer couplers with the Wedge-Latch mechanism, and heavy-duty jacks, built for unmatched strength, reliability and safety under demanding loads.
Bulldog was founded in 1920 and has spent more than a century supplying the connection hardware that heavy trailers depend on. Its market has always been the demanding end: agricultural, military and utility applications where a coupler failure is not an inconvenience but a serious incident. The brand summarises its position as Tough and Tested, and it sits within the Horizon Global towing group alongside Reese, Draw-Tite, Fulton, Tekonsha, Bargman and Wesbar.
Gooseneck equipment is the brand's signature. Gooseneck hitches mount in the truck bed over the rear axle, which places the load where the chassis can carry it properly and allows far tighter turning than a receiver hitch permits. Matching gooseneck couplers attach at the trailer end, in round tube and square configurations across the capacity range used by livestock, equipment and flatbed trailers.
The conventional trailer coupler range is built around the Wedge-Latch mechanism, which uses a wedge to take up wear between coupler and ball rather than relying on a fixed clamp that loosens over time. That matters on a trailer accumulating hard miles, where slack in the coupling shows up as noise and shock loading. Couplers are offered in A-frame form for standard tongues and in channel-mount form for straight tongue and fabricated frames, with adjustable channel versions that let a coupler be positioned to suit the tongue height.
Heavy-duty jacks complete the line, sized for the tongue weights that gooseneck and equipment trailers generate. Across the range the emphasis is consistent: forged and heavy-section components, load ratings backed by testing, and hardware specified for agricultural, military and heavy-duty commercial use rather than occasional recreational towing.
Experts available to answer your questions
Call 888-634-94945 Years
A tongue jack is a device mounted to a trailer tongue that raises and lowers the tongue for coupling and uncoupling from a tow vehicle. It supports the weight of the tongue and implements attached to the trailer. The manual covers multiple mounting types (bolt-on, weld-on, snap ring, bolt-thru, A-plate, direct-mount, and pivot tube) and handle styles (side-wind and top-wind).
No. The manual explicitly states: 'These jacks are not designed for mounting to round tongues.' However, weld-on pivot tube models are available for both round and square pivot tubes, which provide an alternative mounting method for certain applications.
The gap between the mounting bolts and the tongue must not exceed 1/16 inch (1.5 mm). This applies to bolt-on mounting bracket installations. The upper bolts should rest on the top of the tongue, and the lower bolts should be less than 1/16 inch from the bottom of the tongue.
No. A-plate jacks are specifically designed for mounting to trailers with A-plate couplers only. The manual states: 'A-plate jacks are designed for mounting to trailers with A-plate couplers.' It is recommended to attach a bottom support plate to the bottom of the tongue for additional reinforcement.
Before mounting the jack, confirm that there will be no interference from the tow vehicle, tongue, ground, and any other mounted accessories while stationary or in motion. Check for interference in all positions including handle swing and swivel positions if applicable. Check for interference again after installation is complete. Also verify clearance of the handle, trailer light cables, and coupler.
1) Place the gear housing on the tongue and insert supplied bolts in holes corresponding to the tongue width. 2) Place the mounting bracket below the tongue with the flat surface against the tongue. 3) Secure with locknuts and torque to 25 ft. lbs. After installation, check for clearance of the handle, trailer light cables, and coupler.
1) Place the jack bracket over the mount. 2) Place the snap ring in the groove. 3) Seat the snap ring fully into the groove. Before installing the snap ring, inspect the snap ring groove and remove any debris to ensure proper seating.
1) Place the jack bracket into the recessed opening on the mount. 2) Place the small end of the bushing into the jack bracket and onto the bolt. 3) Tighten the locknut until there is little movement in the bushing. Note: The bolt should be installed between the trailer tongue and mount; the jack bracket will be held by the bushing between the locknut and the mount.
1) All welding must be performed by an AWS certified welder. 2) If the A-plate is separate from the jack, align the jack (and foot, if equipped) with the jack and coupler as desired before welding using a 3/16 inch fillet weld. 3) Bolt the jack A-plate to the coupler using three 3/8-16 grade 5 bolts with washers, torque to 15-20 ft. lbs. 4) Weld the recommended support plate to the bottom of the trailer frame using a 3/16 inch fillet weld. 5) If your jack is a plain mount type, it may be mounted directly to a coupler with a 3/16 inch fillet weld. 6) Rack jacks with a similar A-plate incorporated into their design may be attached according to these instructions.
1) All welding must be performed by an AWS certified welder. 2) Place the jack at the desired location. 3) Weld 1 inch in 2 locations on both sides of the jack using a 3/16 inch fillet weld. The same welding instructions apply to other weld-on mounts.
1) All welding must be performed by an AWS certified welder. 2) The non-beveled side of the pivot tube is welded to the tongue unless otherwise specified on hardware. 3) Place the weld-on pivot tube against the tongue and weld all around with a 3/16 inch fillet weld. Align one set of pivot mount holes vertically. 4) Mate the jack to the pivot tube and secure with the supplied pin.
No drilling is required for bolt-on installations. The mounting holes are pre-drilled in the tongue and mounting bracket. You insert the supplied bolts through the mounting bracket and mounting straps into the existing holes and secure them with locknuts.
No. The manual explicitly states: 'Do not attempt to weld "Bolt-On" brackets or straps to the tongue. Special brackets are available for "Weld-On" applications.' If you need a weld-on installation, you must use the appropriate weld-on mounting type.
For bolt-on mounting bracket installations, secure the bolts with locknuts and torque to 25 ft. lbs. This applies to both rack jack and standard bolt-on mounting bracket installations.
For A-plate jacks, use three 3/8-16 grade 5 bolts with washers and torque to 15-20 ft. lbs.
All weld-on installations require a 3/16 inch fillet weld. This applies to direct-mount, A-plate, and pivot tube mounting. All welding must be performed by an AWS certified welder.
Fully retract and rotate the jack before towing. If using an optional drop foot or caster, always remove it before towing to maximize ground clearance. Before manually moving the trailer, crank the jack to the lowest position.
The jack capacity is limited to the lesser of the jack, footplate, or caster wheel capacity. Never exceed the maximum rated capacity. Refer to the stamped markings or decals on the product to obtain the rated capacity. If uncertain, contact Cequent Performance Products at 1-800-632-3290 or www.cequentgroup.com.
These jacks are designed for vertical loading. Excessive side forces may cause jack failure and must be avoided.
Never position any part of your body under any portion of the product or the load being supported. Secure the load, vehicle, and trailer from rolling by blocking the wheels when operating the jack or coupling the trailer. Do not allow children to play on or around the product or the load being supported. Minimize movement of the implement while the jack is under load, as this product is not intended to be used as a transport device.
When using the drop foot or drop leg, make certain the supplied pin is fully inserted through both sides of the inner tube and the drop tube before using the jack. If using an optional drop foot or caster, always remove it before towing to maximize ground clearance. Never attempt to adjust the drop foot or drop leg when there is any load on the jack.
If this product is a swivel jack, lock the plunger pin into a hole in the mounting bracket before raising or lowering the tongue. If this product has a pivot tube mount, make certain the pivot pin is fully inserted through both sides of the pivot tube and the pivot mount.
If this product is a rack jack, do not raise the gear housing above the inner tube. This prevents damage to the internal components and maintains the structural integrity of the jack.
The following procedures should be performed at least annually. For side-wind models, the internal gearing and bushings must be kept lubricated. For top-wind models, apply a lightweight oil to the screw stem. If the product is used in a marine environment, flush the jack assembly and bushings with fresh water and apply fresh lubricant.
Apply a small amount of automotive grease to the internal gearing by removing the jack cover, or if equipped, use a needle nose applicator or standard grease gun on the lubrication point found on the side of the jack near the crank. Rotate the jack handle to distribute the grease evenly. A lightweight oil must be applied to the handle unit at both sides of the tube. If equipped, the axle bolt and nut assembly of the caster wheel must also be lubricated with the same lightweight oil.
For top-wind models, apply a lightweight oil to the screw stem. This should be done at least annually.
If the product is used in a marine environment, flush the jack assembly and bushings with fresh water, and apply fresh lubricant. This should be done at least annually to prevent corrosion and salt damage.
To attach a wheel assembly: 1) Insert the long spacer into the wheel. 2) Set the wheel into the caster body and place the bolt through the caster body and wheel. 3) Secure with the nut provided. Note: Jack capacity is limited to the lesser of the jack or caster capacity.
To attach a handle assembly: 1) Insert the long spacer into the roller followed by the thin spacer and the bolt. 2) Secure to the crank stem with the nut provided.
To attach a top-wind handle assembly: 1) Place the washer over the screw stem and then place the handle over the screw stem. 2) Secure the handle to the screw stem with the bolt and nut provided.
Jack capacity is limited to the lesser of the jack or caster. Use 4 3/8 inch bolts, washers, and locknuts as shown in the manual.
Always replace bent, broken, or worn parts before using this product. This ensures safe operation and prevents jack failure.
No, these jacks are not designed for round tongues. However, weld-on pivot tube models are available for both round and square pivot tubes.
No, A-plate jacks are designed only for trailers with A-plate couplers.
No, bolt-on jacks use pre-drilled holes in the tongue and mounting bracket. No drilling is required.
No, do not weld bolt-on brackets or straps to the tongue. Special weld-on brackets are available for welded installations.
Torque all bolts to 25 ft. lbs. using locknuts.
Perform maintenance at least annually. For side-wind models, lubricate internal gearing and bushings with automotive grease and apply lightweight oil to the handle. For top-wind models, apply lightweight oil to the screw stem. In marine environments, flush with fresh water and apply fresh lubricant.
| Part Number | Model Number | Description | Support Capacity (lbs.) | Lift Capacity (lbs.) | Handle Style | Travel (in.) | A Retracted (in.) | B Extended (in.) | C Clearance (in.) |
|---|---|---|---|---|---|---|---|---|---|
| 190705 | TWS 190 FL-B TSMQ w/P&C | Fixed Leg with Heavy-Duty Base | 8,000 | 5,000 | Topwind | 10.00 | 11.41 | 21.41 | 4.25 |
| 190706 | TWL 190 FL-B TSMQ w/P&C | Fixed Leg with Heavy-Duty Base | 8,000 | 5,000 | Topwind | 15.00 | 12.16 | 27.16 | 10.25 |
| 190708 | TWL 190 DL-B TSMQ w/P&C | Drop Leg with Heavy-Duty Base, Drop Leg Offers 13.50 in. Additional Adjustment | 8,000 | 5,000 | Topwind | 15.00 | 12.66 | 41.16 | 10.25 |
| 190724 | TWL 190 FL-DTS BQ | Fixed Leg with Heavy-Duty Base, without Mating Mount | 8,000 | 5,000 | Topwind | 15.00 | 15.10 | 30.10 | 7.00 |
| 190756 | SWL 190 FL-B TSMQ w/P&C | Fixed Leg with Heavy-Duty Base | 8,000 | 5,000 | Sidewind | 15.00 | 12.16 | 27.16 | 12.40 |
| 190758 | SWL 190 DL-B TSMQ w/P&C | Drop Leg with Heavy-Duty Base, Drop Leg Offers 13.50 in. Additional Adjustment | 8,000 | 5,000 | Sidewind | 15.00 | 12.66 | 41.16 | 12.40 |
| 190704 | TWL 190 DL-BQ | Drop Leg, No Mount, 13.50 in. Additional Adjustment | 8,000 | 5,000 | Topwind | 15.00 | 22.66 | 51.41 | - |
| 190754 | SWL 190 DL-BQ | Drop Leg, No Mount, 13.50 in. Additional Adjustment | 8,000 | 5,000 | Sidewind | 15.00 | 25.06 | 53.56 | - |
| 1907540176 | SWL 190 DL-BQ | Drop Leg, No Mount, 13.50 in. Additional Adjustment | 8,000 | 5,000 | Sidewind | 15.00 | 25.06 | 53.56 | - |
| 500171 | Sidewind Crank Assembly for 190 Series | ||||||||
| 500180 | Topwind Crank Assembly | ||||||||
| 500224 | Thrust Bearing for 190 Series | ||||||||
| 500205 | Sidewind Crank Gear Box Cover | ||||||||
| 500156 | Sidewind Gear Kit for 8,000 lbs. Capacity |
