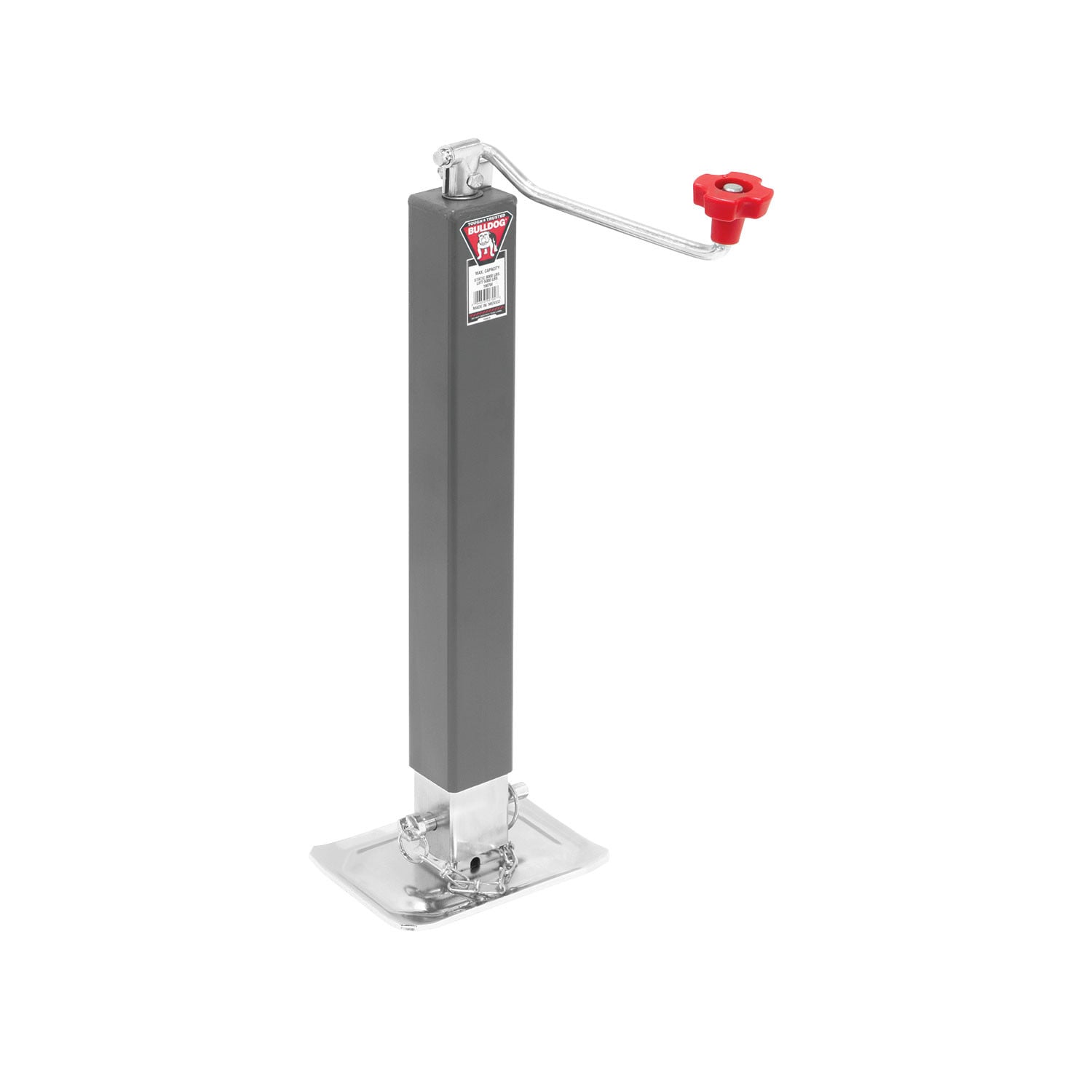

Bulldog 8,000 lbs. Square Trailer Jack Topwind 15 in. Lift Drop Leg w/ Footplate
Bulldog
Free Shipping
click to zoom in
color:
Gray
Weight Capacity:
8,000 lbs
Handle Type:
Top Wind
Mount Type:
Weld-On
Bulldog 8,000 lbs. Square Trailer Jack Topwind 15 in. Lift Drop Leg w/ Footplate
1,269
Write a Review
Bulldog
Bulldog 8,000 lbs. Square Trailer Jack Topwind 15 in. Lift Drop Leg w/ Footplate
MSRP:
$133.75
$127.73
In-Stock
(You save
$6.02
)
SKU:
BD190704
Condition:
New
QUICK SHIP
Hurry, Order now!
47 customers are viewing this product
Experts Available Now!
888-634-9494
Ask an Expert-
-
In-House Experts
We know our products
-
Added Value
Quality Products
-
Nationwide Delivery
Free shipping on all order
Bulldog 8,000 lbs. Square Trailer Jack Topwind 15 in. Lift Drop Leg w/ Footplate
MSRP:
$133.75
$127.73
In-Stock
(You save
$6.02
)
BULLDOG s 8,000 lbs. support capacity square jack serves the agricultural, industrial, construction, horse/livestock trailer, and utility/cargo trailer markets. The compact design of these jacks makes them ideal for tight-fitting applications where 3" and 4" square tube jacks are too big!
- Use the painted outer tube as the final finish or primer
- Zinc-plated inner tube and drop leg
- 4.7" Outer / inner tube overlap - results in optimal side load performance
- 5/8" screw stem - provides insurance against screw stem twisting off
- Patented screw nut stop - prevents screw and/or nut damage when jack is fully extended
- Topwind models - bushing in top cap, eagle claw grip
- Sidewind models - 1/4" cross pin connects gear train to screw stem - guards against shearing jack pin
- Sidewind models - 1:1.33 gear ratio
| Brand: | BULLDOG |
| Part Number: | 190704 |
| Warranty: | Limited 5 Year Warranty |
| UPC: | 086693907048 |
| Dimensions: | 25.3" x 8.25" x 6.3" (Shipping) |
| Finish: | Gray Paint and Clear Zinc Plat |
| Weight: | 24 lbs |
| Travel: | 15 in. |
| Retracted: | 22.66 in. |
| Extended: | 51.41 in. |
| Foot Width: | 6 in. |
| Foot Length: | 8 in. |
| Foot Plate Size: | 8 in. x 6 in. |
| Capacity: | 8,000 lbs. |
| Color: | Gray |
| Quick Connect Type: | N/A |
| Wheel Diameter: | N/A |
| Attached Wheels: | No |
| Speedy Lift: | No |
| Material: | Steel |
| Handle Style: | Topwind |
| Model No.: | TWL 190 DL-BQ |
| Gears Included: | Yes |
| Handle Bushing Included: | Yes |
| Roll Pins Included: | Yes |
| Washers Included: | Yes |
