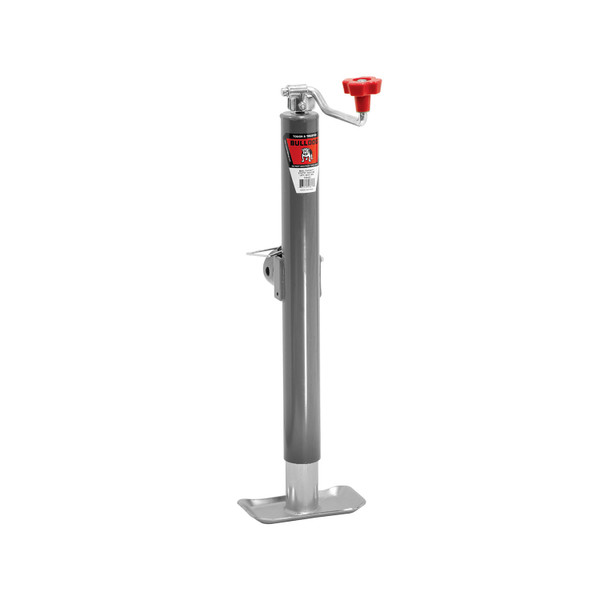

BULLDOG round jacks are recognized as the industry standard by leading agricultrual, commercial, horse, livestock, and other trailer manufacturers. For more than three quarters of a centruy, BULLDOG jacks have been demonstrated to be the most reliable, field-proven jacks on the market.
| BRAND: | BULLDOG |
| PART NUMBER: | 158452 |
| WARRANTY: | LIMITED 5 YEAR WARRANTY |
| WEIGHT: | 15.54 LBS |
| CAPACITY: | 2,000 LBS. LIFT |
| TRAVEL: | 15 IN. |
| RETRACTED: | 14.5 IN. |
| EXTENDED: | 29.5 IN. |
| CLEARANCE: | 10 IN. |
| MODEL NUMBER: | TWL 158 DTSF W/P&C |
| HANDLE STYLE: | TOPWIND |
| MATERIAL: | STEEL |
| FOOT LENGTH: | 7.5 IN. |
| FOOT WIDTH: | 3.9 IN. |
| FOOT PLATE SIZE: | 7.5 IN. X 3.9 IN. |
| WHEEL: | NO |
| ATTACHED WHEELS: | NO |
| CYLINDER DIAMETER: | 2.25 IN. |
| SPEEDY LIFT: | NO |
| COLOR: | GRAY |

Founded in 1920, Bulldog has become the standard for heavy-duty trailer connection hardware in agricultural, military and utility service. The line covers gooseneck hitches and couplers, A-frame and channel-mount trailer couplers with the Wedge-Latch mechanism, and heavy-duty jacks, built for unmatched strength, reliability and safety under demanding loads.
Bulldog was founded in 1920 and has spent more than a century supplying the connection hardware that heavy trailers depend on. Its market has always been the demanding end: agricultural, military and utility applications where a coupler failure is not an inconvenience but a serious incident. The brand summarises its position as Tough and Tested, and it sits within the Horizon Global towing group alongside Reese, Draw-Tite, Fulton, Tekonsha, Bargman and Wesbar.
Gooseneck equipment is the brand's signature. Gooseneck hitches mount in the truck bed over the rear axle, which places the load where the chassis can carry it properly and allows far tighter turning than a receiver hitch permits. Matching gooseneck couplers attach at the trailer end, in round tube and square configurations across the capacity range used by livestock, equipment and flatbed trailers.
The conventional trailer coupler range is built around the Wedge-Latch mechanism, which uses a wedge to take up wear between coupler and ball rather than relying on a fixed clamp that loosens over time. That matters on a trailer accumulating hard miles, where slack in the coupling shows up as noise and shock loading. Couplers are offered in A-frame form for standard tongues and in channel-mount form for straight tongue and fabricated frames, with adjustable channel versions that let a coupler be positioned to suit the tongue height.
Heavy-duty jacks complete the line, sized for the tongue weights that gooseneck and equipment trailers generate. Across the range the emphasis is consistent: forged and heavy-section components, load ratings backed by testing, and hardware specified for agricultural, military and heavy-duty commercial use rather than occasional recreational towing.
Experts available to answer your questions
Call 888-634-94945 Years
The model number is F3282ML, Revision D 6077. This manual covers multiple mounting styles and jack types from Cequent Performance Products brands including Bulldog, Fulton, Pro-Series, and Reese Towpower.
No. The manual explicitly states: "These jacks are not designed for mounting to round tongues." You must have a flat or rectangular tongue for proper installation.
The gap between the mounting bolts and the tongue must not exceed 1/16 inch (1.5 mm). This applies to bolt-on mounting brackets. Proper alignment ensures secure fastening and correct load distribution.
Bolt-on jacks include supplied bolts and locknuts for securing the gear housing and mounting bracket to the tongue. The exact number and size depend on your tongue width. The manual specifies that bolts are inserted through the mounting bracket and mounting straps, with upper bolts resting on top of the tongue and lower bolts positioned less than 1/16 inch from the bottom.
Before mounting, confirm there will be no interference from the tow vehicle, tongue, ground, or any other mounted accessories while stationary or in motion. Check for interference in all positions including handle swing and swivel positions if applicable. After installation is complete, check for interference again. Specifically verify clearance of the handle, trailer light cables, and coupler.
1) Place the gear housing on the tongue and insert the supplied bolts in holes corresponding to the tongue width. 2) Place the mounting bracket below the tongue with the flat surface against the tongue. 3) Secure with locknuts and torque to 25 ft. lbs. Ensure the gap between mounting bolts and tongue does not exceed 1/16 inch.
1) Place the jack against the tongue and position the mounting straps on the opposite side. Align the holes in the mounting bracket with the holes in the mounting straps. 2) Insert the 4 bolts through the mounting bracket and mounting straps. Upper bolts should rest on top of the tongue; lower bolts should be less than 1/16 inch from the bottom. 3) Secure with locknuts and torque to 25 ft. lbs. 4) Check for clearance of handle, trailer light cables, and coupler.
1) Place the jack bracket over the mount and place the snap ring in the groove. 2) Seat the snap ring fully into the groove. Before installing, inspect the snap ring groove and remove any debris to ensure proper seating.
1) Place the jack bracket into the recessed opening on the mount. 2) Place the small end of the bushing into the jack bracket and onto the bolt. 3) Tighten the locknut until there is little movement in the bushing. Note: The bolt should be installed between the trailer tongue and mount; the jack bracket will be held by the bushing between the locknut and the mount.
A-plate jacks are designed for mounting to trailers with A-plate couplers. 1) All welding must be performed by an AWS certified welder. 2) If the A-plate is separate from the jack, align the jack (and foot, if equipped) with the jack and coupler as desired before welding using a 3/16 inch fillet weld. 3) Bolt the jack A-plate to the coupler using three 3/8-16 grade 5 bolts with washers, torque to 15-20 ft. lbs. 4) Weld the recommended support plate to the bottom of the trailer frame using a 3/16 inch fillet weld. 5) If your jack is a plain mount type, it may be mounted directly to a coupler with a 3/16 inch fillet weld. 6) Rack jacks with a similar A-plate incorporated into their design may be attached according to these instructions. It is recommended to attach a bottom support plate to the bottom of the tongue.
1) All welding must be performed by an AWS certified welder. 2) Place the jack at the desired location. 3) Weld 1 inch in 2 locations on both sides of the jack using a 3/16 inch fillet weld. The same welding instructions apply to other weld-on mounts.
1) All welding must be performed by an AWS certified welder. 2) The non-beveled side of the pivot tube is welded to the tongue unless otherwise specified on hardware. 3) Place the weld-on pivot tube against the tongue and weld all around with a 3/16 inch fillet weld. Align one set of pivot mount holes vertically. 4) Mate the jack to the pivot tube and secure with the supplied pin.
No drilling is required for bolt-on models. The mounting holes must already exist on your tongue corresponding to the tongue width. You insert the supplied bolts through the existing holes in the mounting bracket and mounting straps. However, if your tongue does not have the correct hole pattern, you would need to have holes drilled by a professional before installation.
No. The manual explicitly states: "Do not attempt to weld 'Bolt-On' brackets or straps to the tongue. Special brackets are available for 'Weld-On' applications." If you need a welded installation, you must purchase the weld-on version instead.
Torque all locknuts to 25 ft. lbs. This applies to both the bolt-on rack jack installation and the bolt-on mounting bracket installation.
Torque the three 3/8-16 grade 5 bolts with washers to 15-20 ft. lbs. when bolting the jack A-plate to the coupler.
Use a 3/16 inch fillet weld for all weld-on installations, including direct-mount, A-plate, and pivot tube mounting. Weld 1 inch in 2 locations on both sides of the jack for direct-mount applications. All welding must be performed by an AWS certified welder.
Fully retract and rotate the jack before towing. If using an optional drop foot or caster, always remove it before towing to maximize ground clearance. Before manually moving the trailer, crank the jack to the lowest position.
The jack capacity is limited to the lesser of the jack, footplate, or caster wheel capacity. Never exceed the maximum rated capacity. Refer to the stamped markings or decals on the product to obtain the rated capacity. If uncertain, contact Cequent Performance Products at 1-800-632-3290 or www.cequentgroup.com.
No. These jacks are designed for vertical loading only. Excessive side forces may cause jack failure and must be avoided.
Never position any part of your body under any portion of the product or the load being supported. Secure the load, vehicle and trailer from rolling (by blocking wheels) when operating the jack or coupling the trailer. Do not allow children to play on or around the product or the load being supported. Do not use the product as a transport device for the implement it is attached to; minimize movement of the implement while the jack is under load.
When using the drop foot or drop leg, make certain the supplied pin is fully inserted through both sides of the inner tube and the drop tube before using the jack. If using an optional drop foot or caster, always remove it before towing to maximize ground clearance. Never attempt to adjust the drop foot or drop leg when there is any load on the jack.
Make certain the pivot pin is fully inserted through both sides of the pivot tube and the pivot mount before using the jack.
Lock the plunger pin into a hole in the mounting bracket before raising or lowering the tongue.
Do not raise the gear housing above the inner tube. This prevents damage to the jack and ensures safe operation.
After installation is complete, check for interference again. Specifically verify that there is no interference from the tow vehicle, tongue, ground, or any other mounted accessories while stationary or in motion, including in all handle swing and swivel positions if applicable. Also check for clearance of the handle, trailer light cables, and coupler.
The following procedures should be performed at least annually. For side-wind models, the internal gearing and bushings must be kept lubricated. For top-wind models, apply lightweight oil to the screw stem. If the product is used in a marine environment, flush the jack assembly and bushings with fresh water and apply fresh lubricant.
Apply a small amount of automotive grease to the internal gearing by removing the jack cover, or if equipped, use a needle nose applicator or standard grease gun on the lubrication point found on the side of the jack near the crank. Rotate the jack handle to distribute the grease evenly. A lightweight oil must be applied to the handle unit at both sides of the tube. If equipped, the axle bolt and nut assembly of the caster wheel must also be lubricated with the same lightweight oil.
Apply a lightweight oil to the screw stem. This should be done at least annually.
If the product is used in a marine environment, flush the jack assembly and bushings with fresh water, and apply fresh lubricant. This should be done at least annually.
1) Insert the long spacer into the wheel. 2) Set the wheel into the caster body and place the bolt through the caster body and wheel. 3) Secure with the nut provided.
1) Insert the long spacer into the roller followed by the thin spacer and the bolt. 2) Secure to the crank stem with the nut provided.
1) Place the washer over the screw stem and then place the handle over the screw stem. 2) Secure the handle to the screw stem with the bolt and nut provided.
The jack capacity is limited to the lesser of the jack or caster capacity. Use 4 3/8 inch bolts, washers, and locknuts as shown in the manual.
Use only Cequent Performance Products' parts or parts of equal quality for repair. Replacement parts are available through Cequent Performance Products' Customer Service Department at 1-800-632-3290. Please specify the product model number.
Cequent Performance Products warrants to the original consumer purchaser that the product will be free from defects in both material and workmanship for a period of five years for Bulldog and Fulton products and one year for Pro-Series and Reese Towpower products, ordinary wear and tear excepted; provided that installation and use of the product is in accordance with product instructions. There are no other warranties, express or implied. If the product does not comply with the applicable limited year warranty, the sole and exclusive remedy is that the company will replace the product without charge within a reasonable time or, at their option, refund the purchase price. This warranty is not transferable.
The limited warranty does not cover: (a) normal wear and tear; (b) damage through abuse, neglect, misuse, or as a result of any accident or in any other manner; (c) damage from misapplication, overloading, or improper installation, including welds; (d) improper maintenance and repair; and (e) product alteration in any manner by anyone other than the manufacturer, with the sole exception of alterations made pursuant to product instructions and in a workmanlike manner.
To make a warranty claim, contact Cequent Performance Products at 47912 Halyard Dr. Suite 100, Plymouth, MI 48170, 1-800-632-3290, identify the product by model number, and follow the claim instructions that will be provided. You will be responsible for return shipping costs. Please retain your purchase receipt to verify date of purchase and that you are the original consumer purchaser. The product and the purchase receipt must be provided to process your warranty claim.
No. These jacks are not designed for mounting to round tongues. Your trailer must have a flat or rectangular tongue.
The gap must not exceed 1/16 inch (1.5 mm) for proper installation.
Supplied bolts and locknuts are included for securing the gear housing and mounting bracket to the tongue. The exact quantity depends on your tongue width.
Check for interference from the tow vehicle, tongue, ground, and other accessories in all positions including handle swing and swivel. Verify clearance of handle, trailer light cables, and coupler. Check again after installation is complete.
No. Do not weld bolt-on brackets to the tongue. Special weld-on brackets are available for welded installations.
Fully retract and rotate the jack before towing. Remove any optional drop foot or caster before towing to maximize ground clearance.
No. These jacks are designed for vertical loading only. Excessive side forces may cause jack failure.
Perform maintenance at least annually. For side-wind models, lubricate internal gearing and bushings with automotive grease. For top-wind models, apply lightweight oil to the screw stem. In marine environments, flush with fresh water and apply fresh lubricant.
Before installing the snap ring, inspect the snap ring groove and remove any debris. Seat the snap ring fully into the groove. If debris is present, clean it out completely before attempting to install the snap ring again.
Tighten the locknut until there is little movement in the bushing. The bolt should be installed between the trailer tongue and mount, with the jack bracket held by the bushing between the locknut and the mount.
Perform annual maintenance. For side-wind models, apply automotive grease to the internal gearing and bushings by removing the jack cover or using a needle nose applicator on the lubrication point near the crank. Rotate the handle to distribute the grease evenly. Apply lightweight oil to the handle unit at both sides of the tube. For top-wind models, apply lightweight oil to the screw stem. If used in a marine environment, flush with fresh water and apply fresh lubricant.
For side-wind models, apply lightweight oil to the handle unit at both sides of the tube. For top-wind models, apply lightweight oil to the screw stem. Perform this maintenance at least annually. If the problem persists, contact Cequent Performance Products at 1-800-632-3290.
| Part Number | Model Number | Description | Lift Capacity (lbs.) | Pin (in.) | Handle Style | Travel (in.) | A Retracted (in.) | B Extended (in.) | C Clearance (in.) |
|---|---|---|---|---|---|---|---|---|---|
| 158451 | TWS 158 DTSF w/P&C | Includes Footplate and Male Mating Mount | 2,000 | 9/16 | Topwind | 10.00 | 11.00 | 21.00 | 4.00 |
| 158452 | TWL 158 DTSF w/P&C | Includes Footplate and Male Mating Mount | 2,000 | 9/16 | Topwind | 15.00 | 14.50 | 29.50 | 10.00 |
| 158486 | TWL 158 DTSF w/P&C | Includes Footplate and Male Mating Mount | 2,000 | 9/16 | Topwind | 15.00 | 16.00 | 31.00 | 10.00 |
| 150441 | TWS 150 DTSF w/P&C | Includes Footplate, Clear Zinc Finish | 2,000 | 9/16 | Topwind | 10.00 | 11.00 | 21.00 | 4.00 |
| 158109 | SWS 158 DTSF w/P&C | Includes Footplate and Male Mating Mount | 2,000 | 9/16 | Sidewind | 15.00 | 14.50 | 29.50 | 12.20 |
| 158151 | SWL 158 DTSF w/P&C | Includes Footplate and Male Mating Mount | 2,000 | 9/16 | Sidewind | 10.00 | 11.00 | 21.00 | 8.00 |
| 178101 | TWS 178 DTSF w/P&C | Includes Footplate and Male Mating Mount | 5,000 | 9/16 | Topwind | 10.00 | 11.25 | 21.25 | 6.00 |
| 178109 | TWS 178 DTSF w/P&C | Includes Footplate and Male Mating Mount | 5,000 | 9/16 | Sidewind | 15.00 | 15.20 | 30.50 | 6.20 |
| 178110 | TWS 178 DTSF | Includes Footplate and Male Mating Mount | 5,000 | 9/16 | Topwind | 10.00 | 10.50 | 16.80 | 8.50 |
| 178112 | TWS 178 DTSF | Includes Footplate | 5,000 | 9/16 | Topwind | 10.00 | 10.50 | 16.80 | 8.50 |
| 178151 | TWL 178 DTSF w/P&C | Includes Footplate and Male Mating Mount | 5,000 | 9/16 | Topwind | 15.00 | 14.70 | 29.70 | 10.00 |
| 178201 | SWS 178 DTSF w/P&C | Includes Footplate and Male Mating Mount | 5,000 | 5/8 | Sidewind | 10.00 | 10.40 | 20.80 | 6.40 |
| 178203 | SWL 178 DTSF w/P&C | Includes Footplate and Male Mating Mount | 5,000 | 5/8 | Sidewind | 15.00 | 15.00 | 30.30 | 6.40 |
| 620023 | 5 SM-15-0 w/P&C | Includes Footplate and Male Mating Mount | 5,000 | 5/8 | Sidewind | 15.00 | 15.50 | 30.50 | 6.20 |
| 620057 | 7 SM -15-0 w/P&C | Includes Footplate and Male Mating Mount | 7,000 | 5/8 | Sidewind | 15.00 | 16.00 | 31.00 | 4.65 |
| 198100 | TWS 198 DTSM w/P&C | Includes Footplate and Female Mating Mount | 7,000 | 5/8 | Topwind | 10.00 | 10.80 | 20.80 | 4.50 |
| 198200 | TWL 198 DTSM w/P&C | Includes Footplate and Female Mating Mount | 7,000 | 5/8 | Topwind | 15.00 | 15.80 | 30.80 | 4.25 |
| 198150 | SWS 198 DTSM w/P&C | Includes Footplate and Female Mating Mount | 7,000 | 5/8 | Sidewind | 10.00 | 11.00 | 21.00 | 5.00 |
| 198250 | SWL 198 DTSM w/P&C | Includes Footplate and Female Mating Mount | 7,000 | 5/8 | Sidewind | 15.00 | 16.00 | 31.00 | 5.00 |
