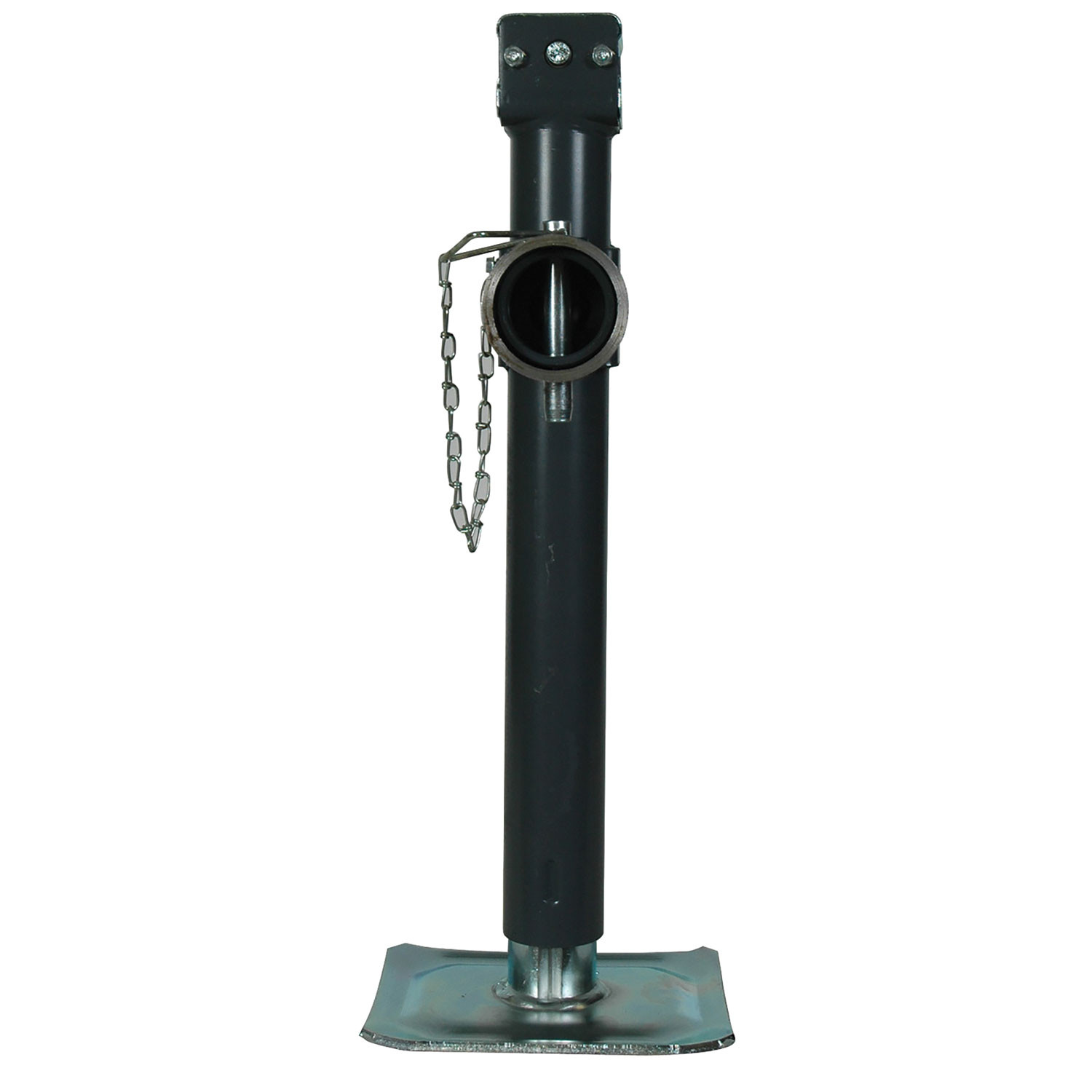

BULLDOG round jacks are recognized as the industry standard by leading agricultrual, commercial, horse, livestock, and other trailer manufacturers. For more than three quarters of a centruy, BULLDOG jacks have been demonstrated to be the most reliable, field-proven jacks on the market.
| BRAND: | BULLDOG |
| PART NUMBER: | 198250 |
| WARRANTY: | LIMITED 5 YEAR WARRANTY |
| WEIGHT: | 19.12 LBS |
| CAPACITY: | 7,000 LBS. LIFT |
| TRAVEL: | 15 IN. |
| RETRACTED: | 16 IN. |
| EXTENDED: | 31 IN. |
| CLEARANCE: | 6.4 IN. |
| MODEL NUMBER: | SWL 198 DTSM W/P&C |
| HANDLE STYLE: | SIDEWIND |
| MATERIAL: | STEEL |
| FOOT LENGTH: | 8 IN. |
| FOOT WIDTH: | 6 IN. |
| FOOT PLATE SIZE: | 8 IN. X 6 IN. |
| WHEEL: | NO |
| ATTACHED WHEELS: | NO |
| CYLINDER DIAMETER: | 2.25 IN. |
| SPEEDY LIFT: | NO |
| COLOR: | GRAY |
Founded in 1920, Bulldog has become the standard for heavy-duty trailer connection hardware in agricultural, military and utility service. The line covers gooseneck hitches and couplers, A-frame and channel-mount trailer couplers with the Wedge-Latch mechanism, and heavy-duty jacks, built for unmatched strength, reliability and safety under demanding loads.
Bulldog was founded in 1920 and has spent more than a century supplying the connection hardware that heavy trailers depend on. Its market has always been the demanding end: agricultural, military and utility applications where a coupler failure is not an inconvenience but a serious incident. The brand summarises its position as Tough and Tested, and it sits within the Horizon Global towing group alongside Reese, Draw-Tite, Fulton, Tekonsha, Bargman and Wesbar.
Gooseneck equipment is the brand's signature. Gooseneck hitches mount in the truck bed over the rear axle, which places the load where the chassis can carry it properly and allows far tighter turning than a receiver hitch permits. Matching gooseneck couplers attach at the trailer end, in round tube and square configurations across the capacity range used by livestock, equipment and flatbed trailers.
The conventional trailer coupler range is built around the Wedge-Latch mechanism, which uses a wedge to take up wear between coupler and ball rather than relying on a fixed clamp that loosens over time. That matters on a trailer accumulating hard miles, where slack in the coupling shows up as noise and shock loading. Couplers are offered in A-frame form for standard tongues and in channel-mount form for straight tongue and fabricated frames, with adjustable channel versions that let a coupler be positioned to suit the tongue height.
Heavy-duty jacks complete the line, sized for the tongue weights that gooseneck and equipment trailers generate. Across the range the emphasis is consistent: forged and heavy-section components, load ratings backed by testing, and hardware specified for agricultural, military and heavy-duty commercial use rather than occasional recreational towing.
Experts available to answer your questions
Call 888-634-94945 Years
A tongue jack is a mechanical device mounted to a trailer tongue that raises and lowers the front of the trailer for coupling and uncoupling from the tow vehicle. It can be hand-cranked (side-wind or top-wind models) and is available in multiple mounting styles including bolt-on, snap ring, bolt-thru, direct-mount weld-on, A-plate, and pivot tube configurations. Optional accessories include drop feet, drop legs, and caster wheels to improve ground clearance and mobility.
No. The manual explicitly states: 'These jacks are not designed for mounting to round tongues.' Tongue jacks are designed for flat or rectangular tongues only.
Tongue jacks are available in six mounting styles: (1) Bolt-on rack jack with mounting bracket and locknuts; (2) Bolt-on mounting bracket with straps; (3) Snap ring model; (4) Bolt-thru model with bushing; (5) Direct-mount weld-on; and (6) A-plate mounting (bolt-on or weld-on) for trailers with A-plate couplers. Pivot tube weld-on mounting is also available for round and square pivot tubes.
No. A-plate jacks are designed specifically for mounting to trailers with A-plate couplers only. The manual states: 'A-plate jacks are designed for mounting to trailers with A-plate couplers.' If your trailer has a different coupler type, you will need a different mounting style.
No. The manual states: 'Do not attempt to weld "Bolt-On" brackets or straps to the tongue. Special brackets are available for "Weld-On" applications.' If you need a weld-on installation, you must purchase a jack designed for weld-on mounting, not attempt to weld a bolt-on bracket.
Bolt-on tongue jacks include supplied bolts and locknuts. The exact number and size depend on the mounting style. For bolt-on rack jacks, bolts are inserted in holes corresponding to tongue width, and the assembly is secured with locknuts. For A-plate mounting, three 3/8-16 grade 5 bolts with washers are used. Consult your specific product documentation or contact Cequent Performance Products at 1-800-632-3290 for the exact hardware included with your model.
Before mounting the jack, confirm that there will be no interference from the tow vehicle, tongue, ground, and any other mounted accessories while stationary or in motion. Check for interference in all positions including handle swing and swivel positions if applicable. After installation is complete, check for interference again. Specifically verify clearance of the handle, trailer light cables, and coupler.
Yes, if your jack requires welding. The manual states: 'All welding must be performed by an AWS certified welder.' This applies to direct-mount, A-plate, and pivot tube weld-on installations. If you choose a bolt-on, snap ring, or bolt-thru model, no welding is required.
The gap between the mounting bolts and the tongue must not exceed 1/16 inch (1.5 mm). This applies to bolt-on mounting bracket installations. The lower bolts should be less than 1/16 inch from the bottom of the tongue, and the upper bolts should rest on the top of the tongue.
1) Place the gear housing on the tongue and insert the supplied bolts in holes corresponding to the tongue width. 2) Place the mounting bracket below the tongue with the flat surface against the tongue. 3) Secure with locknuts and torque to 25 ft. lbs. Ensure the gap between mounting bolts and tongue does not exceed 1/16 inch.
1) Place the jack against the tongue and position the mounting straps on the opposite side of the tongue. Align the holes in the mounting bracket with the holes in the mounting straps. 2) Insert the 4 bolts through the mounting bracket and mounting straps. The upper bolts should rest on the top of the tongue. The lower bolts should be less than 1/16 inch from the bottom of the tongue. 3) Secure with locknuts and torque to 25 ft. lbs. 4) Check for clearance of handle, trailer light cables, and coupler.
1) Place the jack bracket over the mount and place the snap ring in the groove. 2) Seat the snap ring fully into the groove. Before installing the snap ring, inspect the snap ring groove and remove any debris to ensure proper seating.
1) Place the jack bracket into the recessed opening on the mount. 2) Place the small end of the bushing into the jack bracket and onto the bolt. 3) Tighten the locknut until there is little movement in the bushing. Note: The bolt should be installed between the trailer tongue and mount; the jack bracket will be held by the bushing between the locknut and the mount.
1) All welding must be performed by an AWS certified welder. 2) Place the jack at the desired location. 3) Weld 1 inch in 2 locations on both sides of the jack using a 3/16 inch fillet weld. The same welding instructions apply to other weld-on mounts.
1) All welding must be performed by an AWS certified welder. 2) If the A-plate is separate from the jack, align the jack (and foot, if equipped) with the jack and coupler as desired before welding. Use a 3/16 inch fillet weld. 3) Bolt the jack A-plate to the coupler using three 3/8-16 grade 5 bolts with washers, torqued to 15-20 ft. lbs. 4) Weld the recommended support plate to the bottom of the trailer frame using a 3/16 inch fillet weld. 5) If your jack is a plain mount type, it may be mounted directly to a coupler with a 3/16 inch fillet weld. 6) Rack jacks with a similar A-plate incorporated into their design may be attached according to these instructions. It is recommended to attach a bottom support plate to the bottom of the tongue.
1) All welding must be performed by an AWS certified welder. 2) The non-beveled side of the pivot tube is welded to the tongue unless otherwise specified on hardware. 3) Place the weld-on pivot tube against the tongue and weld all around with a 3/16 inch fillet weld. Align one set of pivot mount holes vertically. 4) Mate the jack to the pivot tube and secure with the supplied pin.
For bolt-on rack jacks and bolt-on mounting bracket installations, torque all locknuts to 25 ft. lbs. For A-plate mounting, torque the three 3/8-16 grade 5 bolts with washers to 15-20 ft. lbs.
All weld-on installations require a 3/16 inch fillet weld. This applies to direct-mount, A-plate, and pivot tube weld-on mounting styles. All welding must be performed by an AWS certified welder.
For direct-mount weld-on installations, weld 1 inch in 2 locations on both sides of the jack using a 3/16 inch fillet weld.
Fully retract and rotate the jack before towing. If using an optional drop foot or caster, always remove the drop foot or caster before towing to maximize ground clearance. Before manually moving the trailer, crank the jack to the lowest position.
Never position any part of your body under any portion of the jack or the load being supported. Secure the load, vehicle, and trailer from rolling by blocking wheels when operating the jack or coupling the trailer. Do not allow children to play on or around the jack or the load being supported. Never exceed the maximum rated capacity of the jack. Jacks are designed for vertical loading only; excessive side forces may cause jack failure and must be avoided.
The jack capacity is limited to the lesser of the jack, footplate, or caster wheel capacity. Never exceed the maximum rated capacity. Refer to the stamped markings or decals on the product to obtain the rated capacity. If uncertain, contact Cequent Performance Products at 1-800-632-3290 or www.cequentgroup.com.
When using the drop foot or drop leg, make certain the supplied pin is fully inserted through both sides of the inner tube and the drop tube before using the jack. If using an optional drop foot or caster, always remove the drop foot or caster before towing to maximize ground clearance. Never attempt to adjust the drop foot or drop leg when there is any load on the jack.
If your jack has a pivot tube mount, make certain the pivot pin is fully inserted through both sides of the pivot tube and the pivot mount before using the jack.
If your jack is a swivel jack, lock the plunger pin into a hole in the mounting bracket before raising or lowering the tongue.
If your jack is a rack jack, do not raise the gear housing above the inner tube. This is a design limitation to prevent damage to the jack.
After installation is complete, check for interference again in all positions including handle swing and swivel positions if applicable. Specifically verify clearance of the handle, trailer light cables, and coupler. Ensure all fasteners are properly torqued to specification.
The following procedures should be performed at least annually: For side-wind models, the internal gearing and bushings must be kept lubricated. Apply a small amount of automotive grease to the internal gearing by removing the jack cover, or if equipped, use a needle nose applicator or standard grease gun on the lubrication point found on the side of the jack near the crank. Rotate the jack handle to distribute the grease evenly. A lightweight oil must be applied to the handle unit at both sides of the tube for side-wind models. If equipped, the axle bolt and nut assembly of the caster wheel must also be lubricated with the same lightweight oil. For top-wind models, apply a lightweight oil to the screw stem. If the product is used in a marine environment, flush the jack assembly and bushings with fresh water and apply fresh lubricant.
Use automotive grease for the internal gearing and bushings of side-wind models. Use lightweight oil for the handle unit, caster wheel axle bolt and nut assembly, and screw stem of top-wind models. If the product is used in a marine environment, flush with fresh water and apply fresh lubricant.
To attach a wheel assembly: 1) Insert the long spacer into the wheel. 2) Set the wheel into the caster body and place the bolt through the caster body and wheel. 3) Secure with the nut provided. For a heavy duty caster, use 4 3/8 inch bolts, washers, and locknuts as shown in the manual. Note: Jack capacity is limited to the lesser of the jack or caster capacity.
To attach a handle assembly: 1) Insert the long spacer into the roller followed by the thin spacer and the bolt. 2) Secure to the crank stem with the nut provided. For a top-wind handle assembly: 1) Place the washer over the screw stem and then place the handle over the screw stem. 2) Secure the handle to the screw stem with the bolt and nut provided.
Tongue jacks are available in multiple mounting styles: bolt-on, snap ring, bolt-thru, direct-mount weld-on, A-plate (for A-plate couplers only), and pivot tube weld-on. They are designed for flat or rectangular tongues only, not round tongues. Check your trailer's coupler type and tongue configuration, then select the appropriate mounting style. Contact Cequent Performance Products at 1-800-632-3290 if you are unsure which model fits your trailer.
Only if you choose a weld-on model (direct-mount, A-plate weld-on, or pivot tube weld-on). All welding must be performed by an AWS certified welder. Bolt-on, snap ring, and bolt-thru models require no welding.
For bolt-on models, torque all locknuts to 25 ft. lbs. For A-plate mounting, torque the three 3/8-16 grade 5 bolts to 15-20 ft. lbs. For weld-on models, use a 3/16 inch fillet weld performed by an AWS certified welder.
Fully retract and rotate the jack before towing. If equipped with an optional drop foot or caster, remove it before towing to maximize ground clearance. Crank the jack to the lowest position before manually moving the trailer.
The jack capacity is limited to the lesser of the jack, footplate, or caster wheel capacity. Never exceed the maximum rated capacity. Refer to the stamped markings or decals on your product for the rated capacity, or contact Cequent Performance Products at 1-800-632-3290.
Perform lubrication at least annually. For side-wind models, apply automotive grease to internal gearing and lightweight oil to the handle. For top-wind models, apply lightweight oil to the screw stem. If used in a marine environment, flush with fresh water and apply fresh lubricant.
| Part Number | Model Number | Description | Lift Capacity (lbs.) | Pin (in.) | Handle Style | Travel (in.) | A Retracted (in.) | B Extended (in.) | C Clearance (in.) |
|---|---|---|---|---|---|---|---|---|---|
| 158451 | TWS 158 DTSF w/P&C | Includes Footplate and Male Mating Mount | 2,000 | 9/16 | Topwind | 10.00 | 11.00 | 21.00 | 4.00 |
| 158452 | TWL 158 DTSF w/P&C | Includes Footplate and Male Mating Mount | 2,000 | 9/16 | Topwind | 15.00 | 14.50 | 29.50 | 10.00 |
| 158486 | TWL 158 DTSF w/P&C | Includes Footplate and Male Mating Mount | 2,000 | 9/16 | Topwind | 15.00 | 16.00 | 31.00 | 10.00 |
| 150441 | TWS 150 DTSF w/P&C | Includes Footplate, Clear Zinc Finish | 2,000 | 9/16 | Topwind | 10.00 | 11.00 | 21.00 | 4.00 |
| 158109 | SWS 158 DTSF w/P&C | Includes Footplate and Male Mating Mount | 2,000 | 9/16 | Sidewind | 15.00 | 14.50 | 29.50 | 12.20 |
| 158151 | SWL 158 DTSF w/P&C | Includes Footplate and Male Mating Mount | 2,000 | 9/16 | Sidewind | 10.00 | 11.00 | 21.00 | 8.00 |
| 178101 | TWS 178 DTSF w/P&C | Includes Footplate and Male Mating Mount | 5,000 | 9/16 | Topwind | 10.00 | 11.25 | 21.25 | 6.00 |
| 178109 | TWS 178 DTSF w/P&C | Includes Footplate and Male Mating Mount | 5,000 | 9/16 | Sidewind | 15.00 | 15.20 | 30.50 | 6.20 |
| 178110 | TWS 178 DTSF | Includes Footplate and Male Mating Mount | 5,000 | 9/16 | Topwind | 10.00 | 10.50 | 16.80 | 8.50 |
| 178112 | TWS 178 DTSF | Includes Footplate | 5,000 | 9/16 | Topwind | 10.00 | 10.50 | 16.80 | 8.50 |
| 178151 | TWL 178 DTSF w/P&C | Includes Footplate and Male Mating Mount | 5,000 | 9/16 | Topwind | 15.00 | 14.70 | 29.70 | 10.00 |
| 178201 | SWS 178 DTSF w/P&C | Includes Footplate and Male Mating Mount | 5,000 | 5/8 | Sidewind | 10.00 | 10.40 | 20.80 | 6.40 |
| 178203 | SWL 178 DTSF w/P&C | Includes Footplate and Male Mating Mount | 5,000 | 5/8 | Sidewind | 15.00 | 15.00 | 30.30 | 6.40 |
| 620023 | 5 SM-15-0 w/P&C | Includes Footplate and Male Mating Mount | 5,000 | 5/8 | Sidewind | 15.00 | 15.50 | 30.50 | 6.20 |
| 620057 | 7 SM -15-0 w/P&C | Includes Footplate and Male Mating Mount | 7,000 | 5/8 | Sidewind | 15.00 | 16.00 | 31.00 | 4.65 |
| 198100 | TWS 198 DTSM w/P&C | Includes Footplate and Female Mating Mount | 7,000 | 5/8 | Topwind | 10.00 | 10.80 | 20.80 | 4.50 |
| 198200 | TWL 198 DTSM w/P&C | Includes Footplate and Female Mating Mount | 7,000 | 5/8 | Topwind | 15.00 | 15.80 | 30.80 | 4.25 |
| 198150 | SWS 198 DTSM w/P&C | Includes Footplate and Female Mating Mount | 7,000 | 5/8 | Sidewind | 10.00 | 11.00 | 21.00 | 5.00 |
| 198250 | SWL 198 DTSM w/P&C | Includes Footplate and Female Mating Mount | 7,000 | 5/8 | Sidewind | 15.00 | 16.00 | 31.00 | 5.00 |
