Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Includes all necessary installation hardware
Includes all necessary installation hardware
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Receiver Tube Size (Inches): 2 IN
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 500 LB / 5,000 LB
Weight Carrying Capacity (Pounds): 5,000 LB
WC Tongue Weight (Pounds): 500 LB
Installation Difficulty: Novice
Installation Time Exact (Minutes): 45

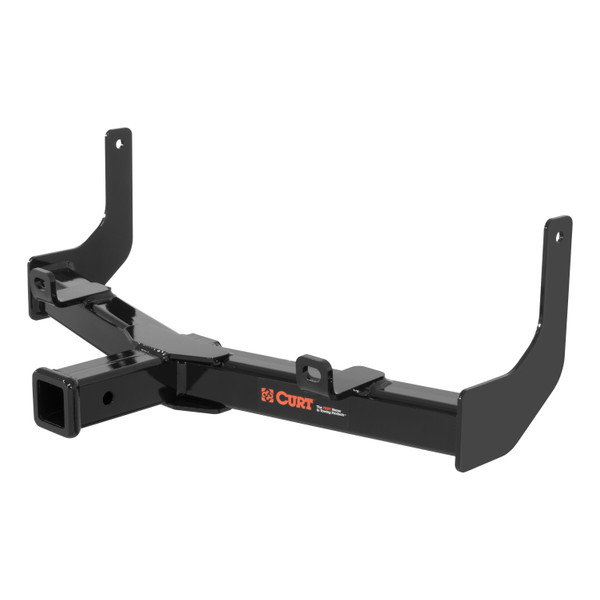

A CURT front trailer hitch allows you to use the front end of your vehicle for a variety of towing applications. They can be used for mounting a winch, a snow plow, a number of towing accessories and can even be used for some trailering applications. When space is limited, a front trailer hitch is commonly used to hold a cargo carrier, freeing up space inside the vehicle for extra cargo and making the rear mount receiver available to pull a trailer. At the boat ramp, your boat trailer can be hitched up to the front receiver hitch, giving you better control over the trailer as you launch. Some of the other accessories that can be used with a front tow hitch are the CURT winch mount, step pad, license plate holder, spare tire mount, skid shield and tow hooks. All CURT front trailer hitches provide a useful receiver tube to accept a 2" x 2" shank, and they are commonly used on trucks, vans and SUVs. This front trailer hitch is rated for 5,000 lbs. GTW and 500 lbs. TW. It also has a straight-line pull rating of 9,000 lbs. It is designed to be a custom trailer hitch for certain years of the Chevy Colorado and GMC Canyon (to verify your vehicle compatibility, see application info). It comes with all necessary hardware for a complete installation and is backed by a limited lifetime warranty.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2022 | Chevrolet Colorado | No Drilling Required Fascia Trimming: optional Installation Time: 30-60 minutes Z71 with front stabilizer bar Visibility: Concealed |
| 2015 - 2022 | GMC Canyon | No Drilling Required Fascia Trimming: optional Installation Time: 30-60 minutes Z71 with front stabilizer bar Visibility: Concealed |
The CURT 2" Front Receiver Hitch, Select Chevrolet Colorado, GMC Canyon Trailer Hitch (Part #BKDK31074) fits the following vehicles: 2015-2022 Chevrolet Colorado; 2015-2022 GMC Canyon. Always verify your specific year, make, and model before ordering.
Yes, the CURT 2" Front Receiver Hitch, Select Chevrolet Colorado, GMC Canyon Trailer Hitch (Part #BKDK31074) is designed to fit the 2015-2022 Chevrolet Colorado.
The CURT 2" Front Receiver Hitch, Select Chevrolet Colorado, GMC Canyon Trailer Hitch (Part #BKDK31074) fits 2015-2022 Chevrolet Colorado models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT 2" Front Receiver Hitch, Select Chevrolet Colorado, GMC Canyon Trailer Hitch (Part #BKDK31074) Drilling is not required for installation. Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, CURT part number 31074 is designed for 2015 Chevrolet Colorado and Canyon models. This is a front-mounted receiver hitch. Verify your vehicle matches this year and model before purchasing.
The CURT 31074 has a gross load capacity of 5,000 lbs trailer weight and 500 lbs tongue weight when used as a weight-carrying hitch. When used as a straight-line pull (winching), the maximum line pull is 9,000 lbs. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower than these ratings.
The hitch weight is 90 lbs.
You will need: ratchet, torque wrench, aviation shears, 11/16" socket, 15mm socket, 10mm socket, and 11/16" open end wrench. Using proper tools will greatly improve the quality of the install and reduce installation time.
The kit includes: 4 square hole spacers (CM-SP11, .250 x 1.00 x 2.50"), 4 carriage bolts (7/16-14 UNC, 1-1/2", grade 8, part number 10-10282), 4 pieces of 7/16" fishwire, and 4 serrated flange nuts (7/16-14 UNC, grade 8, part number 20-00103).
No, drilling is not required. The hitch uses existing holes in the vehicle frame and access holes for installation.
Fascia trimming or removal may be required. Before trimming, raise the hitch into position to determine if trimming is needed. If required, trim the lower fascia as shown in the fascia trim detail (approximately 3.00 to 3.50 inches). Always check for proper fit prior to trimming. Alternatively, you may remove the lower fascia and return it to the owner.
Yes, trimming the skid plate is optional. If you choose to trim it, remove 1/2" from the edge and you may replace it later. The skid plate should be removed before installation begins.
Two people may be required to ease installation. While one person may be able to complete the installation, having a second person will help with positioning and alignment of the hitch.
All 7/16" fasteners (carriage bolts and nuts) must be torqued to 69 ft-lbs. This is the final torque value applied after all fasteners are loosely installed and the hitch is properly aligned.
1. Determine if fascia trimming is required by raising the hitch into position; trim or remove lower fascia if needed. 2. Remove the skid plate (optionally trim 1/2" from edge). 3. Raise hitch into position aligning mounting holes with upper holes on both sides. 4. Fishwire two 7/16" carriage bolts and spacers through access holes; loosely install nuts. 5. Rotate hitch to align frame cross member holes with front mounting tab slots. 6. Install remaining two 7/16" carriage bolts and spacers; loosely install nuts. 7. Ensure hitch is aligned to trimmed fascia; adjust as needed. 8. Torque all 7/16" fasteners to 69 ft-lbs. 9. Optionally replace trimmed skid plate.
Fishwire is a flexible wire tool used to guide fasteners through tight spaces. In step 4, you use fishwire to thread two 7/16" carriage bolts and spacers into position through the access holes in the vehicle frame before installing the nuts.
Yes. In steps 4 and 7, nuts are loosely installed after the carriage bolts and spacers are positioned. The hitch is then rotated and aligned in step 6 and 8. Only after the hitch is properly aligned should all 7/16" fasteners be torqued to 69 ft-lbs in step 9.
The front axle GAWR is the maximum weight the front axle and suspension can safely carry. Do not exceed your vehicle's GAWR when using front-mounted accessories like this hitch. Consult your vehicle's owner manual or the specification plate on the driver's door frame to find your GAWR. Measure gross front axle weight by placing the front wheels of your loaded vehicle on a scale. Exceeding GAWR may overload the front axle and suspension, which could result in accident, property damage, and personal injury.
No. Never use a ball mount as an anchor point for a tow strap or winch cable. This could result in severe personal injury or death. Instead, use OEM tow hooks or recovery eyes for attachment of a tow strap or winch cable.
For maximum line pull rating, the winch cable must not exceed 15 degrees angle up or down from horizontal, and must not exceed 45 degrees angle left or right from straight ahead. Exceeding these angles may overload the winch, winch mount, and/or front-mounted receiver.
Attach the return cable to a tow hook or recovery eye, not to the winch mount. Attaching the return cable to the winch mount may overload the winch mount and/or front-mounted receiver.
Safety glasses should be worn at all times while installing this product. Read all instructions thoroughly before beginning installation.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This maintenance is important for safe operation.
Professional installation time is approximately 35 minutes. Novice (DIY) installation time is approximately 90 minutes.
Call CURT Manufacturing technical support at 1-877-287-8634. If you are hesitant to undertake the installation on your own, contact an authorized CURT installer for additional assistance.
The hitch should not obstruct vehicle lights or block free air flow into the grille opening. After installation, verify that the hitch does not obstruct any lights and that the grille has adequate air flow. If the license plate is obstructed, reposition it as needed.
Yes. The hitch extends the front of the vehicle, which may reduce approach angle. Use caution when parking and maneuvering. Additionally, rear wheel traction may be reduced when using front-mounted accessories, which could affect handling. Reduce speed and drive with caution.
The hitch should not obstruct driver view. After installation, verify that the hitch does not block the driver's line of sight.
Yes, the CURT 31074 is designed for 2015 Chevrolet Colorado and Canyon models.
5,000 lbs trailer weight and 500 lbs tongue weight for weight-carrying use; 9,000 lbs maximum line pull for winching. Do not exceed your vehicle manufacturer's recommended towing capacity.
Fascia trimming or removal may be required. Raise the hitch into position first to determine if trimming is needed. If required, trim approximately 3.00 to 3.50 inches from the lower fascia.
All 7/16" fasteners must be torqued to 69 ft-lbs after the hitch is properly aligned.
No. Never use the ball mount as an anchor point for a tow strap or winch cable. Use OEM tow hooks or recovery eyes instead.
Winch cable must not exceed 15 degrees up or down from horizontal, or 45 degrees left or right from straight ahead.
