CURT 2024044568 Helux Coil-Spring 5th Wheel Pin Box, 2,600 lbs. Pin Weight, 18,000 lbs. Weight CapacityCURT$1,495.95In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Purchase verification required. Refer to instruction sheet for pin weight measuring process

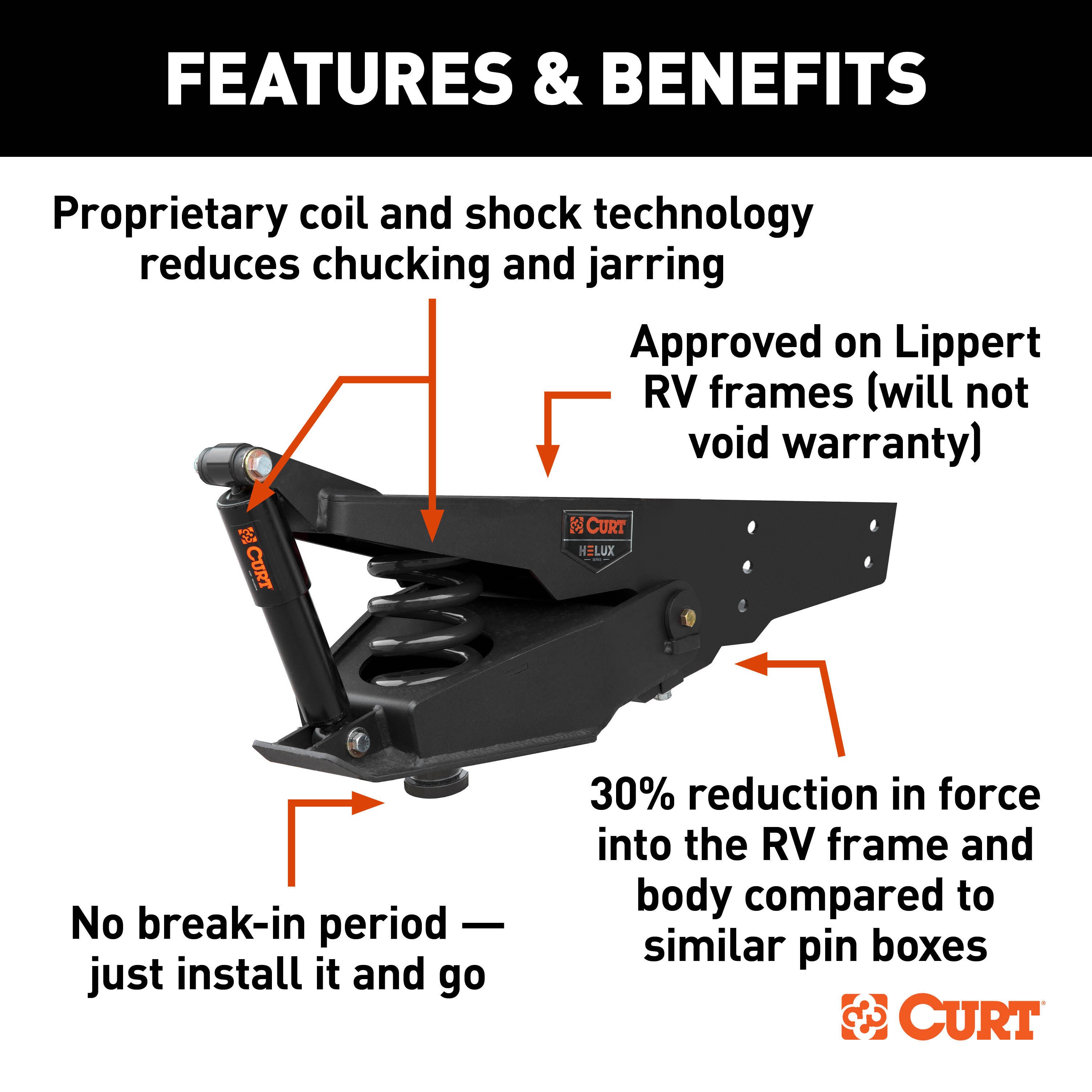

Proprietary coil and shock technology reduces chucking and jarring to protect trailer and gear

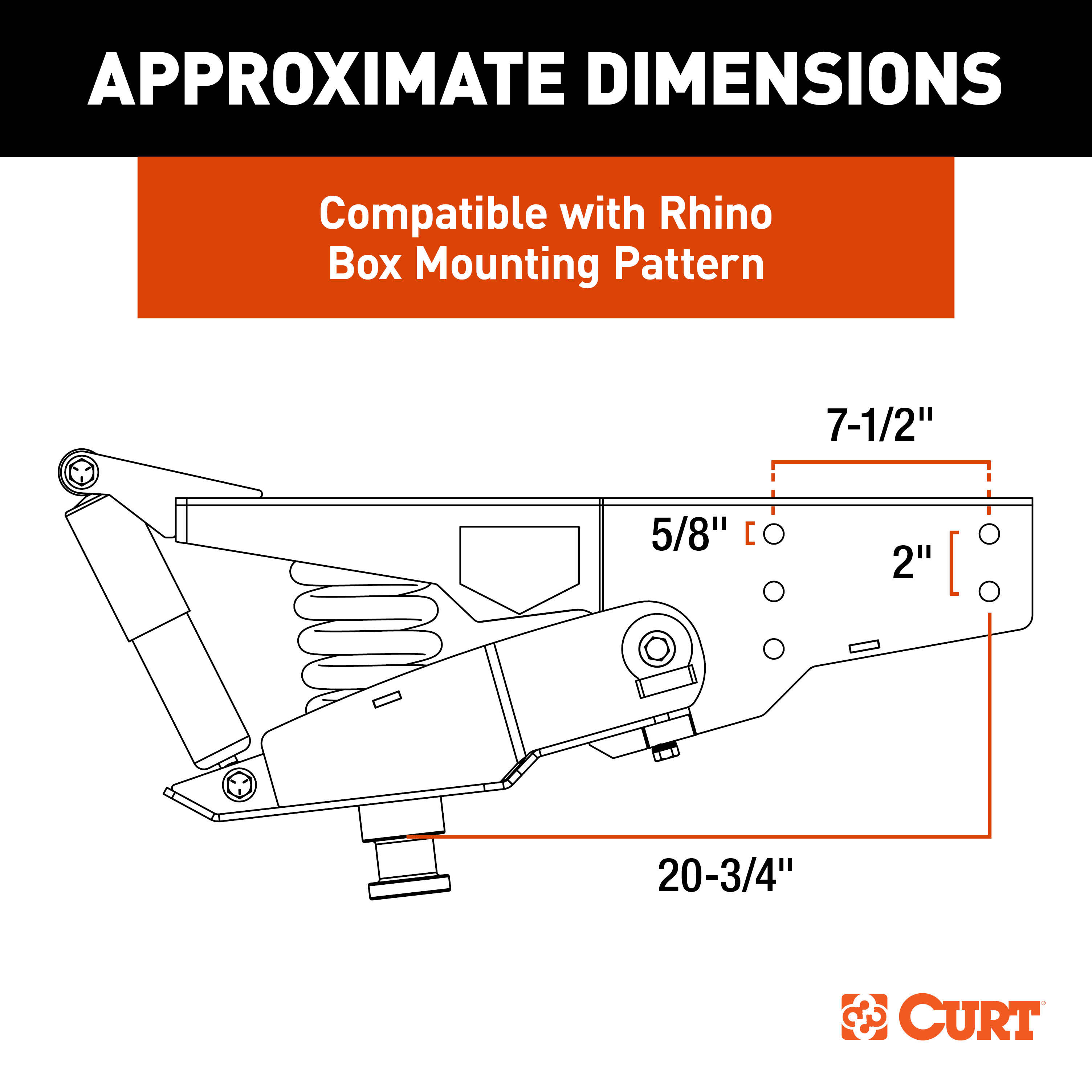

Compatible with Rhino Box bolt-mounting pattern
Shipping Weight: 169.000 lbs
Finish: Black

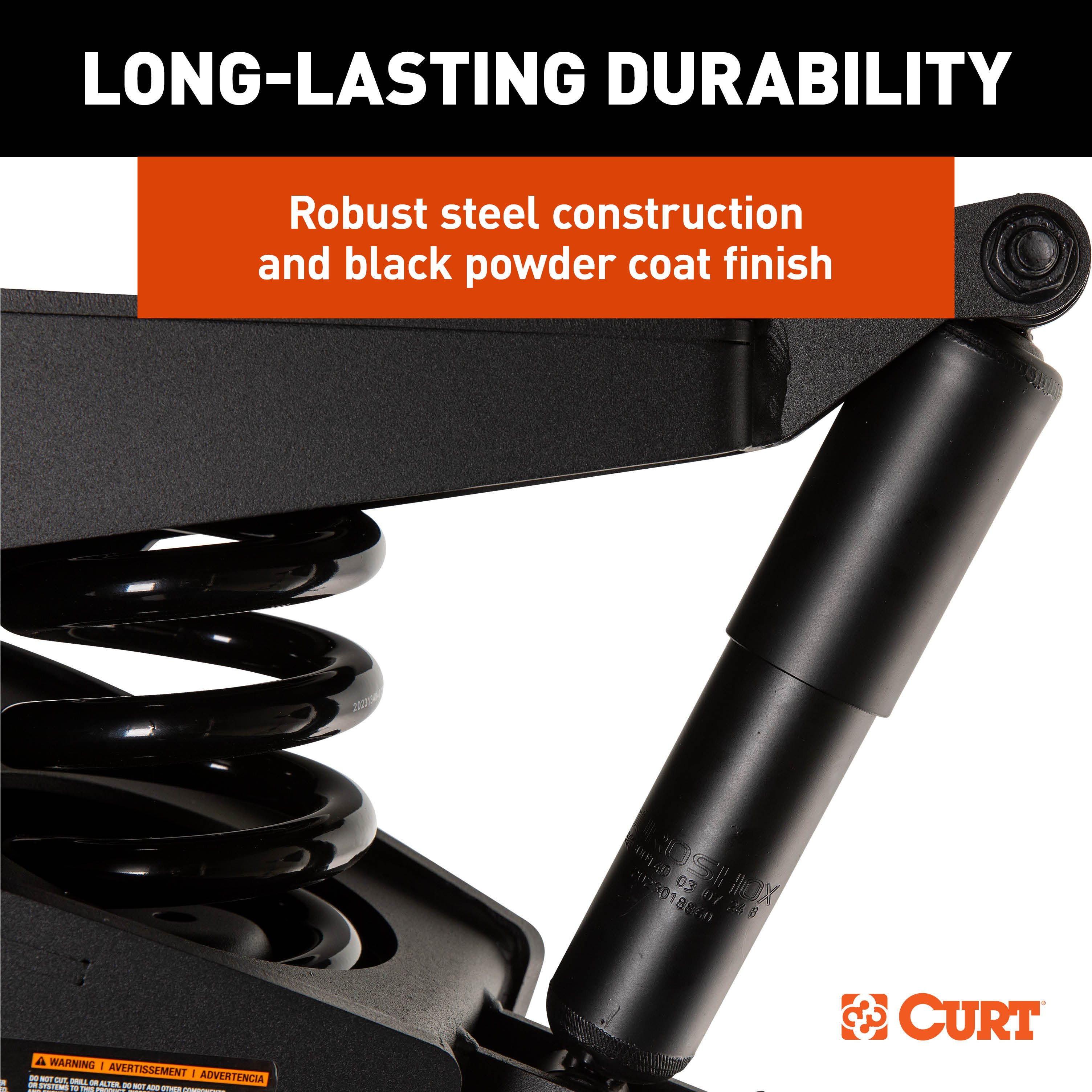

Material: Carbon Steel

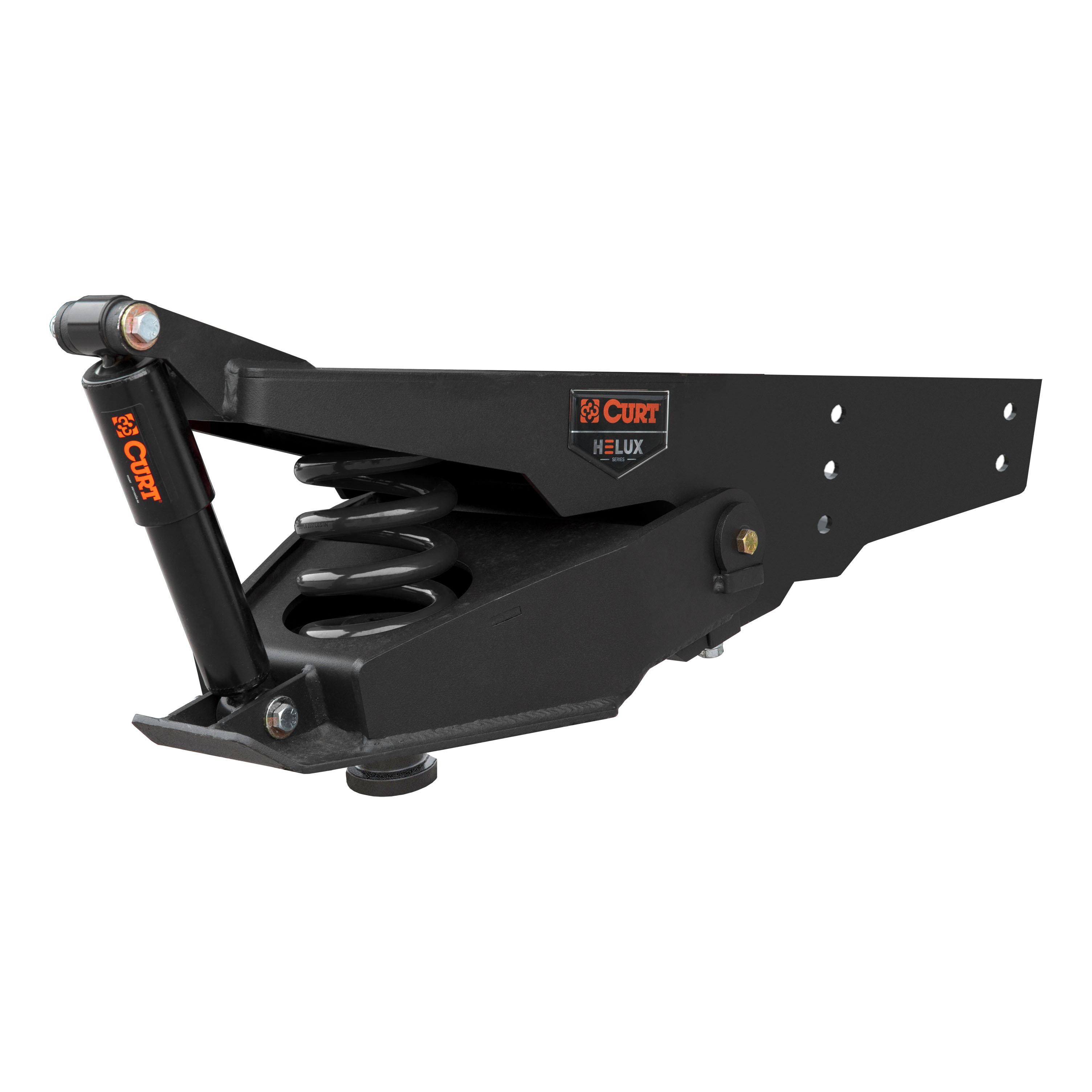

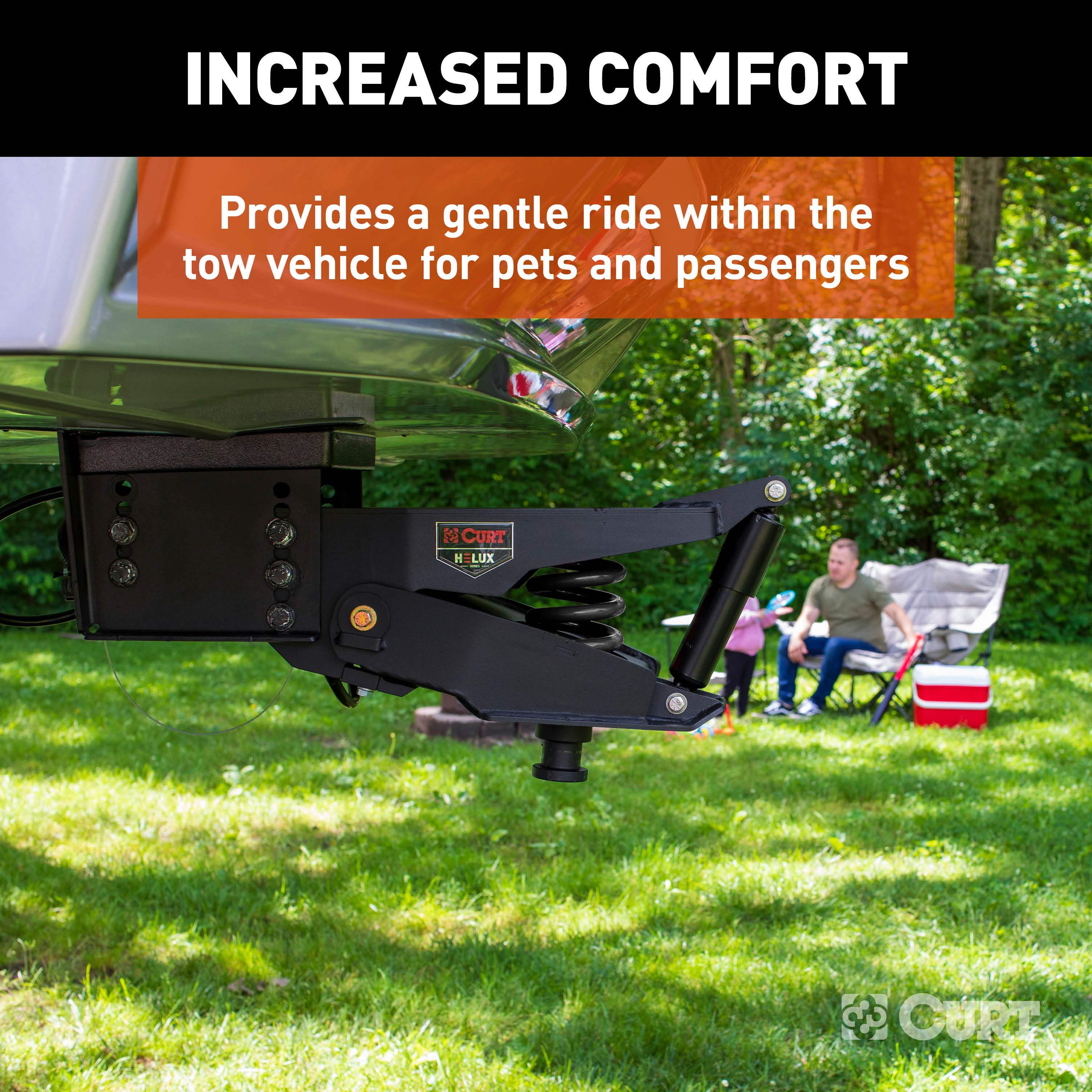

The CURT Helux 5th Wheel Pin Box redefines towing comfort with advanced coil spring and shock absorber technology. Designed to replace standard pin boxes, it minimizes chucking, jarring, and bouncing during travel, ensuring a smoother ride for both driver and passengers. Its innovative design also protects your RVs gear and belongings by reducing aggressive shifting. This pin box enhances ride quality for pets and passengers by eliminating excessive rattling and vibrations from road hazards. Its premium steel construction, paired with a durable black powder coat finish, ensures long-lasting reliability for miles of towing. Maintenance-free coil spring technology provides dependable performance without the hassle of upkeep, outperforming traditional air systems. Approved for use on Lippert frames, the CURT Helux Pin Box offers a smoother hitching experience for seamless towing. Its robust engineering reduces wear and tear on RV hardware, making it a smarter, worry-free choice for your towing needs. Whether for long trips or local getaways, this pin box delivers comfort and performance you can rely on.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Limited lifetime warranty (one-year finish, one-year parts)
The Curt Helux Pin Box is a replacement pin box assembly for 5th wheel trailers. It connects the trailer's kingpin to the tow vehicle's 5th wheel hitch receiver. The pin box contains a spring mechanism that supports the weight of the trailer and allows for articulation during towing. Curt offers seven different models (part numbers 2024044568 through 2024044572) rated for pin weights ranging from 1880 lb to 6000 lb (loaded).
You must determine your trailer's actual pin weight before purchasing. The best method is to take your fully loaded 5th wheel (including all cargo, ATVs, motorcycles, etc.) to a certified scale such as CAT Scale. Follow the weighing procedure: connect the 5th wheel to the tow vehicle and weigh the front and rear axles of the truck (scales 1 and 2) and trailer axles (scale 3). Subtract the tow vehicle weight from the combined weight to find pin weight. Alternatively, multiply your trailer's GVWR by 22% (0.22) for an approximate pin weight. Match your pin weight to the chart: part 2024044568 (1880–2377 lb), 2024044567 (2378–2722 lb), 2024044569 (2723–3165 lb), 2024122233 (3166–3712 lb), 2024044570 (3713–4332 lb), 2024044571 (4333–4900 lb), or 2024044572 (4901–6000 lb).
No. Each Curt Helux Pin Box model is designed for a specific pin weight range. The model you choose must match your calculated or measured pin weight. Using an undersized model risks inadequate support; using an oversized model may result in improper hitch geometry. Always select the model whose pin weight range includes your actual pin weight.
The minimum pin weight is the unloaded weight (no cargo and empty fresh, black, and gray water tanks). The maximum pin weight is the loaded weight (cargo loaded including toy hauler area and tanks travel-ready). The optimal pin weight value range shown in the middle column is the target range when choosing your Curt Helux Pin Box model. Your actual loaded pin weight should fall within this range for proper performance.
You will need: SAE socket set, SAE wrenches, tape measure, box-end wrench set, safety glasses, air compressor, and level. Proper tools will improve installation quality and reduce installation time.
The kit includes 10 hex bolts (5/8"-11 x 1 3/4", grade 5) and 10 serrated-flange nuts (5/8"-11, grade 5). These are new mounting fasteners and must be used instead of the old hardware from the previous pin box.
A minimum of two people are required to help support the weight of the pin box as it is being lifted and positioned. The pin box assembly weighs several hundred pounds. A forklift may be used to lift the pin box into position as an alternative.
The manual does not mention disconnecting the battery. This is a mechanical installation with no electrical work required.
Level the trailer front-to-back and measure from the ground to the bottom of the kingpin plate on the current pin box. Record this measurement as dimension A. This dimension will be used to install the new pin box at the proper height.
Properly support the pin box before removing mounting bolts. An unsupported pin box during removal can result in death, serious personal injury, or severe product and property damage. Once the pin box is properly supported, remove the fasteners securing it and carefully lower it to the ground.
Measure from the ground up to the flat plate of the upper jaw on the Helux pin box. Adjust the pin box height until it equals dimension A (recorded in Step 1) plus 9-1/2". Dimension A is the height from ground to the bottom of the kingpin plate on the old pin box. The formula is: B = A + 9 1/2".
Use an equal number of fasteners as were previously used to secure the old pin box. The kit includes 10 hex bolts and 10 serrated-flange nuts, but you may not need all of them depending on your trailer's mounting points.
Torque 5/8" bolts to 120 ft-lb±5 lb. This torque specification must be followed to ensure proper fastener security and prevent damage to the product or vehicle.
No. The Helux pin box kit includes new mounting hardware. Do not reuse the mounting hardware from the previous pin box. You must use the supplied hex bolts (5/8"-11 x 1 3/4", grade 5) and serrated-flange nuts (5/8"-11, grade 5).
After the pin box is secured with the supplied hardware and bolts are torqued to 120 ft-lb±5 lb, proceed to the hitching and pull test procedure. First, adjust the trailer height using the landing gear so the bottom of the trailer's pin box is 1/2" to 1" below the hitch skid plate. Then perform the hitching procedure and pull test to verify proper installation.
Using the trailer landing gear, adjust the trailer height per the manufacturer's recommendation so the bottom of the trailer's pin box is 1/2" to 1" below the hitch skid plate. This ensures the kingpin will be properly positioned inside the hitch jaw and not rest on top of the closed jaws or skid plate.
If the kingpin is too high, it may come to rest on top of the closed jaws or not completely inside the jaw. This could result in the trailer separating from the hitch, which may result in death or serious injury. Proper height adjustment ensures the kingpin seats correctly inside the hitch receiver.
No. Do not attempt to hitch the trailer by using trailer jacks to lower the trailer and kingpin. This could result in the kingpin coming to rest on top of the skid plate instead of within the hitch opening, which may result in death or serious injury. Always use the landing gear per the manufacturer's recommendation.
Place chocks firmly against the front and rear of each trailer tire to prevent movement, either forward or backward. If necessary, lower the tow vehicle's tailgate to allow the pin box to clear. Monitor the clearance of the lowered tailgate to the trailer during hookups, as some combinations of truck and trailer have little or no clearance.
Back the truck slowly toward the trailer until the truck's hitch contacts the bottom of the pin box and the kingpin slides into the receiver. During the hitching maneuver, the bottom of the trailer's pin box should come into contact with the hitch skid plate ramp. Then latch the 5th wheel hitch in closed position per the instructions of the 5th wheel hitch manufacturer. Consult your hitch manufacturer's owner's manual for proper hitching procedure.
The pull test verifies that the trailer is properly hitched before traveling. Securely chock the trailer tires and ensure the landing gear is firmly on the ground. From the tow vehicle cab, release the emergency brake and apply the trailer brakes. Slowly pull the trailer forward. If properly hitched, the wheel blocks and trailer brakes should keep the truck from moving forward. If the trailer is not properly hitched, it will separate from the hitch and the truck will move forward while leaving the trailer behind. Failure to perform a pull test may result in severe property damage, serious personal injury, or death.
If the trailer separates from the tow vehicle during the pull test, the trailer is not properly hitched. Repeat the hitching procedure from the beginning, ensuring the pin box height is correct and the kingpin is fully seated in the hitch receiver.
After successfully performing the pull test, fully raise the landing gear per the manufacturer's recommendations. Then check and inspect all electrical circuits for proper operation, including clearance lights, turn signals, and stop lights. Finally, remove and store all trailer wheel blocks.
Always check the pin box and its components for damage or any loose nuts and bolts. Be sure the trailer pulls in a level condition before traveling. Periodically inspect the pin box coil spring for condition and any possible damage. If the kingpin is excessively worn, the jaw plate will need to be replaced. Check the condition of the coil spring and replace if damaged or broken. Look for damage on the shock or a disconnected shock, and reconnect or replace if needed.
Yes. The 5th wheel should always be towed while level. Adjustment of the pin box mounting height, the tow vehicle height, or suspension may be necessary to accomplish a level towing condition. Before traveling, be sure the trailer pulls in a level condition.
Never exceed the vehicle manufacturer's recommended towing capacity. The Curt Helux Pin Box is rated for specific pin weights, but your tow vehicle has its own towing capacity limit. You must comply with both the pin box rating and the vehicle manufacturer's towing capacity to ensure safe operation.
Contact Curt Manufacturing product support at 432.547.7378. You can also visit curtmfg.com for additional information. For a service manual, replaceable parts, and additional troubleshooting, scan the QR code provided in the manual.
No. Returns will not be accepted once the product has been installed. Verify that you have ordered the correct model for your pin weight before purchasing and installing.
The Curt Helux Pin Box fits any 5th wheel trailer, but you must order the correct model based on your pin weight. Weigh your fully loaded trailer at a certified scale or multiply GVWR by 22% to find pin weight, then match it to one of seven models (part numbers 2024044568–2024044572) rated from 1880 lb to 6000 lb.
The manual does not mention drilling. The pin box uses the existing mounting holes on your 5th wheel frame and is secured with the supplied hex bolts and serrated-flange nuts.
Torque all 5/8" bolts to 120 ft-lb±5 lb. Do not reuse old hardware; use only the new grade 5 hex bolts and serrated-flange nuts included in the kit.
Measure from ground to the bottom of the old kingpin plate (dimension A), then set the new pin box so the flat plate of the upper jaw is at height A + 9 1/2". This ensures proper kingpin seating and prevents separation during towing.
Yes. After hitching, chock the trailer tires, apply the trailer brakes, and slowly pull forward. If properly hitched, the trailer should not move. Failure to perform a pull test may result in death or serious injury.
Yes. The 5th wheel should always be towed while level. You may need to adjust the pin box mounting height, tow vehicle height, or suspension to achieve a level towing condition.
Adjust the pin box mounting height, the tow vehicle height, or suspension accordingly. The 5th wheel should always be towed while level. If the issue persists after adjustment, verify that the pin box is securely attached to the 5th wheel and that all bolts are torqued to 120 ft-lb±5 lb.
Inspect the pin box coil spring for condition and any possible damage. Be sure cargo is balanced from side to side and front to back. If the spring is damaged or broken, it will need to be replaced. Unbalanced cargo can also cause excessive movement.
First, verify that the pin box is securely attached to the 5th wheel and all bolts are tight. If the kingpin is excessively worn, the jaw plate will need to be replaced. Check the condition of the coil spring and replace if damaged or broken. Look for damage on the shock or a disconnected shock, and reconnect or replace if needed. Also verify that unwanted noise is not coming from the hitch itself; consult the hitch manufacturer for guidelines.
This is normal. Observe the pin box and hitch plate once the trailer is loaded. The pin box will close down as the unit is loaded to the proper pin weight. When unloaded, the spring will be less compressed, causing the jaws to open wider.
