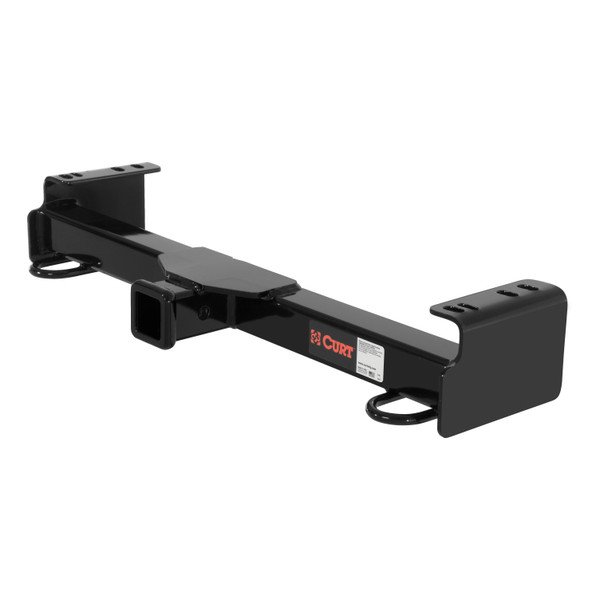

CURT 31313 2-Inch Front Receiver Hitch, Select Toyota TacomaCURTOriginal price was $506.95. Current price is $339.99.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2001 - 2004 Toyota Tacoma
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Includes all necessary installation hardware
Includes all necessary installation hardware
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Receiver Tube Size (Inches): 2 IN
Finish: GLOSS BLACK POWDER COAT
WC / TW (Pounds): 500 LB / 5,000 LB
Weight Carrying Capacity (Pounds): 5,000 LB
WC Tongue Weight (Pounds): 500 LB
Installation Difficulty: Novice
Installation Time Exact (Minutes): 45

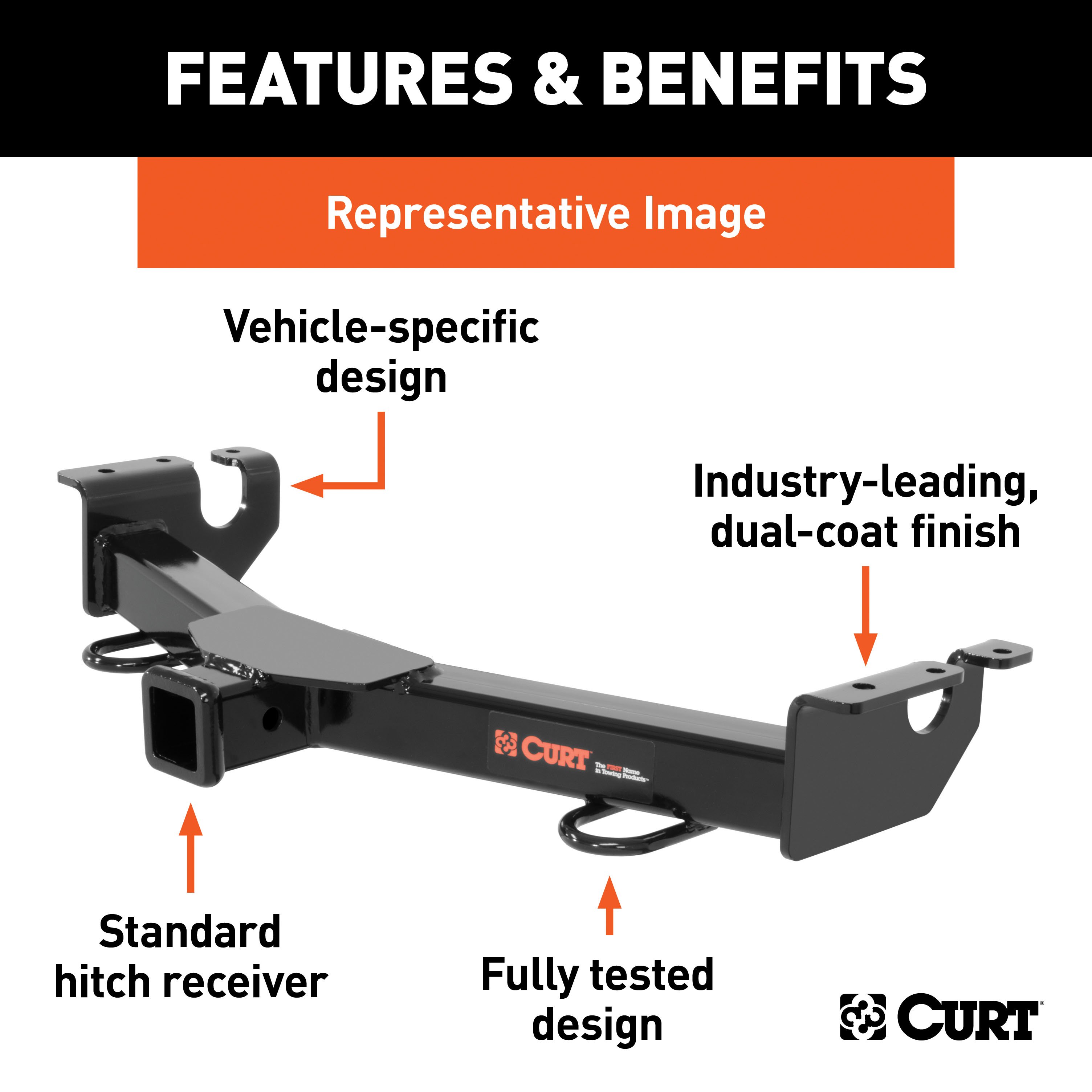

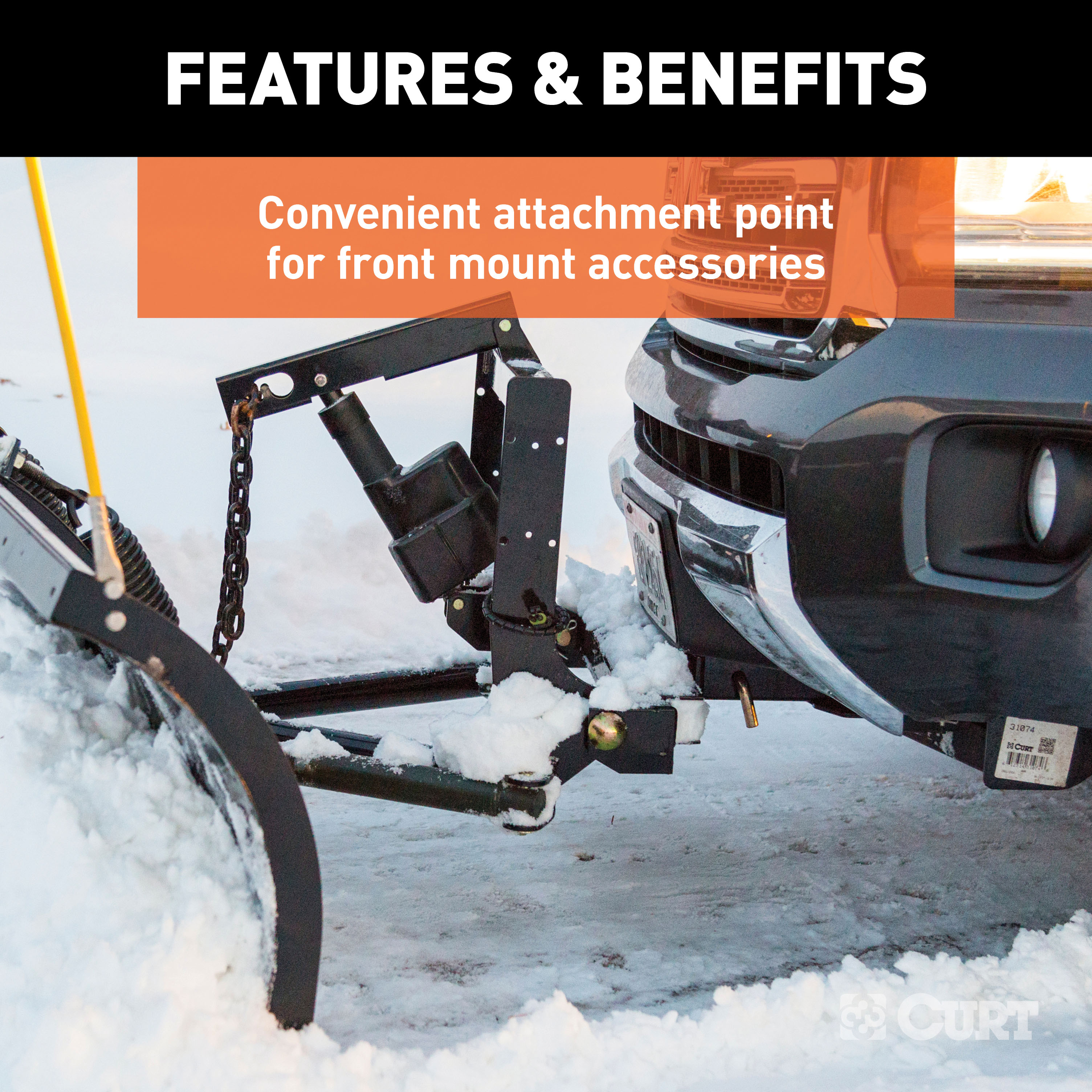

A CURT front trailer hitch allows you to use the front end of your vehicle for a variety of towing applications. They can be used for mounting a winch, a snow plow, a number of towing accessories and can even be used for some trailering applications. When space is limited, a front trailer hitch is commonly used to hold a cargo carrier, freeing up space inside the vehicle for extra cargo and making the rear mount receiver available to pull a trailer. At the boat ramp, your boat trailer can be hitched up to the front receiver hitch, giving you better control over the trailer as you launch. Some of the other accessories that can be used with a front tow hitch are the CURT winch mount, step pad, license plate holder, spare tire mount, skid shield and tow hooks. All CURT front trailer hitches provide a useful receiver tube to accept a 2" x 2" shank, and they are commonly used on trucks, vans and SUVs. This front trailer hitch is rated for 5,000 lbs. GTW and 500 lbs. TW. It also has a straight-line pull rating of 9,000 lbs. It is designed to be a custom trailer hitch for certain years of the Toyota Tacoma (to verify your vehicle compatibility, see application info). It comes with all necessary hardware for a complete installation and is backed by a limited lifetime warranty.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2001 - 2004 | Toyota Tacoma | Drilling Required Installation Time: 30-60 minutes Visibility: Exposed |
The CURT 31013 2-Inch Front Receiver Hitch, Select Toyota Tacoma (Part #BKDK31013) fits the following vehicles: 2001-2004 Toyota Tacoma. Always verify your specific year, make, and model before ordering.
Yes, the CURT 31013 2-Inch Front Receiver Hitch, Select Toyota Tacoma (Part #BKDK31013) is designed to fit the 2001-2004 Toyota Tacoma.
The CURT 31013 2-Inch Front Receiver Hitch, Select Toyota Tacoma (Part #BKDK31013) fits 2001-2004 Toyota Tacoma models. The 2004 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT 31013 2-Inch Front Receiver Hitch, Select Toyota Tacoma (Part #BKDK31013) Drilling is required for installation. Typical installation time is 30-60 minutes. Basic hand tools are typically all you need.
Yes, Curt part number 31013 is designed for the Toyota Tacoma. However, the manual does not specify which model years or generations are compatible. Contact Curt Manufacturing technical support at 1-877-287-8634 to confirm fitment for your specific Tacoma year and generation.
The hitch weight is 90 lbs.
The maximum straight-line pull capacity is 9,000 lbs. However, you must not exceed your vehicle manufacturer's recommended towing capacity. Additionally, when using a winch, the cable angle must not exceed 15 degrees up or down from horizontal, or 45 degrees left or right from straight ahead, to maintain this rating.
Yes. You must enlarge two existing holes in the frame rails using a 9/16" drill bit.
Yes. Step 1 of the installation requires you to remove tow hooks from the vehicle if present. Return them to the customer.
The kit includes: (4) M12×1.25 hex head cap screws (part 10-10277), (2) 0.375" × 1.25" × 2.50" square hole spacers (CM-SP43), (4) 1/2" S-CON washers (30-00149), (2) 1/2"-13 UNC hex head cap screws grade 8 (10-10407), (2) 1/2" flat washers (30-00133), and (2) 1/2"-13 UNC serrated flange nuts grade 8 (20-00062). The hitch uses existing weld nuts on the frame rails.
You will need a 9/16" drill bit to enlarge the frame rail holes, and a torque wrench to tighten fasteners to the specified values (86 lb-ft for M12 bolts and 110 lb-ft for 1/2" bolts).
Use a 9/16" drill bit to enlarge the two existing holes in the frame rails.
1. Remove tow hooks from vehicle if present. 2. Enlarge two existing holes in frame rails using a 9/16" drill. 3. Raise hitch into position and secure with four M12 bolts and conical washers, finger tight. 4. Slide CM-SP43 spacers between frame and hitch side plate, then install 1/2" bolts with flat washers and secure with flange nuts. 5. Torque all M12 fasteners to 86 lb-ft and all 1/2" fasteners to 110 lb-ft.
Torque all M12 fasteners to 86 lb-ft and all 1/2" fasteners to 110 lb-ft.
Torque all M12 fasteners to 86 lb-ft.
Torque all 1/2" fasteners to 110 lb-ft.
No. In step 3, secure the M12 bolts and conical washers finger tight only. Do not fully tighten them until step 5, after the spacers and 1/2" bolts have been installed.
The CM-SP43 spacers (0.375" × 1.25" × 2.50" square hole spacers) are installed between the frame and hitch side plate. Two spacers are included in the kit and are installed during step 4 before the 1/2" bolts and flange nuts are secured.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This is especially important before towing.
The front axle GAWR is the maximum weight your vehicle's front axle is designed to support. Do not exceed your vehicle's front axle GAWR when using the Curt 31013 for front-mounted accessories. Exceeding GAWR may overload the front axle and suspension, which could result in accident, property damage, and personal injury. Find your GAWR in your vehicle's owner's manual or on the specification plate located on the driver's door frame. Measure gross front axle weight by placing the front wheels of your loaded vehicle on a scale.
No. Never use a ball mount as an anchor point for a tow strap or winch cable. Severe personal injury or death could result. Use OEM tow hooks, recovery eyes, or a clevis mount for attachment instead.
For maximum line pull rating, the winch cable must not exceed 15 degrees up or down from horizontal, or 45 degrees left or right from straight ahead. Exceeding these angles may overload the winch, winch mount, and/or front-mounted receiver.
Attach the return cable to the tow hook or recovery eye, not to the winch mount. Attaching it to the winch mount may overload the winch mount and/or front-mounted receiver.
Several precautions apply: (1) Do not exceed your vehicle's front axle GAWR. (2) Reposition the front-mounted license plate if obstructed. (3) Do not obstruct vehicle lights. (4) Allow free air flow into the grille opening. (5) Rear wheel traction may be reduced, which could affect handling—reduce speed and drive with caution. (6) Accessories extend the front of the vehicle and may reduce approach angle—use caution when parking and maneuvering. (7) Do not obstruct the driver's view.
Curt Manufacturing Inc. warrants the product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, Curt may repair or replace it at their option when returned prepaid with proof of purchase. Warranty is voided by alteration, misuse, or improper installation. Curt's liability is limited to repair or replacement of defective products and excludes liability for incidental or consequential loss or damage.
Professional installation takes approximately 90 minutes. Novice DIY installation takes approximately 45 minutes.
