| Warranty | Limited lifetime warranty; 1-year finish and parts |
| Container Type | 40hcgp |
| Load Type | Pallets |
| Material | Carbon Steel |
| Carrying Capacity | 200 lbs |

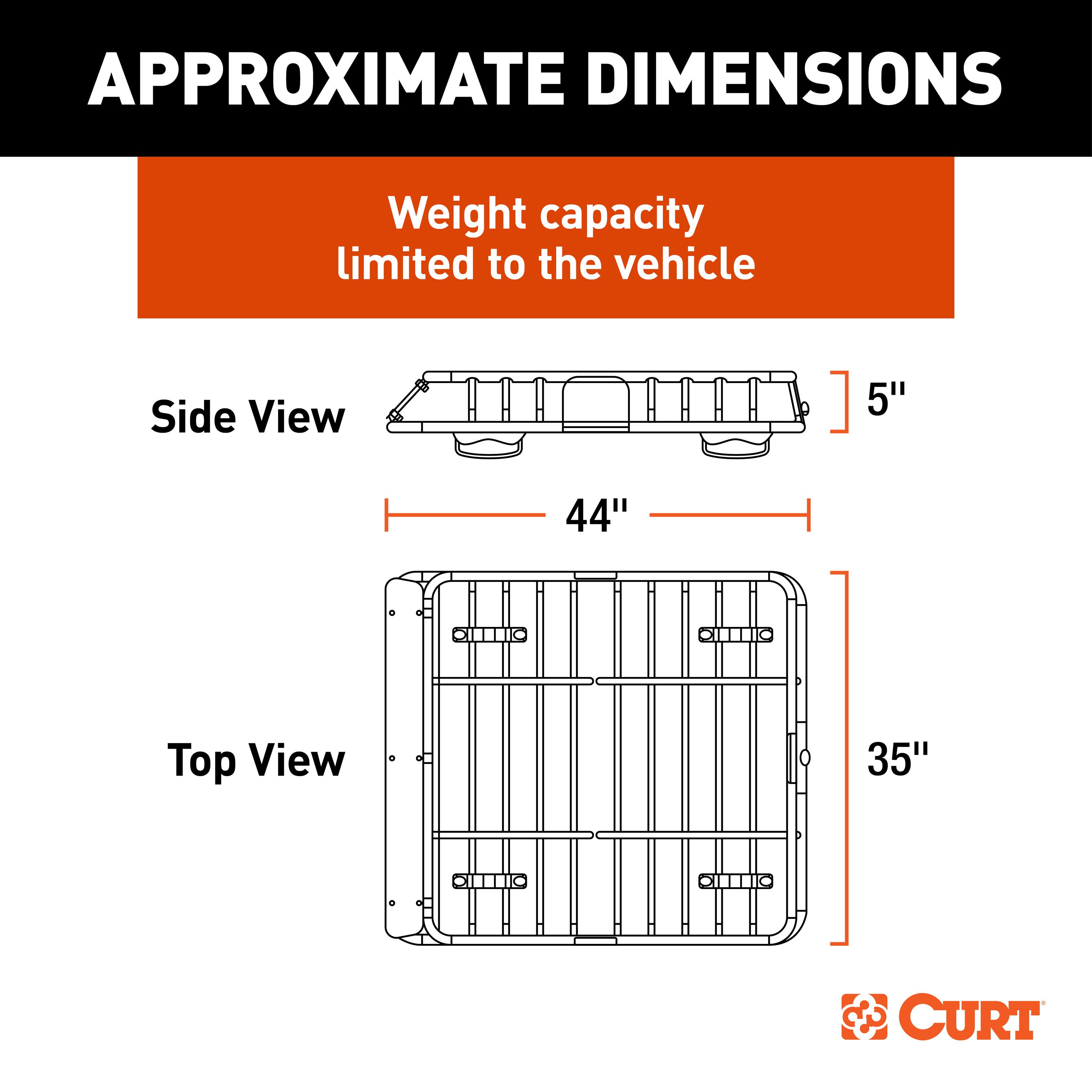

| Dimensions | 44 in x 35 in |

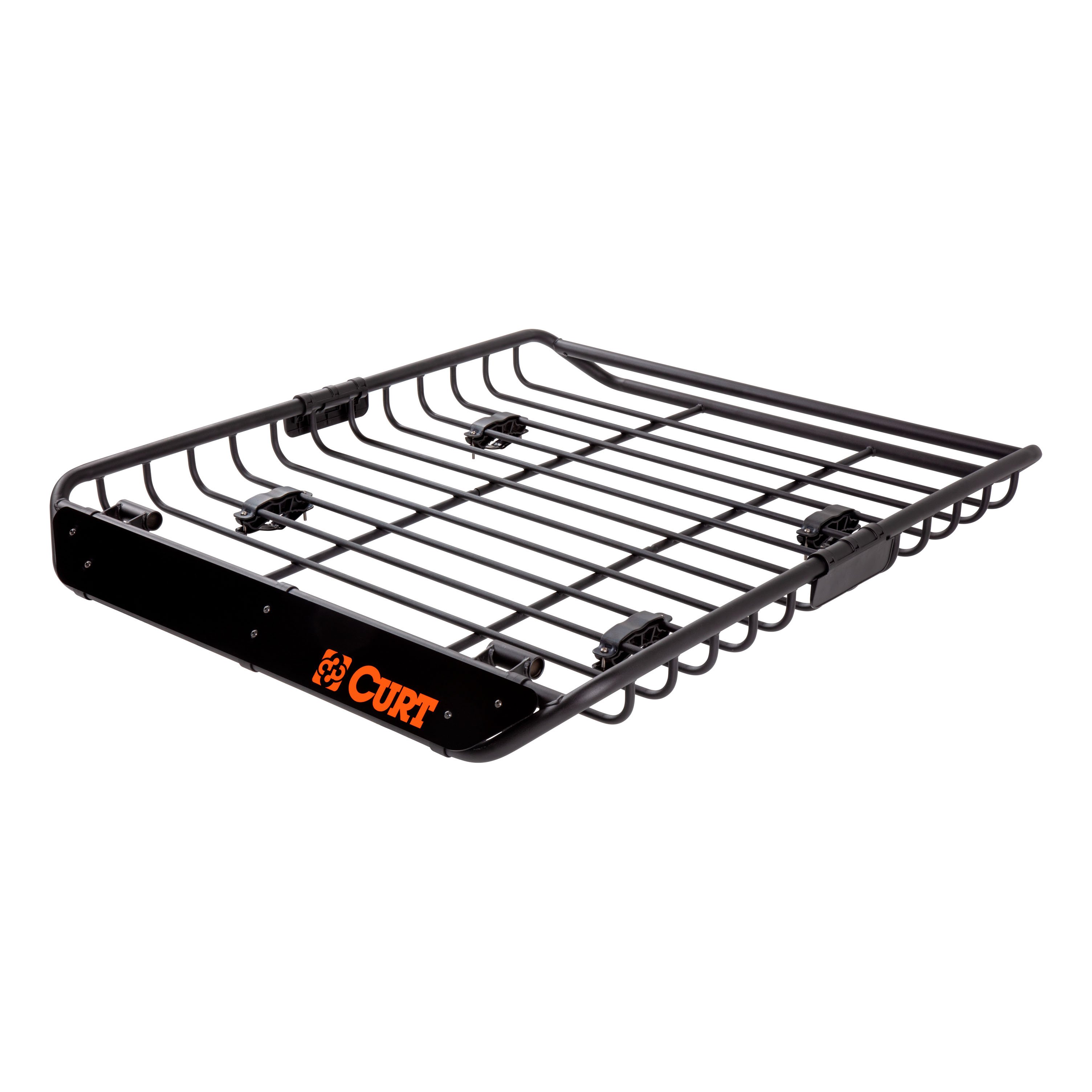

When it's time to embark on your journey, loading up your vehicle can become a game of Tetris. Even with a spacious car, fitting bulky items inside may lead to discomfort for passengers and pets. The CURT roof rack cargo carrier offers a convenient solution, allowing you to securely store large items outside the vehicle, freeing up space and ensuring a comfortable and organized interior for passengers and pets.

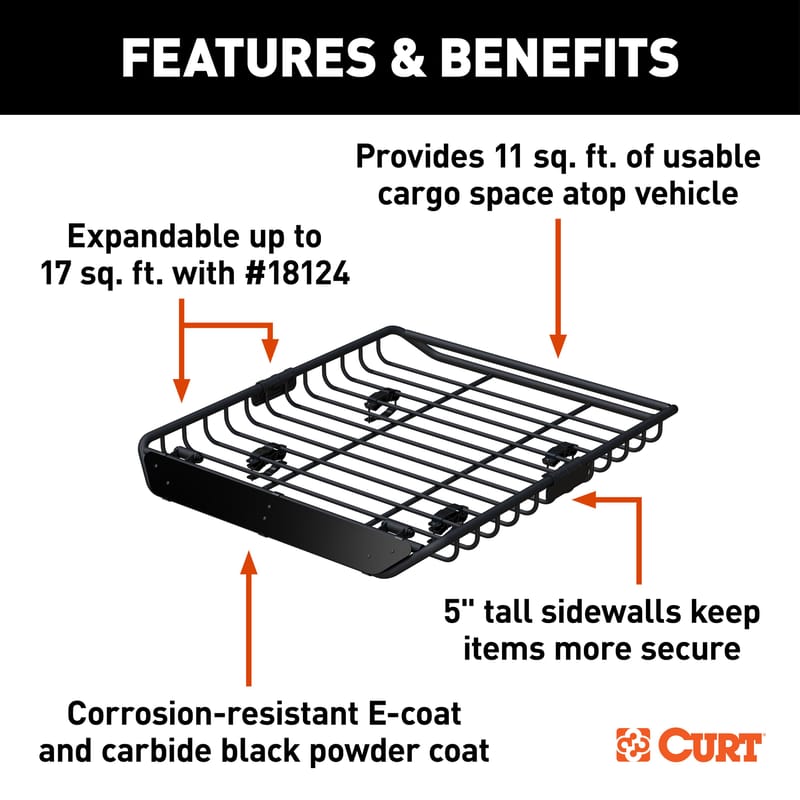

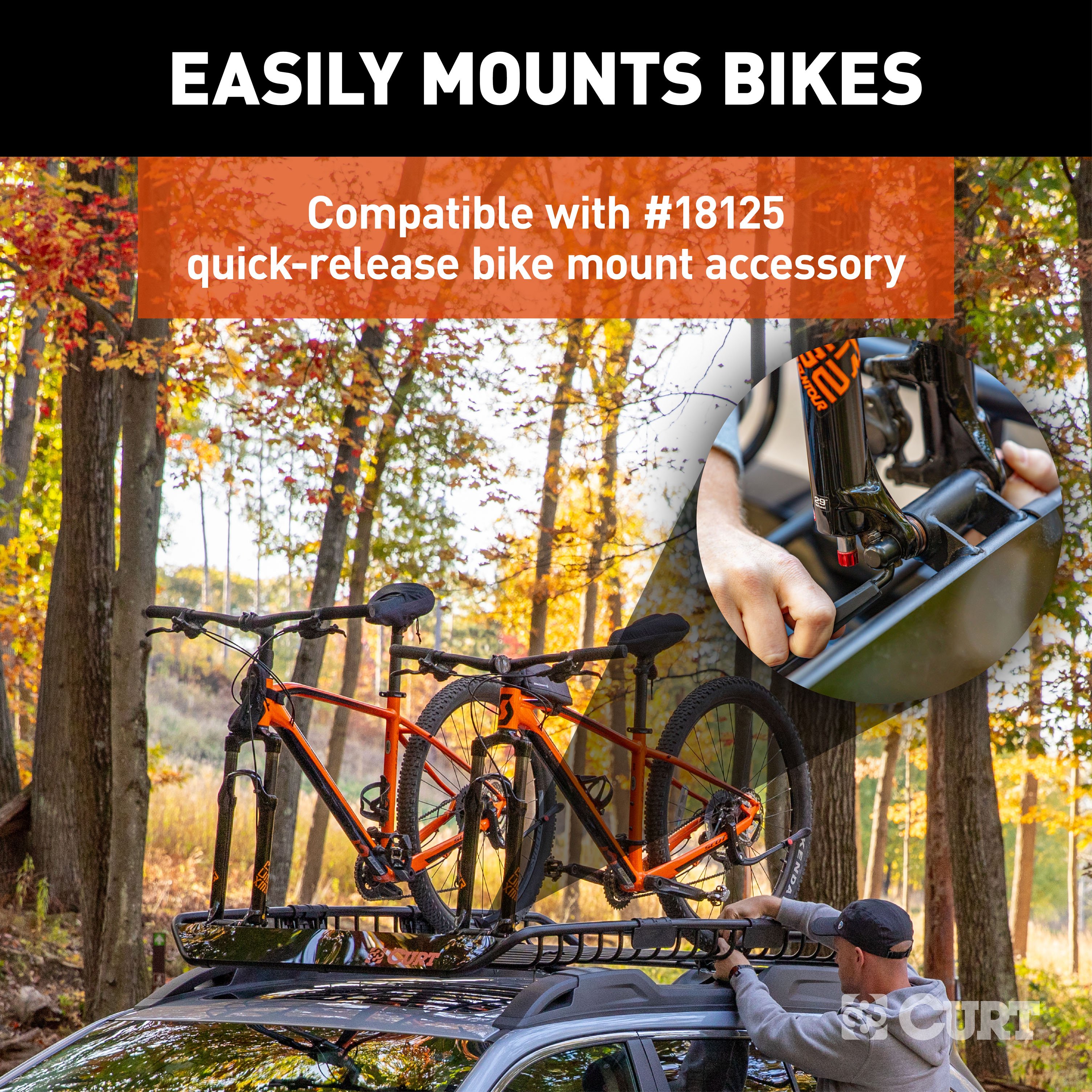

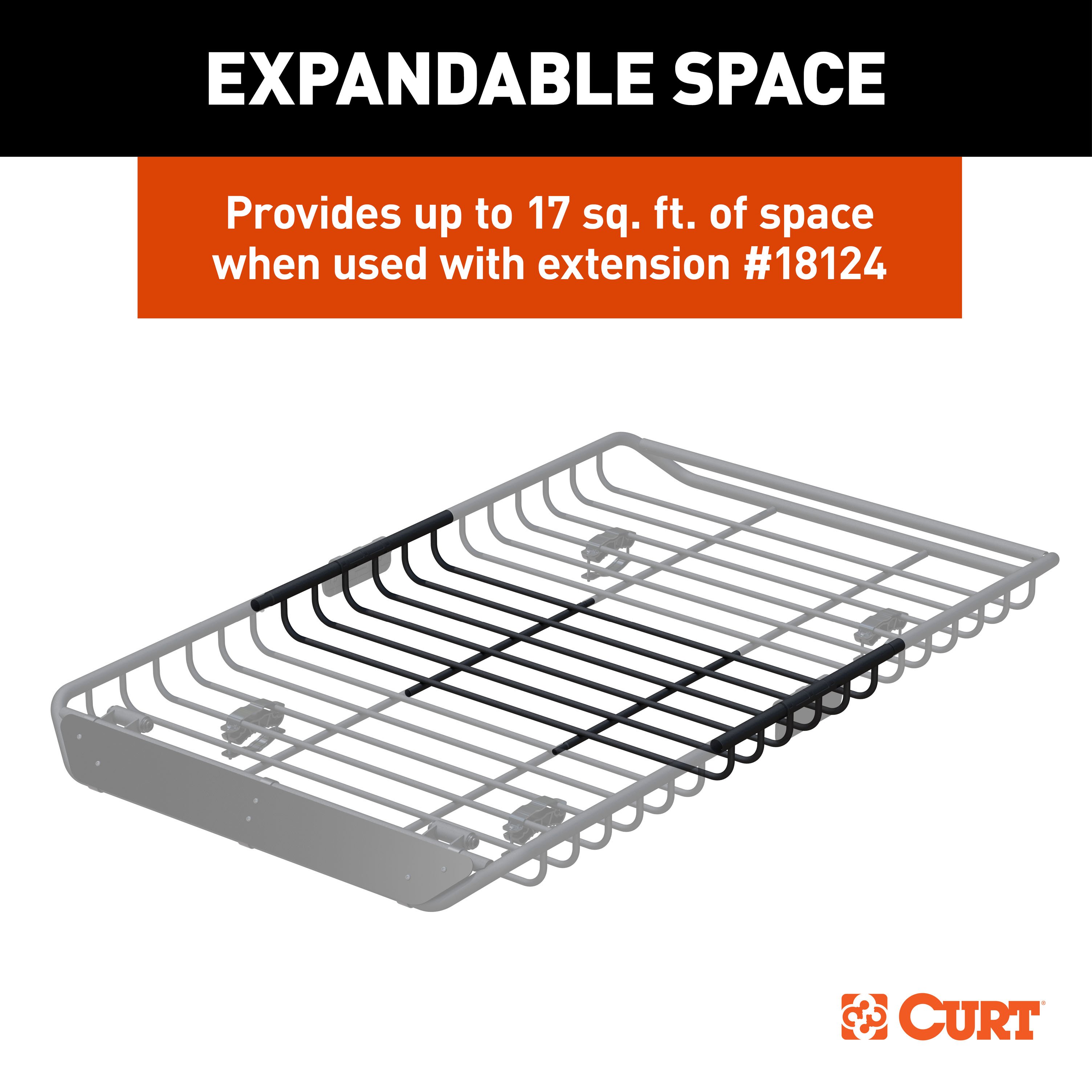

Plus, it's also compatible with the CURT quick-release bike mount accessory (#18125) so you can easily secure your bike during travel. With the CURT roof rack cargo carrier, you gain an extra 11 sq. ft. of storage space atop your vehicle, and it's expandable to 17 sq. ft. when combined with the CURT cargo carrier extension (18124).

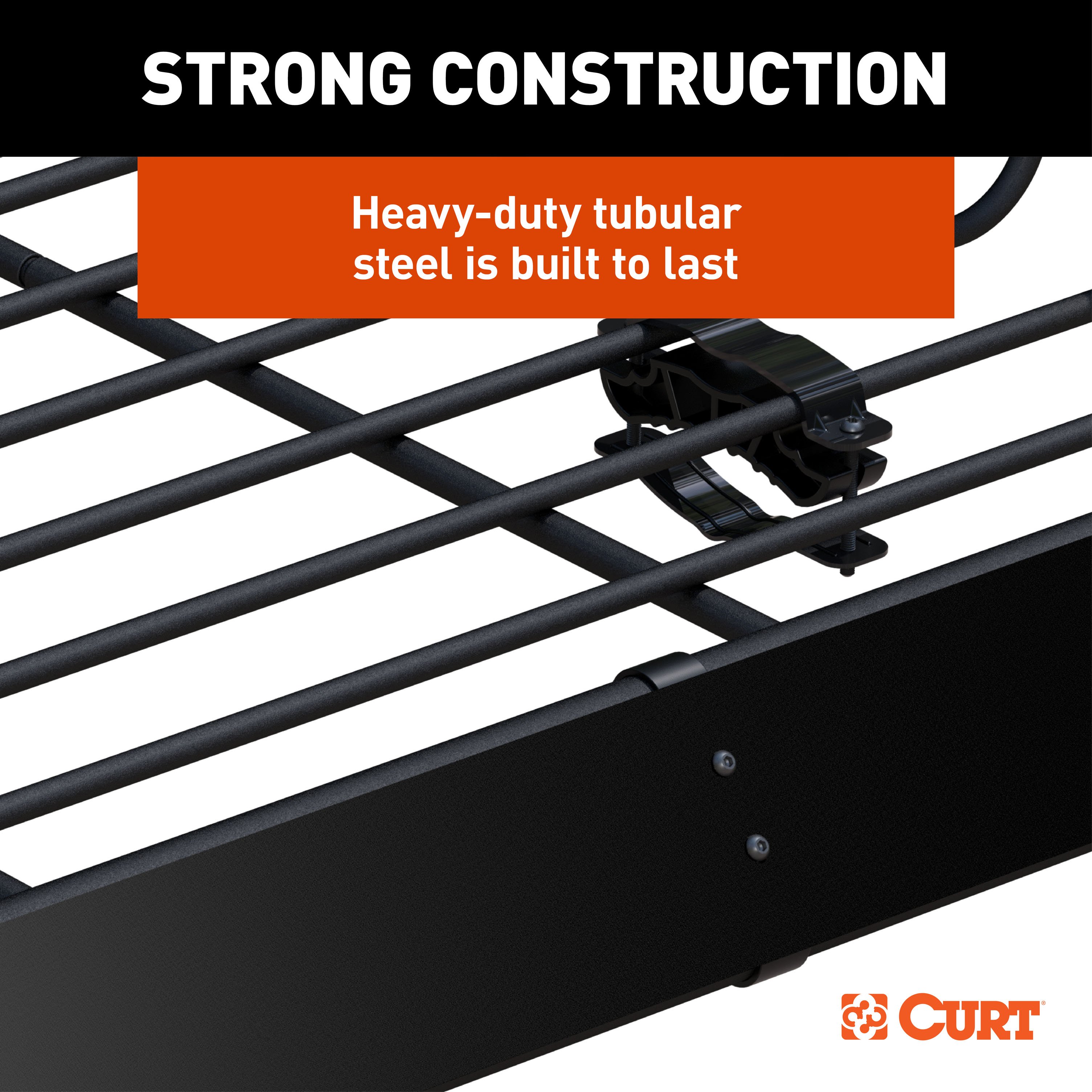

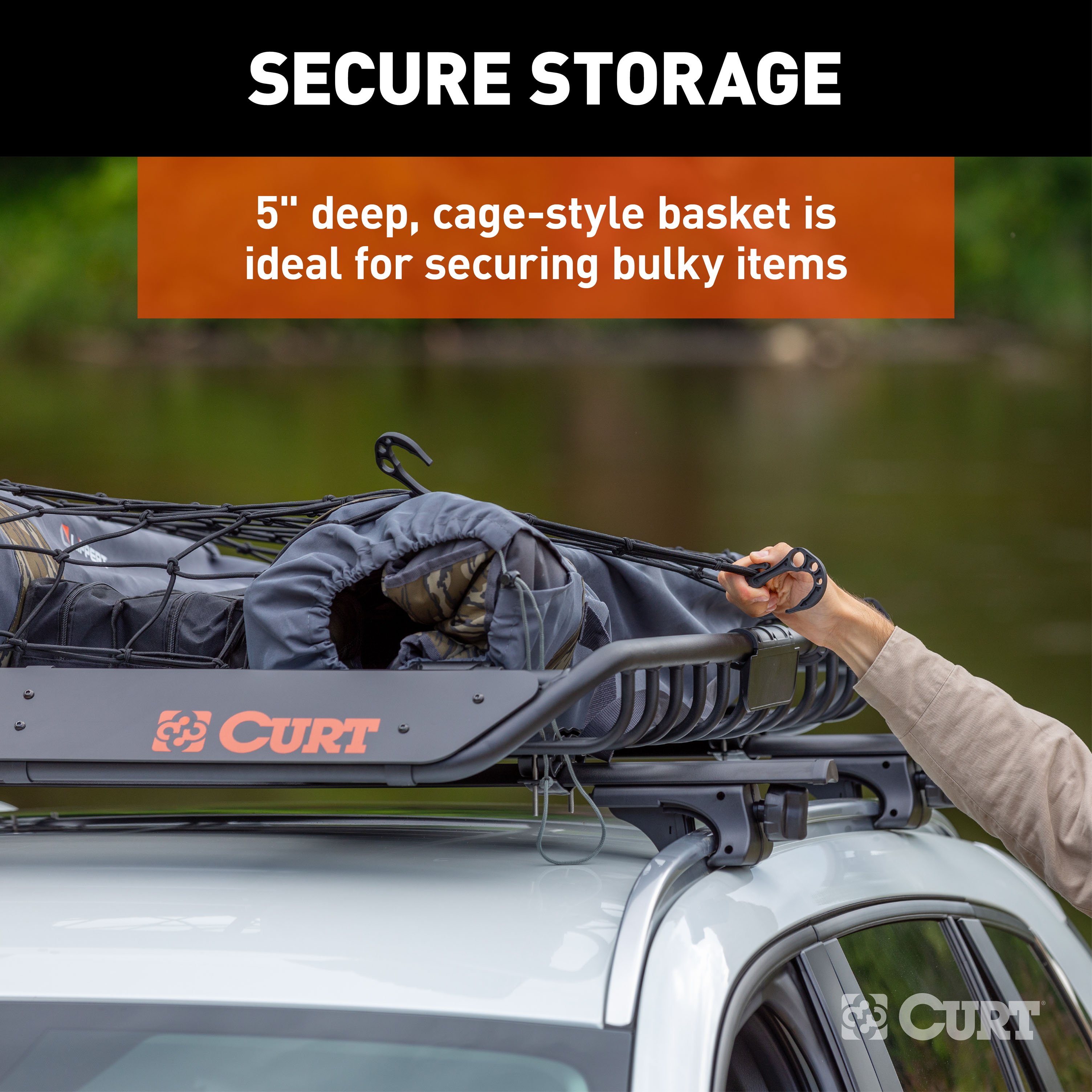

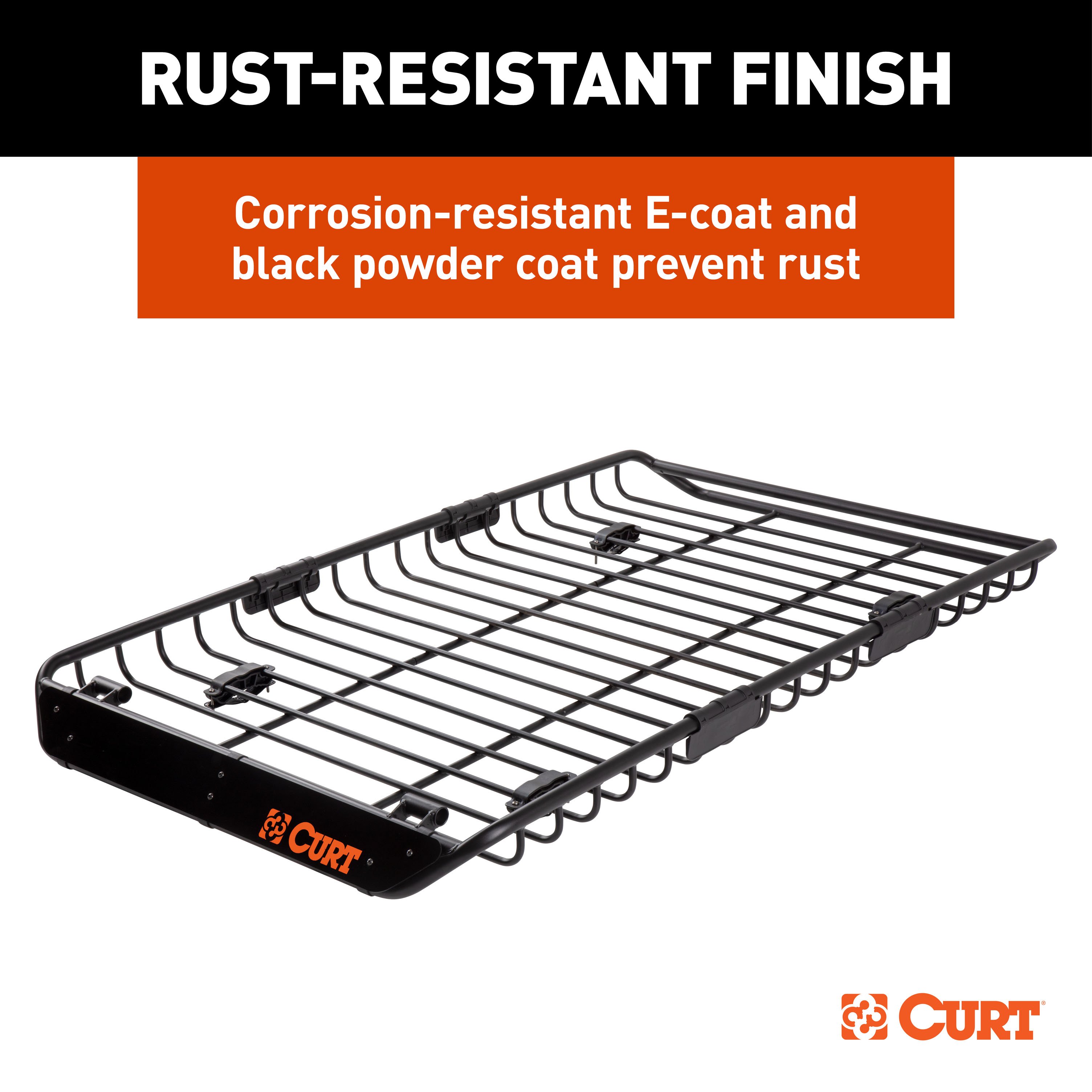

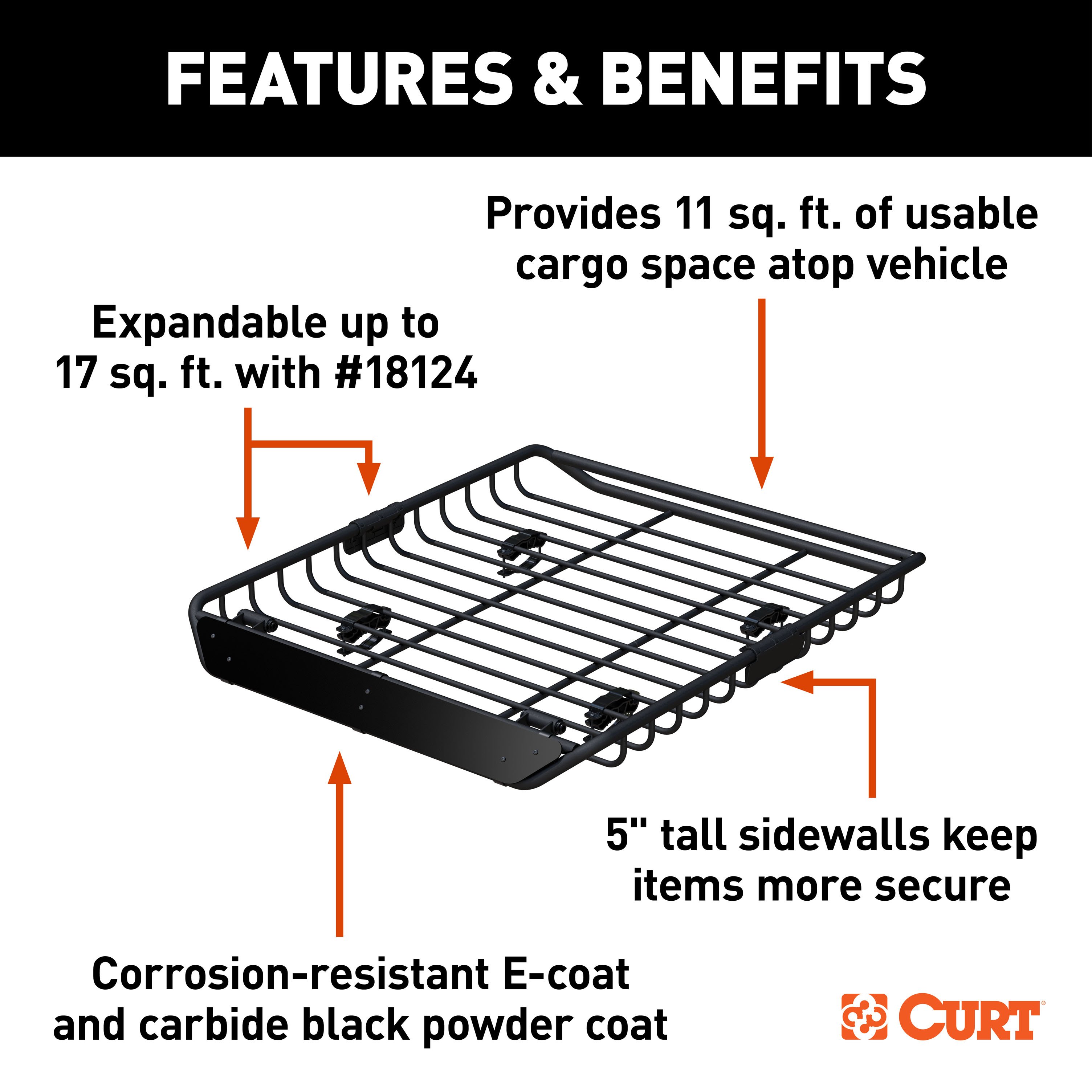

Its cage-style design features a 5" deep basket, ideal for carrying bulky items, preventing shifting or falling while driving over inclines or rough roads. Constructed from durable tubular steel, the CURT roof rack cargo carrier boasts strength and longevity, with a carrying capacity of up to 200 lbs. The robust steel structure is treated with a protective E-coat, preventing rust, and finished with a tough carbide black powder coat, ensuring resilience against outdoor elements, dings, and scratches while maintaining an appealing appearance.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Limited lifetime warranty (one-year finish, one-year parts)
The roof cargo basket has a weight carrying capacity of 150 lbs. However, this capacity is limited to your vehicle's factory roof rack weight limit. You must never exceed the factory weight rating of the OEM roof rack, including the weight of the cargo carrier itself.
The CURT 18123 is designed to mount to factory OEM roof racks. The installation involves clamping the basket to your vehicle's existing roof bar using roof rack clamp assemblies. Ensure your vehicle has a compatible factory roof rack before purchasing.
The package includes a 4mm Allen wrench and a 5mm Allen wrench. You will also need a wrench (not specified in the manual) to tighten M6 bolts and nuts during assembly. No other tools are listed as required.
Assembly follows this sequence: (1) Assemble the front and rear halves of the basket, aligning the holes in the underside of the tubes. (2) Cover tubing joints with waterproof caps on top and bottom, with flat surfaces facing outward, and secure with M6 x 16mm screws. (3) Load the basket onto the roof bar, insert the saddle between basket and bar, and secure with top and bottom brackets using M6 x 65mm and M6 x 50mm screws with washers. (4) Snap fairing clamps on front tubes, position the fairing, and secure with M6 x 25mm screws and M6 nylock nuts. (5) Install bicycle using safety strap and fork mount.
Cover the tubing joints with waterproof caps on both the top and bottom of the basket. The flat surface of the caps must face outward. Insert M6 x 16mm screws from the bottom side through the caps and into the round tubing. Use a wrench to tighten the screws.
Load the basket onto the roof bar and adjust as necessary for a secure fit. Insert the saddle between the cargo basket and the roof bar. Secure the basket, saddle, and roof bar together using top and bottom brackets. Use M6 x 65mm screws for some connections and M6 x 50mm screws for others, along with washers. Insert screws from the top bracket to secure to the roof bar. Tighten all fasteners to 7 ft-lbs. (the standard M6 bolt torque).
Snap the fairing clamps onto the front tubes of the basket. Position the fairing on the front of the cargo basket and align its holes with the fairing clamps. Insert M6 x 25mm screws through the fairing and into the clamps, then embed M6 nylock nuts into the hex recess in the fairing clamps. Use a wrench to tighten the screws. Do not over-tighten, as this can break the plastic clamps.
To carry a bicycle: (1) Remove the front wheel from the bicycle. (2) Insert the front fork onto the fork mount at the front of the cargo basket. (3) Press the quick-release lever down to secure the fork. (4) Wrap the safety strap around the rear tire and the round tubing for additional security. (5) Feed the end of the safety strap into the buckle and tighten it securely. Ensure the fork is fully seated onto the fork mounts before traveling, and perform a final check to confirm the bike is secure.
Yes. The two adapters are double-sided and compatible with wider forks. You can remove an adapter, flip it around, and reinstall it to use the alternate mounting option. A 9mm bushing is pre-installed, but it can be replaced with a 12mm bushing if your bicycle requires it.
All M6 bolts on the CURT 18123 should be tightened to 7 ft-lbs. unless otherwise noted in the instructions.
The cargo basket has a 150 lbs. weight capacity, but you must never exceed your vehicle's factory OEM roof rack weight rating, including the weight of the cargo carrier itself. Check your vehicle's roof rack specifications before loading cargo.
Before traveling, ensure the bicycle fork is fully seated onto the fork mounts and perform a final check to confirm the bike is secure. The safety strap should be tightened securely around the rear tire and round tubing.
Periodic inspection of your product should be performed to ensure all hardware and components remain secure. The manual does not specify an exact interval, but regular checks before trips are recommended.
The CURT 18123 is designed for factory OEM roof racks. Compatibility depends on your vehicle having a compatible roof rack system. Check your vehicle's roof rack specifications before purchasing.
You need a 4mm Allen wrench and 5mm Allen wrench (both included) and a wrench to tighten M6 bolts and nuts. No power tools or drilling is required.
The roof cargo basket has a 150 lbs. weight capacity, limited to your vehicle's factory roof rack weight limit. Never exceed the OEM roof rack's weight rating.
Tighten all M6 bolts to 7 ft-lbs. unless otherwise noted in the instructions.
No. The CURT 18123 clamps directly to your existing factory OEM roof bar. Your roof rack must already be installed on your vehicle.
No. Never exceed the 150 lbs. capacity or your vehicle's factory OEM roof rack weight rating, whichever is lower. Exceeding these limits can damage your vehicle and create a safety hazard.
| Part # | Description | Capacity | Inside Dimensions | Storage Area | Finish | Material |
|---|---|---|---|---|---|---|
| 18123 | Roof basket | Limited to vehicle | 51" (L) x 41" (W) x 3-3/4" (H) | 11 sq.-ft. | E-coat and carbide black | Steel |
| 18124 | Extension | Limited to vehicle | 21" (L) x 41-1/4" (W) x 3-3/4" (H) | Adds 6 sq.-ft. | E-coat and carbide black | Steel |
| 18125 | Quick-release bike mount | Limited to vehicle | For bicycles with 9mm, 12mm or 15mm forks | -- | Zinc-treated | Steel |
