Includes harness, 4-flat extension, mounting bracket and hardware
Includes harness, 4-flat extension, mounting bracket and hardware
Warranty: One-Year Limited Warranty
Installation Difficulty: Moderate
Installation Time Exact (Minutes): 60
Towing your vehicle behind your RV is a great way to experience more of the adventure on your cross-country excursions. Whether you're towing a compact car or a full-size truck, CURT has the perfect solution to help you Bring It! CURT towed-vehicle RV harnesses are a vehicle-specific, plug-and-play solution to wiring your vehicle for dinghy towing. They use original-equipment-compatible connectors to plug into your vehicle's wiring system without any cutting, splicing or soldering required. They provide a standard 4-way flat connector to plug into the RV socket and synchronize the vehicle's tail lights, turn signals and brake lights with the RV's. Because each towed-vehicle RV harness has a vehicle-specific design, installation is fast and easy. This particular RV dinghy towing wiring harness is designed for specific years of the Fiat 500. CURT RV harnesses are also built to provide long-lasting operation. They feature integrated block diodes that protect the vehicle's circuits from the RV signals. They isolate the sensitive vehicle electronics, keeping them from overheating and short circuiting. Every CURT towed-vehicle RV harness comes ready to install with all necessary hardware included. They also come with a 4-way flat extension to provide plenty of length to plug into the RV socket, as well as a connector mounting bracket to mount the connector on the vehicle.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2012 - 2019 | Fiat 500 | — |
The CURT 58911 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Fiat 500 (Part #BKDK58911) fits the following vehicles: 2012-2019 Fiat 500. Always verify your specific year, make, and model before ordering.
Yes, the CURT 58911 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Fiat 500 (Part #BKDK58911) is designed to fit the 2012-2019 Fiat 500.
The CURT 58911 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Fiat 500 (Part #BKDK58911) fits 2012-2019 Fiat 500 models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT 58911 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Fiat 500 (Part #BKDK58911) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the Curt 58911 is designed specifically for the Fiat 500. The harness connects to the vehicle's factory wiring harness connectors at the taillights and routes through the rear wheel wells and engine compartment to a 4-Flat connector bracket mounted in the engine bay.

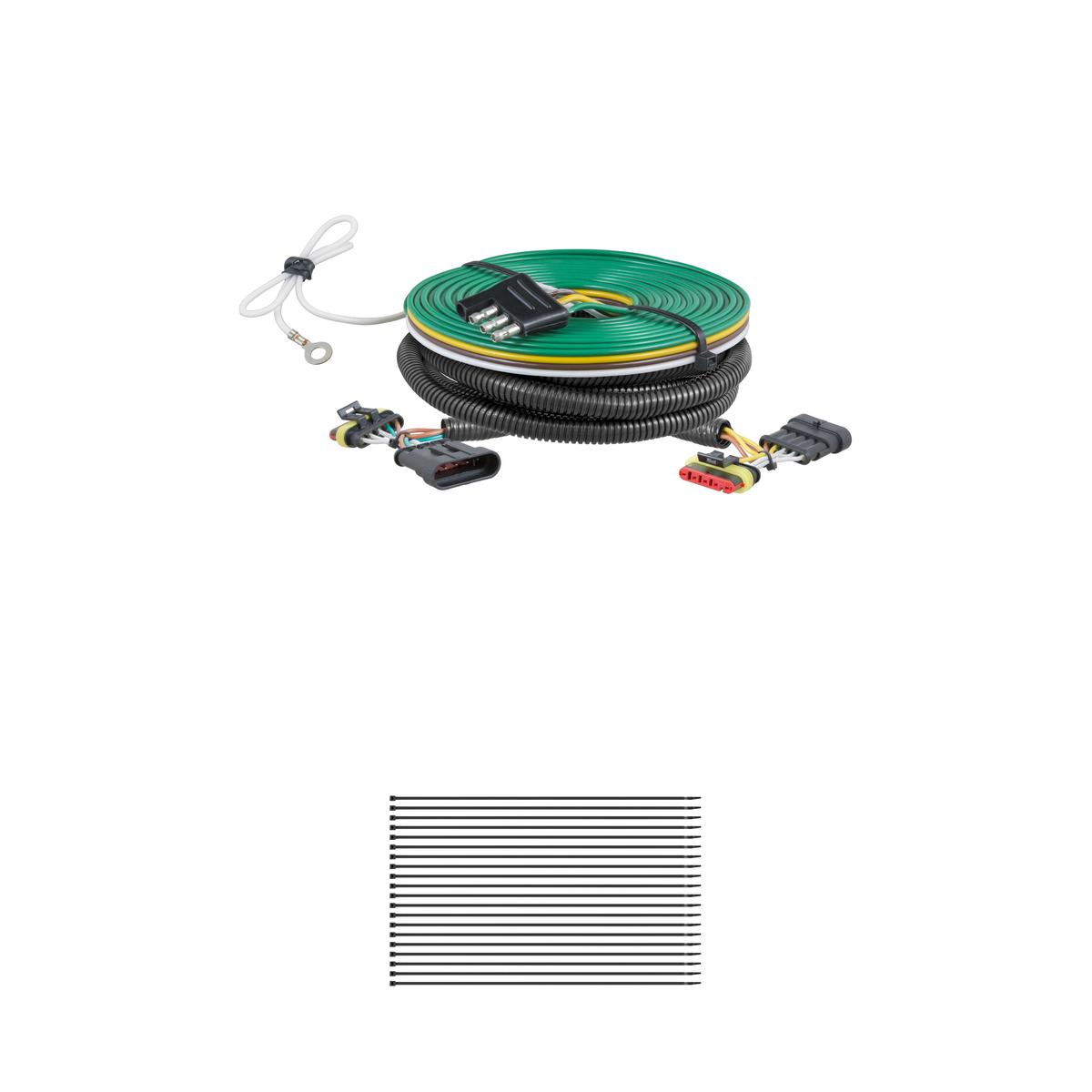

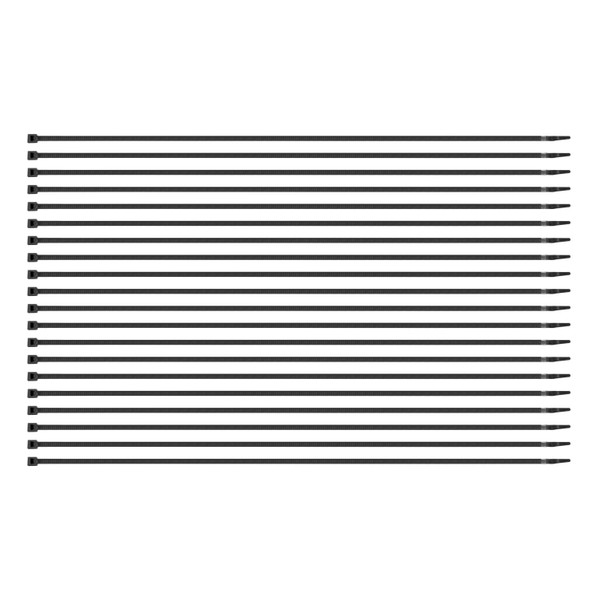

The kit includes: (1) Wiring Harness with 4-Flat Connector, (1) 48" 4-Flat Extension, (20) 15" Cable Ties, (1) 4-Flat Bracket, (2) Adhesive Cable Tie Pads, and (3) #8 Self-Tapping Ground Screws.
You will need an 11mm socket (to remove taillights), an 8mm socket (to remove wheel well access cover bolts), a drill with a 3/32" bit, and a fish tape to route the harness through the vehicle. A marker or pencil is also needed to mark drill holes using the 4-Flat bracket as a template.
The manual does not specify whether battery disconnection is required. Contact the manufacturer or a qualified installer to confirm whether this step is necessary for your vehicle before beginning installation.
Open the rear hatch and remove the taillights using an 11mm socket (step 2). Locate and separate the factory wiring harness connectors (step 3). Starting on the driver's side, position the RV harness connector ends containing Yellow wires between the separated vehicle harness connectors. Press the connectors firmly into the vehicle connectors until they lock, then pull on them to ensure the locks are engaged (step 4). Repeat this process on the passenger side using a fish tape to pull the Green wire connectors through the taillight opening (step 6).
Yes, drilling is required in two locations. First, you must drill a 3/32" hole near the taillights to mount the ground screw for the White wire (step 5). Second, you must drill two 3/32" holes in the engine compartment to mount the 4-Flat bracket (step 12). In both cases, take care not to drill through the vehicle body or any exposed surface.
Cut the cable ties on the 4-Flat portion of the harness (step 7). Route it down the taillight opening, then use a fish tape to pull it through the rear wheel well (step 7). Route the fish tape along the splash guard and pull the 4-Flat through the plastic splash guard (step 8). Continue routing the 4-Flat underneath the vehicle to the driver's side front wheel well, securing it to the vehicle with the adhesive cable tie pads provided (step 9). At the front wheel well, remove the access cover and use a fish tape to pull the 4-Flat up and over the wheel well (step 10). Finally, route the fish tape through the opening on the side of the battery and down through the access panel opening, then pull the 4-Flat up into the engine compartment (step 11).
The fish tape is used to route the harness through tight spaces and confined areas of the vehicle. It is secured to the harness ends and then pulled through the taillight opening, wheel well, splash guard, and engine compartment access areas to guide the harness to its final position without damage.
The manual states to locate a suitable position to mount the 4-Flat bracket in the engine compartment (step 12). Use the bracket as a template to mark two holes, drill two 3/32" holes, and attach the bracket using two screws. The manual does not specify the exact location, so choose a position that is accessible and does not interfere with engine components or moving parts.
Locate a clean and accessible mounting location on the vehicle near the RV harness ends within reach of the White wire and ring terminal (step 5). Remove any debris or undercoating to expose a clean metal surface and drill a 3/32" hole. Attach the ring terminal on the White wire using one of the #8 Self-Tapping Ground Screws provided in the kit.
The 4-Flat harness uses the following color code: White = Ground, Brown = Tail Lights, Green = Right Turn and Brake Signal, Yellow = Left Turn and Brake Signal.
With the 4-Flat extension plugged into the RV harness on one end and the motorhome on the other, test that the functions work on the Fiat 500. These functions will only work on the brake/tail combination lamp. The manual does not specify which functions to test or how to verify proper operation.
Avoid routing the harness near moving parts, fuel lines, or areas where wires could be cut, pinched, or burned. The manual specifically warns: 'Make sure to avoid areas that contain moving parts or could cut, pinch or burn the wires when routing the 4-flat harness towards the front of the vehicle. Also avoid routing harness near the fuel lines as it may cause the fuel to ignite. Failure to follow these warnings may cause property damage, personal injury or loss of life.'
At the front driver's side wheel well, remove 2 bolts using an 8mm socket. This will allow you to remove the access cover from the driver's side wheel well (step 10). The manual does not specify the torque value for reinstalling these bolts.
The manual mentions removing a push clip on the front side of the driver's rear wheel well (step 7, Figure 5) but does not provide detailed instructions on how to remove it. Gently pry or pull the clip to release it, taking care not to damage the plastic.
When not in use, store the 4-Flat extension in the vehicle's glove box.
After installation, test that the brake/tail combination lamp functions work properly with the 4-Flat extension connected to both the RV harness and the motorhome (step 13). Secure any loose wires at the rear of the vehicle using the cable ties provided (step 14). Reinstall the taillights and any other items removed during installation (step 14). Verify that the harness is routed away from moving parts, fuel lines, and areas where it could be cut, pinched, or burned.
Yes. After separating the factory wiring harness connectors, inspect them for dirt and debris and clean if necessary (step 3). This ensures a proper connection between the RV harness and the vehicle's electrical system.
Press the connectors firmly into the vehicle connectors until they lock into place. Pull on the connectors to ensure the locks are engaged (step 4). If the connectors do not lock or pull apart easily, they are not properly seated and should be reseated.
Open the rear hatch and using an 11mm socket, remove the screws holding the taillights on the driver and passenger side (step 2, Figure 1). Gently pull the taillights away from the vehicle, taking care not to damage the alignment tabs.
Yes, the Curt 58911 RV TOW Harness is designed specifically for the Fiat 500.
You will need an 11mm socket, an 8mm socket, a drill with a 3/32" bit, and a fish tape. A marker or pencil is also helpful for marking drill holes.
Yes, you must drill two 3/32" holes: one near the taillights for the ground screw, and two in the engine compartment for the 4-Flat bracket. Take care not to drill through the vehicle body or exposed surfaces.
White = Ground, Brown = Tail Lights, Green = Right Turn and Brake Signal, Yellow = Left Turn and Brake Signal.
Avoid routing the harness near moving parts, fuel lines, or areas where wires could be cut, pinched, or burned. Improper routing may cause property damage, personal injury, or loss of life.
Plug the 4-Flat extension into the RV harness and motorhome, then verify that the brake/tail combination lamp functions work on the Fiat 500.
