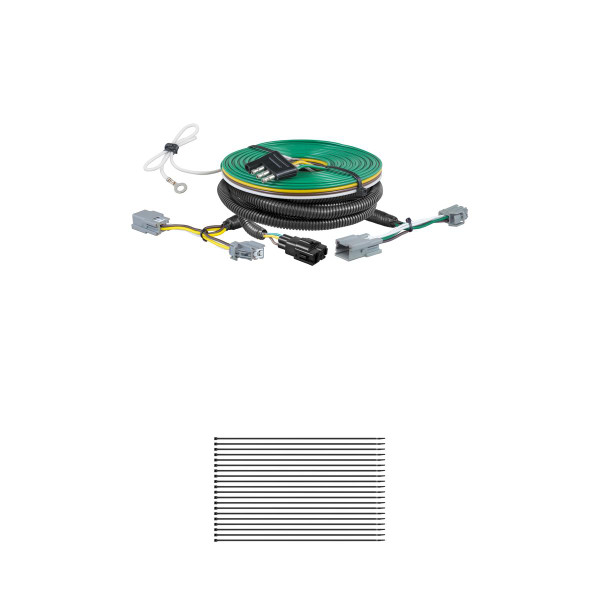

Includes harness, 4-flat extension, mounting bracket and hardware
Includes harness, 4-flat extension, mounting bracket and hardware
Warranty: One-Year Limited Warranty
Installation Time Exact (Minutes): 0
Towing your vehicle behind your RV is a great way to experience more of the adventure on your cross-country excursions. Whether you're towing a compact car or a full-size truck, CURT has the perfect solution to help you Bring It! CURT towed-vehicle RV harnesses are a vehicle-specific, plug-and-play solution to wiring your vehicle for dinghy towing. They use original-equipment-compatible connectors to plug into your vehicle's wiring system without any cutting, splicing or soldering required. They provide a standard 4-way flat connector to plug into the RV socket and synchronize the vehicle's tail lights, turn signals and brake lights with the RV's. Because each towed-vehicle RV harness has a vehicle-specific design, installation is fast and easy. This particular RV dinghy towing wiring harness is designed for specific years of the Ford Fiesta. CURT RV harnesses are also built to provide long-lasting operation. They feature integrated block diodes that protect the vehicle's circuits from the RV signals. They isolate the sensitive vehicle electronics, keeping them from overheating and short circuiting. Every CURT towed-vehicle RV harness comes ready to install with all necessary hardware included. They also come with a 4-way flat extension to provide plenty of length to plug into the RV socket, as well as a connector mounting bracket to mount the connector on the vehicle.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
1 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2014 - 2019 | Ford Fiesta | Sedan · 4-Door | — |
The CURT 58977 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Ford Fiesta (Part #BKDK58977) fits 2014-2019 Ford Fiesta models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT 58977 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Ford Fiesta (Part #BKDK58977) fits the following vehicles: 2014-2019 Ford Fiesta. Always verify your specific year, make, and model before ordering.
Yes, the CURT 58977 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Ford Fiesta (Part #BKDK58977) is designed to fit the 2014-2019 Ford Fiesta.
The CURT 58977 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Ford Fiesta (Part #BKDK58977) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The CURT 58977 allows your RV wiring harness to also function as a trailer light harness. It connects your vehicle's taillight wiring to a 4-flat connector that can be attached to any vehicle with functioning trailer lights, enabling both the tow vehicle and towing vehicle taillights to function together.
The CURT 58977 is designed for passenger cars with trunk-mounted taillight connectors. The manual shows wiring locations P3 and P4 (behind driver and passenger side taillight housings inside the trunk) as the installation points. Compatibility with specific vehicle makes, models and years is not detailed in the manual; consult the manufacturer or a fitment database for your vehicle.
You will need: panel trim removal tool, wire stripper, cutting tool, wire crimper, rotary cutting tool, electrical tape, and sealant. The manual also lists these as required for proper installation quality and to reduce installation time.
Yes. Step 1 requires you to locate the vehicle battery (check your owner's manual for location) and disconnect the negative battery terminal. Fasten this wire down and away from the battery during installation, and reconnect it after all other steps are complete.
Open the vehicle's trunk and remove all trunk floor coverings. You will also need to remove the rear scuff panel (using a panel trim removal tool to remove three fasteners) and pull back the trunk liner on both sides to access the taillight wiring connectors.
Pull back the trunk liner to locate the taillight wiring connectors. Separate the connectors from the taillight housing carefully, taking care not to damage the locking tabs. Insert the custom RV harness end with the yellow wire between the separated connectors on the driver side. Make sure the connectors are fully inserted with the locking tabs in place. Repeat on the passenger side with the green wire connector. Route the harness behind the spring in the side wall of the trunk and zip tie in place, keeping wires away from the spring.
Locate a grounding point near the box, such as an existing screw or bolt in the vehicle frame. If no suitable point exists, drill a 3/32" pilot hole. The area must be free from rust, dirt, and paint—use an abrasive pad or paper to clean it. Secure the white ground wire with its ring terminal to the existing fastener or use the provided ground screw.
Drilling may be required. You must locate a grounding point for the white ground wire. If an existing screw or bolt in the vehicle frame is available, no drilling is needed. If not, you will need to drill a 3/32" pilot hole. Additionally, Step 8 requires using a rotary tool to cut a relief in the trunk pan hole to allow the 4-flat connector to pass through the grommet hole.
Remove the grommet from the vehicle body. Using a wire cutter, make a cut into the grommet large enough to allow the wiring to be placed inside the mounting groove. Be careful not to cut any wires. Reseat the grommet and use the provided sealant to seal the cut and around all wires. Apply additional sealant as needed to ensure a tight seal and keep the trunk dry and exhaust out of the vehicle.
Route the 4-flat wire above the rear suspension and along the side of the fuel tank on the driver side to the front of the tank, securing loosely with provided cable ties. Follow the brake lines up the firewall to the top of the engine compartment. From the top, route the 4-flat along the firewall to the passenger side. Route it between the inner fender/headlight and the coolant tank to the front of the vehicle and zip tie in place. Keep wiring away from hot spots, pinch points and moving objects.

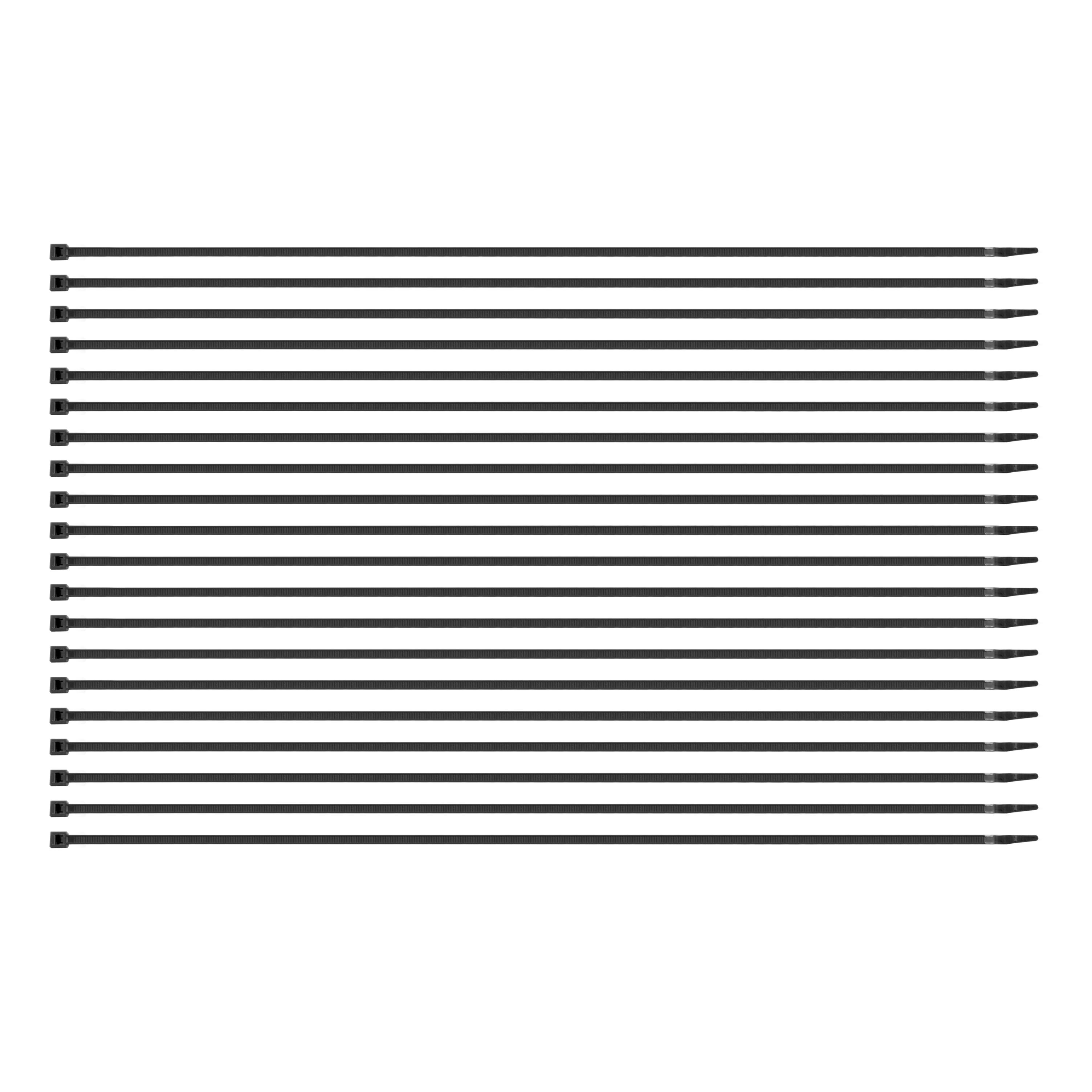

Secure any excess wire so it is not drooping or dangling, but not so tight that it causes unnecessary strain, which could lead to breakage over time. After removing slack from the 4-flat wire, tighten any zip ties and add as needed. Use a zip tie to fasten any excess wire to a solid spot along the driver-side inner fender. Reinstall all items removed during installation.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Additionally, before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. Keep all wiring away from hot spots, pinch points and moving objects during routing.
Once the custom wiring harness is installed, verify that it is functioning by attaching the 4-flat to any vehicle with functioning trailer lights. The taillights on the tow vehicle should function along with the taillights on the towing vehicle. You can also use a test light to check for proper function.
Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections. Install the provided 4-flat dust cover to help prevent corrosion.
The CURT 58977 is designed for passenger cars with trunk-mounted taillight connectors. Specific vehicle makes, models and years are not listed in the manual; check with the manufacturer or a fitment database for your vehicle.
Panel trim removal tool, wire stripper, cutting tool, wire crimper, rotary cutting tool, electrical tape, and sealant are required.
Yes, disconnect the negative battery terminal before beginning installation and reconnect it after all steps are complete.
Drilling may be required for the ground point if no existing screw or bolt is available (3/32" pilot hole). A rotary tool is also needed to cut a relief in the trunk pan hole for the 4-flat connector.
Separate the taillight connectors from the housing, insert the custom RV harness end with the yellow wire between the separated connectors on the driver side, and repeat with the green wire on the passenger side. Ensure connectors are fully inserted with locking tabs in place.
First, verify that the harness is functioning by attaching the 4-flat to any vehicle with functioning trailer lights. The taillights on both the tow vehicle and towing vehicle should function together. If they do not, check that the custom RV harness connectors (yellow wire on driver side, green wire on passenger side) are fully inserted into the separated taillight connectors with the locking tabs in place. Verify that the white ground wire is securely connected to a clean, rust-free grounding point. Check all wiring for visible damage or loose connections.
The grommet seal is not tight. The provided sealant must be applied to seal the cut in the grommet and around all wires. If the seal is incomplete, water can enter the trunk. Remove the grommet, reapply sealant to the cut and around all wires, and reseat the grommet. Apply additional sealant as needed to ensure a tight seal. This will keep the trunk dry and exhaust out of the vehicle.
