Includes harness, 4-flat extension, mounting bracket and hardware
Includes harness, 4-flat extension, mounting bracket and hardware
Warranty: One-Year Limited Warranty
Installation Difficulty: Novice
Installation Time Exact (Minutes): 60
Towing your vehicle behind your RV is a great way to experience more of the adventure on your cross-country excursions. Whether you're towing a compact car or a full-size truck, CURT has the perfect solution to help you Bring It! CURT towed-vehicle RV harnesses are a vehicle-specific, plug-and-play solution to wiring your vehicle for dinghy towing. They use original-equipment-compatible connectors to plug into your vehicle's wiring system without any cutting, splicing or soldering required. They provide a standard 4-way flat connector to plug into the RV socket and synchronize the vehicle's tail lights, turn signals and brake lights with the RV's. Because each towed-vehicle RV harness has a vehicle-specific design, installation is fast and easy. This particular RV dinghy towing wiring harness is designed for specific years of the Chevrolet Cruze. CURT RV harnesses are also built to provide long-lasting operation. They feature integrated block diodes that protect the vehicle's circuits from the RV signals. They isolate the sensitive vehicle electronics, keeping them from overheating and short circuiting. Every CURT towed-vehicle RV harness comes ready to install with all necessary hardware included. They also come with a 4-way flat extension to provide plenty of length to plug into the RV socket, as well as a connector mounting bracket to mount the connector on the vehicle.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
Yes, the CURT 58935 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Chevrolet Cruze (Part #BKDK58935) is designed to fit the 2011-2015 Chevrolet Cruze.
The CURT 58935 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Chevrolet Cruze (Part #BKDK58935) fits 2011-2015 Chevrolet Cruze models. The 2016 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT 58935 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Chevrolet Cruze (Part #BKDK58935) fits the following vehicles: 2011-2015 Chevrolet Cruze; 2016 Chevrolet Cruze Limited. Always verify your specific year, make, and model before ordering.
The CURT 58935 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Chevrolet Cruze (Part #BKDK58935) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the Curt 58935 is designed to fit the Chevrolet Cruze. The harness connects to the vehicle's factory taillight connectors and mounts components in the trunk and engine compartment. Confirm your vehicle is a Chevrolet Cruze before purchasing.

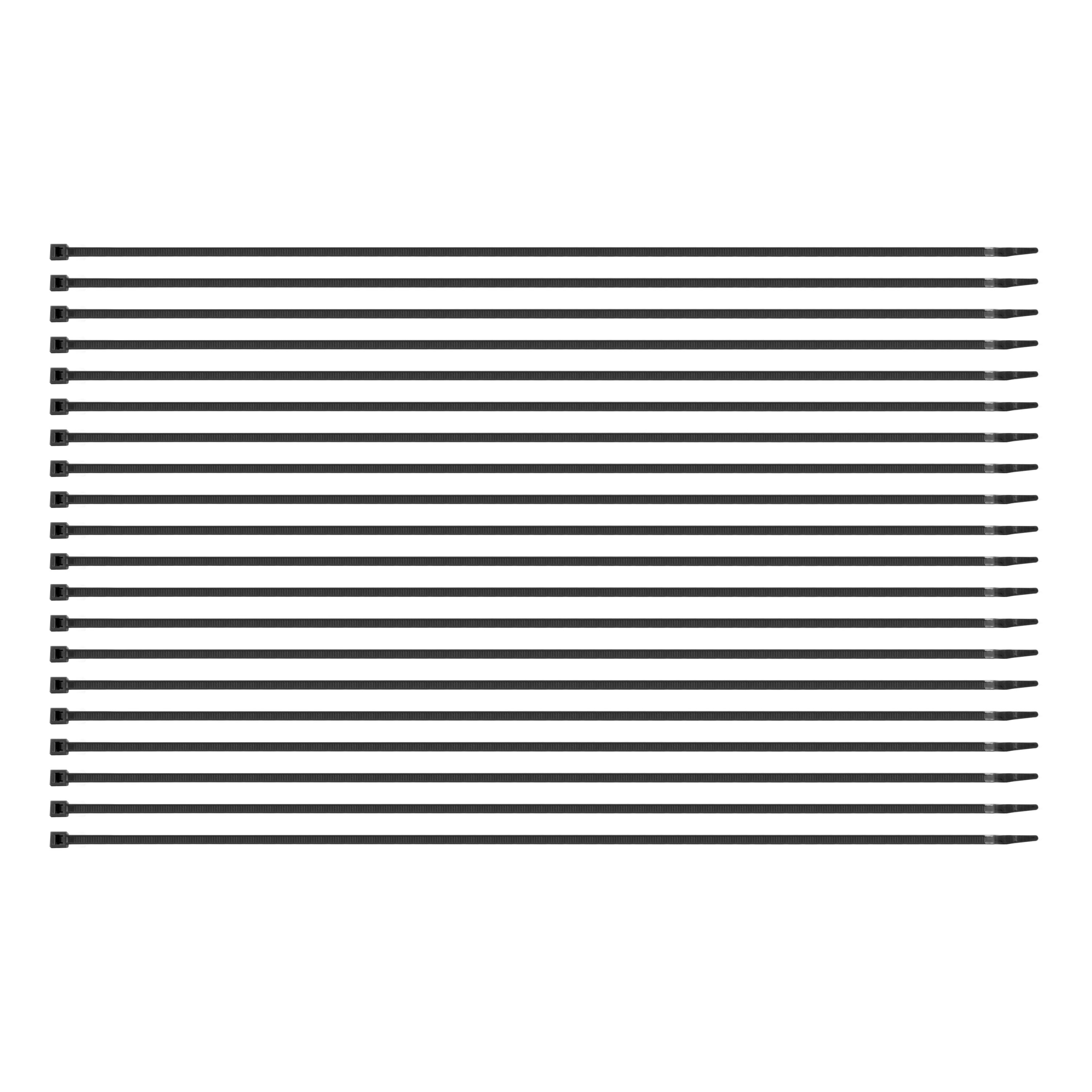

The kit includes: (1) Wiring Harness with 4-Flat Connector, (1) 48" 4-Flat Extension, (20) 15" Cable Ties, (1) 4-Flat Bracket, (1) Adhesive Cable Tie Pad, and (3) #8 Self-Tapping Ground Screws.
You will need: a pair of pliers (to remove push pins and disconnect connectors), a drill with a 3/32" bit (to drill mounting holes), and a fish tape (to route the 4-Flat wire through the wheel well area). A screwdriver may be helpful for reassembly. The manual does not specify whether a fish tape is included.
Open the trunk and remove the spare tire floor cover. Remove the threshold plate by using pliers to remove two push pins on its front. Then use pliers to remove four push pins on the felt trunk liner on both sides. Gently pull back the felt trunk liner to locate the taillight connectors on both sides of the vehicle.
Starting on the driver side, position the RV harness with connectors containing Yellow wires between the separated vehicle harness connectors. Press the connectors firmly into the vehicle connectors until they lock into place. Pull on the connectors to ensure the locks are engaged. Repeat this process on the passenger side with the connector containing Green wires.
Yes, drilling is required. You must drill two 3/32" holes: one for the ground screw near the RV harness ends (Step 6), and two more for the 4-Flat bracket mounting (Step 13). Take care not to drill through the vehicle body or any exposed surfaces. Remove any debris or undercoating to expose clean metal before drilling.
Locate a clean and accessible mounting location on the vehicle near the RV harness ends within reach of the white wire and ring terminal. Remove any debris or undercoating to expose clean metal and drill a 3/32" hole. Attach the ring terminal on the White wire using one of the #8 Self-Tapping Ground Screws provided.
Cut the cable ties on the 4-Flat portion of the harness. Route it under the opening of the side wall panel to the center of the vehicle near the grommet. Remove the grommet and make a slit to allow the 4-Flat wire to pass through; apply silicone to seal. Route the wire under the vehicle behind the bumper to the passenger quarter panel. Use a fish tape to pull the connector up and over the rear passenger wheel well. Continue routing towards the front along brake lines, securing with cable ties at brake line brackets. Follow brake lines into the engine compartment and along the driver side of the engine to the front frame rail.
Avoid routing the 4-Flat harness near moving parts, fuel lines, or areas where wires could be cut, pinched or burned. The manual warns: "Failure to follow these warnings may cause property damage, personal injury or loss of life." Secure wires to the vehicle's crossmember and factory wire harness with cable ties to prevent movement and contact with hazards.
Locate a suitable position to mount the 4-Flat bracket. Using the bracket as a template, mark the two holes and drill two 3/32" holes. Attach the bracket using the two remaining #8 Self-Tapping Ground Screws provided. Take care not to drill through the vehicle body or any exposed surfaces.
The 4-Flat Harness Color Code is: White = Ground, Brown = Tail Lights, Green = Right Turn and Brake Signal, Yellow = Left Turn and Brake Signal.
With the 4-Flat extension plugged into the RV harness on one end and the motorhome on the other, test that the functions work on the Chevrolet Cruze. These functions will only work on the brake/tail combination lamp. The manual does not provide detailed testing procedures beyond confirming that lights and signals operate.
Store the 4-Flat extension in the vehicle's glove box when not in use.
After making a slit in the grommet to allow the 4-Flat wire to pass through, apply silicone around the area to seal it.
Mount an Adhesive Cable Tie Pad on the quarter panel and secure the 4-Flat wire using one of the 15" Cable Ties provided.
The Curt 58935 is designed for the Chevrolet Cruze only. Confirm your vehicle model before purchasing.
You will need pliers, a drill with a 3/32" bit, and a fish tape to route the harness through the wheel well. The kit includes cable ties, screws, and a bracket.
Yes. You must drill three 3/32" holes: one for the ground screw and two for the 4-Flat bracket. Avoid drilling through the vehicle body or exposed surfaces.
The harness controls brake/tail lights, right turn and brake signals (Green wire), and left turn and brake signals (Yellow wire). These functions work only on the brake/tail combination lamp.
Avoid routing the harness near moving parts, fuel lines, or areas where wires could be cut, pinched or burned. Secure all wires with cable ties to prevent movement and contact with hazards.
