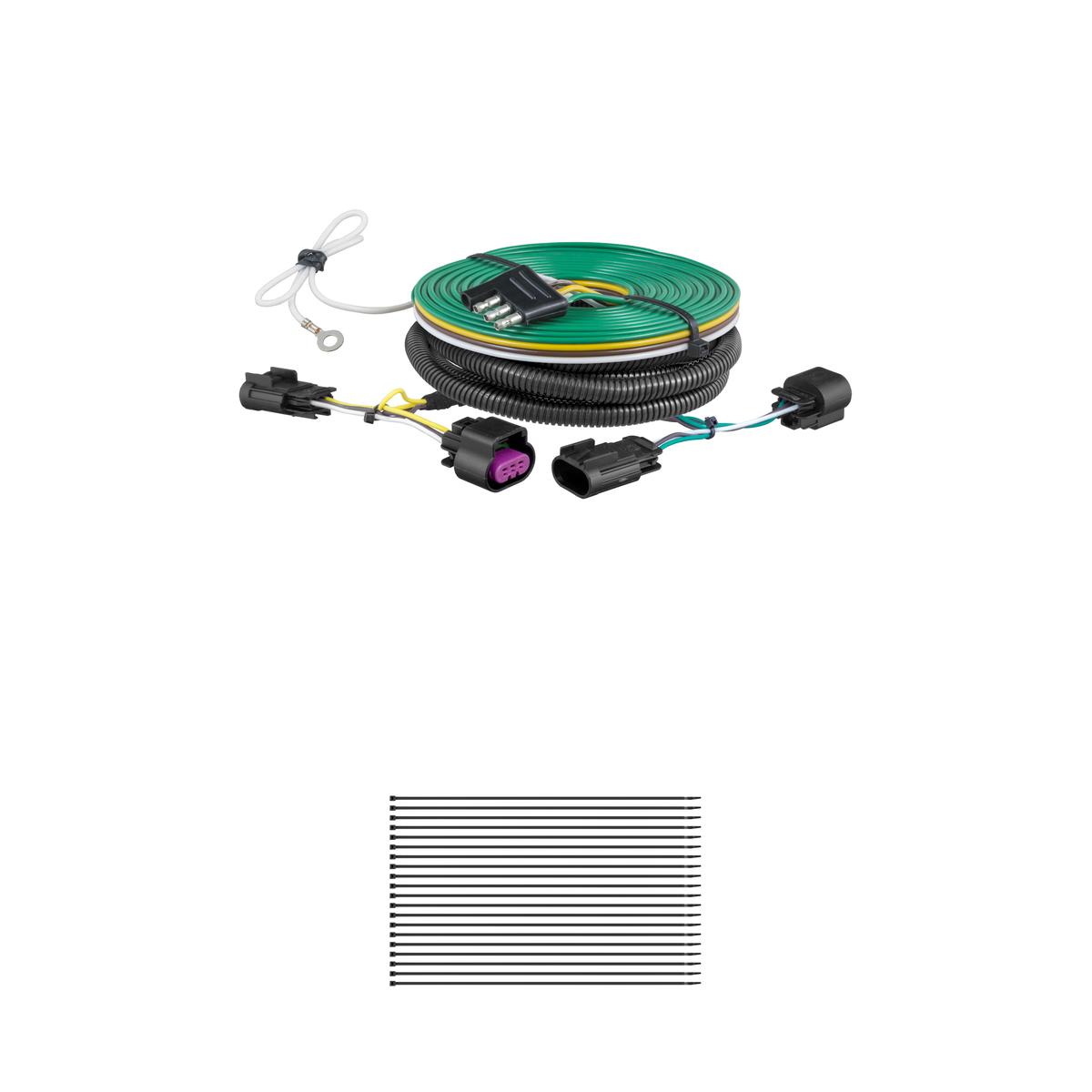

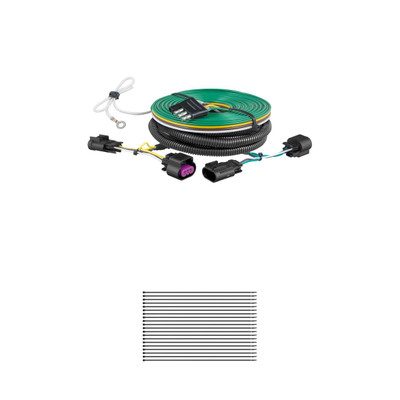

Includes harness, 4-flat extension, mounting bracket and hardware
Includes harness, 4-flat extension, mounting bracket and hardware
Warranty: One-Year Limited Warranty
Installation Difficulty: Advanced
Installation Time Exact (Minutes): 90
Towing your vehicle behind your RV is a great way to experience more of the adventure on your cross-country excursions. Whether you're towing a compact car or a full-size truck, CURT has the perfect solution to help you Bring It! CURT towed-vehicle RV harnesses are a vehicle-specific, plug-and-play solution to wiring your vehicle for dinghy towing. They use original-equipment-compatible connectors to plug into your vehicle's wiring system without any cutting, splicing or soldering required. They provide a standard 4-way flat connector to plug into the RV socket and synchronize the vehicle's tail lights, turn signals and brake lights with the RV's. Because each towed-vehicle RV harness has a vehicle-specific design, installation is fast and easy. This particular RV dinghy towing wiring harness is designed for specific years of the Cadillac SRX. CURT RV harnesses are also built to provide long-lasting operation. They feature integrated block diodes that protect the vehicle's circuits from the RV signals. They isolate the sensitive vehicle electronics, keeping them from overheating and short circuiting. Every CURT towed-vehicle RV harness comes ready to install with all necessary hardware included. They also come with a 4-way flat extension to provide plenty of length to plug into the RV socket, as well as a connector mounting bracket to mount the connector on the vehicle.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010 - 2016 | Cadillac SRX | — |
The CURT 58978 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Cadillac SRX (Part #BKDK58978) fits the following vehicles: 2010-2016 Cadillac SRX. Always verify your specific year, make, and model before ordering.
The CURT 58978 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Cadillac SRX (Part #BKDK58978) fits 2010-2016 Cadillac SRX models. The 2016 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the CURT 58978 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Cadillac SRX (Part #BKDK58978) is designed to fit the 2010-2016 Cadillac SRX.
The CURT 58978 Custom Towed-Vehicle RV Wiring Harness for Dinghy Towing, Fits Select Cadillac SRX (Part #BKDK58978) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The CURT 58978 is a custom wiring harness designed for SUVs and Vans to enable trailer light functionality. It connects the vehicle's factory taillight wiring to a 4-flat connector that attaches to a trailer. The kit includes a harness with yellow and green wire ends, a white ground wire with ring terminal, a 4-flat connector, and a dust cover.
The CURT 58978 is designed for SUVs and Vans, but the manual does not specify which models, years, or body styles are compatible. Consult the product listing, fitment database, or contact CURT directly to confirm compatibility with your specific vehicle before purchasing.
You will need: Phillips screwdriver, panel trim removal tool, drill, cutting tool, 3/32" drill bit, electrical tape, and fish wire (which can be a cut-up wire hanger, stiff wire, rope, or string). The manual lists these as required tools for a moderate-difficulty installation.
Yes. Step 1 requires you to locate the vehicle battery, remove the battery cover by releasing the two tabs on each side and lifting straight up, then disconnect the negative battery terminal. Fasten this wire down and away from the battery during installation. Reconnect it at the end of installation in Step 12.
No. Step 4 includes a caution stating that bumper cover removal should not be done in cold conditions, as this can cause cracking of paint or breaking of plastic. Let the vehicle sit in a warm area before beginning this step.
First, open the rear hatch. On the driver side, use a panel trim removal tool to remove the push fastener, then remove the rubber trim cover by pulling straight back and removing the pressure clips by hand. Remove the two Phillips head screws securing the taillight to the vehicle, then carefully pull the taillight straight back. Locate and separate the three connectors from the taillight housing, taking care not to damage the locking tabs. Repeat on the passenger side.
In Step 4, remove the two Phillips head screws in the rear wheel well liner. Gently pull outward on the bumper cover with your fingers to separate it from the vehicle body. Work around to the rear, applying pressure in the taillight pocket with a panel trim removal tool to completely release the corner of the bumper cover. Do not perform this step in cold conditions. Repeat on the passenger side.
In Step 5, locate the custom RV harness end with the yellow wire and feed it behind the bumper cover from behind the edge loosened just behind the rear tire. Route the wire into the groove where the factory harness comes up behind the bumper cover. Connect the custom harness to the factory harness, ensuring the connectors are fully inserted with the locking tabs in place.
Route the harness in stages: (1) Drop it just above the driver-side exhaust tip and route the green wire end along the rear bumper, loosely zip-tying in place (Step 6). (2) Route the 4-flat above the rear suspension and between the driver-side sub frame and fuel tank (Step 8). (3) Route along the hard fuel and brake lines to the rear of the front wheel, then between the vehicle body and front suspension mount (Step 9). (4) Use fish wire to pull it between the body and driver-side front fender (Step 10A). (5) Route under the engine compartment weather stripping and along the driver-side inner fender, mounting near the battery just behind the headlight (Step 11).
Yes. In Step 7, you must locate a grounding point near the box and either use an existing screw or bolt in the vehicle frame, or drill a 3/32" pilot hole. Before drilling, check for hidden items behind or under any surface to avoid damage and personal injury. The area must be free from rust, dirt, and paint; use an abrasive pad or paper to clean it.
A 3/32" drill bit is required to drill the pilot hole for the ground wire in Step 7. This hole is used to secure the white ground wire with the ring terminal.
Before drilling in Step 7, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. The grounding area must be free from rust, dirt, and paint; use an abrasive pad or paper to remove these. Locate a grounding point near the box, such as an existing screw or bolt in the vehicle frame, to avoid unnecessary drilling if possible.
The manual identifies three wire colors: yellow (the harness end that connects to the factory taillight wiring at the rear), green (the harness end routed along the rear bumper), and white (the ground wire with ring terminal that secures to the vehicle frame). The 4-flat connector is routed separately from the rear to the front of the vehicle.
In Step 10A, use a fish wire to feed the wire down between the body and the driver-side front fender. From under the vehicle, pull back the inner wheel well, locate the fish wire, and attach it to the 4-flat. Pull the 4-flat between the vehicle body and the front fender. Fish wire can be made from a cut-up wire hanger, stiff wire, rope, or string. If the wire gets hung up, you may need to push back down, wiggle it around, or twist it to loosen it.
In Step 11, route the 4-flat under the engine compartment weather stripping and along the driver-side inner fender. Mount it near the battery, just behind the headlight in the engine compartment. Then route to just behind the passenger-side headlight and mount to the inner fender.
Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. This ensures the vehicle's electrical system is not overloaded and the trailer lights function safely.
In Step 8, route the 4-flat above the rear suspension and between the driver-side sub frame and fuel tank. In Step 9, route it along the hard fuel and brake lines to the rear of the front wheel, then between the vehicle body and front suspension mount. Throughout routing, keep the 4-flat away from hot spots, pinch points, and moving objects using zip ties as needed. In Step 12, do not over-tighten zip ties, as this can cause unnecessary strain and wire breakage over time.
In Step 7, the manual states that once the custom wiring harness is installed, verify that it is functioning by attaching the 4-flat to any vehicle with functioning trailer lights. The taillights on the tow vehicle should function along with the taillights on the towing vehicle. This confirms the harness is properly connected and operational.
In Step 12, secure any excess wire so it is not drooping or dangling, but not so tight that it causes strain. Tighten any zip ties and add as needed. Reinstall all items removed during installation. If the negative battery terminal was disconnected at the beginning, reconnect it. Install the provided 4-flat dust cover to help prevent corrosion.
Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections. The manual does not specify an inspection interval, so perform this check regularly or before each towing trip.
The CURT 58978 is designed for SUVs and Vans. Confirm your specific vehicle model and year are compatible by checking the product listing or contacting CURT, as the manual does not list specific compatible models.
Yes. Disconnect the negative battery terminal in Step 1 before beginning installation, and reconnect it in Step 12 after all other work is complete.
Yes. You must drill a 3/32" pilot hole in Step 7 to secure the ground wire, unless an existing screw or bolt is available in the vehicle frame. Check for hidden items before drilling.
Periodically inspect all wires and connections for visible damage or loose connections. Install the provided 4-flat dust cover to help prevent corrosion.
