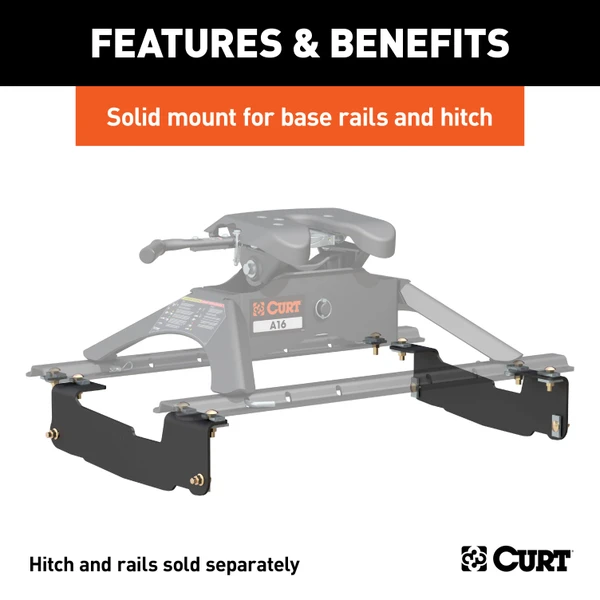

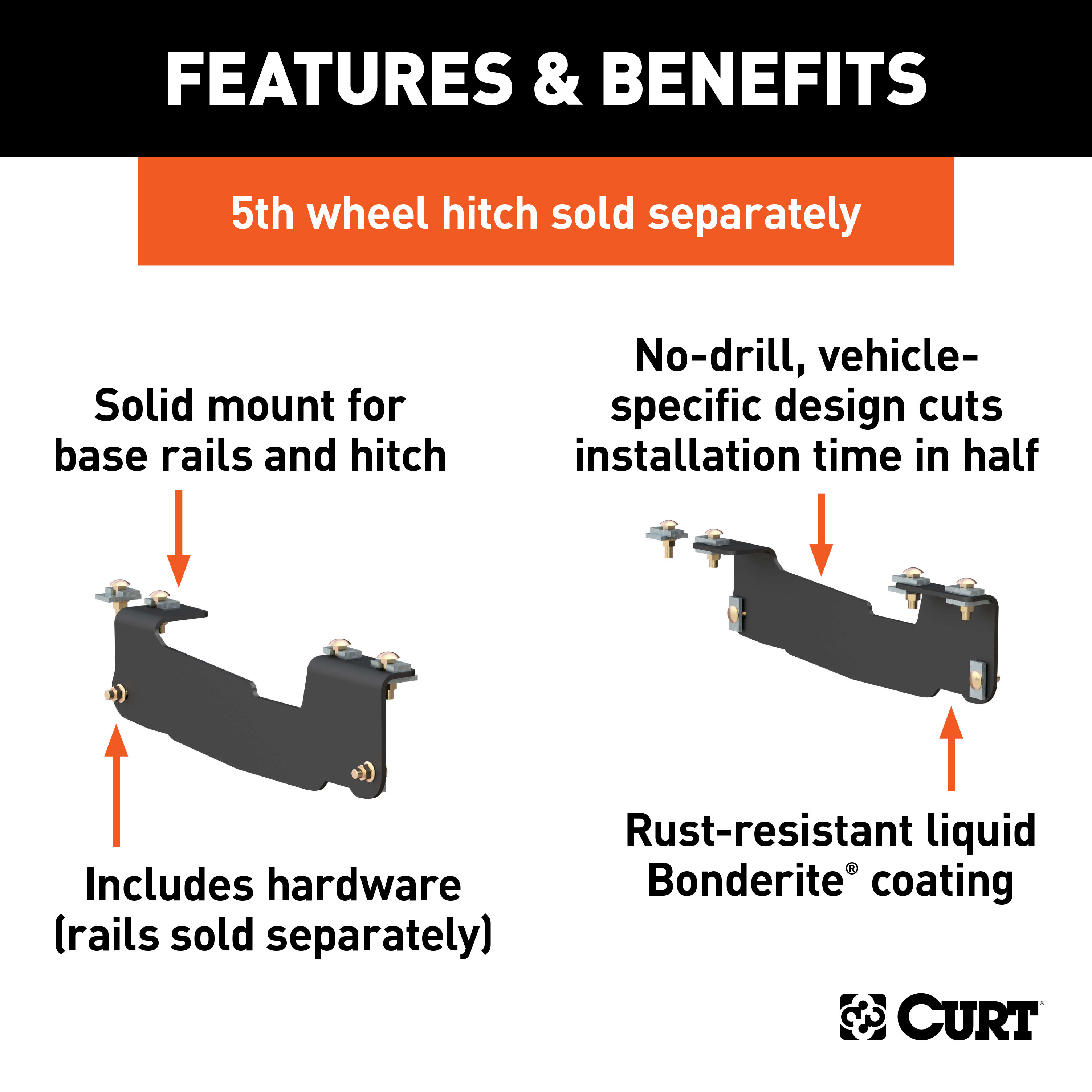

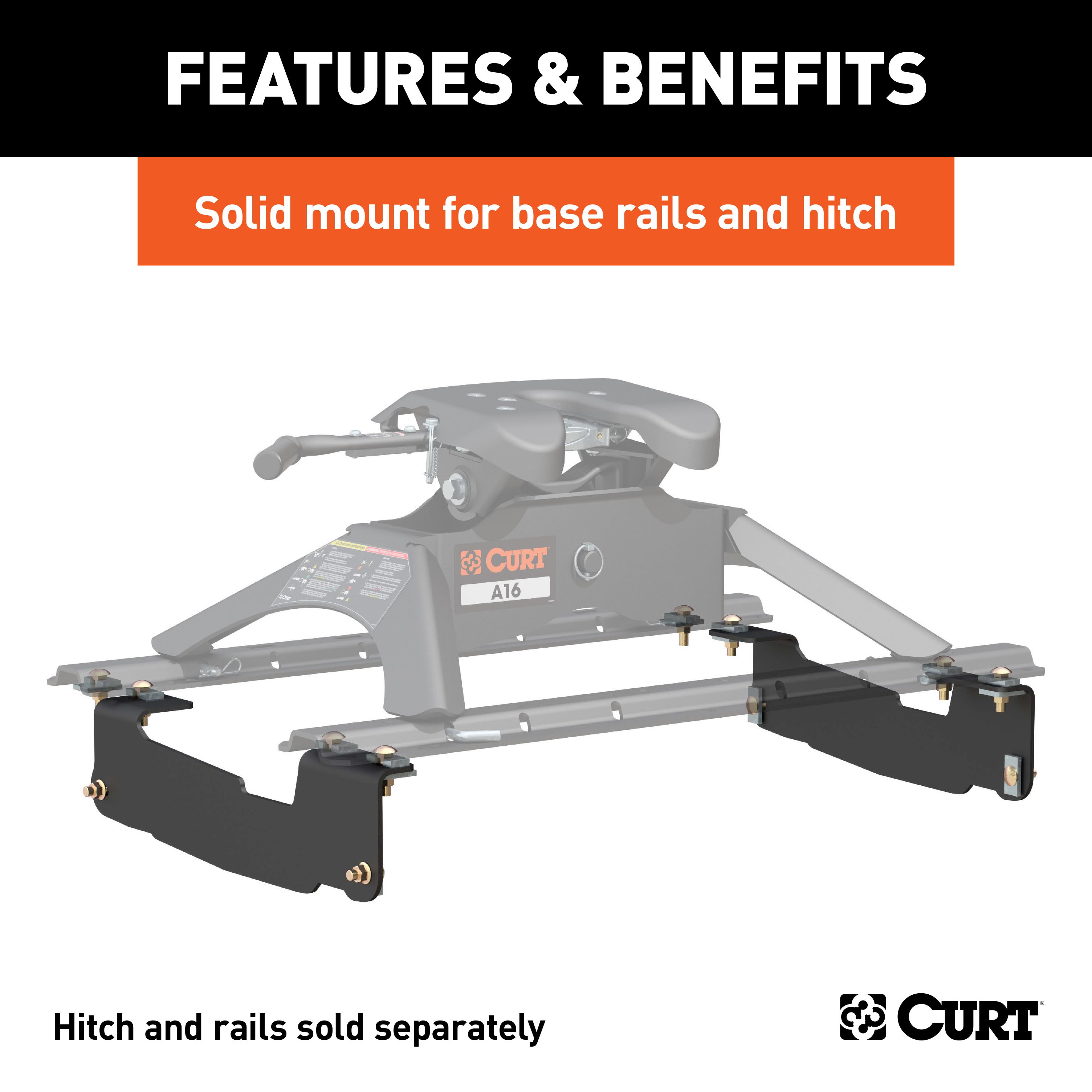

Includes mounting hardware (base rails sold separately)
Includes mounting hardware (base rails sold separately)
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Color: Black
Finish: A-COAT
Installation Time Exact (Minutes): 0
When you purchase a 5th wheel trailer hitch, you expect it to be capable of towing your RV, flatbed or whatever other 5th wheel trailer you own. While a 5th wheel hitch does offer an impressive amount of towing strength, it cannot get far without the proper installation equipment. Engineered for specific makes and models, CURT custom 5th wheel brackets provide the ideal solution for complementing the power of your 5th wheel trailer hitch. A custom 5th wheel bracket features a shape that contours to the frame of your truck and uses pre-drilled holes in the frame wherever possible to make installation quick and easy. Depending on your model of pickup truck, they also reduce or eliminate the need for drilling. These particular custom 5th wheel brackets offer a custom fit for certain model years of the Ford F-150 (except 5.5-foot bed) (see application info to verify fitment). Finished in a durable liquid A-coat, CURT custom 5th wheel brackets are made to last. They include all necessary mounting hardware and are designed to be used in conjunction with CURT industry-standard 5th wheel base rails #16104 or #16204 (base rails sold separately).
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
3 compatible vehicles
| Year | Make & Model | Bed | Notes |
|---|---|---|---|
| 2004 - 2014 | Ford F-150 | 6'7" Bed | No Drilling Required Installation Time - |
| 2004 - 2008 | Ford F-150 | 8' Bed | No Drilling Required Installation Time - |
| 2009 - 2014 | Ford F-150 | 8'1" Bed | No Drilling Required Installation Time - |
Yes, the CURT Custom 5th Wheel Brackets, Select Ford F-150 (Except 5.5' Bed) Fifth Wheel Trailer Hitch Bracket (Part #BKDK16441) is designed to fit the 2004-2014 Ford F-150.
The CURT Custom 5th Wheel Brackets, Select Ford F-150 (Except 5.5' Bed) Fifth Wheel Trailer Hitch Bracket (Part #BKDK16441) fits 2004-2014 Ford F-150 models. The 2014 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT Custom 5th Wheel Brackets, Select Ford F-150 (Except 5.5' Bed) Fifth Wheel Trailer Hitch Bracket (Part #BKDK16441) fits the following vehicles: 2004-2014 Ford F-150. Always verify your specific year, make, and model before ordering.
The CURT Custom 5th Wheel Brackets, Select Ford F-150 (Except 5.5' Bed) Fifth Wheel Trailer Hitch Bracket (Part #BKDK16441) fits both short bed and long bed configurations. Check the fitment chart for your specific Ford F-150 configuration.
The CURT Custom 5th Wheel Brackets, Select Ford F-150 (Except 5.5' Bed) Fifth Wheel Trailer Hitch Bracket (Part #BKDK16441) Drilling is not required for installation. Typical installation time is . Basic hand tools are typically all you need.
Yes, Curt 16441 is designed for Ford F-150 trucks with both 6.5' and 8' beds. The mounting rail location is the same for both bed lengths, positioned 50.938 inches from the center line of the hitch to the center line of the axle.
No. The manual states: "SYSTEM MAY NOT WORK WITH 2003 AND EARLIER COMPETITOR PRODUCTS." If you have an older competitor hitch, contact the manufacturer or Curt for compatibility confirmation before purchasing.
No, not without modification. The manual warns: "Do not install mounting rails over plastic bed liners. Plastic liners must be trimmed for metal-to-metal contact." You may install on a spray-in liner. If you have a plastic bed liner, you must trim it away where the mounting rails contact the truck bed.
The kit includes: 12 serrated flange nuts (1/2-13 UNC, Grade 8); 8 carriage bolts (1/2-13 UNC, 2" length, Grade 8); 8 carriage bolts (1/2-13 UNC, 1.5" length, Grade 8); 8 U-shaped spacers (.313" x 1.00 x 2.00"); 8 square hole spacers (.250 x 1.50 x 2.00"); 4 square hole spacers (.250 x 1.00 x 2.00"); 4 pieces of 1/2" fishwire; driver side and passenger side plates (.250" thick). Use only these supplied fasteners for installation.
No. Curt 16441 is a mounting rail kit only. The fifth wheel hitch, roller hitch, or gooseneck hitch is sold separately and must be purchased and installed into the mounting rails.
Required tools include: tape measure, center punch, 1/8" drill bit, 9/16" step drill bit, and a wrench or socket set for 1/2" fasteners. A jack or lift may be needed to lower and remove the spare tire. The manual does not specify whether professional installation or additional personnel are required.
Yes. Step 1 requires you to lower and remove the spare tire. However, if you are installing on a 2009 or newer Ford F-150, you can skip this step because the access hole is on the side of the frame rails. You must re-install the spare tire after installation is complete.
Approximately 100 minutes.
Yes, on both driver and passenger sides. You must remove the axle bumper bolt, axle bumper, and multi-thread U-nut to access the large access hole in the bottom of the frame rail. Keep these parts—you must re-install them after the kit installation is complete. On 2009 and newer models, the access hole is on the side of the frame rails, but the axle bumper hardware still needs to be removed.
Yes. You must drill pilot holes and enlarge them. Step 4 requires drilling 1/8" pilot holes at marked positions. Step 6 requires enlarging these holes to 9/16" using a step drill. The manual states "DRILL APPLICATION: NO" on the information box, which indicates that drilling is not optional—it is a required part of the installation process.
The manual provides two critical warnings: (1) "During drilling protect the fuel tank and filler tubes, brake lines and wire harness by placing a piece of metal between the box floor and potential components at risk on the driver's side. This will prevent drilling into these items." (2) "When drilling holes be aware of potential risks to vehicle components and make appropriate safe guards to protect them from damage." Place a protective metal barrier under the truck bed on the driver's side before drilling.
First, drill 1/8" pilot holes at the marked positions (Step 4). Then enlarge these holes to 9/16" using a step drill (Step 6). The side plate slots must align with the 1/8" pilot holes before enlargement.
All 1/2" fasteners must be torqued to 110 lb-ft. Torque in the following sequence: first torque the mounting rails to the side plates, then torque the side plates to the truck frame. This final torquing occurs after all fasteners are installed and hand-tightened.
The center line of the hitch is positioned 50.938 inches from the center line of the axle. The mounting rails are centered between the weld seams on the truck bed floor. The side plates are .250" thick. The U-shaped spacers are .313" x 1.00 x 2.00", and square hole spacers are .250 x 1.50 x 2.00" and .250 x 1.00 x 2.00".
In Step 7, after loosely installing the side plates hand-tight, insert the head of the fishwire through the 1" mounting hole on the side of the truck frame and out through the access hole. Slide a spacer over the fishwire head and attach a 1/2" x 1.5" carriage bolt. Pull the other end of the fishwire until the bolt is in position. Place the side plate into the bolt and install a 1/2" hex flange nut. Repeat this process for the other hole in the side plate.
1. Lower and remove spare tire (skip on 2009+). 2. Remove axle bumper hardware from both sides. 3. Center and position first mounting rail. 4. Mark, center punch, and drill 1/8" pilot holes. 5. Check side plate alignment. 6. Enlarge holes to 9/16". 7. Loosely install side plates and fishwire fasteners hand-tight. 8. Reposition mounting rail. 9. Install 1/2" x 2" carriage bolts with U-shaped spacers, tighten snug. 10. Position second mounting rail with hitch product. 11. Repeat steps 4, 6, 9 for second rail. 12. Torque all 1/2" fasteners to 110 lb-ft (rails first, then side plates). 13. Re-install axle bumper hardware. 14. Re-install spare tire.
Use a tape measure to center each rail between the weld seams on the length of the truck box floor. Position the rail at the proper distance from the rear edge of the truck box as shown on the Rail Location Diagram (page 2). The center line of the hitch should be 50.938 inches from the center line of the axle. Ensure the mounting rail is centered between the weld seams to ensure the fifth wheel will have a snug fit.
The U-shaped spacers (.313" x 1.00 x 2.00") are installed with the 1/2" x 2" carriage bolts and positioned in the corrugation between the truck bed and the mounting rail. This ensures metal-to-metal contact between the rail and the truck bed, which is critical for proper installation.
If you plan to use more than one hitch product (fifth wheel, roller, or gooseneck) with the rails, the manual recommends using both products at the same time during Step 10 to align the second rail. This ensures that one product does not compromise the fit of the other.
Do not exceed your vehicle manufacturer's recommended towing capacity. Curt 16441 does not increase the truck's towing capacity; it only provides a mounting point for a fifth wheel, roller, or gooseneck hitch. Check your Ford F-150 owner's manual for the maximum towing capacity.
Yes. The manual states: "Before installing hitch measure to be sure there will be enough clearance between the truck and trailer to allow for turns." Verify that the installed hitch will not interfere with trailer movement during turning before completing the installation.
After installation: (1) Verify all 1/2" fasteners are torqued to 110 lb-ft in the correct sequence (rails to side plates, then side plates to frame). (2) Confirm the axle bumper hardware has been re-installed on both sides. (3) Confirm the spare tire has been re-installed. (4) Check that the mounting rails are centered between the weld seams and positioned correctly. (5) Verify clearance between truck and trailer for turning.
Yes, Curt 16441 fits both 6.5' and 8' bed Ford F-150 trucks. The mounting position is the same for both bed lengths.
No. Curt 16441 is a mounting rail kit only. The fifth wheel, roller, or gooseneck hitch must be purchased separately.
All 1/2" fasteners must be torqued to 110 lb-ft. Torque the mounting rails to the side plates first, then the side plates to the truck frame.
Do not exceed your vehicle manufacturer's recommended towing capacity. Curt 16441 does not increase towing capacity.
