Requires GM puck system for installation (intended for short-bed trucks)
Capacity limited to lowest-rated towing component
Warranty does not carry over to other 5th wheel components or attachments
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Color: Black
Finish: CARBIDE BLACK POWDER COAT
Gross Trailer Weight (Pounds): 20,000 LB
Installation Time Exact (Minutes): 0
The CURT OEM puck system 5th wheel roller adapter for GM pickups combines the functionality of a CURT 5th wheel roller with the strength and convenience of GM's truck bed puck system. The adapter is designed to securely mount a CURT 5th wheel roller and hitch head into the bed of your Chevy or GMC truck, using the OEM puck system. It is designed to fit the puck system in select model years of the Chevrolet Silverado and GMC Sierra 2500 HD and 3500 HD with 6.5-foot bed (see application info to verify fitment) (compatible with CURT 5th wheel hitches only). It features a set of adjustable, quarter-turn anchors to quickly and easily drop into the pucks and provide a moveable platform for the 5th wheel coupling point. It features a capacity of 20,000 lbs. and is compatible with most CURT 5th wheel heads (weight capacities are limited to the lowest-rated towing component). Like our OEM puck system 5th wheel legs, the key feature of the GM 5th wheel roller adapter is its quarter-turn anchors. With the hitch head and roller initially bolted onto the adapter, the adapter can easily be dropped into place whenever needed and secured with the quarter-turn anchors. The anchors can also be adjusted to help eliminate chucking noises between the adapter and under-bed platform while towing. When you are finished towing, simply turn the anchors to remove the entire assembly within seconds. The CURT 5th wheel roller adapter for select Chevrolet and GMC pickup trucks provides the ultimate in versatility for the CURT 5th wheel line. With a gross trailer weight capacity of 20,000 lbs., it is able to accept most CURT 5th wheel rollers, including the R16 and R20. It tested for safety in accordance with SAE J2638 and is coated in a highly durable carbide black powder coat finish to protect against scratches and rust.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
8 compatible vehicles
| Year | Make & Model | Style | Bed | Notes |
|---|---|---|---|---|
| 2016 - 2019 | Chevrolet Silverado 2500 HD | — | 6'7" Bed | With 5th wheel prep package |
| 2016 - 2019 | Chevrolet Silverado 3500 HD | Crew Cab Pickup | 6'7" Bed | With 5th wheel prep package |
| 2016 - 2018 | Chevrolet Silverado 3500 HD | Extended Cab Pickup | 6'7" Bed | With 5th wheel prep package |
| 2016 - 2018 | Chevrolet Silverado 3500 HD | Standard Cab Pickup | 6'7" Bed | With 5th wheel prep package |
| 2016 - 2019 | GMC Sierra 2500 HD | — | 6'7" Bed | With 5th wheel prep package |
| 2016 - 2019 | GMC Sierra 3500 HD | Crew Cab Pickup | 6'7" Bed | With 5th wheel prep package |
| 2016 - 2018 | GMC Sierra 3500 HD | Extended Cab Pickup | 6'7" Bed | With 5th wheel prep package |
| 2016 - 2018 | GMC Sierra 3500 HD | Standard Cab Pickup | 6'7" Bed | With 5th wheel prep package |
The CURT Puck System 5th Wheel Roller Adapter, 20K, Select Silverado, Sierra, 6.5' Bed Fifth Wheel Trailer Hitch Mount Leg (Part #BKDK16023) fits 2016-2019 Chevrolet Silverado 2500 HD models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
The CURT Puck System 5th Wheel Roller Adapter, 20K, Select Silverado, Sierra, 6.5' Bed Fifth Wheel Trailer Hitch Mount Leg (Part #BKDK16023) fits the following vehicles: 2016-2019 Chevrolet Silverado 2500 HD; 2016-2019 Chevrolet Silverado 3500 HD; 2016-2019 GMC Sierra 2500 HD; 2016-2019 GMC Sierra 3500 HD. Always verify your specific year, make, and model before ordering.
The CURT Puck System 5th Wheel Roller Adapter, 20K, Select Silverado, Sierra, 6.5' Bed Fifth Wheel Trailer Hitch Mount Leg (Part #BKDK16023) is designed for 6'7" bed trucks. Check the fitment chart for your specific Chevrolet Silverado 2500 HD configuration.
Yes, the CURT Puck System 5th Wheel Roller Adapter, 20K, Select Silverado, Sierra, 6.5' Bed Fifth Wheel Trailer Hitch Mount Leg (Part #BKDK16023) is designed to fit the 2016-2019 Chevrolet Silverado 2500 HD.
The CURT Puck System 5th Wheel Roller Adapter, 20K, Select Silverado, Sierra, 6.5' Bed Fifth Wheel Trailer Hitch Mount Leg (Part #BKDK16023) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

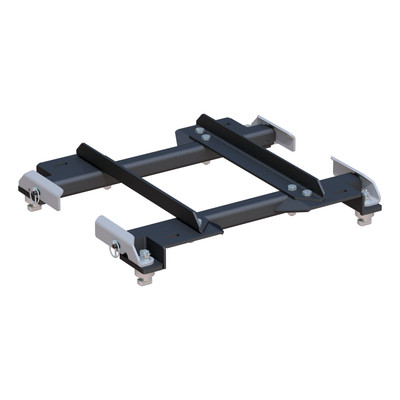

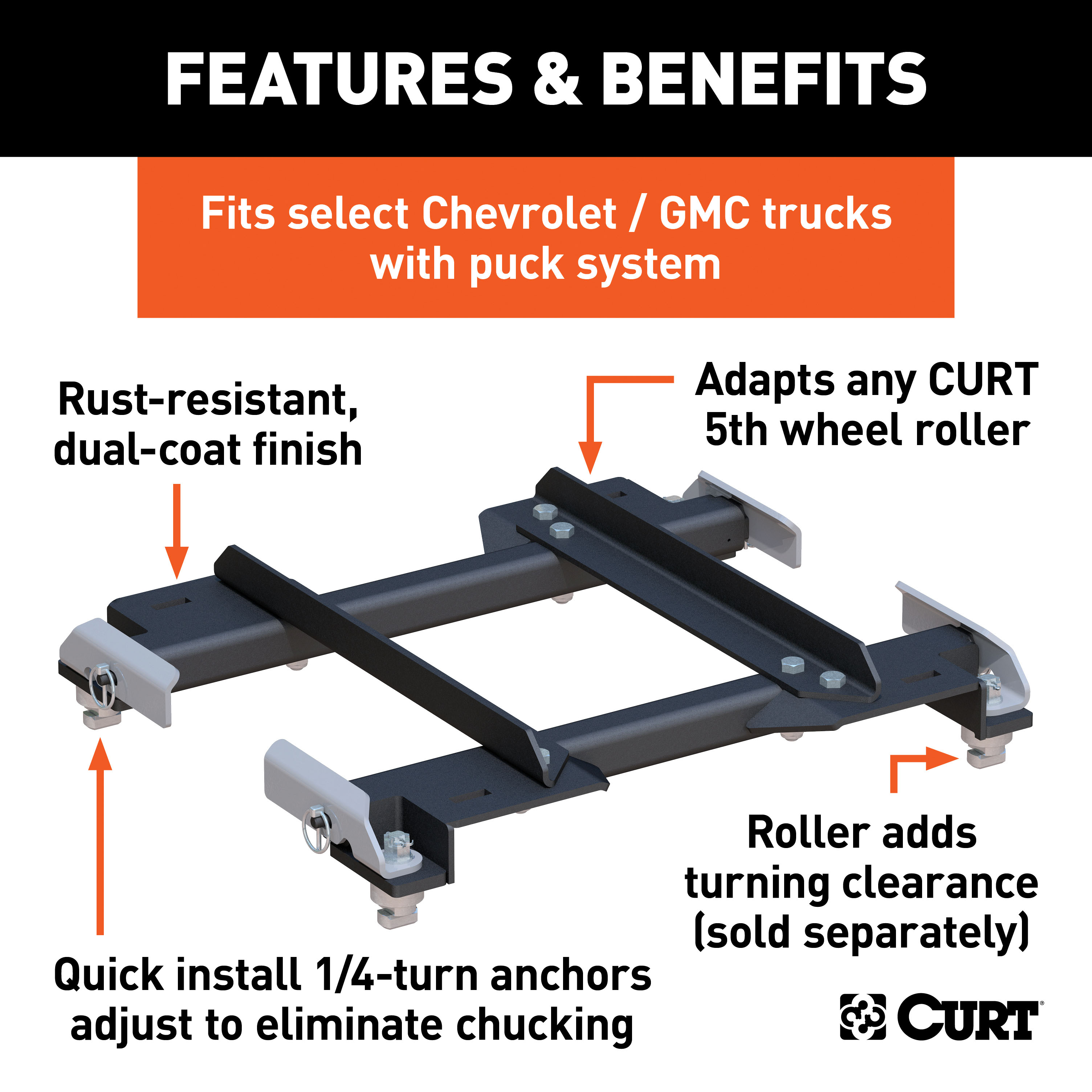

The CURT 16023 is a GM OEM puck system 5th wheel roller adapter that mounts into the factory puck mounting holes in a GM truck bed. It accepts a compatible CURT roller (models 16550, 16560, or 16570) to enable 5th wheel trailer towing. The adapter uses locking handles and T-bolts to secure into the truck bed's OEM puck system mounting locations.
The CURT 16023 is designed for GM trucks equipped with the OEM puck system bed mounting holes. It is not compatible with trucks that lack this factory puck system. If your truck has the factory puck mounting system, the 16023 will fit. Consult your truck's documentation or contact CURT at 1.877.287.8634 to confirm your specific truck model is equipped with the OEM puck system.

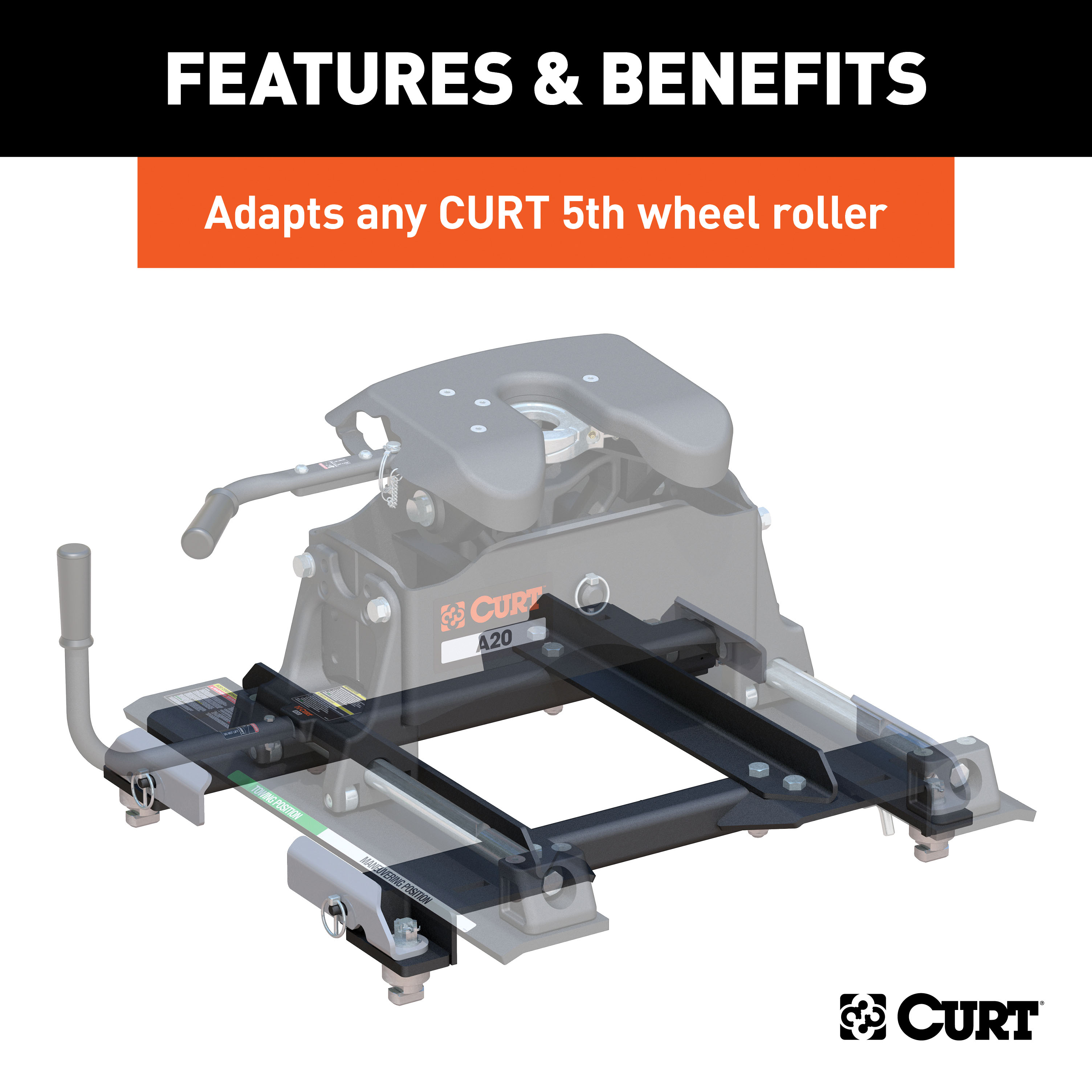

The CURT 16023 adapter is compatible with the following roller models: 16550, 16560, and 16570. You must use one of these three models with the 16023 adapter.
The 16023 includes: 1 front support assembly, 1 rear support assembly, 2 angle cross supports, 4 hex head cap screws M14 x 2.75 CL8.8, 8 nylock nuts M14 x 2 CL8.8, 4 hex head cap screws M14 x 2.35 CL8.8, 4 hitch pins (1/2" x 2"), and 4 clips. All hardware needed for assembly and roller attachment is supplied.
The manual does not specify which tools are required for installation. Contact CURT at 1.877.287.8634 or visit CURTMFG.COM for a complete tool list.

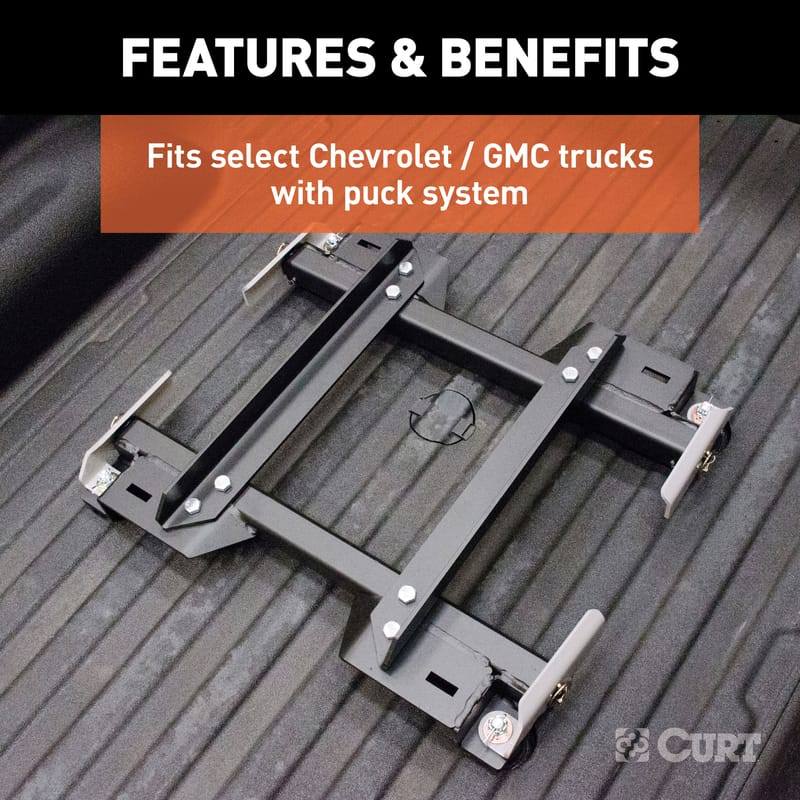

No drilling is required. The 16023 adapter mounts directly into the factory OEM puck system mounting holes already present in your GM truck bed. The locking bolts and spacers drop into the existing mounting holes.
The manual does not specify whether professional installation or additional people are required. Given the assembly involves multiple support assemblies, angle supports, and locking handles, assistance may be helpful. Contact CURT at 1.877.287.8634 for installation support recommendations.
Follow these steps: (1) Loosely assemble the front support assembly (#1) and rear support assembly (#3) with the two angle cross supports (#2) using the supplied hardware. (2) Remove the four lynch pins securing the locking handles, swing all four handles completely open, and lower the assembly into the truck bed, ensuring all four locking bolts and spacers drop into the mounting holes. (3) Rotate the handles back to the closed position and re-insert all four lynch pins. (4) Torque all eight M14 bolts to 100 ft-lbs to finalize assembly.
The rear mounting locations are larger than the two front mounts. Orient the large locking feet towards the rear of the vehicle. This ensures proper alignment with the truck bed's OEM puck system mounting holes.

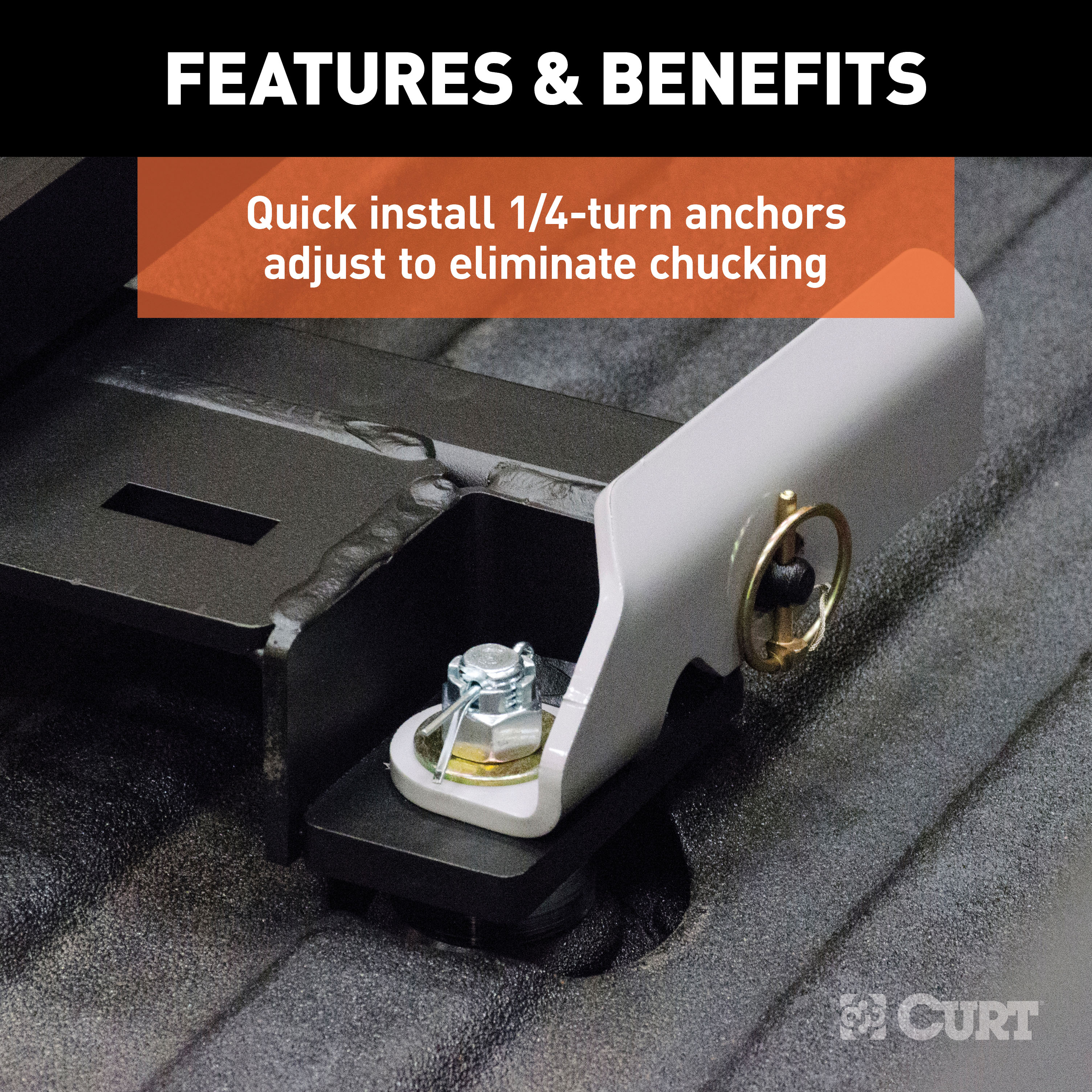

If a handle will not close with moderate pressure, the T-bolt requires adjustment. Do not force the handle closed, as this may damage the locking bolt and handle, possibly resulting in trailer detachment. Refer to the T-bolt Adjustment section: remove the cotter pin securing the castle nut above the handle, loosen the castle nut a quarter-turn while pressing down on the T-bolt, and re-attempt to close the handle. Repeat as needed until all four handles close smoothly.
All eight M14 bolts must be torqued to 100 ft-lbs to finalize assembly. This torque is applied after the handles are closed and secured with lynch pins.

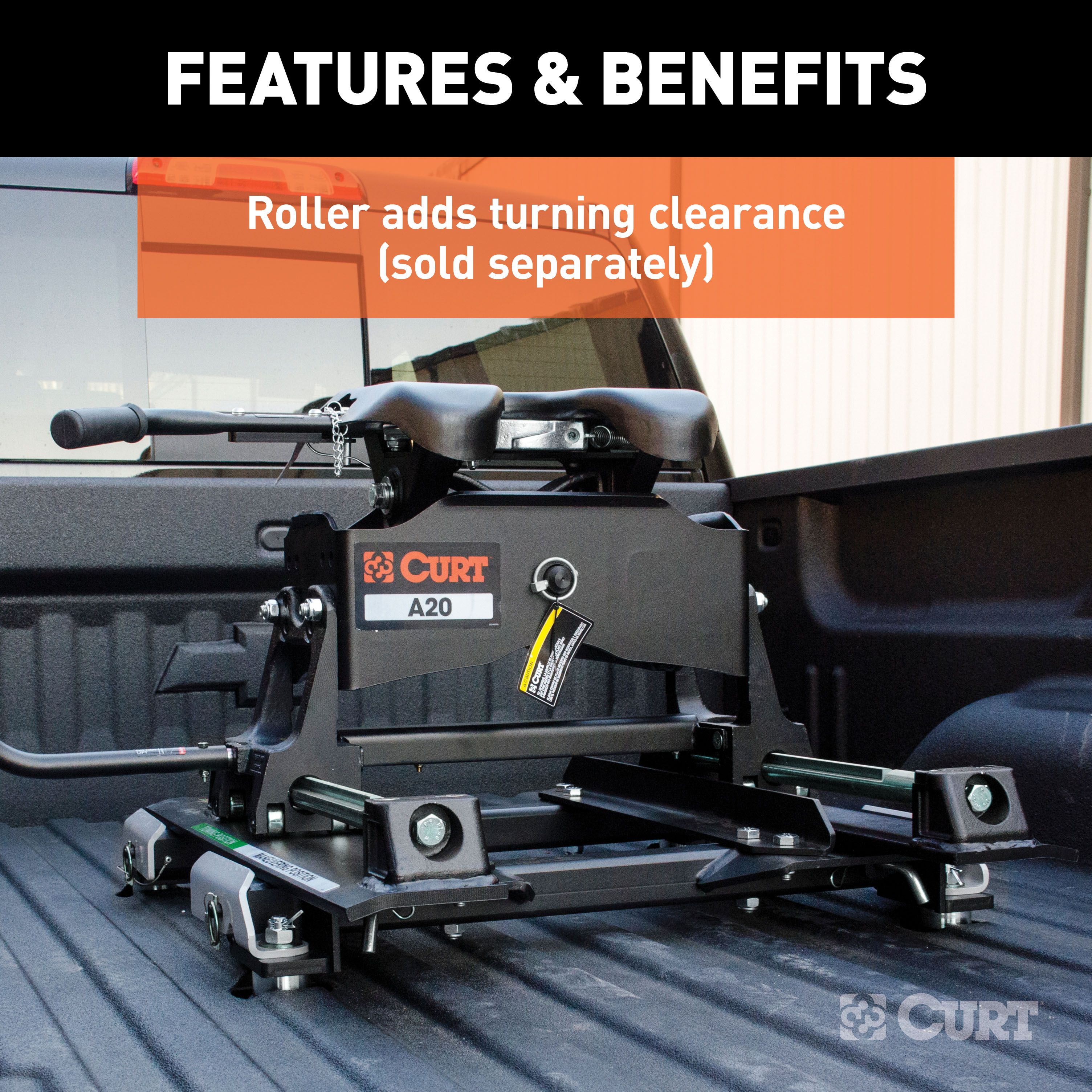

Once the 16023 adapter is installed and secured in the truck bed, attach your compatible roller (model 16550, 16560, or 16570) by securing it with the supplied hitch pins (1/2" x 2") and clips. The manual does not specify the torque for the hitch pins and clips; contact CURT at 1.877.287.8634 for detailed attachment instructions.
After installation, confirm that: (1) all four locking bolts are engaged in the truck bed mounts, (2) all castle nuts are secured with cotter pins, (3) all four handles are securely locked with lynch pins, and (4) all eight M14 bolts are torqued to 100 ft-lbs. The adapter is then ready for use.
Never exceed the rated towing capacity of your tow vehicle. The trailer and contents combined must not exceed your tow vehicle, hitch, and/or trailer tow ratings. The 16023 itself does not have a separate capacity rating stated in the manual. Refer to your vehicle and trailer manufacturer documentation for specific capacity limits.
Observe these critical safety precautions: (1) Do not expose hands, body parts, or clothing between the truck and trailer or the truck's bed sides and trailer. (2) Never position yourself or others under the trailer's kingpin area during coupling and uncoupling, as improperly coupled trailers can separate and drop without notice. (3) Never exceed your vehicle manufacturer's recommended towing capacity. (4) Do not force locking handles closed; this may damage the locking bolt and handle, possibly resulting in trailer detachment. Extreme care should be observed to avoid serious injury to self, property, and observers.
The manual states that failure to properly maintain and regularly inspect the product according to the instruction sheet will void the warranty. However, the manual does not specify a maintenance schedule, inspection intervals, or maintenance procedures. Contact CURT at 1.877.287.8634 for detailed maintenance and inspection guidance.
The 16023 fits GM trucks with the OEM puck system bed mounting holes. It is compatible with CURT roller models 16550, 16560, and 16570. Confirm your truck has the factory puck system before purchasing.
No. The 16023 mounts directly into existing factory OEM puck system holes in your GM truck bed. No drilling or modifications are needed.
All hardware is included: front and rear support assemblies, angle cross supports, M14 bolts, nylock nuts, hitch pins (1/2" x 2"), and clips. Everything needed for assembly and roller attachment is supplied.
Torque all eight M14 bolts to 100 ft-lbs after the handles are closed and secured with lynch pins.
Never exceed your vehicle manufacturer's recommended towing capacity. Never position yourself or others under the trailer's kingpin area during coupling and uncoupling. Do not force locking handles closed, as this may result in trailer detachment.
If a handle will not close with moderate pressure, the T-bolt requires adjustment. (1) Remove the cotter pin securing the castle nut above the handle. (2) Loosen the castle nut a quarter-turn while pressing down on the T-bolt. (3) Re-attempt to close the locking handle. (4) If the handle still does not close, repeat step 2. Once all handles close, re-secure the castle nuts with the cotter pins. Do not force the handles closed, as this may damage the locking bolt and handle.
