CURT 17008 Replacement Weight Distribution Hitch Hookup BracketCURTOriginal price was $50.95. Current price is $49.71.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Type
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!

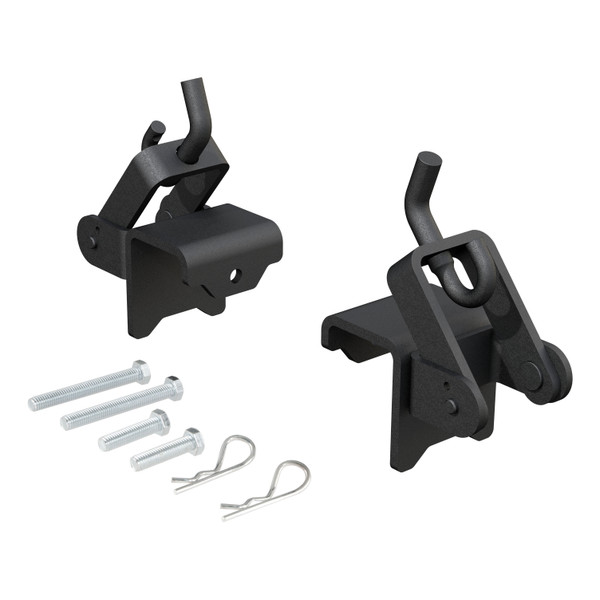

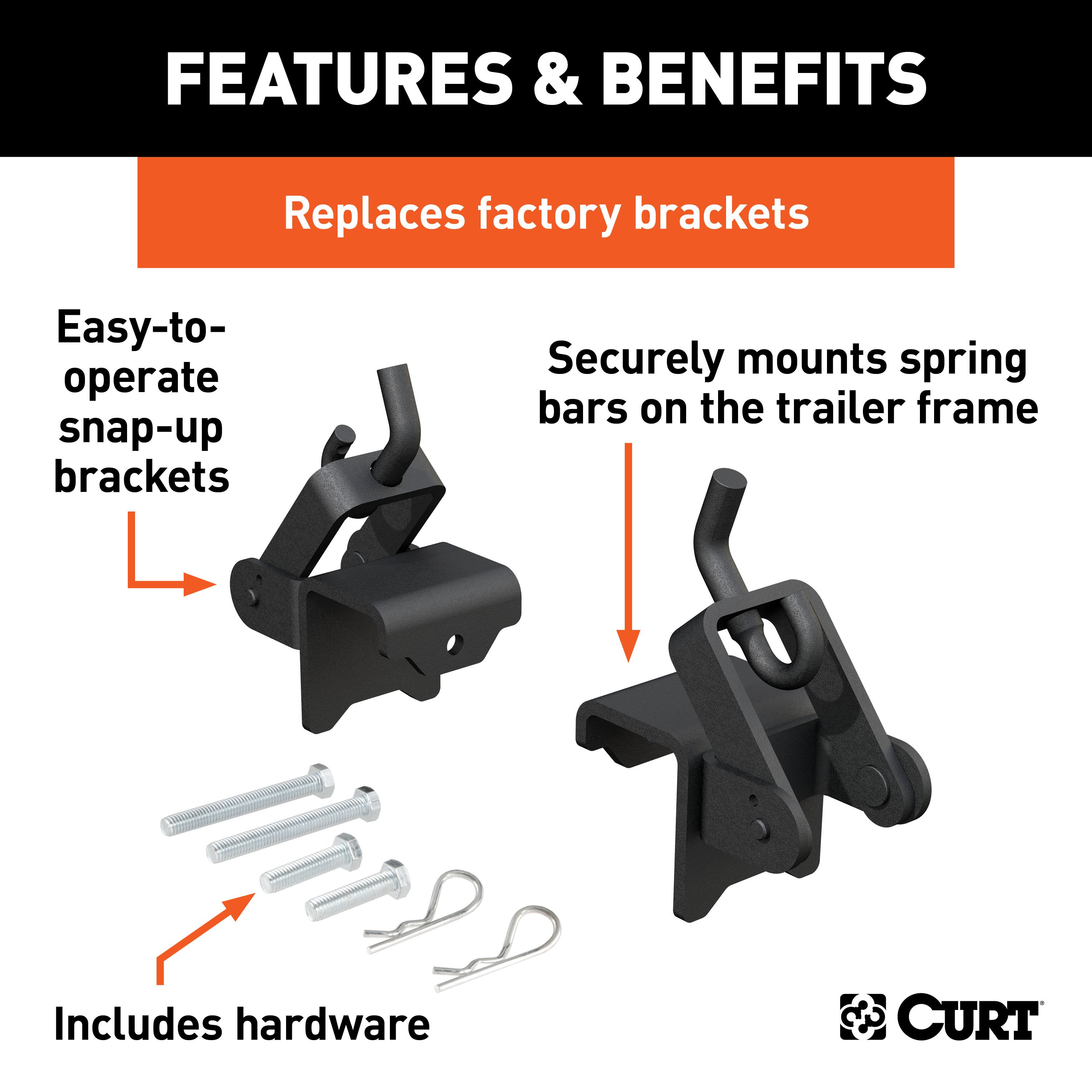

Includes two hookup brackets, bolts and pins
Includes two hookup brackets, bolts and pins
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Color: Black / Silver
Finish: CARBIDE BLACK POWDER COAT
Installation Time Exact (Minutes): 0

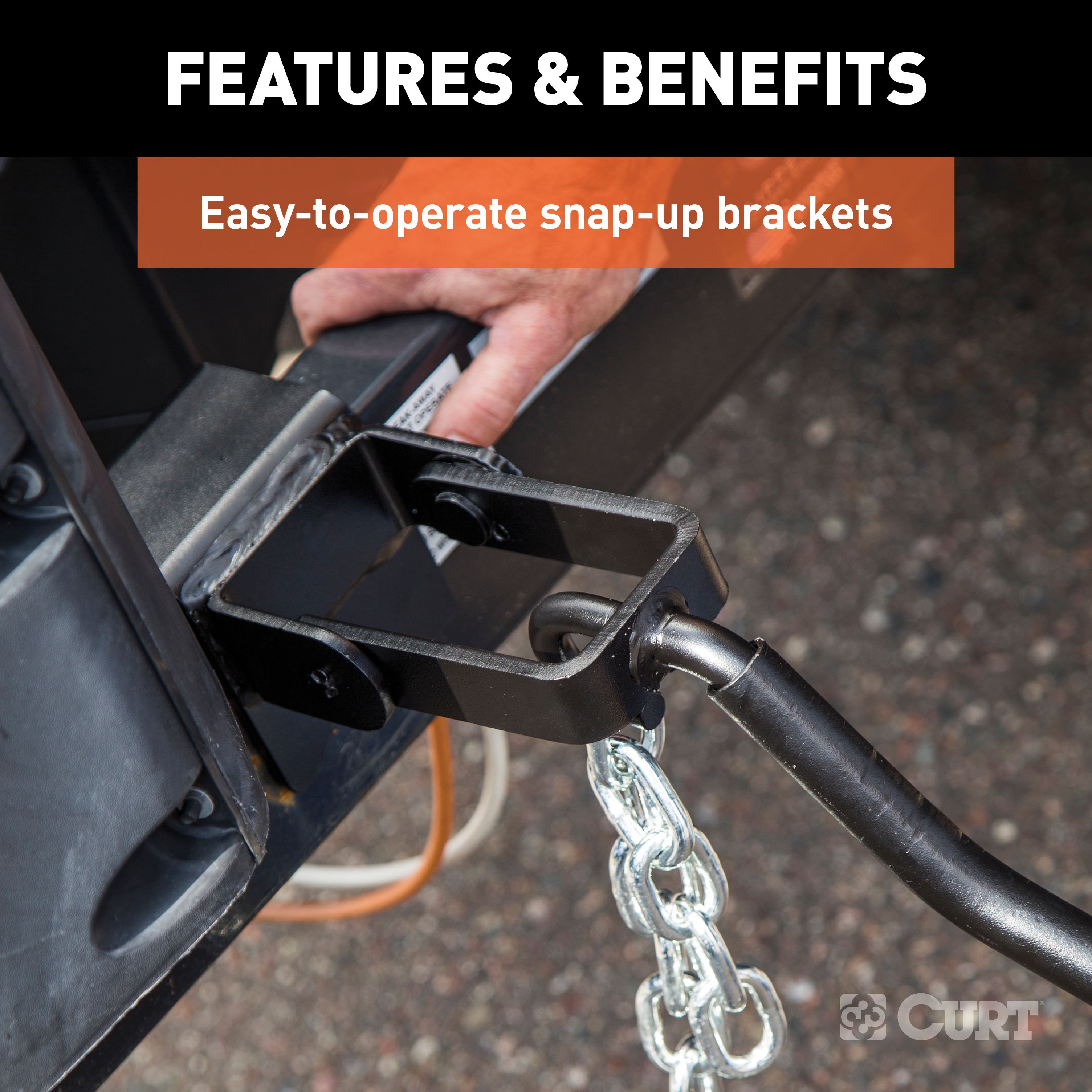

The CURT weight distribution hitch is a specialized towing system that provides improved vehicle and trailer control by leveling the trailer and more evenly distributing its tongue weight across the trailer's and vehicle's axles. Weight distribution hitches are commonly used on travel trailers and campers but can also be applied to other large loads. These replacement weight distribution hookup brackets make it easy to attach spring bars to the tongue frame of your trailer and get the exact tension needed to level your towing setup. They feature a bolt-on mounting system for secure attachment to your trailer and offer a snap-up design that can be leveraged into place with a weight distribution lift handle #17112. To ensure long-lasting use, these replacement spring bar hangers come with a durable powder coat finish.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
The Curt 17208 Snap Up Bracket Kit is a component designed to mount on a trailer's A-frame and connect to the spring bar chain system. It allows the spring bars to be controlled and positioned during towing operations.
The kit is designed for trailers with an A-frame and spring bar chain system. Compatibility depends on your trailer's frame design and configuration. Consult your trailer manufacturer to confirm fitment before purchasing.
The kit includes snap-up brackets, a 1/2-13 x 4" bolt, a 1/2-13 x 2" bolt (supplied as an alternative for large A-frames), a spring clip, and a handle. Additional 3/8" hardware (self-tapping or nut and bolt) may be required if drilling optional holes is necessary.
A wrench is required to tighten the bolts. If drilling optional holes is necessary, a drill and appropriate drill bits for 3/8" holes are needed. Consult your trailer frame manufacturer before drilling.
Yes. Before operating the snap-up bracket, raise the bumper of your tow vehicle with the trailer tongue jack approximately one inch. This reduces spring bar tension and makes snap-up bracket operation easier.
Position the snap-up brackets on the trailer A-frame with the spring bar chain held vertical. Center the snap-up brackets with the chain. See Figure 7 in the manual for reference.
Turn the 1/2-13 bolt until it contacts the frame, then tighten an additional 1/2 to 3/4 turn with a wrench. Do not over-tighten.
Use the 1/2-13 x 2" bolt if your trailer's A-frame is quite large and the 4" bolt does not fit properly. The 2" bolt is supplied as an alternative for this situation.
If your trailer does not permit the use of 1/2-13 bolts, you may drill optional holes large enough for 3/8" hardware (self-tapping or nut and bolt). However, you must consult your trailer frame manufacturer for approval prior to drilling holes.
1. With the snap-up bracket in raised position, pull straight up firmly on the spring bar chain and note which link is closest to the chain hook. 2. Count down 2 links from that point; that link will be used for hook-up. 3. Lower the snap-up bracket and attach the upper end of the chosen chain link to the snap-up bracket hook, allowing remaining free links to fall down outside the trailer frame. 4. Ensure at least 5 links remain between the snap-up bracket and the spring bar. 5. Use the handle to raise the snap-up bracket. 6. Insert the spring clip on the snap-up bracket. 7. Repeat for the opposite spring bar using the same number of links.
There must be at least 5 links between the snap-up bracket and the spring bar. This is necessary for proper operation of the spring bars during turns. If there will be fewer than 5 links, the angle of the head assembly must be increased by removing the upper bolt, pivoting the head assembly down, and adding an additional washer underneath the pin.
Failure to provide at least 5 links between the snap-up bracket and spring bar can result in damage to the snap-up bracket. The chain and snap-up bracket may bind during operation. If fewer than 5 links are present, the angle of the head assembly must be increased by removing the upper bolt, pivoting the head assembly down, and adding an additional washer underneath the pin before operating the bracket.
Keep clear of all moving parts when raising the snap-up bracket with the handle. Before operating the snap-up bracket, raise the bumper of your tow vehicle with the trailer tongue jack approximately one inch to reduce spring bar tension.
After connecting both spring bar chains using the same number of links for each side, retract the trailer tongue jack so the hitch is now carrying the full trailer weight. This completes the installation and allows normal towing operation.
Curt Manufacturing Inc. warrants the product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, Curt may repair or replace it at their option when returned prepaid with proof of purchase. Warranty is voided by alteration, misuse, or improper installation. Curt's liability is limited to repair or replacement and excludes liability for incidental or consequential loss or damage.
The kit fits trailers with an A-frame and spring bar chain system. Confirm compatibility with your trailer manufacturer before purchasing.
You need a wrench to tighten bolts. If drilling optional holes is necessary, you'll need a drill and bits for 3/8" holes. Consult your trailer manufacturer before drilling.
Turn the 1/2-13 bolt until it contacts the frame, then tighten an additional 1/2 to 3/4 turn. Do not over-tighten.
At least 5 links are required between the snap-up bracket and spring bar for proper operation. Fewer links can damage the bracket.
Yes, raise your tow vehicle bumper approximately one inch with the trailer tongue jack before operating the snap-up bracket. This reduces spring bar tension and makes operation easier.
Keep clear of all moving parts when raising the snap-up bracket. Do not over-tighten bolts. Ensure at least 5 links are between the snap-up bracket and spring bar to prevent damage.
