Includes shank, spring bars, head, hookup brackets, pin & clip
Trailer ball not included
Includes shank, spring bars, head, hookup brackets, pin & clip
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Color: Black
Finish: CARBIDE BLACK POWDER COAT
WC / TW (Pounds): 1,400 LB
WC Tongue Weight (Pounds): 1,400 LB
Gross Trailer Weight (Pounds): 14,000 LB
Installation Time Exact (Minutes): 0
Your route is planned and the trails are calling, but before you can cover any ground, you need to start with a solid connection between your tow vehicle and trailer. The CURT round bar weight distribution hitch with integrated lubrication offers a smooth ride and level towing with its heavy-duty components and built-in lubrication system. From travel trailers to popup campers, the CURT WD hitch is the perfect camping companion to let you Bring It. The strength of the round bar WD hitch begins with its heavy-duty, formed steel head. The formed construction allows for a precise design and supplies the durability needed to manage the weight of heavy trailers. Something unique to the weight distribution hitch is its grease zerk fittings, built directly into the head, allowing for easy, continuous lubrication at the spring bar mounting location. The spring bars are installed from the underside of the WD head and are made with forged steel for optimum strength. Like other CURT weight distribution hitches, the round bar hitch comes with a highly adjustable shank and chain hookup brackets for the perfect amount of tension to level the load. The shank fits any 2" x 2" receiver tube opening, making it compatible with most class 3, class 4 and class 5 trailer hitches. The head is also compatible with our 2-1/2" weight distribution shanks to match the heaviest of class 5 hitches. The hookup brackets and spring bars of the CURT WD hitch use chains and a simple snap-up design for easy setup and adjustment. This particular round bar weight distribution hitch offers a towing capacity ranging from 10,000 to 14,000 lbs. GTW and 1,000 to 1,400 lbs. TW. It comes with installation hardware, though a trailer ball must be purchased separately. The built-in sway control attachment tabs on the head allow it to readily accept one or two sway control units #17200. To protect this WD hitch on the way to your next destination and beyond, it also comes with a durable carbide powder coat finish.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products
The part 17057 is rated for a maximum gross trailer weight of 14,000 lbs and tongue weight of 1,400 lbs when used with spring bars. Without spring bars, the maximum gross trailer weight is 14,000 lbs and tongue weight is 1,400 lbs, but the actual capacity is limited by the trailer ball manufacturer's weight rating. Always use a pair of spring bars of the same weight rating to achieve the full capacity.
Yes, but only with the reducer bushing (part #7) included in the kit. The hitch is designed for 1 1/4" threaded-shank hitch balls. If you want to use a 1" ball instead, attach the reducer bushing to the head assembly first, then attach the ball to the bushing using a lock washer and nut.
The manual shows installation instructions for A-frame tongue trailers. If your trailer has a straight (pole) tongue instead, you will need to use a pole tongue adapter for hook-up of the weight distributing hitch lift brackets. Contact your dealer for the appropriate adapter kit and follow the installation instructions supplied with it.
Yes, if your towing vehicle has air springs, air shocks, or an automatic leveling system, you must check your vehicle's owner's manual or other instructions for those systems. Unless otherwise indicated, air springs and air shocks should be deflated to their minimum recommended pressure before assembling and adjusting the weight distributing hitch.
The uncoupled ball height should be set higher than the trailer coupler height to allow for vehicle squat when coupled to the trailer. For passenger cars, add 1/8" to the coupler height for each 100 lbs of tongue weight. Measure the trailer coupler height with the trailer leveled on pavement using the tongue jack, then position the hitch head on the shank to the nearest bolt hole that corresponds with your calculated target ball height.

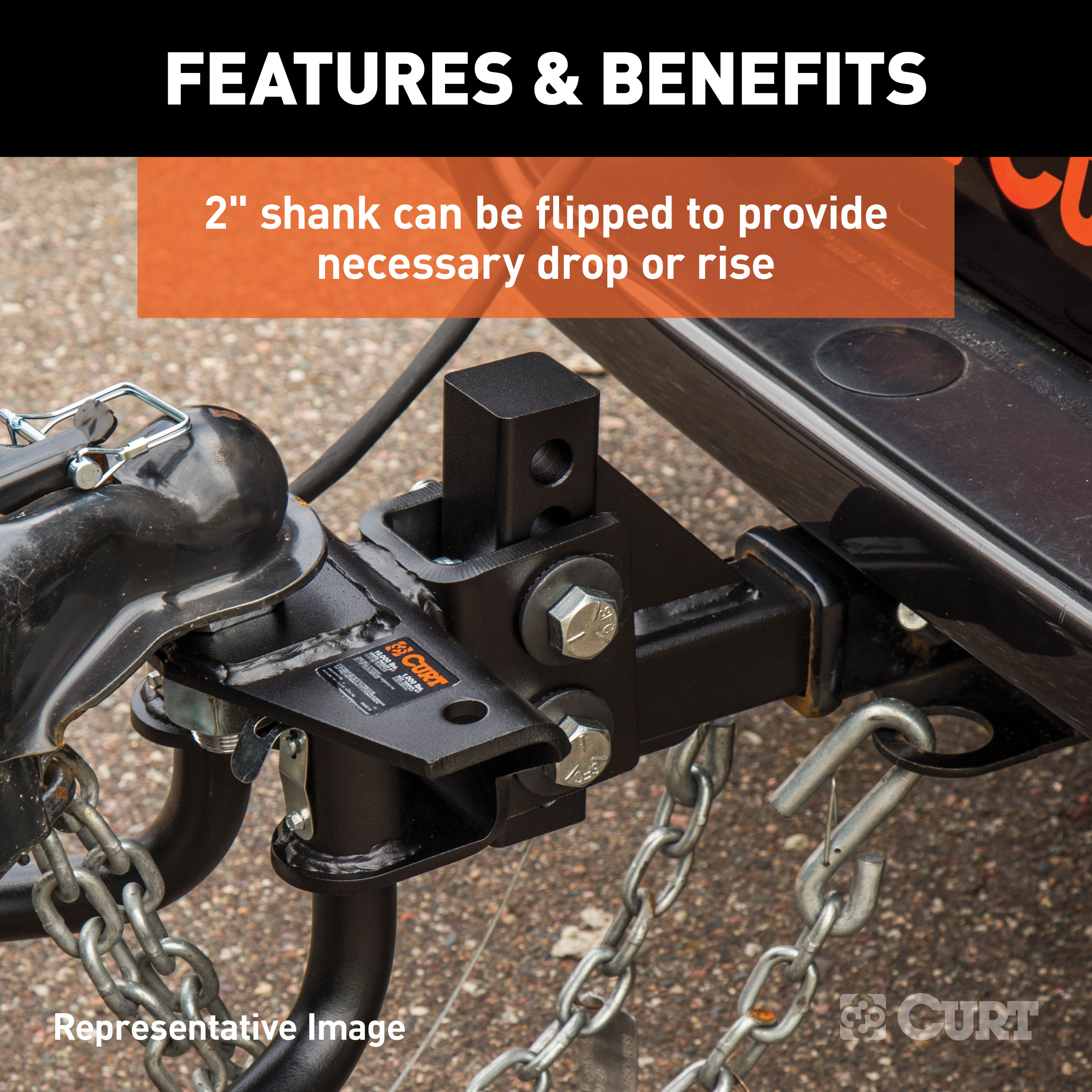

Yes, the adjustable shank may be inverted as shown in the manual to obtain proper ball height on high ground clearance vehicles. However, if the shank is used in the inverted position, you must check for adequate ground clearance to ensure the shank does not strike the ground or other objects.
Attach each lift chain (8mm x 400mm) to the tapered end of each spring bar using a 3/8" U-bolt, 3/8" washers, and 3/8" nylock nuts. Position the tapered surface up and let 2 to 3 threads of the U-bolt extend through the bottom of the locknut. The chain must be free to move in the U-bolt. Apply heavy fibrous grease to the round end of each spring bar before inserting into the hitch head socket.
Push the greased round end of each spring bar up into the head socket until you hear a click. This click indicates that the spring bar is locked into place. To release a spring bar later, lift up slightly on the spring bar and gently pull out on the retaining pin in the hitch head; the spring bar will drop free.
Position the lift bracket on the trailer tongue so that the lift chain is centered between the lift bracket. Hold the lift chain vertical up alongside the trailer tongue. Some trailers may have an obstruction on one side of the frame; if so, order the offset lift bracket kit from your local dealer and follow the installation instructions supplied with that kit.

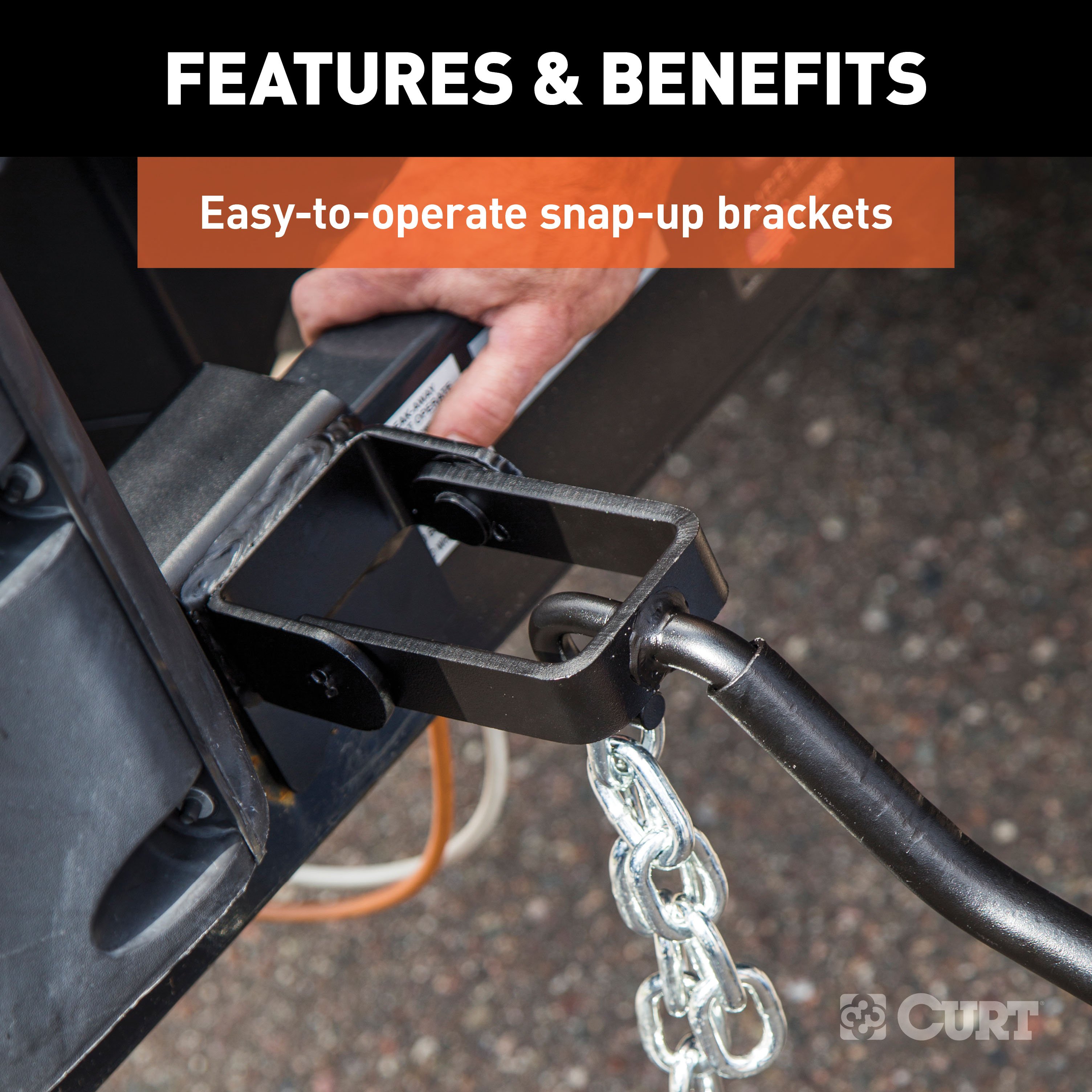

1. Slip the marked chain link over the hook on the lift bracket. 2. Insert the lift handle onto the lift bracket rod above the lift chain hook. 3. Using the handle, raise the lift bracket up and over center so it is fully seated against the mounting bracket. 4. Secure by inserting the clip through the lift bracket and mounting bracket. Ensure the chain is not twisted and the hook extends through the link. Before raising, raise the front of the trailer to reduce spring bar chain tension for easier and safer operation.
1. Remove the locking pin from the lift bracket. 2. Insert the lift handle onto the rod above the lift chain attachment. 3. Carefully lower the bracket with the handle. It will require effort to bring the bracket over center and then to resist the chain tension as the bracket rotates downward. Before lowering, raise the front of the trailer to reduce spring bar chain tension for easier and safer operation.
Tighten the 3/4" - 10 x 4 1/2" hex bolts (#8) and 3/4" nylock nuts (#10) to 200 ft. lbs. torque. Failure to tighten these bolts to the correct torque may result in fastener loss or failure.
Tighten the 5/8" hex head set-screw to 50 ft. lbs. torque. Failure to tighten this bolt may result in fastener loss or failure.
Tighten the 1/2" head attachment bolts to 75 ft. lbs. torque. Failure to tighten these bolts to the correct torque may result in fastener loss or failure.
Install the bolt into the threaded hole in the lift bracket, turn it in until it contacts the trailer tongue, then tighten a 1/4 turn with a wrench. Do not overtighten.
There must be at least 5 chain links between the lift bracket and the spring bar. If fewer than 5 links are used, the chain and snap-up bracket will bind. The number of links should be the same on both bars. If your surge brake requires more movement, you may need to increase the number of chain links by tilting the head down.
The loaded ball height must never be greater than the uncoupled ball height. If it is, front wheel overload and loss of rear wheel traction can result, leading to unstable handling, reduced braking ability, and a tendency to jackknife when turning and braking at the same time. If the loaded trailer ball height is greater than the uncoupled height, reduce take-up on the spring bar chains, remeasure, and adjust until the proper height is obtained.
Keep clear of the pivot path of all moving parts when there is tension on the spring bar chain. Maintain control of the lift handle at all times when raising or lowering the spring bar. Be sure that the locking hair pin is in place once the lift bracket is in the up position. Before raising or lowering the lift bracket, raise the front of the trailer to reduce spring bar chain tension; this will make the operation easier and safer.
Yes, spring bars must always be used as a pair of matching weight rating. The tongue weight rating of the spring bars represents the capacity of a pair of bars, not an individual bar. Using a pair of spring bars increases the weight distribution capacity: with spring bars, the 17057 is rated for 10,000–14,000 lbs gross trailer weight and 1,000–1,400 lbs tongue weight. Without spring bars, the capacity is limited by the trailer ball manufacturer's weight rating.
Check the following before towing: pin and clip securing shank to receiver; head to shank fasteners; trailer ball nut torque; coupler latch; snap-up bracket bolt; safety chains; lights and turn signals; and braking system, including breakaway switch. At the beginning of every tow day, check all trailer to towing vehicle connections for security and operation.
After raising the lift bracket, the vehicle should settle evenly, within 1/2". Re-measure the front and rear bumper reference points. If the front has settled much more than the rear, increase the number of chain links between the lift bracket and the spring bar. The spring bars should be nearly horizontal when correct height is achieved. Once correct height is achieved, mark the spring bar chain at the hooked position with paint for future hook-up reference.
Keep the socket-mounted ends of the spring bars and the lock pins in the head assembly free from dirt and well lubricated. Coat the clevis pins in the head assembly with fibrous grease. Clean the ball and coupler socket, and coat the ball lightly with grease. Check spring bar chains and U-bolts for wear and security, and replace if worn. Check that all trailer balls are properly tightened and that the locking pins in the lift brackets are securely in place. Keep the head assembly exterior clean and do not allow dirt or stones to lodge between the spring bars and the head. Keep hitch parts painted to prevent rust and maintain good appearance; do not paint over labels. Keep lift brackets clean and lubricated to ensure ease of operation.

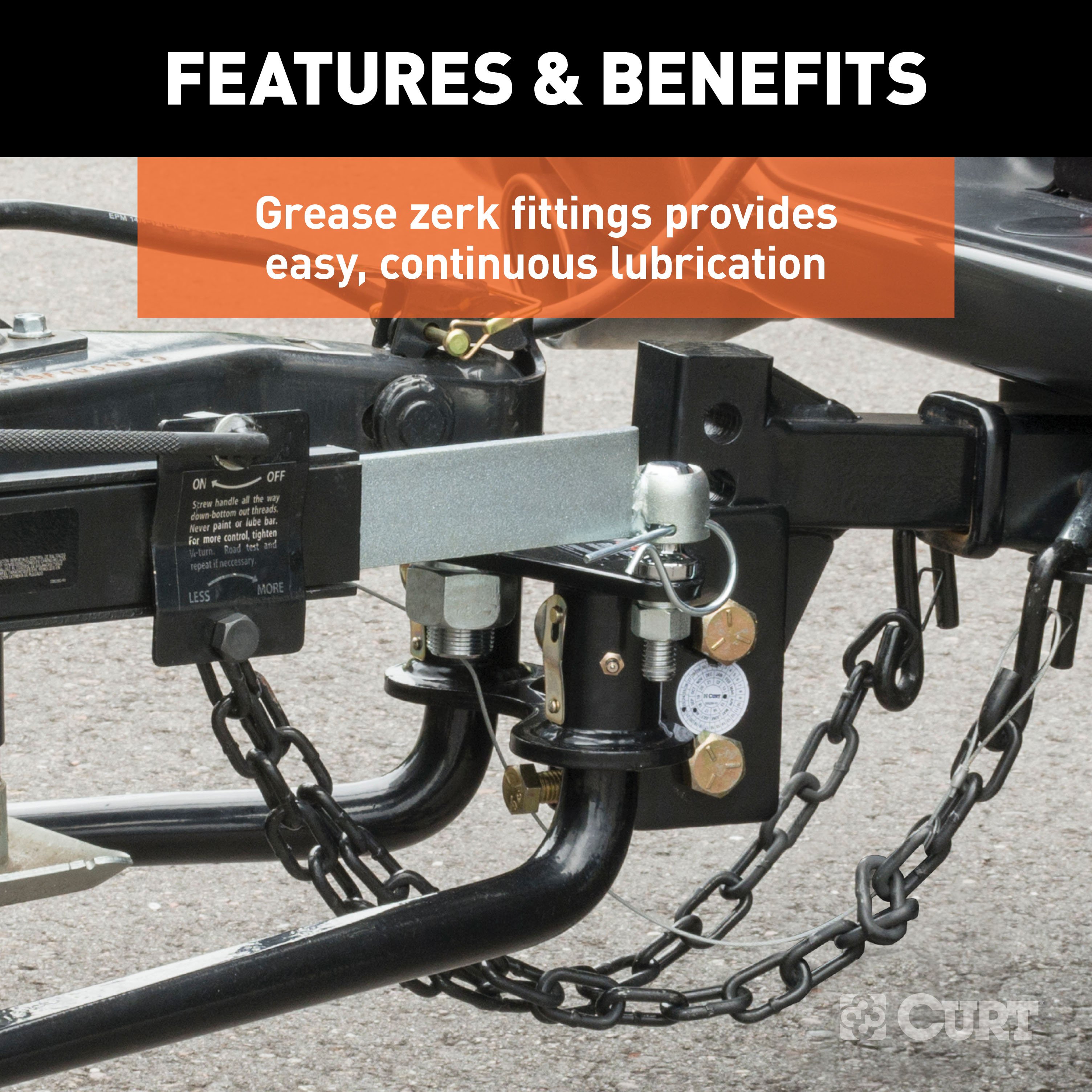

Apply heavy fibrous grease to the round end of each spring bar before inserting into the hitch head socket. Keep the spring bars lubricated during operation. If additional grease is needed during operation, use the grease zerk. Excessive wear in the socket-mounted area may indicate an overload or inadequate lubrication.
Surge brakes require a small amount of fore and aft movement for their actuating mechanism to function correctly. To avoid restricting movement, it may be necessary to increase the number of chain links between the lift brackets and spring bars by tilting the head down. Tighten the two 3/4" bolts to 200 ft. lbs. torque once head angle is set. Surge brake actuators not designed for use with a weight distributing hitch may bind and not operate freely; check your surge brake operating instructions for specific requirements regarding their use with weight distributing hitches.
Yes, remove the weight distribution hitch from the trailer hitch on the towing vehicle when not towing a trailer. This reduces the chances of striking the weight distribution hitch on the driveway or other objects and reduces the chance of parts being stolen.

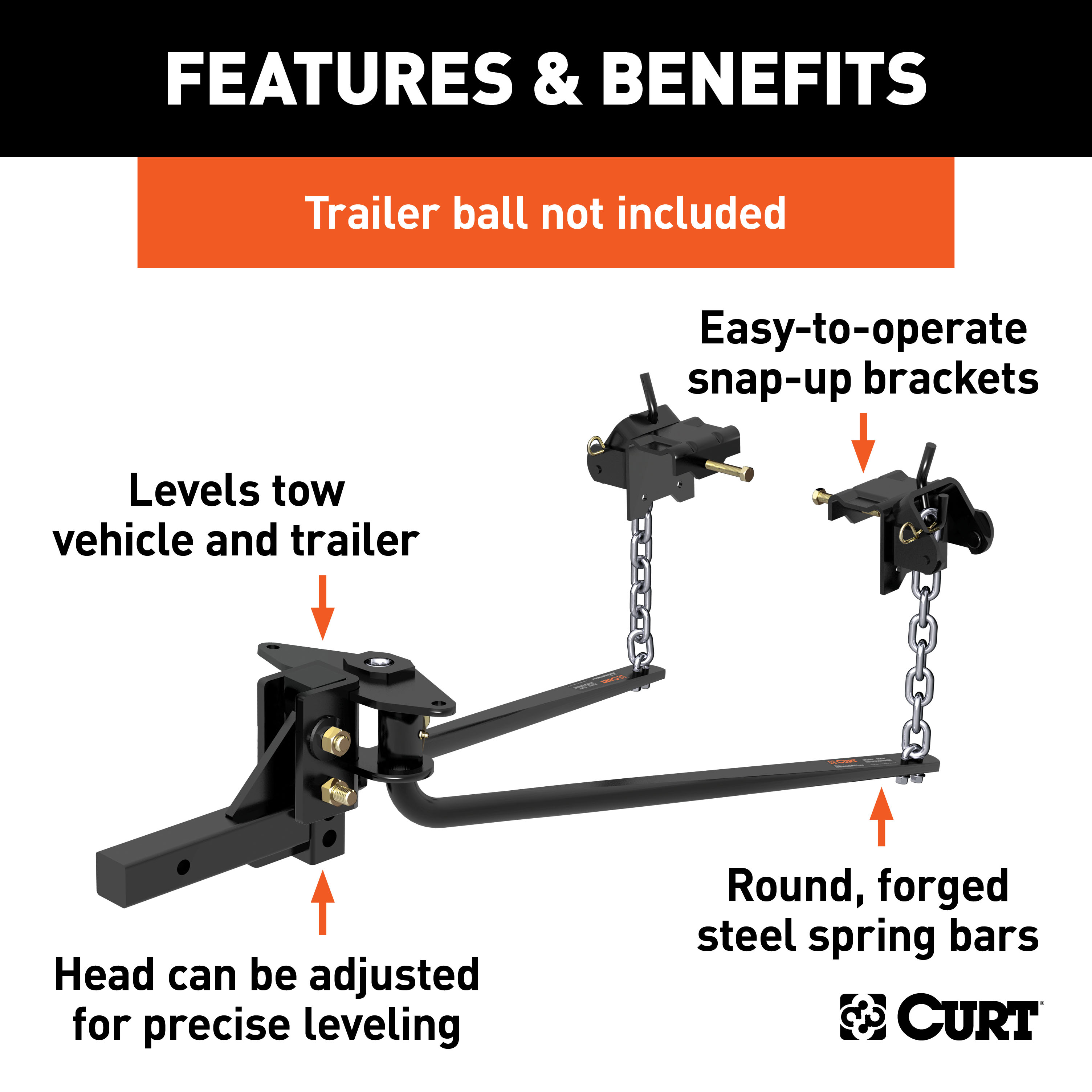

The kit includes: hitch head, adjustable shank, 2 spring round bars, 2 snap-up brackets, pipe handle, 2 lift chains (8mm x 400mm), reducer bushing (1 1/4" to 1"), 2 hex bolts (3/4" - 10 x 4 1/2"), 2 conical washers (3/4"), 2 nylock nuts (3/4" - 10), hitch pin (5/8" x 3"), clip, 2 U-bolts (3/8" - 16), 4 nylock nuts (3/8" - 16), 4 washers (3/8"), 2 bolts (1/2" - 13 x 3 3/4"), 2 clips for snap-up bracket, pin, and 7 flat washers (1/2").
Select a 1 1/4" threaded-shank hitch ball with a load capacity equal to or exceeding the gross trailer weight. Attach the ball to the head assembly using a lock washer and nut. If you prefer a 1" threaded shank hitch ball, use the reducer bushing (part #7) included in the kit.
The Curt 17057 fits any towing vehicle with a standard receiver tube. The hitch is designed for trailers with A-frame tongues rated up to 14,000 lbs gross trailer weight. For pole tongue trailers, you will need a pole tongue adapter. Verify your vehicle's towing capacity in your owner's manual does not exceed 14,000 lbs.
Yes, the hitch ball is not included. You must purchase a 1 1/4" threaded-shank hitch ball (or 1" with the included reducer bushing) with a capacity equal to or exceeding your gross trailer weight.
If your vehicle has air springs, air shocks, or automatic leveling, check your owner's manual. Unless otherwise indicated, deflate these systems to minimum recommended pressure before assembling the hitch.
Tighten 3/4" bolts to 200 ft. lbs., 5/8" set-screw to 50 ft. lbs., and 1/2" head attachment bolts to 75 ft. lbs. Do not overtighten the 1/2" lift bracket bolt—turn in until it contacts the tongue, then tighten 1/4 turn only.
Maintain at least 5 chain links between the lift bracket and each spring bar to prevent binding. Use the same number of links on both bars.
The loaded ball height must never exceed the uncoupled height. If it does, you risk front wheel overload, loss of rear traction, unstable handling, reduced braking, and jackknife tendency. Adjust spring bar chain take-up if needed.
Yes, remove the hitch to reduce damage risk from striking objects and to prevent theft.
Increase the number of chain links between the lift bracket and the spring bar. Re-measure the front and rear bumper reference points. The vehicle should settle evenly, within 1/2". The spring bars should be nearly horizontal when correct height is achieved. Adjust the head tilt to accomplish the correct chain length, and ensure the number of links is the same on both bars.
This is a critical safety issue that can cause front wheel overload, loss of rear wheel traction, unstable handling, reduced braking ability, and jackknife tendency. Reduce the take-up on the spring bar chains, remeasure the ball height, and adjust until the loaded ball height is lower than or equal to the uncoupled height.
Before raising or lowering the lift bracket, raise the front of the trailer with the tongue jack to reduce the spring bar chain tension. This will make the lift bracket operation easier and safer. If the bracket is still difficult to operate, check that the lift bracket and spring bars are clean and well lubricated.
You have fewer than 5 chain links between the lift bracket and the spring bar. Increase the number of chain links to at least 5 on each bar. The number of links should be the same on both bars. Adjust the head tilt to accomplish the correct chain length.
Surge brake actuators not designed for use with a weight distributing hitch may bind and not operate freely. Check your surge brake operating instructions for specific requirements regarding their use with weight distributing hitches. You may need to increase the number of chain links between the lift brackets and spring bars by tilting the head down to allow more fore and aft movement for the brake actuator.
| Kit # | Hitch # | GTW | TW | Bar Length | Kit Includes |
|---|---|---|---|---|---|
| -- | 17050 | 5,000 - 6,000 lbs. | 500 - 600 lbs. | 31-3/16" | -- |
| -- | 17051 | 6,000 - 8,000 lbs. | 600 - 800 lbs. | 31-3/16" | -- |
| 17062 | 17052 | 8,000 - 10,000 lbs. | 800 - 1,000 lbs. | 31-3/16" | Sway control (17200), pre-torqued 2-5/16" trailer ball (40006) and chains pre-assembled to spring bars |
| 17063 | 17057 | 10,000 - 14,000 lbs. | 1,000 - 1,400 lbs. | 31-3/16" | Sway control (17200), pre-torqued 2-5/16" trailer ball (40030) and chains pre-assembled to spring bars |
