Includes weight distribution hitch, sway control unit and trailer ball
Includes weight distribution hitch, sway control unit and trailer ball
Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Color: Black
Finish: CARBIDE BLACK POWDER COAT
WC / TW (Pounds): 1,000 LB
WC Tongue Weight (Pounds): 1,000 LB
Gross Trailer Weight (Pounds): 10,000 LB
Installation Time Exact (Minutes): 0
Your route is planned and the trails are calling, but before you can cover any ground, you need to start with a solid connection between your tow vehicle and trailer. The CURT round bar weight distribution hitch with integrated lubrication offers a smooth ride and level towing with its heavy-duty components and built-in lubrication system. From travel trailers to popup campers, the CURT WD hitch is the perfect camping companion to let you Bring It. The strength of the round bar WD hitch begins with its heavy-duty, formed steel head. The formed construction allows for a precise design and supplies the durability needed to manage the weight of heavy trailers. Something unique to the weight distribution hitch is its grease zerk fittings, built directly into the head, allowing for easy, continuous lubrication at the spring bar mounting location. The spring bars are installed from the underside of the WD head and are made with forged steel for optimum strength. Like other CURT weight distribution hitches, the round bar hitch comes with a highly adjustable shank and chain hookup brackets for the perfect amount of tension to level the load. The shank fits any 2" x 2" receiver tube opening, making it compatible with most class 3, class 4 and class 5 trailer hitches. The head is also compatible with our 2-1/2" weight distribution shanks to match the heaviest of class 5 hitches. The hookup brackets and spring bars of the CURT WD hitch use chains and a simple snap-up design for easy setup and adjustment. This particular round bar weight distribution hitch offers a towing capacity ranging from 8,000 to 10,000 lbs. GTW and 800 to 1,000 lbs. TW. It comes with installation hardware, a pre-torqued 2-5/16" trailer ball and a sway control unit #17200. To protect this WD hitch on the way to your next destination and beyond, it also comes with a durable carbide powder coat finish.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Rediscover "Us" Time | Tested. Proven. Safe. Towing Products

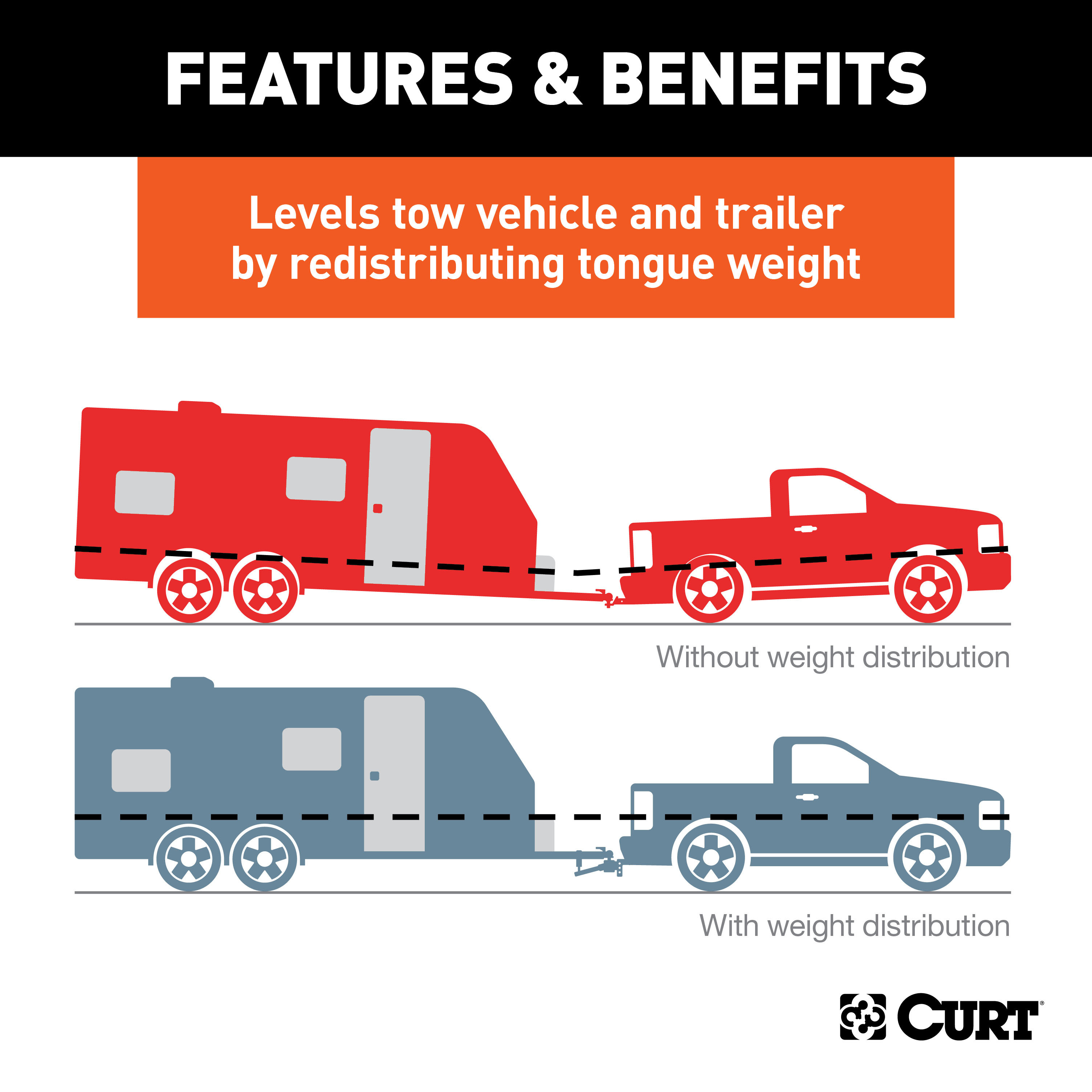

The Curt 17062 is a weight distribution hitch system designed to level a tow vehicle when towing a trailer with an A-frame tongue. It uses spring bars and lift brackets to distribute tongue weight across the tow vehicle's axles, improving stability and braking. The kit includes a hitch head, adjustable shank, two spring round bars, lift chains, snap-up brackets, sway control unit, and all necessary fasteners.
No. The Curt 17062 is designed for trailers with A-frame tongues. If your trailer has a straight (pole) tongue instead, you will need to use a pole tongue adapter for hook-up of the weight distributing hitch lift brackets.
The Curt 17062 has a gross trailer weight rating of 10,000 lbs. and a tongue weight rating of 1,000 lbs. when used with spring bars. Without spring bars, the weight rating is dependent on the trailer ball manufacturer's weight ratings and must not exceed 10,000 lbs. gross trailer weight or 1,000 lbs. tongue weight. Always use a pair of spring bars of the same weight rating.
The Curt 17063 has a gross trailer weight rating of 14,000 lbs. and a tongue weight rating of 1,400 lbs. when used with spring bars. Without spring bars, the weight rating is 10,000 lbs. gross trailer weight and 1,000 lbs. tongue weight, dependent on the trailer ball manufacturer's weight ratings. Always use a pair of spring bars of the same weight rating.

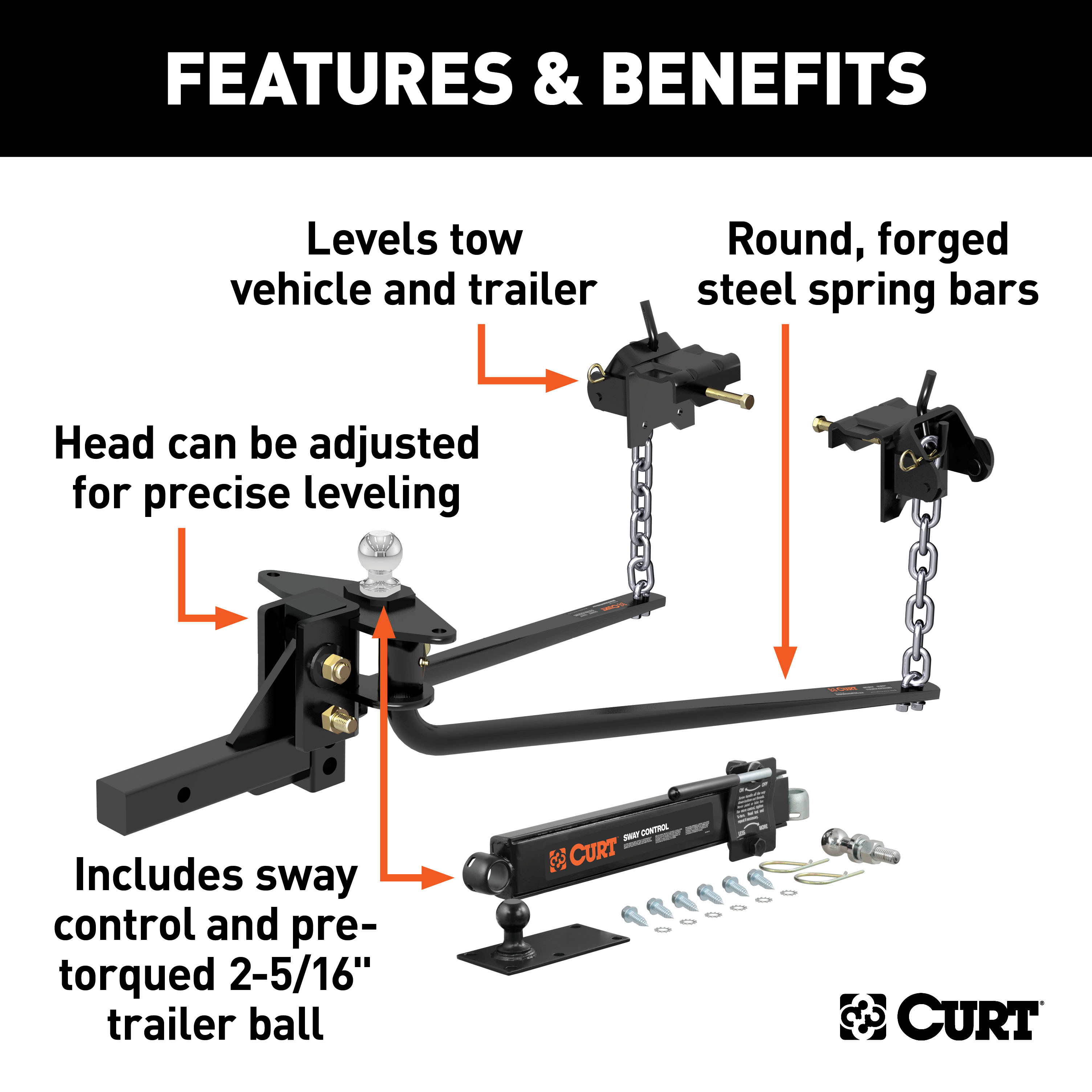

The kit includes: hitch head, adjustable shank, 2 spring round bars, 2 snap-up brackets, pipe handle, 2 lift chains (8mm x 400mm), sway control unit, 2 hex bolts (3/4" - 10 x 4 1/2"), 2 conical washers (3/4"), 2 nylock nuts (3/4" - 10), hitch pin (5/8" x 3"), clip, 2 U-bolts (3/8" - 16), 4 nylock nuts (3/8" - 16), 4 washers (3/8"), 2 bolts (1/2" - 13 x 3 3/4"), 2 clips for snap-up bracket, pin, 7 flat washers (1/2"), lock washer (1 1/4"), hex nut (1 1/4"), and trailer ball (2 5/16").
Yes, if your vehicle has air springs, air shocks, or automatic leveling systems, you must deflate them to their minimum recommended pressure before assembling and adjusting the weight distributing hitch. Consult your vehicle's owner's manual for the correct minimum pressure. This ensures accurate ball height measurement and adjustment.
You need to take three measurements on level pavement with the trailer leveled using the tongue jack: (1) distance from pavement to the top of the trailer coupler socket, (2) height from pavement to the front bumper of the tow vehicle, and (3) height from pavement to the rear bumper of the tow vehicle. These measurements determine the target uncoupled ball height for proper hitch adjustment.
Measure the trailer coupler height and the front and rear bumper heights of the tow vehicle on level pavement. The uncoupled ball height should be set higher than the coupler height to allow for vehicle squat when coupled to the trailer. For passenger cars, add 1/8" for each 100 lbs. of tongue weight. Position the hitch head on the shank at the nearest bolt hole that corresponds to this target height.

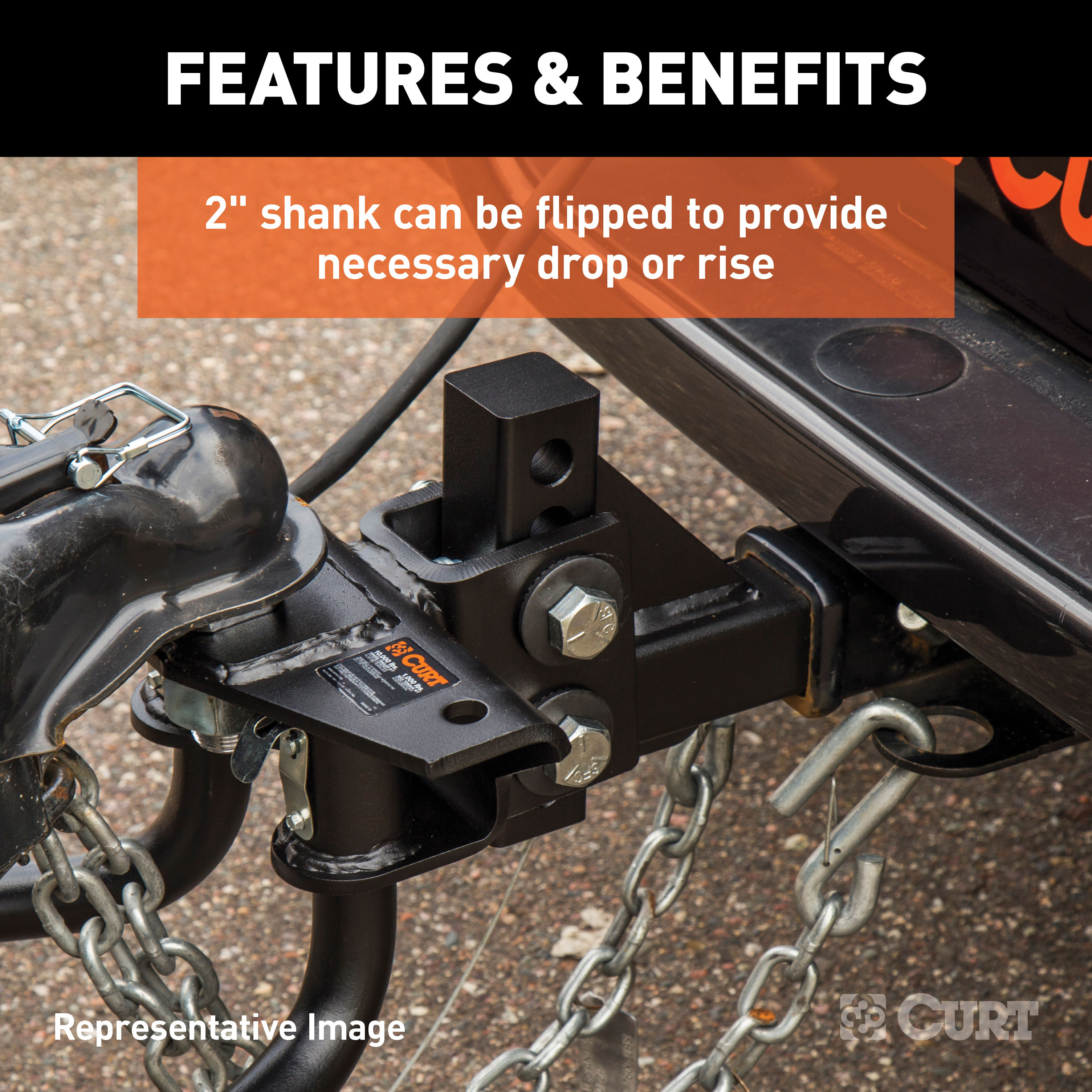

Yes. If the shank cannot reach the proper ball height in the standard upright position, it may be inverted as shown in the manual. However, you must check for adequate ground clearance when using the shank in the inverted position to ensure it does not contact the ground or other obstacles.
Attach each lift chain (8mm x 400mm) to the tapered end of each spring bar using a 3/8" U-bolt, 3/8" washer, and 3/8" nylock nut. Let 2 to 3 threads of the U-bolt extend through the bottom of the locknut. The chain must be free to move in the U-bolt. Apply heavy fibrous grease to the round end of each spring bar before inserting into the hitch head socket.
Apply heavy fibrous grease to the round end of each spring bar and push the end up into the head socket until you hear a click. This indicates the spring bar is locked into place. To release a spring bar, lift up slightly and gently pull out the retaining pin in the hitch head; the spring bar will drop free. Keep spring bars lubricated during operation using the grease zerk if additional grease is needed.
Position the spring bar parallel with the trailer tongue and hold the lift chain vertical alongside the tongue. Position the lift bracket so the chain is centered between the bracket. Mark the location, then install the 1/2" - 13 x 3 3/4" bolt into the threaded hole in the lift bracket. Turn the bolt until it contacts the trailer tongue, then tighten a 1/4 turn with a wrench. Do not overtighten. If the trailer has an obstruction on one side, order an offset lift bracket kit.
Before raising, raise the front of the trailer approximately 3" with the tongue jack to reduce spring bar chain tension. Slip the marked chain link over the hook on the lift bracket, insert the lift handle onto the lift bracket rod above the chain hook, and raise the bracket up and over center until fully seated against the mounting bracket. Secure by inserting the clip through the lift bracket and mounting bracket. Ensure the chain is not twisted and the hook extends through the link.
Remove the locking pin from the lift bracket. Insert the lift handle onto the rod above the chain attachment. Carefully lower the bracket with the handle. It will require effort to bring the bracket over center and then to resist the chain tension as the bracket rotates downward. Before raising or lowering, raise the front of the trailer to reduce spring bar chain tension for easier and safer operation.
There should be at least 5 links minimum between the lift bracket and the spring bar to allow movement when turning. If fewer than 5 links are used, the chain and snap-up bracket will bind. The number of links should be the same on both bars. Adjust head tilt to accomplish the correct chain length. Mark the spring bar chain at the hooked position with paint for future reference.
The number of washers on the pin in the head channel controls head tilt. Place six 1/2" flat washers on the pin and insert into the unthreaded hole in the upper portion of the head channel. After installing the head on the shank, rotate it forward as far as it will go. The ball should be vertical or tilted slightly back. If not, remove the 3/4" bolt, change the number of washers, and re-assemble. The number of washers may need adjustment to achieve correct chain length and head angle.
Tighten the 3/4" - 10 x 4 1/2" hex bolts to 200 ft. lbs. torque. Failure to tighten bolts to this specification may result in fastener loss or failure. These bolts secure the head assembly to the shank.
Tighten the 5/8" hex head set-screw to 50 ft. lbs. torque. Failure to tighten this bolt may result in fastener loss or failure. This bolt secures the head tight against the pin in the head channel.
Tighten the 1/2" head attachment bolts to 75 ft. lbs. torque. Failure to tighten bolts to this specification may result in fastener loss or failure.
After raising the lift bracket, the vehicle should settle evenly within 1/2". Re-measure the front and rear bumper reference points. If the front has settled much more than the rear, increase the number of chain links between the lift bracket and the spring bar. The spring bars should be nearly horizontal when correct height is achieved. Once correct height is achieved, mark the spring bar chain at the hooked position with paint for future reference.
Check the following before towing: (1) pin and clip securing shank to receiver, (2) head to shank fasteners, (3) trailer ball nut torque, (4) coupler latch, (5) snap-up bracket bolt, (6) safety chains, (7) lights and turn signals, (8) braking system including breakaway switch. Ensure all connections are secure and operational.
Keep the socket-mounted ends of the spring bars and lock pins in the head assembly free from dirt and well lubricated. Keep the head assembly exterior clean and do not allow dirt or stones to lodge between the spring bars and the head. Keep hitch parts painted to prevent rust and maintain appearance; do not paint over labels. Keep lift brackets clean and lubricated to ensure ease of operation. Coat clevis pins in the head assembly with fibrous grease and lightly coat the ball with grease.
Check spring bar chains and U-bolts for wear and security at the beginning of every tow day. Replace them if they become worn. Excessive wear in the socket-mounted ends of the spring bars and lock pins may indicate an overload or inadequate lubrication.
The loaded ball height should never be greater than the uncoupled ball height. If it is, front wheel overload and loss of rear wheel traction can result, leading to unstable handling, reduced braking ability, and a tendency to jackknife when turning and braking at the same time. If the loaded trailer ball height is greater than the uncoupled height, reduce take-up on the spring bar chains, remeasure, and adjust until the proper height is obtained.
If the lift chain is angled fore or aft at the top within the lift bracket, it may catch on the bracket when turning. This could damage the lift bracket or pry it open. The chain must be held vertical alongside the trailer tongue and centered between the lift bracket to prevent this hazard.
Keep clear of the pivot path of all moving parts when there is tension on the spring bar chain. Maintain control of the lift handle at all times when raising or lowering the spring bar. Be sure the locking hair pin is in place once the lift bracket is in the up position. Before raising or lowering the lift bracket, raise the front of the trailer to reduce spring bar chain tension for easier and safer operation.

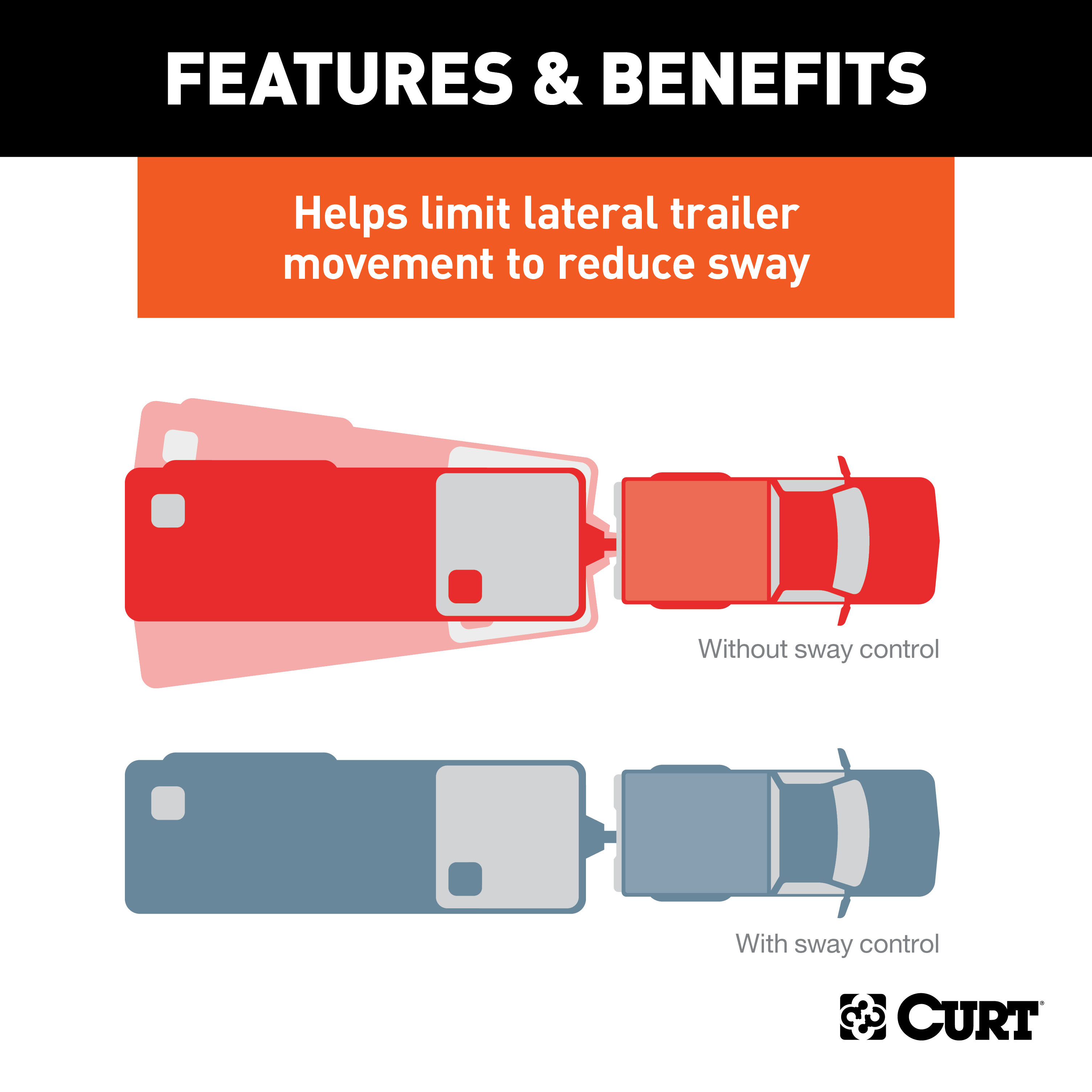

The sway control unit is included with the kit and helps minimize the effects of sudden maneuvers, wind gusts, and buffeting caused by passing vehicles. It is recommended especially for trailers with large surface areas such as travel trailers. The sway control attaches to a sway control ball on the weight distribution hitch and a trailer-mounted attachment ball. It uses a break tension screw that can be adjusted 1/4 turn clockwise if factory preset tension does not provide enough sway control.
Measure 24" straight back from the center of the coupler to the desired side of the trailer frame to determine the location of the attachment ball. The trailer-mounted attachment ball must be centered on the 24" measurement. Transfer punch the holes from the ball mount plate to the trailer frame and drill six 11/32" holes. Attach the trailer-mounted attachment ball to the trailer frame using the six self-tapping screws provided.
Lubricate the threads on the sway control handle with a drop of oil. Attach the socket on the slide bar to the sway control ball on the weight distribution hitch and secure with a spring clip. Turn the On/Off handle three turns counterclockwise to release tension. Place the main body socket onto the trailer-mounted attachment ball and secure with a spring clip. Turn the On/Off handle clockwise and tighten firmly until the handle is parallel with the main body.
No. The sway control cannot be used on trailers with surge brakes. Surge brake actuators not designed for use with a weight distributing hitch may bind and not operate freely. Check your surge brake operating instructions for specific requirements regarding their use with weight distributing hitches. If surge brakes are present, it may be necessary to increase the number of chain links between the lift brackets and spring bars by tilting the head down to allow the small amount of fore and aft movement required for the surge brake actuating mechanism to function correctly.
Do not speed up if sway occurs; sway increases with speed. If sway continues, stop the vehicle and inspect all towing equipment until the cause has been determined and corrected. In slippery conditions such as wet, icy, gravel, or snow-covered roads, the sway control must be removed. Trailers should be loaded with heavy items on the floor in front of the axle, balanced side to side. Tongue weight should be 10-15% of gross trailer weight for most trailers. Insufficient tongue weight or tail-heavy trailers can cause sway.
After a 1,000 mile break-in period, remove the slide bar and clean it using a wire brush or steel wool. The slide bar should then be cleaned every 10,000 miles. Never paint or lubricate the slide bar. Any welding should be done by a qualified welding shop.
Yes. Remove the weight distribution hitch from the trailer hitch on the towing vehicle when not towing a trailer. This reduces the chances of striking the weight distribution hitch on the driveway or other objects and reduces the chance of parts being stolen.
No. Trailers should not be occupied while being towed. Most states enforce this regulation.
Tongue weight should be 10-15% of the gross trailer weight for most trailers. Too low a tongue weight often produces a tendency to sway. Proper trailer loading is very important; heavy items should be placed close to the floor near the trailer axle centerline and balanced side to side.
If any part of your towing system bottoms out or if you suspect damage may have occurred in any way, pull over and make a thorough inspection. Correct any problems before resuming travel. Severe bumps and badly undulating roads can damage your towing vehicle, hitch, and trailer and should be negotiated at a slow, steady speed.
Never exceed your vehicle manufacturer's recommended towing capacity. Review the owner's manual for your towing vehicle and trailer for specific recommendations, capacities, and requirements.
The Curt 17062 fits trailers with A-frame tongues and has a 10,000 lbs. gross trailer weight capacity with spring bars. If your trailer has a straight (pole) tongue, you will need a pole tongue adapter. Check that your tow vehicle's manufacturer-recommended towing capacity is at least 10,000 lbs.
You will need a wrench to tighten bolts and a transfer punch and drill with an 11/32" bit for the sway control attachment ball installation. A wire brush or steel wool is needed for sway control maintenance. The manual does not specify other special tools required.
Yes, if your vehicle has air springs, air shocks, or automatic leveling systems, deflate them to minimum recommended pressure before assembly. Check your vehicle's owner's manual for the correct minimum pressure.
Tighten the 3/4" head bolts to 200 ft. lbs., the 5/8" set-screw to 50 ft. lbs., and the 1/2" head bolts to 75 ft. lbs. Failure to tighten to specification may result in fastener loss or failure.
No. The sway control cannot be used on trailers with surge brakes. Surge brake actuators may bind and not operate freely with a weight distributing hitch.
Keep spring bars and lock pins lubricated with fibrous grease. Check chains and U-bolts for wear and security before each tow. Clean the sway control slide bar with a wire brush every 10,000 miles. Never paint or lubricate the slide bar. Keep all hitch parts painted to prevent rust.
The loaded ball height should never be greater than the uncoupled ball height. If it is, reduce take-up on the spring bar chains, remeasure, and adjust until the proper height is obtained. Exceeding this can cause front wheel overload, loss of rear wheel traction, and jackknife tendency.
If the front has settled much more than the rear (more than 1/2" difference), increase the number of chain links between the lift bracket and the spring bar. This reduces the leveling effect. Re-measure the front and rear bumper reference points after adjustment. The spring bars should be nearly horizontal when correct height is achieved.
Excessive wear in the socket-mounted ends of the spring bars and lock pins may indicate an overload or inadequate lubrication. Keep these areas free from dirt and well lubricated. If wear is present, check that you are not exceeding the weight rating and ensure proper lubrication with fibrous grease.
If the ball is not vertical or tilted slightly back after rotating the head forward, remove the 3/4" bolt, change the number of washers on the pin in the head channel, and re-assemble. The number of washers controls head tilt. Adjust until the ball achieves the correct angle.
If the sway control hits the bumper or trailer frame when jackknifed, or if it becomes fully compressed or comes apart, the sway control must be removed while backing. Reposition the trailer-mounted attachment ball or adjust the sway control position to prevent contact.
Starting with the factory preset tension, road test the sway control unit. If the factory preset tension does not provide enough sway control, adjust the break tension screw 1/4 turn clockwise. Road test again and repeat if necessary until proper sway control is achieved. Larger or heavier trailers or broad-sided trailers may require the use of two sway control units.

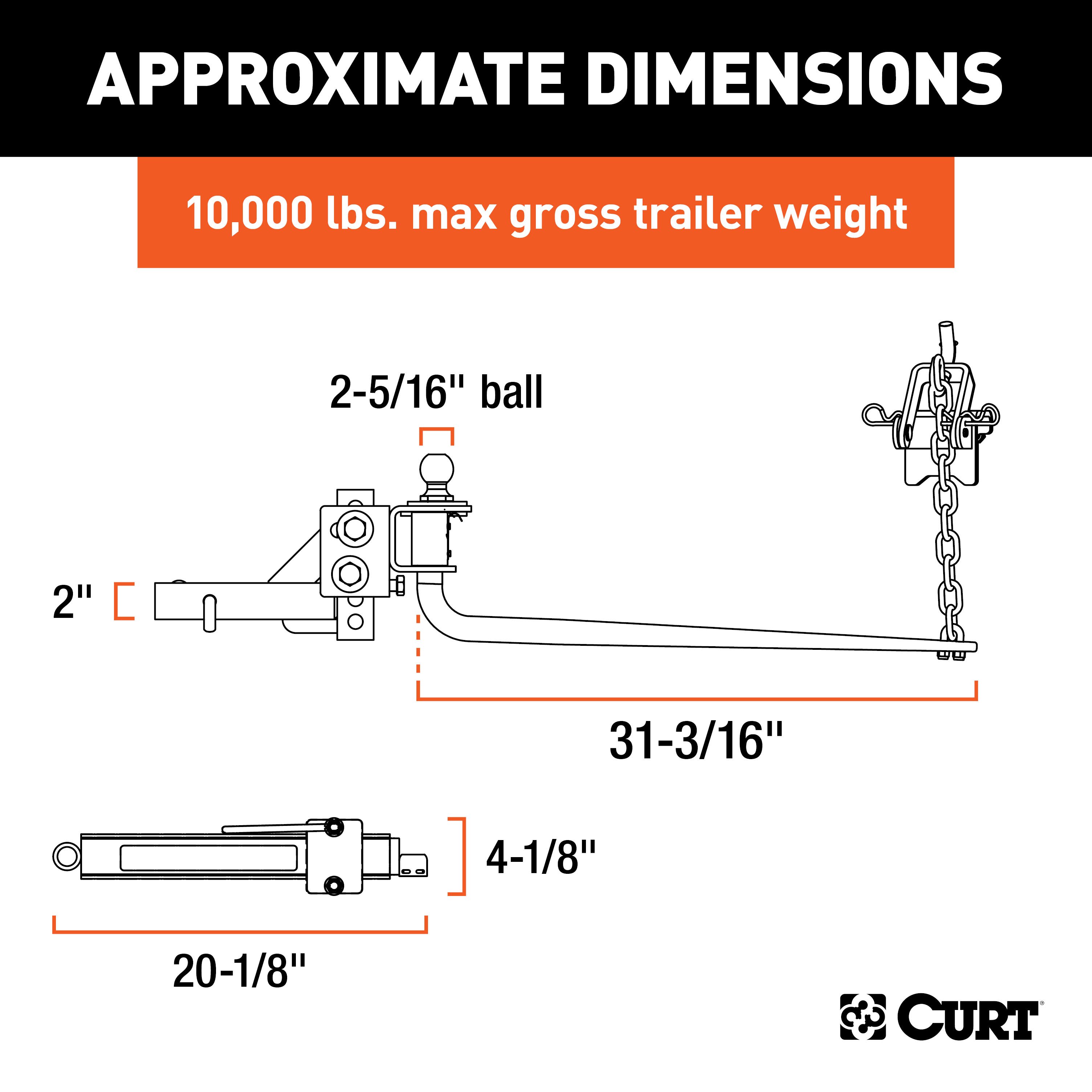

| Kit # | Hitch # | GTW | TW | Bar Length | Kit Includes |
|---|---|---|---|---|---|
| -- | 17050 | 5,000 - 6,000 lbs. | 500 - 600 lbs. | 31-3/16" | -- |
| -- | 17051 | 6,000 - 8,000 lbs. | 600 - 800 lbs. | 31-3/16" | -- |
| 17062 | 17052 | 8,000 - 10,000 lbs. | 800 - 1,000 lbs. | 31-3/16" | Sway control (17200), pre-torqued 2-5/16" trailer ball (40006) and chains pre-assembled to spring bars |
| 17063 | 17057 | 10,000 - 14,000 lbs. | 1,000 - 1,400 lbs. | 31-3/16" | Sway control (17200), pre-torqued 2-5/16" trailer ball (40030) and chains pre-assembled to spring bars |
