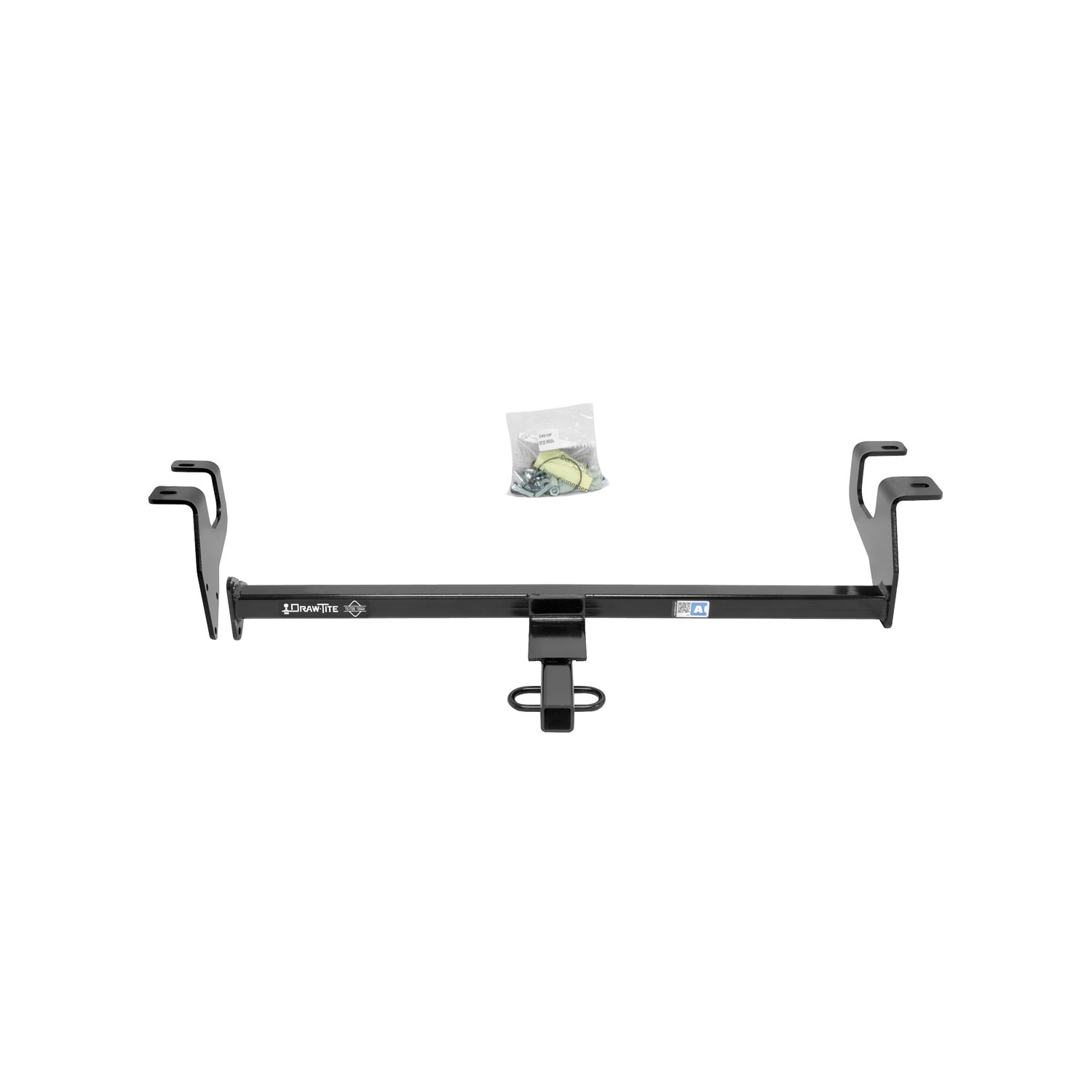

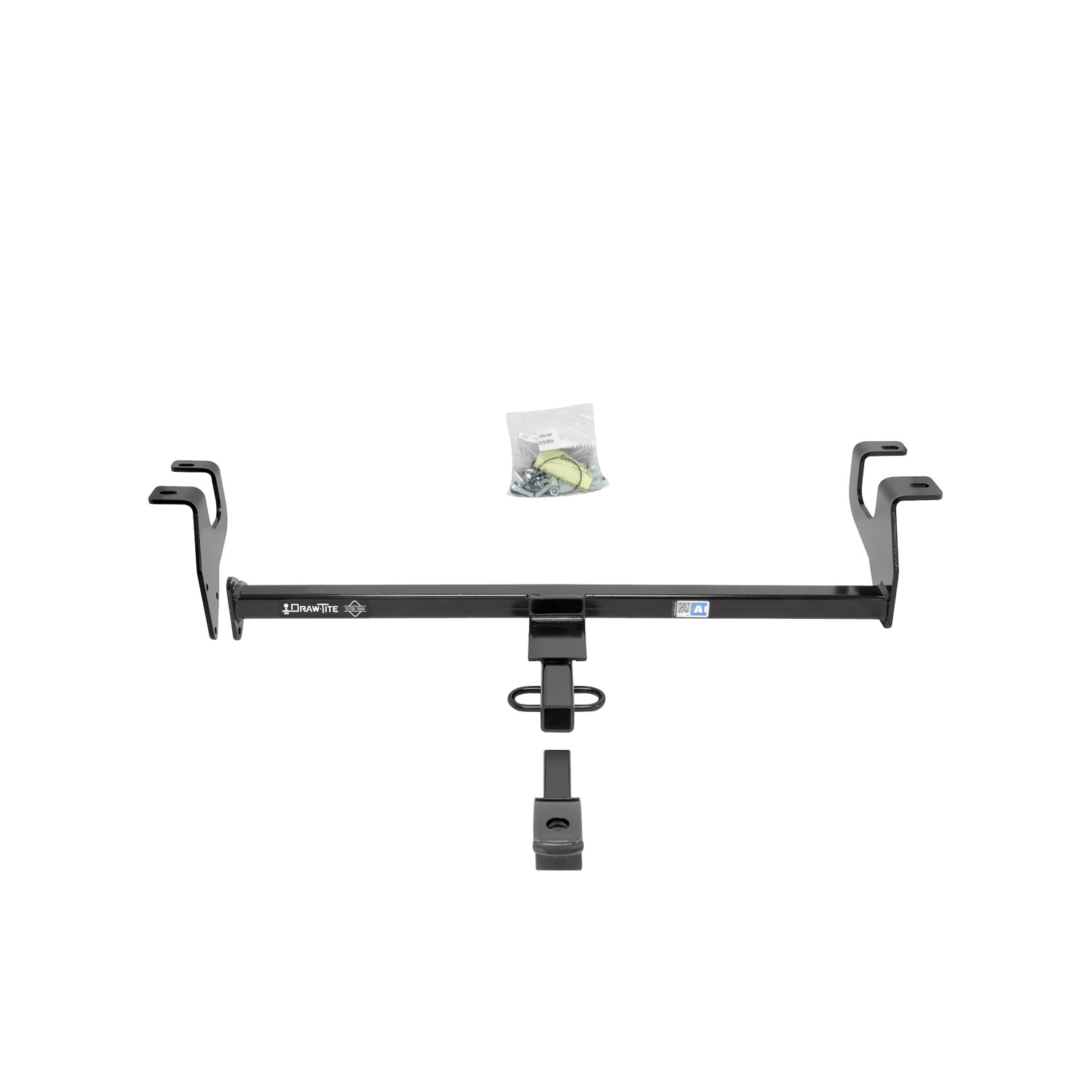

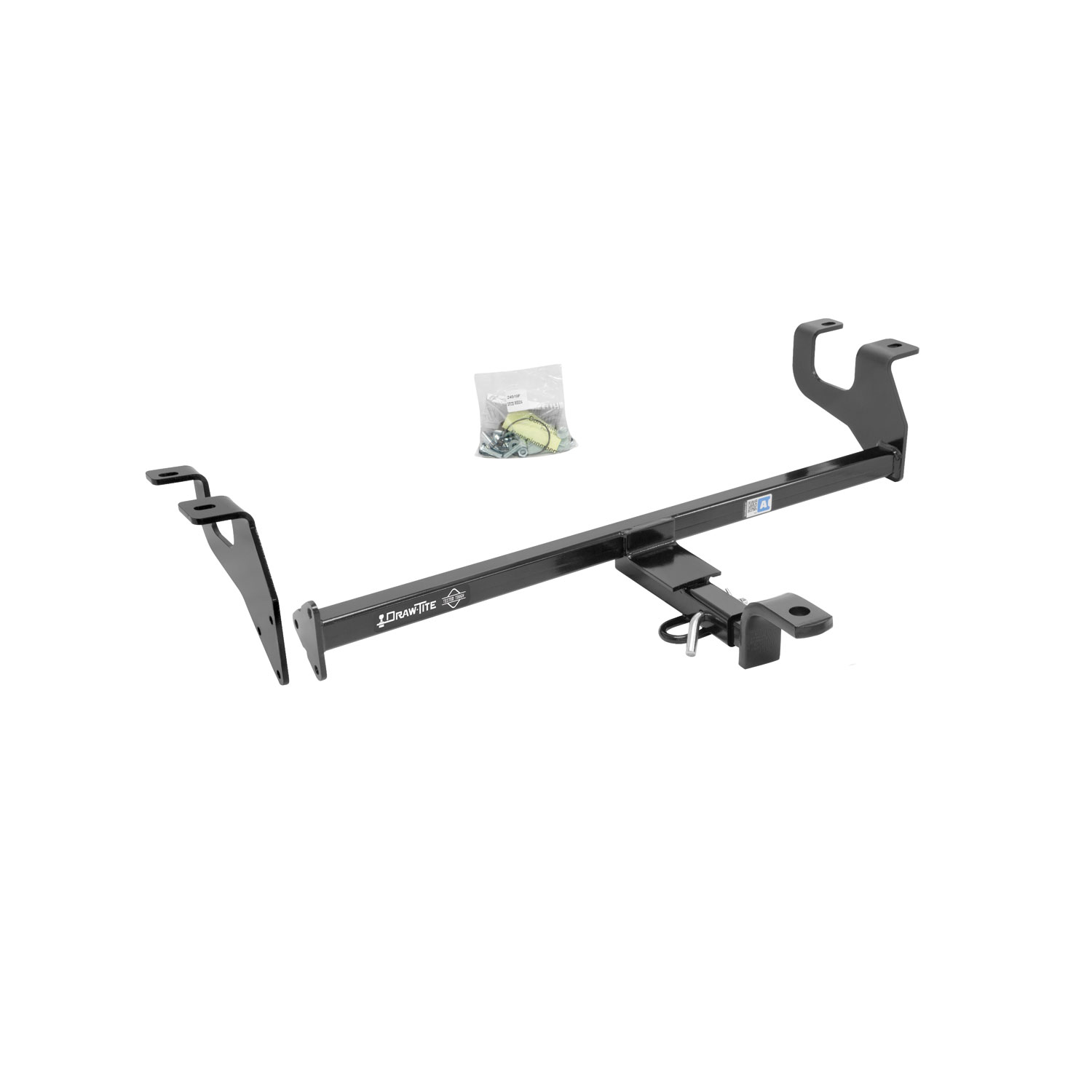

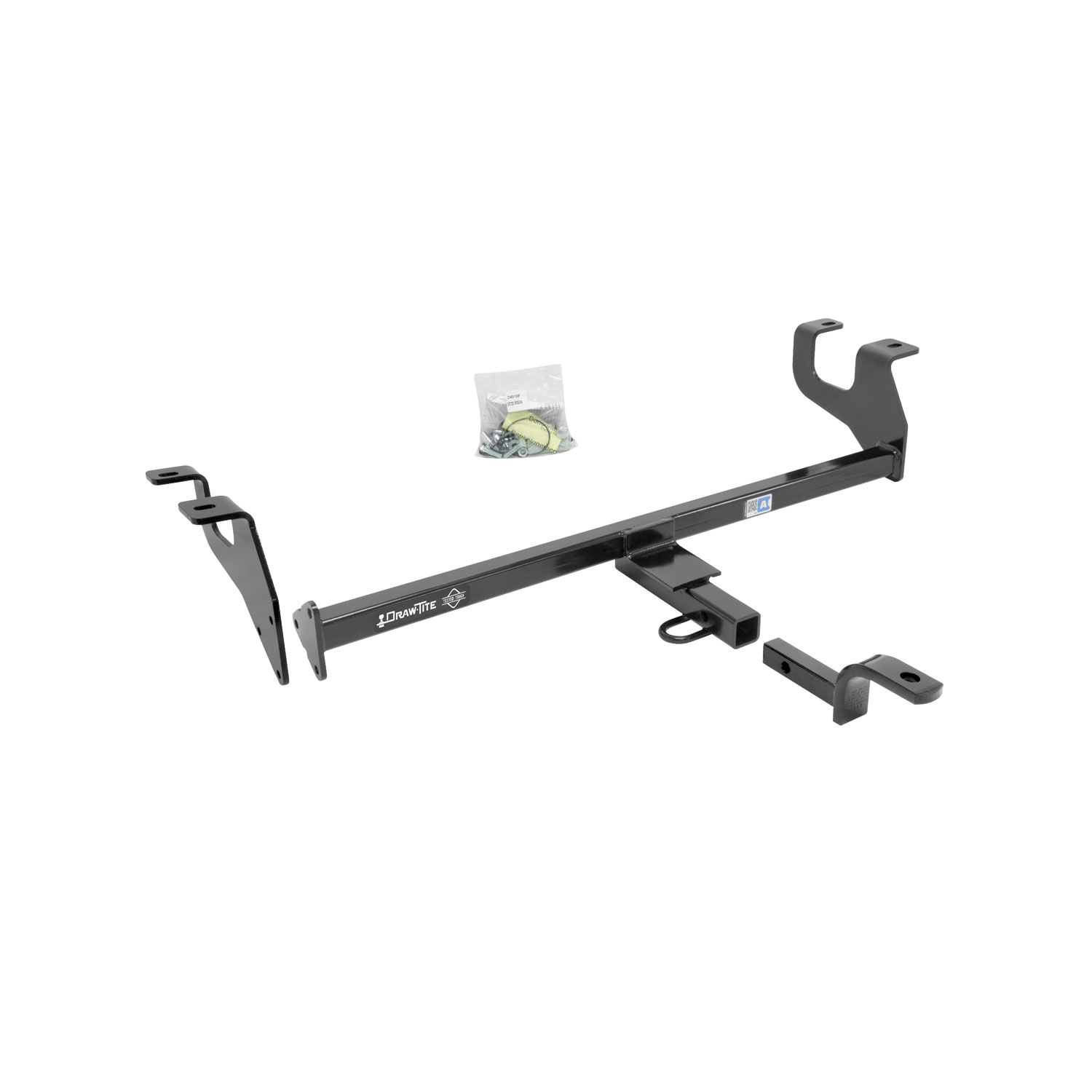

DRAW-TITE Class 1 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 1 receiver hitch is rated for up to 2,000 lbs. gross trailer weight (GTW) and up to 200 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 1 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 24919 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 22.1 LBS |
| GROSS TOWING WEIGHT: | 2,000 LBS. |
| GROSS TONGUE WEIGHT: | 200 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | I |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2015 - 2017 | Chrysler 745i | Sedan · 4-Door | Class 1 Trailer Hitch: 2000 lbs 200/2,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Chrysler 200 24919 (Part #DT24919) fits the following vehicles: 2015-2017 Chrysler 745i. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Chrysler 200 24919 (Part #DT24919) fits 2015-2017 Chrysler 745i models. The 2017 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Chrysler 200 24919 (Part #DT24919) is designed to fit the 2015-2017 Chrysler 745i.
The Draw-tite Class 1 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Chrysler 200 24919 (Part #DT24919) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 24919 is designed for the Chrysler 200. The hitch assembly includes part numbers 24919, 60352, 77306, and 24481 UH.
The maximum gross trailer weight is 2000 LB (908 kg), and the maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
No, the drawbar kit (part number 3593) is sold separately and must be purchased in addition to the hitch assembly.
The drawbar must be used in the RISE position only. Do not use it in any other position.
You will need wrenches in the following sizes: 11/16 inch, 9/16 inch, and 8mm. A torque wrench is also required to tighten fasteners to specification. No drill bits are needed.

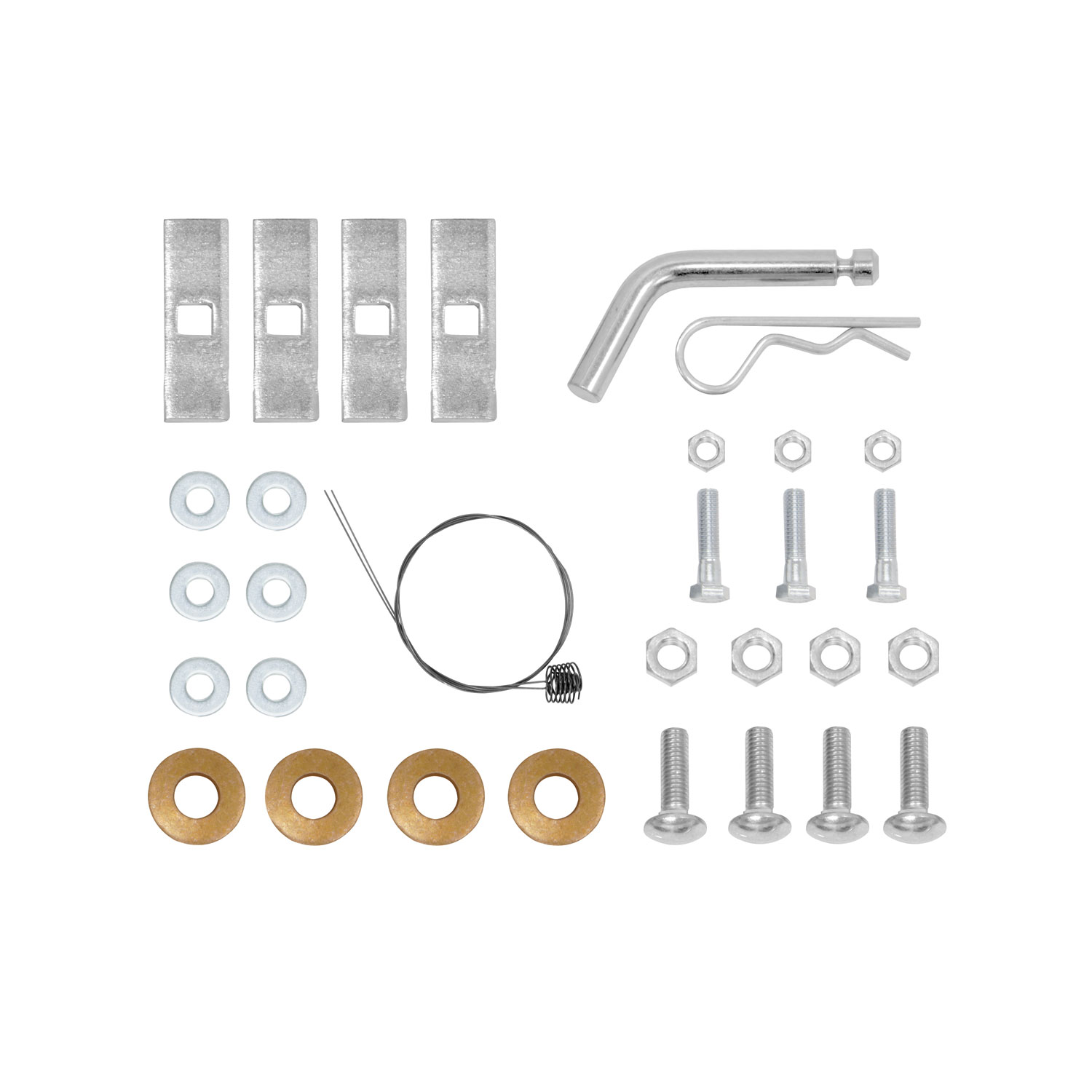

Fastener Kit 24919F is required. It includes 4 carriage bolts 7/16-14 X 1.75 GR5, 4 nuts 7/16-14, 4 spacers 1.00" X 3.00" X .250, 4 bolt leaders 7/16" (wireform), 4 conical washers 7/16", 3 bolts 3/8-16 X 1.50 GR5, 6 flat washers 5/16", and 3 locknuts 3/8-16.
You must remove bolts and plastic covers from the underside of the vehicle on both sides using an 8mm socket. You must also remove square rubber plugs from the underside of the frame rails on both sides.
Using the square access hole in the frame rail and the supplied bolt leader (wireform), insert a 7/16" bolt and spacer block into the frame. Kink the bolt leader to keep the block independent of the bolt, as shown in Figure 1. This allows you to position the spacer block at the desired bolt attachment hole inside the frame.
1. Remove factory bolts, plastic covers, and rubber plugs from both sides of the underside. 2. Insert the 7/16" bolt and spacer block into the frame using the bolt leader. 3. Raise the driver side bracket into place and attach conical washers and 7/16" nuts, finger tighten. 4. Raise the hitch into position and attach conical washers and 7/16" nuts, finger tighten. 5. Install 3/8" bolts (heads facing toward tailpipe) with flat washers and locknuts through the driver side bracket and hitch, finger tighten. 6. Torque all hardware to specification. 7. Reinstall the square plugs and plastic covers.
The 3/8" bolt heads must face toward the tailpipe.
Tighten all 7/16-14 GR5 bolts to 50 lb-ft (68 N·m) using a torque wrench.
No, drilling is not required. The manual lists "Drill Bits: N/A". The hitch uses existing factory access holes and frame rail openings.
Only if your vehicle has a single exhaust system. On single exhaust models, the plastic cover on the passenger side must be trimmed before reinstalling. See Figure 3 for the area to be trimmed. Dual exhaust models do not require trimming.
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. This is an ongoing maintenance requirement, not a one-time check.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch or ball.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Yes, part number 24919 is designed specifically for the Chrysler 200.
Maximum gross trailer weight is 2000 LB (908 kg) and maximum tongue weight is 200 LB (90.8 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You need wrenches (11/16", 9/16", 8mm), a torque wrench, and fastener kit 24919F. No drilling is required.
Remove bolts and plastic covers from the underside of the vehicle (both sides) using an 8mm socket, and remove square rubber plugs from the frame rails (both sides).
Tighten 7/16-14 GR5 bolts to 50 lb-ft (68 N·m). The manual lists 30 lb-ft (41 N·m) for 3/16-16 GR5 bolts, but the 3/8-16 bolts used in assembly lack a specified torque value in the manual.
Only on single exhaust models: the plastic underbody cover on the passenger side must be trimmed before reinstalling. Dual exhaust models require no trimming.
Wear eye protection when working beneath the vehicle. Do not cut holes with a torch. If removed, plug all holes to prevent water and exhaust fume entry. The drawbar must be used in RISE position only.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. This is an ongoing maintenance requirement.
