Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2001 - 2009 Volvo S60
Confirmed to Fit
2001 - 2007 Volvo V70
Confirmed to Fit
2003 - 2007 Volvo XC70
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

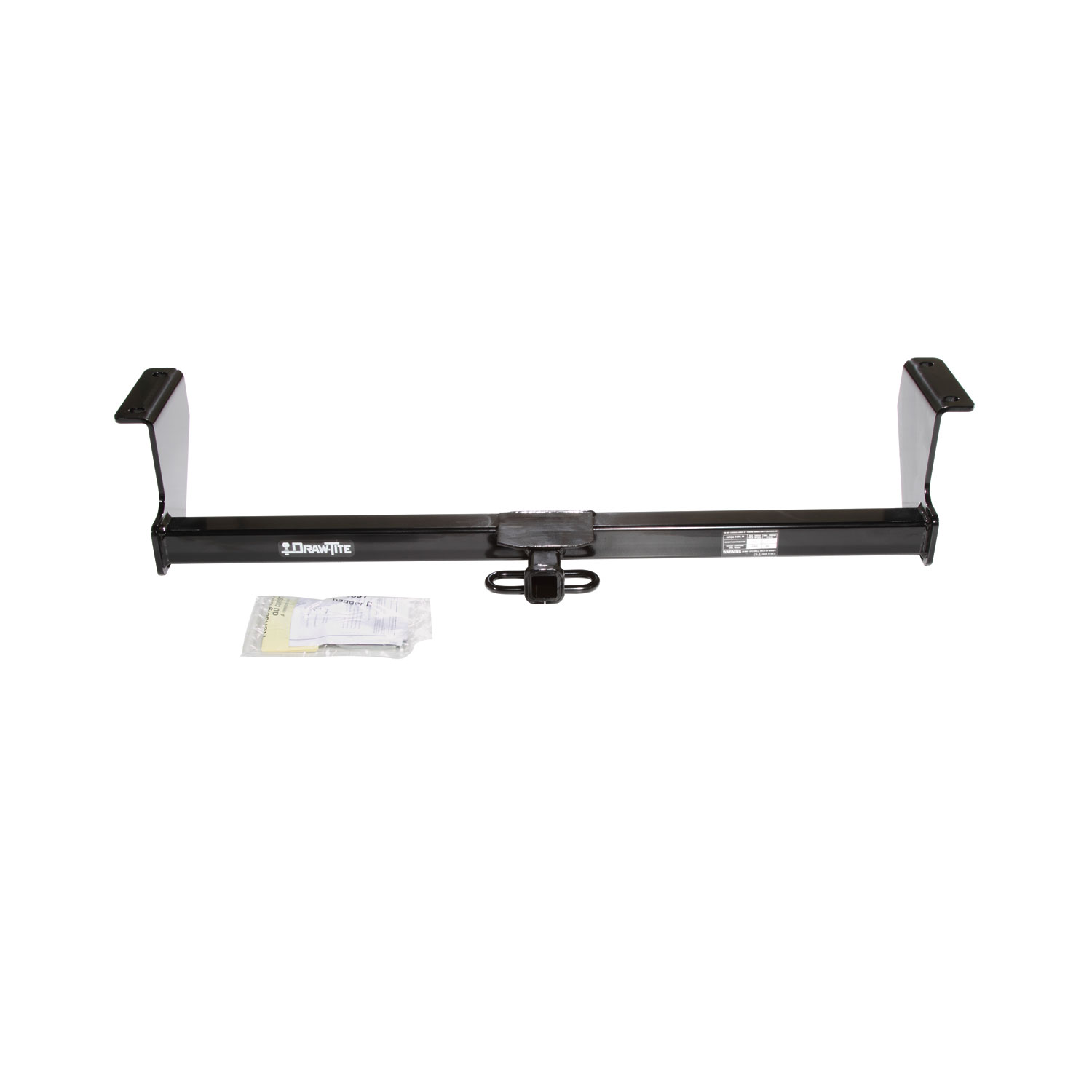

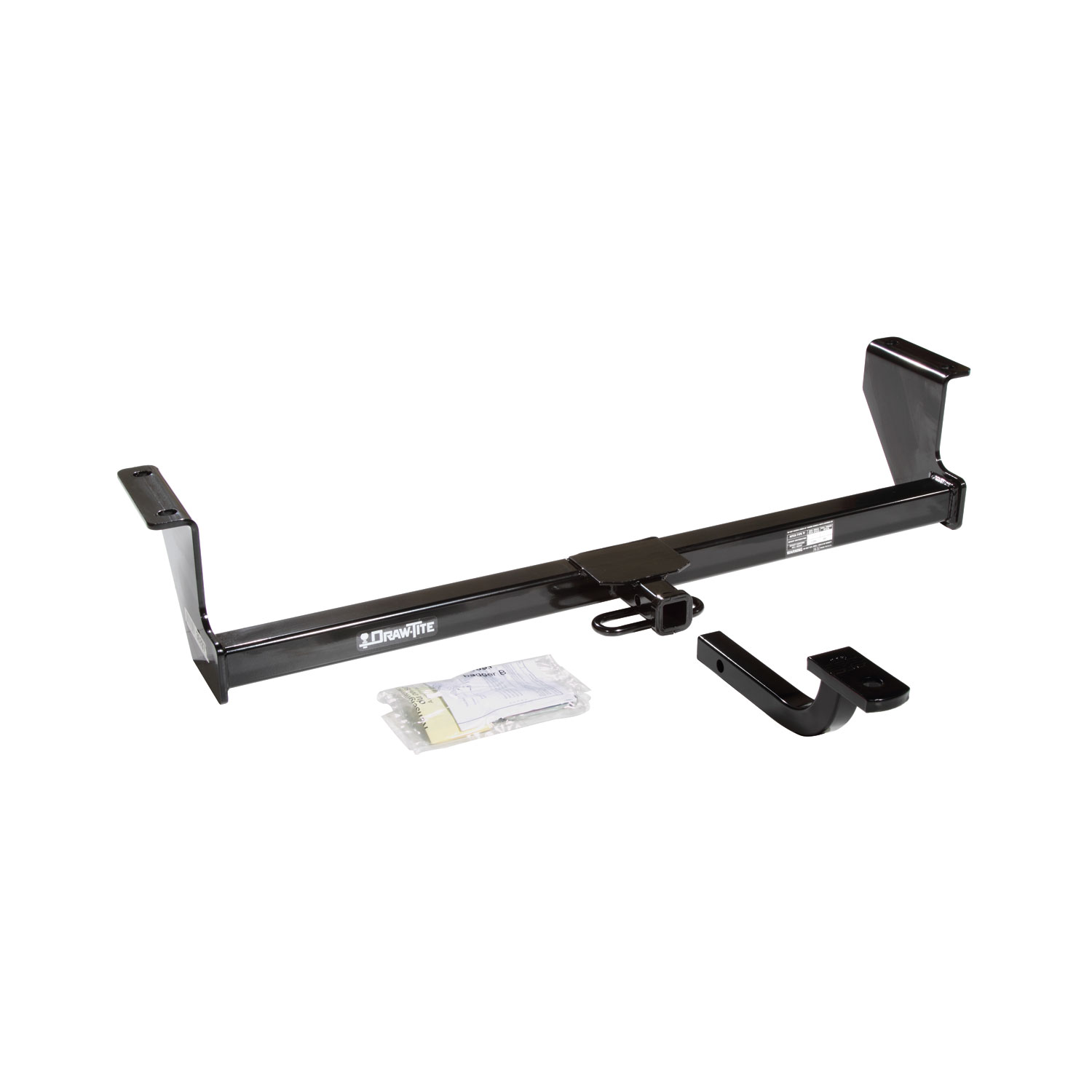

DRAW-TITE Class 2 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 2 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 300 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 2 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 36297 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 28.6 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 300 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | II |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
3 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2001 - 2009 | Volvo S60 | Sedan | Class 2 Trailer Hitch: 3500 lbs 300/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 15 minutes |
| 2001 - 2007 | Volvo V70 | Wagon | Class 2 Trailer Hitch: 3500 lbs 300/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 15 minutes |
| 2003 - 2007 | Volvo XC70 | Wagon | Class 2 Trailer Hitch: 3500 lbs 300/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 15 minutes |
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Volvo S60, Volvo V70, Volvo XC70 36297 (Part #DT36297) fits 2001-2009 Volvo S60 models. The 2009 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Volvo S60, Volvo V70, Volvo XC70 36297 (Part #DT36297) fits the following vehicles: 2001-2009 Volvo S60; 2001-2007 Volvo V70; 2003-2007 Volvo XC70. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Volvo S60, Volvo V70, Volvo XC70 36297 (Part #DT36297) is designed to fit the 2001-2009 Volvo S60.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Volvo S60, Volvo V70, Volvo XC70 36297 (Part #DT36297) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part number 36297 is designed for Volvo V70 and Volvo S60 vehicles from model years 2000, 2001, 2003, 2006, and 2015. Confirm your vehicle's model year matches one of these years before purchasing. The hitch uses existing fasteners on your vehicle's frame and does not require drilling.
The maximum gross trailer weight is 3500 lb (1589 kg) and the maximum tongue weight is 300 lb (136 kg). Do not exceed the lower of your vehicle manufacturer's towing rating or these limits.
You need a 17mm wrench. No drill bits are required, as the installation uses existing fasteners on your vehicle's frame.
No, drilling is not required. The hitch uses existing fasteners on your vehicle's frame. The manual explicitly states 'Drill Bits: None' in the equipment required section.
1. Remove the tie-down bracket from the passenger side frame rail. 2. Remove two exhaust hanger bracket bolts from the driver side frame rail. 3. Lower the exhaust hanger bracket and heat shield. 4. Raise the hitch into position and install it between the frame and exhaust hanger bracket using existing fasteners. 5. Return the tie-down bracket to the vehicle owner.
Tighten all M12 CL9.8 fasteners with a torque wrench to 75 lb-ft (102 N·m).
The manual references Drawbar Kit 36061 as a required component but does not explicitly state whether it is included with part number 36297 or sold separately. Contact the manufacturer or your retailer to confirm what is included in your purchase.
The drawbar must be used in the Rise position only. Do not use it in any other position.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. This protects your vehicle's interior from damage.
A hitch or ball that has been damaged should be removed and replaced immediately. Do not continue to use a damaged hitch, as it may fail during towing.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. Regular inspection helps ensure safe towing and prevents fastener loosening due to vibration.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch, as this creates a fire hazard and may damage the vehicle structure.
The hitch complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
The fastener kit uses existing fasteners on your vehicle. No new fasteners are provided; the hitch is installed using the existing weld nuts and fasteners on your frame and exhaust hanger bracket.
Yes, if your vehicle is a Volvo V70 or S60 from model years 2000, 2001, 2003, 2006, or 2015. Confirm your model year before purchasing.
Only a 17mm wrench is required. No drilling is needed.
Tighten all M12 CL9.8 fasteners to 75 lb-ft (102 N·m) using a torque wrench.
Maximum gross trailer weight is 3500 lb (1589 kg) and maximum tongue weight is 300 lb (136 kg). Do not exceed your vehicle manufacturer's rating.
No, you only need to remove two exhaust hanger bracket bolts and lower the bracket and heat shield. The exhaust system itself is not removed.
Plug all holes in the trunk pan or body panels to prevent water and exhaust fume entry.
Check it frequently to ensure all fasteners and the ball are properly tightened.
