Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
DRAW-TITE Class 2 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 2 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 300 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 2 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 36416 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 33 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 300 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | II |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
3 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2007 - 2012 | Lexus ES350 | — | Class 2 Trailer Hitch: 3500 lbs 300/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 45 minutes |
| 2009 - 2011 | Toyota Camry | Sedan | Class 2 Trailer Hitch: 3500 lbs 300/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 45 minutes |
| 2007 - 2011 | Toyota Camry | Sedan · 4-Door | Class 2 Trailer Hitch: 3500 lbs 300/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 45 minutes |
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Lexus ES350, Toyota Camry 36416 (Part #DT36416) fits 2007-2012 Lexus ES350 models. The 2012 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Lexus ES350, Toyota Camry 36416 (Part #DT36416) fits the following vehicles: 2007-2012 Lexus ES350; 2007-2011 Toyota Camry. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Lexus ES350, Toyota Camry 36416 (Part #DT36416) is designed to fit the 2007-2012 Lexus ES350.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Lexus ES350, Toyota Camry 36416 (Part #DT36416) Drilling is required for installation. Basic hand tools are typically all you need.
Yes, part number 36416 fits Toyota Camry models from 2006, 2007, 2009, 2011, and 2015. It also fits Toyota Camry Hybrid and Lexus ES350 of the same model years. The manual covers these specific years only; fitment for other model years is not documented.
Yes, part number 36416 is compatible with Toyota Camry Hybrid models from 2006, 2007, 2009, 2011, and 2015. However, Hybrid installation requires additional steps: you must remove the plastic fascia covering the driver's side frame rail and return it with screws to the vehicle owner. Newer model Hybrids also require removal of a plastic fin attached to the bottom of the trunk pan on the passenger's side.
Yes, part number 36416 fits Lexus ES350 models from 2006, 2007, 2009, 2011, and 2015. The installation procedure is the same as for the Toyota Camry, except that Hybrid-specific steps do not apply.
The maximum gross trailer weight is 3500 lb (1589 kg) and the maximum tongue weight is 300 lb (136 kg). However, you must not exceed the lower of this hitch's rating or your vehicle manufacturer's towing rating. Always consult your vehicle's owner manual for its specific towing capacity.
This hitch requires a 1/2" pin and clip.
You will need wrenches in the following sizes: 10mm, 12mm, 14mm, and 17mm. You will also need a 1/2" drill bit and a torque wrench to tighten fasteners to the specified values.

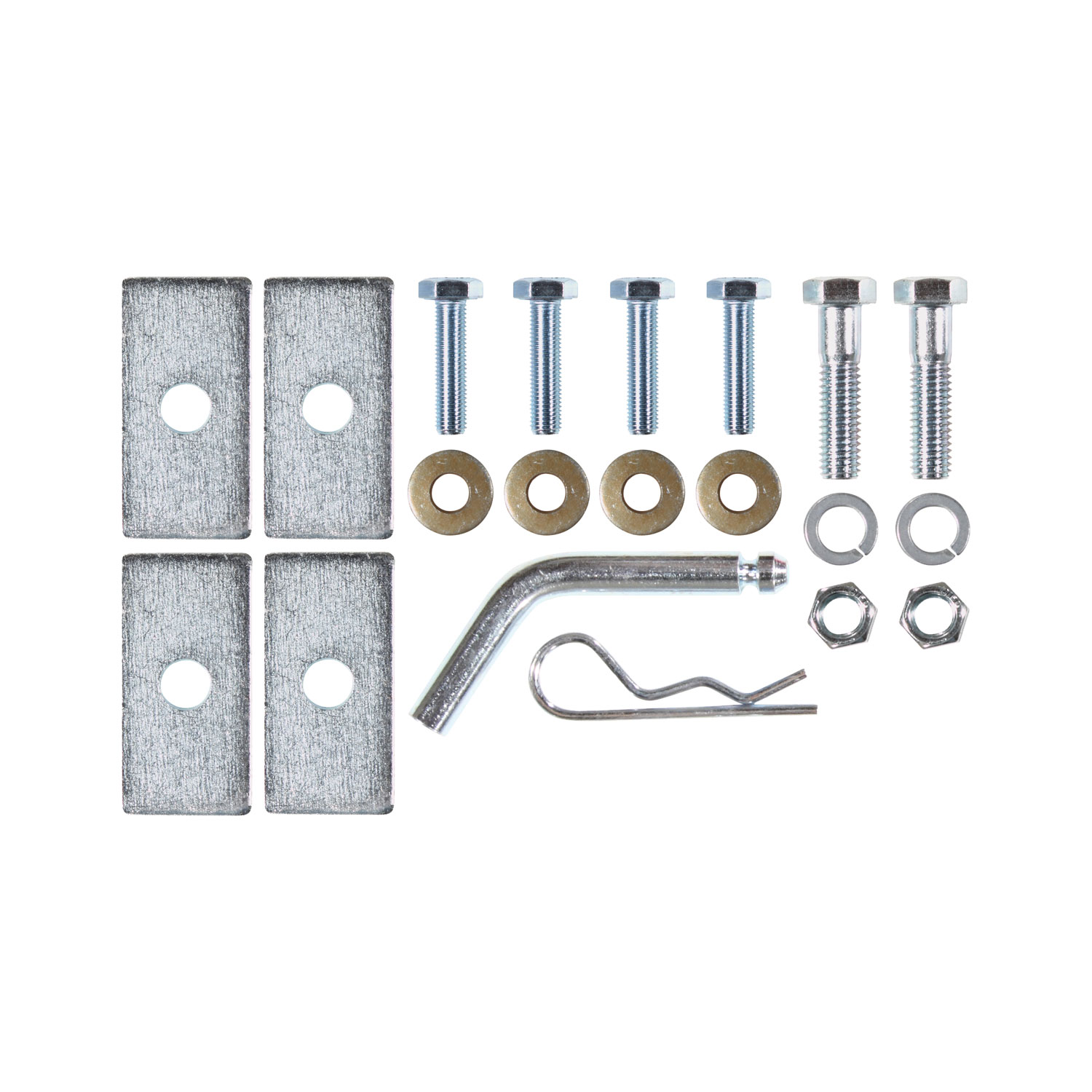

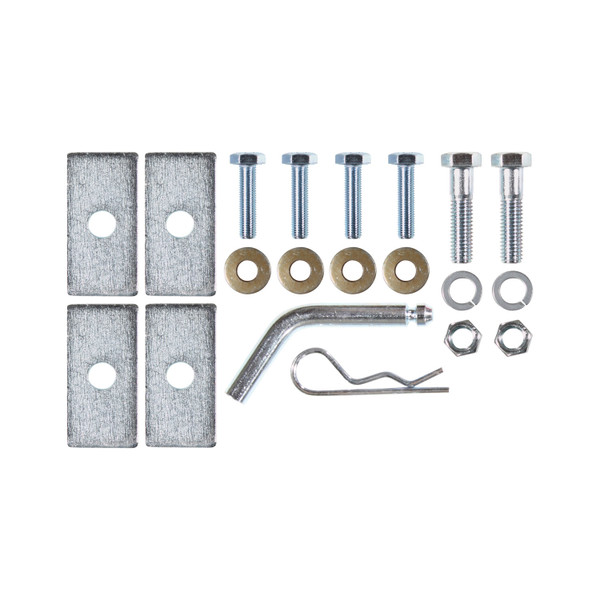

The hitch includes: (4) M10 X 40 X 1.25 CL8.8 hex bolts, (4) 3/8" conical toothed washers, (2) M10 X 1.25 hex nuts, (2) 7/16" washers, (4) blocks (1/4 X 1.50 X 3.00), (2) 1/2-13 X 2.00 GR5 hex bolts, (2) 1/2" lockwashers, and (2) 1/2" hex nuts. If existing weldnuts are not present on the passenger side of the vehicle frame, the provided nuts and washers will be used instead of the vehicle's existing fasteners.
Yes, the drawbar kit (part number 36071) is sold separately and is not included with the hitch. You will need to purchase it if you want to use a drawbar with this hitch.
Yes. The first installation step is to remove the spare tire from the inside of the trunk. After the hitch is installed, you will reinstall the spare tire inside the trunk in step 9.
Yes. Step 2 requires you to lower the vehicle exhaust by removing the rubber exhaust hangers. After installation is complete, you will reattach the rubber exhaust hangers in step 10.
The existing bracket is shown in Figure 2 and is located on the driver's side vehicle frame rail and the rear end panel. You must remove this bracket in step 4 and return it to the vehicle owner. The fastener and bracket location are illustrated in Figure 2.
You need to remove fascia rivets from the fascia tabs between the trunk pan and the rear fascia in step 3. If present, you must also remove the plastic under covering located under the trunk pan. After installation, you will reinsert the fascia rivets back into the fascia tabs in step 10. For Toyota Camry Hybrid models, you must also remove the plastic fascia covering the driver's side frame rail and return it with screws to the vehicle owner.
Yes. In step 6, you must use the hitch as a template to drill two holes through the trunk pan of the vehicle. You will need a 1/2" drill bit. In step 7, you must then scrape the foam rubber material away from the inside surface of the trunk pan around the holes drilled in step 6.
A 1/2" drill bit is required to drill the two holes through the trunk pan.
No. The manual explicitly states: "Do not cut access or attachment holes with a torch." You must use a 1/2" drill bit to create the required holes.
All M10 CL8.8 fasteners must be tightened with a torque wrench to 42 Lb.-Ft. (57 N*M).
All 1/2-13 GR5 fasteners must be tightened with a torque wrench to 75 Lb.-Ft. (102 N*M).
In step 5, raise the hitch into position and install the M10 hex bolts and 3/8" conical toothed washers into the existing weldnuts in the vehicle. If no weldnuts are present on the passenger side, use the nuts and washers provided instead. These fasteners must be tightened to 42 Lb.-Ft. (57 N*M).
In step 8, install the 1/2" hex bolts, blocks, lockwashers, and nuts through the holes you drilled in the trunk pan. The blocks (1/4 X 1.50 X 3.00) go between the bolt head and the trunk pan. These fasteners must be tightened to 75 Lb.-Ft. (102 N*M).
The drawbar must be used in the Rise position only. Do not use it in any other position.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual emphasizes that this is an ongoing maintenance requirement, not a one-time check.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch.
Yes, part 36416 fits 2006, 2007, 2009, 2011, and 2015 Toyota Camry, Camry Hybrid, and Lexus ES350 models.
Maximum gross trailer weight is 3500 lb (1589 kg) and maximum tongue weight is 300 lb (136 kg), but do not exceed your vehicle manufacturer's towing rating.
Wrenches (10mm, 12mm, 14mm, 17mm), 1/2" drill bit, and a torque wrench.
Yes, you must drill two 1/2" holes through the trunk pan using the hitch as a template.
M10 CL8.8 fasteners: 42 Lb.-Ft. (57 N*M). 1/2-13 GR5 fasteners: 75 Lb.-Ft. (102 N*M).
Yes, remove the spare tire from the trunk and lower the exhaust by removing rubber hangers before installation. Reinstall both after the hitch is mounted.
Maximum gross trailer weight is 3500 lb, maximum tongue weight is 300 lb. The drawbar must be used in the Rise position only.
