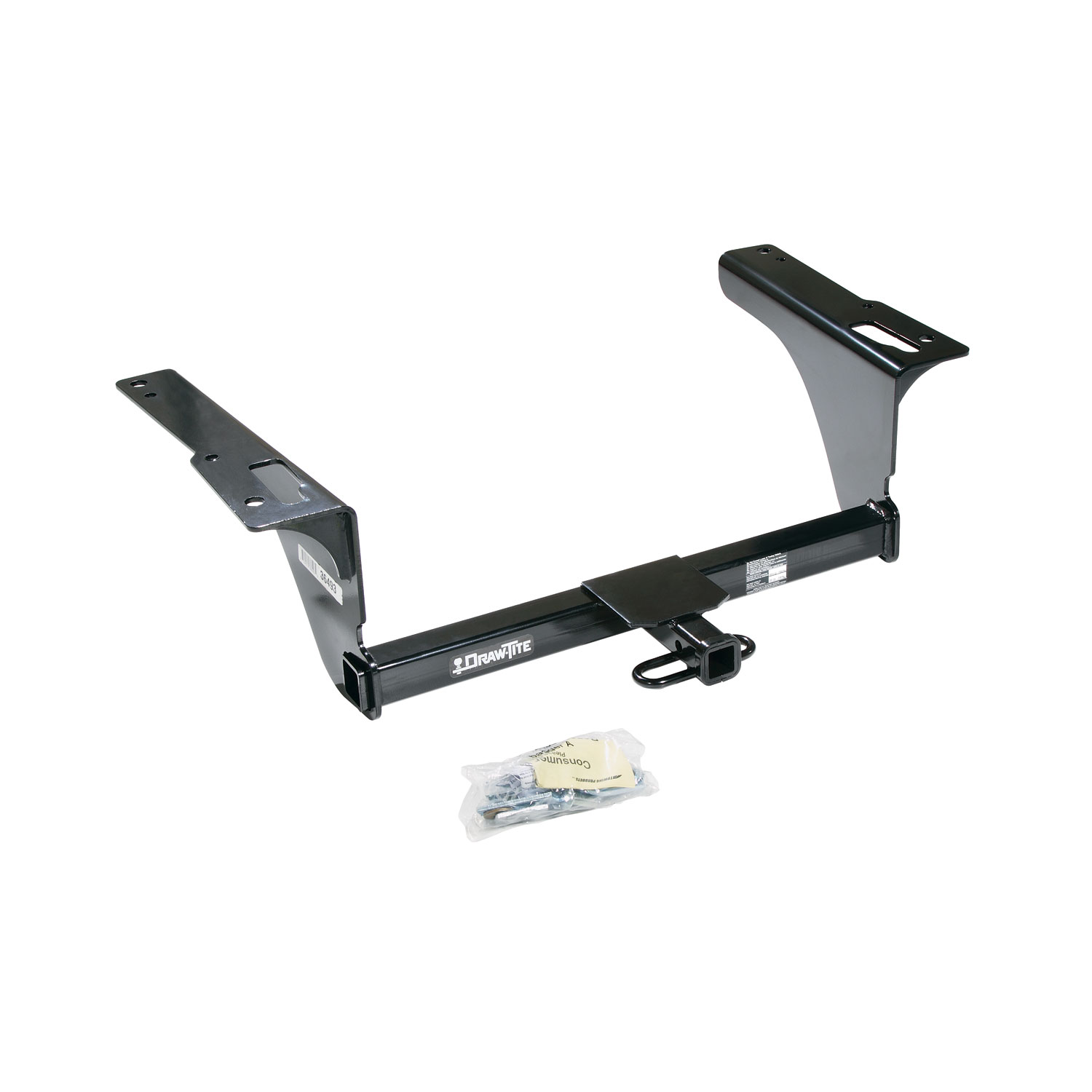

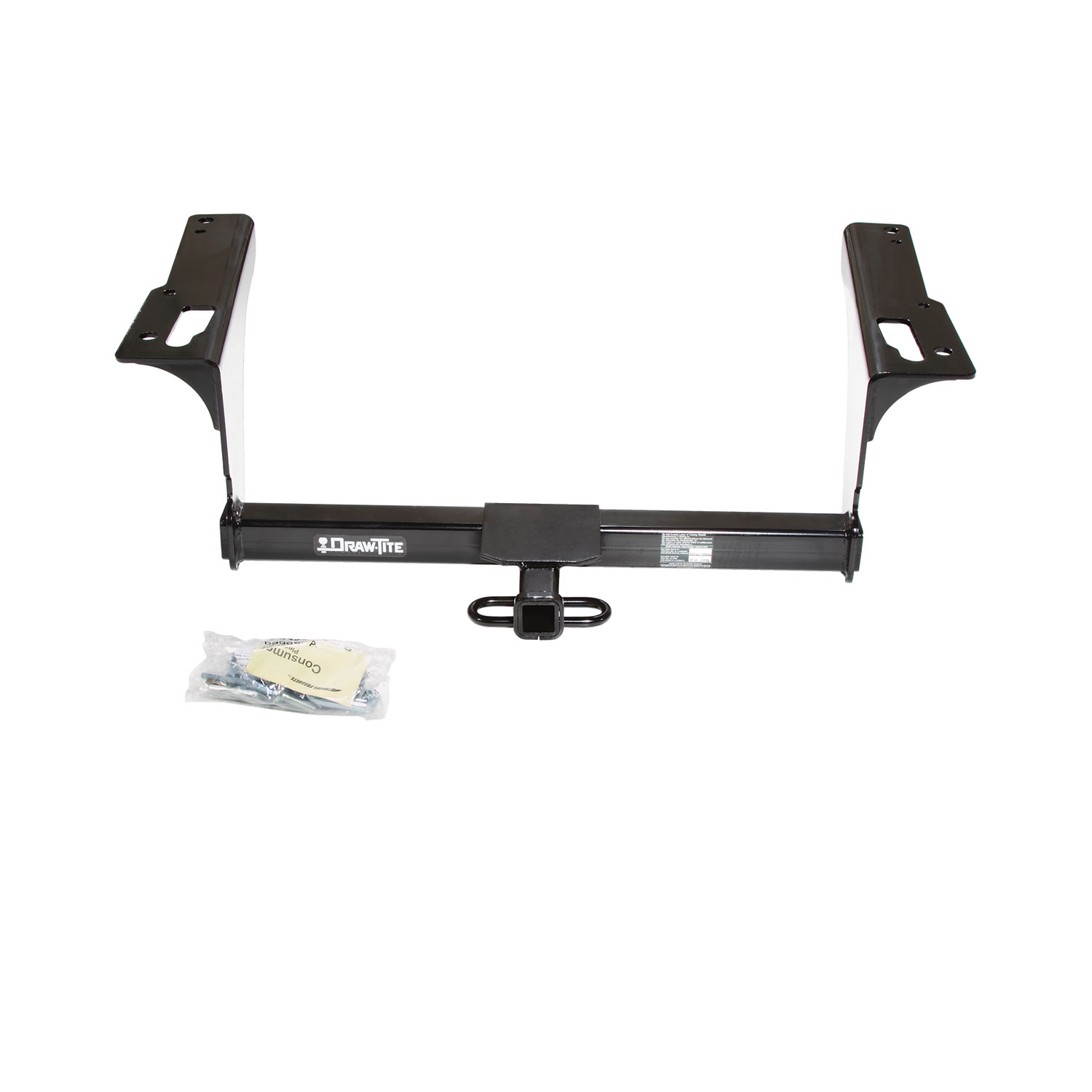

DRAW-TITE Class 2 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 2 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 300 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 2 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 36493 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 33 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 300 LBS. |
| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | II |
| DRILLING REQUIRED: | YES |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Draw•Tite® and the Checkered Flag Foundation
2 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2010 - 2019 | Subaru Legacy | Sedan | Class 2 Trailer Hitch: 3500 lbs 300/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 45 minutes |
| 2010 - 2019 | Subaru Outback | Wagon | Class 2 Trailer Hitch: 3500 lbs 300/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Drilling Required Install Time is 45 minutes |
Total for 5 items:
$408.09$493.08
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Subaru Legacy, Subaru Outback 36493 (Part #DT36493) fits 2010-2019 Subaru Legacy models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Subaru Legacy, Subaru Outback 36493 (Part #DT36493) is designed to fit the 2010-2019 Subaru Legacy.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Subaru Legacy, Subaru Outback 36493 (Part #DT36493) fits the following vehicles: 2010-2019 Subaru Legacy; 2010-2019 Subaru Outback. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Subaru Legacy, Subaru Outback 36493 (Part #DT36493) Drilling is required for installation. Basic hand tools are typically all you need.

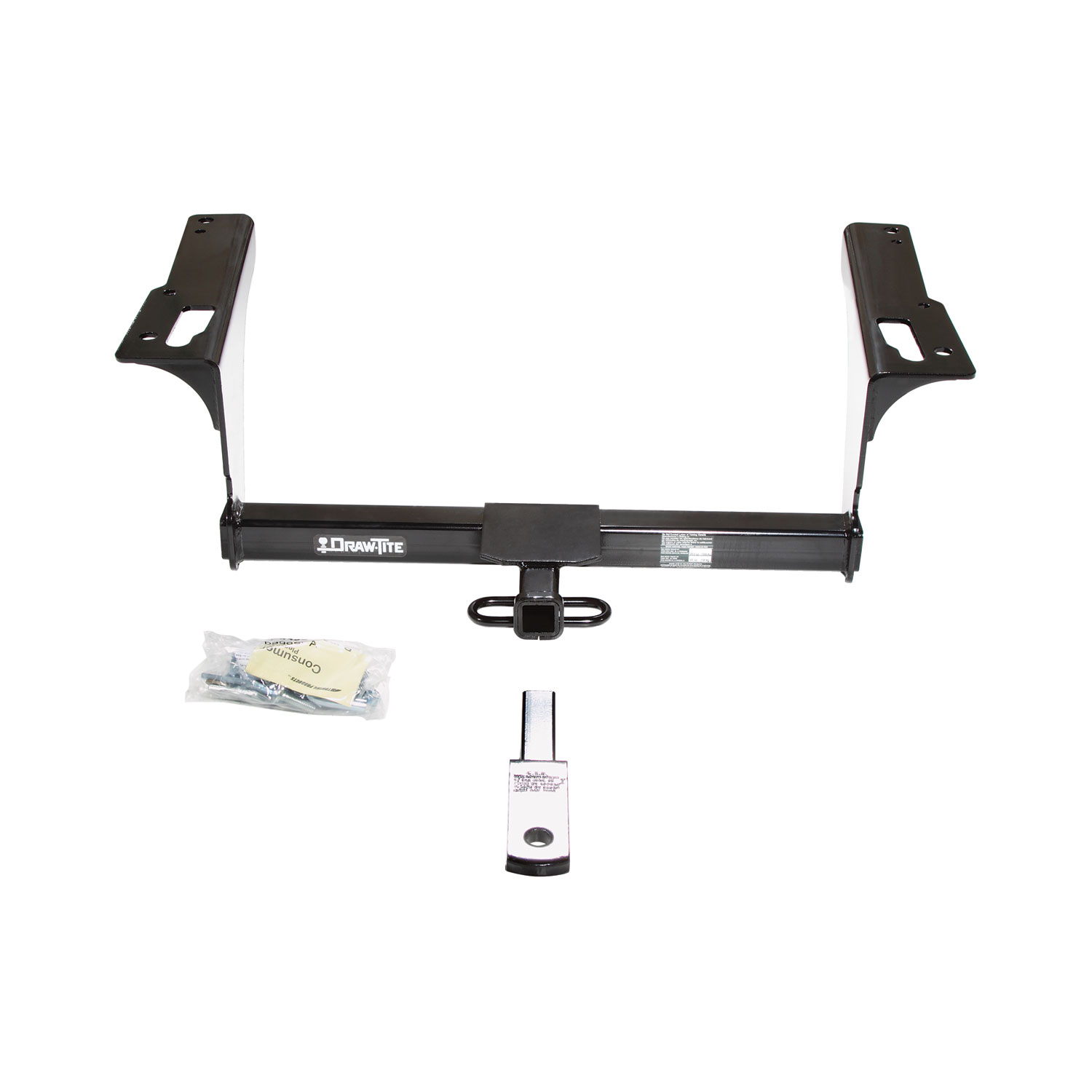

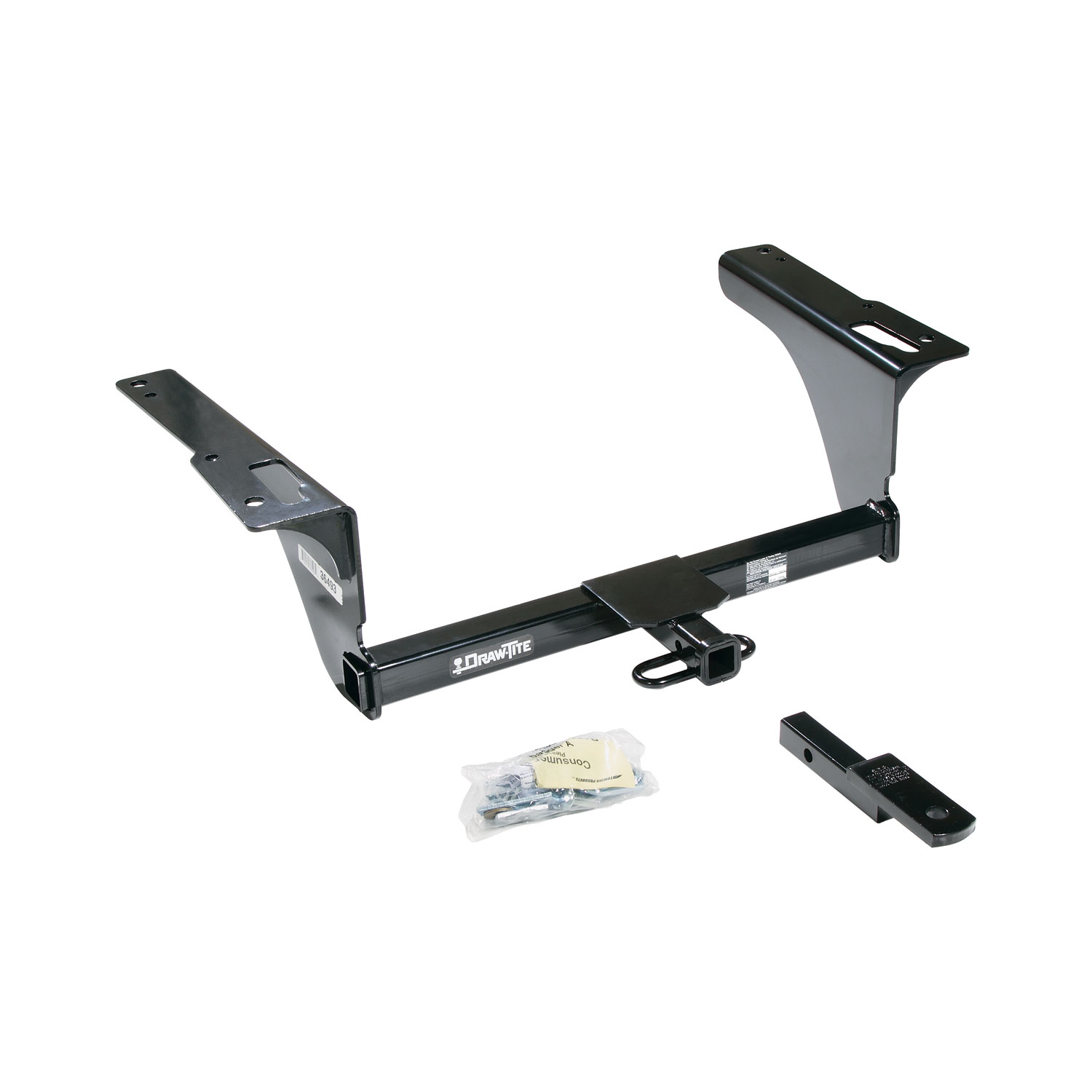

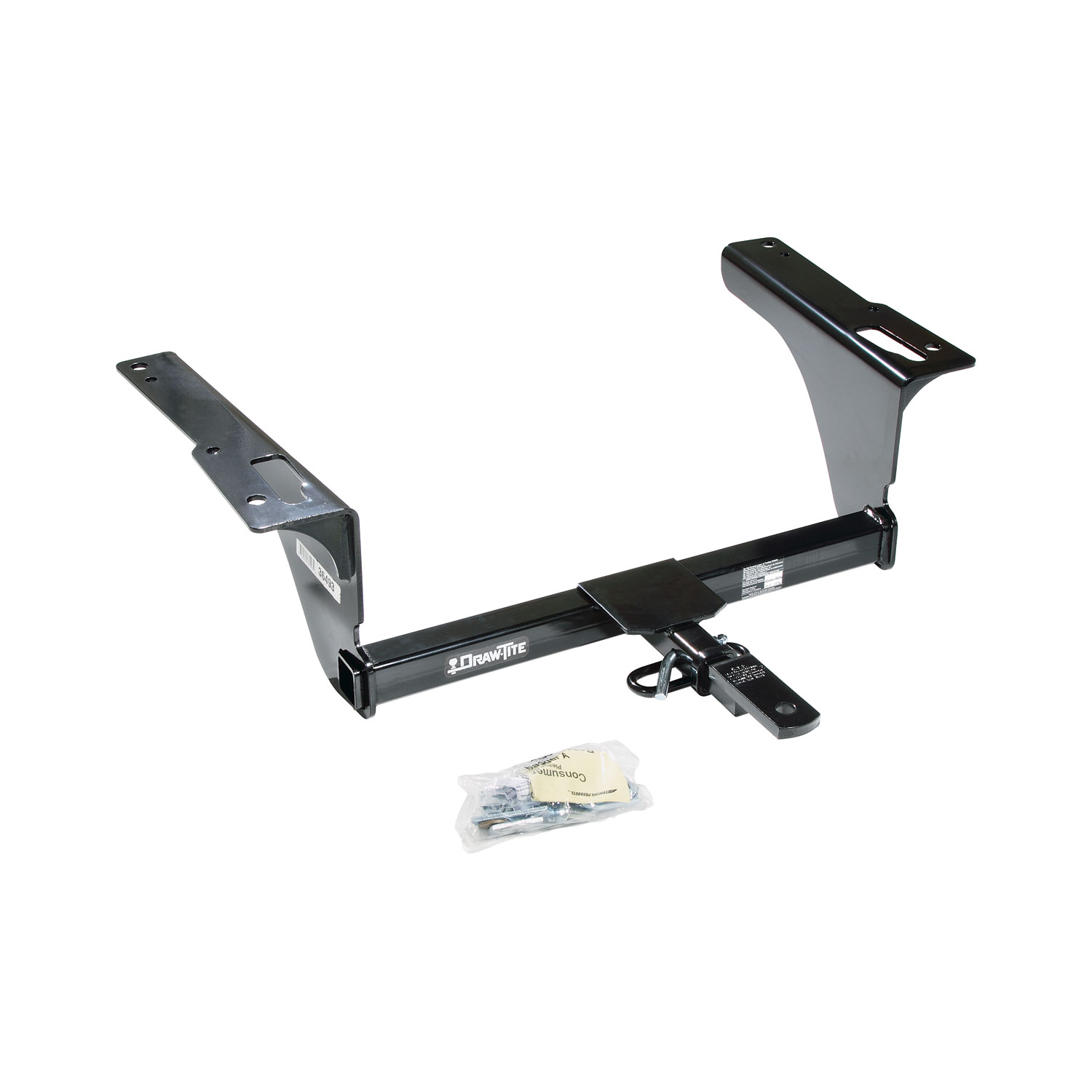

Yes, part number 36493N fits all Subaru Legacy and OutBack models. However, the drawbar kit supplied or required depends on body style: wagon models come with Drawbar Kit 36051 (must be used in Rise position only), while sedan models require separately purchased Drawbar Kit 36071.
Required tools: tin snips, spray lubricant, 10mm wrench, 11/16" wrench, torque wrench, and 1-1/8" hole saw drill bit. A torque wrench is essential because all 7/16 GR5 fasteners must be tightened to exactly 50 Lb.-Ft. (68 N·M).
Yes. You must drill a 1-1/8" access hole in the bottom of the frame approximately 2" from the forward heat shield attachment point. This hole is used to route the carriage bolts and spacer blocks through the frame.
The exhaust system must be temporarily lowered, not fully removed. Remove the two rubber isolators from the muffler hangers and one below the rear axle (spray hangers first for ease of removal). The system is raised back into position in the final step after the hitch is secured.
All 7/16 GR5 fasteners must be tightened to 50 Lb.-Ft. (68 N·M) using a torque wrench. This applies to all four carriage bolts and their hex nuts.
Maximum gross trailer weight is 3500 lb (1589 kg) and maximum tongue weight is 300 lb (136 kg). However, do not exceed the lower of the hitch rating or your vehicle manufacturer's towing rating.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual emphasizes this as an ongoing maintenance requirement, not just a one-time post-installation check.

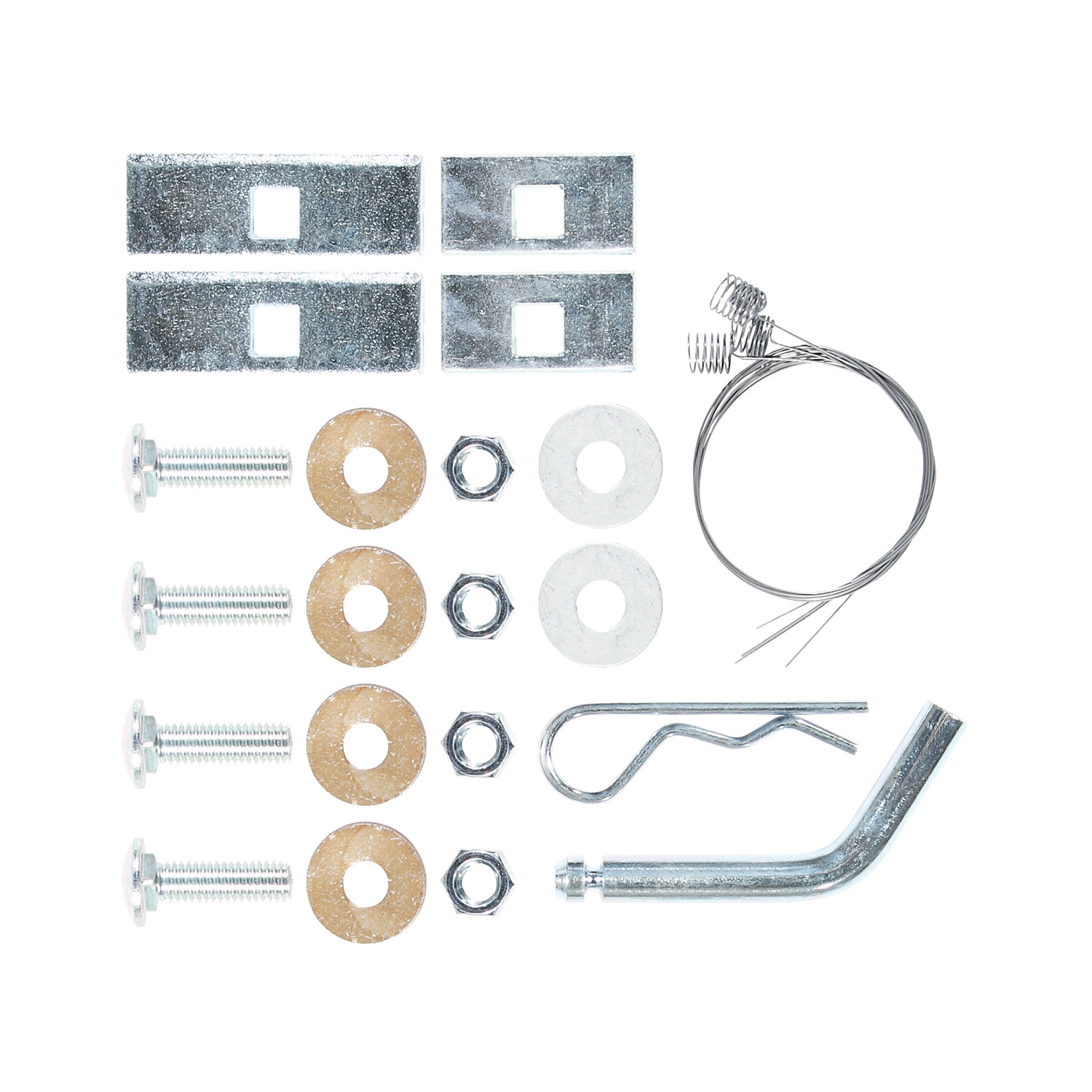

Fastener kit 36493F includes: 4 carriage bolts (7/16-14 x 1.50 GR5), 4 conical toothed washers (7/16"), 4 hex nuts (7/16-14), 2 flat washers (7/16"), 2 spacers (3/16" x 1 x 2), 2 spacers (1/4" x 1 x 3), and 4 fish wires (7/16"). The kit does not include the 1 x 2 and 1 x 3 blocks used to route the bolts through the frame.
No. Wagon models are supplied with Drawbar Kit 36051 and must use it in the Rise position only. Sedan models require separately purchased Drawbar Kit 36071. The kits are not interchangeable.
Yes, the heat shields must be temporarily lowered by removing four M6 bolts. Save these bolts for reinstallation. After the hitch is positioned, trim the heat shields around the forward attachment bolt area so they sit flat against the hitch bracket, then reinstall them using the same four M6 bolts.
Fish-wire is used to route the carriage bolts and spacer blocks through the frame. After drilling the 1-1/8" access hole, you thread a fish-wire through the access hole and down through the rearmost hole in the frame bottom, attach a carriage bolt and 1 x 2 spacer block to the wire, then pull the wire back through to draw the bolt and block into position. Repeat for the forward hole using a 1 x 3 spacer block. Leave the fish-wires attached to the bolts and feed their ends through the hitch holes.
First, loosely install the conical toothed washers and hex nuts onto the rearmost carriage bolts. Then place a flat washer on the forward carriage bolt between the frame and hitch bracket. Finally, install the conical toothed washers and hex nuts onto the forward carriage bolts and tighten all fasteners to 50 Lb.-Ft. (68 N·M).
Drill a 1-1/8" access hole in the bottom of the frame approximately 2" from the forward heat shield attachment point. See Figure 1 in the manual for the exact location relative to the frame rail.
A 1-1/8" hole saw drill bit is required to create the access hole in the frame bottom.
No. The manual explicitly states: "Do not cut access or attachment holes with a torch." Use a 1-1/8" hole saw drill bit instead.
Yes. After positioning the hitch, trim the heat shields around the area near the forward attachment bolt so that the heat shield sits flat against the hitch bracket. Use tin snips for this task.
The carriage bolts are 7/16-14 x 1.50 GR5 grade. Four bolts are included in the fastener kit. They must be tightened to 50 Lb.-Ft. (68 N·M) using a torque wrench.
The hex nuts are 7/16-14 size. Four nuts are included in the fastener kit and must be tightened to 50 Lb.-Ft. (68 N·M).
Two types of spacer blocks are used: 2 spacers measuring 3/16" x 1 x 2 (used with the rearmost carriage bolt), and 2 spacers measuring 1/4" x 1 x 3 (used with the forward carriage bolt).
The wiring access location is PC3, as indicated in the manual specifications table.
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A damaged hitch or ball must be removed and replaced. Do not attempt to repair or continue using a damaged component.
For wagon models using Drawbar Kit 36051, the drawbar must be used in the Rise position only. Do not use it in any other position.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval but emphasizes regular inspection as an ongoing maintenance requirement.
The manual warns: "Be careful not to push bolts back up into frame" during Step 7. If this occurs, you must re-fish the bolts using the fish-wire technique. This is why the fish-wires should remain attached to the bolts and fed through the hitch holes to maintain control during positioning.
Trim the heat shield around the area near the forward attachment bolt using tin snips so that it sits flat against the hitch bracket. This is a normal part of the installation process and is shown in Figure 2.
