Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

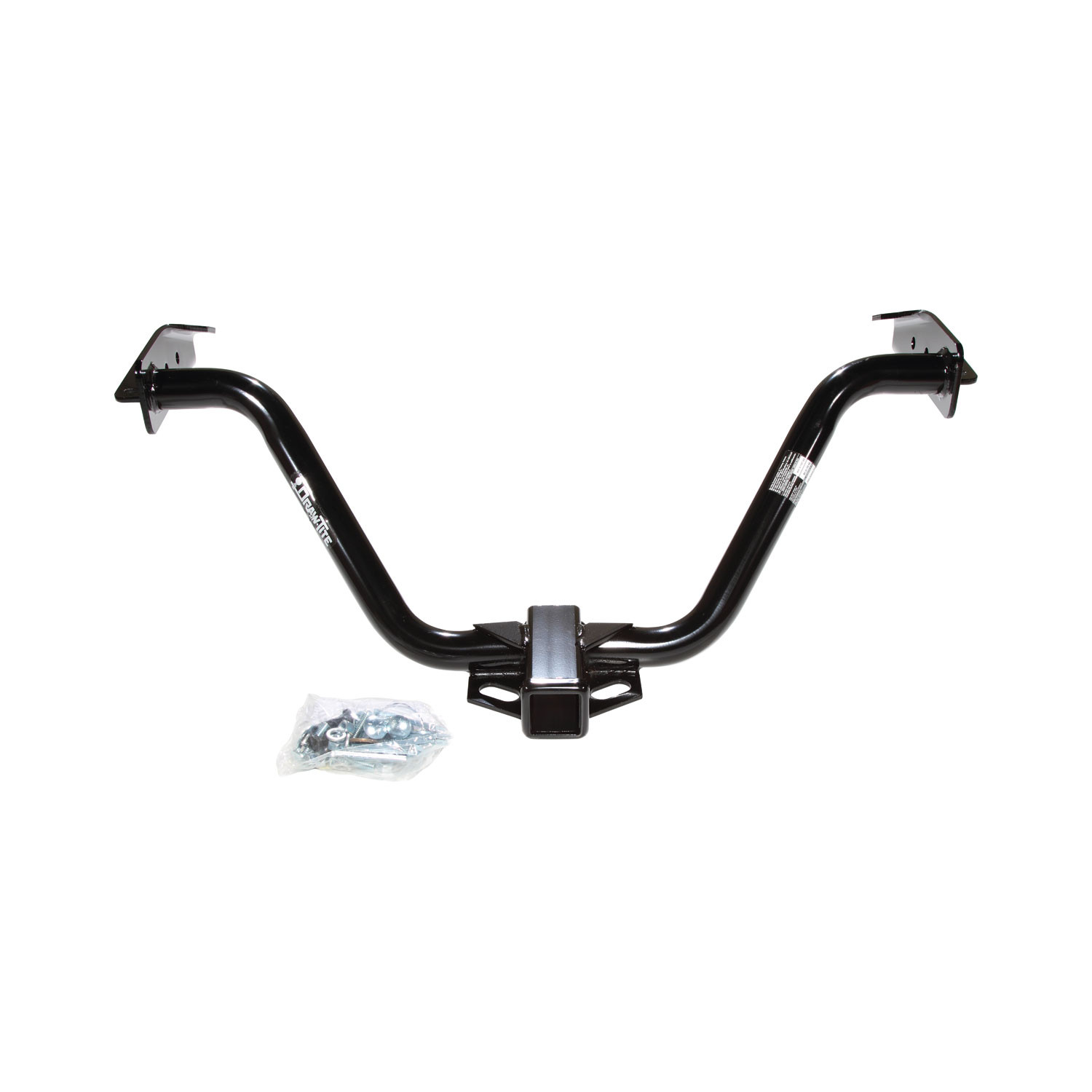

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 3 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 350 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 5,000 lbs. weight distribution (WD) and 500 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 75522 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 35 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 350 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | ROUND TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 5,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 500 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2004 - 2008 | Chrysler Pacifica | Class 3 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) 500/5,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 45 minutes |
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Chrysler Pacifica 75522 (Part #DT75522) fits 2004-2008 Chrysler Pacifica models. The 2008 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Chrysler Pacifica 75522 (Part #DT75522) fits the following vehicles: 2004-2008 Chrysler Pacifica. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Chrysler Pacifica 75522 (Part #DT75522) is designed to fit the 2004-2008 Chrysler Pacifica.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Chrysler Pacifica 75522 (Part #DT75522) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part number 75522 is designed for Chrysler Pacifica models from 2006 and 2010. The manual does not specify compatibility with other model years. Confirm your vehicle year matches before purchasing.
The hitch has two rating options depending on the ball mount type: Weight Distributing hitch supports a maximum gross trailer weight of 5,000 lb (2,270 kg) with a maximum tongue weight of 500 lb (227 kg). Weight Carrying ball mount supports a maximum gross trailer weight of 3,500 lb (1,589 kg) with a maximum tongue weight of 350 lb (159 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these specifications.
You will need wrenches in three sizes: ¾", 18mm, and 19mm. A torque wrench is required to tighten fasteners to specification. A wire pull is provided with the hitch. No drill bits are needed as no drilling is required for this installation.
The fastener kit 75522F includes: 6 carriage bolts ½-13 x 1.75 GR5, 4 lock washers ½", 6 blocks ¼" x 1 x 3, 2 flat washers ½", 4 conical washers ½", 2 hex bolts M12 x 1.75 x 45mm CL10.9, and 6 hex nuts ½-13. A 6 ½" flat washer must be placed between the hitch side bracket and frame. The manual also references existing weldnuts in the vehicle frame that will be used.
Yes. Step 1 of the installation requires lowering the exhaust by removing rubber exhaust hangers from the exhaust hanger bracket. On models with dual exhaust, this must be done on both sides of the vehicle. The exhaust is raised back into position in Step 9 after the hitch is secured.
Lowering the spare tire is not required but may ease installation. The manual notes that lowering the spare tire may make hitch installation easier. If lowered, the spare tire is raised back into position in Step 10 after the hitch is secured.
Only if your vehicle has a wiring harness present on the driver's side frame rail. Step 3 states that on vehicles with wiring harness present on the driver's side frame rail, it will be necessary to detach the harness by carefully pulling it from the frame. The frame will be relocated after hitch installation. Figure 3 shows the suggested relocation of the wiring harness.
The installation sequence is: (1) Lower exhaust, (2) Remove forwardmost M12 bolts from bumper bracket, (3) Detach wiring harness if present, (4) Fishwire ½" carriage bolts and blocks through access slot, (5) Raise hitch into position with flat washers and conical washers/nuts, (6) Loosely install M12 bolts into existing weldnuts, (7) Fishwire additional carriage bolts through access holes, (8) Install lock washers and nuts, then torque all fasteners, (9) Raise exhaust, (10) Raise spare tire if lowered, (11) Relocate wiring harness. Do not tighten fasteners until Step 8.
Fishwire is a technique for routing fasteners through frame access slots and holes. Figure 2 shows the proper fishwire technique: kink the pull wire to keep the block independent of the bolt, then thread the carriage bolt and block through the access slot in the vehicle frame and down through the square hole in the frame. This allows fasteners to be installed in locations that are not directly accessible.
A 6 ½" flat washer must be placed between the hitch side bracket and the frame at the attachment point. This is required on both sides of the vehicle. The washer is installed in Step 5 when the hitch is raised into position.
All ½-13 GR5 fasteners must be tightened with a torque wrench to 75 lb.-ft. (102 N·m). This applies to the carriage bolts and nuts used to secure the hitch to the vehicle frame.
All M12 x 1.75 CL10.9 fasteners must be tightened with a torque wrench to 92 lb.-ft. (125 N·m). These are the hex bolts that replace the forwardmost bumper bracket bolts removed during installation.
Fasteners are installed loosely in Steps 5 and 6 to hold the hitch in position before final torquing. Step 5 specifies loosely installing conical washers and nuts. Step 6 specifies loosely installing conical washers and M12 bolts. All fasteners are then tightened to specification in Step 8 after all bolts are in place.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. When raising the hitch into position, be careful not to push bolts installed in Step 4 back into the frame. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently, making sure all fasteners and ball are properly tightened. The manual emphasizes this as an ongoing maintenance requirement, not just a one-time check after installation.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch or ball.
Yes, part 75522 is designed for Chrysler Pacifica models from 2006 and 2010. Confirm your vehicle year before purchasing.
Weight Distributing: 5,000 lb gross trailer weight, 500 lb tongue weight. Weight Carrying: 3,500 lb gross trailer weight, 350 lb tongue weight. Do not exceed your vehicle manufacturer's rating.
Wrenches (¾", 18mm, 19mm), torque wrench, and the provided wire pull. No drilling required.
Yes, the exhaust must be lowered by removing rubber hangers. On dual exhaust models, do this on both sides. It is raised back after hitch installation.
½-13 GR5 fasteners: 75 lb.-ft. (102 N·m). M12 x 1.75 CL10.9 fasteners: 92 lb.-ft. (125 N·m). Use a torque wrench.
Wear eye protection. Do not cut holes with a torch. Work safely beneath the vehicle. If removed, plug all holes to prevent water and exhaust fumes from entering. Check fasteners and ball frequently after installation.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
