Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
DRAW-TITE Class 3 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 3 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 350 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 4,000 lbs. weight distribution (WD) and 400 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 75663 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 39 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 350 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | ROUND TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 4,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 400 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2009 - 2016 | Toyota Venza | Class 3 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) 400/4,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |

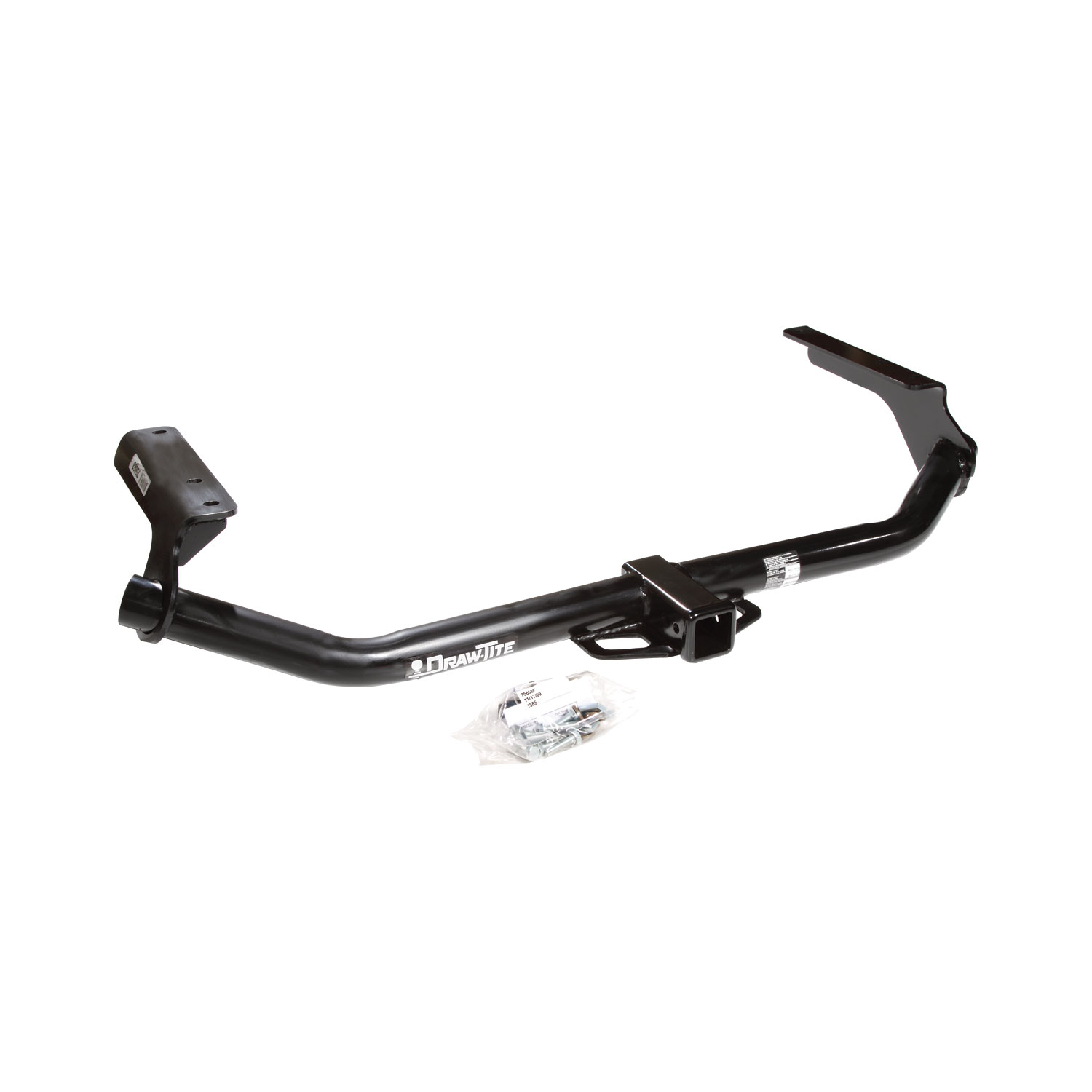

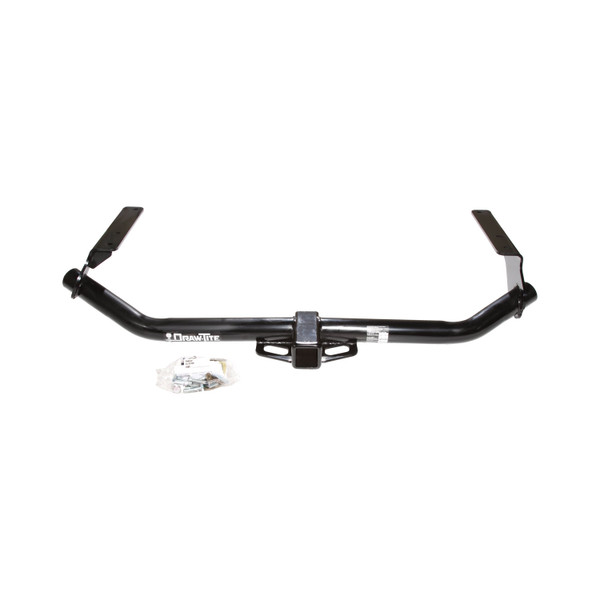

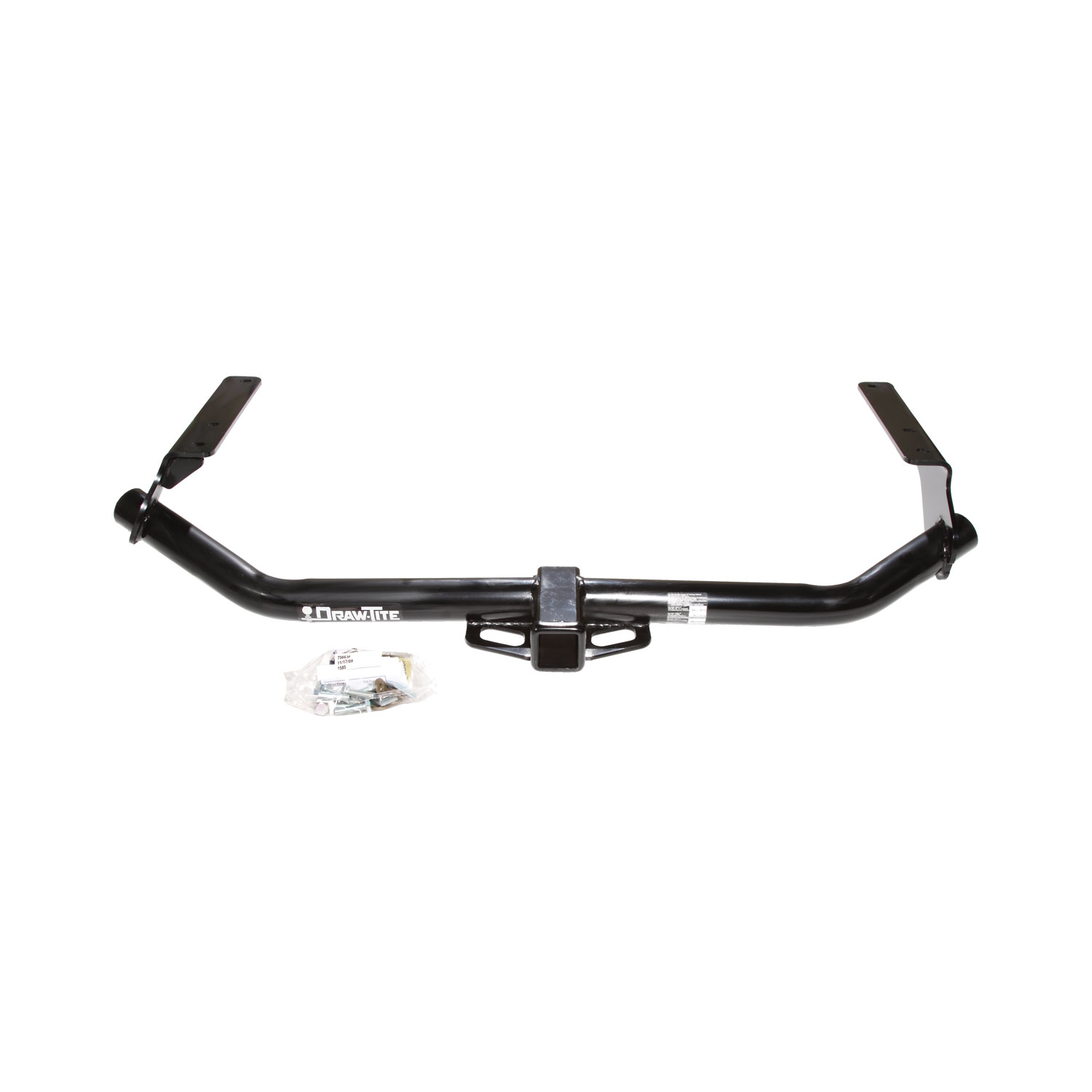

The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Toyota Venza 75663 (Part #DT75663) fits the following vehicles: 2009-2016 Toyota Venza. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Toyota Venza 75663 (Part #DT75663) fits 2009-2016 Toyota Venza models. The 2016 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Toyota Venza 75663 (Part #DT75663) is designed to fit the 2009-2016 Toyota Venza.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Toyota Venza 75663 (Part #DT75663) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part number 75663 is designed for Toyota Venza models from 2008 and 2009. If your vehicle is a 2008 or 2009 Venza, this hitch is compatible. The manual also lists alternative part numbers 87521, 44604, and 78235 (U-Haul) for the same application. Confirm your model year before purchasing.
Yes, the hitch is designed for both AWD (All-Wheel Drive) and FWD (Front-Wheel Drive) Venza models. However, AWD models require additional installation steps: you must remove and reinstall sway bar brackets on both sides using supplied spacer blocks. FWD models do not require this modification.
The 75663 hitch supports two configurations: Weight Distributing hitch with a maximum gross trailer weight of 4,000 lb (1,816 kg) and maximum tongue weight of 400 lb (182 kg); or Weight Carrying Ball Mount with a maximum gross trailer weight of 3,500 lb (1,589 kg) and maximum tongue weight of 350 lb (159 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these hitch capacities.
You will need a 17mm wrench and a torque wrench. The torque wrench is essential because all M10-1.25 x 40mm fasteners must be tightened to exactly 42 lb.-ft. (57 N·m).

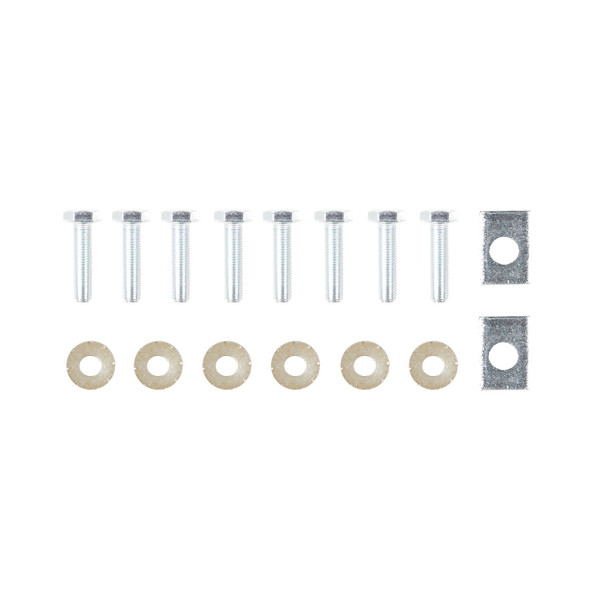

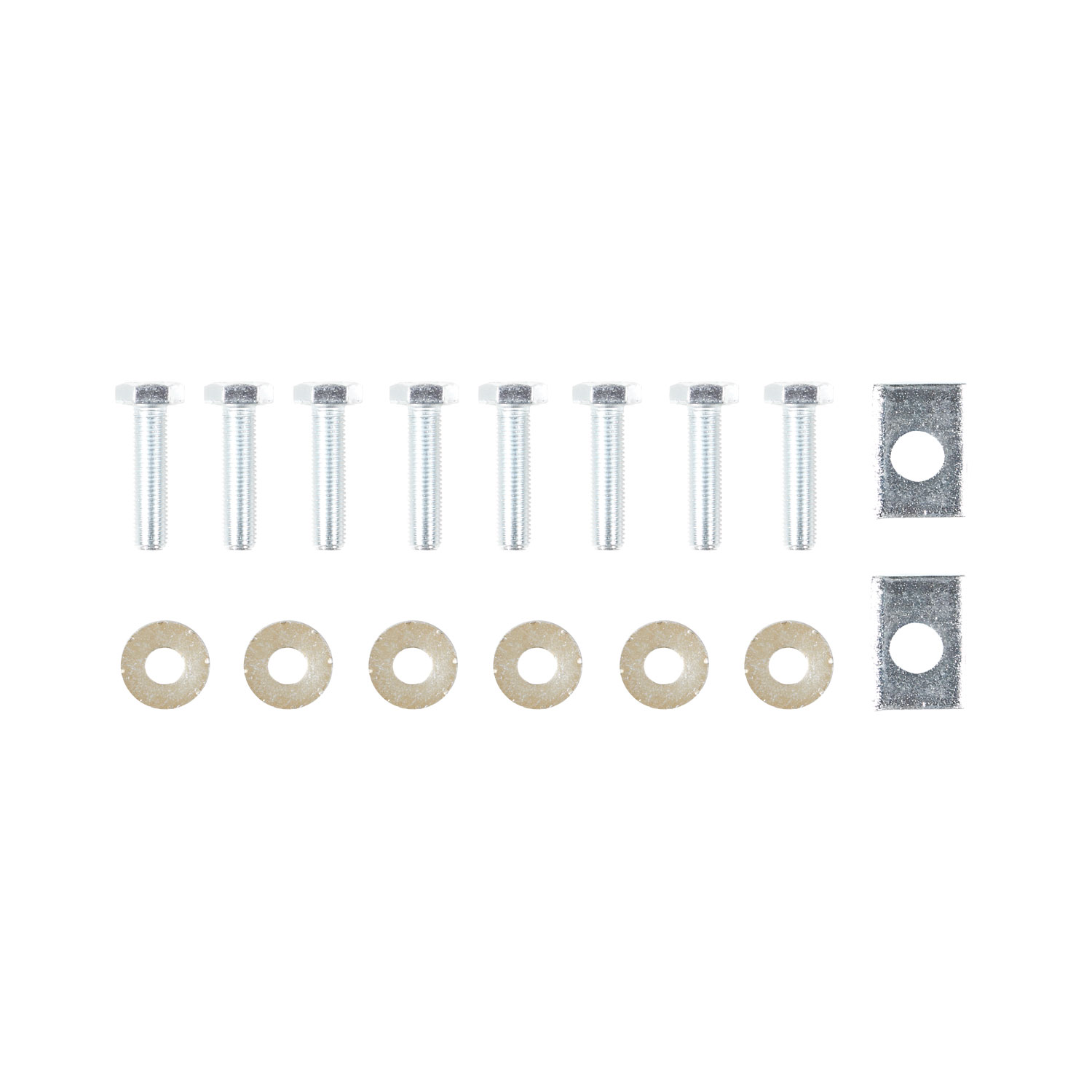

Fastener kit 75663F includes: (6) M10-1.25 x 40mm CL 10.9 hex bolts, (6) 3/8" conical toothed washers, and (2) 5/16" x 1" x 1-1/2" block-spacers (for AWD vehicles only). The block-spacers are used to space down the sway bar brackets on AWD models.
Yes. Step 3 of the installation requires you to lower the exhaust by removing four (4) exhaust rubber isolators that support the muffler and tailpipe from hangers. After the hitch is installed and bolted in place, you must raise the exhaust and re-attach the rubber isolators.
1. Remove sway bar brackets from both sides and save the existing nuts. 2. Lower the exhaust by removing four rubber isolators. 3. Raise the hitch into position and install three 10mm bolts and toothed washers per side into the vehicle frame weldnuts. 4. Reinstall the sway bar bracket with the supplied spacer block between the lower vehicle attachment and sway bracket on both sides, using the existing nut. 5. Tighten all bolts to 42 lb.-ft. (57 N·m). 6. Raise the exhaust and re-attach the rubber isolators.
1. Lower the exhaust by removing four rubber isolators. 2. Raise the hitch into position and install three 10mm bolts and toothed washers per side into the vehicle frame weldnuts. 3. Tighten all bolts to 42 lb.-ft. (57 N·m). 4. Raise the exhaust and re-attach the rubber isolators. FWD models do not require sway bar bracket removal or spacer block installation.
All M10-1.25 x 40mm fasteners must be tightened with a torque wrench to 42 lb.-ft. (57 N·m). There are six fasteners total (three per side). Use a torque wrench to ensure proper tightness; under-tightening or over-tightening can compromise safety.
Three (3) M10-1.25 x 40mm bolts are installed per side, for a total of six bolts. Each bolt is paired with a 3/8" conical toothed washer. The bolts are installed into the vehicle frame weldnuts.
The supplied 5/16" x 1" x 1-1/2" spacer blocks are installed between the lower vehicle attachment and the sway bar bracket on both sides of AWD models. They space the sway bar bracket down to its correct position. The manual emphasizes that it is important to the proper operation of the vehicle to reinstall the sway bar brackets correctly with the spacer blocks as shown in Figure B.
Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball that has been damaged should be removed and replaced immediately.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify a retorque interval or post-installation inspection checklist beyond this general requirement.
Yes. On AWD models, the existing sway bar brackets are removed, saved, and then reinstalled with the hitch and supplied spacer blocks. The existing nuts that secure the sway bar brackets are also reused. The brackets are not replaced; they are repositioned using the spacer blocks.
Yes. The four exhaust rubber isolators that support the muffler and tailpipe are removed to lower the exhaust during installation, then re-attached after the hitch is bolted in place and tightened. They are not replaced.
Yes, part 75663 is designed for 2008 and 2009 Toyota Venza models, both AWD and FWD.
A 17mm wrench and a torque wrench (to tighten fasteners to 42 lb.-ft. / 57 N·m).
Weight Distributing: 4,000 lb gross trailer weight, 400 lb tongue weight. Weight Carrying Ball Mount: 3,500 lb gross trailer weight, 350 lb tongue weight. Do not exceed the lower of the hitch capacity or your vehicle manufacturer's rating.
Yes. The exhaust must be lowered by removing four rubber isolators before installation, then re-attached after the hitch is bolted in place.
Yes. AWD models require removal and reinstallation of sway bar brackets on both sides using supplied spacer blocks. FWD models do not.
All M10-1.25 x 40mm bolts must be tightened to 42 lb.-ft. (57 N·m) using a torque wrench.
Wear eye protection, observe safety precautions when working beneath the vehicle, and do not cut holes with a torch. Plug all holes if the hitch is removed to prevent water and exhaust fume entry.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
