Draw-Tite Hardware Kit For Class 3 Trailer Hitch, 2 Inch 75688 For 2008-2014 Land Rover LR2 Draw-tite$55.49Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2008 - 2014 Land Rover LR2
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

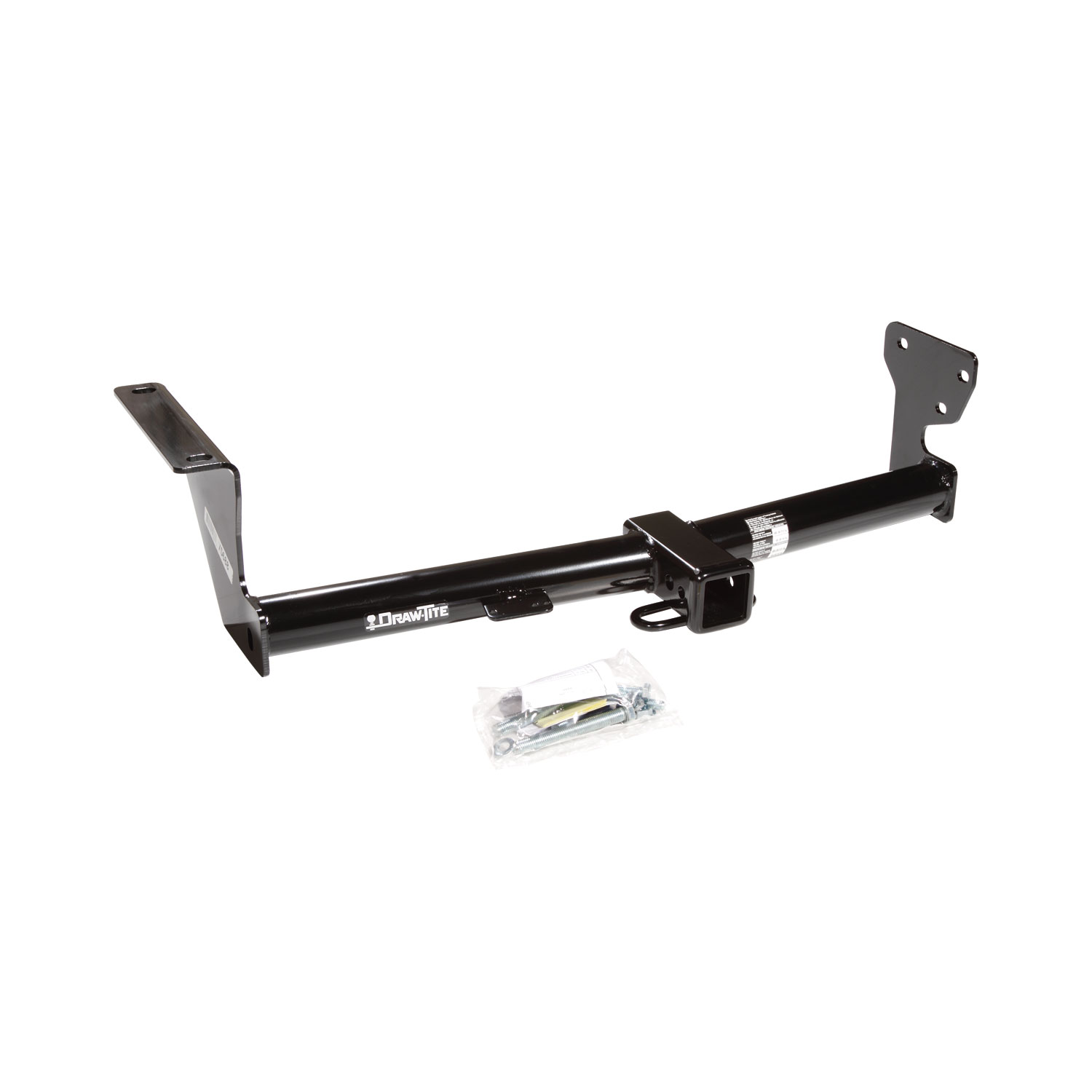

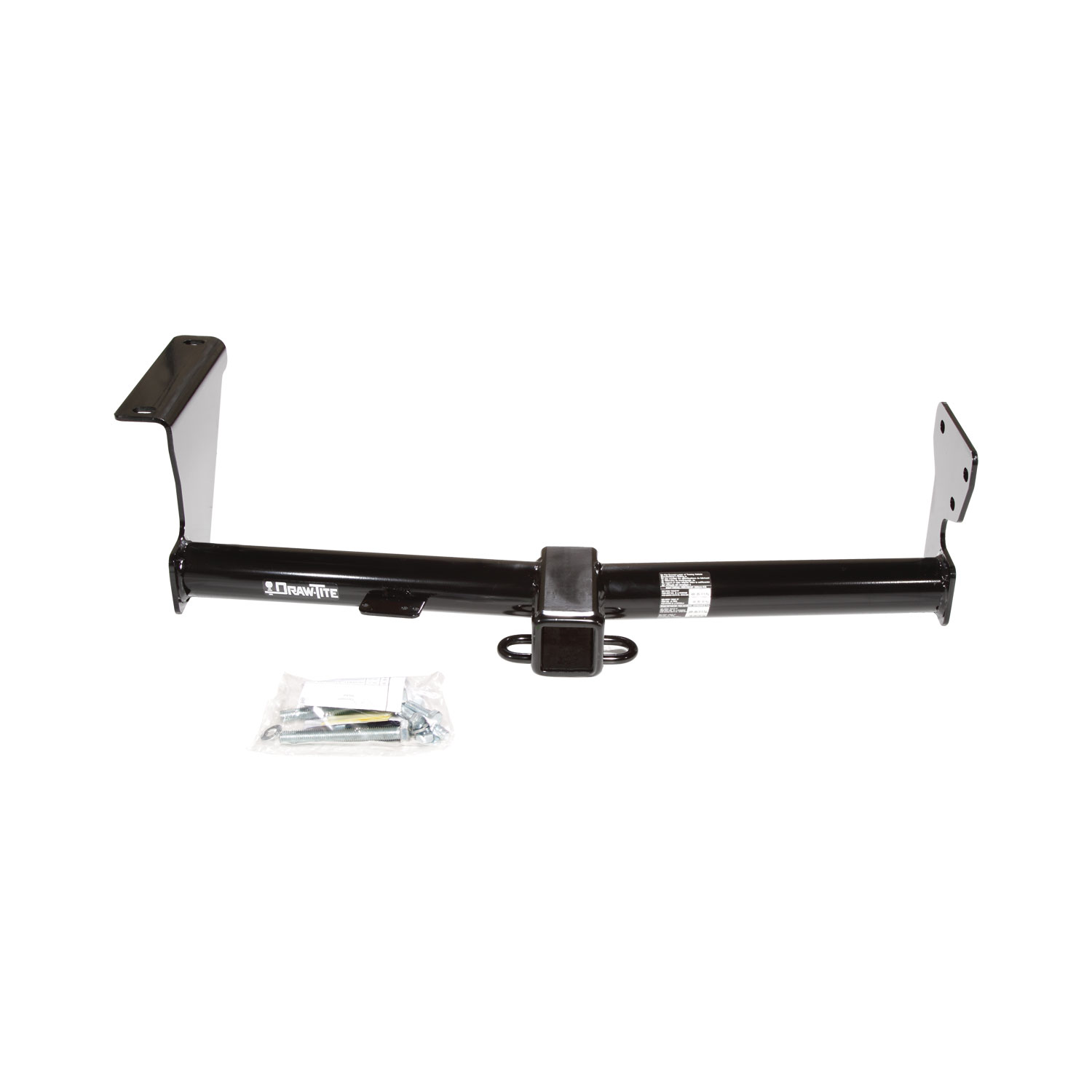

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 3 receiver hitch is rated for up to 4,000 lbs. gross trailer weight (GTW) and up to 400 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 4,000 lbs. weight distribution (WD) and 400 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 75688 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 24 LBS |
| GROSS TOWING WEIGHT: | 4,000 LBS. |
| GROSS TONGUE WEIGHT: | 400 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | ROUND TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 4,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 400 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime

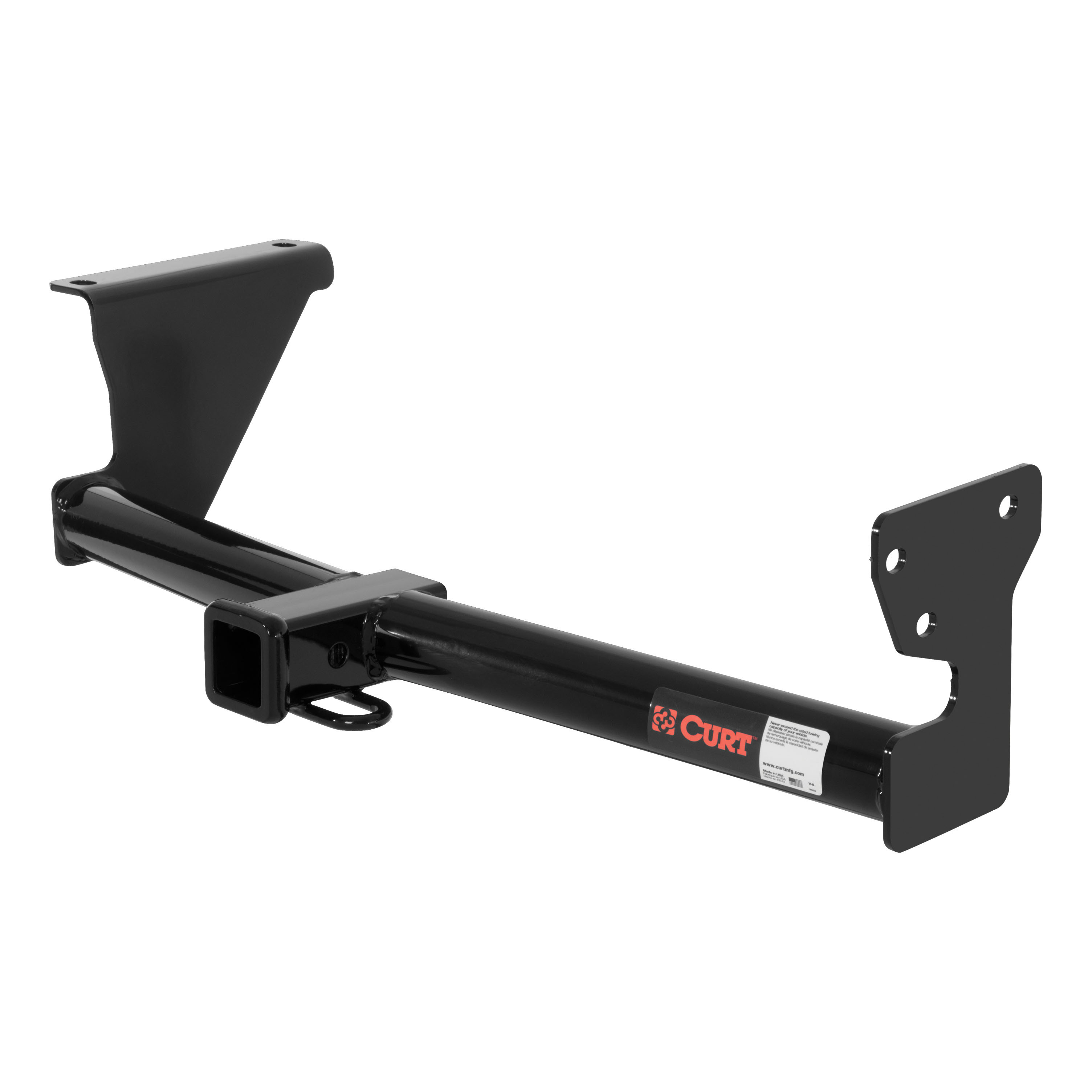

Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2008 - 2014 | Land Rover LR2 | Class 3 Trailer Hitch: 4000 lbs 400/4,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 400/4,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Land Rover LR2 75688 (Part #DT75688) fits 2008-2014 Land Rover LR2 models. The 2014 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Land Rover LR2 75688 (Part #DT75688) fits the following vehicles: 2008-2014 Land Rover LR2. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Land Rover LR2 75688 (Part #DT75688) is designed to fit the 2008-2014 Land Rover LR2.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Land Rover LR2 75688 (Part #DT75688) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 75688 is designed for the Land Rover LR2. The hitch is available under part numbers 75688, 87575, 44640, and 78180 (U-Haul version).
The hitch has a maximum tongue weight of 400 lb (182 kg) and maximum gross trailer weight of 4000 lb (1816 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
You will need wrenches in 5/8", 11/16", and 22mm sizes, a 6" ratchet extension, a ratchet swivel, and a torque wrench. The torque wrench is essential because fasteners must be tightened to specific torque specifications.
Before installation, thread the M14 bolts (Item 1) into both weld nuts to clean out dirt and rust. This preparation step ensures proper fastener seating and function.
1. Thread M14 bolts into both weld nuts to clean dirt and rust. 2. Raise hitch over tail pipe on driver's side and install rearward bolt to support hitch. 3. Place passenger's bracket against existing tie-down bracket and install 7/16" hardware. 4. Install forward M14 bolts into weld nuts (push tail pipe forward and rotate bolt into place). 5. Torque all fasteners to specifications.
No permanent modification is required. During installation, you will need to push the tail pipe forward temporarily to position the forward M14 bolts into the weld nuts, then rotate the bolts into place. The tail pipe returns to its normal position after installation.
All M14 CL8.8 fasteners must be tightened with a torque wrench to 100 Lb.-Ft. (136 N·m).
All 7/16-14 GR5 fasteners must be tightened with a torque wrench to 50 Lb.-Ft. (68 N·m).
The hitch includes: 2 hex bolts M14 × 2.00 × 120mm CL8.8 (Item 1); 3 hex bolts 7/16-14 × 1.50 GR5 (Item 3); 3 flat washers 7/16" (Item 5); 2 conical washers 5/8" (Item 2); 3 lock washers 7/16" (Item 4); and 3 hex nuts 7/16-14 (Item 6). A fastener kit (75688F) is also available.
The passenger's bracket is placed against the existing tie-down bracket on the vehicle and secured with 7/16" hardware as shown in the installation diagram.
Use caution when working near the exhaust system. Observe safety precautions when working beneath the vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual recommends regular inspection to maintain safe operation.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval but emphasizes regular inspection.
A damaged hitch or ball must be removed and replaced. Do not attempt to repair or continue using a damaged component.
The hitch complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes, the 75688 is designed for the Land Rover LR2.
You need wrenches (5/8", 11/16", 22mm), a 6" ratchet extension, ratchet swivel, and a torque wrench.
M14 CL8.8 bolts: 100 Lb.-Ft. (136 N·m). 7/16-14 GR5 bolts: 50 Lb.-Ft. (68 N·m).
Maximum tongue weight: 400 lb (182 kg). Maximum gross trailer weight: 4000 lb (1816 kg). Do not exceed the lower of the vehicle manufacturer's rating or these limits.
No permanent modification is required. You will temporarily push the tail pipe forward during installation to position the forward bolts, then it returns to normal position.
Use caution near the exhaust. Wear eye protection. Work safely beneath the vehicle. Do not use a torch to cut holes. Plug holes if hitch is removed to prevent water and exhaust fume entry.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
