Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Land Rover Range Rover Velar 76260Draw-titeOut of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2013 - 2022 Land Rover Range Rover Sport
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

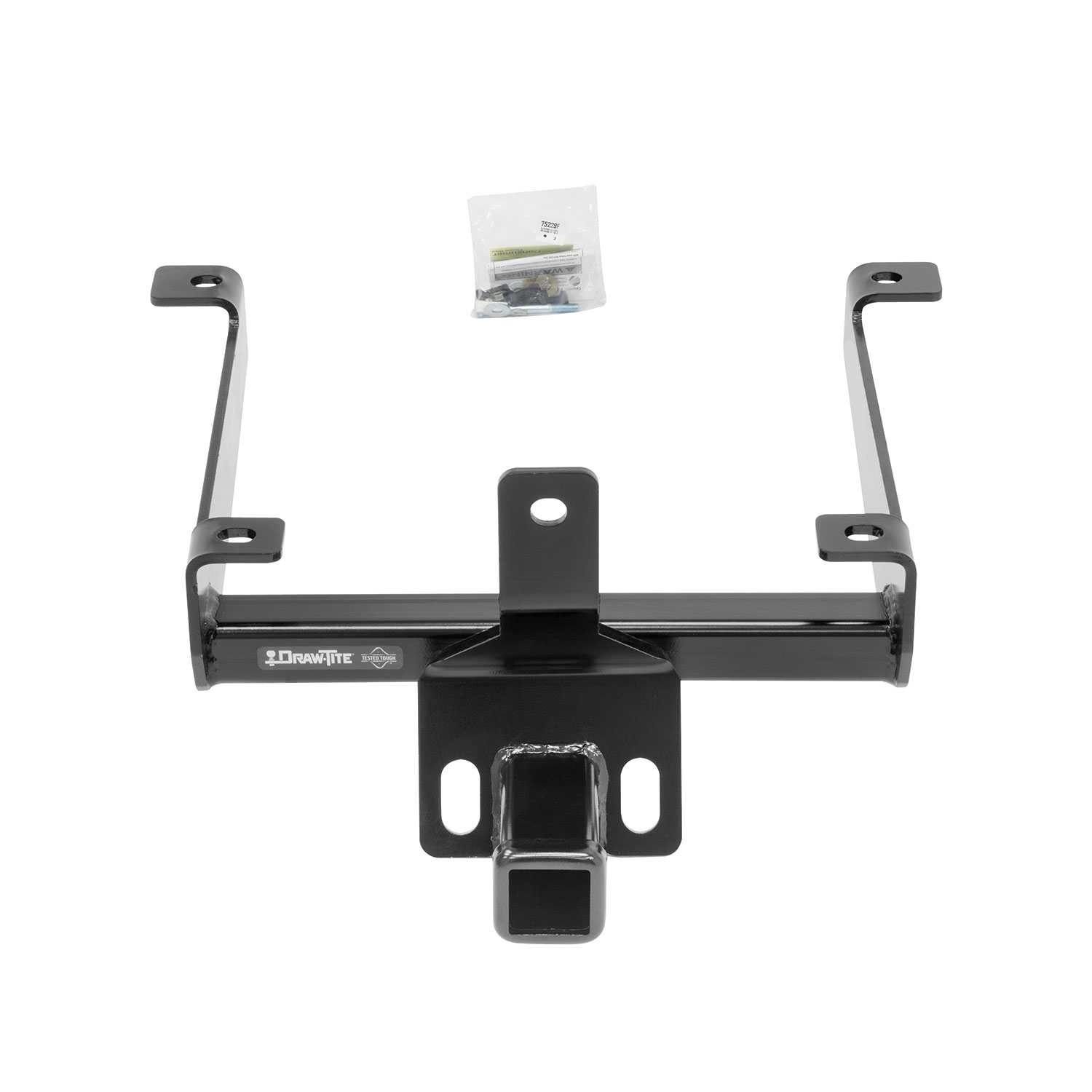

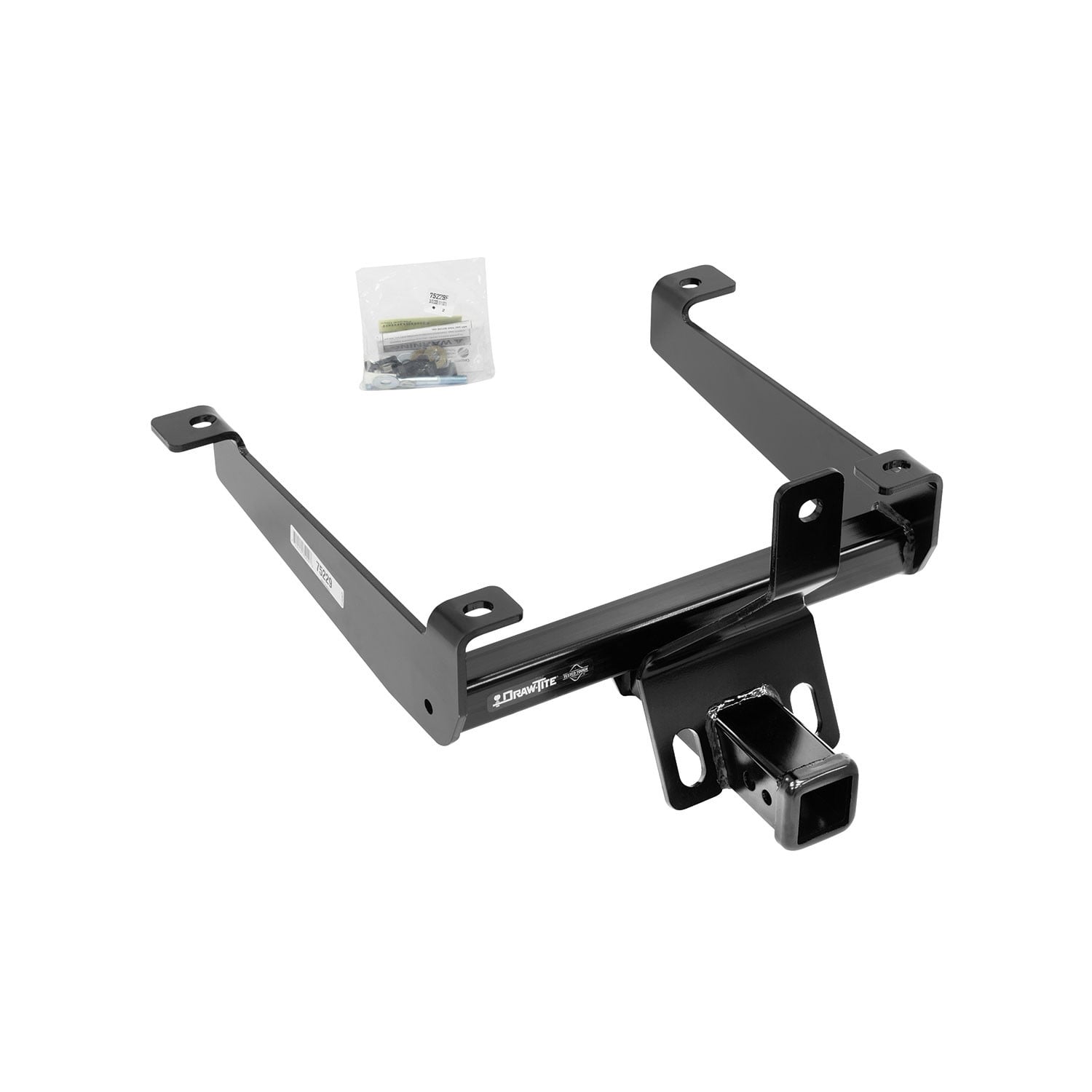

DRAW-TITE Class 4 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 4 receiver hitch is rated for up to 8,000 lbs. gross trailer weight (GTW) and up to 800 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 4 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 75229 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 35.4 LBS |
| GROSS TOWING WEIGHT: | 8,000 LBS. |
| GROSS TONGUE WEIGHT: | 800 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | IV |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw-Tite® Trailer Hitches | Receiver Hitches
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2013 - 2022 | Land Rover Range Rover Sport | Class 4 Trailer Hitch: 8000 lbs 800/8,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 45 minutes |
Yes, the Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Land Rover Range Rover Sport 75229 (Part #DT75229) is designed to fit the 2013-2022 Land Rover Range Rover Sport.
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Land Rover Range Rover Sport 75229 (Part #DT75229) fits the following vehicles: 2013-2022 Land Rover Range Rover Sport. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Land Rover Range Rover Sport 75229 (Part #DT75229) fits 2013-2022 Land Rover Range Rover Sport models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Land Rover Range Rover Sport 75229 (Part #DT75229) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part numbers 75229, 87693, and 44781 are designed for 2015-current Land Rover Range Rover Sport. Visit the Cequent website for the most up-to-date information regarding specific application years and trim levels.
You will need: ratchet, torque wrench, safety glasses, 10 mm and 19 mm sockets, flat head screwdriver, Phillips screwdriver, and utility knife. A torque wrench is essential to tighten all fasteners to the correct specification.
No drilling is required. The hitch uses existing vehicle cross frame weldnuts and bumper beam attachment points. You will need to trim the lower appearance panel as shown in Figure 4.
All fasteners must be tightened to 75 Lb.-Ft. (102 N·M) using a torque wrench.
This is a weight-carrying hitch with a maximum gross trailer weight of 8000 lb. (3632 kg) and maximum tongue weight of 800 lb. (363 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.

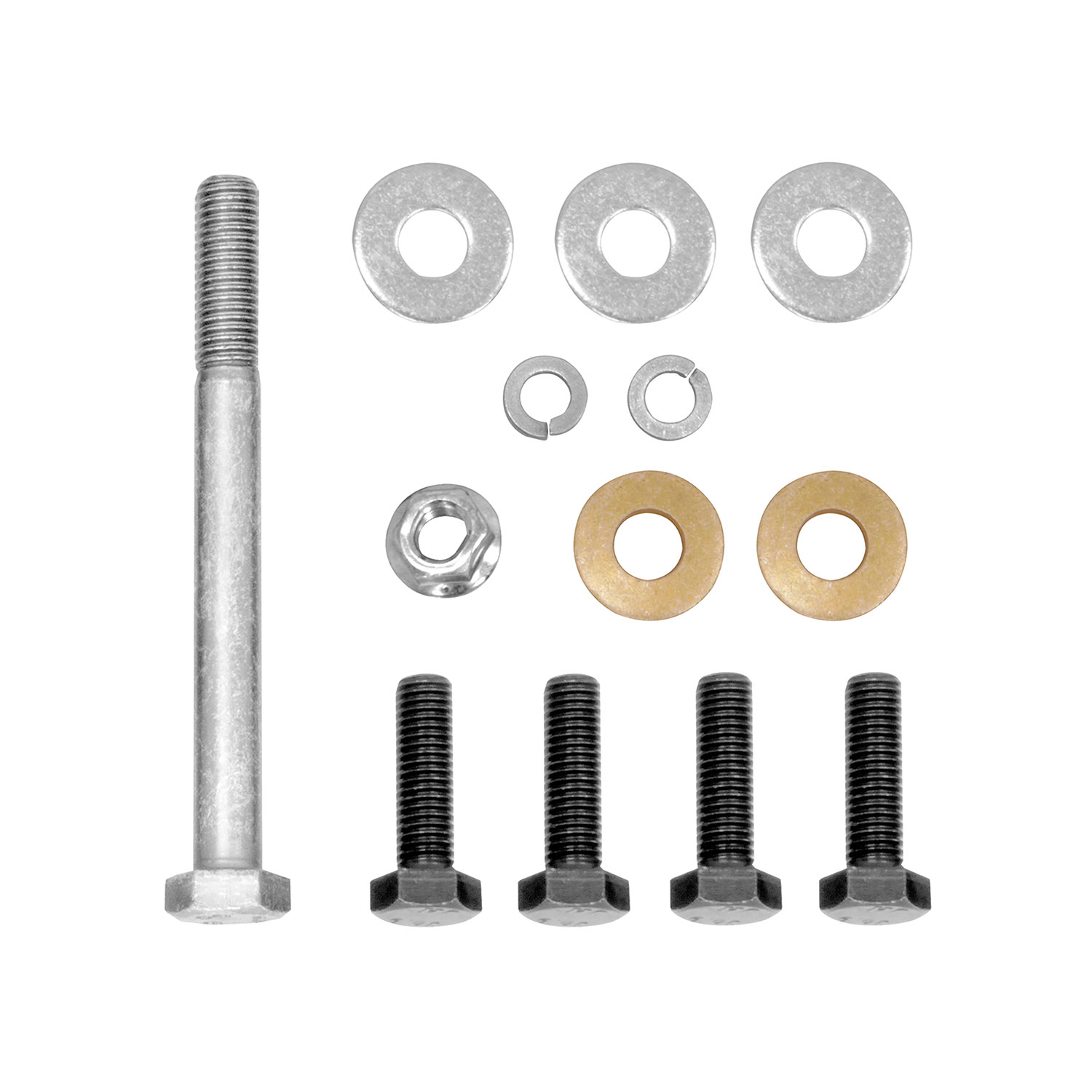

The fastener kit 75229F includes: (4) M12 bolts 1.75×35 CL 10.9, (2) conical washers ½", (3) flat washers ½", (2) lock washers ½", (1) bolt ½-13-5 GR5, and (1) flange nut ½-13 GR5. These fasteners attach the hitch to the vehicle cross frame weldnuts and bumper beam.
No. Part numbers 75229, 87693, and 44781 are designed for 2015-current Land Rover Range Rover Sport models only. For older model years, contact Cequent at 1-800-632-3290 or visit www.cequentgroup.com for alternative products.
1. Remove the upper appearance panel by removing (2) plastic rivets with a flat head screwdriver. 2. Remove the lower appearance panel by removing (4) bolts with a 10 mm socket and Phillips screwdriver. 3. Raise the hitch into position and loosely install the M12 bolts with washers at the rear and front vehicle cross frame weldnuts. 4. Loosely insert the ½-13-5 bolt and flat washer into the bumper beam and secure with the flange nut. 5. Tighten all fasteners to 75 Lb.-Ft. (102 N·M) with a torque wrench. 6. Trim the lower panel as shown in Figure 4. 7. Reinstall the upper and lower appearance panels.
The lower appearance panel must be trimmed according to Figure 4. The trim dimensions are: 7" width, 5.5" height, 1.5" from the edge, and 4.0" from the bottom. Additional trimming may be needed depending on your specific vehicle. Use a utility knife for trimming.
Leave all fasteners loose during initial installation. First, raise the hitch into position and loosely install the M12 bolts at the vehicle cross frame weldnuts and the ½-13-5 bolt at the bumper beam. Only after all fasteners are in place should you tighten them to 75 Lb.-Ft. (102 N·M) using a torque wrench.
You will need 10 mm and 19 mm sockets. The 10 mm socket is used to remove the (4) bolts from the lower appearance panel. The 19 mm socket is listed in the equipment required, though the manual does not specify its exact use in the installation steps.
If excessive sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. Reduce speed and maintain control until the sway subsides.
Load the trailer heavier in front. This helps maintain stability and control while towing. Always ensure the tongue weight does not exceed 800 lb. (363 kg) and the total gross trailer weight does not exceed 8000 lb. (3632 kg).
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but periodic inspection is essential for safe towing. Proper torque is needed to keep the hitch secure to the vehicle when towing.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. This protects the vehicle's interior and prevents corrosion.
A hitch or ball which has been damaged should be removed and replaced immediately. Do not continue towing with a damaged hitch or ball, as this compromises safety.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle. Do not cut access or attachment holes with a torch. Use proper lifting and support equipment when raising the vehicle or hitch.
Cequent Performance Products provides a Limited Lifetime Warranty to the original consumer purchaser. The product is warranted to be free from material defects in material and workmanship, ordinary wear and tear excepted. The warranty is valid only if products are installed, maintained, and used according to instructions. To make a warranty claim, contact Cequent at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, 1-800-632-3290, with your model number and purchase receipt. Product replacement is the sole remedy; Cequent is not responsible for service or labor charges.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Slow down when towing and never exceed any posted speed limit. Reduce your normal driving speed to improve control and stability while towing a trailer.
The average installation time is 45 minutes for professional installers. If you do not feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer.
No. This is a weight-carrying hitch only. Weight-distributing capability is listed as N/A. If you need a weight-distributing hitch, contact Cequent at 1-800-632-3290 for alternative products.
Check all fasteners periodically to ensure they remain tight. If fasteners have loosened, use a torque wrench to retighten them to 75 Lb.-Ft. (102 N·M). Loose fasteners can compromise the security of the hitch and create a safety hazard while towing.
If the hitch has been removed or holes have been created in the trunk pan or body panels, plug all holes immediately to prevent entry of water and exhaust fumes. If water or fumes have already entered, inspect the vehicle for damage and consult a professional mechanic.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
