Draw-Tite Hardware Kit For Class 4 Trailer Hitch, 2 Inch 76260 For 2018-2023 Land Rover Range Rover Velar Draw-tite$55.49Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2018 - 2023 Land Rover Range Rover Velar
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
DRAW-TITE Class 4 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 4 receiver hitch is rated for up to 6,000 lbs. gross trailer weight (GTW) and up to 900 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 4 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76260 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 27 LBS |
| GROSS TOWING WEIGHT: | 6,000 LBS. |
| GROSS TONGUE WEIGHT: | 900 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | IV |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw-Tite® Trailer Hitches | Receiver Hitches
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Land Rover Range Rover Velar 76260 (Part #DT76260) fits the following vehicles: 2018-2023 Land Rover Range Rover Velar. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Land Rover Range Rover Velar 76260 (Part #DT76260) fits 2018-2023 Land Rover Range Rover Velar models. The 2023 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Land Rover Range Rover Velar 76260 (Part #DT76260) is designed to fit the 2018-2023 Land Rover Range Rover Velar.
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Land Rover Range Rover Velar 76260 (Part #DT76260) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part numbers 76260, 84260, and CQT76260 fit 2018-current Range Rover Velar models. Visit the Horizon Global website for the most up-to-date information regarding specific application years and trim levels.
The 76260 is a weight-carrying hitch with a maximum gross trailer weight of 6000 lb (2724 kg) and maximum tongue weight of 900 lb (409 kg). Do not exceed the lower of your vehicle manufacturer's towing rating or these limits.
Required tools: ratchet, torque wrench, safety glasses, sockets (10 mm, 18 mm, 21 mm), 6-inch socket extension, panel removal tool, plastic trim tools, Phillips screwdriver, flat head screwdriver, and T15 Torx screwdriver.
Yes. The average installation time is 80 minutes for professional installers. If you do not feel comfortable performing this installation on your own or need assistance, contact a professional installer.
Tighten all 14 mm bolts to 115 Lb-Ft (156 N·M) using a torque wrench. Proper torque is needed to keep the hitch secure to the vehicle when towing.
Yes. Step 5 requires removal of (8) 14 mm bolts from the bumper beam using a 21 mm socket. These bolts are saved and reused for hitch installation. The (3) M14 bolts from the passenger side frame rail are returned to the customer.
Always wear your seatbelt. Slow down when towing and never exceed posted speed limits. Load the trailer heavier in front. If excess sway occurs, take your foot off the gas pedal and hold the steering wheel steady—do not apply brakes or speed up. Do not exceed the lower of your vehicle manufacturer's rating or 6000 lb GVWR / 900 lb tongue weight.
Check that all fasteners are tight and the hitch is securely mounted to the vehicle. Check the hitch frequently during use, ensuring all fasteners and ball are properly tightened.
The manual lists all three part numbers (76260, 84260, CQT76260) as applying to 2018-current Range Rover Velar models and provides identical installation instructions for all three. The manual does not specify differences between these part numbers. Contact Horizon Global at 800-632-3290 or TechnicalSupport@horizonglobal.com for clarification on which part number suits your specific application.
No. The 76260 is designed for 2018-current Range Rover Velar models only. The manual states applications begin at 2018. For older model years, contact Horizon Global at 800-632-3290 or visit www.horizonglobal.com to confirm compatibility.
Follow these steps in order: (1) Remove fascia; (2) Remove plastic panel; (3) Lower exhaust; (4) Lower heat shield; (5) Remove bumper beam; (6) Reinstall heat shield; (7) Install hitch loosely; (8) Tighten fasteners to 115 Lb-Ft; (9) Reinstall plastic panel; (10) Reinstall fascia. Do not skip or reorder steps, as some components must be removed to access hitch mounting points.
Open the liftgate. Remove plastic covers and rivets next to each taillight. Remove taillight screws and unplug electrical connectors. Remove bolts at the top of the fascia near taillights (10 mm socket, each side). Remove the cover along the liftgate opening and plastic push rivets. Remove (3) bolts attaching fascia to underbody near center (10 mm socket). Remove hitch access panel and (2) Phillips screws. Loosen top (2) T15 Torx screws from wheel well trim, remove (2) Phillips screws inside wheel well, pull back wheel well liner, and remove (2) Phillips screws. Starting from wheel well area, gently pull fascia away from vehicle, working toward center from each wheel well. Unplug (2) electrical connectors from behind fascia near driver-side wheel well.
Remove (8) 14 mm bolts from the rearmost face of the bumper beam using a 21 mm socket. Save these (8) bolts—they are reused to attach the hitch to the frame rail (4 bolts each side). Also remove (3) M14 bolts from the passenger side frame rail using an 18 mm socket and return these bolts and the bumper beam to the customer.
Raise the hitch into position, aligning the attachment holes with the weldnuts in the end panel. Loosely reinstall the (8) M14 bolts removed from the bumper beam (4 bolts each side). Then tighten all 14 mm bolts to 115 Lb-Ft (156 N·M) using a torque wrench.
The plastic panel removed in Step 2 is reinstalled in Step 9. After removing (7) nuts using a 10 mm socket and unplugging the sensor at the middle of the panel, set it aside. Later, place the panel back into position, reinstall the (7) nuts, and plug in the sensor.
In Step 3, while supporting the exhaust to prevent damage, remove the rubber isolators from the exhaust hangers (3 each side). In Step 6, reinstall the heat shield and raise the exhaust back into position, reattaching all exhaust isolators.
The heat shield on the passenger side must be lowered to expose the M14 bolts in the bottom of the frame rail, which are needed for hitch attachment. Using a 10 mm socket, remove the bolts on the passenger side heat shield. After the hitch is installed, reinstall the heat shield.
Reverse the order of Step 1. Reinstall the fascia and taillights, ensuring all electrical connectors removed earlier are plugged back in. The vehicle fascia has a removable panel for hitch usage that may be replaced when the hitch is not in use.
No drilling is required. The hitch attaches to existing weldnuts in the end panel of the frame rail. The manual explicitly warns: 'Do not cut access or attachment holes with a torch.' All fastening uses existing factory mounting points.
No. The manual explicitly states: 'DO NOT cut, weld or modify this receiver.' Cutting or welding will void the warranty and compromise the structural integrity and safety of the hitch.
You need three socket sizes: 10 mm (for fascia bolts, plastic panel nuts, and heat shield bolts), 18 mm (for M14 bolts on passenger side frame rail), and 21 mm (for 14 mm bolts on bumper beam). A 6-inch socket extension is also required.
The hitch bolts must be tightened to 156 N·M (which equals 115 Lb-Ft). Use a torque wrench to achieve this specification.

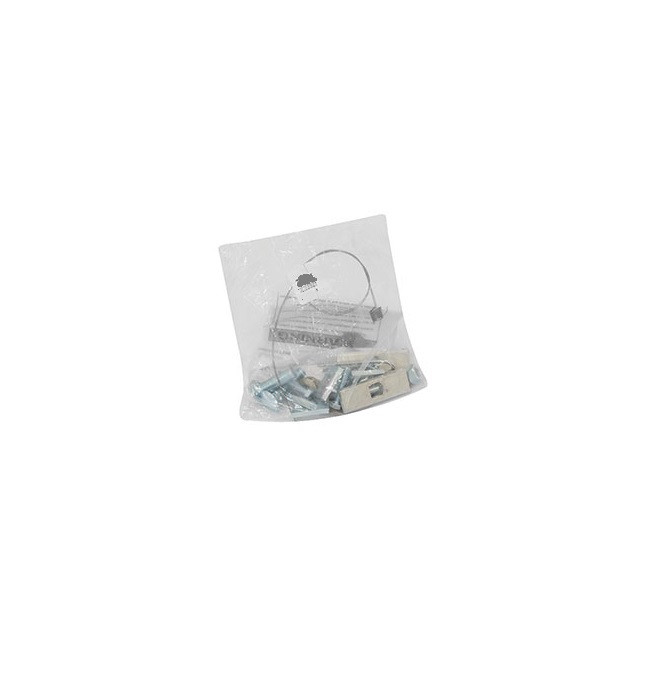

Fastener Kit 76260F is available. However, the manual notes that no fasteners are supplied in the fastener kit. The (8) M14 bolts used for hitch attachment are the factory bolts removed from the bumper beam in Step 5.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. Reducing speed and maintaining steady steering will help stabilize the trailer.
Load the trailer heavier in front. This helps maintain proper weight distribution and improves towing stability.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but regular inspection before each towing trip is recommended.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. This protects the vehicle's interior from damage.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch, as it may not be safe for towing.
Yes. Horizon Global Americas Inc. offers a Limited Lifetime Warranty to the original consumer purchaser. The warranty covers material defects in materials and workmanship, excluding ordinary wear and tear. The warranty is valid only if products are installed, maintained, and used according to the instructions. For warranty claims, contact Horizon Global at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, 1-800-632-3290, and provide your model number and purchase receipt.
Contact Horizon Global at: Website: www.horizonglobal.com, Phone: 800-632-3290, Email: TechnicalSupport@horizonglobal.com, or Mail: 47912 Halyard Drive, Suite 100, Plymouth, MI 48170.
Yes. The manual explicitly states: 'Save all fascia fasteners for reinstallation.' All bolts, screws, and rivets removed from the fascia in Step 1 must be saved and reinstalled in Step 10 when reversing the removal process.
Eight (8) M14 bolts attach the hitch to the frame rail—4 bolts on each side. These are the factory bolts removed from the bumper beam in Step 5 and reused in Step 7.
In Step 7, loosely reinstall the (8) M14 bolts. Do not fully tighten them until Step 8, when you tighten all 14 mm bolts to 115 Lb-Ft (156 N·M) using a torque wrench. This allows for proper alignment before final tightening.
The manual states that the cover running along the liftgate opening at the top of the fascia has plastic push rivets. The English version (page 3) does not specify the exact number, but the French version (page 10) clarifies there are (4) plastic push rivets to remove.
Seven (7) nuts attach the plastic panel. Remove them using a 10 mm socket in Step 2, and reinstall them in Step 9.
Two electrical components must be disconnected: (1) the electrical connectors from the taillight assemblies (each side) in Step 1c, and (2) the sensor at the middle of the plastic panel in Step 2. Both must be reconnected in Steps 9 and 10.
Three (3) rubber isolators are removed from the exhaust hangers on each side (6 total). These must be reattached in Step 6 when the exhaust is raised back into position.
Always wear safety glasses when installing the hitch. The manual also recommends observing safety precautions when working beneath a vehicle and wearing eye protection.
The 76260 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Check all fasteners and retighten them to 115 Lb-Ft (156 N·M) using a torque wrench. The manual states: 'Check the hitch frequently, making sure all fasteners and the ball are properly tightened.' If bolts continue to loosen, the hitch may be damaged and should be removed and replaced.
Ensure all fasteners removed in Step 1 are reinstalled in their original locations. Verify that the hitch access panel is properly seated. If misalignment persists, remove the fascia again and check that the hitch is fully tightened to 115 Lb-Ft (156 N·M) and properly aligned with the frame. Reposition the fascia carefully, starting from the wheel well areas and working toward the center.
Verify that the sensor connector is fully plugged in during Step 9. If the sensor still does not function, the connector may be damaged or the sensor may be faulty. Consult your vehicle's service manual or contact a professional technician for diagnosis.
Ensure the connectors are fully seated and locked. If a connector is damaged, the taillight assembly may need to be replaced. Do not force connectors, as this may cause further damage. If taillights do not function after reinstallation, consult your vehicle's service manual or contact a professional technician.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2023 | Land Rover Range Rover Velar | Class 4 Trailer Hitch: 6000 lbs 900/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 80 minutes |
