Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

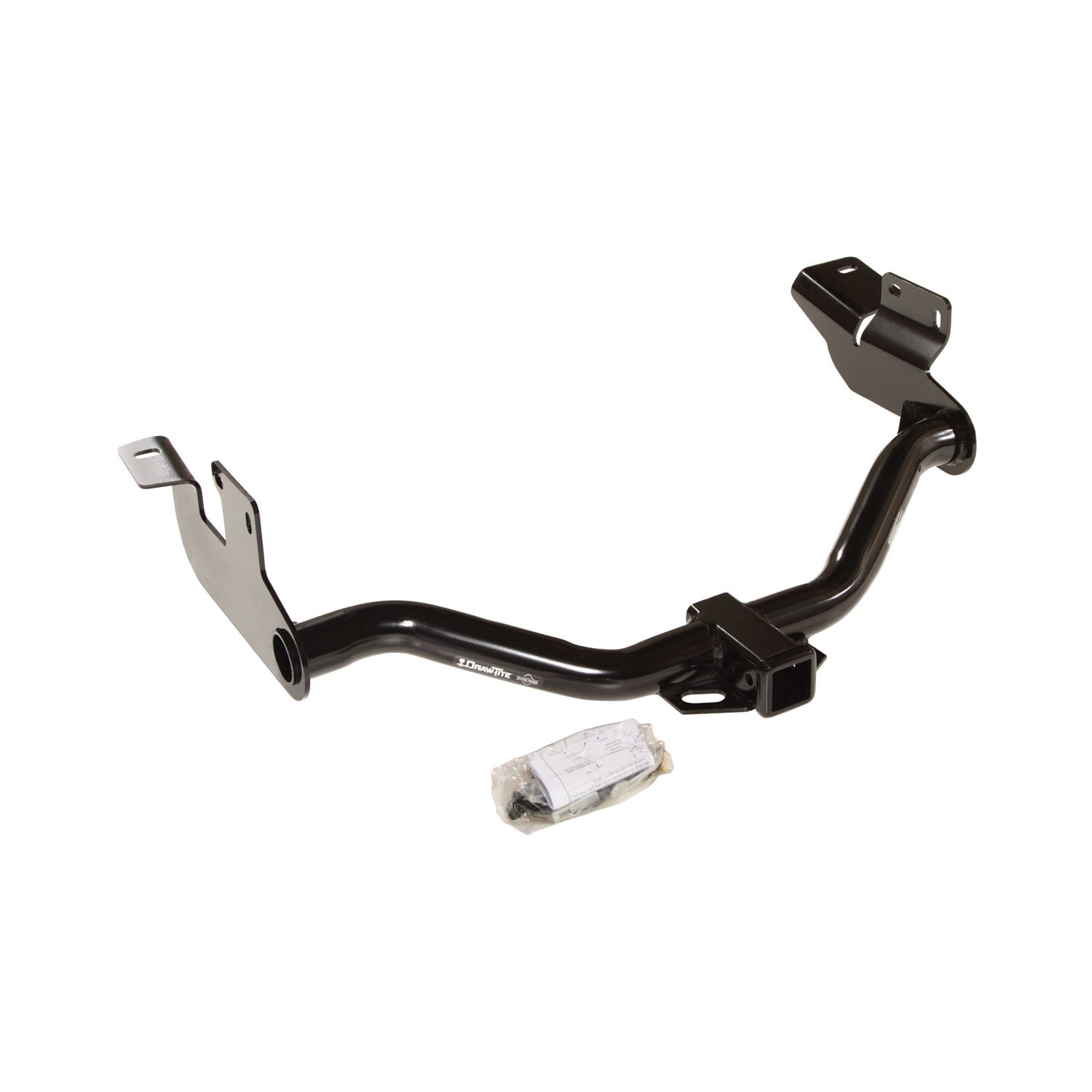

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 3 receiver hitch is rated for up to 4,500 lbs. gross trailer weight (GTW) and up to 675 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 5,250 lbs. weight distribution (WD) and 675 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 75751 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 35 LBS |
| GROSS TOWING WEIGHT: | 4,500 LBS. |
| GROSS TONGUE WEIGHT: | 675 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | ROUND TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 5,250 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 675 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime

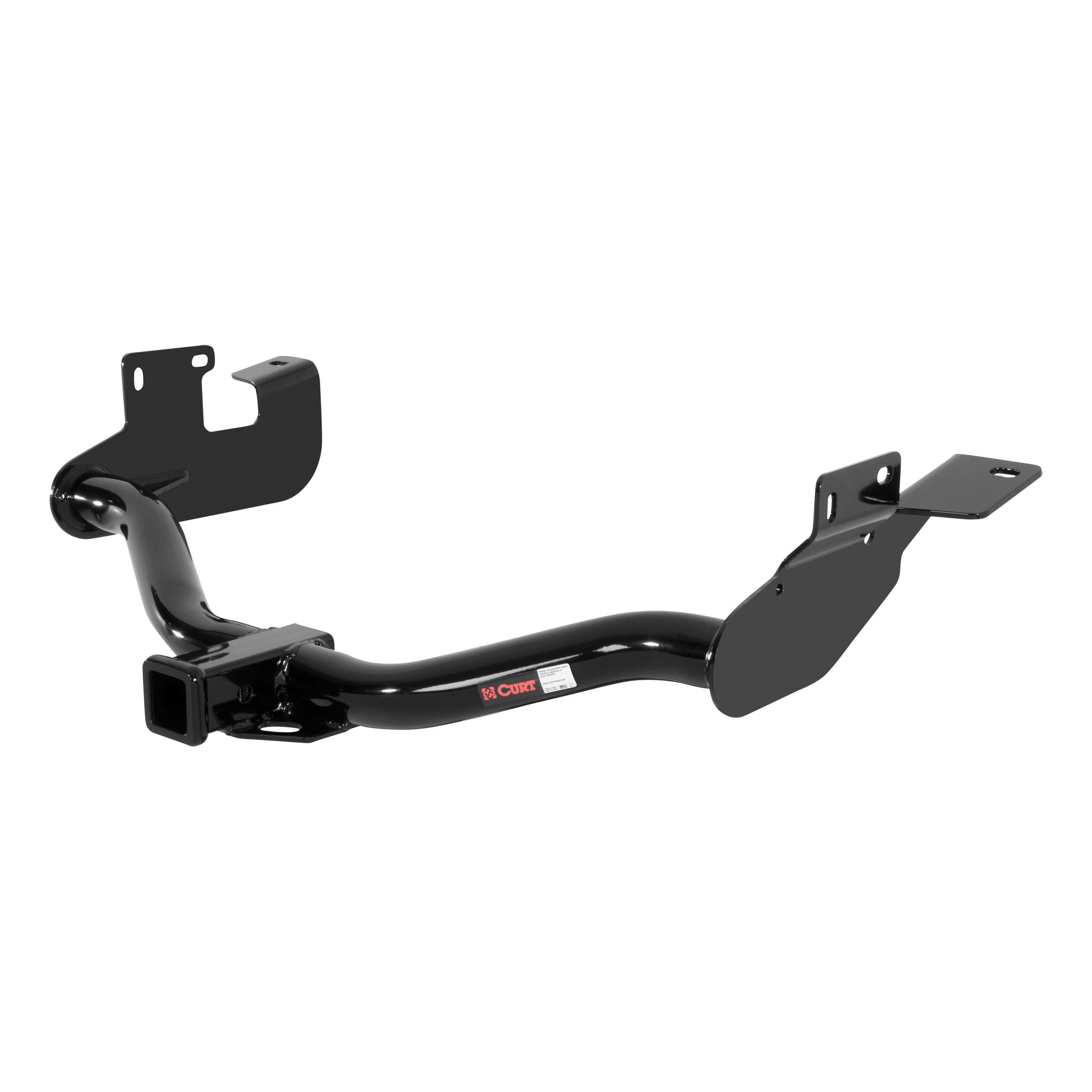

Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw•Tite® and the Checkered Flag Foundation
3 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2005 - 2012 | Ford Escape | Class 3 Trailer Hitch: 4500 lbs 675/4,500 lbs. Weight Carrying (tongue weight/gross trailer weight) 675/5,250 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 25 minutes |
| 2005 - 2006, 2008 - 2011 | Mazda Tribute | Class 3 Trailer Hitch: 4500 lbs 675/4,500 lbs. Weight Carrying (tongue weight/gross trailer weight) 675/5,250 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 25 minutes |
| 2005 - 2011 | Mercury Mariner | Class 3 Trailer Hitch: 4500 lbs 675/4,500 lbs. Weight Carrying (tongue weight/gross trailer weight) 675/5,250 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 25 minutes |
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Escape, Mazda Tribute, Mercury Mariner 75751 (Part #DT75751) is designed to fit the 2005-2012 Ford Escape.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Escape, Mazda Tribute, Mercury Mariner 75751 (Part #DT75751) fits 2005-2012 Ford Escape models. The 2012 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Escape, Mazda Tribute, Mercury Mariner 75751 (Part #DT75751) fits the following vehicles: 2005-2012 Ford Escape; 2005-2011 Mazda Tribute; 2005-2011 Mercury Mariner. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Escape, Mazda Tribute, Mercury Mariner 75751 (Part #DT75751) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. Part number 75751 is designed for Ford Escape (including Hybrid), Mercury Mariner (including Hybrid), and Mazda Tribute. The hitch is compatible with both standard and hybrid versions of these vehicles.
Yes. Part number 75751 is compatible with Mercury Mariner (including Hybrid) and Mazda Tribute, as well as Ford Escape models.
The maximum gross trailer weight depends on the hitch type: Weight Distributing hitch supports 5,250 lb (2,383 kg) maximum gross trailer weight with 675 lb (306 kg) maximum tongue weight. Weight Carrying Ball Mount supports 4,500 lb (2,043 kg) maximum gross trailer weight with 675 lb (306 kg) maximum tongue weight. Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
Required wrenches: 10mm, 18mm, 22mm, and 5/8". Pullwires are provided with the hitch. A torque wrench is required for final fastener tightening. No drill bits are needed—no drilling is required for this installation.
Yes. The installation procedure depends on whether your vehicle has an O.E.M. Class 2 Integrated Hitch/Bumper. Vehicles with O.E.M. hitch follow the procedure on page 1 (Figure 1), which involves relocating the electrical bracket and using existing weldnuts. Vehicles without O.E.M. hitch follow the procedure on page 2 (Figure 4), which uses existing access holes in the frame rails. Refer to your vehicle's equipment to determine which procedure applies.
The pullwire method is used to feed carriage bolts and blocks through the frame rail access slots. The pullwire is kinked (bent) to keep the block independent of the bolt, preventing the fasteners from being pushed back into the frame. The pullwire is then fed through the existing slot and hitch, allowing the bolts and blocks to be positioned correctly inside the frame rails before the hitch is raised into position.
No. If your vehicle has an O.E.M. Class 2 Integrated Hitch/Bumper, the 75751 is installed alongside it by relocating the electrical bracket and using the existing weldnuts in the frame rails. The O.E.M. hitch remains in place. However, you must not use both hitches at the same time, as this may overload and cause damage to the vehicle.
Return the existing bolts to the vehicle owner. These bolts are removed from inside the frame rails in the first step of installation for vehicles with O.E.M. hitch.
Remove the two (2) screws from the existing electrical bracket. Shift the bracket toward the driver's side using the inside screw hole on the bracket and the outside weld nut. This relocates the bracket to accommodate the new hitch installation.
Tighten all M12 CL10.9 fasteners with a torque wrench to 75 Lb.-Ft. (102 N·M).
Tighten all M14 CL10.9 fasteners with a torque wrench to 115 Lb.-Ft. (156 N·M).
Tighten all 7/16-14 GR5 fasteners with a torque wrench to 50 Lb.-Ft. (68 N·M).

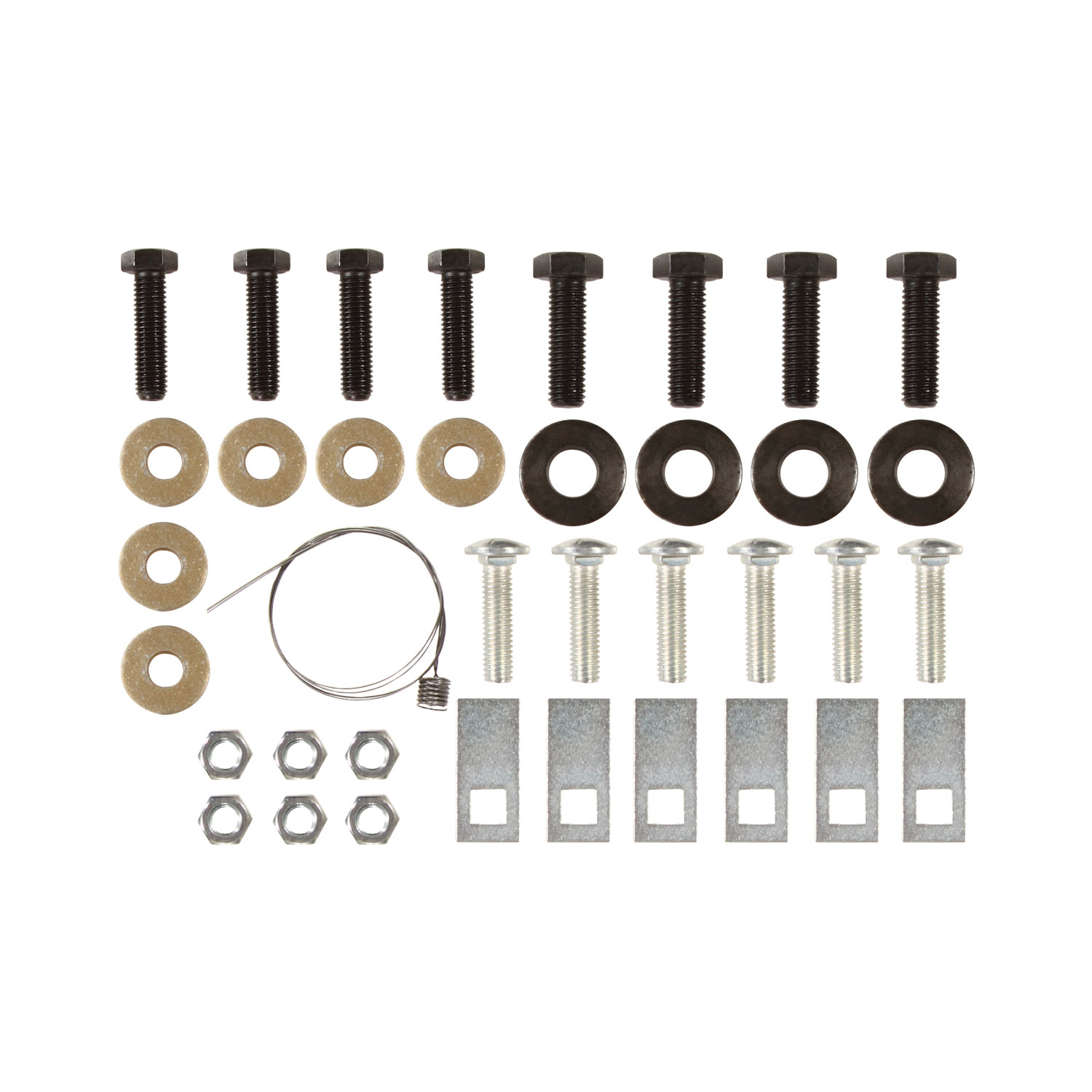

The kit includes: (6) Carriage Bolts 7/16-14 X 1.75 GR5; (6) Hex Nuts 7/16-14; (6) Blocks; (4) Bolts M12 X 1.75 X 45 CL10.9 OR M14 X 2.0 X 45 CL10.9; (6) Conical Washers 7/16"; and (4) Conical Washers 5/8". The fastener kit is part number 75751F.
Yes. After raising the hitch into position and attaching it with conical toothed washers and nuts, hand-tighten the fasteners first. Final torque tightening with a torque wrench should be performed after all fasteners are hand-tightened and the hitch is properly positioned.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. This prevents water and exhaust gases from entering the vehicle interior.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch or ball.
Check the hitch frequently, making sure all fasteners and ball are properly tightened. The manual does not specify an exact interval, but emphasizes the importance of regular inspection to ensure safe operation.
No. Do not use both hitches at the same time. This may overload and cause damage to the vehicle. If your vehicle is equipped with an O.E.M. hitch, use only one hitch for towing.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. These precautions protect you from injury and prevent damage to the vehicle.
Yes, part number 75751 is designed for Ford Escape (including Hybrid), Mercury Mariner (including Hybrid), and Mazda Tribute.
You need wrenches (10mm, 18mm, 22mm, 5/8"), a torque wrench, and pullwires (provided). No drilling is required.
Yes. Vehicles with O.E.M. Class 2 Integrated Hitch/Bumper use the procedure on page 1 (Figure 1). Vehicles without O.E.M. hitch use the procedure on page 2 (Figure 4).
M12 CL10.9: 75 Lb.-Ft. (102 N·M); M14 CL10.9: 115 Lb.-Ft. (156 N·M); 7/16-14 GR5: 50 Lb.-Ft. (68 N·M).
No. Do not use both hitches at the same time—this may overload and damage the vehicle.
Plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering the vehicle.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
