Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

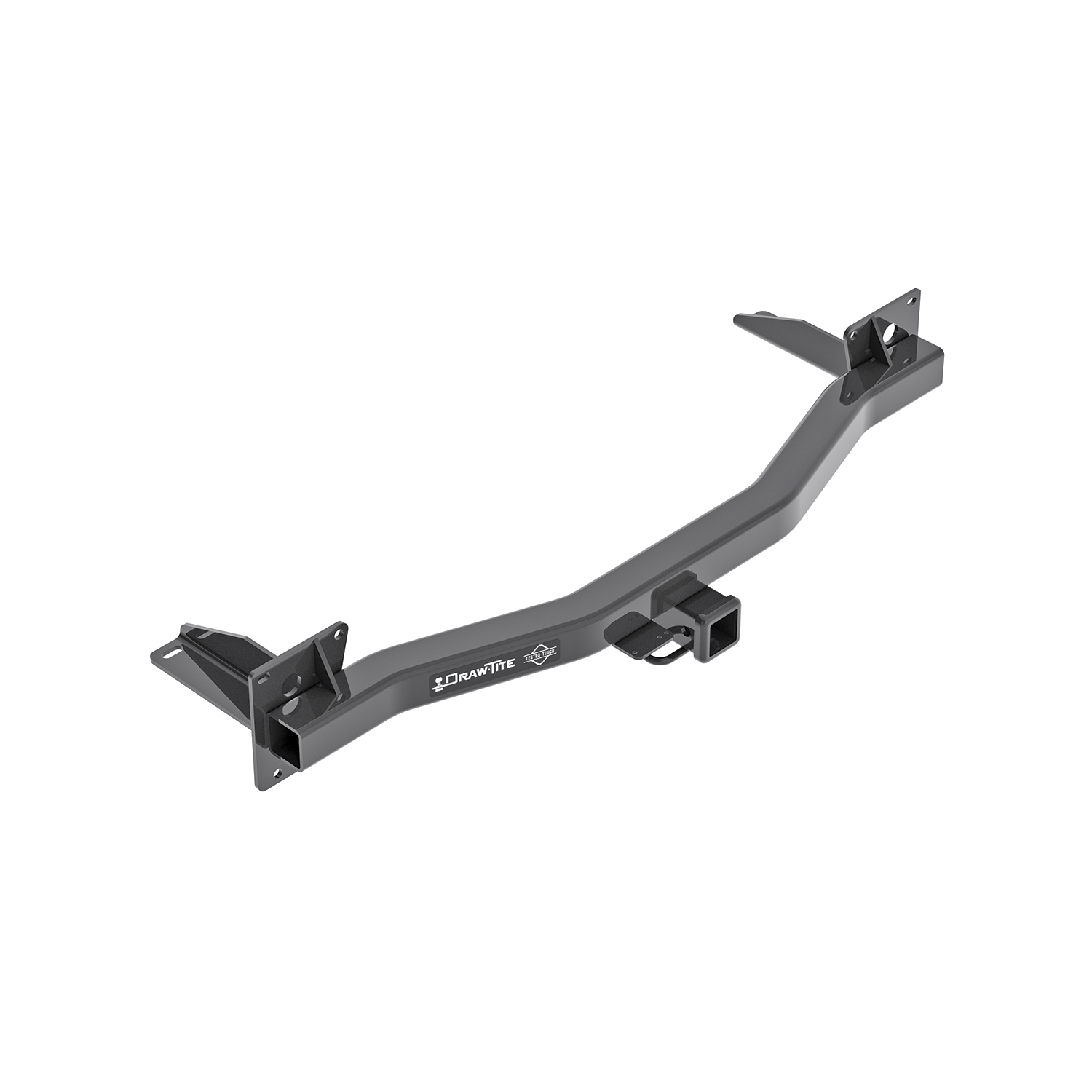

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 3 receiver hitch is rated for up to 5,000 lbs. gross trailer weight (GTW) and up to 750 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 5,000 lbs. weight distribution (WD) and 750 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76184 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 41.8 LBS |
| GROSS TOWING WEIGHT: | 5,000 LBS. |
| GROSS TONGUE WEIGHT: | 750 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 5,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 750 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.

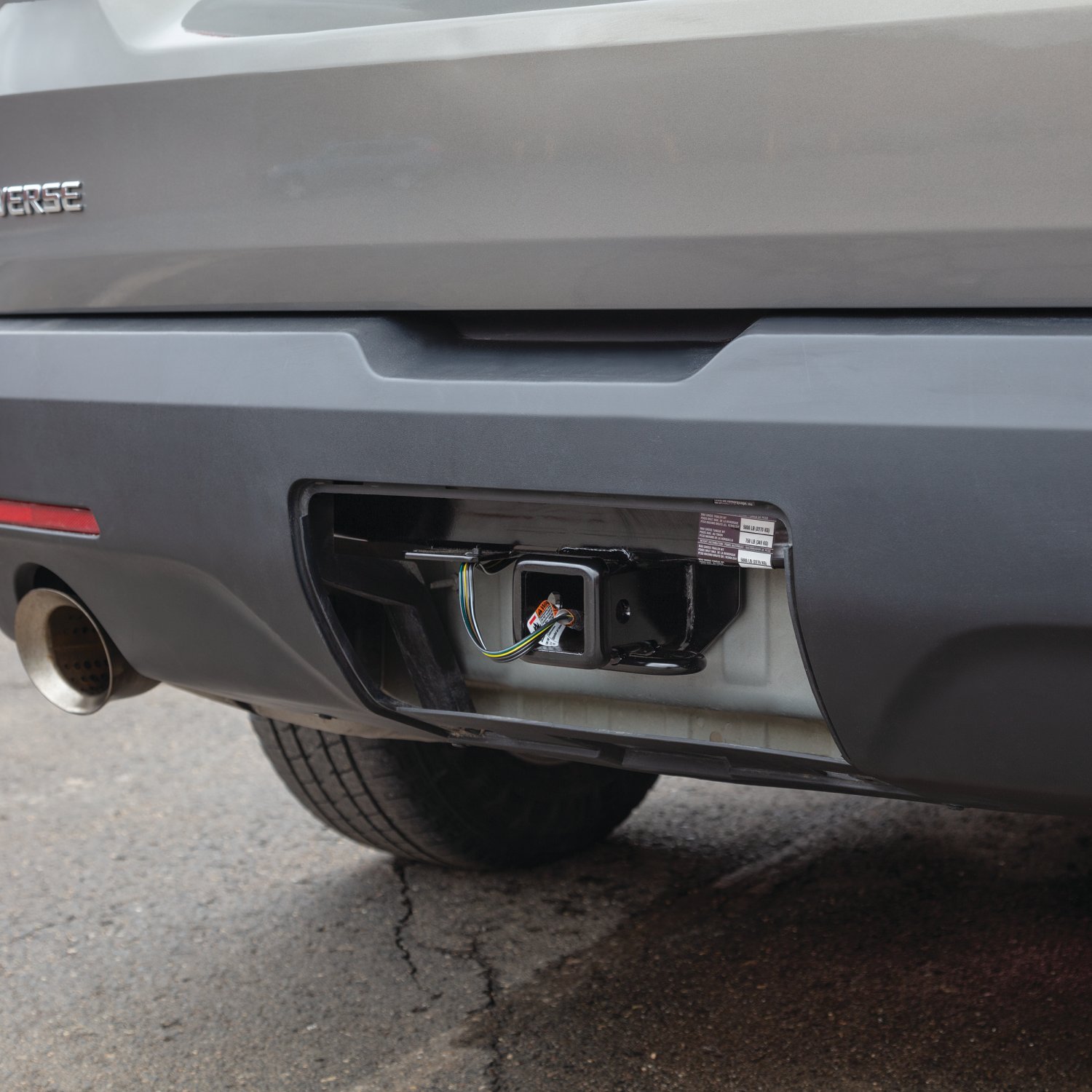

The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime

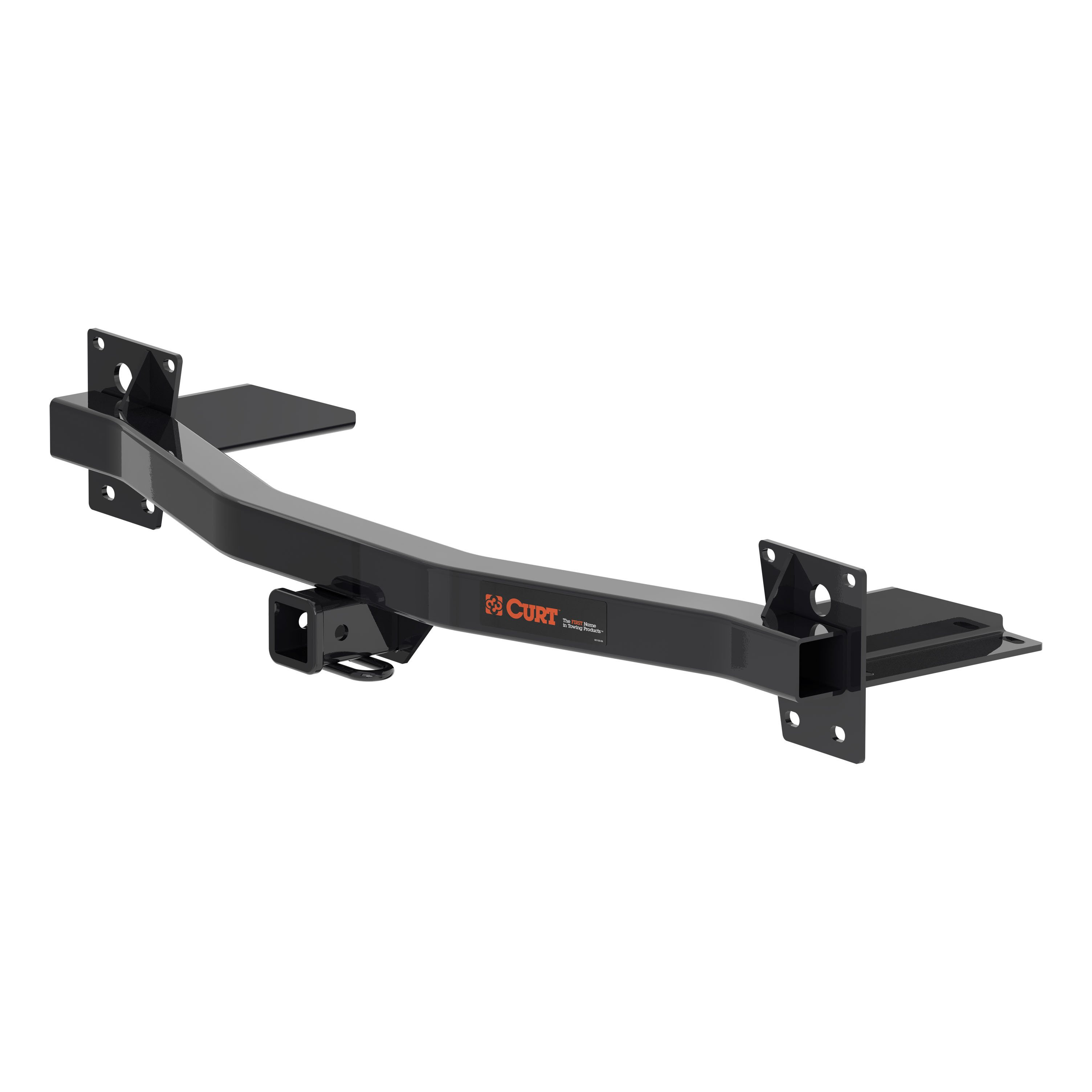

Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw-Tite® Trailer Hitches | Receiver Hitches
5 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2021 - 2026 | Buick Enclave | Class 3 Trailer Hitch: 5000 lbs 750/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/5,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 75 minutes |
| 2018 - 2020 | Buick Enclave | Class 3 Trailer Hitch: 5000 lbs 750/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/5,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 75 minutes |
| 2018 - 2026 | Chevrolet Traverse | Class 3 Trailer Hitch: 5000 lbs 750/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/5,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 75 minutes |
| 2024 | Chevrolet Traverse Limited | Class 3 Trailer Hitch: 5000 lbs 750/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/5,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 75 minutes |
| 2018 - 2026 | GMC Acadia | Class 3 Trailer Hitch: 5000 lbs 750/5,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 750/5,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 75 minutes |
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Buick Enclave, Chevrolet Traverse, Chevrolet Traverse Limited, GMC Acadia 76184 (Part #DT76184) is designed to fit the 2018-2026 Buick Enclave.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Buick Enclave, Chevrolet Traverse, Chevrolet Traverse Limited, GMC Acadia 76184 (Part #DT76184) fits the following vehicles: 2018-2026 Buick Enclave; 2018-2026 Chevrolet Traverse; 2024 Chevrolet Traverse Limited; 2018-2026 GMC Acadia. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Buick Enclave, Chevrolet Traverse, Chevrolet Traverse Limited, GMC Acadia 76184 (Part #DT76184) fits 2018-2026 Buick Enclave models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Buick Enclave, Chevrolet Traverse, Chevrolet Traverse Limited, GMC Acadia 76184 (Part #DT76184) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 76184 fits 2018-Current Chevrolet Traverse models. Visit the manufacturer's website for the most up-to-date information regarding specific trim levels and application years.
Yes, part number 76184 fits 2018-Current Buick Enclave models. Visit the manufacturer's website for the most up-to-date information regarding specific trim levels and application years.
Required tools: ratchet, torque wrench, safety glasses, sockets (7mm, 15mm, 3/4 inch, 6 inch extension), Torx bits (T15, T20), and a flat-head screwdriver. Plastic trim tools are also recommended.
Professional installation is recommended if you do not feel comfortable performing the installation on your own or are in need of assistance. The average installation time for professional installers is 75 minutes.
Tighten all 1/2 inch GR5 fasteners to 75 lb-ft (102 N·M) and all M10 fasteners to 38 lb-ft (52 N·M) using a torque wrench.
Do not exceed the lower of your towing vehicle manufacturer's rating or: maximum gross trailer weight of 5000 lb (2270 kg) and maximum tongue weight of 750 lb (340 kg) for both weight-carrying and weight-distributing hitch types.
Yes. You must remove the rear fascia (bumper cover) and the bumper beam. The bumper beam is held by M10 nuts and bolts that also attach the exhaust hangers, which must be supported during removal.
Yes. You must support the vehicle exhaust system when removing the bottom bumper beam bolts, because these bolts also attach the exhaust hangers.
Fastener kit 76184F includes: (4) carriage bolts 1/2 inch-13 x 1 1/2 inch GR5, (4) spacers 1/4 inch x 1 inch x 2 inch (part number 5121), (4) conical washers 1/2 inch (part number 01292008), (4) hex nuts 1/2 inch-13 GR5, (4) bolts M10 x 1.5 x 45mm Class 10.9, (4) conical washers 3/8 inch (part number 01292006), and (4) fishwires 1/2 inch (part number 5482).
No. Hitch 76184 is designed for 2018-Current Chevrolet Traverse models only. For older model years, contact the manufacturer or visit their website for compatible hitch options.
No. Hitch 76184 is designed for 2018-Current Buick Enclave models only. For older model years, contact the manufacturer or visit their website for compatible hitch options.
Conical washers must be installed with the teeth side facing toward the hitch. This applies to both the 1/2 inch conical washers (part number 01292008) used with the carriage bolts and the 3/8 inch conical washers (part number 01292006) used with the M10 bolts.
Feed the carriage bolts and spacers using fishwire into the vehicle frame through the access hole in the hitch. Remove the fishwires and loosely install the conical washers (teeth side toward hitch) and nuts. The fishwires are included in the fastener kit (part number 5482).
Loosely install the carriage bolts, spacers, conical washers, and nuts in step 4(b). Tighten all fasteners to final torque specification only in step 5: all 1/2 inch GR5 fasteners to 75 lb-ft (102 N·M) and all M10 fasteners to 38 lb-ft (52 N·M).
Reuse the M10 nuts removed from the top bumper attachments. The manual states to 'set nuts aside for re-attachment' in step 3(a) and then 'install the nuts removed earlier' in step 4(a). Return the bumper beam bolts to the vehicle owner.
Eight fasteners attach the hitch to the vehicle frame: (4) carriage bolts 1/2 inch-13 x 1 1/2 inch GR5 with conical washers and nuts, and (4) M10 x 1.5 x 45mm bolts with conical washers. Additionally, (4) M10 nuts attach the hitch to the bumper studs.
Chevrolet Traverse: Remove (4) plastic covers and screws below taillights, (2) screws at bottom of fascia, (8) screws from wheel well liner, and (2) screws from fascia to vehicle body. Buick Enclave: Remove (2) screws at bottom of fascia, (2) bolt covers and bolts below taillight, (1) screw below taillight, (4) screws from wheel well liner, and (1) vertically attached bolt under wheel well liner. Both require unplugging wires/harness.
For Chevrolet Traverse: 7mm socket (for plastic cover screws and fascia-to-body screws), T20 socket (for bottom fascia screws), and T15 socket (for wheel well liner screws).
For Buick Enclave: T15 Torx bit (for bottom fascia screws and wheel well liner screws), flat-head screwdriver (for bolt covers), 7mm socket (for bolts below taillight and vertically attached bolt under wheel well liner), and T20 Torx bit (for screw below taillight).
Eight M10 fasteners are removed: (4) M10 nuts from the top bumper attachments (2 each side) and (4) M10 bolts from the bottom bumper attachments (2 each side). The nuts are reused; the bolts are returned to the vehicle owner.
Return the bumper beam and bolts to the vehicle owner. The M10 nuts removed from the top bumper attachments should be set aside for re-attachment to the hitch.
Spacers (1/4 inch x 1 inch x 2 inch, part number 5121) are installed with the carriage bolts to create proper spacing between the hitch and the vehicle frame. They are fed through the frame access hole along with the carriage bolts using fishwire.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Load the trailer heavier in front. This helps maintain proper weight distribution and stability when towing.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Support the exhaust system when removing bumper bolts.
Check that all fasteners are tight and the hitch is securely mounted to the vehicle. The manual recommends checking the hitch frequently to ensure all fasteners and ball are properly tightened.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently, making sure all fasteners and ball are properly tightened. The manual emphasizes periodic checking to ensure the hitch remains securely mounted to the vehicle.
A hitch or ball which has been damaged should be removed and replaced. Do not continue using a damaged hitch.
Hitch 76184 is covered by a Limited Lifetime Warranty from Cequent Performance Products, Inc. The warranty covers material defects in both material and workmanship, excluding ordinary wear and tear. The warranty is valid only if products are installed, maintained, and used according to the manufacturer's instructions. To make a warranty claim, contact Horizon Global at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, 1-800-632-3290, or TechnicalSupport@horizonglobal.com.
No. Do not cut, weld, or modify this receiver. Doing so may compromise the structural integrity and safety of the hitch.
Hitch 76184 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Both weight-carrying and weight-distributing hitch types for part number 76184 have the same maximum gross trailer weight rating of 5000 lb (2270 kg) and maximum tongue weight rating of 750 lb (340 kg). The manual does not provide additional details distinguishing the two types.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
