Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

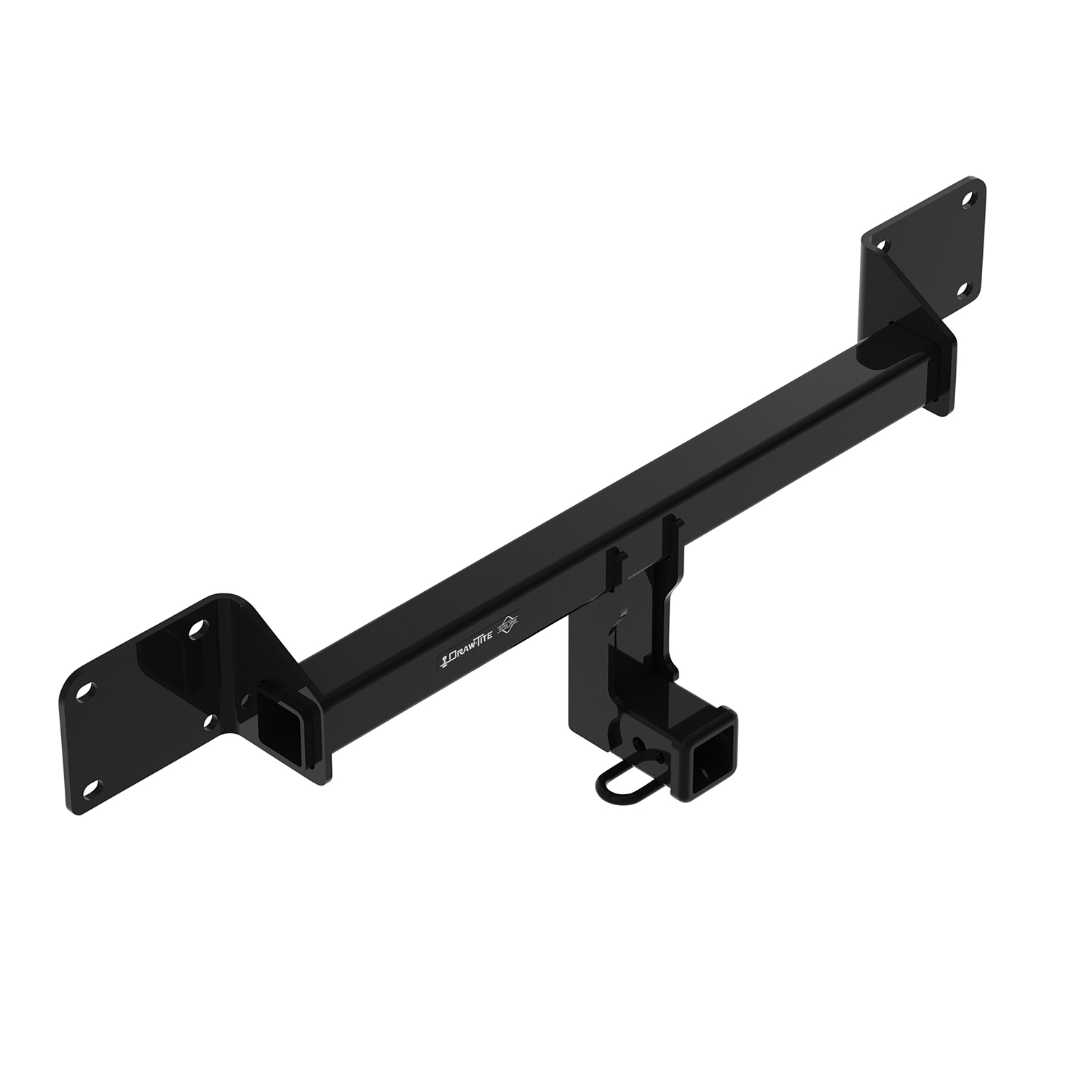

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 525 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76436 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 35 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 525 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2021 - 2026 | Ford Bronco Sport | Class 3 Trailer Hitch: 3500 lbs 525/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 60 minutes |
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Bronco Sport 76436 (Part #DT76436) fits 2021-2026 Ford Bronco Sport models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Bronco Sport 76436 (Part #DT76436) is designed to fit the 2021-2026 Ford Bronco Sport.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Bronco Sport 76436 (Part #DT76436) fits the following vehicles: 2021-2026 Ford Bronco Sport. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Bronco Sport 76436 (Part #DT76436) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. Part numbers 76436, 84436, and CQT76436 are designed for 2021–Current Ford Bronco Sport. Visit the Horizon Global website for the most up-to-date information regarding specific application years and trim levels.
The maximum gross trailer weight is 3500 lb (1587 kg) and the maximum tongue weight is 525 lb (238 kg) for the weight-carrying configuration. Do not exceed the lower of your vehicle manufacturer's towing rating or these limits.
Required tools include: ratchet, torque wrench, safety glasses, sockets (7mm, 8mm, 10mm, 15mm), 6-inch socket extension, tape measure, utility knife, marker, plastic trim tools, and flat-head screwdriver.

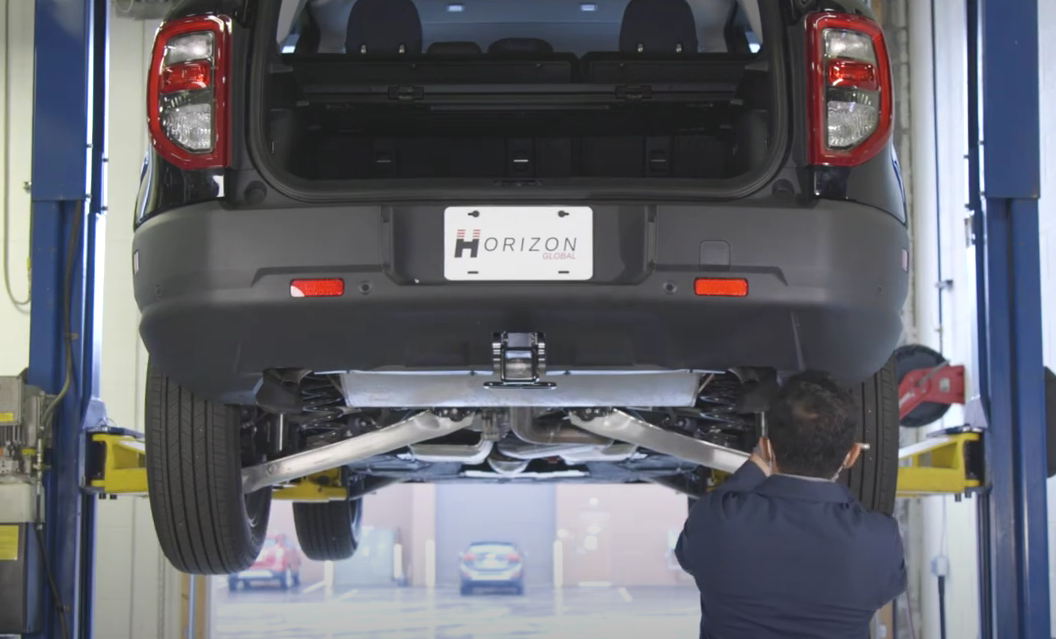

Yes. The rear bumper beam must be removed to access the mounting studs on the end panel. Use a 15mm socket to remove the 8 M10 flange hex nuts holding the bumper beam, then return the beam to the vehicle owner. Keep the M10 hex flange nuts for hitch installation.
Yes. The taillights must be removed to access and remove the rear bumper fascia. Open the tailgate, use plastic trim tools to remove the plastic cover near the taillight, use a 10mm socket to remove the 2 nuts holding the cover to the taillight housing on both sides, then gently pull the taillight rearward and disconnect the wiring.

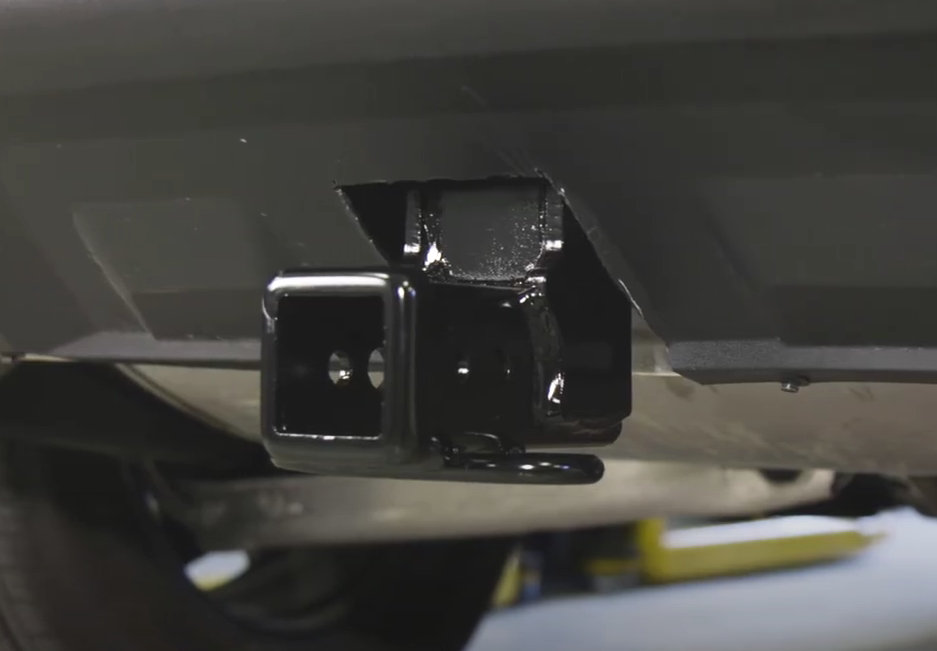

Yes. After the hitch is installed and tightened, you must trim the fascia. Locate the center of the fascia and cut a 5 inch × 4 inch notch in the bottom using a tape measure, marker, and utility knife. Before trimming, verify the area is clear of all electrical wiring.
All M10-1.50 fasteners must be tightened to 42 Lb.-Ft. (57 N·M) using a torque wrench. Proper torque is essential to keep the hitch secure to the vehicle when towing.
Fastener kit 76436F includes 4 M10 × 1.50 × 35 CL 10.9 bolts and 4 conical tooth washers (3/8 inch). These are used to secure the hitch to the 4 existing M10-1.50 studs on the end panel. The 4 existing M10 hex flange nuts from the bumper beam are reused.
Yes. First, loosely reinstall the 4 existing M10 hex flange nuts onto the 4 existing M10-1.50 studs. Then loosely tighten the 4 provided M10 × 1.50 bolts with conical washers and M10 hex flange nuts onto the remaining 4 locations. Finally, tighten all 8 M10-1.50 fasteners to 42 Lb.-Ft. (57 N·M) using a torque wrench.
The average installation time for professional installers is 60 minutes. If you do not feel comfortable performing this installation on your own or are in need of assistance, contact a professional installer.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Before trimming the fascia, ensure the area is clear of all electrical wiring.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Proper torque is needed to keep the hitch secure to the vehicle when towing.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but periodic inspection is required to maintain secure mounting during towing.
The manual does not require battery disconnection for this installation. However, you will need to disconnect taillight wiring during removal and reconnect it during reinstallation.
Remove fasteners in this order: (1) 4 screws from underside center using 7mm socket; (2) 2 screws from outer bottom edge near wheel well using 7mm socket on both sides; (3) 5 push rivets from inside rear wheel well using flathead screwdriver on both sides; (4) 1 push rivet below taillight using flathead screwdriver on both sides; (5) 1 screw from each side using 8mm socket while pulling back wheel well trim. Then use a plastic trim tool to partially remove the fascia by gently pulling rearward while releasing clips. Do not remove the top portion of wheel well trim.
The fascia support bracket must be removed before installing the hitch. Using an 8mm socket, remove the 6 screws from the fascia support bracket and set it aside. After the hitch is installed and tightened, reinstall the fascia support bracket using the original screws before reinstalling the fascia.
After tightening all M10-1.50 fasteners to 42 Lb.-Ft., follow this sequence: (1) trim the fascia with a 5 inch × 4 inch notch; (2) reinstall the fascia support bracket; (3) reconnect all wiring harnesses; (4) reinstall the fascia using original hardware; (5) reinstall the taillights and taillight covers using original fasteners.
Always wear your seatbelt. Slow down when towing and never exceed any posted speed limit. Load the trailer heavier in front. Do not exceed the lower of your vehicle manufacturer's towing rating or 3500 lb GVWR / 525 lb tongue weight. If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
No. Do not cut, weld, or modify this receiver. Doing so may compromise the structural integrity and safety of the hitch.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not continue using a damaged hitch.
Yes, the 76436 is designed for 2021–Current Ford Bronco Sport. Check the Horizon Global website for the most current trim-level compatibility.
Maximum gross trailer weight is 3500 lb (1587 kg) and maximum tongue weight is 525 lb (238 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
You need a ratchet, torque wrench, safety glasses, sockets (7mm, 8mm, 10mm, 15mm), 6-inch socket extension, tape measure, utility knife, marker, plastic trim tools, and flat-head screwdriver.
Yes. You must cut a 5 inch × 4 inch notch in the bottom of the fascia using a utility knife. Verify the area is clear of electrical wiring before trimming.
Tighten all M10-1.50 fasteners to 42 Lb.-Ft. (57 N·M) using a torque wrench.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
