Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

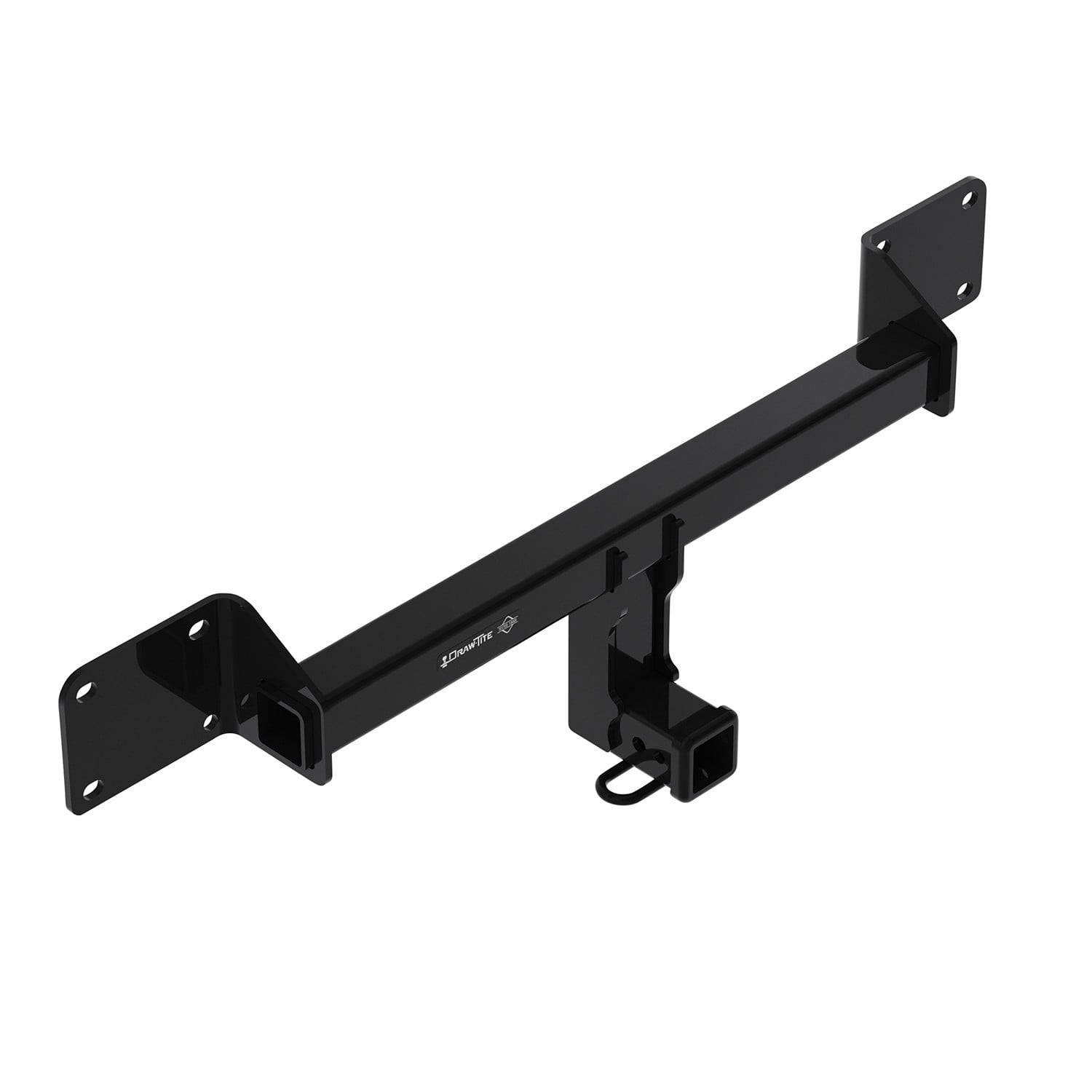

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 3 receiver hitch is rated for up to 4,500 lbs. gross trailer weight (GTW) and up to 675 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 4,500 lbs. weight distribution (WD) and 675 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76527 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 21 LBS |
| GROSS TOWING WEIGHT: | 4,500 LBS. |
| GROSS TONGUE WEIGHT: | 675 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2021 - 2025 | Ford Bronco | Class 3 Trailer Hitch: 4500 lbs 675/4,500 lbs. Weight Carrying (tongue weight/gross trailer weight) 675/4,500 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Bronco 76527 (Part #DT76527) fits the following vehicles: 2021-2025 Ford Bronco. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Bronco 76527 (Part #DT76527) fits 2021-2025 Ford Bronco models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Bronco 76527 (Part #DT76527) is designed to fit the 2021-2025 Ford Bronco.
The Draw-tite Class 3 Trailer Hitch, 2" Square Receiver, Black for Select Ford Bronco 76527 (Part #DT76527) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. Part numbers 76527, 84527, and CQT76527 are designed for 2021-Current Ford Bronco models. Visit the manufacturer's website for the most up-to-date information regarding specific application years and trim levels.
The maximum gross trailer weight is 4500 lb (2041 kg) and the maximum tongue weight is 675 lb (306 kg) for both weight-carrying and weight-distributing configurations. However, you must not exceed the lower of the towing vehicle manufacturer's rating or these limits.
Fastener kit 76527F includes: 4× ½-13 x 4½" GR5 hex bolts, 4× ½" flat washers, and 4× ½-13 flange locknuts. All fasteners needed for installation are supplied.
You will need: a ratchet, a torque wrench, safety glasses, sockets, and a 3/4" wrench. A torque wrench is essential because fasteners must be tightened to a specific torque value.
The average installation time for professional installers is 25 minutes. If you do not feel comfortable performing the installation yourself or need assistance, contact a professional installer.
1. Raise the hitch into position, aligning the slots in the hitch with the attachment holes in the bumper beam. 2. Insert four ½" hex bolts with washers through the hitch and the holes in the bumper beam from the vehicle forward side toward the rear. 3. Secure with the ½" flange locknuts supplied. 4. Tighten all ½" GR5 fasteners with a torque wrench to 75 Lb.-Ft. (102 N·M).
All ½" GR5 fasteners must be tightened to 75 Lb.-Ft. (102 N·M) using a torque wrench. Proper torque is essential to keep the hitch secure to the vehicle when towing.
Always wear your seatbelt. Slow down when towing and never exceed posted speed limits. Load the trailer heavier in front. Do not exceed the lower of the towing vehicle manufacturer's rating or the hitch limits (4500 lb GVWR, 675 lb tongue weight). If excessive sway occurs, take your foot off the gas pedal and hold the steering wheel steady—do not apply brakes or speed up.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. Periodically verify that all fasteners are tight and the hitch is securely mounted to the vehicle.
The manual does not specify whether factory fasteners can be reused. All required fasteners are supplied in kit 76527F (4× ½-13 x 4½" GR5 hex bolts, 4× ½" flat washers, 4× ½-13 flange locknuts). Use the supplied fasteners as specified.
The manual does not specify whether bumper or trim removal is required. The installation instructions state to align the hitch slots with the bumper beam attachment holes and insert fasteners from the vehicle forward side toward the rear. Consult the step-by-step photo instructions via the QR code on page 2, or contact technical support at 800-632-3290 for clarification on your specific vehicle.
The manual does not specify whether the battery must be disconnected. Since this is a mechanical hitch installation with no wiring or electrical connections, battery disconnection is likely not required. However, consult the vehicle manufacturer's instructions or contact technical support at 800-632-3290 to confirm.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
Yes, part numbers 76527, 84527, and CQT76527 fit 2021-Current Ford Bronco models. Check the manufacturer's website for specific trim level compatibility.
You need a ratchet, torque wrench, safety glasses, sockets, and a 3/4" wrench. All fasteners are included in kit 76527F.
Tighten all ½" GR5 fasteners to 75 Lb.-Ft. (102 N·M) using a torque wrench.
Maximum gross trailer weight is 4500 lb (2041 kg) and maximum tongue weight is 675 lb (306 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Always wear your seatbelt, slow down when towing, never exceed posted speed limits, and do not exceed the lower of your vehicle manufacturer's towing rating or the hitch limits (4500 lb GVWR, 675 lb tongue weight).
Average installation time for professional installers is 25 minutes. If you are not comfortable installing it yourself, contact a professional installer.
Check frequently that all fasteners and the ball are properly tightened. Periodically verify the hitch is securely mounted to the vehicle.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
