Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

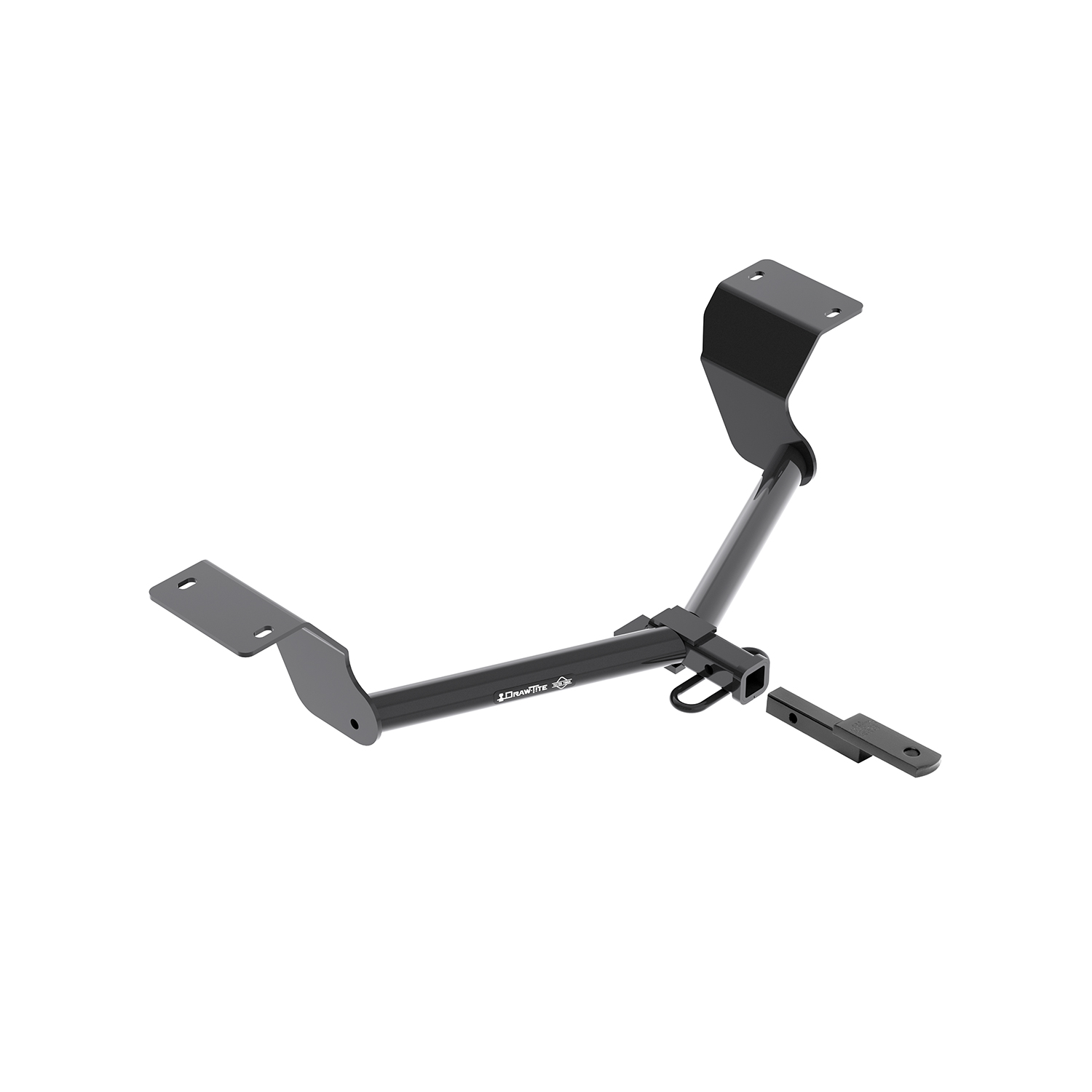

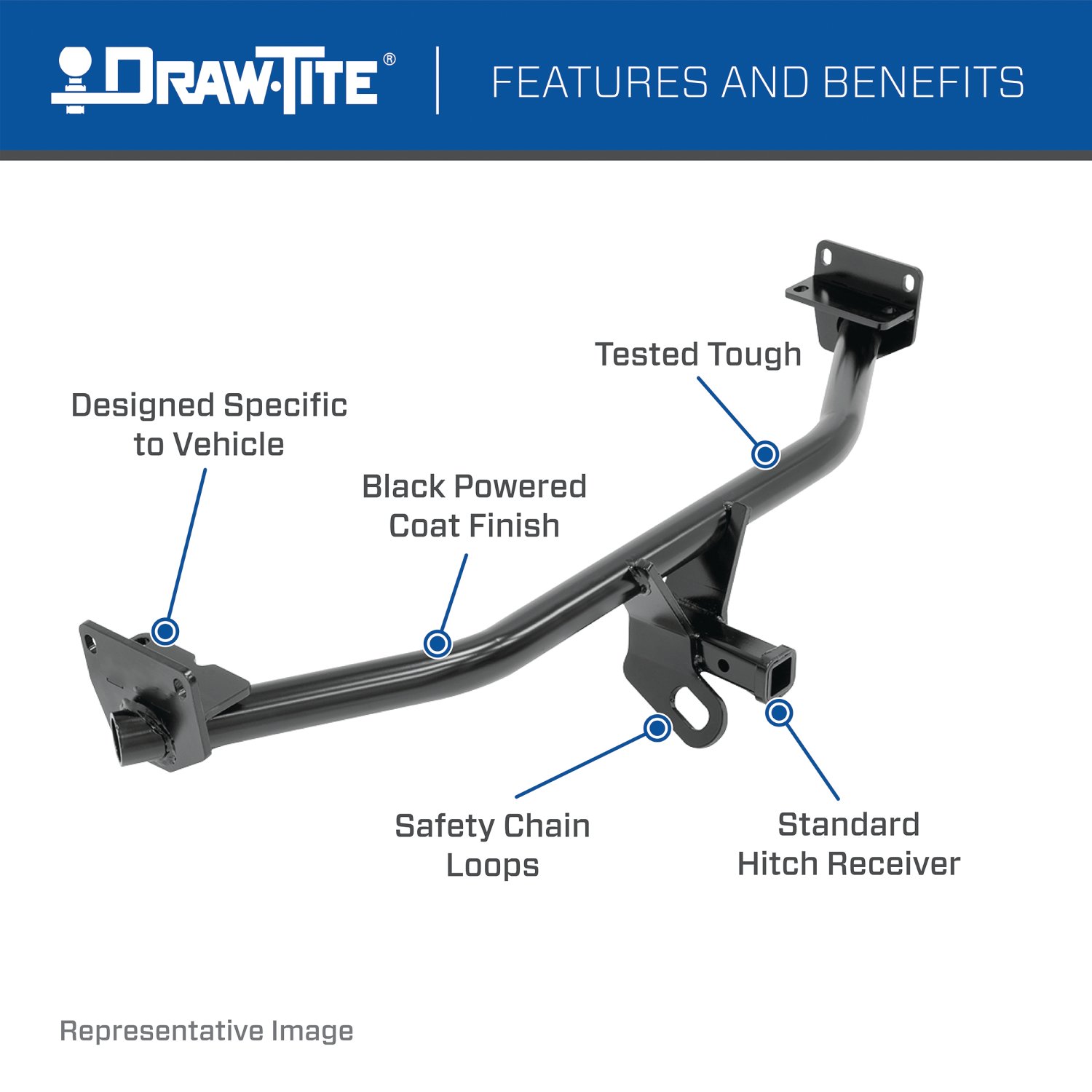

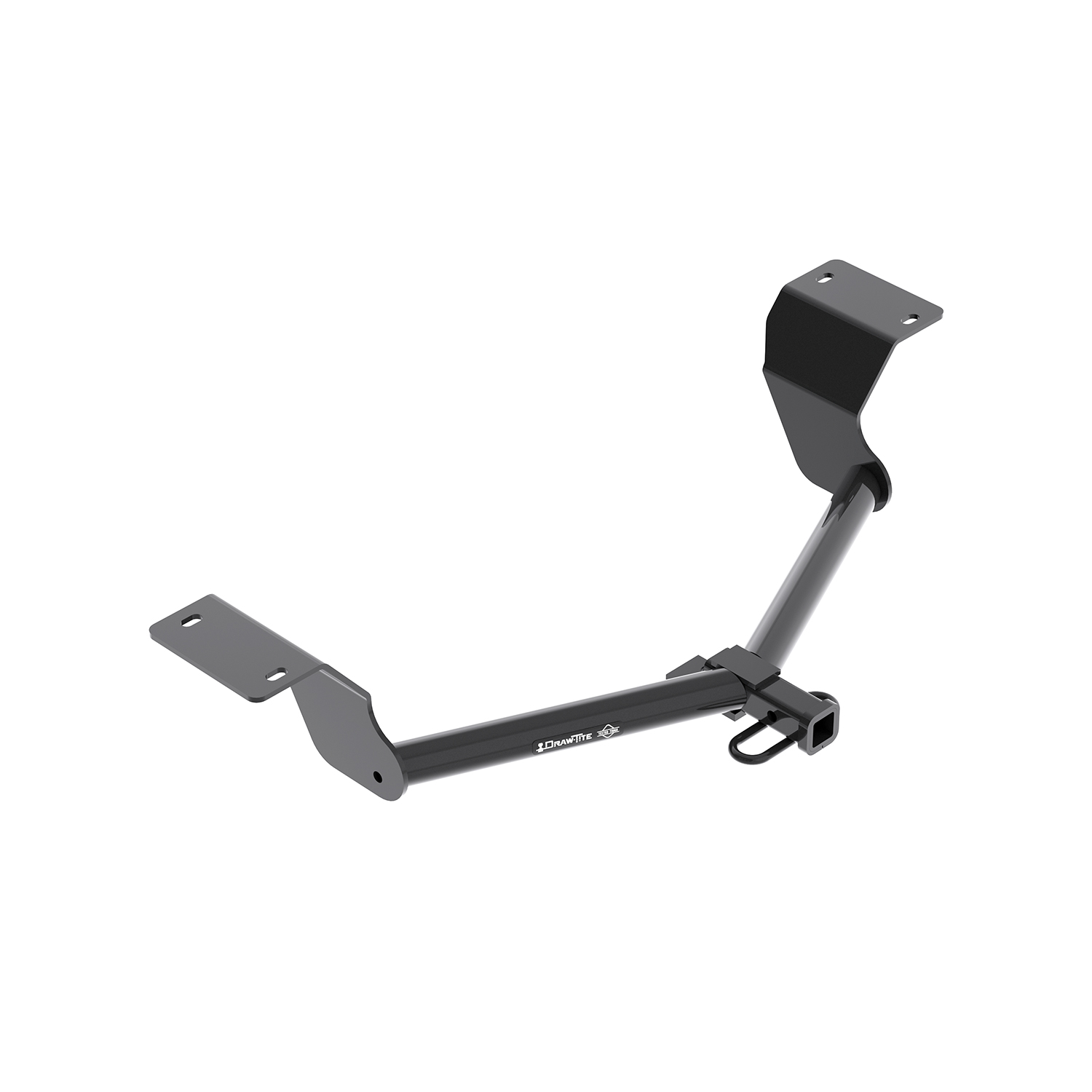

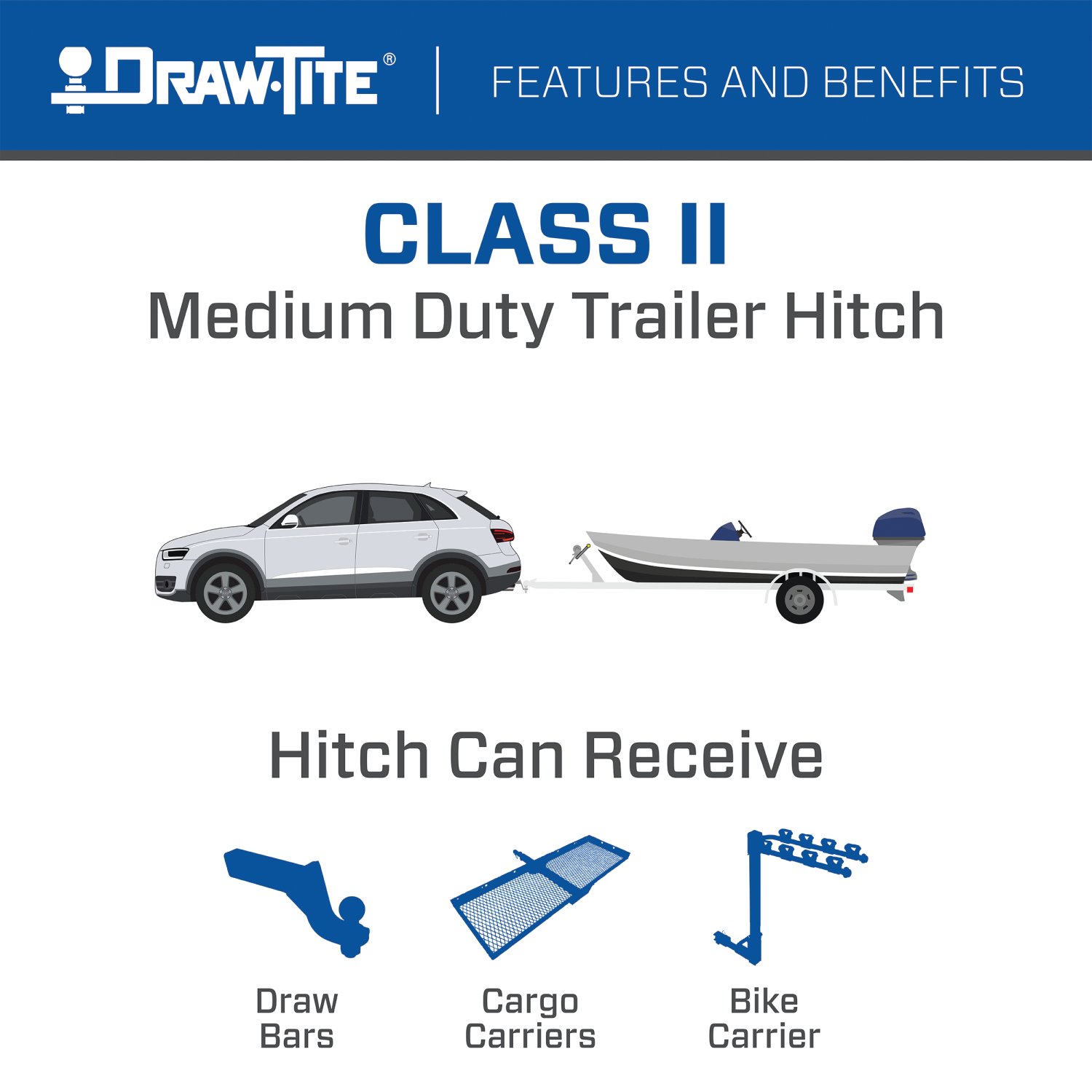

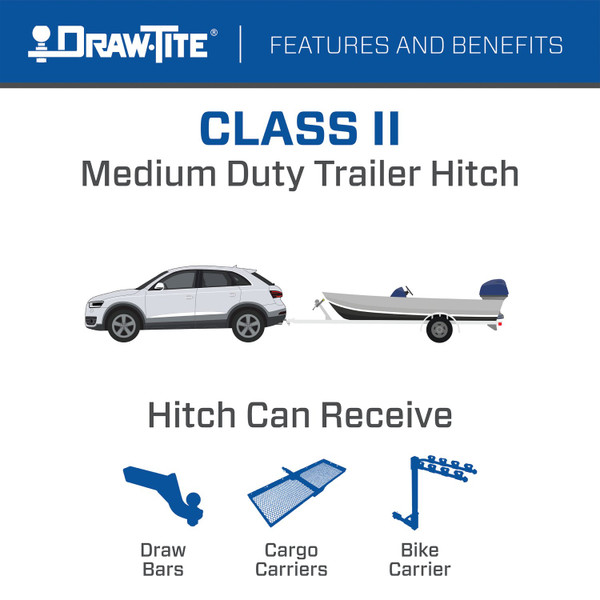

DRAW-TITE Class 2 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 2 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 350 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 2 trailer hitch has a 1-1/4 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 36597 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 28 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 350 LBS. |

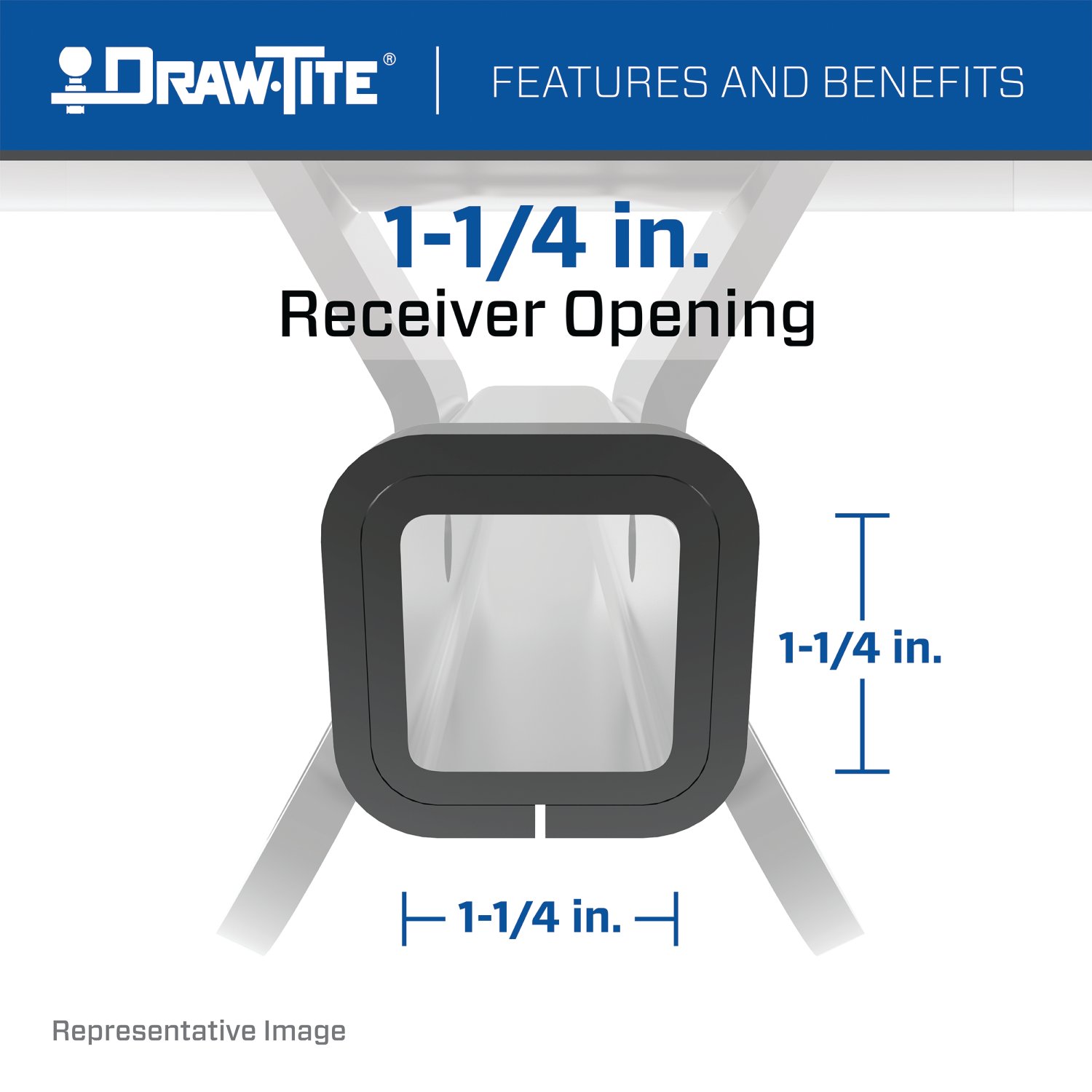

| RECEIVER SIZE: | 1.25 IN. |
| HITCH CLASS: | II |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | ROUND TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
How to Install a Receiver (Trailer) Hitch - Draw•Tite®
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2025 | Honda CR-V | Class 2 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Honda CR-V 36597 (Part #DT36597) fits the following vehicles: 2017-2025 Honda CR-V. Always verify your specific year, make, and model before ordering.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Honda CR-V 36597 (Part #DT36597) fits 2017-2025 Honda CR-V models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Honda CR-V 36597 (Part #DT36597) is designed to fit the 2017-2025 Honda CR-V.
The Draw-tite Class 2 Trailer Hitch, 1-1/4" Square Receiver, Black for Select Honda CR-V 36597 (Part #DT36597) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part number 36597 is designed for 2017-Current Honda CR-V models. For the most up-to-date information regarding specific model years and trim levels, visit the Cequent website.
The 36597 is a weight-carrying hitch with a maximum gross trailer weight of 3500 lb. (1589 kg) and maximum tongue weight of 350 lb. (159 kg). Do not exceed the lower of your vehicle manufacturer's towing rating or these limits.
You will need a ratchet, torque wrench, safety glasses, sockets, a 6" socket extension, an 11/16" socket, and exhaust removal pliers. A 20-minute installation time is typical for professional installers.
Yes. You must lower the exhaust by removing the rubber isolators from both sides at the rear of the vehicle. It may also be necessary to remove the isolator forward of the rear axle. Spraying lubricant or soapy water on the metal hanger rod and rubber isolator eases removal.
Fish wire is used to route the carriage bolts (items 1 and 2) through the large access hole at the end of the vehicle frame. The fish wire is kept attached to the hardware to help guide it through the frame and prevent it from being pushed back into the vehicle during hitch installation.
The conical washer teeth side must be positioned against the hitch. This is shown in Figure 1 of the installation instructions.
Tighten all 7/16"-14 fasteners to 50 lb.-ft. (68 N·m) and all 3/8"-16 fasteners to 30 lb.-ft. (41 N·m) using a torque wrench.
The 36597F kit includes: (4) carriage bolts 7/16"-14 x 1 1/4" GR5, (4) spacers 3/16" x 1" x 2", (4) conical washers 7/16", (4) hex nuts 7/16"-14 GR2, (1) U-bolt 3/8"-16 GR5, (2) flat washers 3/8", (1) lock washer 3/8", (1) hex nut 3/8"-16 GR2, and (4) fish wire 7/16".
1. Lower the exhaust by removing rubber isolators from both sides. 2. Use fish wire to route carriage bolts through the frame access hole. 3. Raise the hitch into position, guiding it over the mufflers, and loosely install the initial fasteners. 4. Tighten all fasteners to specification using a torque wrench. 5. Raise the exhaust back into position and reinstall all isolators.
Items 3, 4, 6, 7, and 8 should be loosely installed to hold the hitch in place before final tightening. Items 3 and 4 are the initial attachment points, and items 6, 7, and 8 are installed on the U-bolt (item 5) at the towhook. All fasteners are then tightened to specification in step 4.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Proper torque is needed to keep the hitch secure to the vehicle when towing. Periodically verify that all fasteners remain tight and the hitch is securely mounted to the vehicle.
Load the trailer heavier in front. Always wear your seatbelt. Slow down when towing and never exceed any posted speed limit. If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
No. Do not cut, weld, or modify this receiver. Any modifications will compromise the integrity and safety of the hitch.
The 36051 is an authorized drawbar kit sold separately. If used, the drawbar must be used in the RISE position only.
The U-bolt is installed over the towhook and through the bracket at the back of the hitch receiver. Items 6, 7, and 8 (flat washer, lock washer, and hex nut) are then loosely installed onto the U-bolt before final tightening to 30 lb.-ft. (41 N·m).
The large access hole at the end of the vehicle frame is used to route the fish wire and carriage bolts (items 1 and 2) through the frame. This allows the fasteners to be positioned without removing the entire frame.
Gently raise the hitch into position, carefully guiding it over the mufflers. Be careful not to push the hardware back into the vehicle frame when feeding the fish wires through the attachment holes in the hitch.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Periodically verify that all fasteners remain tight and the hitch is securely mounted to the vehicle.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch.
Spray a lubricant or soapy water on the metal hanger rod and the rubber isolator to ease removal. This makes it easier to detach the exhaust isolators from both sides of the vehicle.
After tightening all fasteners to specification, raise the vehicle exhaust back into position and reinstall all isolators that were removed in step 1.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners remain tight. If fasteners have loosened, use a torque wrench to retighten all 7/16"-14 fasteners to 50 lb.-ft. (68 N·m) and all 3/8"-16 fasteners to 30 lb.-ft. (41 N·m). Proper torque is needed to keep the hitch secure to the vehicle when towing.
