Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

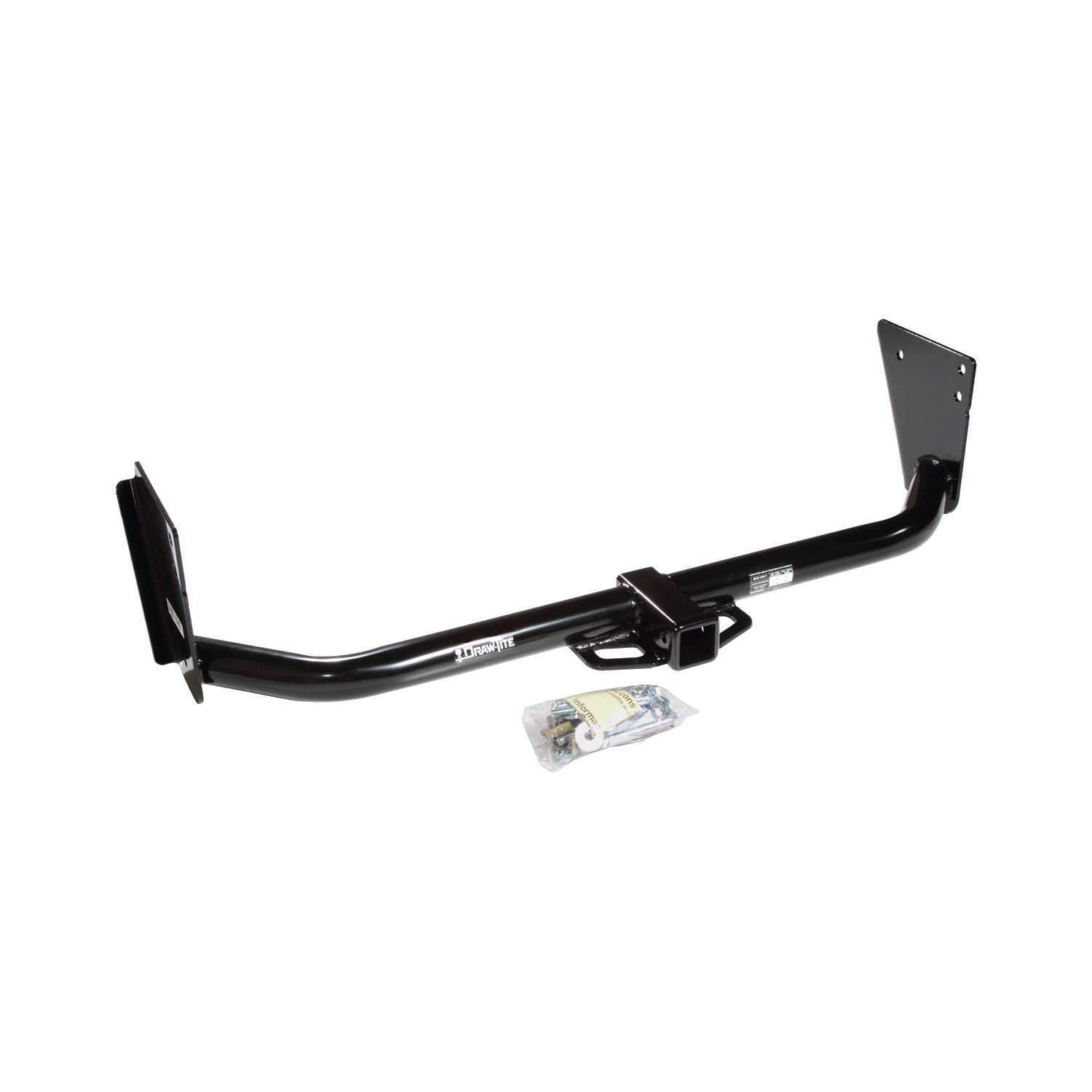

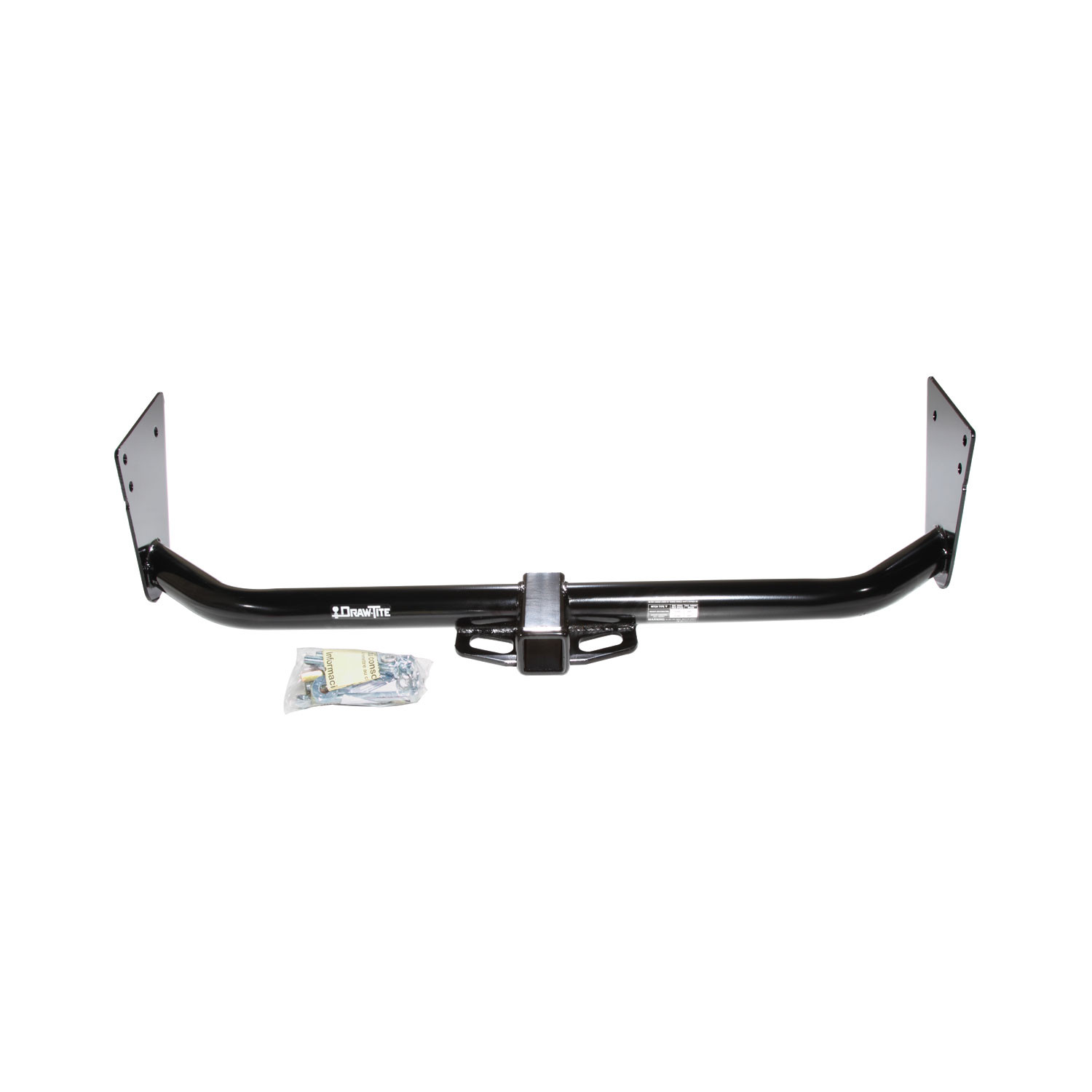

DRAW-TITE Class 4 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 4 receiver hitch is rated for up to 6,000 lbs. gross trailer weight (GTW) and up to 600 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 9,000 lbs. weight distribution (WD) and 900 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 4 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 75292 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 46 LBS |
| GROSS TOWING WEIGHT: | 6,000 LBS. |
| GROSS TONGUE WEIGHT: | 600 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | IV |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | VISIBLE |
| CROSS-TUBE TYPE: | ROUND TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 9,000 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 900 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw•Tite® and the Checkered Flag Foundation
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2004 - 2006 | Dodge Durango | Class 4 Trailer Hitch: 6000 lbs 600/6,000 lbs. Weight Carrying (tongue weight/gross trailer weight) 900/9,000 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Dodge Durango 75292 (Part #DT75292) fits 2004-2006 Dodge Durango models. The 2006 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Dodge Durango 75292 (Part #DT75292) fits the following vehicles: 2004-2006 Dodge Durango. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Dodge Durango 75292 (Part #DT75292) is designed to fit the 2004-2006 Dodge Durango.
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select Dodge Durango 75292 (Part #DT75292) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part number 75292 is designed for Dodge Durango models from 2005, 2007, and 2009. Verify your vehicle's model year matches one of these years before purchasing. The manual does not specify compatibility with other model years.

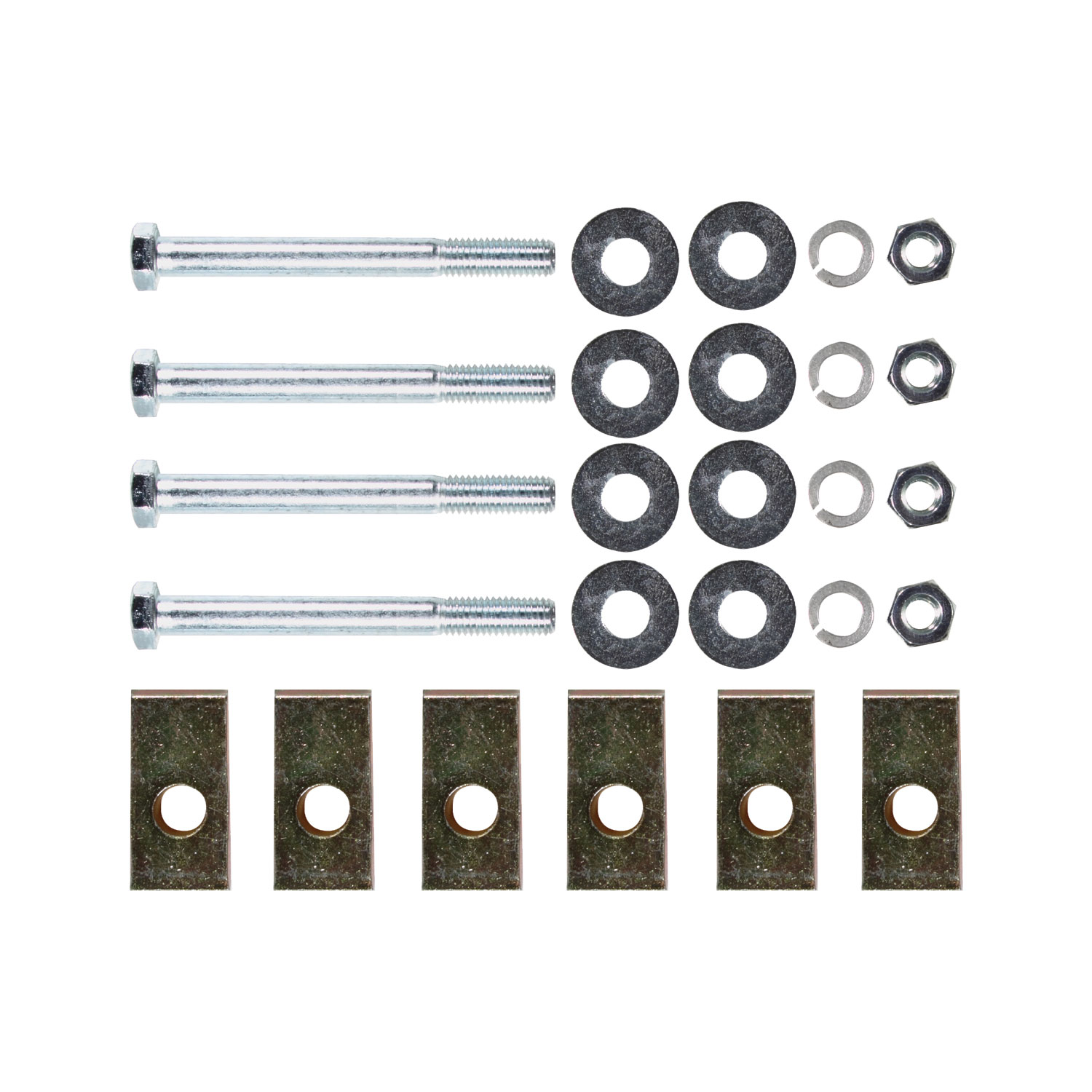

The kit includes: 4 hex bolts ½-13 x 5" GR5, 6 spacer blocks (½ x 1-1/8 x 2-1/2), 8 flat washers ½", 4 lock washers ½", and 4 hex nuts ½-13. These fasteners are supplied in the fastener kit 75292F. The hitch assembly itself (part numbers 44175 and 70751) is separate.
You will need wrenches in the following sizes: ¾, 7/8, 18mm, and 21mm deep well socket. A torque wrench is required to tighten fasteners to specification. No drill bits are needed as no drilling is required for this installation.
The manual requires loosening 6 bumper bracket nuts (3 each side) and removing 4 rearmost bolts (2 each side), plus the remaining flange nut. However, the manual does not explicitly state whether the bumper must be fully removed or if partial loosening is sufficient. You should loosen these fasteners to access the frame rails where the hitch attaches.
You remove 4 rearmost bolts and the flange nut from the bumper bracket. These original bolts and flange nuts must be returned to the vehicle owner. You replace the 4 rearmost bolts with new bolts supplied in the fastener kit. The forward bolt must not be removed and remains in place. The flange nuts are replaced on the forward existing bolts after hitch installation.
The forward bolt is a structural fastener that must remain in place to maintain the integrity of the bumper bracket and frame attachment. Removing it could compromise the vehicle's structural support. Only the 4 rearmost bolts are replaced with new fasteners for hitch attachment.
The 6 spacer blocks (½ x 1-1/8 x 2-1/2) are placed flush on each of the 4 rearmost bolts before raising the hitch into position. They create the proper spacing between the frame rail and the hitch bracket to ensure correct alignment and load distribution. The bolts pass through the frame rail, blocks, and brackets.
Raise the hitch into position over the exhaust pipe, being careful not to drop the spacer blocks. The hitch diagram shows the proper position relative to the vehicle's rear. Take care during this step to avoid damaging the blocks or the exhaust system.
Push the bolts with flat washers through the frame rail, blocks, and brackets. On the other side, attach in this order: flat washer, lock washer, then hex nut. This sequence is shown in the installation diagram and ensures proper fastener security.
Tighten all ½-13 GR5 fasteners with a torque wrench to 75 Lb.-Ft. (102 N·M). This applies to the 4 hex bolts that attach the hitch to the frame rails.
Tighten all M14 CL10.9 fasteners with a torque wrench to 148 Lb.-Ft. (201 N·M). These are the forward existing bolts that hold the bumper bracket.
The hitch has two capacity ratings depending on the ball mount type: Weight Carrying Ball Mount: 600 Lb. max tongue weight, 6000 Lb. max gross trailer weight. Weight Distributing Ball Mount: 900 Lb. max tongue weight, 9000 Lb. max gross trailer weight. Do not exceed the lower of the towing vehicle manufacturer's rating or these hitch limits.
Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Be careful not to drop spacer blocks during installation. Do not remove the forward bolt as this compromises structural integrity.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual emphasizes regular inspection as part of ongoing maintenance. Verify that all bolts, nuts, washers, and the hitch ball remain secure.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. This protects the vehicle's interior and prevents corrosion or damage from moisture and exhaust gases.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch. Damaged components compromise safety and towing capacity.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
The wiring access location for the hitch is SUV1 or SUV2, depending on your vehicle configuration. This indicates where electrical connections for trailer lights should be made.
Yes, if your Durango is a 2005, 2007, or 2009 model year. The manual specifies these years only.
No, no drilling is required. The hitch uses existing frame rail holes and bumper bracket attachment points.
You need wrenches (¾, 7/8, 18mm, 21mm deep well socket) and a torque wrench. No drill bits are needed.
Tighten the ½-13 GR5 bolts to 75 Lb.-Ft. (102 N·M) and the M14 CL10.9 fasteners to 148 Lb.-Ft. (201 N·M) using a torque wrench.
Weight Carrying: 600 Lb. tongue / 6000 Lb. trailer. Weight Distributing: 900 Lb. tongue / 9000 Lb. trailer. Do not exceed your vehicle manufacturer's rating.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If removed, plug all holes to prevent water and exhaust fume entry. Replace any damaged hitch or ball components.
Wear eye protection, work safely beneath the vehicle, do not drop spacer blocks, do not cut holes with a torch, and do not remove the forward bolt.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
