Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

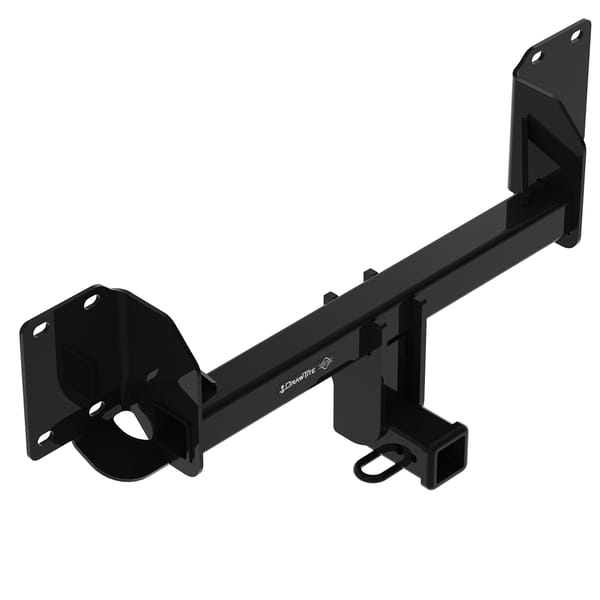

DRAW-TITE Class 4 trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. This DRAW-TITE Class 4 receiver hitch is rated for up to 7,200 lbs. gross trailer weight (GTW) and up to 720 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 7,200 lbs. weight distribution (WD) and 720 lbs. weight distribution tongue weight (WDTW). DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 4 trailer hitch has a 2 inch square receiver tube opening, allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76288 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 39.35 LBS |
| GROSS TOWING WEIGHT: | 7,200 LBS. |
| GROSS TONGUE WEIGHT: | 720 LBS. |

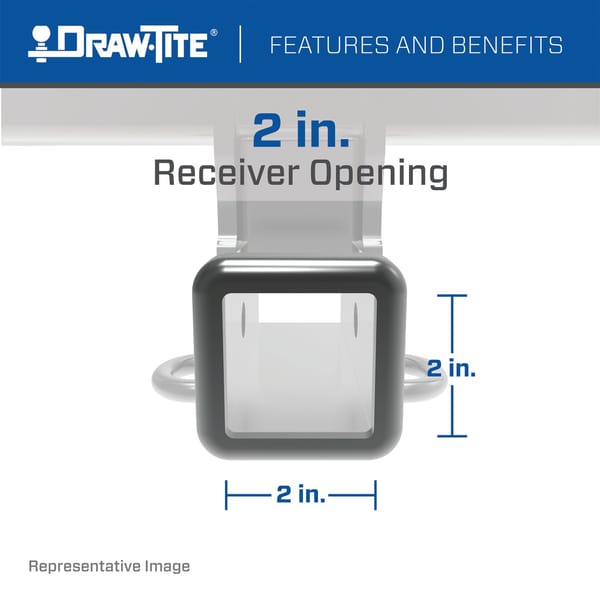

| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | IV |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 7,200 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 720 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw-Tite® Trailer Hitches | Receiver Hitches
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2026 | BMW X5 | Class 4 Trailer Hitch: 7200 lbs 720/7,200 lbs. Weight Carrying (tongue weight/gross trailer weight) 720/7,200 lbs. when used with a Weight Distribution Kit (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 90 minutes |
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select BMW X5 76288 (Part #DT76288) fits 2019-2026 BMW X5 models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select BMW X5 76288 (Part #DT76288) fits the following vehicles: 2019-2026 BMW X5. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select BMW X5 76288 (Part #DT76288) is designed to fit the 2019-2026 BMW X5.
The Draw-tite Class 4 Trailer Hitch, 2" Square Receiver, Black for Select BMW X5 76288 (Part #DT76288) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. Part numbers 76288, 84288, and CQT76288 are designed for 2019-Current BMW X5 and X7 models. Visit the manufacturer's website for the most up-to-date information regarding specific trim levels and application years.
Maximum Gross Trailer Weight is 7200 lb (3265 kg) and maximum tongue weight is 720 lb (326 kg) for both weight-carrying and weight-distributing configurations. Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
The manual states installation takes an average of 90 minutes for professional installers and recommends contacting a professional installer if you do not feel comfortable performing the installation yourself or need assistance. The installation involves permanent modifications including drilling, grinding, and cutting, so professional installation is strongly recommended.
Yes. Installation requires drilling to remove plastic rivets from the wheel well molding and fascia. A 3/16" drill bit is required. Rivets cannot be reused; replacements are supplied in the fastener kit.
Yes. The bumper beam mounting plate must be trimmed by 1 inch on each side using a die grinder. The fascia panel must also be trimmed using a utility knife. These are permanent modifications. Customer approval is required before cutting.
For BMW X5 models: 65 Lb.-Ft. (88 N·M). For BMW X7 models: 68 Lb.-Ft. (92 N·M). Use a torque wrench to tighten all M12 fasteners to the correct specification for your vehicle model.
Required tools include: ratchet, torque wrench, safety glasses, sockets (8mm, 10mm, 13mm, 18mm), 6" socket extension, utility knife, tape measure, marker, plastic rivet gun, drill with 3/16" bit, plastic trim tools, star drivers (T30), pry bar, die grinder, and blue thread locker.
Always wear safety glasses during installation. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Proper torque is needed to keep the hitch secure to the vehicle when towing. Periodically verify that the hitch is securely mounted to your vehicle.
The fastener kit (76288F) includes 4 plastic rivets as replacements. The kit does not include the M12 nuts used to mount the hitch; the existing nuts from the bumper beam are reused for hitch installation.
No. The 76288 hitch is designed for 2019-Current BMW X5 and X7 models only. Visit the manufacturer's website at www.horizonglobal.com for the most up-to-date information regarding specific application years and trim levels.
1. Gently pull back wheel well molding and use a drill to remove 2 plastic rivets from each side. 2. Use an 8mm socket to remove 16 screws from the bottom of the fascia (8 per side). 3. Remove 4 push rivets from the top fascia area under the tailgate. 4. Remove reflectors using plastic trim tools. 5. Gently remove the fascia using plastic trim tools and disconnect electrical wiring on the passenger side.
Use a 13mm socket to remove 2 nuts from the exhaust (1 on each side). Also disconnect the back-up sensor wiring and hands-free sensor. Lower the tailgate to access upper mounting fasteners.
Use an 18mm deep socket to remove 8 M12 nuts (4 on each side). Set the bumper beam to the side. Keep the nuts for hitch installation, as they will be reused.
The bumper beam mounting plate must be trimmed by 1 inch (measured from 4.0" to 3.75"). This trimming must be done on both sides of the vehicle. Use a die grinder to perform the trimming.
1. Apply blue thread locker to the studs. 2. Raise the hitch into position. 3. Sandwich the hitch with the newly trimmed impact bar (bumper beam). 4. Tighten all M12 fasteners with a torque wrench to the specified torque value (65 Lb.-Ft. for X5 or 68 Lb.-Ft. for X7).
1. Using a plastic trim tool, gently remove the plastic taillight cover on both sides. 2. Using a T30 star driver, remove 2 screws from the taillights. 3. Using an 8mm socket, remove 1 screw near the taillight. 4. Using a 10mm socket, remove 1 nut from inside the trunk access panel on both sides. 5. Slide the taillight rearward and disconnect the wiring. Set aside in a safe spot for reinstallation.
Using a 13mm socket, remove 1 bolt from the exhaust hanger bracket on both sides.
1. Using a plastic trim tool, gently pull back the wheel well trim. Using a drill, remove 1 rivet on both sides. Using an 8mm socket, remove 2 screws on both sides. 2. Using an 8mm socket, remove 23 screws from the bottom edge of the fascia. 3. Gently pull the fascia to remove it from the tabs. Disconnect the wiring and set aside in a safe, clean area.
1. Using a pry bar, remove the rivet securing the wiring to the bumper beam. 2. Using an 18mm socket, remove 4 M12 nuts from the bumper beam on both sides. 3. Remove the spacer beam and return it to the vehicle owner. Leave the gasket seal in place.
Trim the fascia panel in the area shown in Figure 8 of the installation instructions. Obtain vehicle owner approval before cutting. Use a utility knife to perform the trimming.
Reinstall all items removed during the installation process, including: taillights (X7 only), reflectors, exhaust, interior trim panels, exterior panels, fasteners, bumper panel, wiring harness, and fascia. Ensure all fasteners are properly tightened.
Slow down when towing and never exceed any posted speed limit. The manual does not specify a maximum towing speed; you must comply with all applicable traffic laws and speed limits.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Load the trailer heavier in front. This helps maintain proper weight distribution and stability while towing.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Periodically verify that the hitch is securely mounted to your vehicle. The manual does not specify a specific inspection interval but emphasizes regular checking.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. This prevents corrosion and damage to the vehicle interior.
A hitch or ball which has been damaged should be removed and replaced. Do not continue to use a damaged hitch, as it may fail during towing and cause injury or property damage.
The 76288 hitch is covered by a Limited Lifetime Warranty from Horizon Global. The warranty covers material defects in both material and workmanship, excluding ordinary wear and tear. The warranty is valid only if the product is installed, maintained, and used in accordance with the manufacturer's instructions. To make a warranty claim, contact Horizon Global at 1-800-632-3290 or 47912 Halyard Drive, Suite 100, Plymouth, MI 48170. Product replacement is the sole remedy under this warranty.
Technical support is available from Horizon Global at: Website: www.horizonglobal.com, Phone: 800-632-3290, Email: TechnicalSupport@horizonglobal.com. Mailing address: 47912 Halyard Drive, Suite 100, Plymouth, MI 48170.
To remove a plastic rivet, insert a small center punch or drill bit into the center of the rivet to push the pin through. If the rivet is stuck, use the drill with a 3/16" bit to carefully drill out the rivet. Replacement rivets are supplied in the fastener kit (76288F).
Check all fasteners to ensure they are tight. Use a torque wrench to verify that all M12 fasteners are tightened to the correct specification: 65 Lb.-Ft. (88 N·M) for BMW X5 or 68 Lb.-Ft. (92 N·M) for BMW X7. Periodically check the hitch to ensure all fasteners remain properly tightened, as vibration during towing can cause fasteners to loosen over time.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
