Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2020 - 2024 Jeep Gladiator
Confirmed to Fit
2018 - 2024 Jeep Wrangler
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!

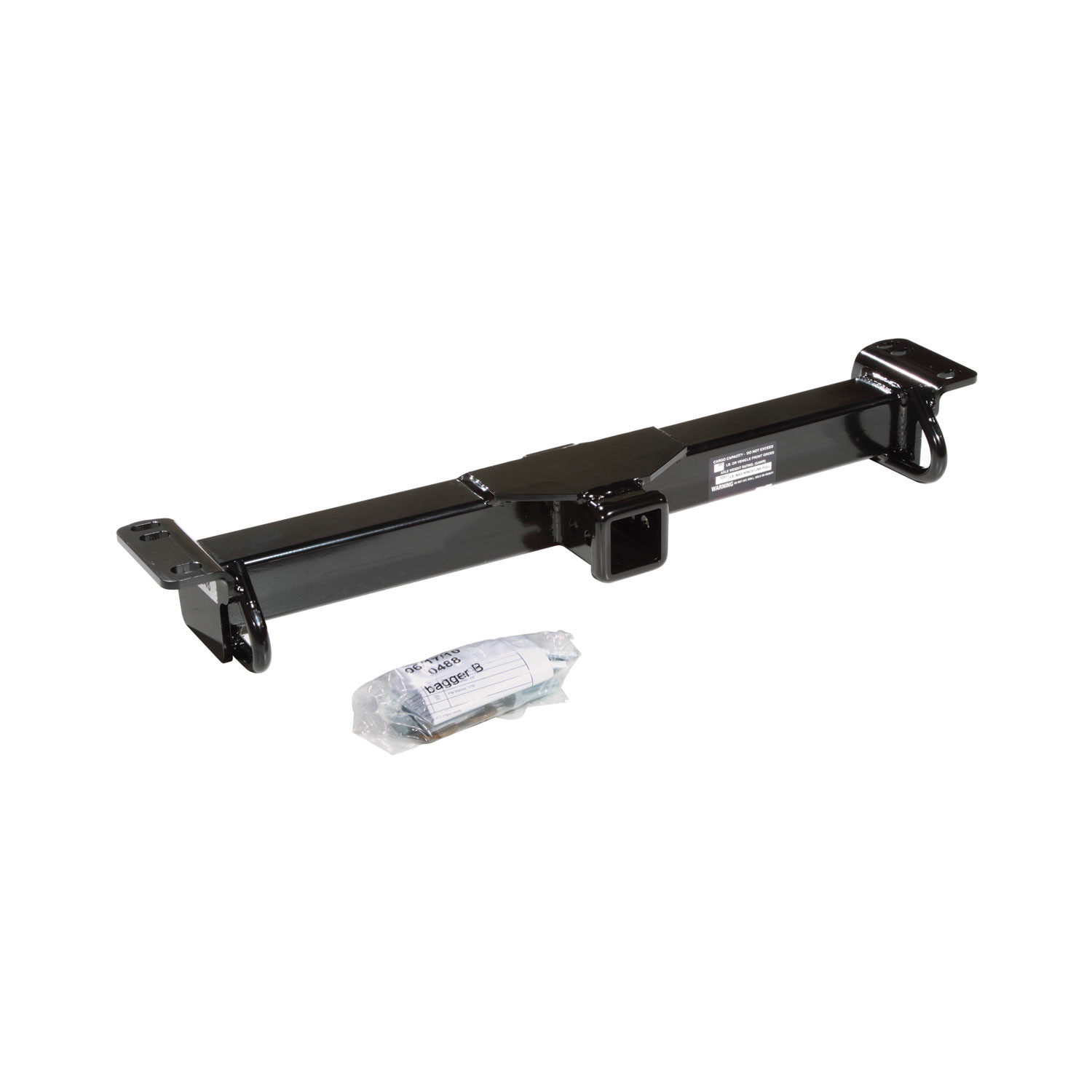

Draw-Tite Front Mounted Receiver hitches provide the perfect attachment point for a variety of accessories. Use it to connect spare tires, snowplows, winches, cargo carriers, and more! Each front mounted receiver hitch is custom built according to manufacturer make and model year specifications and bolts to the underside of the vehicle frame, making installation a breeze! This particular front mount receiver hitch is rated up to 500 lbs. tongue weight and up to 9,000 lbs. line pull with a 2 inch square tube receiver opening for your attachments. Each is made of solid, all-welded steel for maximum strength and safety with a black powder coat finish to resist rust and corrosion. Draw-Tite front hitches are tested to exceed V-5 and SAE J684 standards.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 65079 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 30 LBS |
| GROSS TOWING WEIGHT: | 500 LBS. |
| GROSS TONGUE WEIGHT: | 500 LBS. |
| RECEIVER SIZE: | 2 IN. |
| MAXIMUM LINE PULL: | 9,000 LBS. |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | FRONT |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.
The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
The Trailer Hitch for 20-23 Jeep Gladiator, 18-23 Jeep Wrangler Except Mojave Edition (Part #DT65079) fits the following vehicles: 2020-2024 Jeep Gladiator; 2018-2024 Jeep Wrangler. Always verify your specific year, make, and model before ordering.
The Trailer Hitch for 20-23 Jeep Gladiator, 18-23 Jeep Wrangler Except Mojave Edition (Part #DT65079) fits 2020-2024 Jeep Gladiator models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Trailer Hitch for 20-23 Jeep Gladiator, 18-23 Jeep Wrangler Except Mojave Edition (Part #DT65079) is designed to fit the 2020-2024 Jeep Gladiator.
The Trailer Hitch for 20-23 Jeep Gladiator, 18-23 Jeep Wrangler Except Mojave Edition (Part #DT65079) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 65079 is listed for 2018-Current Jeep Wrangler models. However, the manual recommends visiting the manufacturer's website for the most up-to-date information regarding specific application years and trim levels, as fitment may vary by trim.
Yes, part number 65079 is compatible with Nissan Frontier models from 2005 to current. For the most current trim-level and year-specific compatibility, visit the manufacturer's website.
Yes, part number 65079 is listed for Nissan Pathfinder models from 2005 to 2012, which includes 2010 models.
Yes, part number 65079 is compatible with Suzuki Equator models from 2009 to 2012, specifically the Sport and RMZ-4 trim levels.
The maximum winch line pull is 9,000 lb (4,086 kg). However, you must not exceed the lower of your vehicle manufacturer's towing rating or this specification. Additionally, cargo capacity must not exceed 500 lb (227 kg) or your vehicle's front Gross Axle Weight Rating (GAWR), whichever is lower.
Do not exceed 500 lb (227 kg) or your vehicle's front Gross Axle Weight Rating (GAWR), whichever is lower.
You will need: ratchet, torque wrench, safety glasses, 8mm socket, 16mm socket, socket extension, utility knife, marker, tape measure, and flat-head screwdriver.
The fastener kit (65079F) includes: (4) Hex Bolts 1/2-13x1.75 Grade 5; (2) Conical Tooth Washers 1/2" (part no. 01292008); (2) Lock Washers 1/2"; (2) Conical Tooth Washers 7/16" (part no. 01292007); (2) Bolts M10 x 1.50 x 35 Grade 10.9; (4) Handle Nuts 1/2" (part no. 1332); and (6) Flat Washers 1/2".
Yes. You must remove both the front plastic air dam and the front metal air dam before installing the hitch. The plastic air dam is removed by taking out 8 push pins with a flat-blade screwdriver and 2 lower bolts with an 8mm socket. The metal air dam is removed by taking out 2 bolts (10mm) on each side of the frame with a 16mm socket. After hitch installation, the plastic air dam is trimmed and reinstalled.
The average installation time for professional installers is 35 minutes. If you do not feel comfortable performing the installation yourself or need assistance, the manual recommends contacting a professional installer.
All 1/2" hardware must be torqued to 50 ft·lb (68 N·m).
All 10mm hardware must be torqued to 38 ft·lb (52 N·m).
No drilling is required. The hitch uses existing weldnuts inside the frame and existing holes in the vehicle. However, you must trim the plastic air dam according to Figure 2 in the installation instructions.
No. The manual explicitly states: 'Do not cut access or attachment holes with a torch.' Use a utility knife to trim the plastic air dam according to Figure 2.
No. The manual clearly states: 'DO NOT cut, weld or modify this receiver.' Any modification will void the warranty and compromise the structural integrity of the hitch.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. Reduce speed and maintain steady steering until the sway subsides.
Load the trailer heavier in front. This helps maintain stability and control while towing.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual emphasizes that proper torque is needed to keep the hitch secure to the vehicle when towing.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch.
The 65079 is designed for 2018-Current Jeep Wrangler, 2005-Current Nissan Frontier, 2005-2012 Nissan Pathfinder, and 2009-2012 Suzuki Equator (Sport, RMZ-4). Check the manufacturer's website for trim-level compatibility.
You need: ratchet, torque wrench, safety glasses, 8mm and 16mm sockets, socket extension, utility knife, marker, tape measure, and flat-head screwdriver.
Yes. You must remove the front plastic air dam (8 push pins and 2 bolts) and the front metal air dam (2 bolts) before installation. The plastic air dam is trimmed and reinstalled after hitch installation.
No. The hitch uses existing weldnuts and holes in the vehicle frame. You will need to trim the plastic air dam with a utility knife, but no drilling is required.
Torque all 1/2" hardware to 50 ft·lb (68 N·m) and all 10mm hardware to 38 ft·lb (52 N·m).
Always wear your seatbelt. Slow down when towing and never exceed posted speed limits. Load the trailer heavier in front. If excess sway occurs, remove your foot from the gas pedal and hold the steering wheel steady; do not apply brakes or speed up.
Check that all fasteners are tight and properly torqued. Torque all 1/2" hardware to 50 ft·lb (68 N·m) and all 10mm hardware to 38 ft·lb (52 N·m). Verify that the hitch is securely mounted to the vehicle. If fasteners continue to loosen, flat washers may be used as spacers if a gap exists between the hitch and frame rail.
Flat washers (1/2") may be used as spacers if a gap occurs between the hitch and frame rail. Install the appropriate number of flat washers to close the gap and ensure proper contact between the hitch and frame.
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2020 - 2024 | Jeep Gladiator | Front Mount Receiver Uses all existing holes. No Drilling required Install Time is 35 minutes |
| 2018 - 2024 | Jeep Wrangler | Front Mount Receiver Uses all existing holes. No Drilling required Install Time is 35 minutes |
