Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2016 - 2022 Lexus RX350
Confirmed to Fit
2016 - 2022 Lexus RX450h
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

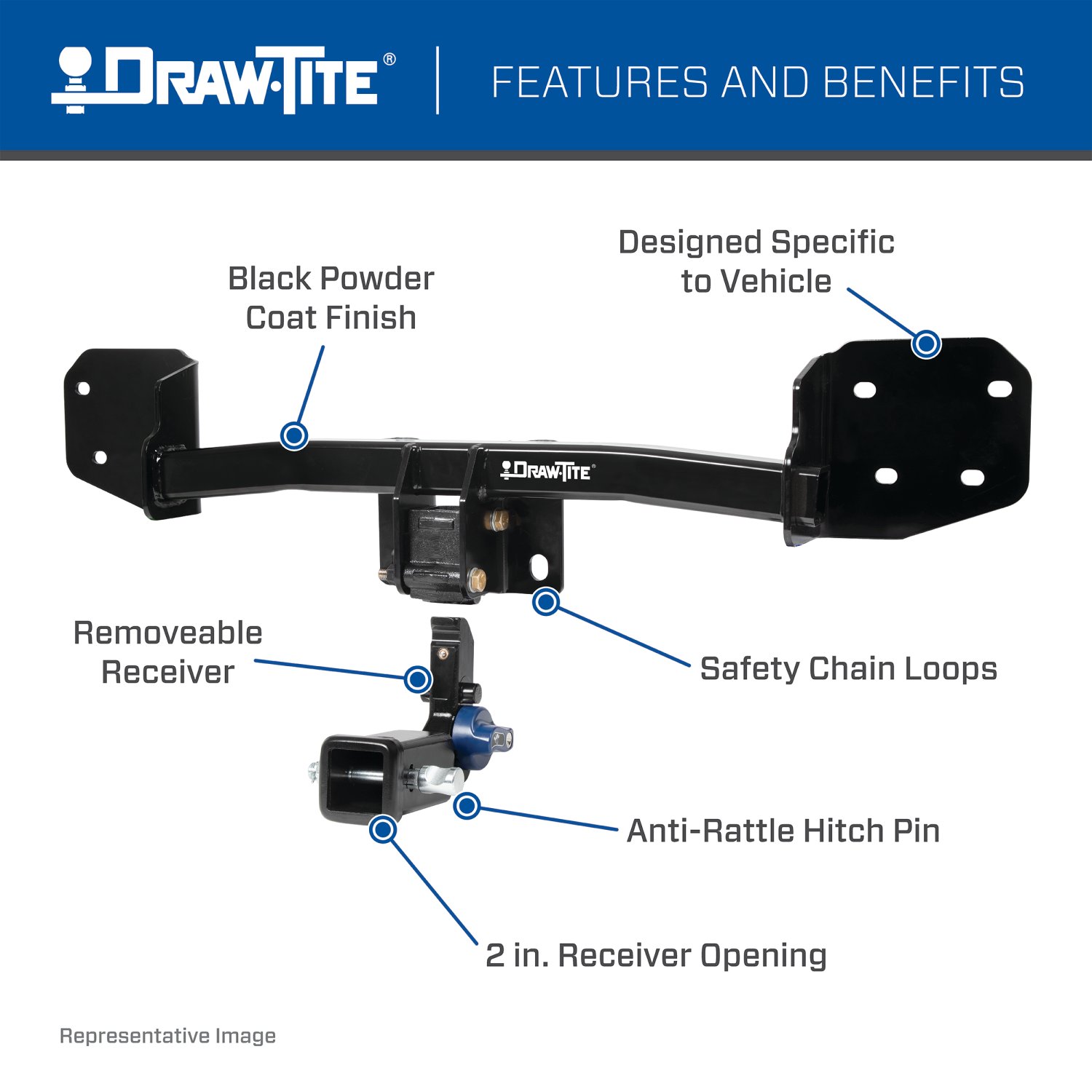

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 350 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76905 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 45.2 LBS |
| GROSS TOWING WEIGHT: | 4,500 LBS. |
| GROSS TONGUE WEIGHT: | 450 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.

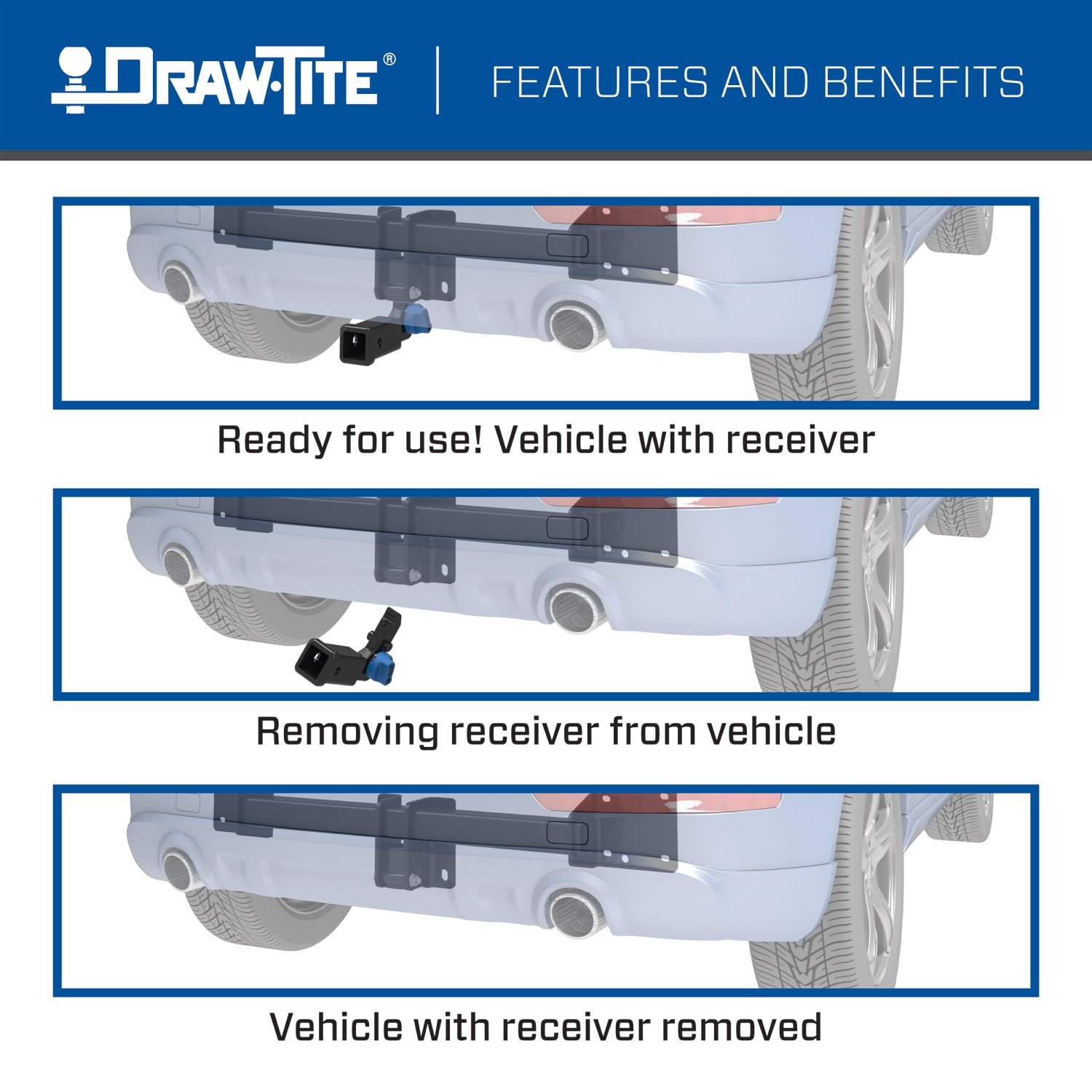

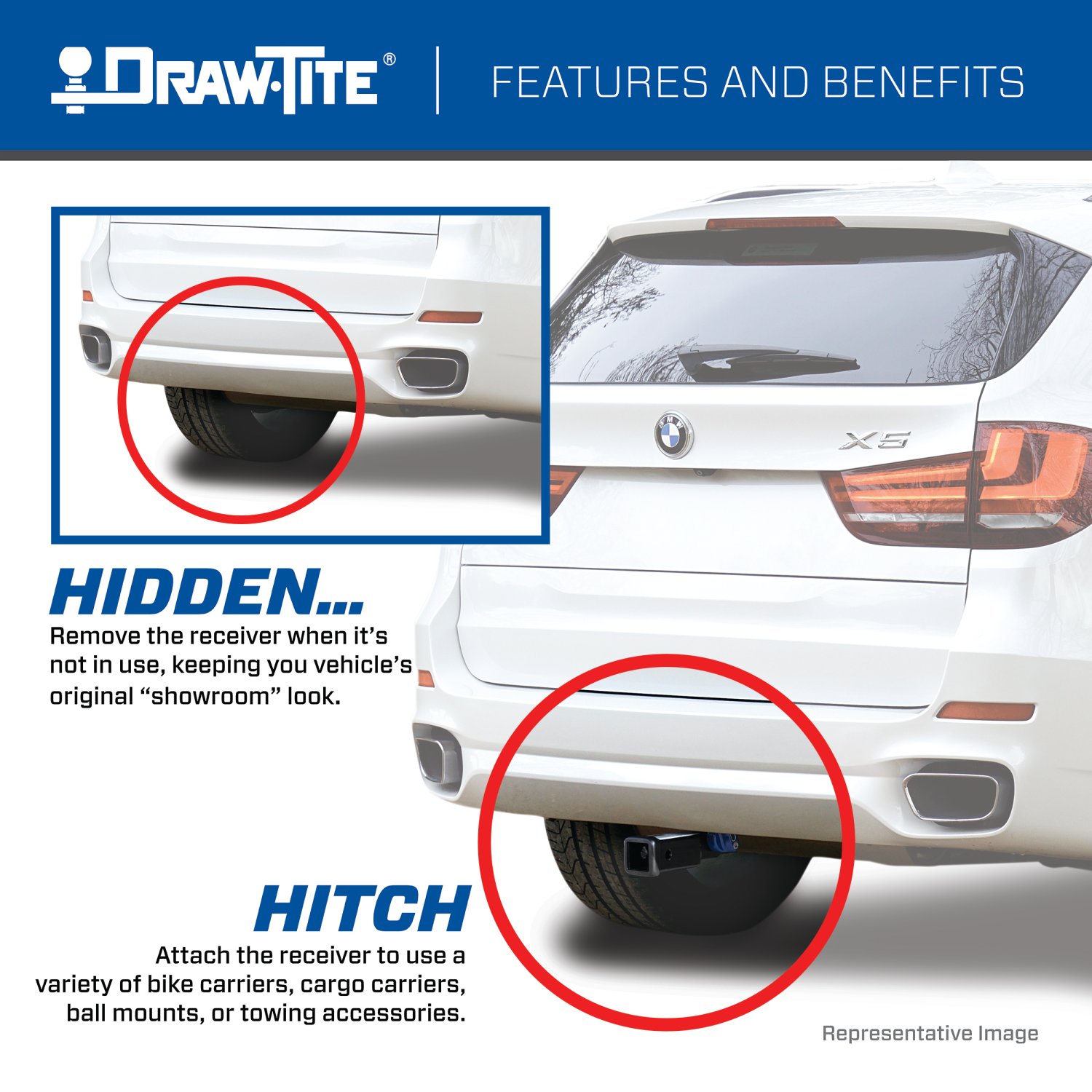

The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
Draw-Tite® Trailer Hitches | Receiver Hitches
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 - 2022 | Lexus RX350 | Class 3 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |
| 2016 - 2022 | Lexus RX450h | Class 3 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 20 minutes |

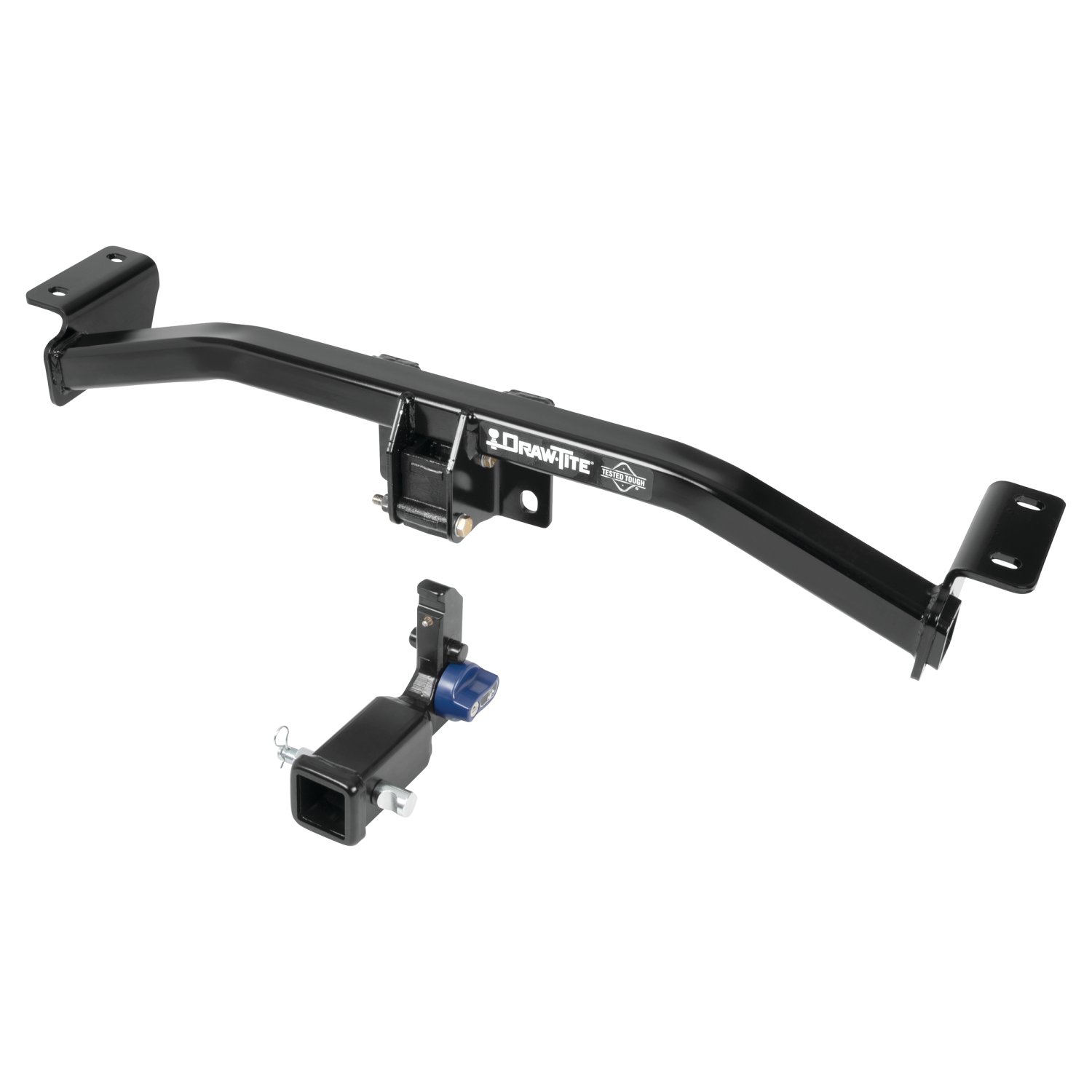

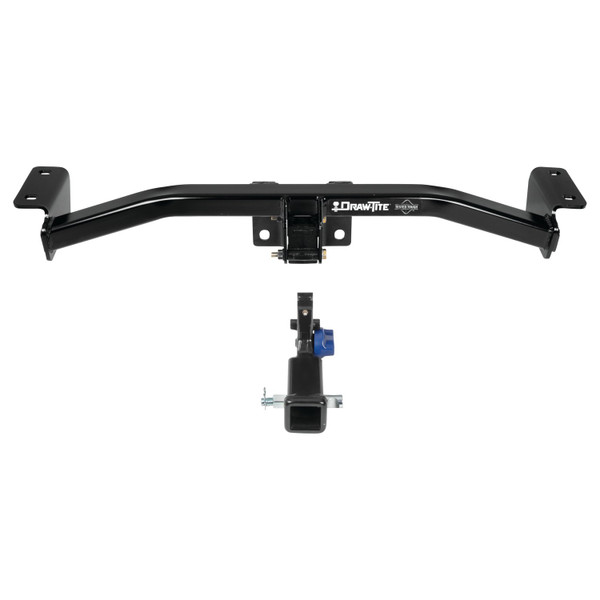

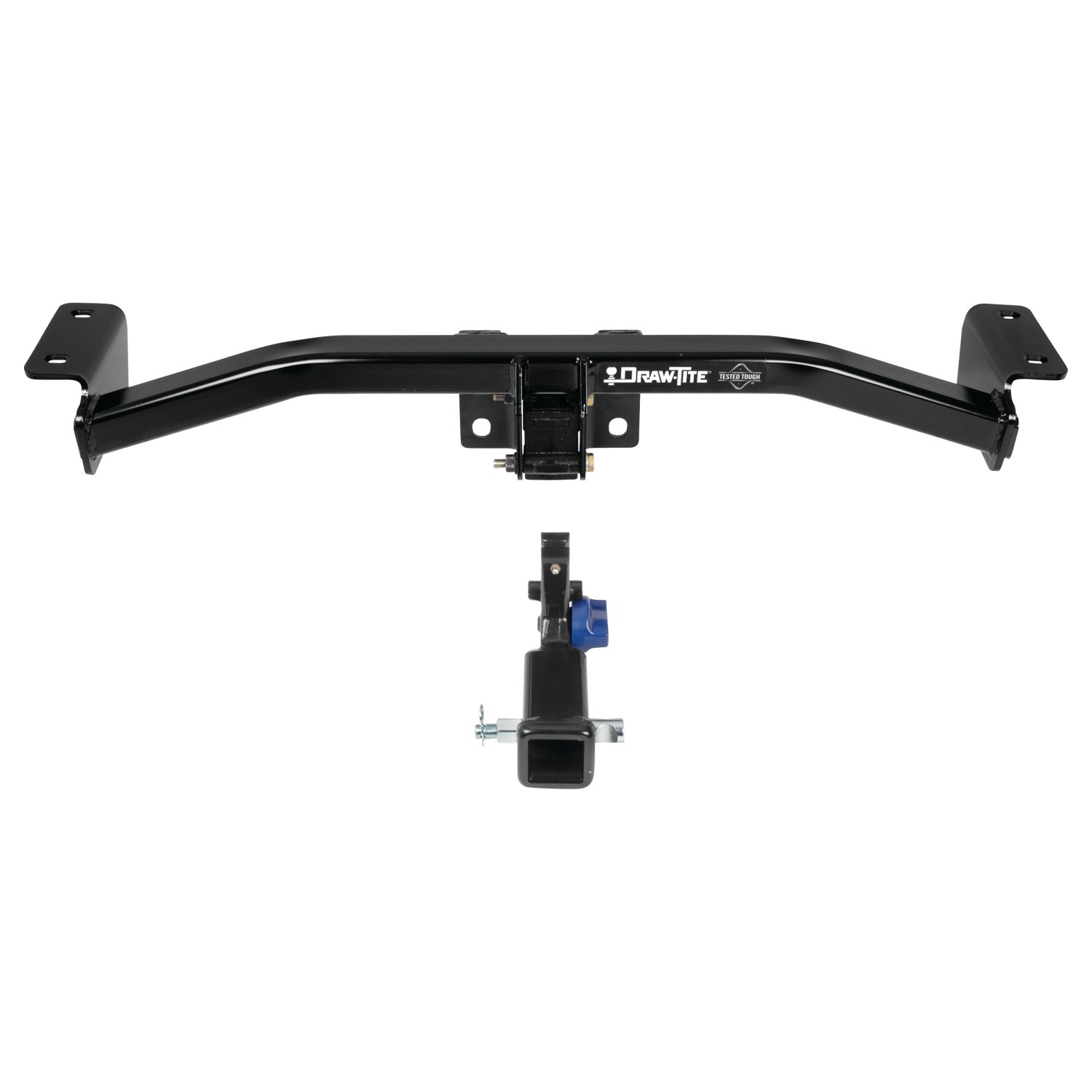

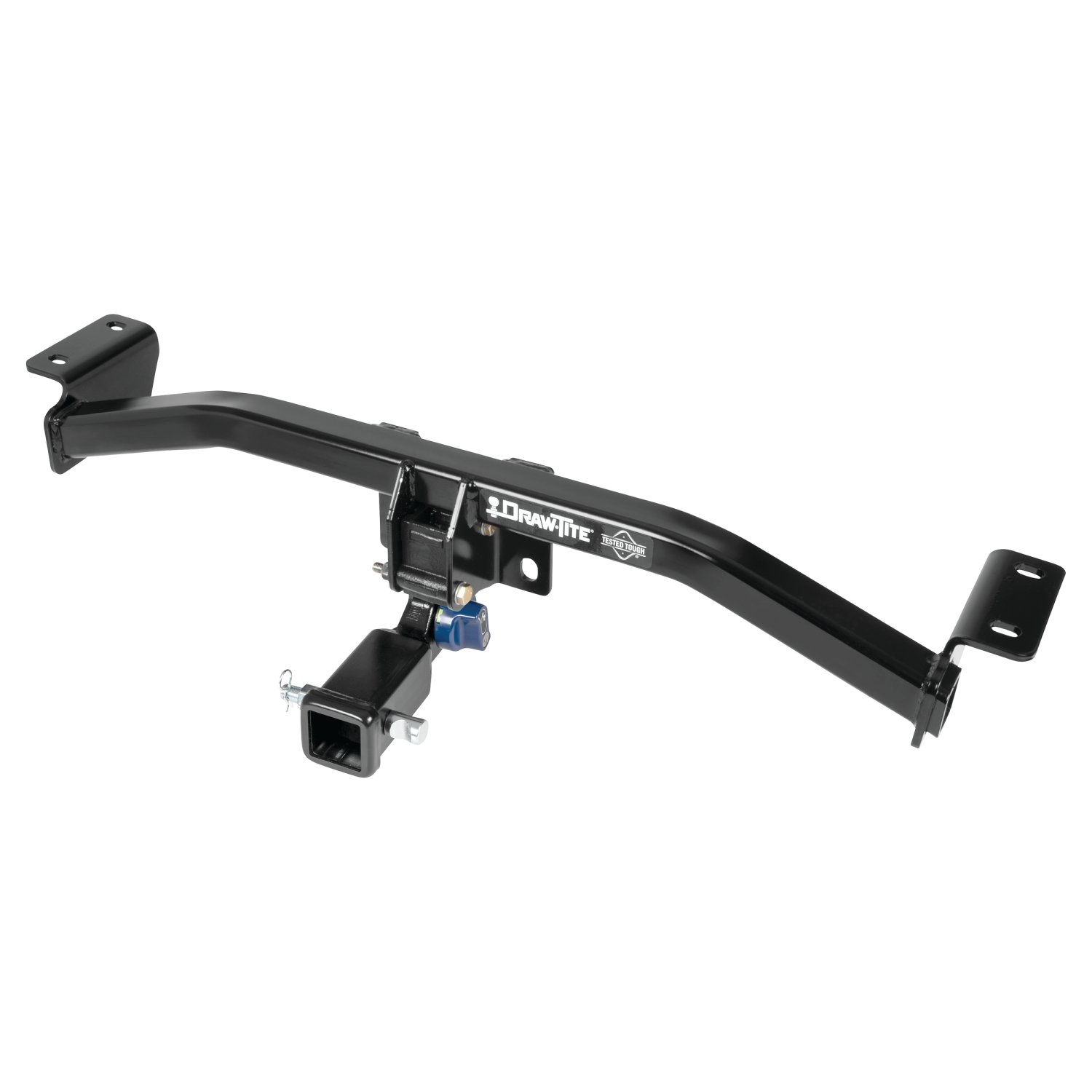

The Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Lexus RX350, Lexus RX450h 76905 (Part #DT76905) fits 2016-2022 Lexus RX350 models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Lexus RX350, Lexus RX450h 76905 (Part #DT76905) is designed to fit the 2016-2022 Lexus RX350.
The Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Lexus RX350, Lexus RX450h 76905 (Part #DT76905) fits the following vehicles: 2016-2022 Lexus RX350; 2016-2022 Lexus RX450h. Always verify your specific year, make, and model before ordering.
The Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Lexus RX350, Lexus RX450h 76905 (Part #DT76905) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 76905 is designed for 2016-Current Lexus RX350/450h models. Visit www.horizonglobal.com for the most up-to-date information regarding specific application years and trim levels, as compatibility may vary.
No. Part number 76905 is designed for 2016-Current Lexus RX350/450h models only. The 2015 model year is not listed as compatible. Contact Horizon Global at 800-632-3290 or TechnicalSupport@horizonglobal.com to confirm fitment for your specific vehicle.
The 76905 is a Weight Carrying hitch with a maximum Gross Trailer Weight (GTWR) of 3,500 lb (1,589 kg) and a maximum tongue weight of 350 lb (159 kg). However, you must not exceed the lower of your towing vehicle manufacturer's rating or these limits.
You will need: a ratchet, torque wrench, safety glasses, sockets (17mm and 19mm), a 6-inch socket extension, and a flat-head screwdriver. The torque wrench is essential for tightening fasteners to the correct specification.

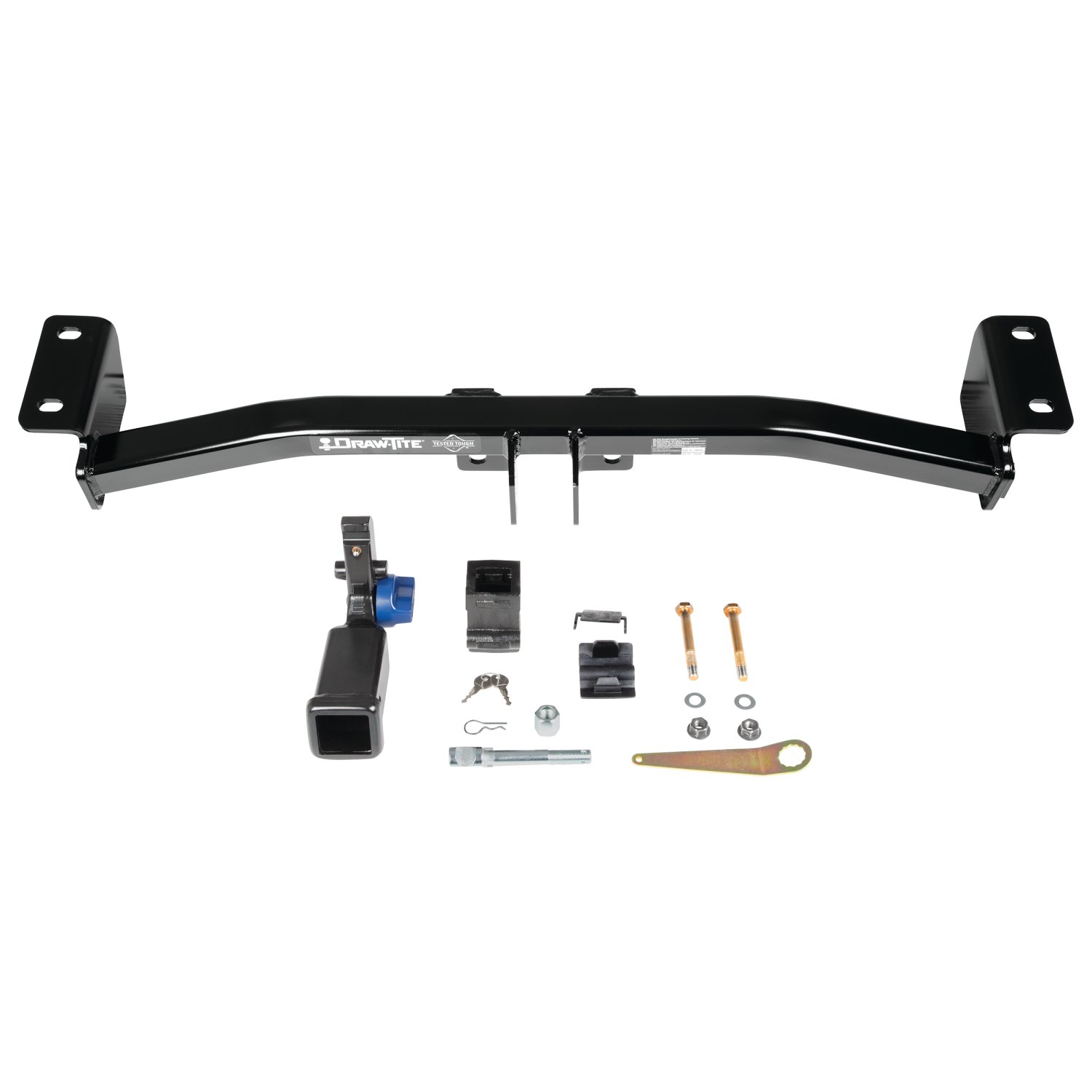

Fastener Kit 76905F includes: (2) M12x1.75x100mm CL10.9 bolts, (2) 7/16" flat washers (Part #0116007), (2) M12x1.75 CL10 prevailing torque nuts, (4) M12x1.25x40 CL10.9 bolts, and (4) 1/2" conical tooth washers (Part #01292008). Fastener Kit 76905F2 includes: (1) warning card and (2) warning labels.
Yes. You must use a 17mm socket to remove the (2) bolts from the tie-down bracket on the passenger side and return it to the vehicle owner. This is a required step before hitch installation.
On the driver side, you must: (1) remove the plastic caps from the 2 rearmost existing weldnuts (light twists with a standard screwdriver make this easier), and (2) remove the rearmost rubber plug from the hole between the two weldnuts that were exposed. These steps expose the weldnuts where the hitch will be mounted.
All fasteners mounting the hitch to the frame weldnuts must be tightened to 76 Lb-Ft (103 N·M) using a torque wrench. Proper torque is essential to keep the hitch secure to the vehicle when towing.

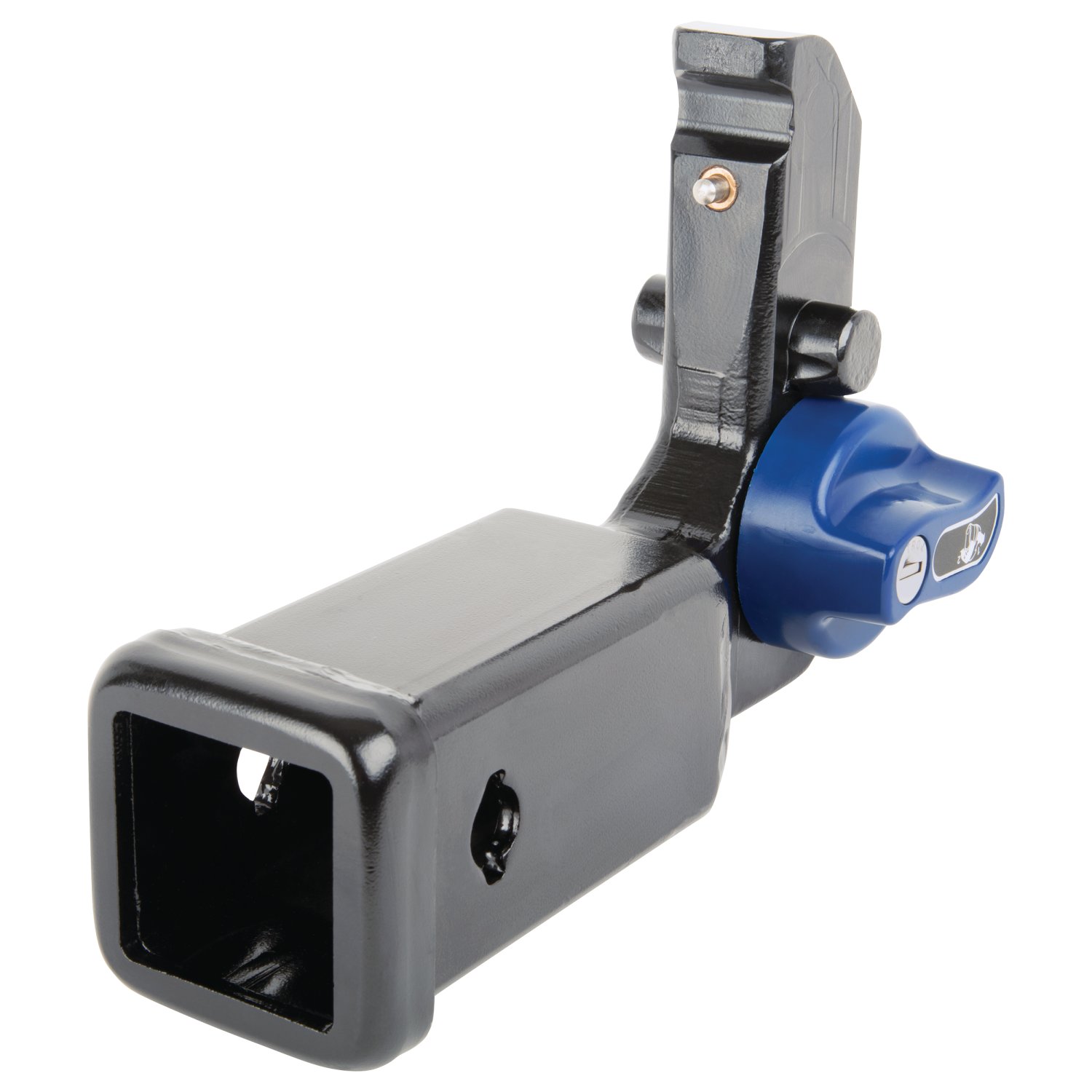

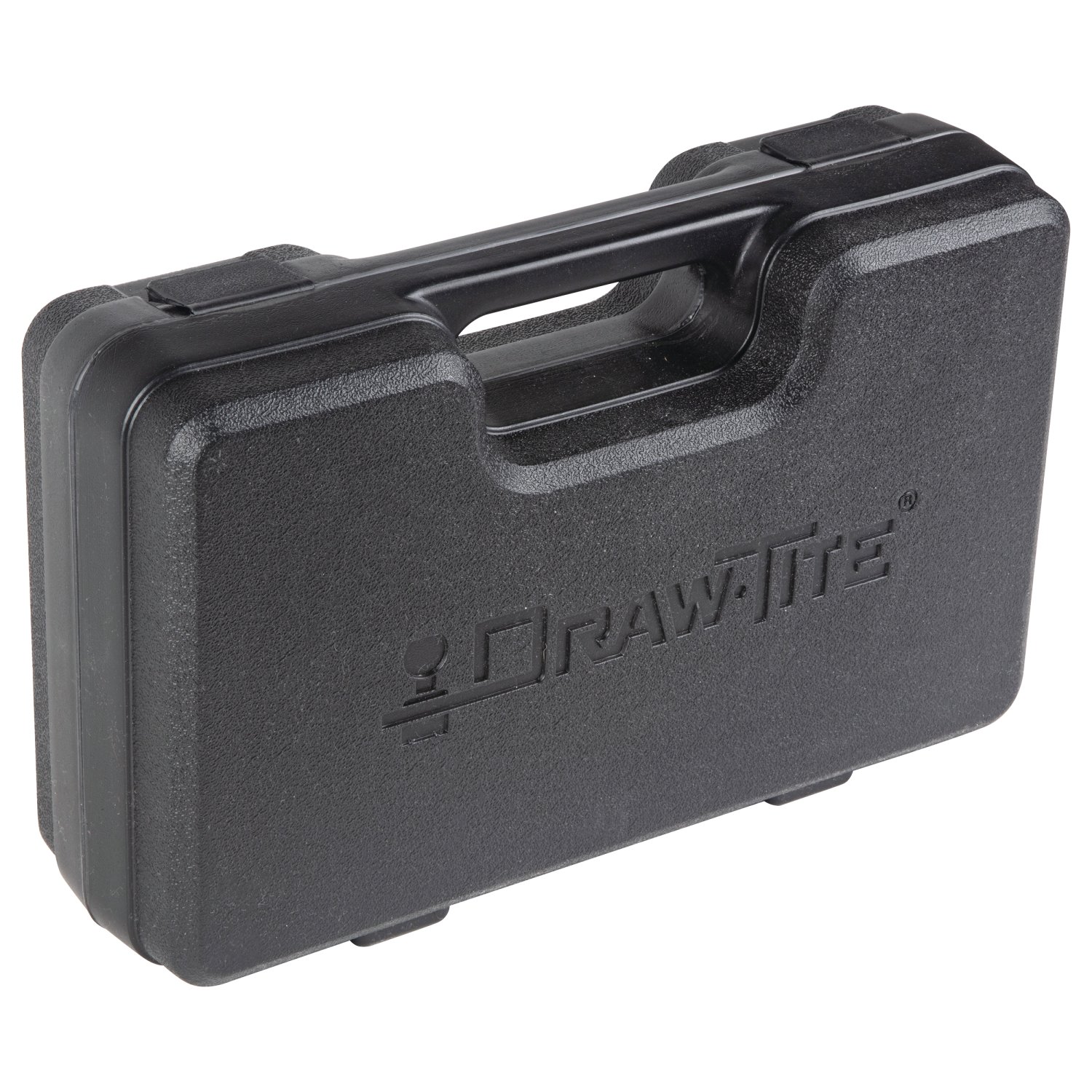

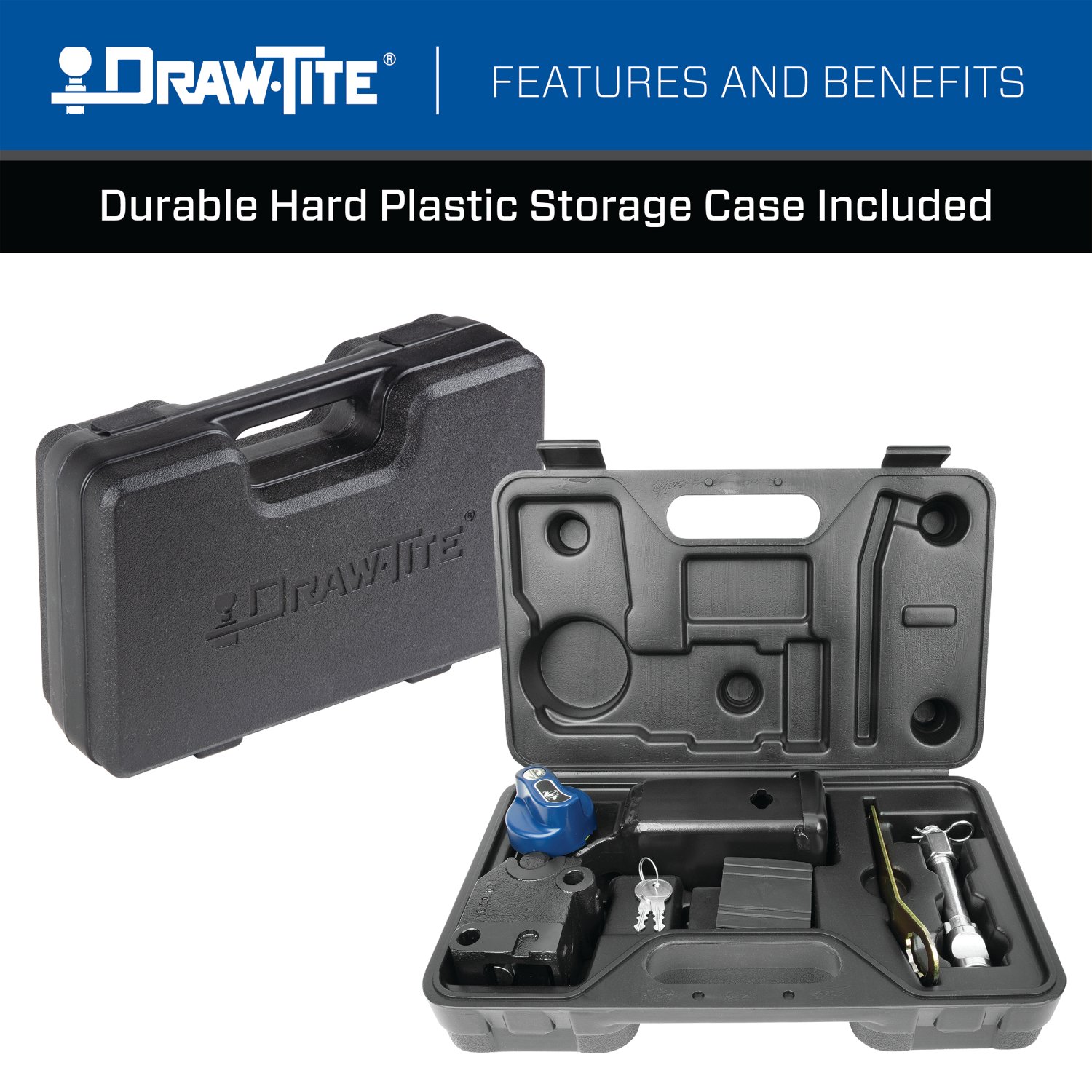

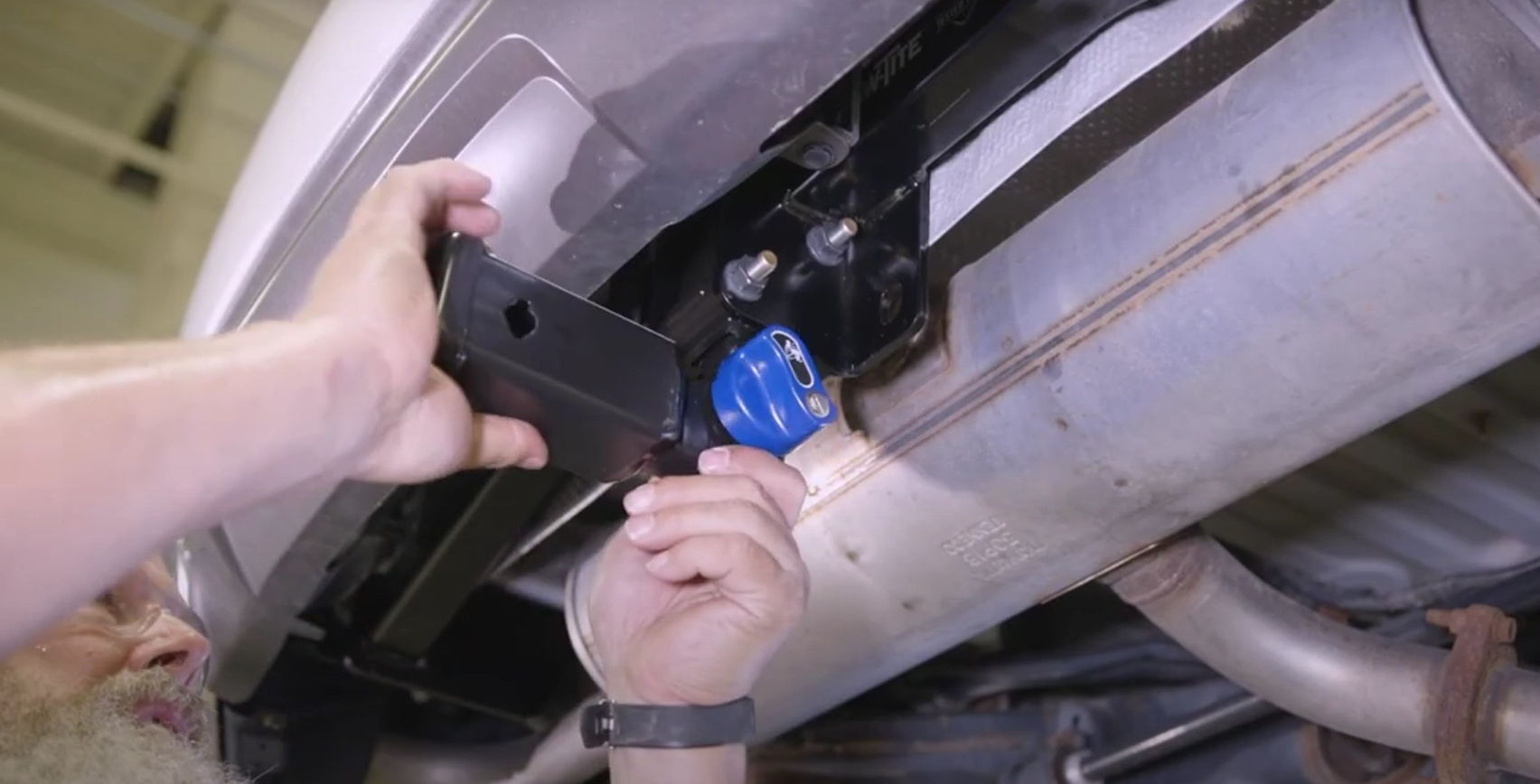

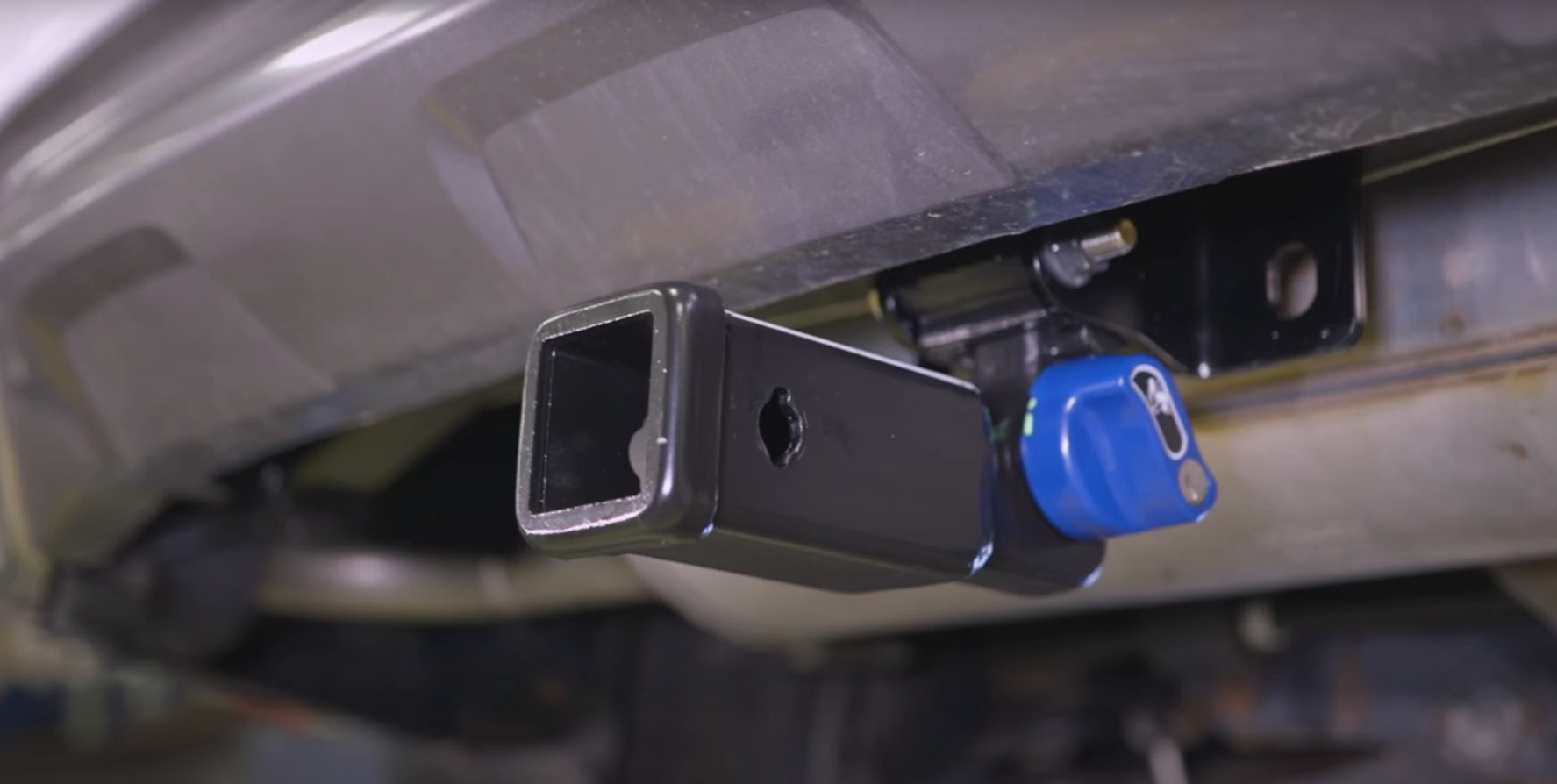

1. Remove the receiver and weather covers from the case. 2. Unlock the blue handle using the attached key, press the handle, and rotate clockwise until you hear a click to remove the housing from the receiver. 3. Install the top/bottom weather cover to the housing. 4. Attach the housing to the hitch using an M12 bolt, flat washer, and prevailing torque nut. 5. Tighten the housing fasteners to 92 Lb-Ft (125 N·M).
Keep the warning card in the glove compartment. Peel off the two warning labels and apply them to the top of the receiver and the door jamb respectively. These labels provide important safety information.
No drilling is required. The 76905 uses existing frame weldnuts on the driver side for mounting. However, you may need to bend the exhaust heat shield as necessary to prevent it from touching the hitch.
No. Do not use a torch to cut access or attachment holes. The manual explicitly prohibits this practice for safety reasons.
The fasteners attaching the receiver housing to the hitch must be tightened to 92 Lb-Ft (125 N·M) using a torque wrench.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle. Do not cut, weld, or modify the receiver. Do not use a torch to cut access holes. If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fume entry.
The maximum tongue weight is 350 lb (159 kg). You must not exceed this limit or the towing vehicle manufacturer's rating, whichever is lower.
If excessive sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. Slow down when towing and never exceed any posted speed limit.
Check that all fasteners are tight and the hitch is securely mounted to the vehicle. The manual recommends checking the hitch frequently to ensure all fasteners and the ball are properly tightened. Proper torque is essential to keep the hitch secure when towing.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but periodic inspection is required to maintain safe towing.
The 76905 accepts ball mounts with a maximum rise of 10.5 inches (distance from center of ball hole to center of pin hole) and a minimum rise of 0.75 inches (distance from top of shank to top of ball platform). Specific ball mount models are sold separately.
Two quick-link options are available, sold separately: #49131 (5/16 inch) with maximum GTW 3,500 lb, and #44133 (3/8 inch) with maximum GTW 3,500 lb.
The average installation time for professional installers is 20 minutes. If you do not feel comfortable performing the installation yourself or need assistance, contact a professional installer.
The hitch is mounted using M12 bolts (④) and conical tooth washers (⑤), with the teeth side of the washer facing against the hitch. These fasteners are installed into the existing frame weldnuts on the driver side and tightened to 76 Lb-Ft (103 N·M).
The conical washer must be installed with the teeth side facing against the hitch. This orientation is critical for proper fastening.
Yes, the 76905 is designed for 2016-Current Lexus RX350/450h. Check www.horizonglobal.com for the most current application information.
Maximum Gross Trailer Weight is 3,500 lb (1,589 kg) and maximum tongue weight is 350 lb (159 kg). Do not exceed your vehicle manufacturer's rating.
You need: ratchet, torque wrench, safety glasses, 17mm and 19mm sockets, 6-inch socket extension, and flat-head screwdriver.
Yes. Remove the tie-down bracket from the passenger side using a 17mm socket. On the driver side, remove plastic caps from the rearmost weldnuts and the rubber plug between them.
Tighten all hitch mounting fasteners to 76 Lb-Ft (103 N·M). The receiver housing bolts should be tightened to 92 Lb-Ft (125 N·M).
No. The 76905 uses existing frame weldnuts. You may need to bend the exhaust heat shield to prevent contact with the hitch.
Maximum tongue weight is 350 lb (159 kg). Do not exceed this or your vehicle manufacturer's rating.
Verify all fasteners are tight and the hitch is securely mounted. Check frequently during use to ensure fasteners remain tight.
Ensure you are using a torque wrench to tighten all fasteners to the correct specification: 76 Lb-Ft (103 N·M) for hitch-to-frame bolts and 92 Lb-Ft (125 N·M) for receiver housing bolts. Proper torque is essential to keep the hitch secure. Check fasteners frequently during use and retighten if necessary. If fasteners continue to loosen, the conical washers may not be properly seated with teeth side against the hitch.
Bend the exhaust heat shield as necessary to keep it from touching the hitch. This is a normal part of the installation process and may be required on some vehicles.
Use a standard flat-head screwdriver and apply a couple of light twists to remove the plastic caps from the rearmost weldnuts on the driver side. Do not force them; gentle twisting should dislodge the caps.
Use the key attached to the hitch to unlock the blue handle. Press the blue handle and rotate it clockwise until you hear a click sound. This will release the housing from the receiver. If the handle is difficult to turn, apply light pressure and ensure you are rotating clockwise.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
