Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

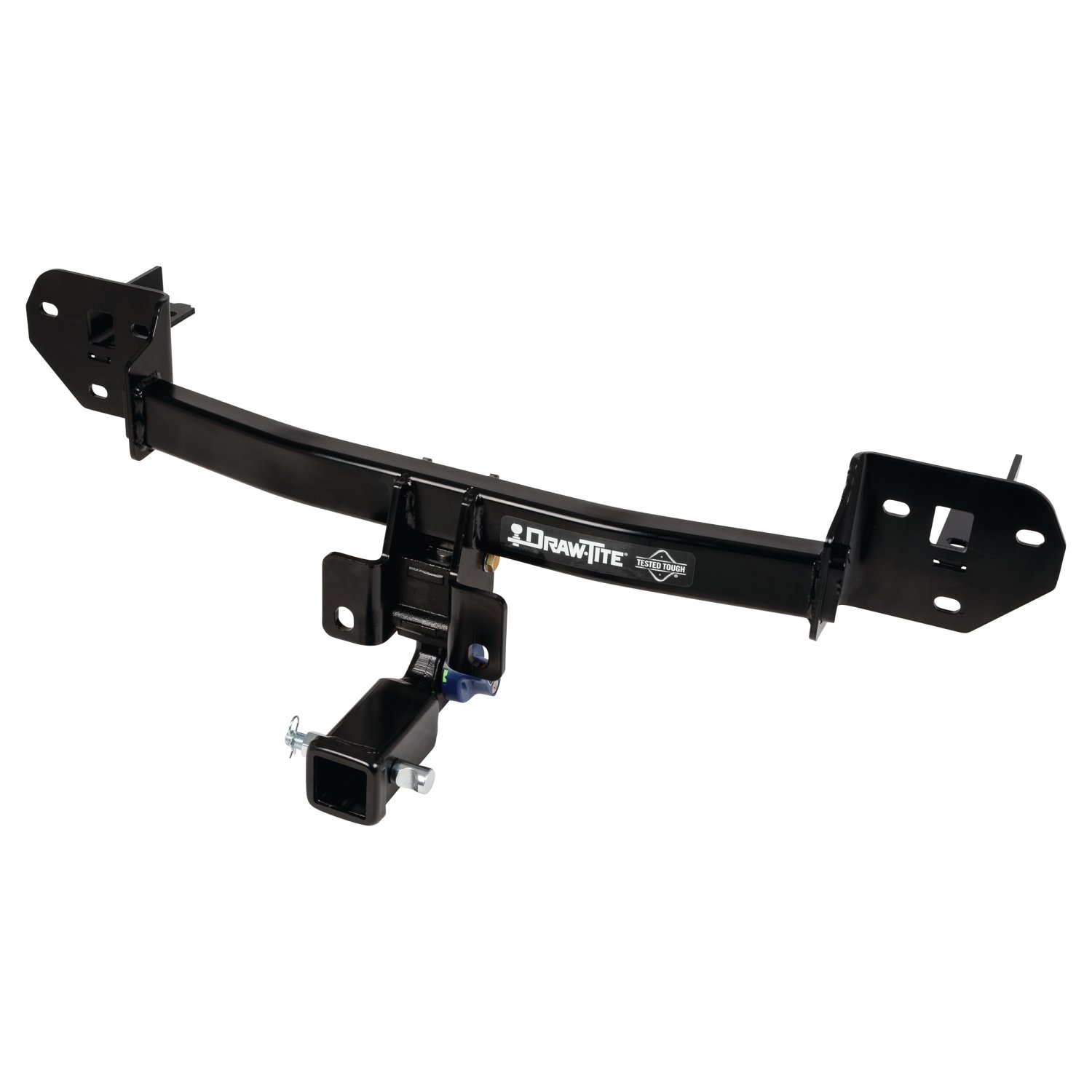

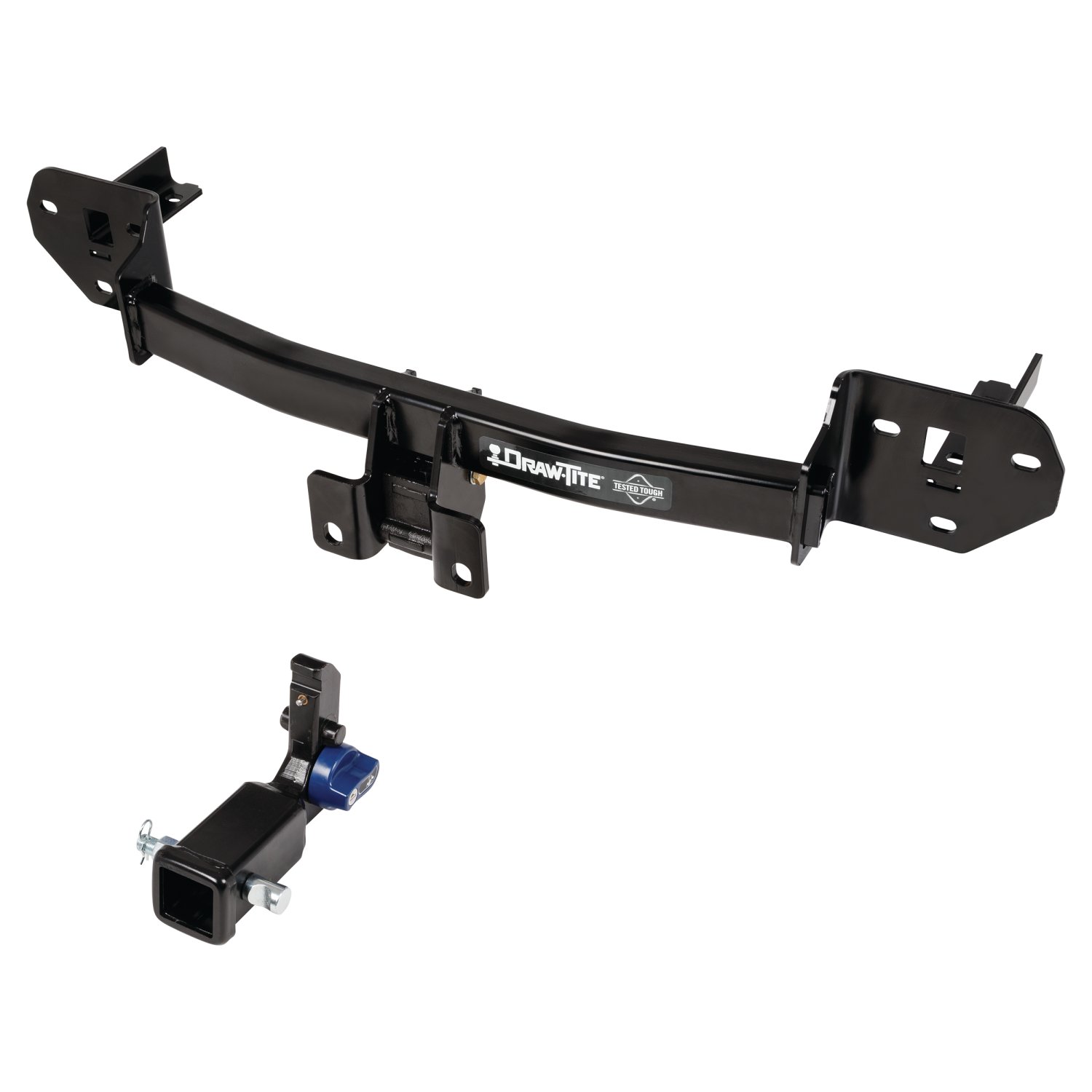

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 350 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76926 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 45.15 LBS |

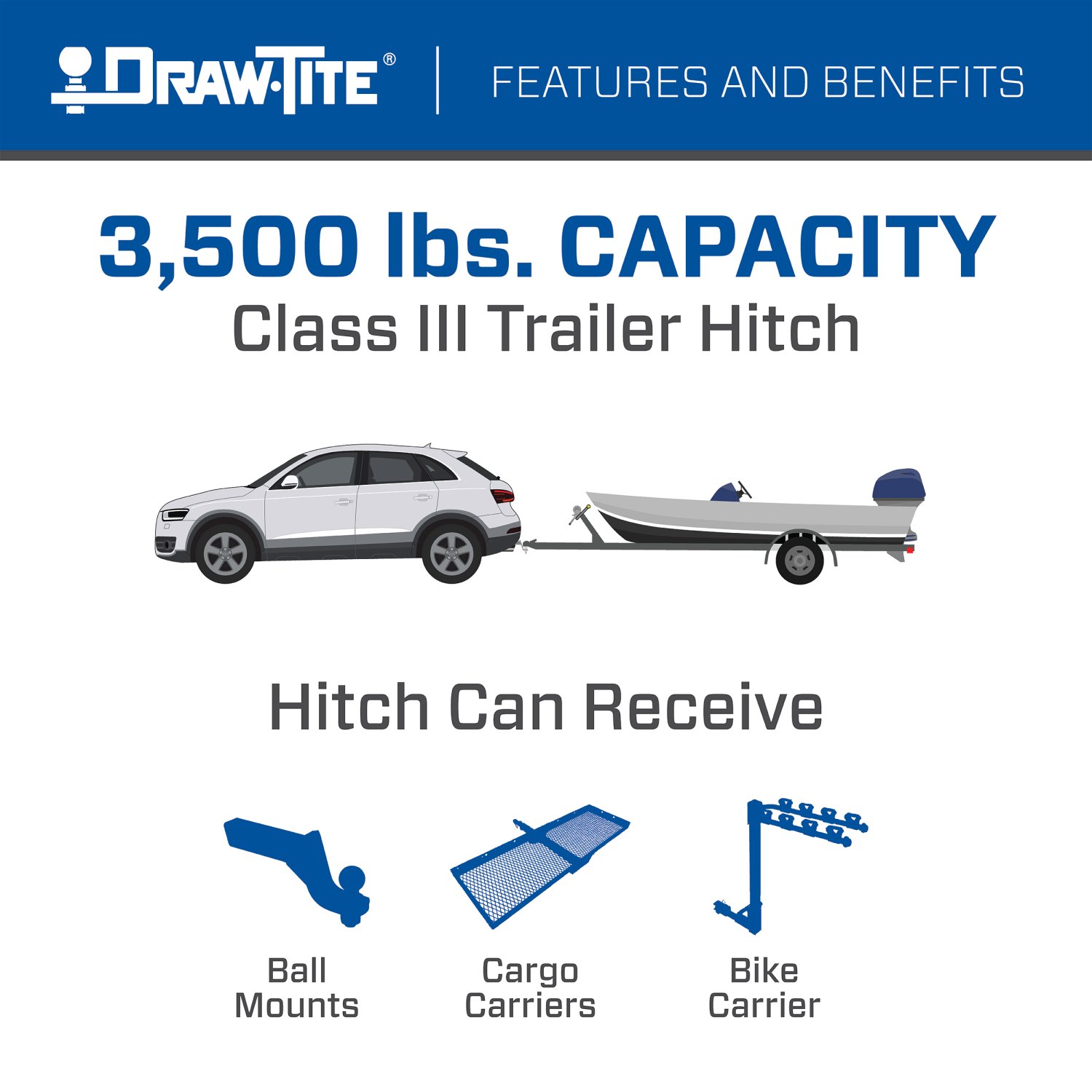

| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 350 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
| GROSS TOWING WEIGHT WITH WEIGHT DISTRIBUTION: | 3,500 LBS. |
| GROSS TONGUE WEIGHT WITH WEIGHT DISTRIBUTION: | 350 LBS. |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.

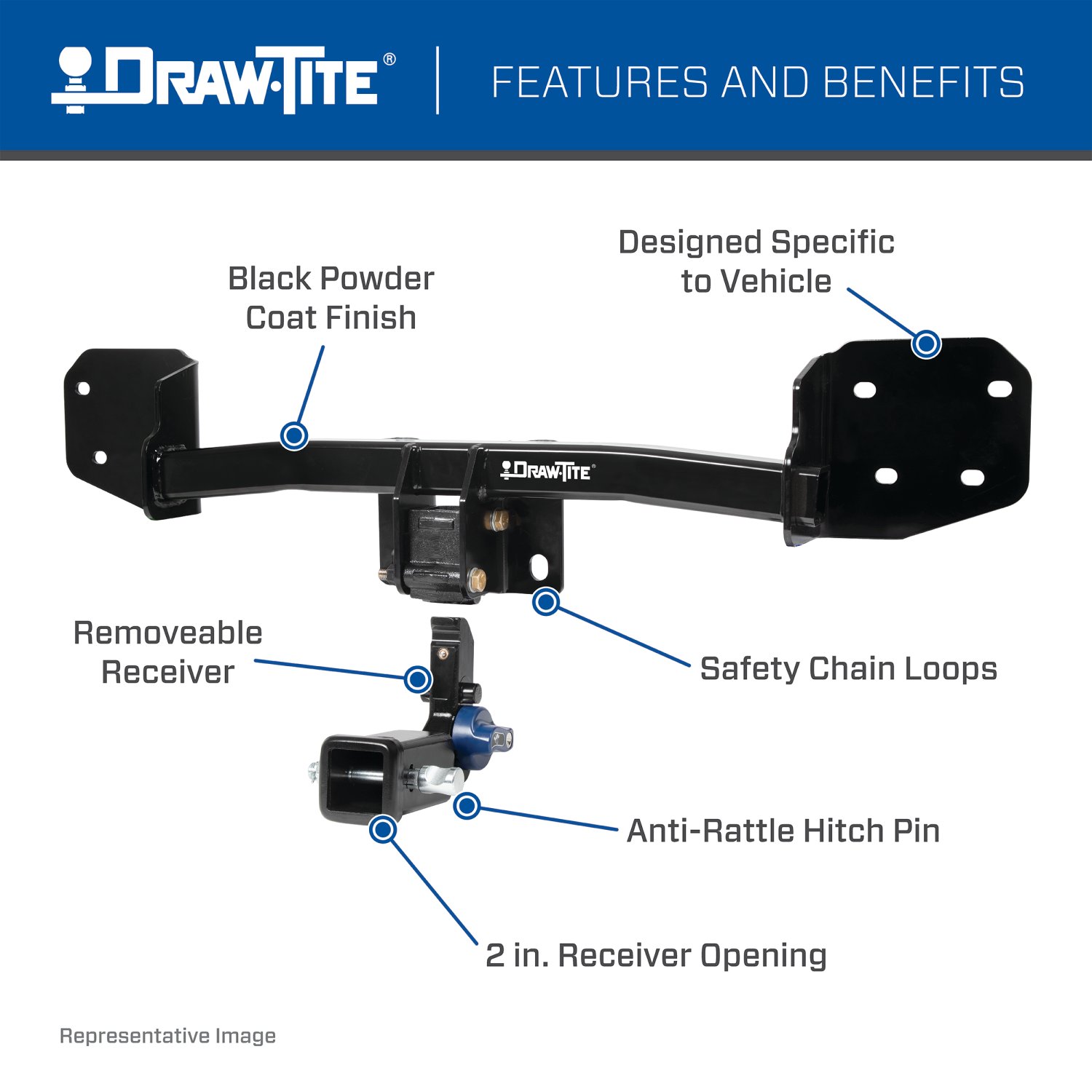

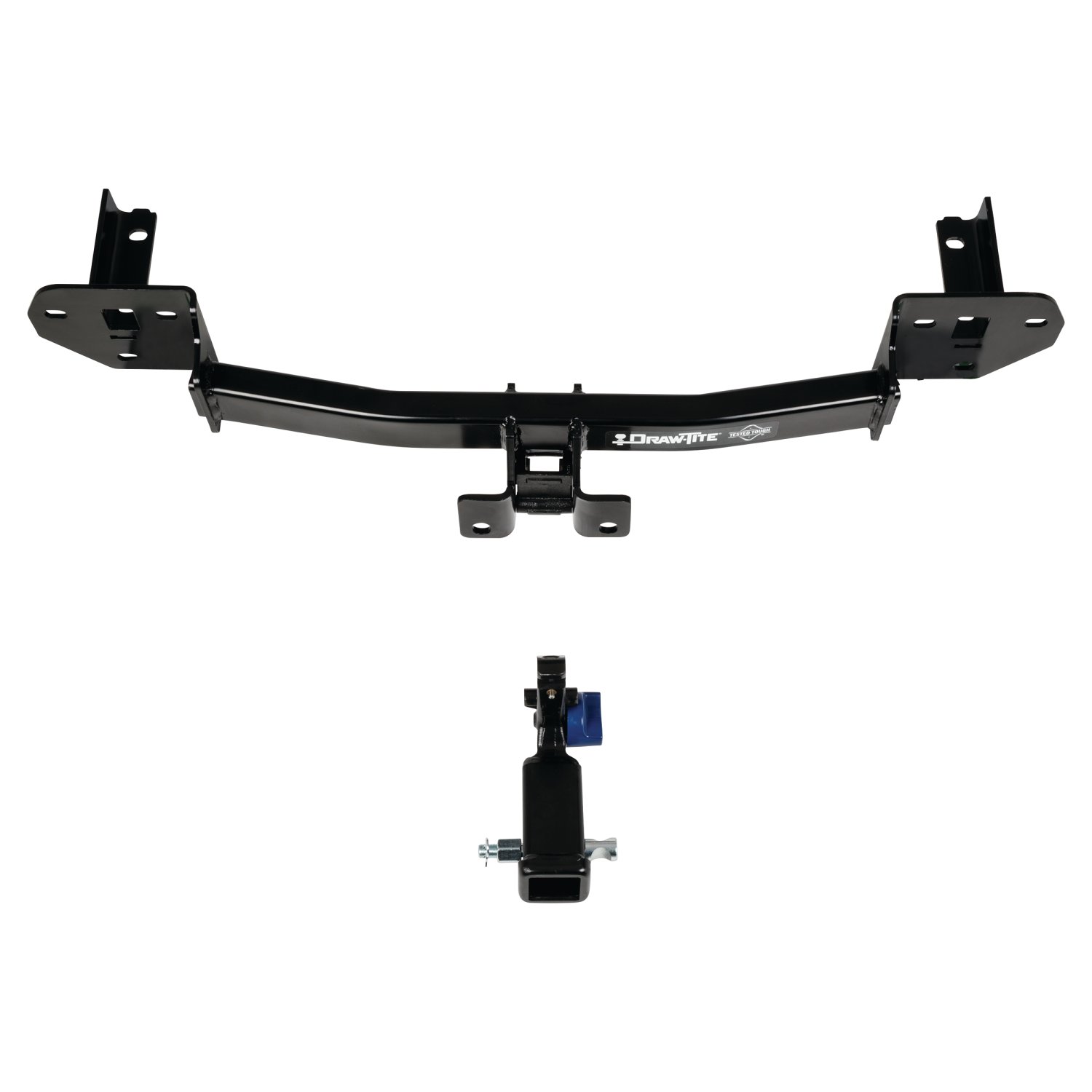

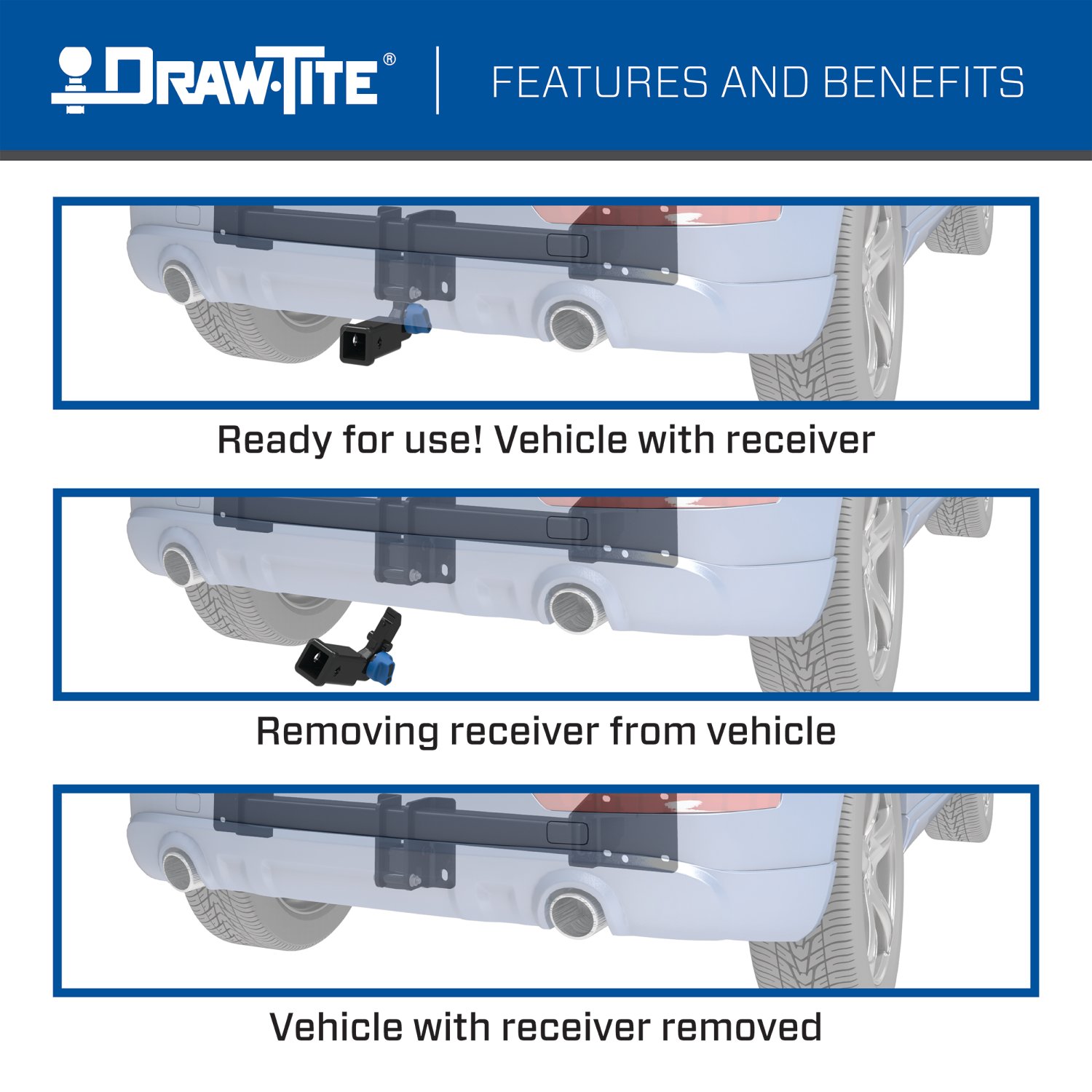

The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2020 - 2025 | Subaru Outback | Class 3 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 60 minutes |
The Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Subaru Outback 76926 (Part #DT76926) fits 2020-2025 Subaru Outback models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Subaru Outback 76926 (Part #DT76926) is designed to fit the 2020-2025 Subaru Outback.
The Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Subaru Outback 76926 (Part #DT76926) fits the following vehicles: 2020-2025 Subaru Outback. Always verify your specific year, make, and model before ordering.
The Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Subaru Outback 76926 (Part #DT76926) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 76926 is designed for 2020-current Subaru Outback models. Visit www.horizonglobal.com for the most up-to-date information regarding specific application years and trim levels.
The 76926 is a weight-carrying hitch with a maximum gross trailer weight (GTW) of 3,500 lb (1,589 kg) and a maximum tongue weight of 350 lb (159 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.

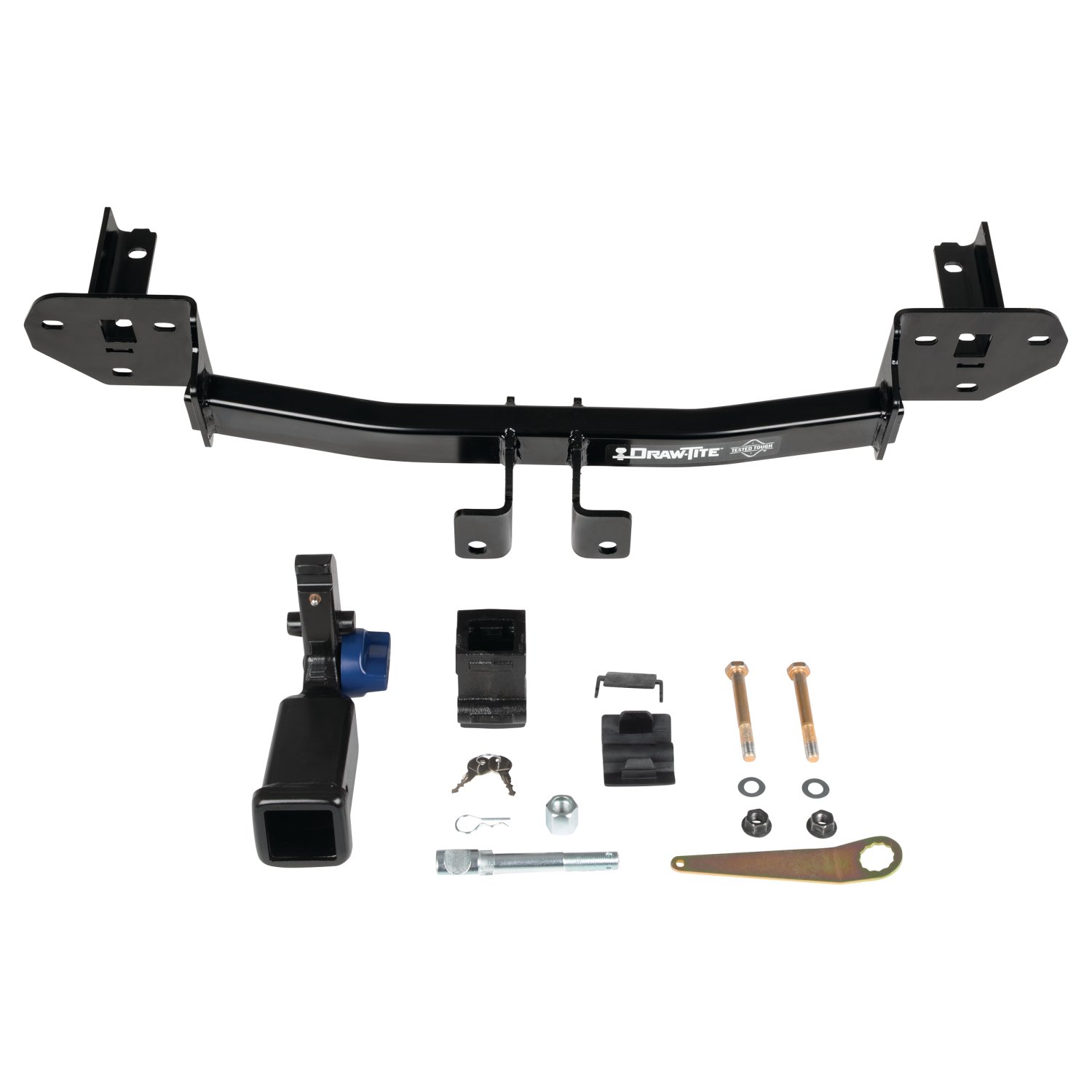

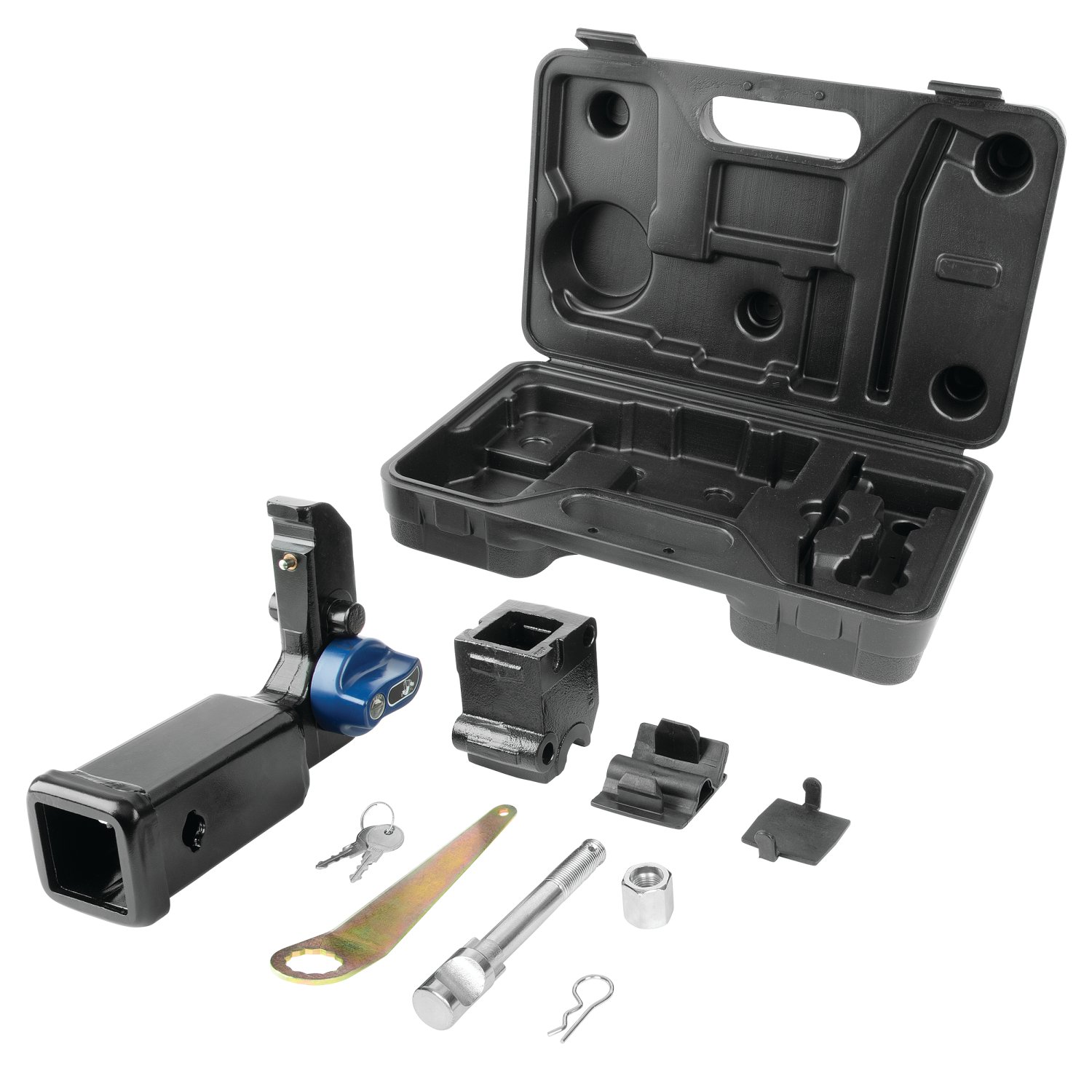

The kit includes the receiver housing with weather covers, receiver assembly, fastener kit 76926F (containing carriage bolts, spacers, washers, lock washers, nuts, conical washers, and plastic rivets), a warning card to keep in the vehicle glove compartment, and two warning labels (one for the receiver top, one for the vehicle door jamb).
Required tools include: ratchet, torque wrench, safety glasses, sockets (10mm, 14mm, 17mm, 11/16"), 6" socket extension, Phillips screwdriver, flat head screwdriver, plastic rivet gun, tape measure, utility knife, marker, plastic trim tools, and silicone sealant.
The manual states the average installation time for professional installers is 60 minutes. If you do not feel comfortable performing the installation yourself or need assistance, contact a professional installer. The installation involves removing taillights, fascia, and bumper beam, and requires precise torque specifications.
Yes. The bumper beam must be removed to access the frame rails where the hitch is mounted. You will remove (2) M10 flange hex nuts and (4) M10 hex bolts from the bumper beam. Keep the hex flange nuts for hitch installation and return the factory hex bolts and bumper beam to the vehicle owner.
Yes. Both taillights must be removed to access the fascia. Remove the plastic cover near each taillight using a Phillips head screwdriver, remove (2) push-pin rivets from the cover, remove (2) screws with a 10mm socket, gently pull the taillight rearward, and disconnect the wiring.
Yes. The rear fascia must be removed to access the bumper beam and hitch mounting points. You will remove plastic push-pin rivets from the bottom center edge, outer bottom edge, and top of the wheel well area, then carefully pull the fascia rearward while releasing the clips. The factory rivets cannot be reused; four replacement rivets are supplied (two required, two spare).
No drilling is required. The hitch uses existing frame rail holes and factory studs on the bumper beam. However, you must trim the fascia by cutting a notch approximately 8" wide by 6" tall in the bottom center using a utility knife. Ensure the area is clear of all electrical wiring before trimming.
The fascia must be permanently trimmed with a notch approximately 8" wide by 6" tall in the bottom center. A metal tab on the end panel near the right-hand side chain bracket must be slightly bent up, and the push-pin rivet will not be reinstalled to this tab. These modifications are permanent and cannot be reversed without replacing the fascia.
The two M12 fasteners (bolt, flat washer, and prevailing torque nut) that attach the receiver housing to the hitch brackets must be torqued to 92 lb-ft (125 N·m).
All M10-1.25 CL8.8 fasteners (the four M10 hex bolts and two M10 nuts that attach the bumper beam) must be torqued to 42 lb-ft (57 N·m) using a torque wrench.
The hitch is mounted to the frame rails using (2) carriage bolts 7/16-14 x 1.50" Grade 5, (2) spacers .106" x .88" x 2", (2) flat washers 7/16", (2) lock washers 7/16", and (2) hex nuts 7/16-14. The manual does not specify a torque value for these frame rail fasteners.
Yes. The manual states to apply blue thread locker to all fasteners during hitch installation. Additionally, for additional security, thread locker can be used on all fasteners.
Yes. Apply silicone sealant to both hitch bracket mounting surfaces before raising the hitch into position. This helps prevent water infiltration.

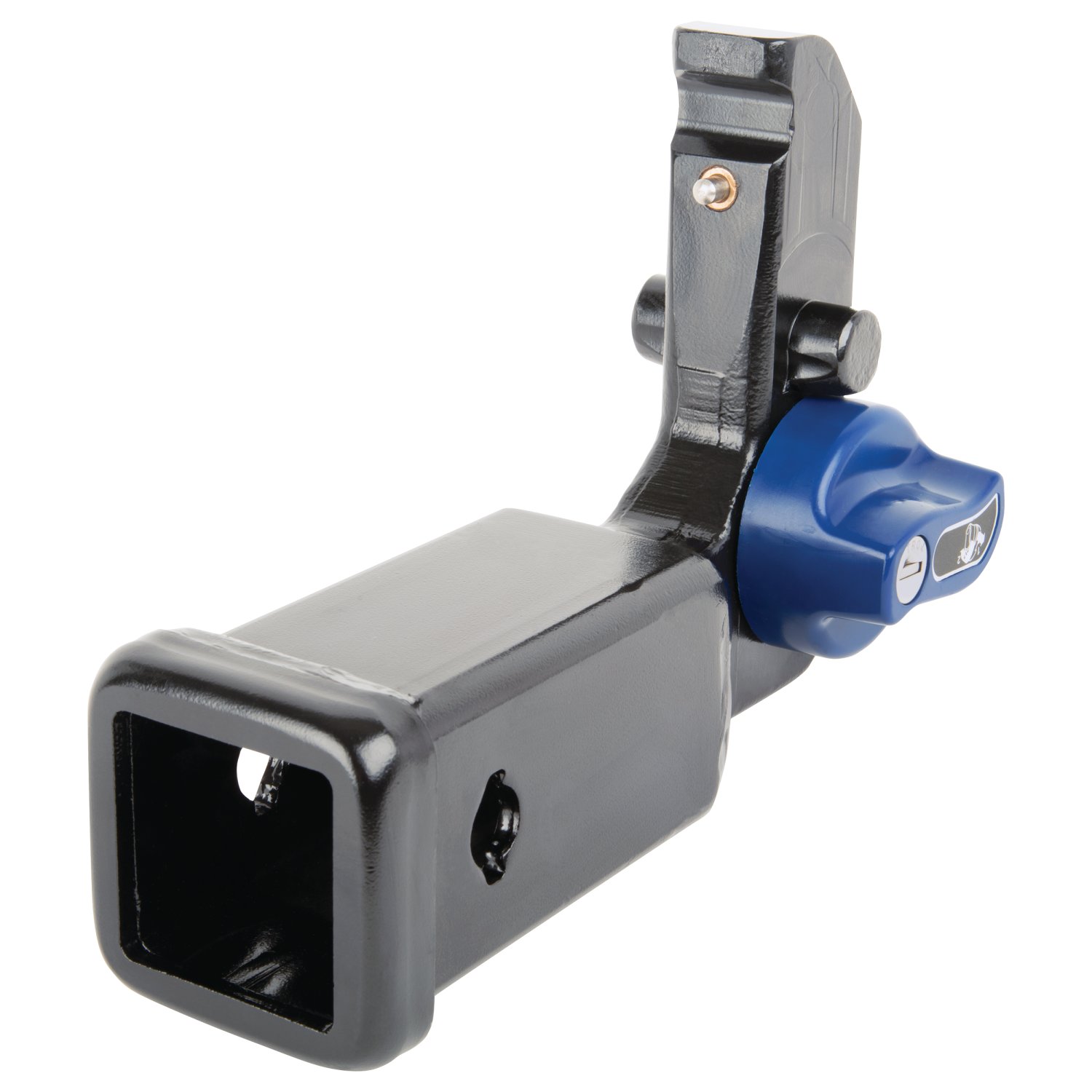

Use the key to unlock the blue knob on the receiver housing. Push in the blue knob and rotate it clockwise until you hear a click sound. At that point, you can separate the receiver from the receiver housing. Install the weather covers to the top and bottom of the receiver housing before attaching it to the hitch.
Apply one label to the top of the receiver and one label to the vehicle door jamb. Keep the warning card in the vehicle glove compartment for future reference.
The ball mount must have a minimum rise of 0.75" (distance from the top of the shank to the top of the ball platform) and a maximum length of 10.5" (distance from the center of the ball hole to the center of the pin hole).
Two quick-link options are available, sold separately: #49131 (5/16") with max GTW 3,500 lb, and #44133 (3/8") with max GTW 3,500 lb.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Always wear your seatbelt. Slow down when towing and never exceed any posted speed limit. Load the trailer heavier in front. Do not exceed the lower of your towing vehicle manufacturer's rating or the hitch's 3,500 lb GTW / 350 lb tongue weight limits. Always read and follow all warnings and instructions for your vehicle and other accessories used with the hitch before use.
Check that all fasteners are tight and the hitch is securely mounted to the vehicle. Regularly check that all fasteners and the ball are properly tightened. Proper torque is needed to keep the hitch secure to the vehicle when towing.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual does not specify an exact interval, but emphasizes regular checking to ensure hitch towing capacity and longevity of the product.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
No. Do not cut access or attachment holes with a torch. Use a utility knife to trim the fascia as specified in the installation instructions.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch.
Yes. The 76926 is designed for 2020-current Subaru Outback models. Check www.horizonglobal.com for specific trim level compatibility.
Maximum gross trailer weight is 3,500 lb (1,589 kg) and maximum tongue weight is 350 lb (159 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Fastener kit 76926F is required and included. It contains carriage bolts, spacers, washers, lock washers, nuts, conical washers, and plastic rivets.
Professional installation is recommended. The average installation time for professional installers is 60 minutes. If you are not comfortable performing the installation yourself, contact a professional installer.
Receiver housing fasteners (M12): 92 lb-ft (125 N·m). Bumper beam fasteners (M10-1.25 CL8.8): 42 lb-ft (57 N·m). A torque wrench is required.
Never exceed any posted speed limit when towing. Load the trailer heavier in front. Do not exceed 3,500 lb GTW or 350 lb tongue weight. Always wear your seatbelt.
Retighten the fasteners to the specified torque values. Receiver housing fasteners (M12) should be torqued to 92 lb-ft (125 N·m). Bumper beam fasteners (M10-1.25 CL8.8) should be torqued to 42 lb-ft (57 N·m). Check the hitch frequently to ensure all fasteners remain tight, as proper torque is needed to keep the hitch secure to the vehicle when towing.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. Ensure all mounting holes are properly sealed.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
