Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

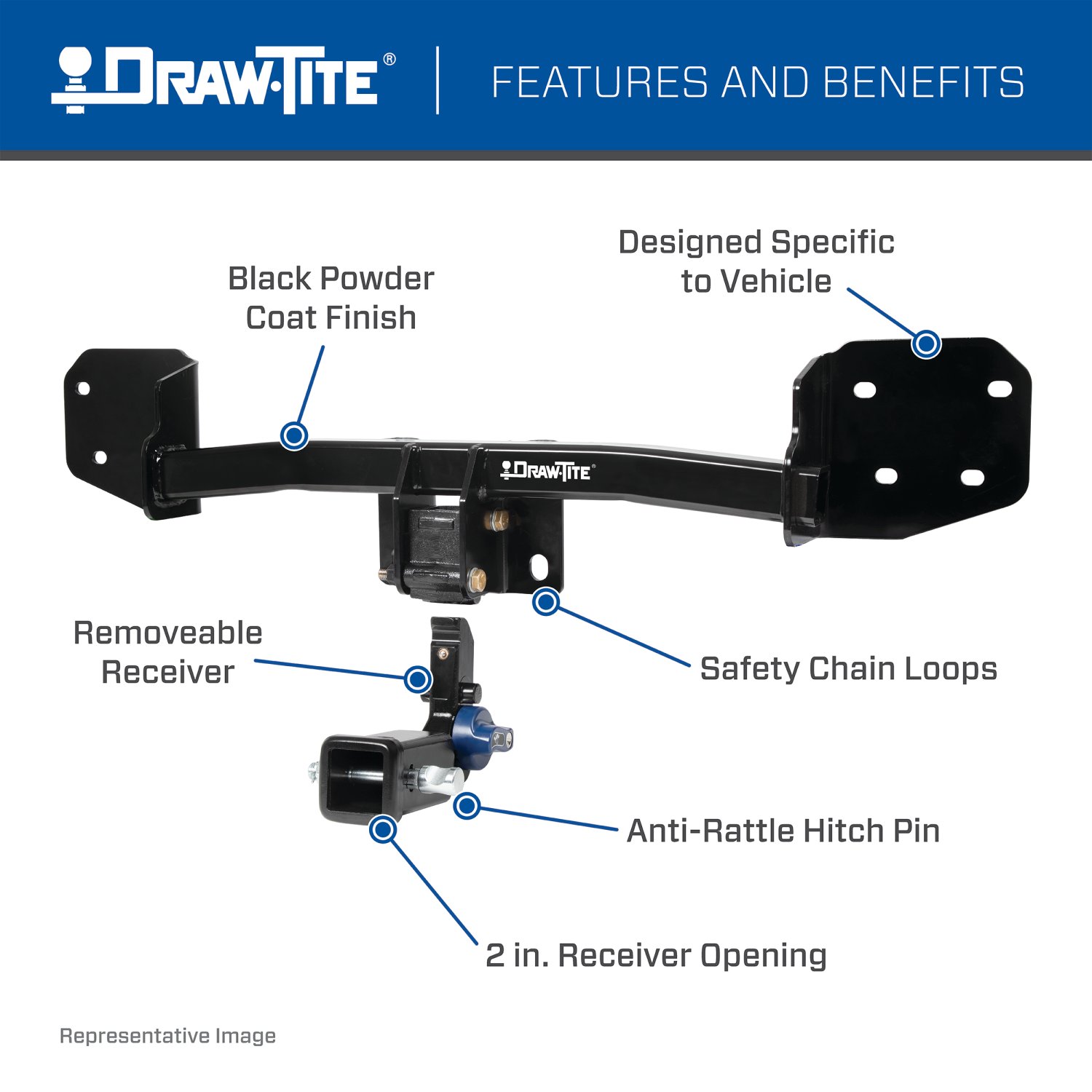

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 350 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76928 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 35 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 350 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.

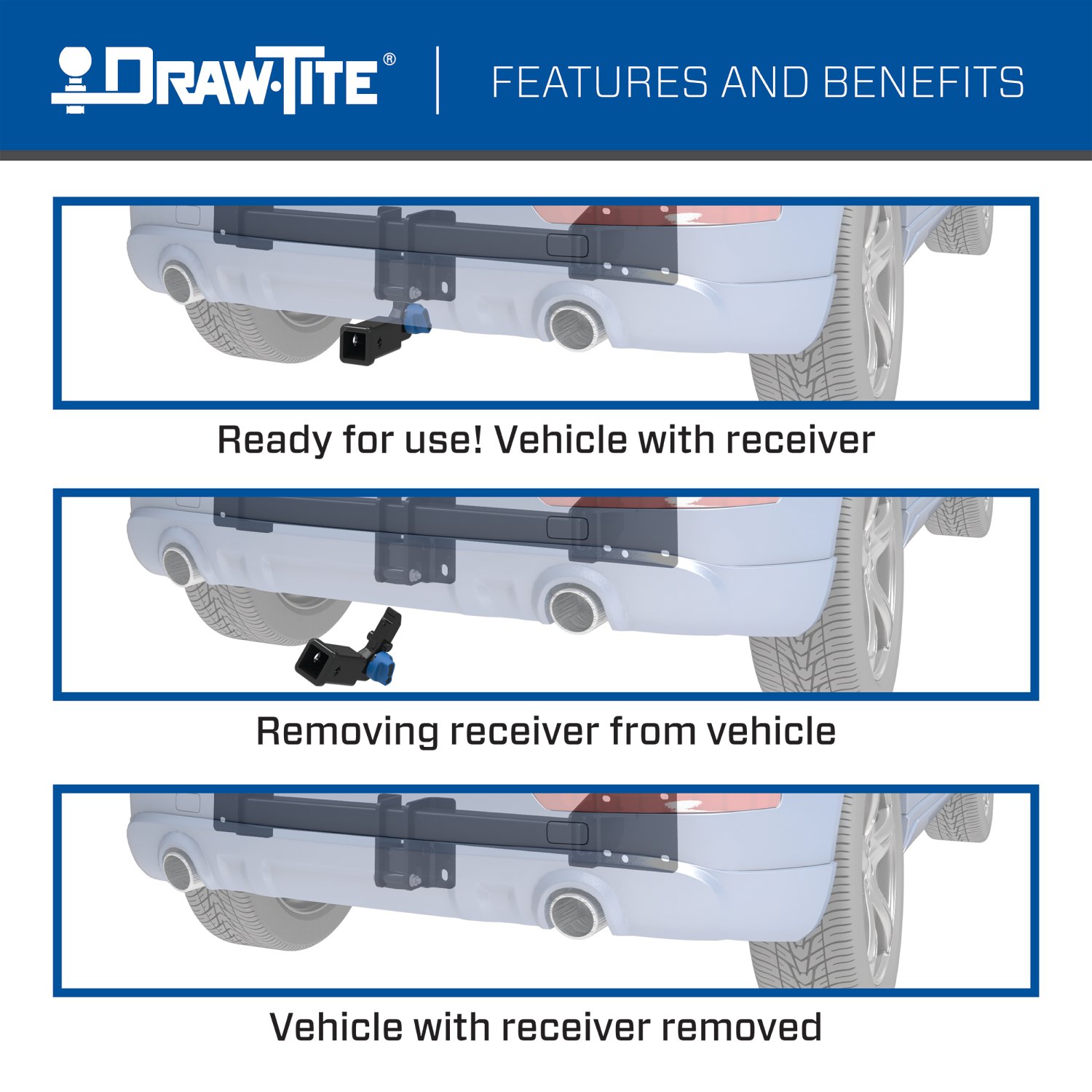

The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2021 - 2026 | Toyota Sienna | Class 3 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 90 minutes |
The Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Toyota Sienna 76928 (Part #DT76928) fits the following vehicles: 2021-2026 Toyota Sienna. Always verify your specific year, make, and model before ordering.
The Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Toyota Sienna 76928 (Part #DT76928) fits 2021-2026 Toyota Sienna models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Toyota Sienna 76928 (Part #DT76928) is designed to fit the 2021-2026 Toyota Sienna.
The Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Toyota Sienna 76928 (Part #DT76928) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 76928 is designed for 2021-current Toyota Sienna models. For the most up-to-date information regarding specific application years and trim levels, visit www.horizonglobal.com.
No. Part number 76928 is designed for 2021-current Toyota Sienna models only. For compatibility with other model years, contact Horizon Global at 800-632-3290 or visit www.horizonglobal.com.
The 76928 is a weight-carrying hitch with a maximum gross trailer weight (GTW) of 3,500 lb (1,589 kg) and a maximum tongue weight of 350 lb (159 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Required tools include: ratchet, torque wrench, sockets (10mm, 14mm, 17mm, 11/16"), 6" socket extension, Phillips screwdriver, flat head screwdriver, tape measure, utility knife, marker, plastic trim tools, blue thread locker, tin snips, and pliers. Safety glasses are also required.
The average installation time for professional installers is 90 minutes. If you do not feel comfortable performing this installation on your own or are in need of assistance, please contact a professional installer.
No drilling is required. The hitch uses existing frame holes and weldnuts. However, the installation does require trimming a metal tab with tin snips and cutting a notch in the fascia (8.75" wide by 4.25" tall) with a utility knife.
Yes. The kick sensor must be modified by removing 3 push rivets and 3 screws, disconnecting it, removing clips, pulling wires back and securing them with tape, and trimming the sensor as shown in Figure 3. The sensor is then reconnected with 1 screw and 1 push rivet. Important: do not trim or cut any wires.
The notch in the bottom of the fascia should be approximately 8.75" wide by 4.25" tall. Locate the center of the fascia using a tape measure and marker, then cut using a utility knife. Ensure the area is clear of all electrical wiring before trimming.
Torque specifications are: M10-1.25 fasteners to 42 lb-ft (57 N·m); 7/16-14 fasteners to 50 lb-ft (68 N·m); M12 fasteners to 68 lb-ft (92 N·m). The receiver housing is torqued to 92 lb-ft (125 N·m). Apply blue thread locker to all fasteners before installation.
Torque each of the 2 receiver housing fasteners (M12 bolt, flat washer, and prevailing torque nut) to 92 lb-ft (125 N·m).

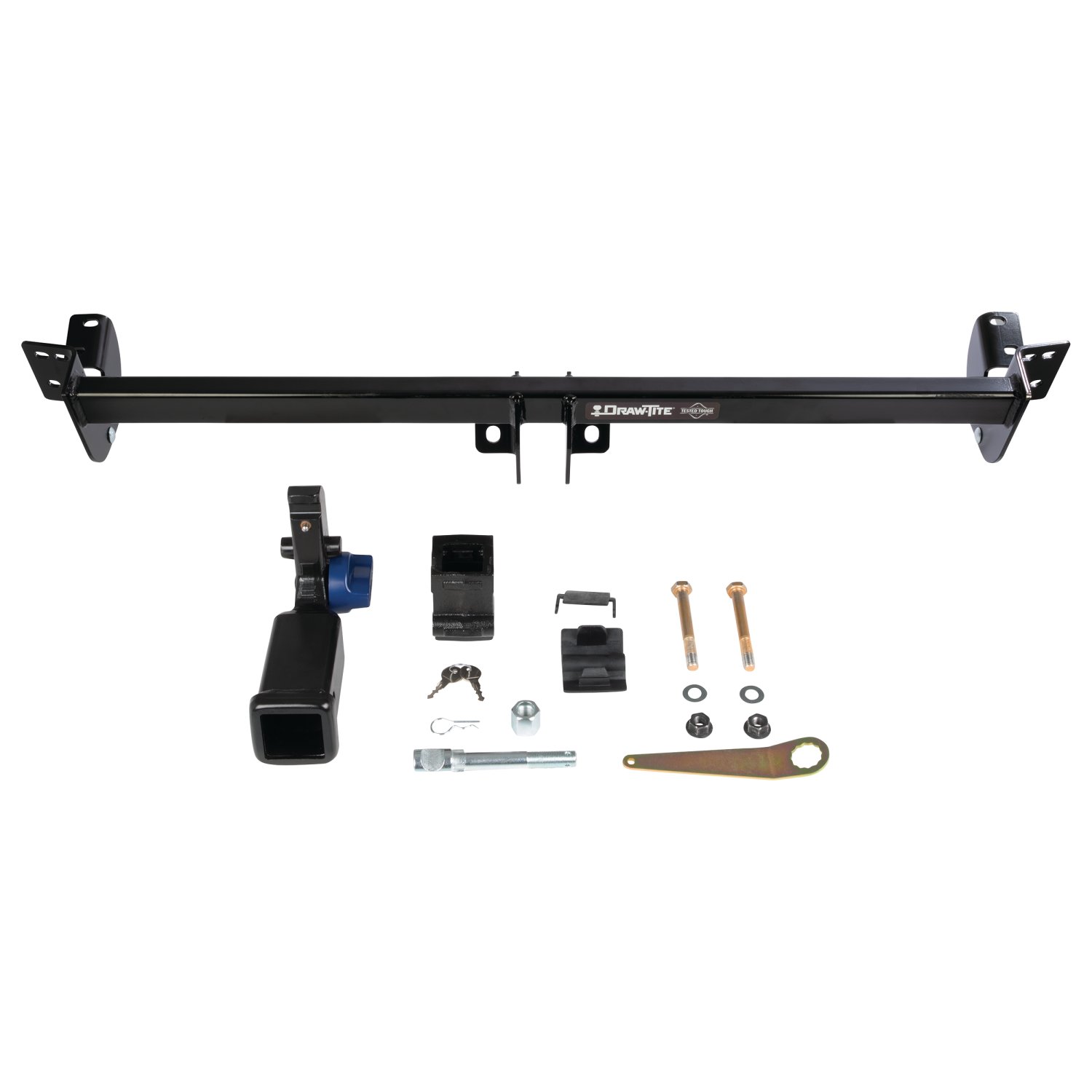

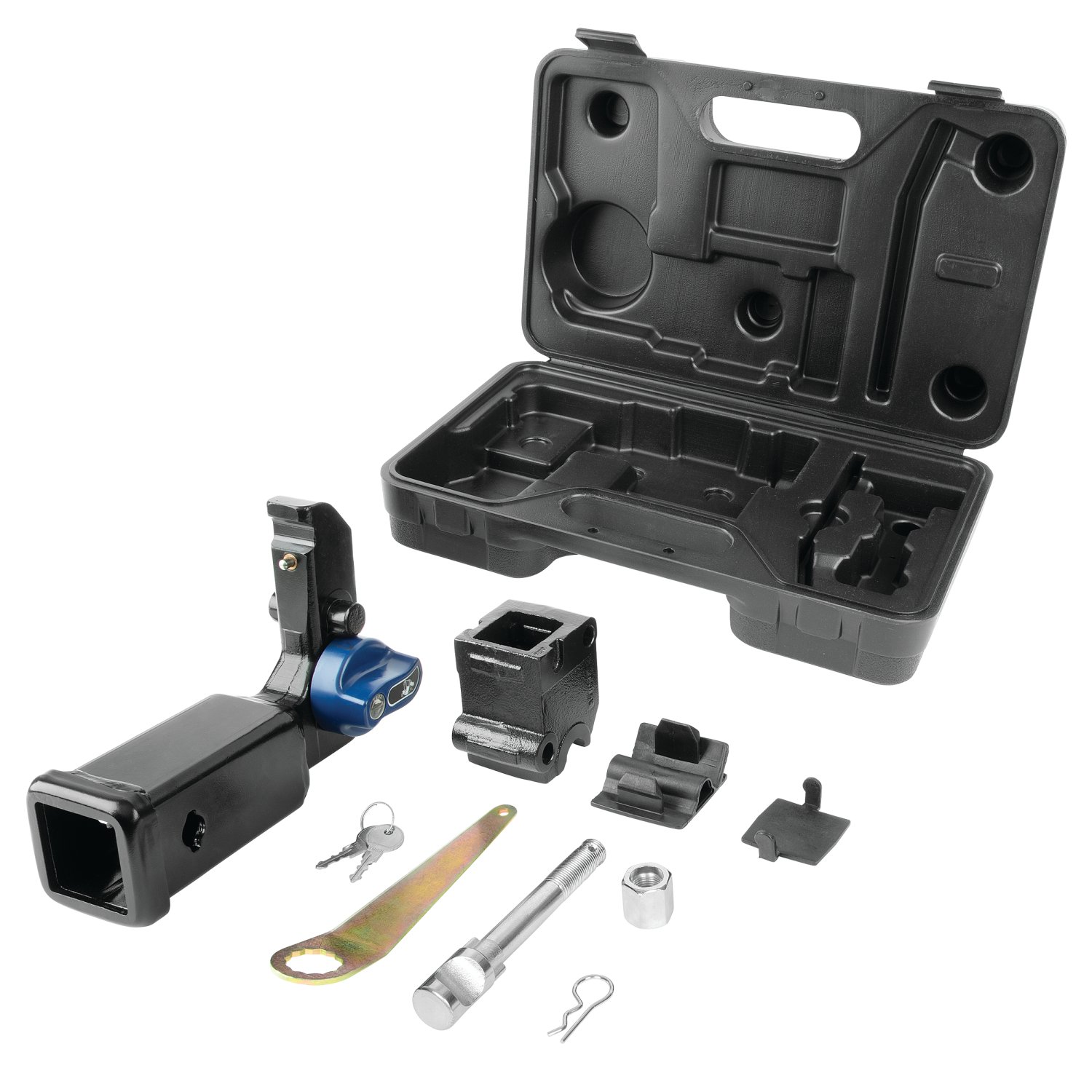

The 76928F kit includes: (4) carriage bolts 7/16-14 x 1.25" Gr5; (4) conical washers 7/16"; (4) hex nuts 7/16-14; (4) hex bolts M12x1.25x35 Cl8.8; (2) lock washers 1/2"; (2) flat washers 1/2"; (2) conical washers 1/2"; (2) bolts M12x1.75x100 mm CL10.9; (2) flat washers 7/16"; (2) prevailing torque nuts M12x1.75 CL10; (1) warning card; and (1) warning label.
Yes. The bumper beam must be removed. Remove the tape from the bumper beam, then using a 14mm socket with extension, remove the 6 flange hex nuts. Keep these hex nuts for hitch installation and return the bumper beam to the vehicle owner.
Yes. Open the tailgate and using a 10mm socket, remove 2 screws from the driver side taillight and remove it by gently pulling rearward. Disconnect the wiring and set aside. Remove 2 additional screws just below the taillight. Repeat for the opposite side. Reinstall the taillights and covers using original fasteners after hitch installation.
Yes. The fascia must be removed. This involves removing multiple plastic push-pin rivets, screws, and mud flap fasteners, then carefully pulling the fascia rearward while releasing the clips. If equipped, disconnect all wiring harnesses. After hitch installation, reinstall the fascia using original hardware and reconnect all wiring.
Keep the 6 flange hex nuts removed from the bumper beam. These are reused during hitch installation. Return the bumper beam itself to the vehicle owner.
Leave fasteners loose initially. Loosely tighten the M12 flange hex nuts to the end panel, then loosely attach the bracket bolts with conical washers and nuts onto the carriage bolts. Loosely install the M12 bolts, flat washers, lock washers, and conical washers into the frame rail weldnuts. Only after all fasteners are in place should you tighten them to the specified torque values using a torque wrench.
Conical washers are used to distribute load and accommodate the frame rail angle. When installing the 1/2" conical washers into the frame rail weldnuts, the teeth side must face toward the frame rail.
Yes. Apply blue thread locker to all fasteners before installation. This is noted in Step 6 of the installation instructions.

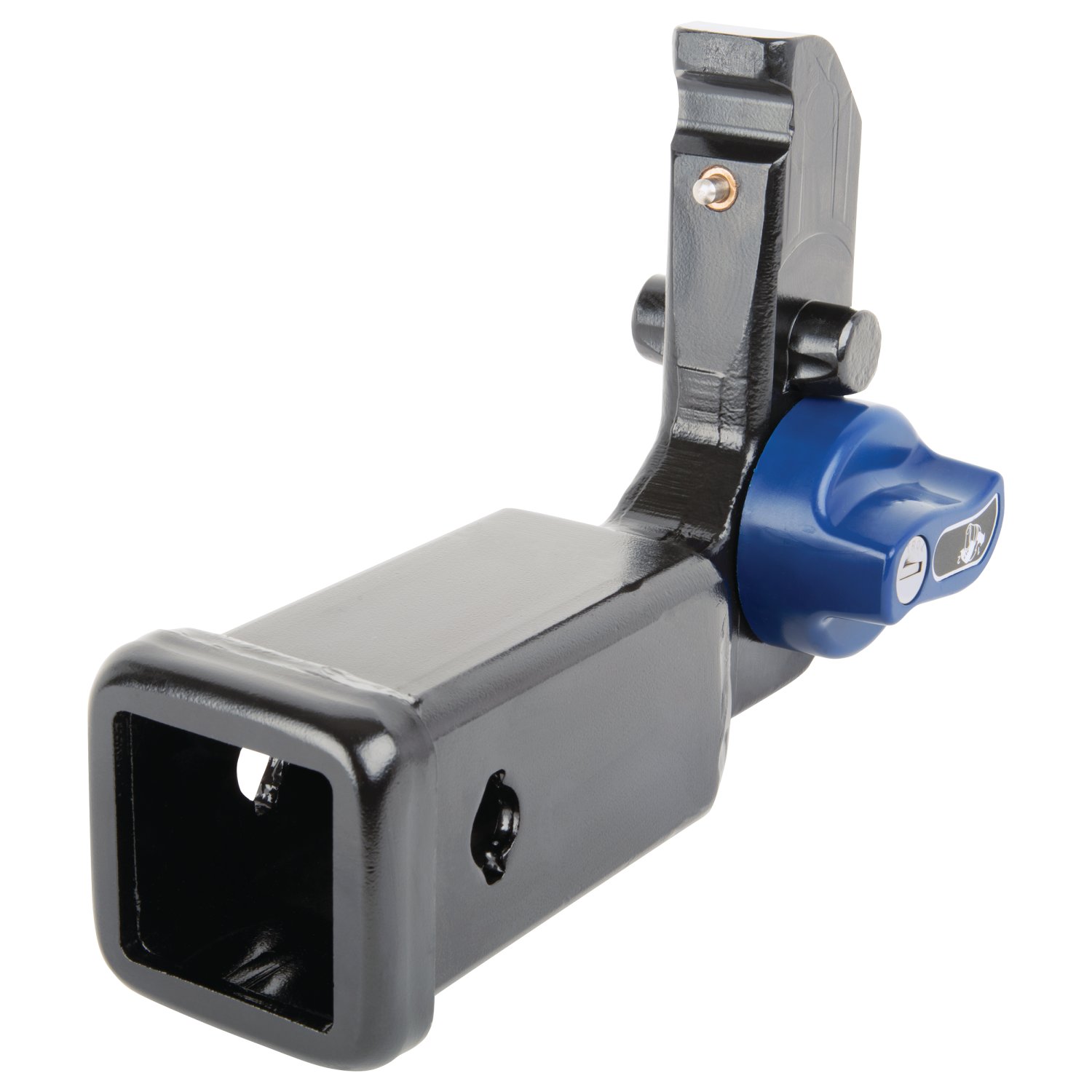

Use the key to unlock the blue knob on the receiver housing. Push in the blue knob and rotate it clockwise until you hear a click sound. At that point, you can separate the receiver from the receiver housing. Install the weather covers to the top and bottom of the receiver housing before attaching it to the hitch.
Apply 1 label to the top of the receiver and 1 label to the vehicle door jamb. Keep the warning card in the vehicle glove compartment for future reference.
The maximum tongue weight is 350 lb (159 kg). Do not exceed this limit or the towing vehicle manufacturer's rating, whichever is lower.
Load the trailer heavier in front. This helps maintain stability and control while towing.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. Slow down gradually and safely.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual emphasizes periodic checking to maintain secure mounting during towing.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes.
A hitch or ball which has been damaged should be removed and replaced. Do not attempt to repair a damaged hitch.
No. Do not cut, weld, or modify the receiver. Doing so may compromise the structural integrity and safety of the hitch. Do not cut access or attachment holes with a torch.
Always wear safety glasses when installing the hitch. Additionally, observe safety precautions when working beneath a vehicle and wear eye protection.
The 76928 comes with a Limited Lifetime Warranty covering material defects in materials and workmanship, excluding ordinary wear and tear. The warranty is valid only if products are installed, maintained, and used according to instructions. To make a warranty claim, contact Horizon Global at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, or call 1-800-632-3290. Product replacement is the sole remedy under this warranty.
The 76928 receiver accepts ball mounts with a maximum length of 10.5" (distance from center of ball hole to center of pin hole) and a minimum rise of 0.75" (distance from top of shank to top of ball platform). Ball mounts are sold separately.
Two quick link options are available, sold separately: #49131 (5/16") with max GTW 3,500 lb, and #44133 (3/8") with max GTW 3,500 lb.
Yes, the 76928 is designed for 2021-current Toyota Sienna models. For specific trim level compatibility, visit www.horizonglobal.com or call 800-632-3290.
Maximum gross trailer weight is 3,500 lb (1,589 kg) and maximum tongue weight is 350 lb (159 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
No drilling is required. Installation uses existing frame holes. However, you must trim a metal tab with tin snips and cut a notch in the fascia (8.75" × 4.25") with a utility knife.
Required tools: ratchet, torque wrench, sockets (10mm, 14mm, 17mm, 11/16"), 6" socket extension, screwdrivers (Phillips and flat head), tape measure, utility knife, marker, plastic trim tools, blue thread locker, tin snips, pliers, and safety glasses.
M10-1.25 fasteners: 42 lb-ft (57 N·m); 7/16-14 fasteners: 50 lb-ft (68 N·m); M12 fasteners: 68 lb-ft (92 N·m); receiver housing: 92 lb-ft (125 N·m). Apply blue thread locker to all fasteners.
Yes. Both the bumper beam and fascia must be removed. The bumper beam fasteners are reused; the fascia is reinstalled after hitch installation using original hardware.
Maximum tongue weight is 350 lb (159 kg). Do not exceed this or your vehicle manufacturer's rating, whichever is lower.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. Proper torque is needed to keep the hitch secure during towing.
Ensure all fasteners were torqued to the correct specifications: M10-1.25 to 42 lb-ft (57 N·m), 7/16-14 to 50 lb-ft (68 N·m), and M12 to 68 lb-ft (92 N·m). Blue thread locker must be applied to all fasteners before installation. Check fasteners frequently and retorque if necessary. If fasteners continue to loosen, contact Horizon Global at 800-632-3290.
Ensure the receiver housing fasteners are torqued to 92 lb-ft (125 N·m). The blue knob should lock securely when rotated clockwise until you hear a click. If the housing continues to move, verify that both fasteners are properly tightened and that blue thread locker was applied. Contact Horizon Global at 800-632-3290 if the problem persists.
Verify that the notch cut in the fascia is the correct size: approximately 8.75" wide by 4.25" tall. Ensure the area was clear of electrical wiring before cutting. Check that all original hardware removed in Step 2 was reinstalled and that all wiring harnesses are properly reconnected. If the fascia still does not fit, contact a professional installer or Horizon Global at 800-632-3290.
Verify that no wires were cut or trimmed during the modification process. The manual explicitly states: DO NOT TRIM OR CUT ANY WIRES. Ensure the sensor is properly reconnected with 1 screw and 1 push rivet after modification. If the sensor still does not function, contact Horizon Global at 800-632-3290 or a professional installer.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. If the hitch remains installed, ensure all fasteners are properly tightened and that the hitch is securely mounted. If water continues to enter, contact a professional installer or Horizon Global at 800-632-3290.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
