Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 350 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76927 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 45.15 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 525 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.

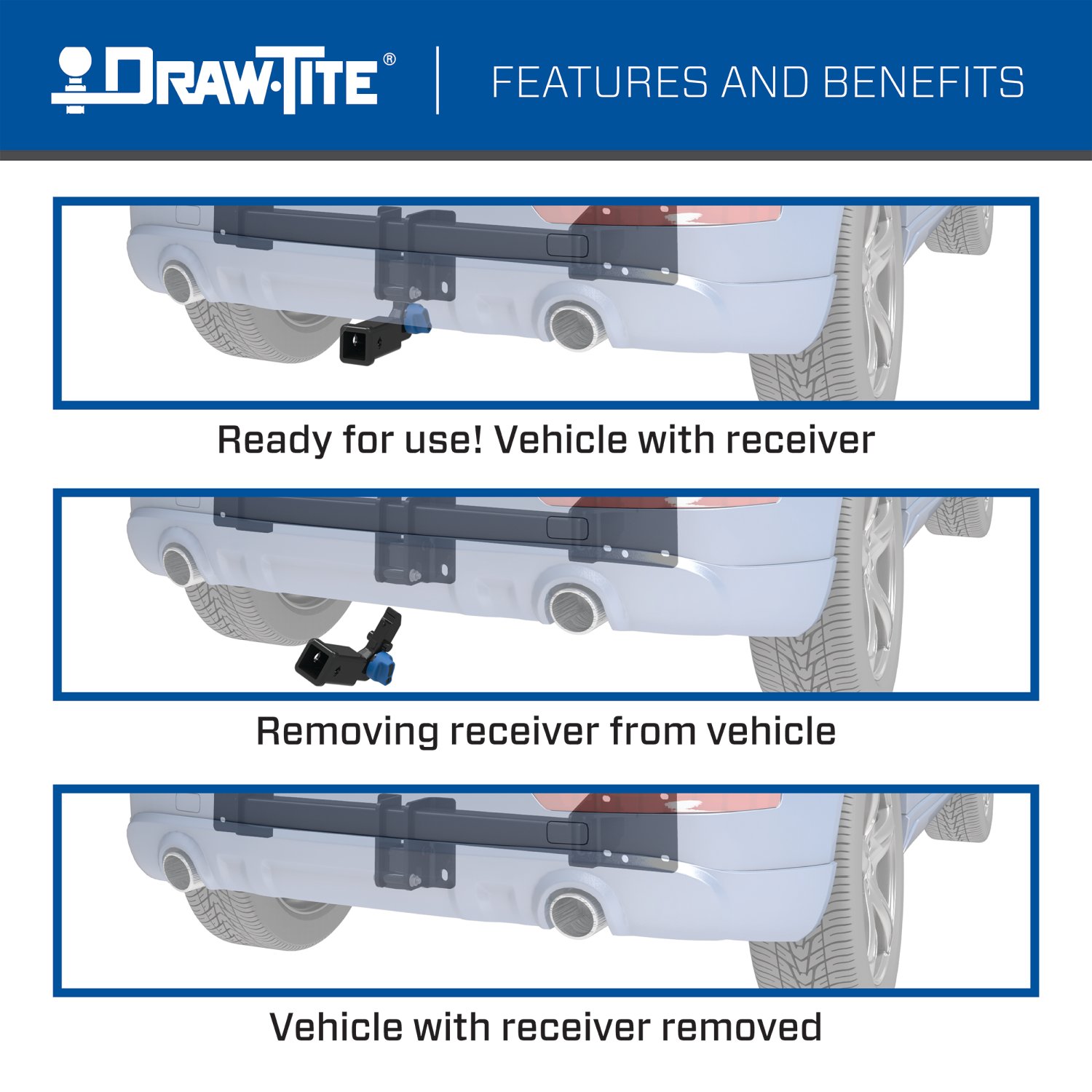

The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2026 | Subaru Forester | Class 3 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 90 minutes |
The Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Subaru Forester 76927 (Part #DT76927) fits the following vehicles: 2019-2026 Subaru Forester. Always verify your specific year, make, and model before ordering.
Yes, the Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Subaru Forester 76927 (Part #DT76927) is designed to fit the 2019-2026 Subaru Forester.
The Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Subaru Forester 76927 (Part #DT76927) fits 2019-2026 Subaru Forester models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Subaru Forester 76927 (Part #DT76927) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part number 76927 is designed for Subaru Forester models. However, the manual does not specify which model years are compatible. Visit www.horizonglobal.com and search for part 76927 to verify compatibility with your specific year and trim level, or contact technical support at 800-632-3290.
The 76927 is a weight-carrying hitch with a maximum gross trailer weight of 3,500 lb (1,589 kg) and a maximum tongue weight of 350 lb (159 kg). Do not exceed the lower of your towing vehicle manufacturer's rating or these limits.
Required tools include: ratchet, torque wrench, sockets (10mm, 14mm, 17mm, 11/16"), 6" socket extension, Phillips screwdriver, flat head screwdriver, plastic rivet gun, tape measure, utility knife, marker, plastic trim tools, silicone sealant, blue thread locker, and exhaust removal pliers. Silicone sealant and blue thread locker are not included and must be purchased separately.
Yes. Step 4 of the installation requires removing the bumper beam using a 14mm socket with extension to remove (2) M10 flange hex nuts and (4) M10 hex bolts. If equipped, disconnect the blind spot monitor wire from the top of the bumper beam. Return the factory hex bolts and bumper beam to the vehicle owner.
Yes. Step 1 requires opening the tailgate and removing the plastic cover near the taillight using a Phillips head screwdriver to remove (2) push-pin rivets. Then use a 10mm socket to remove (2) screws from the taillight and gently pull the taillight rearward. Disconnect the wiring and set the taillight aside. This must be done on both sides.
Yes. Step 3 requires lowering the exhaust using exhaust removal pliers to remove (2) hangers from the exhaust. Make sure the exhaust is properly supported prior to lowering. You will also need to remove the rearmost rubber plug from the frame rail (1 per side) using a flat head screwdriver.
Yes. Step 8 requires trimming the fascia. Locate the center of the fascia and use a tape measure, marker, and utility knife to cut a notch in the bottom of the fascia approximately 8.75" wide by 4.25" tall. Before trimming, ensure the area is clear of all electrical wiring. The manual states that factory rivets cannot be reused; four (4) replacement rivets are supplied (2 required, 2 spare).
All M10-1.25 CL8.8 fasteners must be tightened with a torque wrench to 42 lb-ft (57 N*m).
All 7/16-14 fasteners must be tightened with a torque wrench to 50 lb-ft (68 N*m).
The (2) M12 fastener assemblies that attach the receiver housing to the hitch must be torqued to 92 lb-ft (125 N*m).
Yes. Step 6 states: "Apply blue thread locker to all fasteners." Blue thread locker is not included and must be purchased separately.
Yes. Step 5 requires applying silicone sealant to both hitch bracket mounting surfaces. Silicone sealant is not included and must be purchased separately.
The fastener kit 76927F includes: (2) 7/16-14 x 1.50" Grade 5 carriage bolts, (2) 0.106" x 0.88" x 2" spacers, (2) 7/16" flat washers, (2) 7/16" lock washers, (2) 7/16-14 hex nuts, (2) 7/16-14 wire pulls, (4) M10x1.25x35 CL8.8 hex bolts, (6) 3/8" conical washers, (2) M10-1.25 hex nuts, and (4) plastic rivets (2 required, 2 spare). Additionally, (2) M12x1.75x100mm CL10.9 bolts, (2) 7/16" flat washers, and (2) M12x1.75 CL10 prevailing torque nuts are included for receiver housing installation.
The factory rivets cannot be reused. Four (4) replacement plastic rivets are supplied with the kit: (2) are required for reinstallation, and (2) are spare. Use the original push-pin rivets removed in step 2 to reinstall the fascia, then use a plastic rivet gun to install (1) new rivet at the rear wheel well location.
The installation sequence is: (1) Remove taillights, (2) Remove fascia, (3) Lower exhaust and remove frame plug, (4) Remove bumper beam, (5) Apply silicone sealant to hitch bracket mounting surfaces, (6) Install hitch with blue thread locker on all fasteners, (7) Tighten all fasteners to specified torque values, (8) Trim fascia with a notch approximately 8.75" wide by 4.25" tall, (9) Reinstall fascia, exhaust, and taillights with all wiring reconnected.

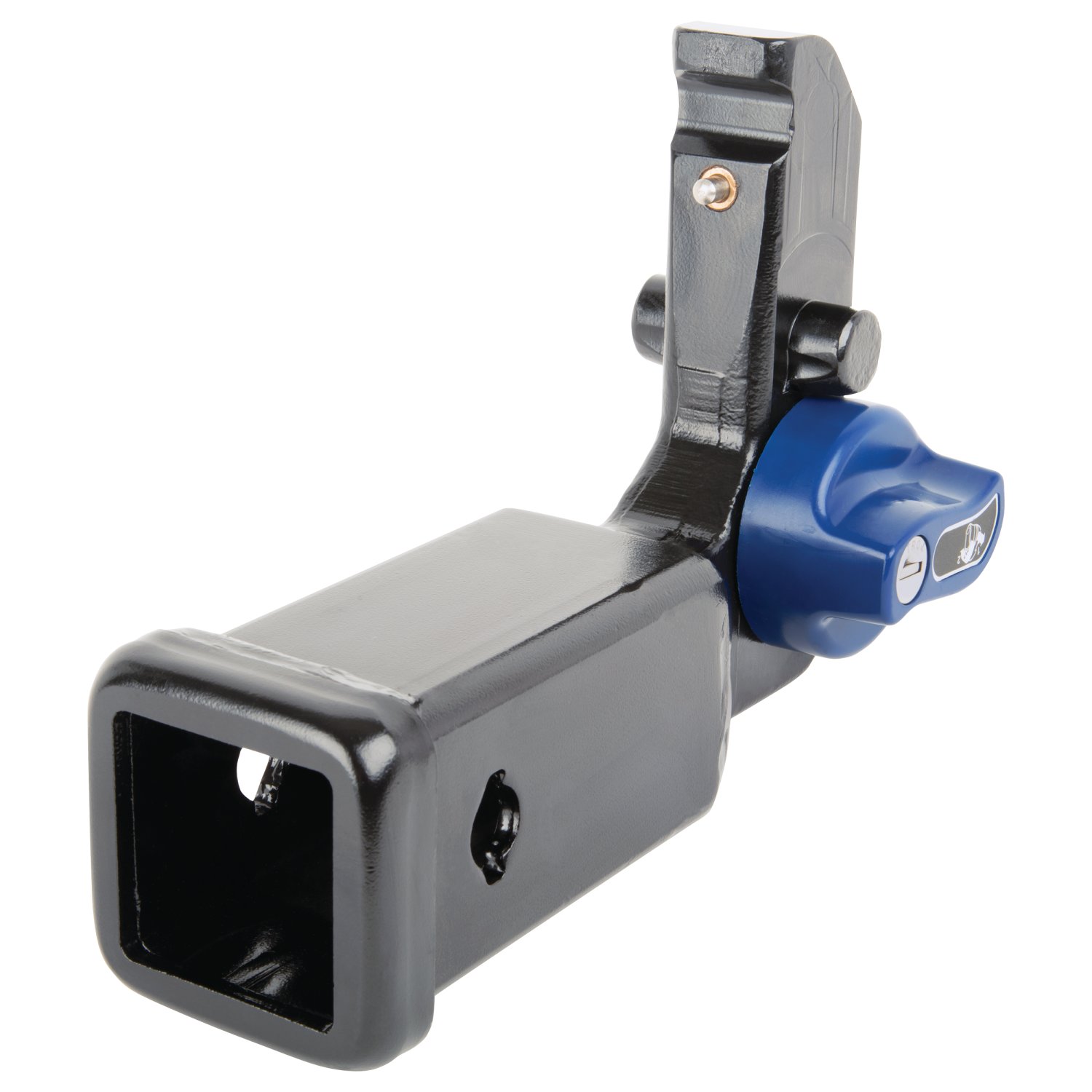

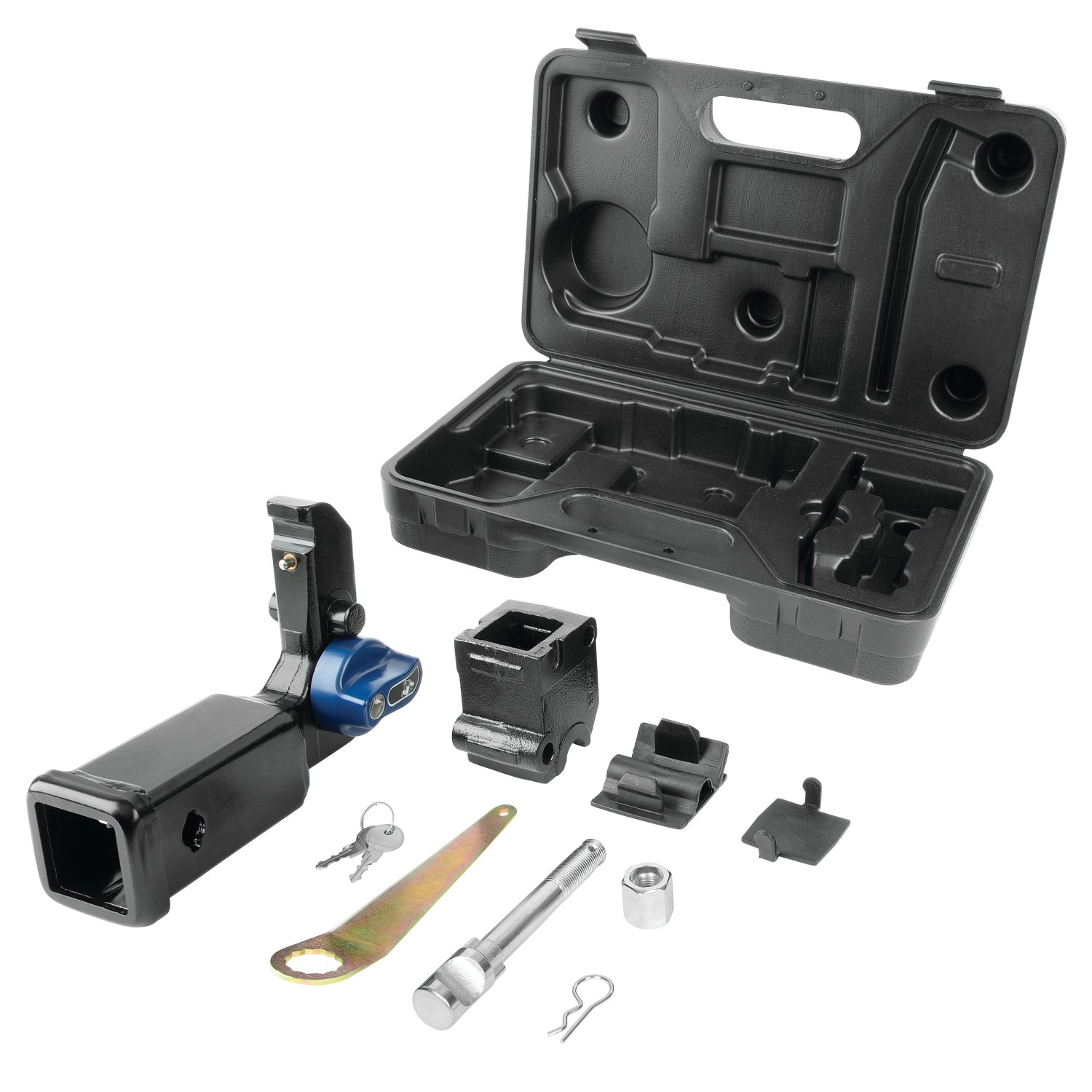

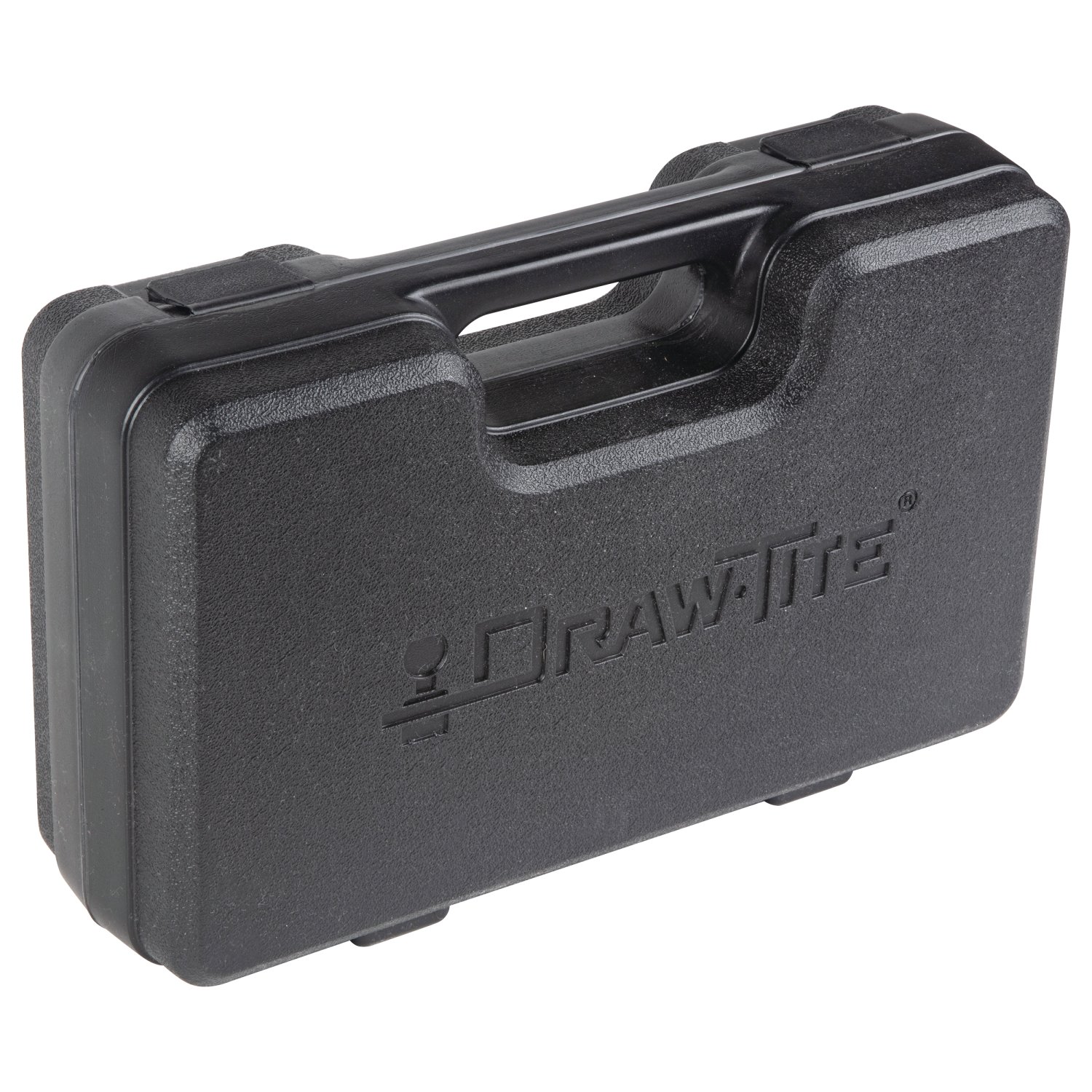

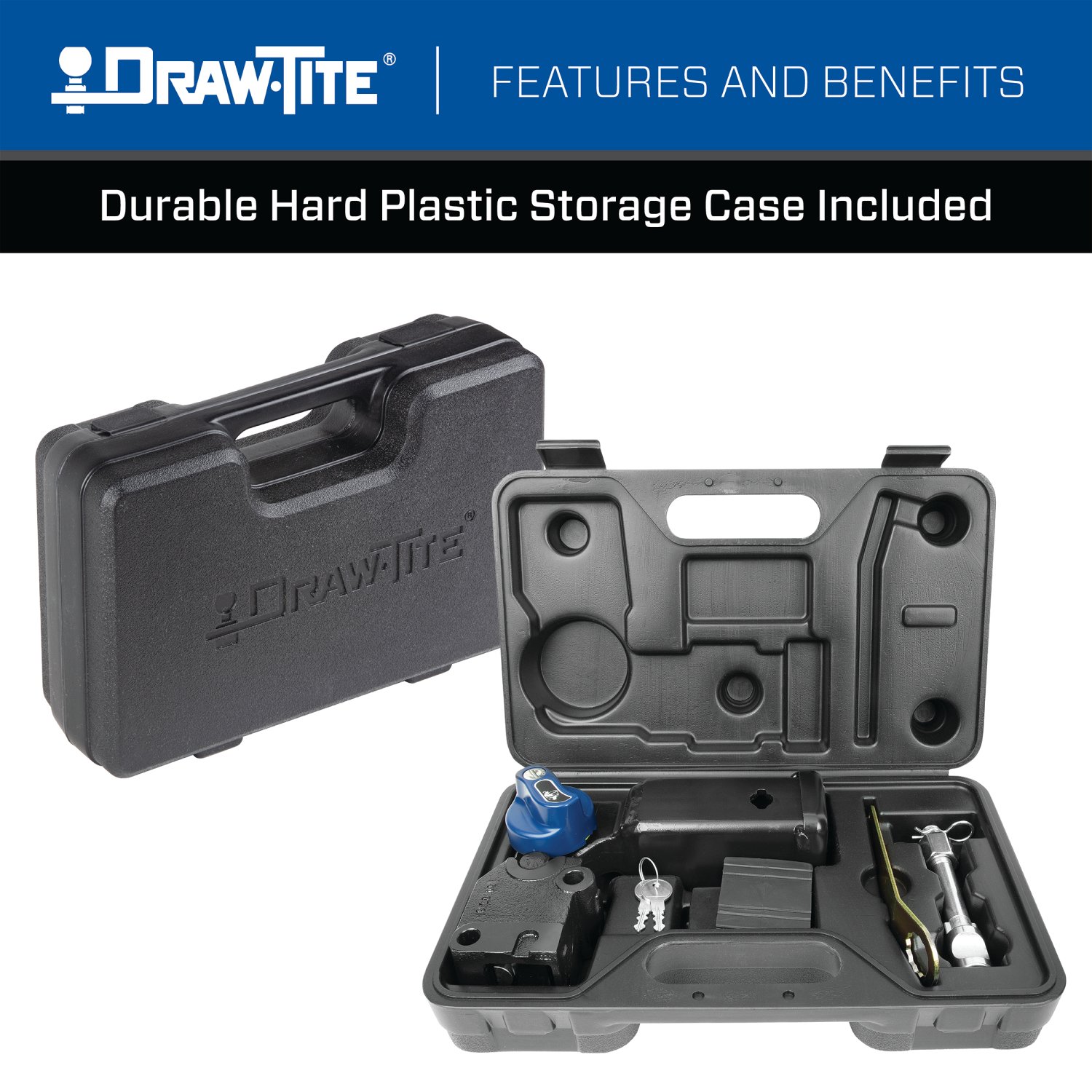

First, remove the receiver assembly from the case. Remove the receiver from the receiver housing by using the key to unlock the blue knob, pushing it in, and rotating clockwise until you hear a click. Install the weather covers to the top and bottom of the receiver housing. Attach the receiver housing to the hitch by inserting it between the hitch brackets, aligning with holes, and inserting (2) fastener assemblies (M12 bolt, flat washer, and prevailing torque nut). Torque each fastener to 92 lb-ft (125 N*m). Apply (1) label to the top of the receiver and (1) label to the vehicle door jamb. Keep the included card in the vehicle glove compartment.
Always wear safety glasses when installing the hitch. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch. Make sure the exhaust is properly supported before lowering it. Before trimming the fascia, ensure the area is clear of all electrical wiring.
Load the trailer heavier in front. Do not exceed the lower of your towing vehicle manufacturer's rating or the hitch rating (3,500 lb maximum gross trailer weight, 350 lb maximum tongue weight). Always wear your seatbelt. Slow down when towing and never exceed posted speed limits. If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball that has been damaged should be removed and replaced.
Check the hitch frequently to ensure all fasteners and the ball are properly tightened. The manual does not specify an exact interval but emphasizes periodic checking to maintain secure mounting during towing.
The 76927 is designed for Subaru Forester models. Verify your specific year and trim level at www.horizonglobal.com or call 800-632-3290.
Maximum gross trailer weight: 3,500 lb (1,589 kg). Maximum tongue weight: 350 lb (159 kg). Do not exceed the lower of your vehicle manufacturer's rating or these limits.
Torque wrench, socket set (10mm, 14mm, 17mm, 11/16"), ratchet, screwdrivers (Phillips and flat head), plastic trim tools, utility knife, tape measure, marker, plastic rivet gun, exhaust removal pliers. You must also purchase silicone sealant and blue thread locker separately.
Yes. Installation requires removing the bumper beam, taillights, fascia, and lowering the exhaust. These components must be reinstalled after hitch installation.
Yes. You must cut a notch in the fascia approximately 8.75" wide by 4.25" tall. Ensure the area is clear of electrical wiring before cutting.
M10-1.25 CL8.8 fasteners: 42 lb-ft (57 N*m). 7/16-14 fasteners: 50 lb-ft (68 N*m). Receiver housing M12 fasteners: 92 lb-ft (125 N*m).
Yes. Apply blue thread locker to all fasteners and silicone sealant to hitch bracket mounting surfaces. Both items are sold separately and not included.
Load trailer heavier in front. Do not exceed 3,500 lb gross trailer weight or 350 lb tongue weight. Always wear seatbelt. Slow down when towing. If excess sway occurs, ease off gas and hold steering wheel steady; do not brake or accelerate.
Check frequently that all fasteners and the ball are properly tightened. If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fume entry.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
