Draw-tite
Verify Fitment
Select your vehicle to confirm this part fits.
2018 - 2026 Honda Odyssey
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

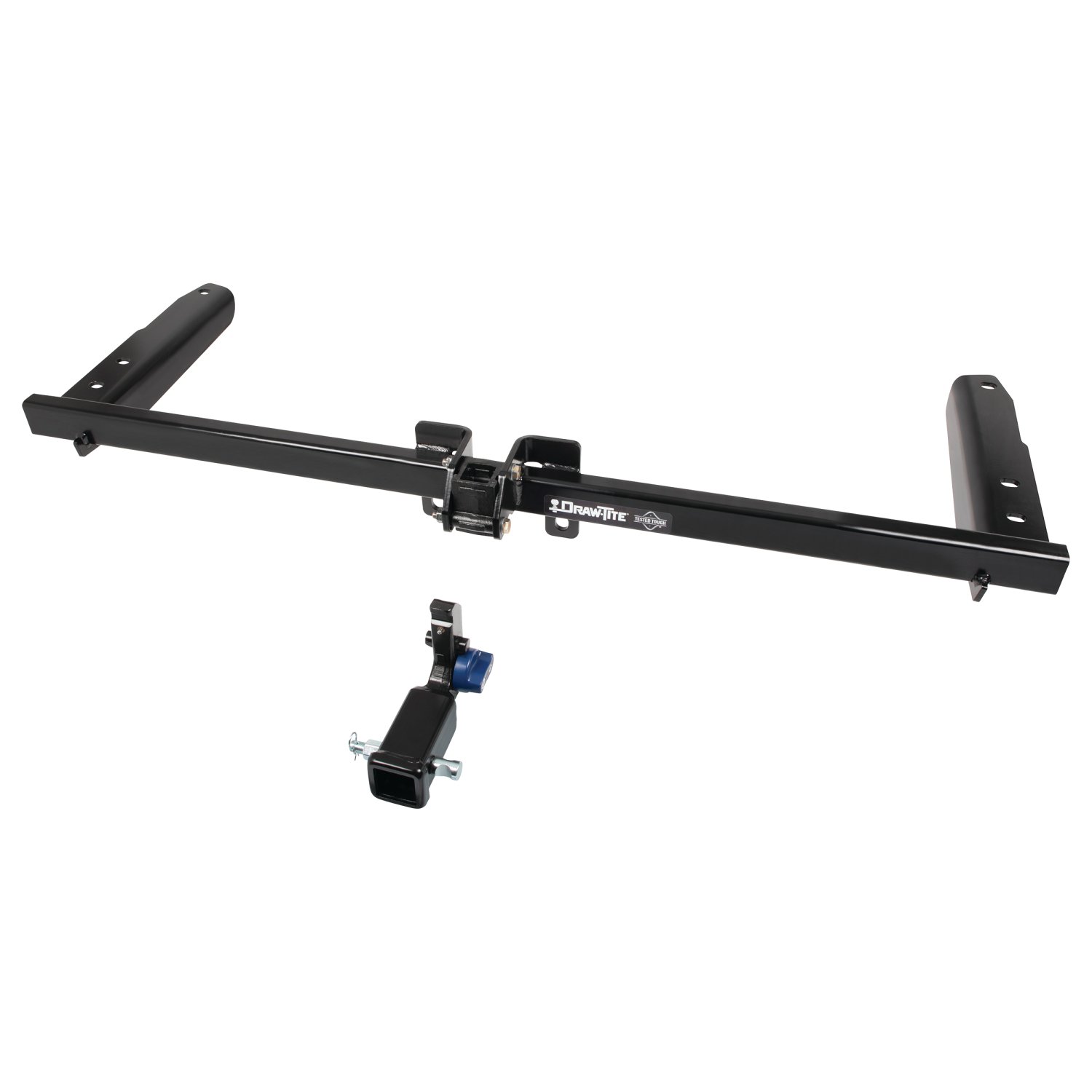

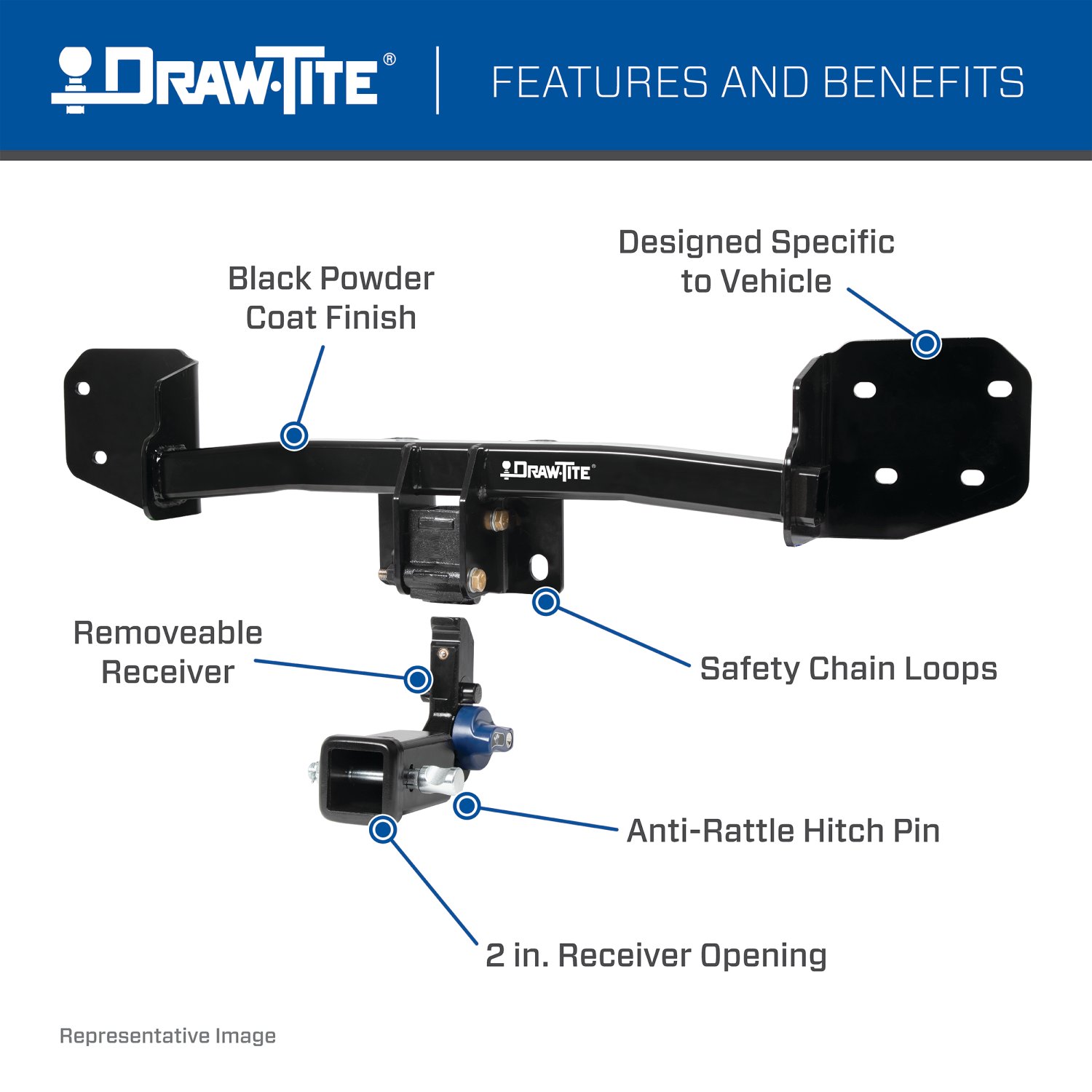

DRAW-TITE Class 3 trailer hitches are the perfect mix of style and stability for those times when youre working on a home project or heading out on an adventure. This DRAW-TITE Class 3 receiver hitch is rated for up to 3,500 lbs. gross trailer weight (GTW) and up to 350 lbs. tongue weight (TW). No weight distribution kits can be used on this specific trailer hitch. DRAW-TITE hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. The Class 3 trailer hitch has a 2 inch square receiver tube opening so you can easily attach accessories like a bike rack or cargo carrier, or a utility trailer. Includes all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. DRAW-TITE trailer hitches are tested to exceed V-5 and SAE J684 standards. DRAW-TITE: North Americas Favorite Hitch.
| BRAND: | DRAW-TITE |
| PART NUMBER: | 76915 |
| WARRANTY: | LIMITED LIFETIME WARRANTY |
| WEIGHT: | 62.32 LBS |
| GROSS TOWING WEIGHT: | 3,500 LBS. |
| GROSS TONGUE WEIGHT: | 350 LBS. |
| RECEIVER SIZE: | 2 IN. |
| HITCH CLASS: | III |
| DRILLING REQUIRED: | NO |
| MOUNTING HARDWARE INCLUDED: | YES |
| ATTACHMENT LOCATION: | REAR |
| HITCH VISIBILITY: | CONCEALED |
| CROSS-TUBE TYPE: | SQUARE TUBE |
| BALL MOUNT INCLUDED: | NO |
| COLOR: | BLACK |
| FINISH: | BLACK POWDER COAT OVER E-COAT |
| MATERIAL: | STEEL |
| MOUNTING LOCATION: | VEHICLE FRAME |
| MOUNTING TYPE: | BOLT-ON |
Draw-Tite has designed custom-fit trailer hitches since 1946 and is one of North America's most widely fitted hitch brands. Receiver hitches use solid all-welded construction and low-profile designs that follow modern vehicle contours, install with minimal bumper cutting or drilling, meet or exceed V5 CSA and SAE J684 standards, and carry a limited lifetime warranty.
Draw-Tite has been leading custom-fit trailer hitch design and engineering since its founding in 1946, and it remains one of the most widely fitted hitch brands in North America. The company's stated approach is straightforward: every hitch is tested rigorously so that it performs well beyond published industry standards, a philosophy it markets as Tested Tough. It sits within the Horizon Global towing group alongside Reese, Fulton, Bulldog, Tekonsha, Bargman and Wesbar.
Custom fit is the defining characteristic. Rather than adapting a universal design, Draw-Tite engineers a trailer hitch for a specific make, model and model year, so it bolts to existing frame locations with minimal bumper cutting or drilling. Low-profile designs follow the rear contours and aerodynamic styling of modern vehicles, which matters more than it once did now that rear fascias are shaped and sensor-equipped. Construction is solid all-welded steel for maximum strength, and every hitch meets or exceeds V5 CSA and SAE J684 standards and is backed by a nationwide limited lifetime warranty.
The range spans receiver sizes and classes to suit different loads, from 1-1/4 inch receivers for bike racks, cargo carriers and light trailers up through 2 inch receivers for heavier towing. Front mount hitches add a receiver at the front of the vehicle for winch mounts, snow plows, spare carriers and precise trailer positioning.

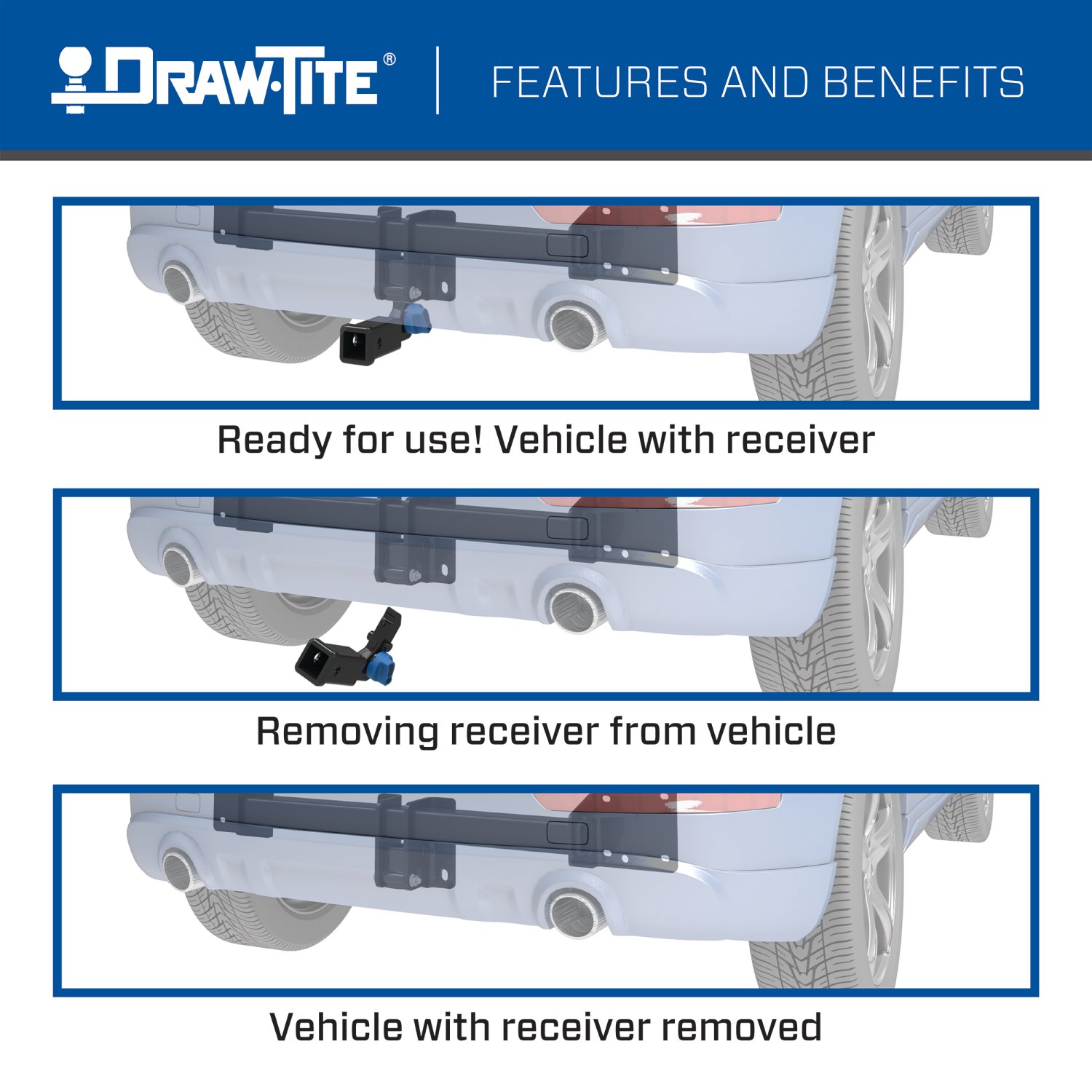

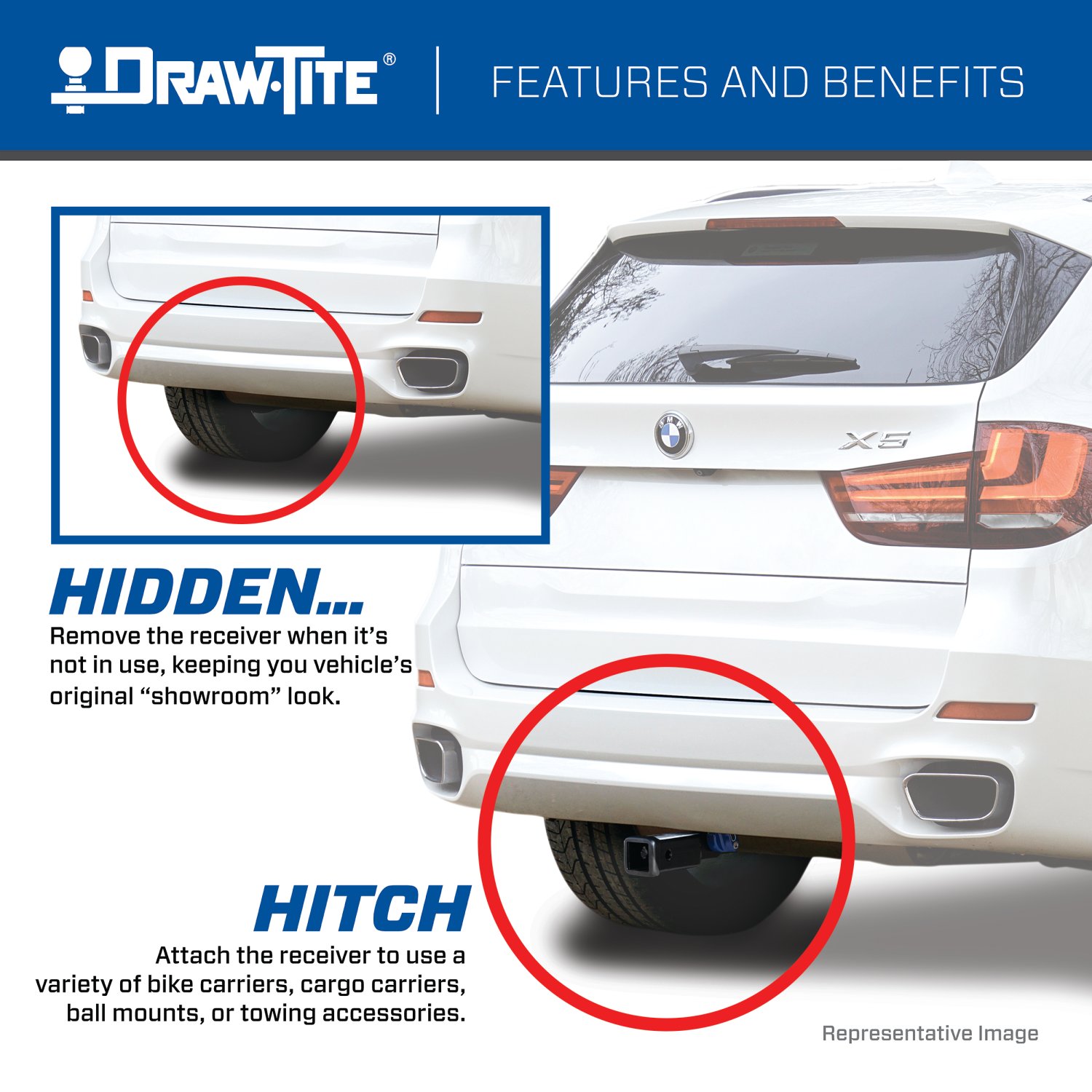

The Hidden Hitch series takes concealment further by mounting behind the vehicle's rear fascia, so the vehicle keeps its factory appearance until a removable receiver is fitted. Each is custom designed per make and model for a no-drill installation that does not compromise ground clearance, rated for up to 3,500 pounds gross trailer weight and 350 pounds tongue weight. Matching plug-and-play wiring completes the towing system.
Experts available to answer your questions
Call 888-634-9494Lifetime
Equip your vehicle for towing and hitch-mounted accessories with a dependable CURT 2" trailer hitch. Designed for a vehicle-specific fit, CURT receiver hitches provide a strong and secure connection point for towing trailers, carrying bikes, transporting cargo and using other compatible 2-inch hitch accessories.
Our selection of CURT 2-inch receiver hitches includes options for trucks, SUVs, crossovers, vans and passenger vehicles. Each hitch is engineered to match specific vehicle mounting points, helping provide a clean installation and dependable performance. Depending on the vehicle application, available options may include Class 3, Class 4 and heavy-duty receiver hitches with different gross trailer weight and tongue weight capacities.
A 2" x 2" receiver opening is one of the most common hitch sizes and works with a wide range of towing accessories, including ball mounts, bike racks, cargo carriers, hitch steps and tow hooks. When towing a trailer, you may also need a properly rated trailer ball, hitch pin, wiring harness, brake controller or weight distribution system.
CURT trailer hitches feature a durable black finish designed to help protect against rust, scratches and exposure to road conditions. Many models install using existing holes in the vehicle frame, although drilling, trimming or temporary removal of vehicle components may be required for certain applications.
Use our vehicle fitment tools to find the correct CURT 2" trailer hitch for your year, make and model. Always compare the hitch rating with your vehicle’s towing capacity and the ratings of every component in your towing setup. The maximum towing capacity is determined by the lowest-rated component.
Shop CURT 2-inch trailer hitches at TowUniverse for vehicle-specific fitment, trusted towing performance and access to the accessories needed to complete your towing setup.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2026 | Honda Odyssey | Class 3 Trailer Hitch: 3500 lbs 350/3,500 lbs. Weight Carrying (tongue weight/gross trailer weight) Uses all existing holes. No Drilling required Install Time is 100 minutes |
The Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Honda Odyssey 76915 (Part #DT76915) fits the following vehicles: 2018-2026 Honda Odyssey. Always verify your specific year, make, and model before ordering.
The Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Honda Odyssey 76915 (Part #DT76915) fits 2018-2026 Honda Odyssey models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Honda Odyssey 76915 (Part #DT76915) is designed to fit the 2018-2026 Honda Odyssey.
The Draw-tite Hidden Hitch® Completely Hidden Trailer Hitch 2" Removable Receiver, Black for Select Honda Odyssey 76915 (Part #DT76915) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part 76915 is designed for 2018-current Honda Odyssey models. For the most up-to-date information regarding specific application years and trim levels, visit www.horizonglobal.com or contact technical assistance at 800-632-3290.
Required tools include: ratchet, torque wrench, safety glasses, 10 mm and 19 mm sockets, 6 inch socket extension, panel removal tool, plastic trim tools, Phillips screwdriver, tape, utility knife, 3/16 inch or 5 mm hex bits, exhaust removal pliers, and a die grinder. Safety glasses are mandatory.
All M12 fasteners must be tightened to 76 Lb-Ft (103 N·M) using a torque wrench. The receiver housing fasteners are tightened separately to 92 Lb-Ft (125 N·M).
Maximum Gross Trailer Weight (GVWR) is 3,500 lb (1,589 kg) and maximum tongue weight is 350 lb (159 kg). Do not exceed the lower of the towing vehicle manufacturer's rating or these limits.
No drilling is required. The hitch uses existing studs on the vehicle frame. However, studs may need to be bent or ground down to ensure proper fitment, and the bumper fascia and appearance panel require trimming with a utility knife.
Maximum tongue weight is 350 lb (159 kg). Do not exceed this limit or the towing vehicle manufacturer's rating, whichever is lower.

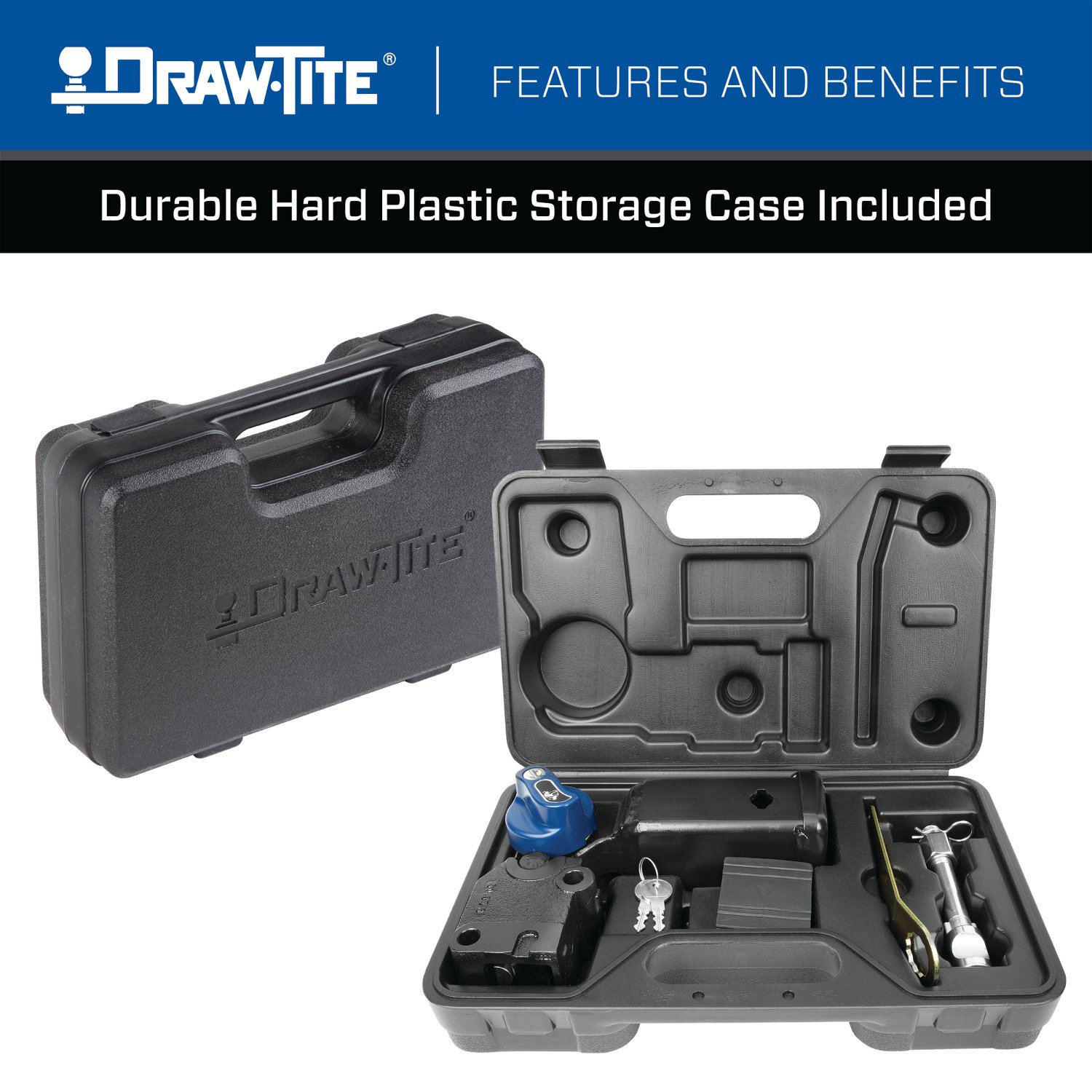

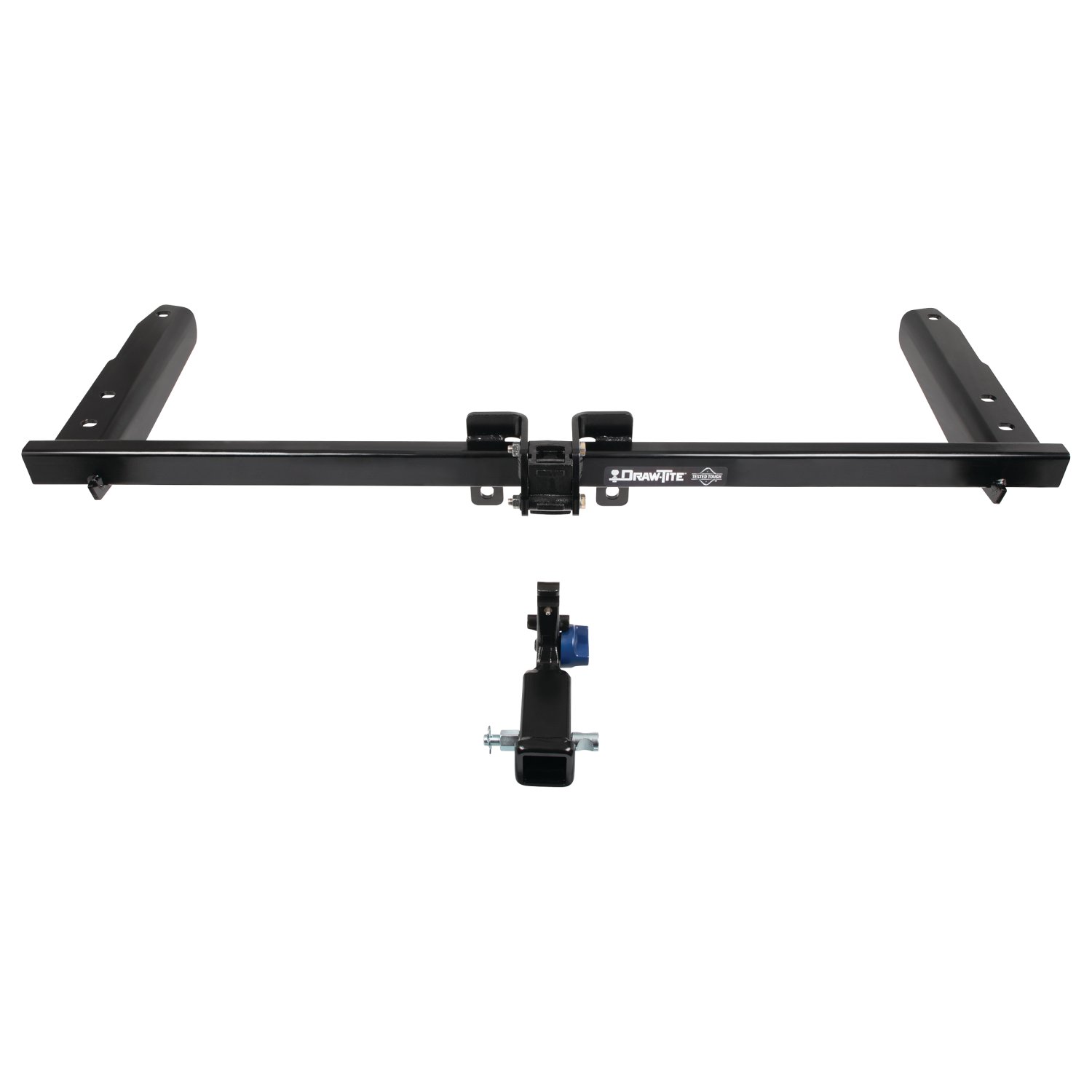

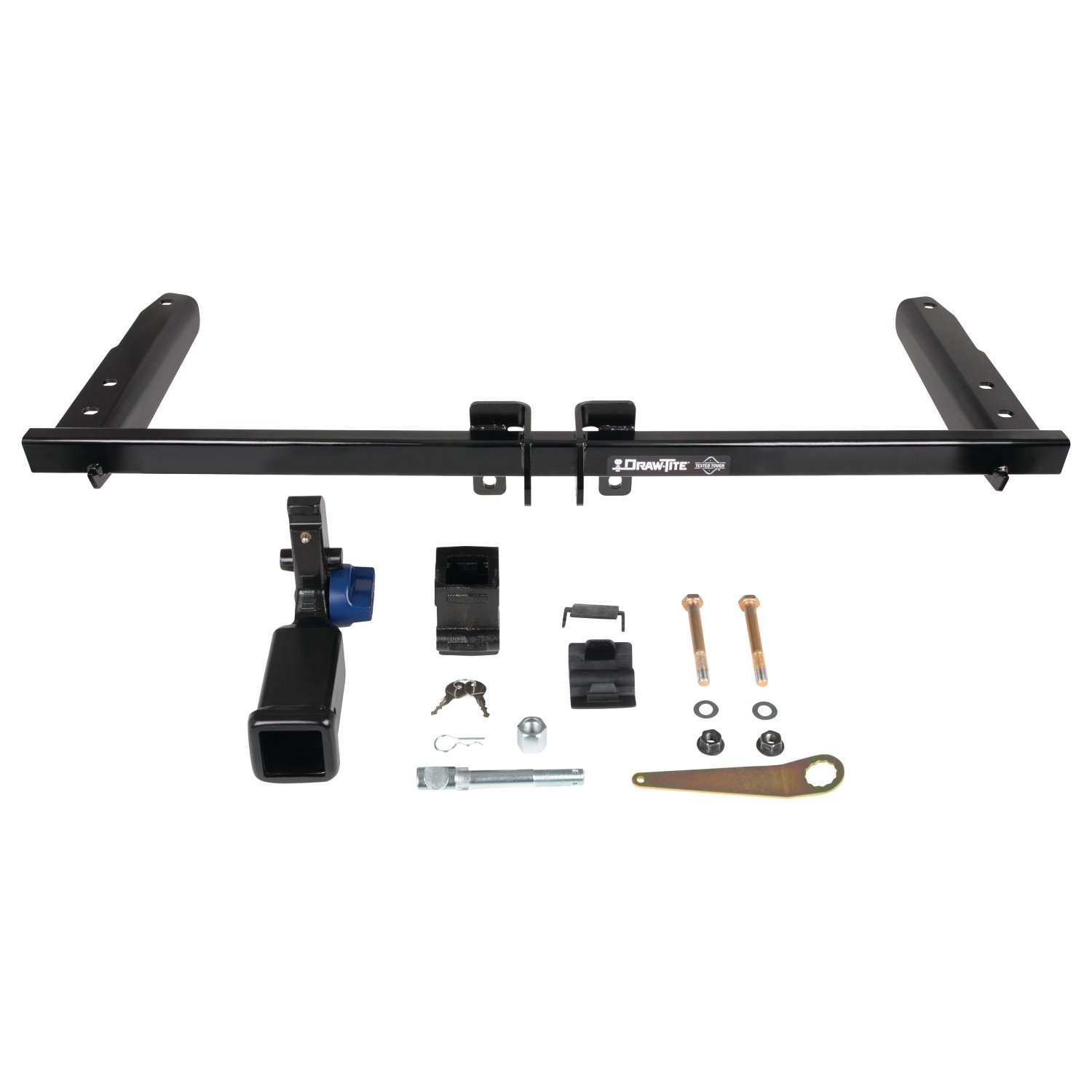

The package includes the hitch receiver assembly (part 76900), receiver housing with top and bottom weather covers, fastener kit 76915F (containing 2 M12×1.75×100mm bolts, 2 flat washers 7/16 inch, 2 prevailing torque nuts M12×1.75, 6 M12×1.25×35 bolts, and 6 conical tooth washers 1/2 inch), fastener kit 76915F2 (containing 1 warning card and 2 warning labels), and installation instructions. The receiver assembly itself (part 76900) requires separate instructions; refer to part 76900N for receiver installation and use.
Yes, hitch 76915 fits 2018-current Honda Odyssey models including those with hands-free liftgate. Models with hands-free liftgate have 6 plastic rivets on the bumper fascia instead of 2, which must be removed during installation. For specific trim level compatibility, visit www.horizonglobal.com or contact technical assistance at 800-632-3290.
The exhaust pipe must be lowered temporarily during installation. Use exhaust removal pliers to lower the exhaust pipe, and use a support or bungee cord to keep the muffler from getting damaged. The hitch is then carefully slid over the passenger side exhaust pipe first. The exhaust is reinstalled after the hitch is secured.
You must remove: (1) the bottom appearance panel on the driver side (4 rivets and 2 screws using Phillips screwdriver, panel removal tool, and 10 mm socket); (2) mud flaps on each side if present (3 Phillips head screws each); (3) bumper fascia (2 plastic rivets from bottom center, or 6 for hands-free liftgate models; 3 screws from wheel well liner each side; 2 flat head screws each side from inside trunk using 3/16 inch or 5 mm hex bits; disconnect wiring if present); and (4) temporarily lower the exhaust pipe. All removed components must be reinstalled after hitch installation.
1. Remove bottom appearance panel and mud flaps. 2. Remove bumper fascia. 3. Lower exhaust pipe temporarily. 4. Raise hitch into position and slide it over passenger side exhaust pipe first; loosely install M12 bolts and conical washers. 5. Tighten all M12 fasteners to 76 Lb-Ft (103 N·M) with torque wrench. 6. Trim bumper fascia (6.5 inches tall by 10 inches wide, center location, with rounded corners) and bottom appearance panel. 7. Reinstall all fasteners, wiring, fascia, exhaust, appearance panel, and mud flaps. Install receiver housing to hitch using 2 M12 bolts, flat washers, and prevailing torque nuts, tightened to 92 Lb-Ft (125 N·M). Install weather covers and apply warning labels.
Locate the center of the bottom bumper fascia and trim a 6.5 inches tall by 10 inches wide area. Round the cut-out corners to retain the holes in the bumper fascia. The bottom appearance panel must also be trimmed as shown in the installation manual Figure 3.
Studs may need to be bent or ground down to ensure proper fitment of the hitch. This is shown in Figure 4 of the installation manual. Use a die grinder if grinding is necessary. This modification may be required but is not always necessary; check fitment after loosely installing the hitch.
Fastener Kit 76915F contains: (2) M12×1.75×100mm bolts, Class 10.9; (2) flat washers 7/16 inch (part 01160007); (2) prevailing torque nuts M12×1.75, Class 10; (6) M12×1.25×35 bolts, Class 8.8; and (6) conical tooth washers 1/2 inch (part 01292008). The conical washer teeth side must face against the hitch. All M12 fasteners are tightened to 76 Lb-Ft (103 N·M). Receiver housing fasteners are tightened to 92 Lb-Ft (125 N·M).

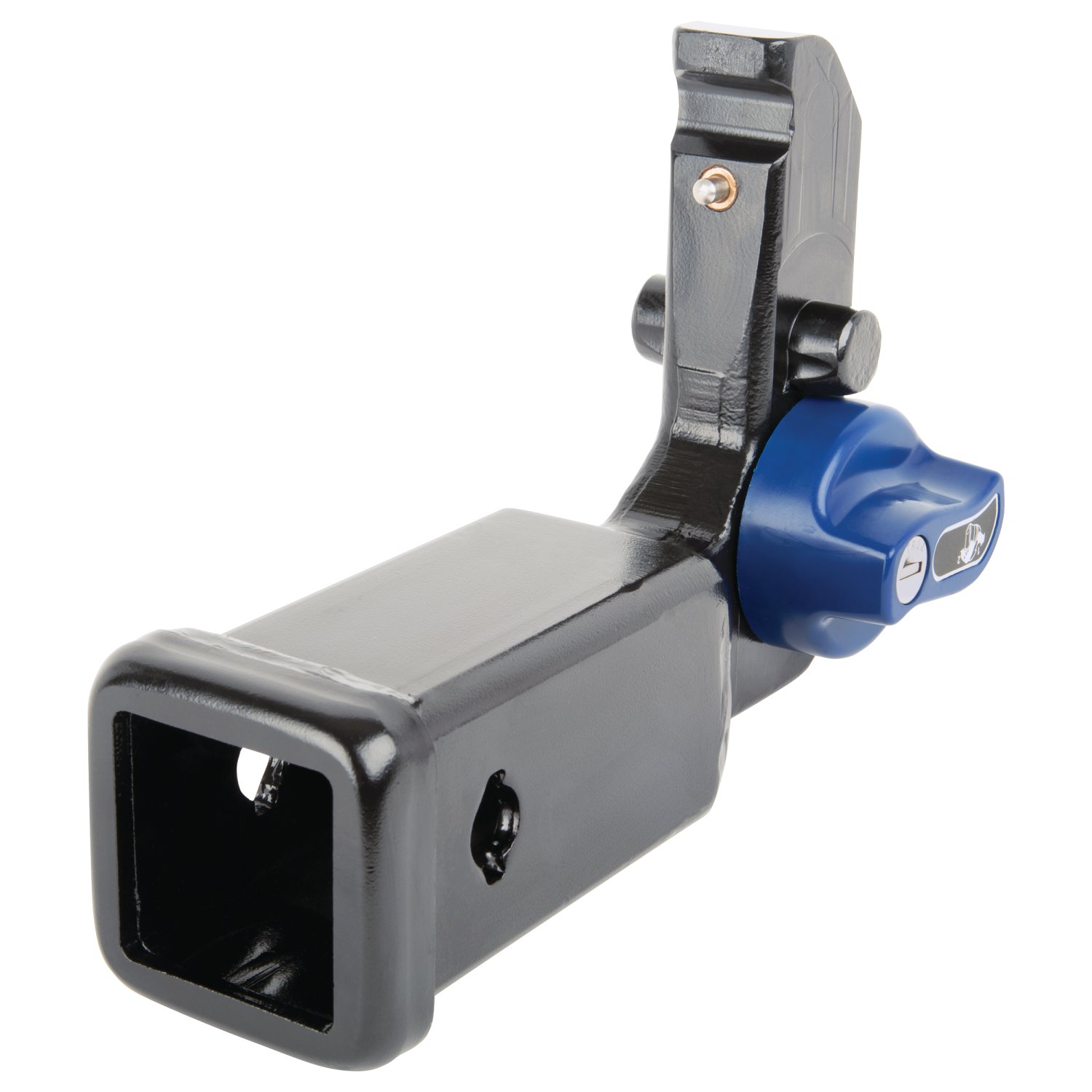

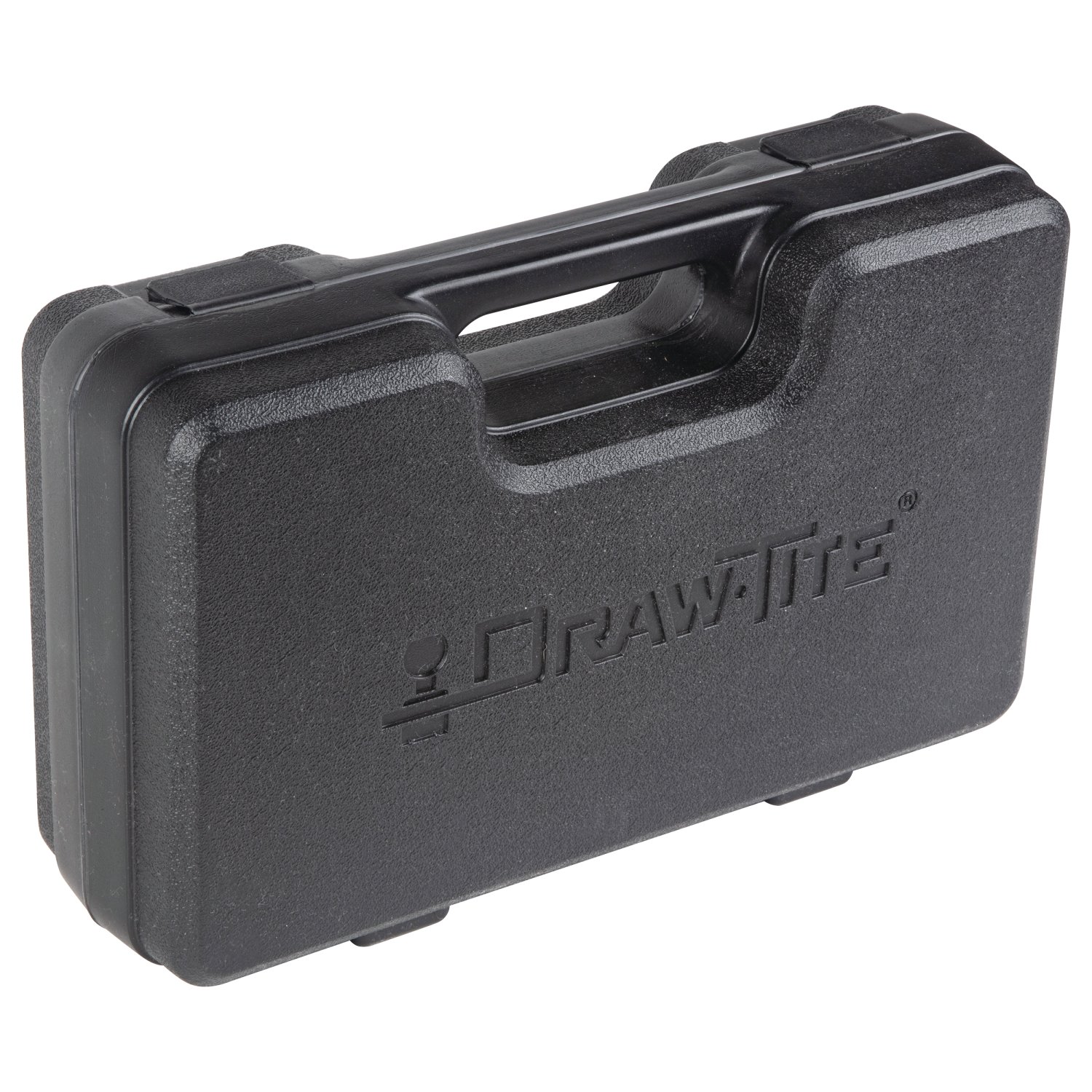

1. Remove the receiver assembly (part 76900) from its case. 2. Unlock the blue knob on the receiver housing using the key, push in the knob, and rotate clockwise until you hear a click; remove the receiver. 3. Install the top and bottom weather covers onto the receiver housing. 4. Attach the receiver housing to the hitch using 2 fastener assemblies: each consisting of 1 M12 bolt, 1 flat washer, and 1 prevailing torque nut. Tighten to 92 Lb-Ft (125 N·M). 5. Keep the warning card in the glove compartment and apply the 2 warning labels to the top of the receiver and door jamb.
After installation, verify that all fasteners are tight and the hitch is securely mounted to the vehicle. Check the hitch frequently during use to ensure all fasteners and ball remain properly tightened. Proper torque is essential to keep the hitch secure during towing. If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fume entry.
Check the hitch frequently, making sure all fasteners and the ball are properly tightened. The manual emphasizes periodic checking to ensure the hitch remains securely mounted to the vehicle, as proper torque is needed to keep the hitch secure during towing.
Always wear your seatbelt. Slow down when towing and never exceed any posted speed limit. Load the trailer heavier in front. Do not exceed the lower of the towing vehicle manufacturer's rating or the hitch rating (3,500 lb GVWR, 350 lb tongue weight). If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply brakes and do not speed up. Always read and follow all warnings and instructions for your vehicle and other accessories used with the hitch before use.
Hitch 76915 is covered by a Limited Lifetime Warranty from Horizon Global. The warranty covers material defects in materials and workmanship, excluding ordinary wear and tear, and is valid only if the product is installed, maintained, and used in accordance with the instructions. The warranty is void if defects are caused by misuse, neglect, improper installation, unsuitable storage, improper repair, alteration, or accident. Product replacement is the sole remedy. To make a warranty claim, contact Horizon Global at 47912 Halyard Drive, Suite 100, Plymouth, MI 48170, or call 1-800-632-3290. Retain your purchase receipt to verify you are the original consumer purchaser.
No. Do not cut, weld, or modify the receiver. Modifications will void the warranty and may compromise the structural integrity and safety of the hitch.
The hitch accepts ball mounts with a maximum rise of 10.5 inches (distance from center of ball hole to center of pin hole) and a minimum rise of 0.75 inches (distance from top of shank to top of ball platform). Safety chain attachments are available: quick link #49131 (5/16 inch, max GVWR 3,500 lb) and quick link #44133 (3/8 inch, max GVWR 3,500 lb), sold separately.
The average installation time for professional installers is 100 minutes. If you do not feel comfortable performing the installation on your own or need assistance, contact a professional installer.
If excess sway occurs, take your foot off the gas pedal and hold the steering wheel as steady as possible. Do not apply your brakes and do not speed up. Maintain steady control until the sway subsides.
Hitch 76915 is a weight carrying hitch with a maximum GVWR of 3,500 lb and maximum tongue weight of 350 lb. Weight distributing hitches are listed as N/A for this model, indicating they are not applicable to this hitch design.
The studs may need to be bent or ground down to ensure proper fitment. Use a die grinder to grind down the studs as shown in Figure 4 of the installation manual. Verify fitment after loosely installing the hitch and before final tightening.
Ensure all fasteners are tightened to the correct torque specification: 76 Lb-Ft (103 N·M) for M12 frame mounting fasteners and 92 Lb-Ft (125 N·M) for receiver housing fasteners. Use a torque wrench to achieve proper torque. Verify that conical tooth washers are installed with teeth facing against the hitch. Check fasteners frequently during use and retighten if necessary.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent entry of water and exhaust fumes. If the hitch remains installed, ensure the bumper fascia and appearance panel are properly reinstalled and sealed after trimming.
The manual specifies trimming a 6.5 inches tall by 10 inches wide area with rounded corners to retain the holes in the bumper fascia. If damage occurs, ensure you are cutting in the correct location (center of bottom bumper fascia) and using a utility knife with a straight edge. If the fascia is damaged beyond repair, it may need to be replaced.
Yes, a compatible bike rack, cargo carrier or other accessory with a 2" x 2" shank can generally be used. Make sure the accessory does not exceed the hitch’s tongue weight rating, the vehicle’s limits or the accessory manufacturer’s capacity. Account for the combined weight of the carrier and everything loaded onto it.
